Kamoer KXP100 User manual

KXP 100
Stepper Micropump
Quick Start Guide
A0 2021/11/18
Kamoer Fluid Tech(Shanghai) Co.,Ltd.
www.kamoer.com

1
Know KXP 100
KXP 100 is a stepping peristaltic pump with low flow and high precision. It has the
advantages of high precision, screen display, low noise, maintenance free and so on. This
product can be operated by buttons and knobs or remotely controlled by mobile phone
through Wi-Fi. It is mainly used in liquid laboratory, marine biological culture and other
scenes which need high precision peristaltic pump.

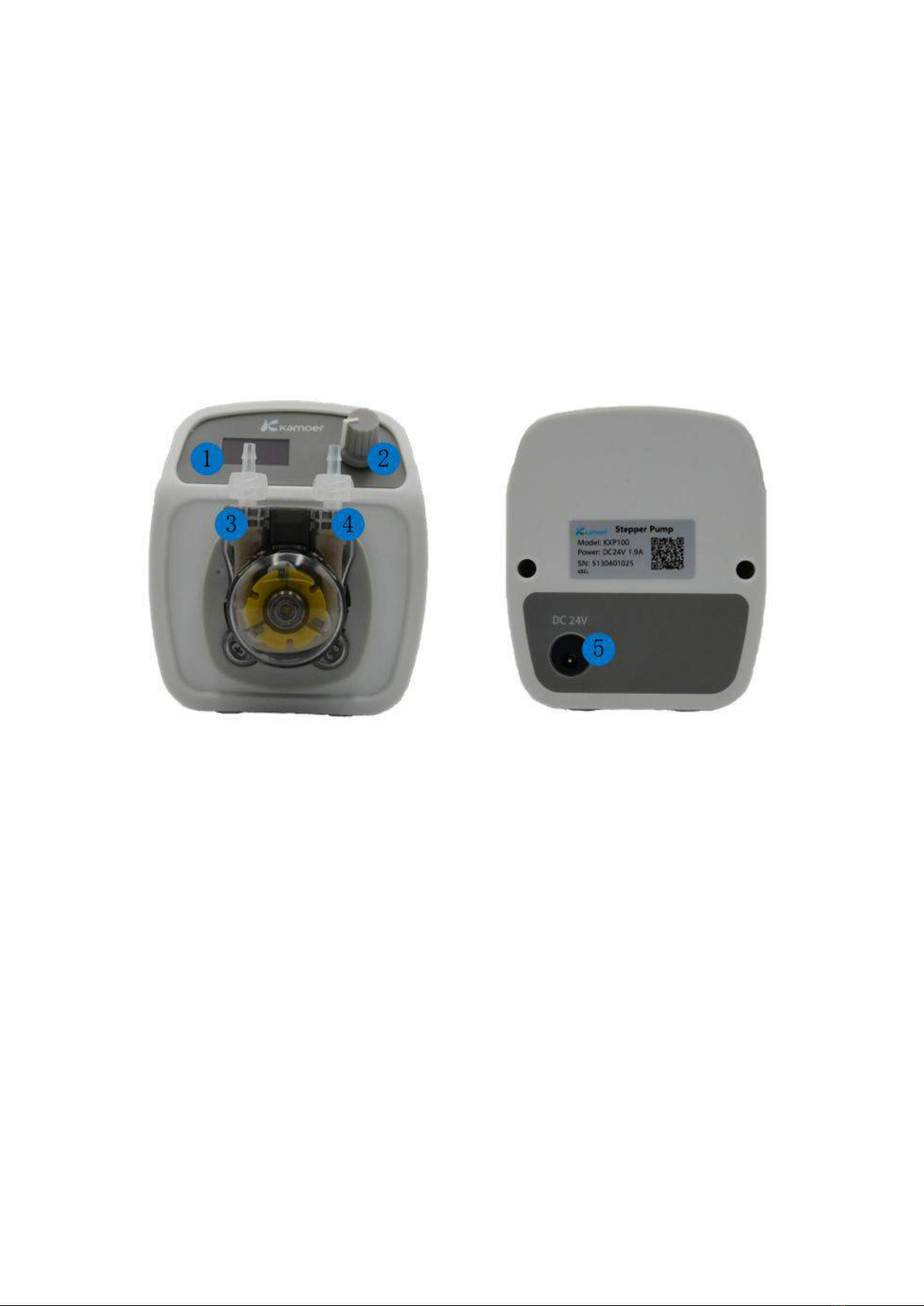

1.Display 2.Adjustment Knob
3.Inlet 4.Outlet 5.DC 24V
Unpacking Preparation
Before opening the packing box, check whether the package is damaged during
transportation. After opening the packing box, refer to the packing list in the appendix to
confirm that there are no missing parts and check whether there are visible damages. If
any defects are found in the process of unpacking, please contact the manufacturer
immediately.

2
Local Control
Device menu description
When the device is stopped, rotate the button to enter the device menu page. Users can
use the knob to switch between different options. When the cursor is on an option, press
the button to enter the interface corresponding to the option
Manual: Enter manual mode;
Auto: Enter automatic mode;
Calibration: Enter the calibration page;
Wi-Fi: Click to enter the device's network distribution function interface. For specific
operations, please refer to the App network distribution chapter;
Language: Enter the language change interface;
Set: Display the serial number of the device and the interface for restoring factory
settings.
Restart: Enter the restart record interface, you can set whether the pump will record
after restart and restore the running state before restart.
Manual working mode
a.Working mode display: the functional position of the display interface is manual;
b.Network connection status display:
NET O: indicates that the network connection is normal, and the device can be
connected through the App at this time;
NET S: indicates that the device is in the state of network distribution, and the user needs
to complete the network configuration before it can connect to the network normally;

3
NET F1: indicates that the device failed to connect to the router;
NET F2: indicates that the device successfully connected to the router, but failed to
connect to the cloud;
c.Running time display: press the knob, the device starts to work, the running time is
recorded at the bottom of the screen, and * is displayed on the right side of the time;
d.Flow rate display: the flow rate and speed of the device are running. When the
device is running, the flow rate and speed can be adjusted by adjusting the knob;
e.Rotation speed display: display the rotation speed of the device. When the device is
running, you can adjust the rotation speed by adjusting the knob.
Automatic working mode
a.Working mode: the functional position of the display interface is automatic;
b.Network connection status display:
NET O: indicates that the network connection is normal, and the device can be
connected through the App at this time;
NET S: indicates that the device is in the state of network distribution, and the user
needs to complete the network configuration before it can connect to the network
normally;
NET F1: indicates that the device failed to connect to the router;
NET F2: indicates that the device successfully connected to the router, but failed to
connect to the cloud;
c.Start and stop display: press the knob, the device starts to work, at this time the
state is "start", press the knob again, the device stops working, and the state is"stop"
d.Running time: display the running time or volume of the device in the current
working mode;
e.Operation mode display: the operation mode of the equipment operation, "L & V" is
the volume circulation mode, "T & S" is the time circulation mode;

4
f.Interval duration display: the interval duration of each cycle;
g.Rotation / flow rate display: "T & S" mode is the speed set for the current cycle; "L & V"
mode is the speed set for the current cycle.
Calibration
a.calibrate: the title bar of the interface, when the cursor is on the title bar, press the
button, the device returns to the upper interface;
b.Rotation speed: set the rotation speed during calibration, you can rotate the cursor
to the rotation speed by rotating the button, press the button to enter the edit mode,
adjust the rotation speed by rotating the button, press the knob again to exit the speed
editing mode;
c.Calibration time: the calibration time is fixed at 60 seconds. When the cursor is on the
calibration time, press the button to start the calibration. When the 60-second
countdown is completed, the user enters the obtained liquid volume into the device to
complete the calibration;
d.Flow rate: the flow rate corresponding to the current speed. When the calibration is
completed, the user enters the obtained liquid volume to complete the calibration.
The specific calibration process is as follows:
Prepare a graduated cylinder, put the outlet pipe of the equipment into the graduated
cylinder, put the water into the water inlet, prepare for calibration;

5
a.Rotate the button to move the cursor to the speed selection item;
b.Press the button to enter the edit mode, rotate the button to adjust the speed, press
the button again after editing to save and exit the edit mode;
c.Rotate the button to the calibration duration item, and press the button to start ;
d.Wait for the calibration countdown to finish;
e.When the calibration countdown is completed, enter the calibration result state, enter
the volume of the liquid in the measuring cylinder into the interface through the rotary
button, press the button to complete the input,
f.Press the button again to complete the input.
Other
a.Screen lock state: If the user does not operate the device for a long time, the device
screen will enter the screen saver state. Under the screen saver state, an L letter will be
displayed on the screen, and it will be dynamically displayed line by line from top to
bottom. When using the knob to operate the device, You need to unlock the screen to
operate, press the knob to unlock the screen.
b.App control: The interface displayed when the phone is in App control. When the
interface is in App control, the knob cannot control the device.

6
App Control
Download the app
1. Scan the box or the QR Code below to find the application download with the
following icon.
2. Apple users enter the App Store application store, Android users enter the Google Play
application store, search for "Kamoer Remote", find the application download
corresponding to the icon.
Note: This App supports Apple devices with iOS9.1 and above, and Android
devices with Android4.4 and above.

7

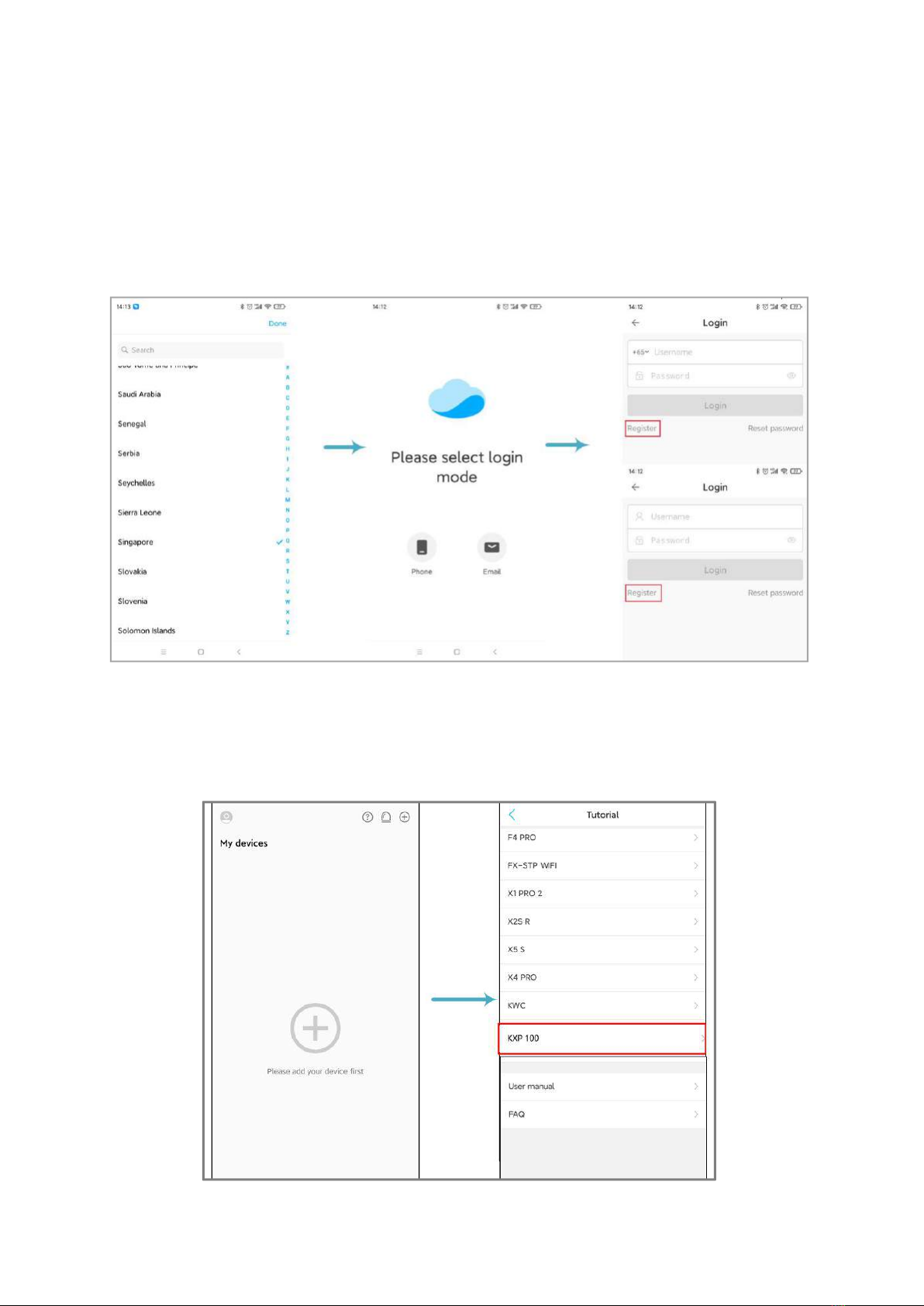

Register account
Open the App, select the phone registration or email registration method, and follow the
App guidelines to complete the account registration.
Note: region selection is very important, and selection errors will cause network
allocation. It is recommended to select the region by scanning the device QR code.
View the Tutorial
On the device list page, click the "?" icon in the upper right corner to enter the "Tutorial"
page, and select "KXP 100" to view the tutorial. The tutorial includes the user manual and
frequently asked questions.

8
Connect The Device To The Cloud
This device supports knob operation and remote control by mobile phone App. If you
want to control by mobile phone app, you need to configure the device to connect to
Wi-Fi network first.
1. The wireless router has been connected to the Internet, and the mobile phone is
connected to the 2.4G Wi-Fi hotspot of the wireless router (the device does not support
5G Wi-Fi and cannot use 5G Wi Fi hotspot).
2. Open the Kamoer Remote App, log in with the registered account, click the "+" icon in
the upper right corner, select "Add device", and select "KXP 100" in the list of supported
devices to add.
3. After inputting the Wi-Fi password, select the device as shown in the figure above by
operating the device knob to make the device enter the network configuration state,
and complete the network configuration according to the interface prompt.
4. If select configure network by router, the device will display Sta Setting, and switch to
By Router in the upper right corner of the corresponding mobile App interface. Click the
""Sat Setting..."is on display"Button to enter the configure network by router. Wait for
the network configuration to complete.
5. If you select configure network by AP, the device will display AP Setting, select
Connect by AP in the App interface of the corresponding mobile phone, and click the
""AP Setting..." is on display"button to enter configure network by AP. Complete the
network configuration according to the interface prompt.

9
6. After the connection is successful, the App will prompt that the connection is
successful. At this time, the device will return to the home page, and net o will be
displayed in the upper right corner, which means that the device has been connected to
the cloud. At this time, the user has also completed the binding of App and device.
Unbind
Long press the device icon on the device list page, click the "Delete" icon at the
bottom to release the binding
Note
Please use the product's own power adapter and work in the specified working
environment.
This product only supports 2.4G Wi-Fi, not 5G Wi-Fi.
The equipment should be placed in a reasonable position to ensure that the height
difference between the liquid inlet and the liquid outlet is within 0.5 meters.
The connecting pipe for liquid inlet should be as short as possible, and the
connecting pipe for liquid outlet should be suspended above the tank.
Please carefully check whether the connection direction of the liquid inlet and liquid
outlet is correct, and must not be reversed

10
Technical Parameters
Dimensions (Lx W x H)
75x70x110mm
Weight
534g (power adapter is not included)
Power Adapter
Input: 100VAC -240VAC
Output: DC24V 1.9A
Pump Parameter
Pump Head: KPAS100
Flow: <=110ml/min
Precision: <±2%
Interface
Adjustment knob/Wi-Fi
Working Environment
Temperatures: 0 - 70 ° C,
Humidity: 10% - 90% (non-condensation)
Storage Environment
Temperature -20°C – 85°C
Humidity 10% - 90% (non-condensation)
Packing List
No
Name
Model
Unit
Qty
01
Controller
KXP 100
pcs
1
02
Power adapter body
DC24V 1.9A
pcs
1
03
Power adapter plug
□US □UK □EU □AU
pcs
1
04
Connecting tube
Silica Gel
meter
2
05
Grease
FT-2;10g
pcs
1
06
Quick Start Guide
English
pcs
1

Warranty service
Warranty service is only valid for users who are correctly installed, used and maintained
according to the manual. Any malfunction or damage is not covered by the warranty.
Please keep your purchase voucher properly so that you can get satisfactory after-sales
service in time.
The company will provide free warranty service for any damage caused by manufacturing
processes or components within one year from the date of purchase. The free repair
service provided during the warranty period includes free repair, free replacement and
replacement of faulty spare parts, and products that cannot be repaired are replaced by
the same model. The free service does not include shipping costs for the product due to
repairs.
Kamoer Fluid Tech (Shanghai) Co., Ltd.
Addr: Building 4, No.79 Xiangjing Road, Songjiang District,Shanghai
website：www.kamoer.com
Kamoer is registered trademark of Kamoer Fluid Tech (Shanghai) Co., Ltd. We reserve
the right to improve or alter appearance and technical specifications without notice.
