KSP-F01A Dosing Pump User Manual
1
KSP-F01A Dosing Pump
User Manual
Kamoer fluid tech (shanghai) Co.,Ltd.
www.kamoer.com

KSP-F01A Dosing Pump User Manual
2
Warranty
We warrant your product against any defect in material and workmanship, under
normal use. In the event a product is found to be defective within the warranty
period of one year, we will, at our option, repair or replace the defective product.
The warranty period starts at the day of purchase. For warranty validation, a proof of
purchase must be furnished.
The followings are excluded from the warranty:
1.Improper use of the device causing malfunction;
2.The device is repaired or modified by an unauthorized person;
3.Use of non-produced material by our company i.e. pump tube;
4.Damage by disaster;
5.Improper maintenance causing damage;
6.Use of reagent or sample causing corrosion;
7.Damage by accident or over load;
8.Consumables, such as silicone tube and fuse etc.
To obtain warranty support, you may contact our local technical support. Our
technical support will attempt to diagnose and correct the problem. If the
problem cannot be rectified, our technical support will ask you to return the
product. You will be asked to furnish proof of purchase to confirm that the
product is still under warranty.
Kamoer is registered trademark of Kamoer fluid tech (shanghai) Co.,Ltd. We
reserve the right to improve or alter appearance and technical specifications
without notice.

KSP-F01A Dosing Pump User Manual
3
Notice
We have considered user safety in the design process. Please read this manual
carefully. Any improper operation may cause damage or danger.
1. Safety
The product belongs to Active Products. To avoid danger, you should
observe the following rules.
If you find any visible damage, please do not switch on;
Be sure not to add any acid, alkali, or volatile solvents;
Be sure not to use in humid environment, avoid damage by short circuit;
Temperature change or mechanical wear may increase the volume error.
2. Defect and anomalous situation
You must stop any operation immediately if the equipment is damaged. The
equipment may be damaged when the following situations occur:
1) There is visual damage.
2) The product suddenly does not work.
3) The product is located in an inappropriate position.
3. Caution
Avoid the main-body falling into the water, don’t risk the electronic components
causing a short circuit.
Avoid power adapter being scraped and concaved, especially the pinpoint on the
end of wire.
Don’t tie power adapter on other articles.
Avoid pump pipe being bent as a concave, otherwise it will block up the flowing
liquid.

KSP-F01A Dosing Pump User Manual
4
1 Product introduction
1.1 Features
Powerful function with a compact appearance.
Friend man-machine interface with lcd backlight display and key operation.
Support controlling speed with a speed control knob.
Real time clock, support timing start and stop.
Interval between each run can be set, support cycle run, support time-span run.
Support flow rate calibration.
Support multiple machine use in a series with expansion cable.

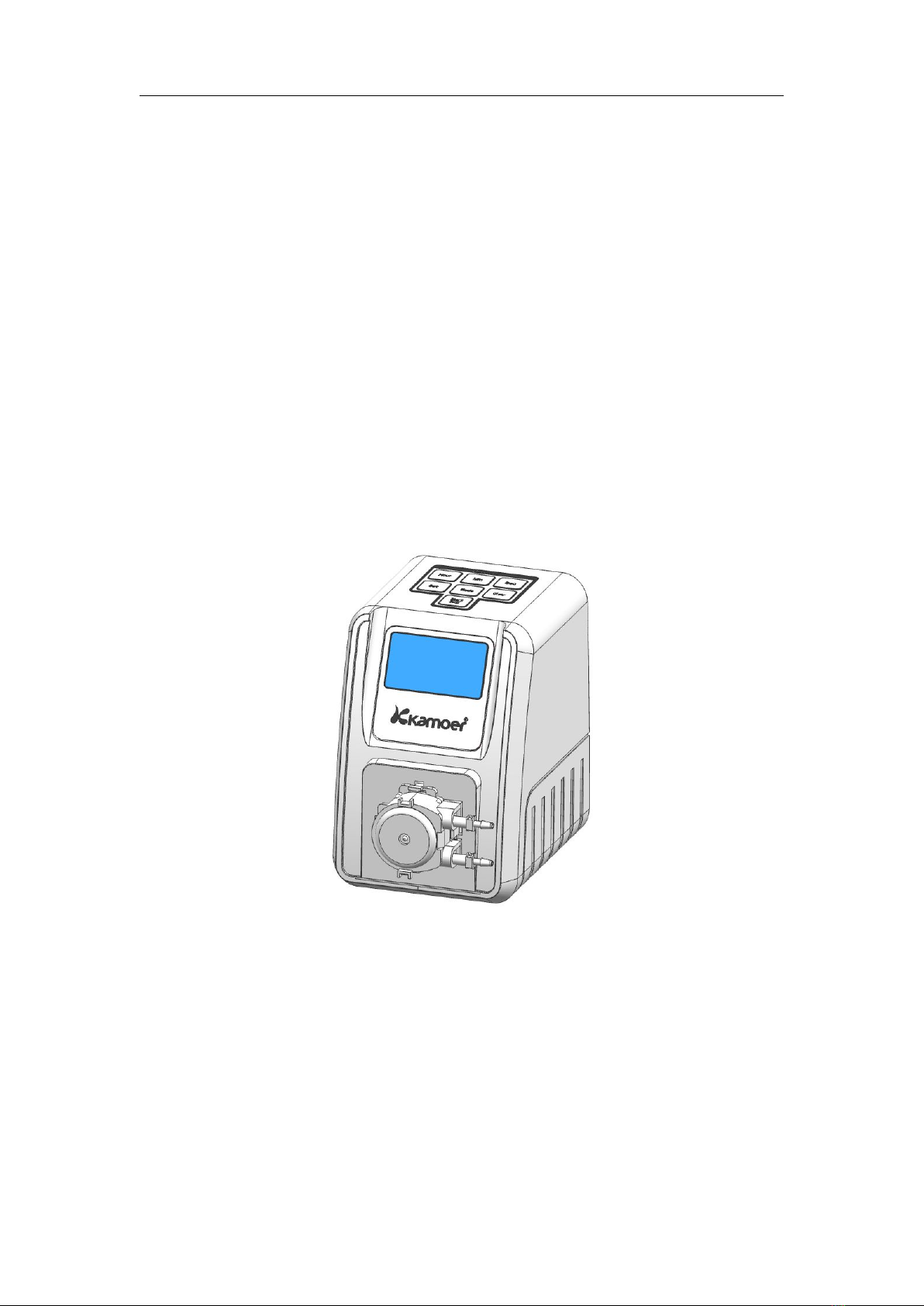

1.2 Parts Name
1. Button 2. LCD display 3. LCD protection screen 4. Pump head component
5. Speed control knob 6. DC 12V IN 7. DC 12V OUT
1.3 Button introduction
Mode key: Switch the interface among Run, Delay, From,
To, Clock and Calibration.
Set key: Click to see the interface filed flicker or not, you
can set parameters when interface filed flicker.
Clear key: Click to clear the parameter of current interface
Start/Stop key: Click to run pump when pump stops, and
Click to stop pump when pump runs.

KSP-F01A Dosing Pump User Manual
5
Hour key: Set hundreds place and thousand of volume in run interface, set
volume in calibration interface, set hour in other interface. Click to add one,
press and hold to add continuously.
Min key: Set the unit and decade of volume in run interface, invalid in
calibration interface, set minute in other interface. Click to add one, press and
hold to add continuously.
Sec key: Set decimal places of volume in run interface, set second in other
interface. Click to add one, press and hold to add continuously.
1.4 Display introduction
Run: the filed of run interface
Delay: the filed of delay interface
From: the filed of start time of period interface
To: the filed of end time of period interface
Clock: the filed of clock interface
The pump will enter standby mode when no any action in one minute. In standby
mode, the screen displays current time and the backlight is off, click any key to light
up the backlight only and no any other action will execute.
Note: You can’t set parameters when lock icon displays in the left bottom, it stand
for that the pump is in running status.

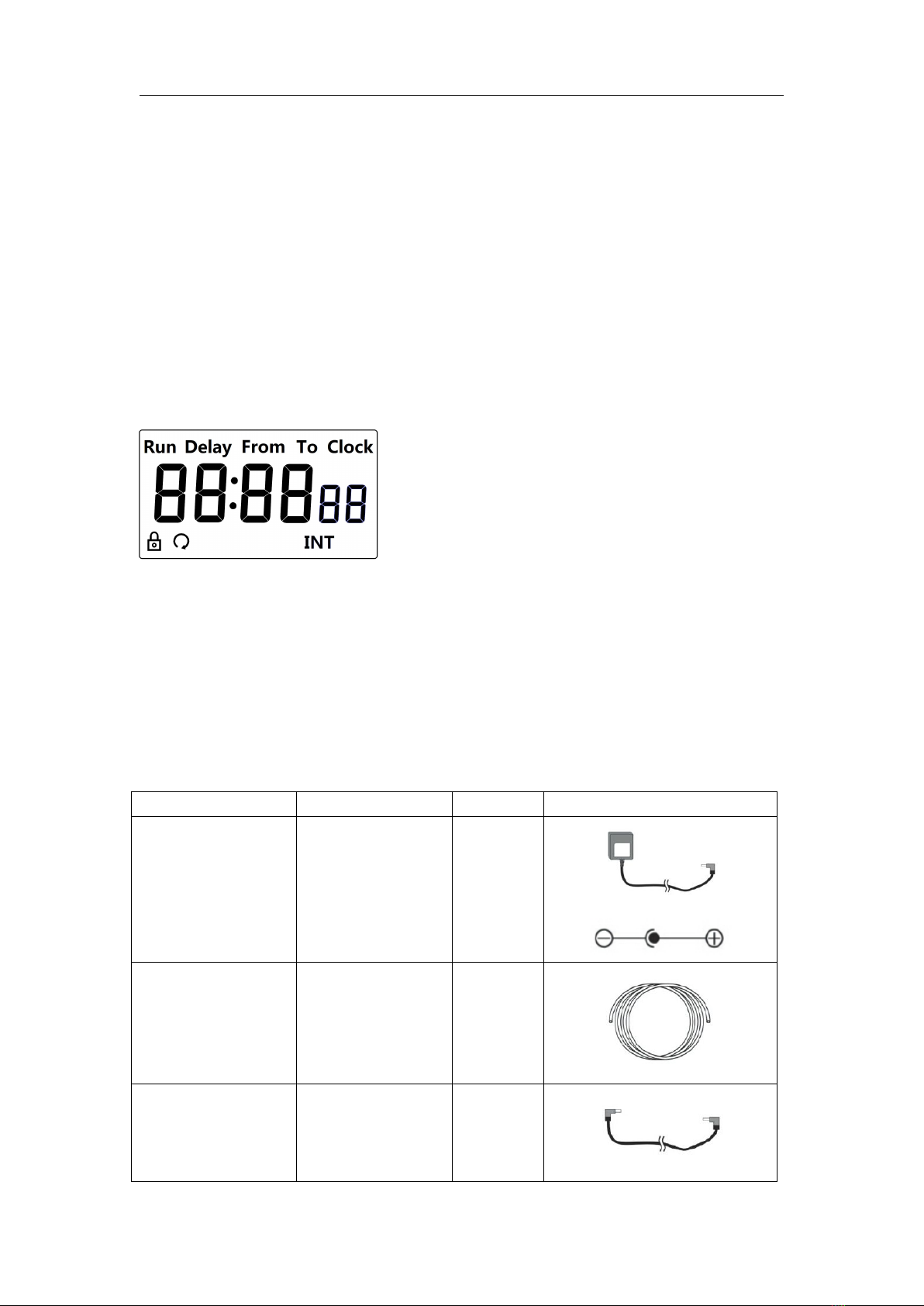

1.5 Accessory
Name
Model
quantity
Power Adapter
Input : see the
adapter tag
Output : DC 12V
1000mA
1pcs
PVC horse
Size: 3*5mm
3 meters
Extension cable
L-Form DC Socket
connector
Size: 5.5*2.1mm
Length :75mm
1pcs

KSP-F01A Dosing Pump User Manual
6
Plastic measuring
cylinder
10ml
1pcs
User manual
1pcs
Certification
1pcs

KSP-F01A Dosing Pump User Manual
7
1 Interface introduction
2.1 Run interface
The value stand for volume, the unit is milliliter, the high
digital stand for integer, the short digital stand for decimal,
the range of volume is between 0.01 to 9999.99 milliliter.
Hour key sets hundreds place, Min key sets the unit and
decade, Sec key sets decimal place.
2.2 Delay interface
The waiting time between each running, the range of delay
time is from 1 second to 99 hours 59 minutes and 59 seconds.
Hour key sets hour, Min key sets minute and Sec key sets
second.
2.3 Start time interface and end time interface in time period
From stands for the start time in time
period, To stands for the end time in
time period, pump runs in the time
period and stops outside of the time
period.
2.4 Clock interface
Set and see current time.
2.4 Calibration interface
The high digital stands for calibration volume, the unit is
milliliter. The short digital stands for calibration time, the unit
is second.

KSP-F01A Dosing Pump User Manual
8
3 Installation
1. Lay on the desktop, plug in the pump 2. Put PVC tube into the joint for plastic
shown as the picture. tube.
3. Immerse the PVC tube inlet into the 4. Power adapter plugged into AC power
fluid container, while put the outlet into socket, output terminal plugged into
the fish tank (head is around 2 meters). DC 12V IN socket of the dosing pump.
By using the attached extension cable, one adapter can support up to 3 sets of
machine running at the same time, in the same way, two adapters for 6 sets of
machine.

KSP-F01A Dosing Pump User Manual
9
4 Operation mode

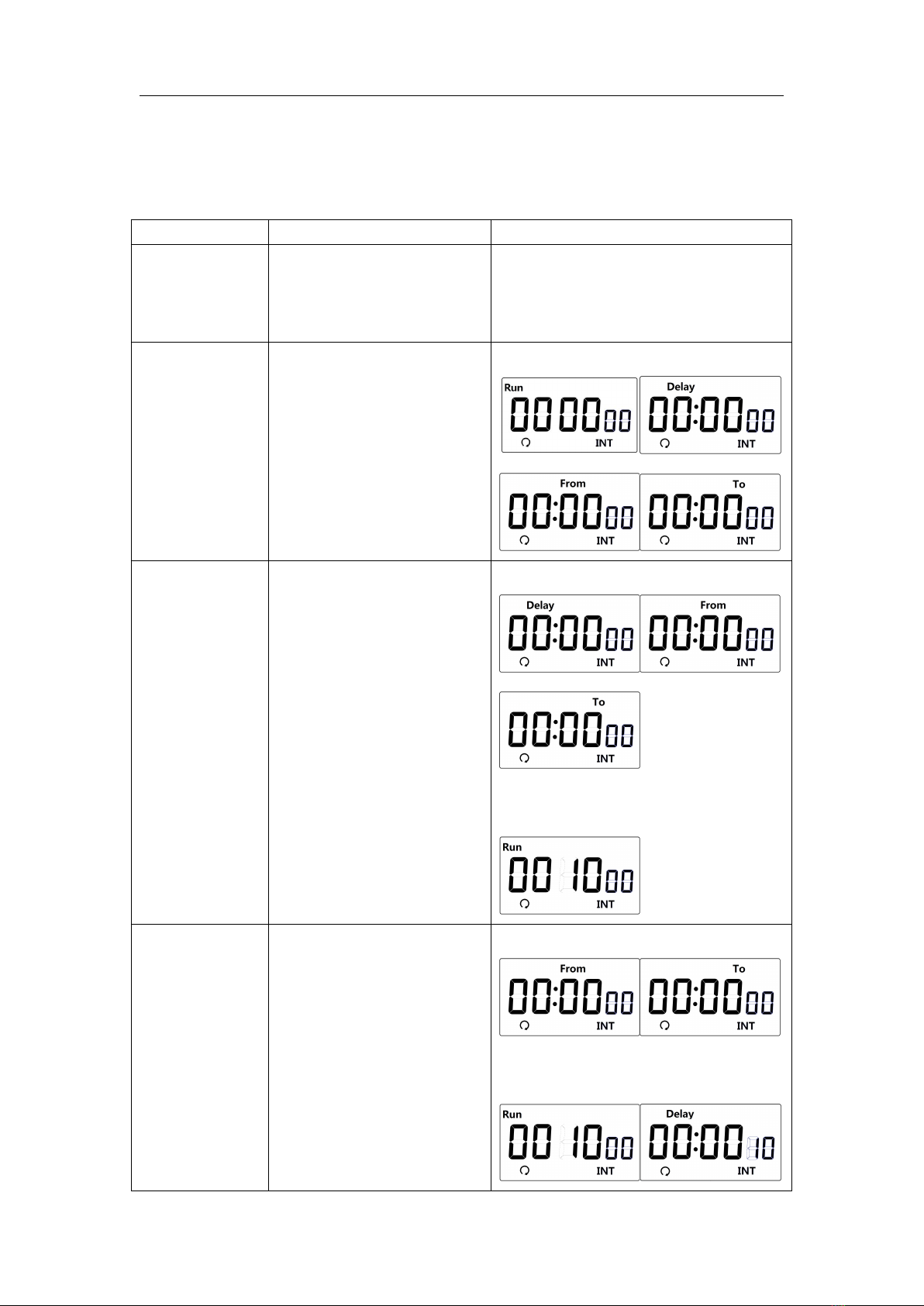

The dosing pump can support seven operation modes as below:
Mode
Description
Parameter setting
Manual
Start and stop the pump
manually
Continuous
Stop the pump manually
while it is running
Run,Delay,From,To are set to 0
Add fixed
amount a single
time
Automatically stop after
reaching the specified
volume.
Delay,From,To are set to 0
Run cannot be set as 0

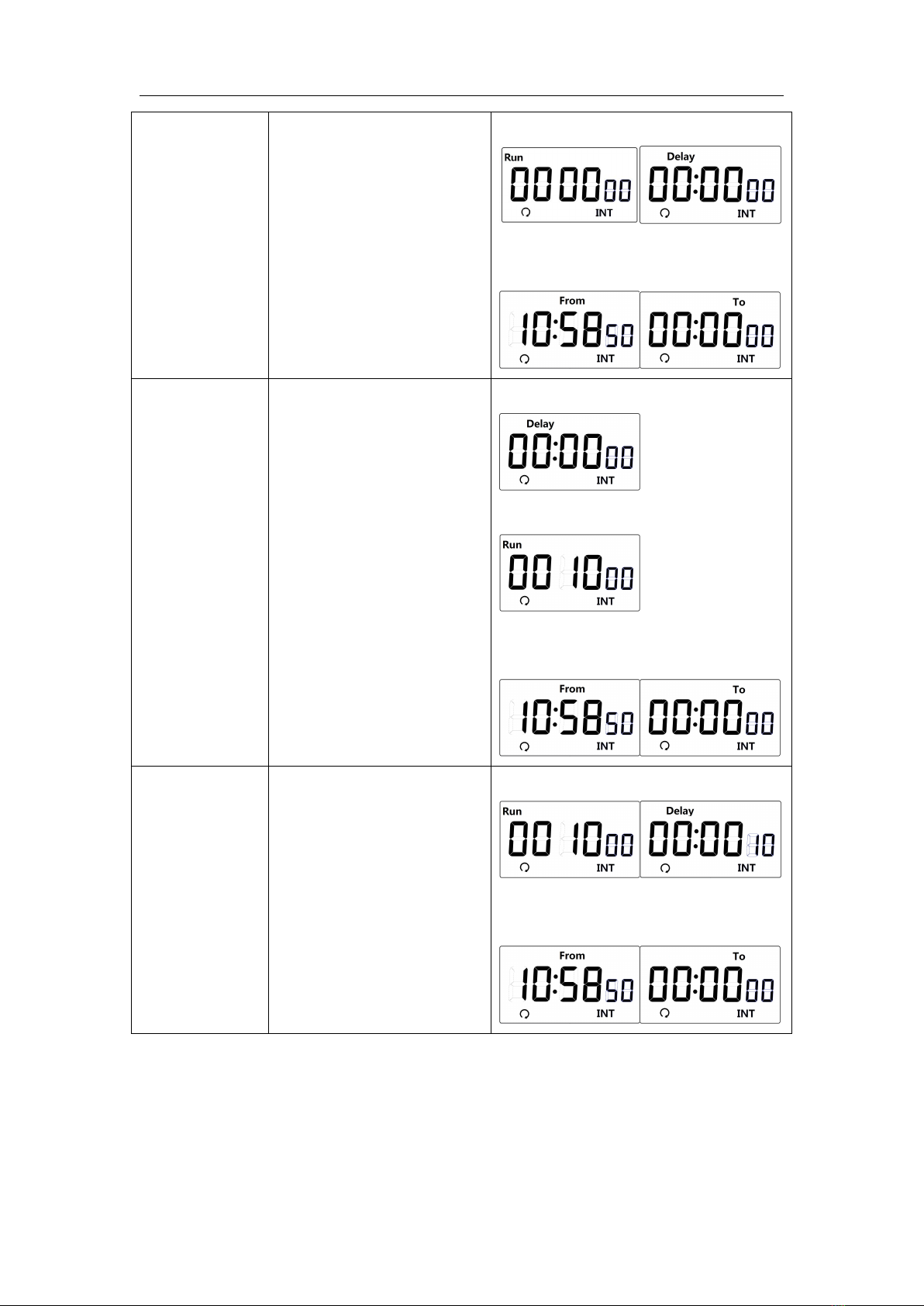

Periodically add
fixed amount
Delay a certain time after
adding to the specified
volume, after that, the
pump is operated as the
same way.
From and To are set to 0
Run and Delay cannot be set as 0

KSP-F01A Dosing Pump User Manual
10
Add
continuously
during a certain
time period
Pump is running
continuously during a
specified time period;
pump stops running in
other time periods.
Run and Delay are set to 0
For From and To, at least one
parameter cannot be 0.
Add fixed
amount a single
time during a
certain time
period
Pump stops automatically
after reaching specified
volume during a specified
time period; pump stops
running in other time
periods.
Delay is 0
Run cannot be 0
For From and To, at least one
parameter cannot be 0.
Periodically add
fixed amount
during a certain
time period
During a certain time
period, delay some time
after the pump is added to
specified volume, after
that, pump is operated as
the same way; pump stops
running in other time
periods.
Run and Delay cannot be 0
For From and To, at least one
parameter cannot be 0.
After set the parameters, press Start/Stop key to start, and press Start/Stop key to
stop while the pump is running.
Among these operation modes, most users prefer to periodically add fixed amount
during a certain time period.

KSP-F01A Dosing Pump User Manual
11
5 Flow rate adjustment
User can adjust dosing flow rate through turning the backside rotary knob of the
dosing pump.
Whenever the dosing pump is in a state of power off, running (with immediate
effect), waiting and standby, the rotary knob becomes effective immediately.
Provided the rotary knob is turned, new flow rate will be shown at the next dosing.
Note: when fixed dosing amount is a must, re-calibration is necessary after the flow
rate is adjusted.
6 Calibration
6.1 Overview
Calibration is a process to determine accurate flow rate by using a proper measuring
tool to measure added volume during a certain time period. (10ml measuring
cylinder is delivered for free with the machine, for more accurate flow rate, a larger
measuring cylinder can be used). Pump is needed to be calibrated under the
following occasions:
Dosing pump used for the first time;
After running for a long time, the displayed flow rate is quite different from
actual flow rate (pump may be wore);
Flow rate is adjusted by using rotary knob.
6.2 Operation
Switch to calibration interface through Mode key, set calibration volume by pressing
Hour key (setting after calibration is also workable), press Start/Stop key to start
calibration and timing at the same time, when reaching the specified volume, press
Start/Stop key to stop the pump, the time shown is dosing time, at this point:
Switch to other interfaces by pressing Mode key, calibration parameters can also
be saved at this time;
Restore the previous calibration parameters by pressing Clear key;
Press Start/Stop key to re-start calibration.

KSP-F01A Dosing Pump User Manual
12
7 Application
For better understanding customers’ needs and testing our dosing pump’s
performance, our company resorts to senior coral experts to take care of our coral
tanks by using KSP-F01A dosing pump to add nutrient solution (Ca, Mg, KH etc.)
Coral tank volume: 360L
Living beings: six SPS, five LPS; four fishes and eight other else.
Dosing liquid: Kamoer dosing liquid (Ca, Mg, KH)
Dosing amount: 20ml bio-calcium (take bio-calcium as an example)
Dosing times: four times per day

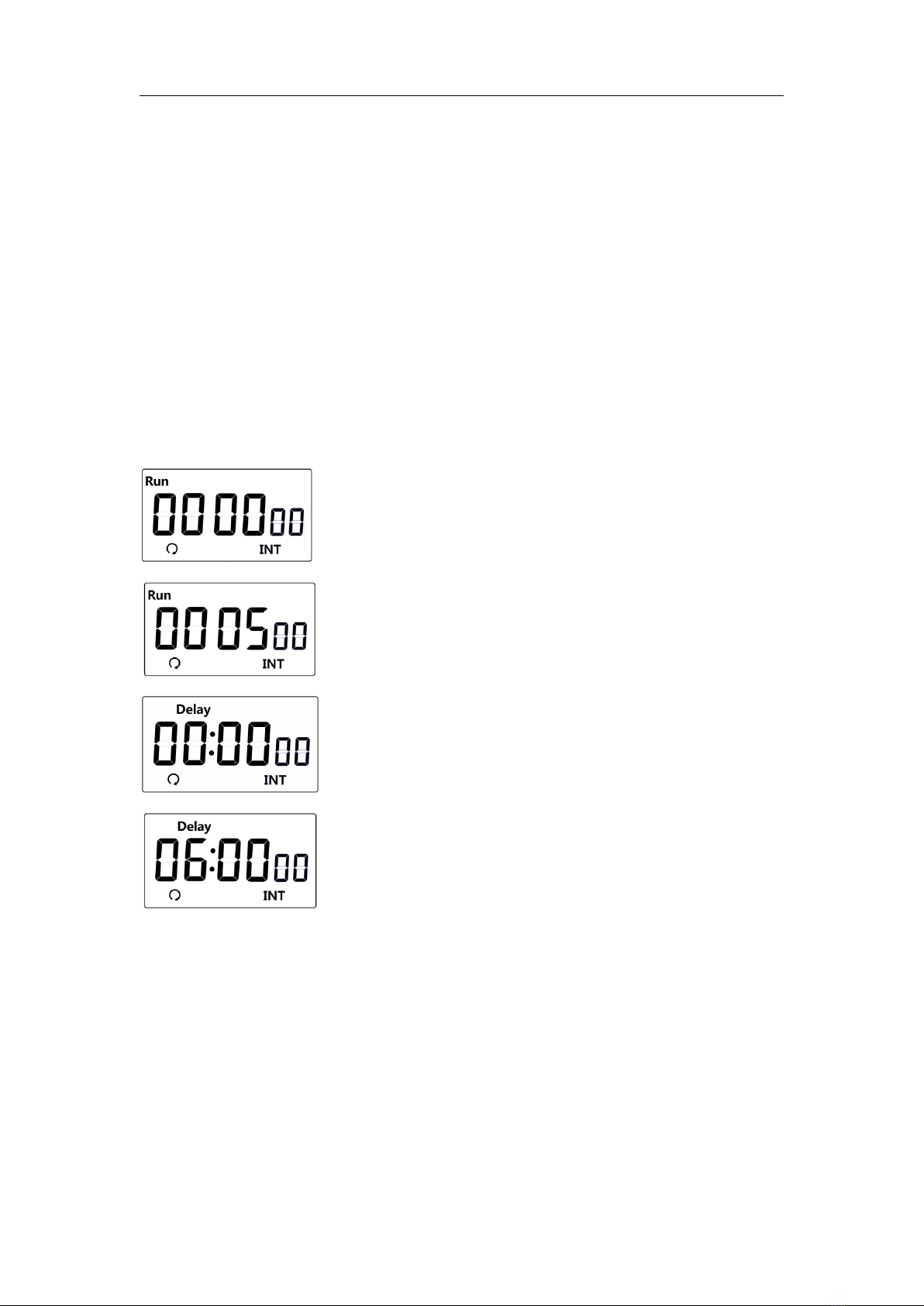

KSP-F01A dosing pump setting:
Set rotary knob, calibrate 40ml(notice: re-calibration for setting rotary knob each
time), add four times for adding 20ml, add 5ml each time,
Switch to Run interface by pressing Mode key, press Set key
to set;
Set 5ml by pressing Min key;
Switch to Delay interface by pressing Mode key;
Set 6h by pressing Hour key, exit setup by re-pressing Set
key;
After setting, press Start/Stop key to run.

KSP-F01A Dosing Pump User Manual
13
8 Maintenance
The pump head components and motors are consumables, regularly replace them is
necessary.
Pump head components: replace them after running 1000 hours.
Motor: replace it after running 800 hours.
If they are used under high-load, high-humidity or environments full of dust, replace
them according to the dosing pump’s actual status.
9 Specifications
Model
KSP-F01A-DC-A/B
Adapter
Input
AC 100-240V 50-60Hz 1.0A max
Output
DC 12V 1A
power supply
12W
Adding times
96 times/day- one time/4 days
Volume range
1ml-9999ml
Precision
<±2%
Working environment
temperature
0-70℃
Storage environment
humidity
10%-90%（non-condensible）
temperature
-20℃-85℃
humidity
10%-90%（non-condensible）
dimensions(L*W*H)
200*170*110mm
Weight
660g
Kamoer is registered trademark of Kamoer fluid tech (shanghai) Co.,Ltd. We
reserve the right to improve or alter appearance and technical specifications
without notice.
