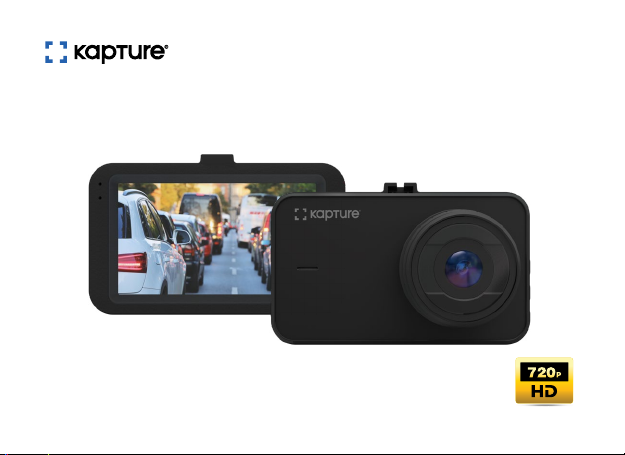

Kapture KPT-510 User manual

USER MANUAL
HD Dash Camera with
3.0” IPS Screen + 24 Hr Parkmode
KPT-510

1
CONTENTS
1.0 CAUTION .............................................................................................................................4
1.1 Battery Warning............................................................................................................. 5
1.2 Product Information ......................................................................................................6
2.0 INTRODUCTION .................................................................................................................7
2.1 Package Contents..........................................................................................................8
2.2 Product Overview...........................................................................................................9
3.0 BUTTON FUNCTIONS......................................................................................................10
4.0 GETTING STARTED...........................................................................................................11
4.1 Inserting a Micro SD Card...........................................................................................11
4.2 Removing a Micro SD Card ........................................................................................ 12
4.3 Installing the KPT-510 ................................................................................................. 13
4.4 Connecting to Power................................................................................................... 13
4.5 LED Indicator ................................................................................................................ 15

2
5.0 POWERING THE KPT510 ONOFF ............................................................................... 15
5.1 Auto Power On/Off ..................................................................................................... 15
5.2 Manual Power On......................................................................................................... 15
5.3 Manual Power Off ....................................................................................................... 16
5.4 Reset the Car DVR ....................................................................................................... 16
6.0 INITIAL SETTINGS............................................................................................................ 16
6.1 Formatting the Inserted Micro SD Card................................................................. 16
7.0 SETTING THE TIME AND DATE ...................................................................................... 17
8.0 VIDEO MODE.................................................................................................................... 18
9.0 INTERFACE ..................................................................................................................... 20
9.1 Video Mode .................................................................................................................... 21
9.2 SetTINGS Menu ............................................................................................................ 22
10.0 VIDEO MENU ....................................................................................................................23
11.0 SETUP MENU....................................................................................................................26

3
12.0 PICTURE MODE............................................................................................................... 28
13.0 PLAYBACK ........................................................................................................................29
13.1 Removing the Existing 3M Mount from my Windscreen .................................... 30
14.0 WARRANTY TERMS & CONDITIONS ........................................................................... 30
15.0 INDEMNITY .......................................................................................................................32
16.0 WARRANTY AND WARRANTY DISCLAIMER...............................................................32
17.0 LIMITATIONS OF KAPTURE LIABILITY .........................................................................36

4
1.0 CAUTION
• Ensure you are using your Car Dash Cam within your countries’ road laws.
Please make sure you are familiar with your local road legislation before use.
• Avoid leaving your Dash Cam in direct sunlight for extended periods of time in
an unventilated space.
• Please set time and date before you use this device to record.
• The notiications given by the Car Dash Cam are suggestions only, please drive
to the actual conditions.
• The values displayed in this system, such as speed, position, and the distance
warning, may be affected by the surrounding environment.
• The system is to be used only for non-commercial use, within the limits
permitted by the relevant laws.
• Avoid using the Car Dash Cam near any devices that emit radio interference
(e.g. Microwave Ovens).
• It is considered normal operation for the Car Dash Cam to get warm during
use.

5
1.1 BATTERY WARNING
• Always charge the Car Dash Cam using the provided charger. Improper
charging of the Car Dash Cam may result in failure of the internal battery.
• Never dismantle the Car Dash Cam or expose the internal battery.
• Do not dispose of the Car Dash Cam in ire.
• Dispose of the Car Dash Cam observing local regulations being mindful of the
internal battery.
• Do not attempt to replace or expose the internal battery.

6
NOTES ON INSTALLATION
• It is advised that the Car Dash Cam is installed near the rear view mirror, at
the top centre of the windshield for optimal operation.
• Make sure that the lens is within the range of the windscreen wiper to ensure
a clear view when it rains.
• Do not touch the lens with your ingers. Finger prints left on the lens will result
in unclear videos or photos. If photos or videos are blurred, please clean the
lens gently with a microibre cloth.
• Only use the included cable to power the Car Dash Cam.
• The KPT-510 is designed to be constantly connected to the included power
supply, and is NOT designed to be used solely with the camera’s built in
battery.
• Please format the Micro SD card before the initial use. Formatting
instructions are mentioned on section 6.1 on page 16. This will make sure that
the card is ready for your camera.
1.2 PRODUCT INFORMATION
For latest manual and product updates please visit our website at
www.kapturecam.com.au or www.kapturecam.co.nz

7
2.0 INTRODUCTION
Thank you for purchasing a Kapture Dash Cam. Please read through instructions
before attempting to install or use this product.
This User guide is designed to assist with the day to day operation of the KPT-510.
Before attempting to use or install your Kapture KPT-510, please ensure you have
read and understood all of the safety notes below.
• Avoid leaving your KPT-510 in direct sunlight for extended periods of time in an
unventilated space.
• Do not expose your KPT-510 to liquids, excessive dusty conditions or
temperatures exceeding 60°C.
• Only use the included cables to power and charge the KPT-510.
• Please do not attempt to adjust the KPT-510 position or settings whilst you are
operating your vehicle.
• Please clean the windshield thoroughly removing all dust and dirt particles
before ixing the adhesive mount.
• Since the mount sticks on the wind shield with 3M mount, please ensure that
the position of the camera is best located to capture maximum area.

8
• We suggest you to power-on the dash camera and test the playback image on
screen irst prior to removing the 3M tape for installation.
• Only remove the 3M tape when you are satisied that the dash camera
placement and image position are delivering the best possible image and view
of the road ahead.
• Ensure you are using your KPT-510 within your countries’ road laws. Please
make sure you are familiar with your local road legislation before use.
2.1 PACKAGE CONTENTS
Spare 3M Adhesive User Guide
Dash Camera 3M Mount 12/24V Adapter

9
2.2 PRODUCT OVERVIEW
1
32
4
716
11
10
13
12
14 15
89
5
6
1. Rec / OK Button
2. Mode Button
3. Lock Recording Button
4. ON / OFF Power Button
5. Reset
6. Microphone
7. Lens
8. Mini USB power socket
9. Slot for ixing mount
10. Micro SD card slot*
11. Up Button
12. Menu Button
13. Down Button
14. Recording Indicator LED
15. Power ON LED Indicator
16. Display Screen

10
3.0 BUTTON FUNCTIONS
  MODE BUTTON
When Device is not recording, press the mode button to switch between Video
Mode / Photo Mode / Play Back mode.
  OK BUTTON
Press the OK Button to start/stop video recording in Video mode.
Press the OK Button to take photo in Camera mode.
Press the OK Button to play/pause current video on playback mode.
  LOCK FILE BUTTON
When DVR is recording, Press Lock Button to lock the current ile. Locked ile won't
be over recorded during loop recording.
  POWER BUTTON
Press and hold the Power Button to Power Off the Device. Press once to switch
LCD Screen Off however DVR will continue recording.
  UP BUTTON
In the Settings menu use the Up Button to toggle between the settings.
Short press the UP Key to Mute/Unmute inbuilt Microphone.

11
  DOWN BUTTON
In Settings menu use the down key to toggle between the settings.
  MENU BUTTON
Press to enter or exit the Settings Menu.
  RESET BUTTON
Press to reset to factory settings.
  MIC
Microphone Position
  TF CARD SLOT
Micro SD Card Slot. Minimum 16GB and maximum 32 GB, Class 6 SD Card.
  USB INTERFACE
Mini USB Power cable to connect with power adapter provided in the packaging.
4.0 GETTING STARTED
4.1 INSERTING A MICRO SD CARD
With the Car DVR turned off and the screen facing towards you insert your Micro
SD Card (not included) in the slot on the right side of the KPT-510 with the text on
the Micro SD card away from you. Push the memory card in until a click is heard.

12
4.2 REMOVING A MICRO SD CARD
Ensure that the KPT-510 is powered off, and with your thumbnail press in the Micro
SD Card until a click is heard. The Micro SD Card will eject from the KPT-510 when
released.
NOTE:
• Micro SD Card is not included.
• Do not remove or insert the memory card while the Car DVR is turned on as
this may damage the memory card or corrupt the memory card stored data.
• Please use a Class 6 or higher rated micro SD card with a capacity of 16GB
minimum to 32GB maximum.
• Please format the Micro SD card before the initial use. Formatting
instructions are mentioned on section 6.1 on page 16. This will make sure
that the card is ready for your camera.
• When removing the memory card, be careful as the card may eject quickly.
• We recommend that you format the memory card periodically every 2-3
months. This will wipe all iles from the SD card and be ready for continued
use with your Dash Cam. (This should only be done AFTER you have
downloaded all iles from the card.)

13
4.3 INSTALLING THE KPT510
1. Connect the 3M mount from the top of the DVR by sliding in the mount via the
mount attachment slot.
2. Please follow the instructions on page 6 before continuing.
3. Remove the protective stickers from the Car DVR and the 3M Mount.
4. Press the mount base irmly against the windscreen and hold for 30 seconds.
5. Insert the power cable adapter into the dash camera power socket.
4.4 CONNECTING TO POWER
Only use the included charger to power and charge the Car DVR.
1. Once the Car DVR is securely installed on your vehicle’s windscreen, plug the
DC Power Plug into your vehicle’s cigarette lighter socket.
NOTE:
• It is advised that the KPT-510
is installed in the centre of the
windscreen behind the rear view
mirror.

14
2. Run the power cable along your vehicle’s console and windscreen and plug the
USB Micro plug into the Car DVR and the USB A end into the DC Power Plug.
NOTES:
• It is recommended that the Car DVR is installed behind your vehicle’s rear
view mirror.
• Make sure that the camera view is not obstructed by any window tint or any
other objects.
• The KPT-510 is designed to be constantly powered by the included DC Power
Plug. The internal battery is designed to hold saved settings and power the
camera when in Park Mode. The battery is NOT designed for primary use.

15
4.5 LED INDICATOR
• Flashing blue light indicates recording is in progress, while continuous blue light
indicates DVR is not recording.
• Continuous red light indicates the internal battery is charging.
NOTE:
• The KPT-510 is designed to be constantly powered by the included DC Power
Plug. The internal battery is designed to hold saved settings and power the
camera when in Park Mode. The battery is NOT designed for primary use.
5.0 POWERING THE KPT510 ONOFF
5.1 AUTO POWER ONOFF
When the Car DVR is correctly installed and connected to your vehicle’s 12/24v
power supply, the Car DVR will automatically power up and start recording when
the vehicle accessories are activated.
5.2 MANUAL POWER ON
Hold the  Power button on the lower right hand side of the camera until the
Kapture start up screen appears.

16
5.3 MANUAL POWER OFF
Make sure that recording has been stopped and then press the  Power button.
After powering down the device please wait for 10 seconds before turning the Car
DVR back on.
5.4 RESET THE CAR DVR
If the Car DVR does not function normally, try restarting the car DVR. To restart
the car DVR, using a small pin press and hold the Reset button on the bottom side
of the camera.
6.0 INITIAL SETTINGS
Before using the Car DVR we recommend Formatting the Inserted Micro SD Card
and setting the correct Time and Date.
6.1 FORMATTING THE INSERTED MICRO SD CARD
Formatting the Micro SD card will delete all information on the inserted Micro SD
Card and prepare the card for use with the Car DVR.
1. Press the   Button to stop the Car DVR from recording.
2. Press the  Menu Button twice to enter the Settings Menu.

17
3. Use the  and  Buttons to navigate the Setup Menu and highlight the
Format SD Card setting and press the right  to select.
4. Press the  Down Button and select Apply.
5. Press the  OK Button to conirm.
NOTES:
• Menus cannot be accessed while the camera is recording. Please stop the
recording before attempting to access the menu.
• Formatting your Micro SD Card will delete all iles from the card. Once these
iles have been deleted you will not be able to recover them.
7.0 SETTING THE TIME AND DATE
Setting the Time and Date allows you to stamp your footage with the time and
date as a reference.
1. Press the  Button to stop the Car DVR from recording.
2. Press the  Button twice to enter the Settings Menu.
3. Use the  and  Buttons to navigate the Setup Menu and highlight the
Date/Time setting and press the right  button to select.

18
4. Use the  and  buttons to edit the selected digit and the right  
button to conirm and progress to the next digit. The inal ield sets the format
that the date will be presented in, pressing the  button with this ield
highlighted will save the date and time and return you to the settings menu.
NOTES:
• Menus cannot be accessed while the camera is recording. Please stop the
recording before attempting to access the menu.
• Once the time and date is set, it can be stamped onto your footage using the
Date Stamp setting. Please see section Date Stamp for more details.
8.0 VIDEO MODE
When the Car DVR is powered up the video screen will start by default. In this
screen recording will automatically start and can be stopped by pressing the
 Button. To access the Video Menu, ensure that the Car DVR is not recording
then press the   button.
