Kapture KPT-590GPS User manual

1
CONTENTS
1.0 CAUTION .............................................................................................................................4
1.1 Battery Warning............................................................................................................. 5
1.2 Product Information ...................................................................................................... 7
2.0 INTRODUCTION .................................................................................................................7
2.1 Package Contents..........................................................................................................8
2.2 Product Overview...........................................................................................................9
3.0 BUTTON FUNCTIONS......................................................................................................10
4.0 GETTING STARTED...........................................................................................................11
4.1 Inserting a Micro SD Card...........................................................................................11

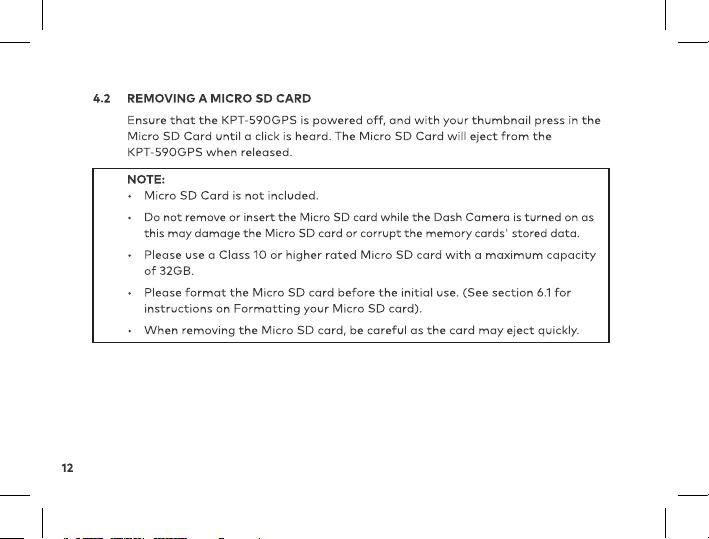

4.2 Removing a Micro SD Card ........................................................................................ 12

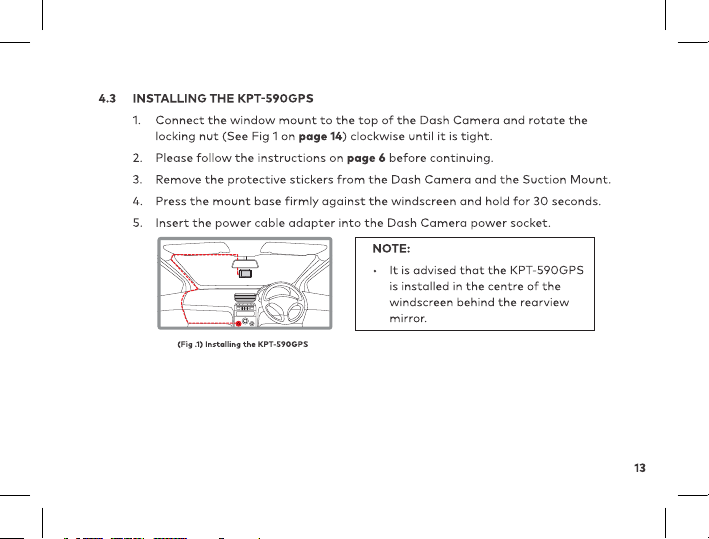

4.3 Installing the KPT-590GPS......................................................................................... 13

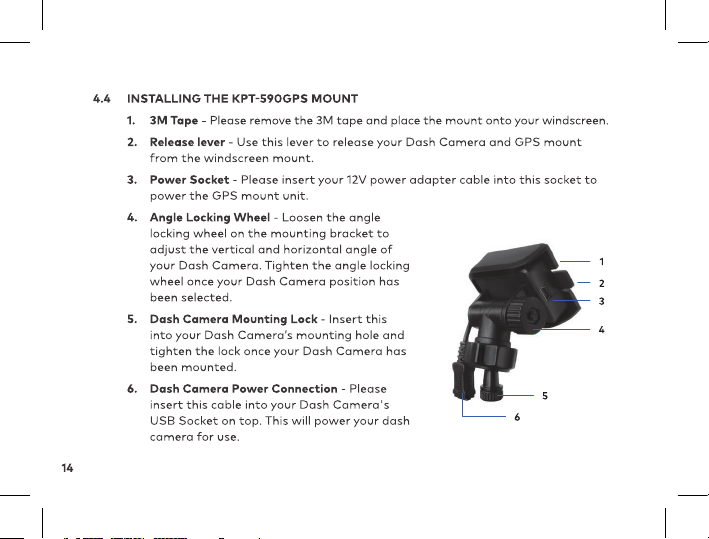

4.4 Installing the KPT-590GPS Mount ........................................................................... 14

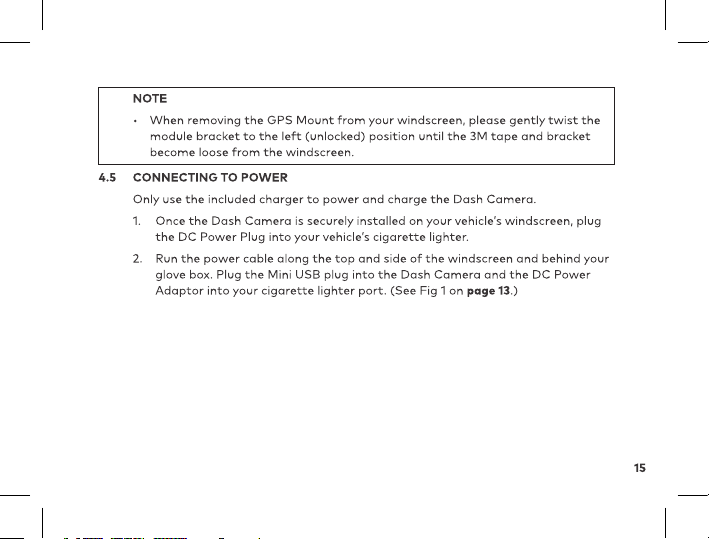

4.5 Connecting to Power................................................................................................... 15

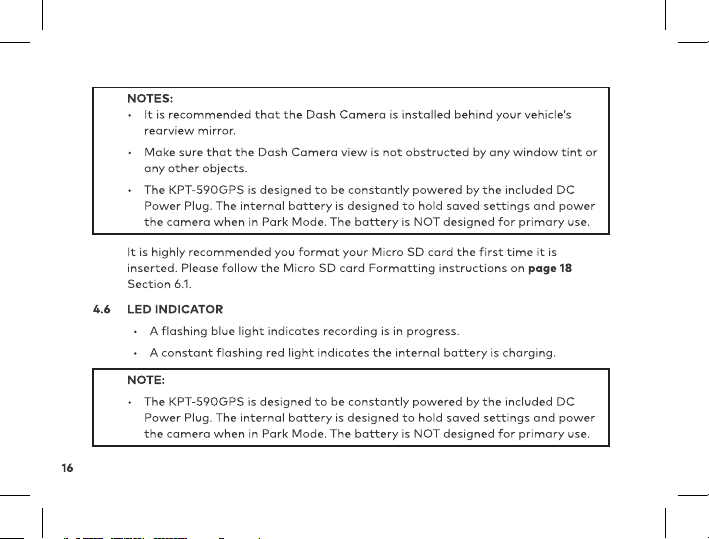

4.6 LED Indicator ................................................................................................................ 16

2
5.0 POWERING THE KPT590GPS ONOFF....................................................................... 17
5.1 Auto Power ONOFF................................................................................................... 17
5.2 Manual Power ON........................................................................................................ 17
5.3 Manual Power OFF ..................................................................................................... 17
5.4 Re-setting the Dash Camera..................................................................................... 17
6.0 INITIAL SETTINGS............................................................................................................ 18
6.1 Formatting the Inserted Micro SD Card................................................................. 18
7.0 SETTING THE TIME AND DATE ...................................................................................... 19
8.0 VIDEO MODE................................................................................................................... 20
9.0 INTERFACE ...................................................................................................................... 21
9.1 Video Mode .................................................................................................................... 21
9.2 Setup Menu ...................................................................................................................22
10.0 VIDEO MENU ....................................................................................................................23
11.0 PICTURE MODE............................................................................................................... 28
12.0 PLAYBACK ........................................................................................................................29

3
13.0 SOFTWARE PLAYBACK ................................................................................................. 30
14.0 WARRANTY TERMS & CONDITIONS ............................................................................ 31
14.1 Indemnity ....................................................................................................................... 32
14.2 Warranty and Warranty Disclaimer.........................................................................32
15.0 NOTES ...............................................................................................................................35

4
1.0 CAUTION
• Ensure you are using your Dash Camera within your countries’ road laws.
Please make sure you are familiar with your local road legislation before use.
• Avoid leaving your Dash Camera in direct sunlight for extended periods of time
in an unventilated space.
• Please set up the time and date before you use this device to record.
• The notiications given by the Dash Camera are suggestions only, please drive
to the actual conditions.
• The results of GPS positioning are for reference only. The Dash Camera will
lose GPS positioning abilities when signal is blocked (e.g. driving through
tunnels, enclosed car parks).
• GPS positioning accuracy may vary depending on weather and surroundings
such as dense cities, tunnels, or forests. GPS satellite signals cannot pass
through most solid materials. Tinted windows may also affect the GPS signal.
• The values displayed in this system, such as speed, position, and the distance
warning, may be affected by the surrounding environment.
• The system is to be used only for non-commercial use, within the limits
permitted by your countries' relevant laws.

5
• Avoid using the Dash Camera near any devices that emit radio interference
(e.g. microwave ovens).
• It is considered normal operation for the Dash Camera to get warm during use.
1.1 BATTERY WARNING
Always power the Dash Camera using the provided charger. Improper charging of
the Dash Camera and may result in failure of the internal battery.
Never dismantle the Dash Camera or expose the internal battery.
Do not dispose of the Dash Camera in ire.
Dispose of the Dash Camera observing local regulations and being mindful of the
internal battery.
Do not attempt to replace or expose the internal battery.

7
1.2 PRODUCT INFORMATION
For the latest manual and product updates please visit our website at
www.kapturecam.com.au or www.kapturecam.co.nz
2.0 INTRODUCTION
Thank you for purchasing a Kapture Dash Camera. Please read through the
instructions before attempting to install or use this product.
This User Guide is designed to assist with the day to day operation of the KPT-590GPS.
Before attempting to use or install your Kapture KPT-590GPS, please ensure you
have read and understood all of the safety notes below.
• Do not expose your KPT-590GPS to liquids, excessive dusty conditions or
temperatures exceeding 60°C.
• Only use the included cables to power and charge the KPT-590GPS.
• Please do not attempt to adjust the KPT-590GPS position or settings whilst
you are driving your vehicle.
• Please clean the windshield thoroughly removing all dust and dirt particles
before ixing the adhesive mount.
• Since the mount sticks on the windshield with the 3M mount, please ensure
that the position of the camera is best located to capture the maximum area.

8
• We suggest you power-on the Dash Camera and test the playback image on
screen irst prior to removing the 3M tape for installation.
• Only remove the 3M tape when you are satisied that the Dash Camera
placement and image position are delivering the best possible image and view
of the road ahead.
• Ensure you are using your KPT-590GPS within your countries’ road laws. Please
make sure you are familiar with your local road legislation before use.
2.1 PACKAGE CONTENTS
KPT-590GPS
Dash Camera 3M GPS Mount Car Charger
Electrostatic
Film x 1
User Guide
Spare 3M
Adhesive

9
2.2 PRODUCT OVERVIEW
12 13 141110
1 3 5 7 9
2 4 6 8
1. Microphone
2. UP button (also ON/OFF audio)
3. REC/OK button
4. DOWN/LOCK button
5. MENU/MODE button
6. Reset
7. Mini USB Power Socket
8. Slot for afixing mount
9. ON/OFF Power button
10. Recording LED Indicator
11. Display Screen
12. Micro SD card slot
13. Speaker
14. Lens

10
3.0 BUTTON FUNCTIONS
MENU & MODE BUTTON
When the device is not recording, press the M button to switch between Video
Mode / Photo Mode / Play Back Mode.
Press and hold the 'M' button to enter into the KPT-590GPS menu settings.
OK BUTTON
Press the OK Button to start/stop video recording in Video Mode. (Please note,
when connected to power and in Video Mode, the KPT-590GPS will automatically
start recording).
Press the OK Button to take a photo in Camera Mode.
Press the OK Button to play/pause the current video in Playback Mode.
POWER BUTTON
Press and hold the Power Button to Power Off the Device. Press once to switch the
LCD Screen OFF, however the Dash Camera will continue recording.
LOCK & DOWN BUTTON
In the Settings menu use the down key to toggle between settings.
While the Dash Camera is recording, press the 'Lock' button to lock the current
ile. Locking a ile will prevent it from being recorded over during loop recording.

11
UP BUTTON
In the Settings menu, use the Up button to toggle between settings.
Press the 'Up' button to turn the inbuilt microphone ON/OFF.
RESET BUTTON
Press to reset to factory settings.
MIC
Microphone Position
TF CARD SLOT
Micro SD Card Slot. Please use Maximum 32 GB, Class 10 and above.
USB INTERFACE
Mini USB socket to connect with power cable provided.
4.0 GETTING STARTED
4.1 INSERTING A MICRO SD CARD
With the Dash Camera turned off and the screen facing towards you insert your
Micro SD Card (not included) in the slot on the right side of the KPT-590GPS with
the text on the Micro SD card away from you. Push the memory card in until a click
is heard.

17
5.0 POWERING THE KPT590GPS ONOFF
5.1 AUTO POWER ONOFF
When the Dash Camera is correctly installed and connected to your vehicle’s power
supply, the Dash Camera will automatically power up and start recording when the
vehicle accessories are activated.
5.2 MANUAL POWER ON
Hold the Power button on the upper right hand side of the camera until the
Kapture start up screen appears.
5.3 MANUAL POWER OFF
Make sure that recording has stopped and then press the Power button on the
upper right hand side of the Dash Camera. After powering down the device, please
wait for 10 seconds before turning the Dash Camera back on.
5.4 RESETTING THE DASH CAMERA
If the Dash Camera does not function normally, try restarting the Dash Camera.
To restart the Dash Camera, using a small pin, press and hold the Reset button on
the bottom side of the camera.
