Kia ADB12F1GG User manual
Car Infotainment System
Quick Reference Guide
Q5MS2-DE000
DE2
(영어 | 일반) 디오디오2Value
USER MANUAL
Manufacturer: Hyundai Mobis Co., Ltd.
Models: ADB12F1GG, ADB10F1GP,
ADB13F1GG, ADB14F1GG, ADB13F1MG,
ADB10F1RP, ADB10F1GN, ADB10F1GL
1
Accessing the web manual via QR
codes
You can view the web manual of the system by scanning QR codes with your smartphone.
Ü Warning
Park your vehicle in a safe location before scanning the QR code. For safety reasons, you are
not able to access QR codes from the system′s screen while the vehicle is moving.
1 Select one of the following methods to access a QR code.
•On the system′s Home screen, press All Menus >User′s Manual.
•On the system′s Home screen, press All Menus >Setup >General >System Info >
User′s Manual on Web (QR Code).
•Alternatively, find the QR code in the Quick Reference Guide.

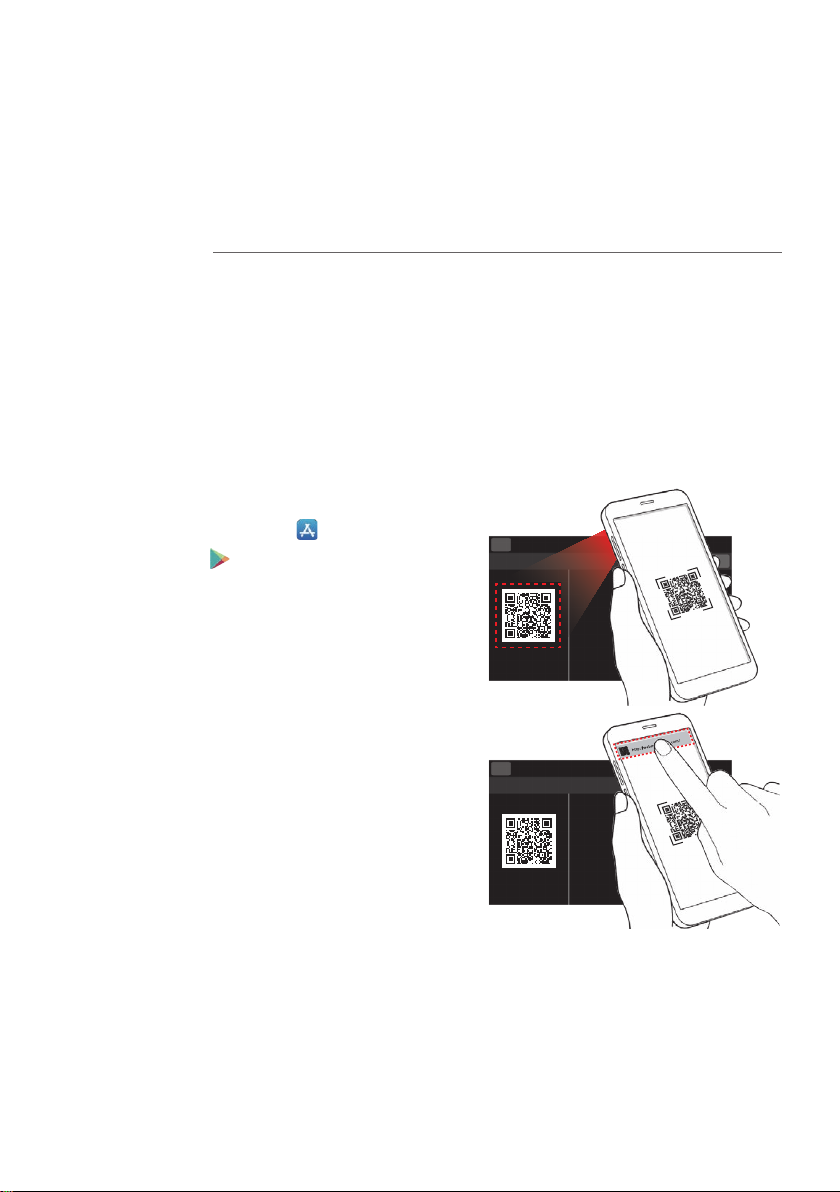

2 Install a QR code reader application
from the App Store ()or the Google
Play Store ()and scan a QR code.
3 On your smartphone's screen, press
the URL for the web manual.
•You can view the web manual of the system
in the Internet browser application of your
smartphone.
•Depending on how you scan the QR code,
you may be able to open the web manual
without pressing its URL.
1
Car Infotainment System
User's Manual
[ This guide covers specifications for
all vehicle models, including optional
specifications, and is based on the latest
version of system software.
[ Your system's functions and
specifications are subject to change
without prior notice for performance
improvement.
[ The functions and services described
in this guide are subject to change
without prior notice for performance
improvement. If the system software is
updated, the screenshots in this guide
may appear different than the actual
images on the system.
[ You can view the up-to-date information
about changed functions and services
from the web manual.
[ The functions and services described
in this guide may differ from those
provided in your vehicle. For precise
information related to your vehicle,
refer to the owner's manual or catalog
of your vehicle.
[ Your system is not compatible with the
system software for regions outside of
the country of purchase.
Available
information for
users
Car Infotainment
System Quick
Reference Guide (Print)
This guide contains basic information to
use your system including component
names and functions. To use your
system correctly and safely, read this
guide before use.
Car Infotainment
System User's Manual
(Web)
This guide is a web manual you can
access by scanning a QR code in the
Quick Reference Guide or on your
system′s screen. This guide introduces
your system's functions and explains
how to use them.
2
Symbols used in
this guide
Warning
Indicates important information
related to user safety. Failure to follow
warnings may result in death or serious
personal injury.
Caution
Indicates important information related
to user safety. Failure to follow cautions
may result in personal injury, or
damage or malfunction your vehicle.
Note
Indicates helpful information for
convenient use.
(if equipped)
Indicates descriptions for optional
features, which may not be available on
your specific vehicle depending on the
model or trim level.
This guide covers specifications
for all vehicle models, including
optional specifications. It may include
descriptions for features that are
not equipped in your vehicle or are
unavailable for your vehicle model.
Safety warnings
For safety, follow the instructions below.
Failure to do so may increase the risk of a
traffic accident, which may result in death
or personal injury.
Ü About driving
Do not operate the system while
driving.
•Driving while distracted may result in a loss
of vehicle control, potentially leading to an
accident, severe personal injury, or death. The
driver′s primary responsibility is the safe and
legal operation of a vehicle, and any handheld
devices, equipment, or vehicle systems
which divert the driver′s attention from this
responsibility should never be used during
operation of the vehicle.
Avoid watching the screen while driving.
•Driving while distracted may lead to a traffic
accident.
•Stop your vehicle in a safe location before using
functions that require multiple operations.
Stop your vehicle first before using your
mobile phone.
•Using a mobile phone while driving may lead to
a traffic accident.
•If necessary, use the Bluetooth Handsfree
feature to make calls and keep the call as short
as possible.
Keep the volume low enough to hear
external sounds.
•Driving without the ability to hear external
sounds may lead to a traffic accident.
•Listening to a loud volume for a long time may
cause hearing damage.
3
Ü About handling the system
Do not disassemble or modify the
system.
•Doing so may result in an accident, fire, or
electric shock.
Do not allow liquids or foreign
substances to enter the system.
•Liquids or foreign substances may cause
noxious fumes, a fire, or a system malfunction.
Stop using the system if it malfunctions,
such as no audio output or display.
•If you continue using the system when it is
malfunctioning, it may lead to a fire, electric
shock, or system failure.
Û Note
If you experience any problems with the
system, contact your place of purchase or
dealer.
Safety cautions
For safety, follow the instructions below.
Failure to do so may result in personal
injury or damage to the system.
Ý About operating the system
Use the system with the engine
running.
•Using the system for a long time when the
engine is stopped may discharge the battery.
Do not install unapproved products.
•Using unapproved products may cause an error
while using the system.
•System errors caused by installing unapproved
products are not covered under the warranty.
Ý About handling the system
Do not apply excessive force to the
system.
•Excessive pressure on the screen may damage
the LCD panel or the touch panel.
When cleaning the screen or button
panel, make sure to stop the engine
and use a soft, dry cloth.
•Wiping the screen or buttons with a rough
cloth or using solvents (alcohol, benzene, paint
thinner, etc.) may scratch or chemically damage
the surface.
If you attach a liquid-type air freshener
to the fan louver, the surface of the
louver may become deformed due to
the flowing air.
Û Note
If you experience any problems with the
system, contact your place of purchase or
dealer.
1-2
Component names and functions
The following explains the names and functions of the components on your system's control
panel and steering wheel remote control.
Control panel
Û Note
Depending on the vehicle model or specifications, the system components' appearance and
layout may differ from the actual product. Refer to the Quick Reference Guide.
Radio button •Turn on the radio. While listening to the radio, press
repeatedly to change the radio mode.
Media button •Play content from a media storage device. If you have
multiple media storage devices, select one from the
media selection window.
•Press and hold to display the media selection window.
Custom button ()•Use a custom function.
•Press and hold to access the Custom Button settings
screen. >See ″Custom Button.″
Power button (POWER)/
Volume knob (VOL)
•Turn the radio/media function on or off.
•Press and hold to turn off the screen and the sound.
•Turn to the left or right to adjust the system sound
volume.
Reset button •Restart the system.
Search backward/forward
button (SEEK/TRACK)
•While using the radio/media function, change the
station/track/file.
•While listening to the radio, press and hold to change
the station quickly.
•While playing media, press and hold to rewind or fast
forward (except for the Bluetooth audio mode).
1-3
Setup button •Access the settings screen.
•Press and hold to access the System Info screen. >See
″System Info.″
Search knob (TUNE FILE)•While listening to the radio, adjust the frequency or
change the station.
•While playing media, search for a track/file (except for
the Bluetooth audio mode).
•During a search, press to select the current track/file.
Steering wheel remote control
Û Note
Depending on the vehicle model or specifications, the system components' appearance and
layout may differ from the actual product. Refer to the Quick Reference Guide.
Voice recognition button ( ) •Start or end voice recognition of a connected
smartphone via phone projection. (The button′s
operation may vary depending on smartphone
specifications.)
Mode button •Change the mode (radio, media, etc.).
•Press and hold to access the Steering Wheel MODE
Button settings screen. >See ″Steering Wheel MODE
Button.″
Volume lever/button (+/-)•Adjust the sound volume.
Mute button ()•Mute or unmute the system.
•While playing media, pause or resume playback.
Search lever/button ( ) •While using the radio/media function, change the
station/track/file.
•While listening to the radio, press and hold to change
the station quickly.
•While playing media, press and hold to rewind or fast
forward (except for the Bluetooth audio mode).
1-4
Call/Answer button ( ) •Start connecting a mobile phone via Bluetooth.
•After a Bluetooth phone connection is made, access
your call history. Press and hold to dial the most recent
phone number. When a call comes in, answer the call.
•During a call, switch between the active call and the
held call. Press and hold to switch the call between the
system and the mobile phone.
Call end button ()•When a call comes in, reject the call.
•During a call, end the call.
Rear seat remote control
(if equipped)
Û Note
Depending on the vehicle model or specifications, the system components′ appearance and
layout may differ from the actual product. Refer to the Quick Reference Guide.
Channel button •While listening to the radio, change the station.
•While playing media, change the track/file.
Mute button •Mute or unmute the system.
Power button/Volume knob •Turn the radio/media function on or off.
•Press and hold to turn off the screen and the sound.
•Turn to the left or right to adjust the system sound
volume.
Search button •While using the radio/media function, change the
station/track/file.
Mode button •Change the mode (radio, media, etc.).
1-5
Turning the system on
or off
The following explains how to turn the
system on or off.
Turning on the system
1 To turn on the system, start the
engine.
2 When the safety warning
appears, read it and press
Confirm.
•To change the system language,
press Language.
Ü Warning
•Some functions may be disabled for
safety reasons while the vehicle is
moving. They work only when the
vehicle stops. Park your vehicle in a safe
location before using any of them. In a
manual transmission vehicle, apply the
parking brake to use the functions. In an
automatic transmission vehicle, shift to
″P″ (Park) or apply the parking brake.
•Stop using the system if it malfunctions,
such as no audio output or display. If
you continue using the system when it
is malfunctioning, it may lead to a fire,
electric shock, or system failure.
Ý Caution
•You can turn on the system when the
key ignition switch is placed in the "ACC"
or "ON" position. Using the system for
an extended period without the engine
running drains the battery. If you plan
on using the system for a long time,
start the engine.

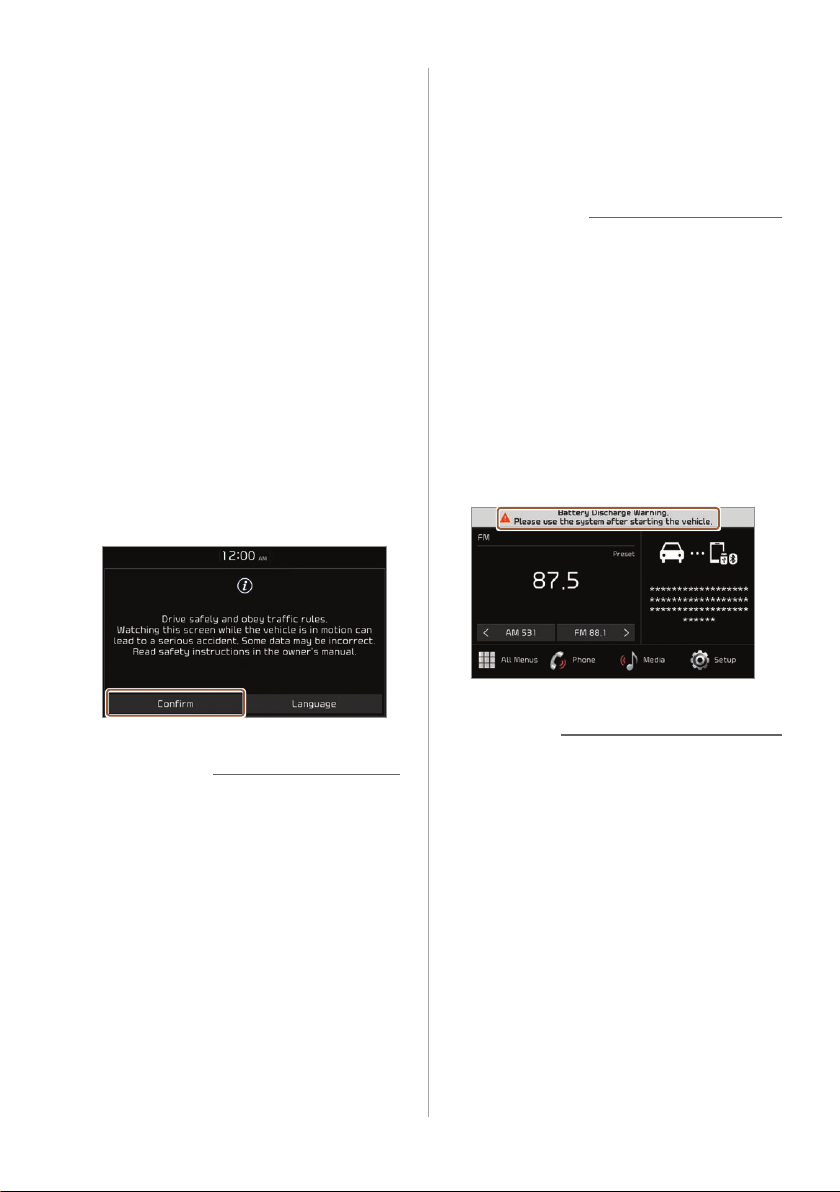

•If you turn on your system without
starting the engine, a battery warning
will appear. Once the engine starts, the
battery warning will disappear.
Û Note
To avoid having audio play at an excessive
volume when you start the engine, adjust
the volume level before stopping the
engine. You can also set the system to
decrease the volume level automatically.
On the Home screen, press All Menus >
Setup >Sound >Priority and activate
the Start-up Volume Limit option.
1-6
Turning off the system
If you do not want to use the
system while driving, press and
hold the Power button on the
control panel.
•The screen and the sound will turn off.
•To use the system again, press the
Power button.
After you have turned off
the engine, the system will
automatically turn off after a
while or as soon as you open the
driver's door.
•Depending on the vehicle model or
specifications, the system may turn off
as soon as you turn off the engine.
Using the touch
screen
Your system is equipped with a touch
screen. You can perform various functions
via touch inputs.
Ý Caution
•Do not apply excessive pressure to the
touch screen or press it with a pointed
object. Doing so may damage the touch
screen.
•Do not let any electrically conductive
material contact the touch screen. A
shock from static electricity may cause
the system or the touch screen to
malfunction.
Û Note
If you wear regular gloves, you will not be
able to control the touch screen. Remove
your gloves or wear gloves designed for
use with a touch screen.

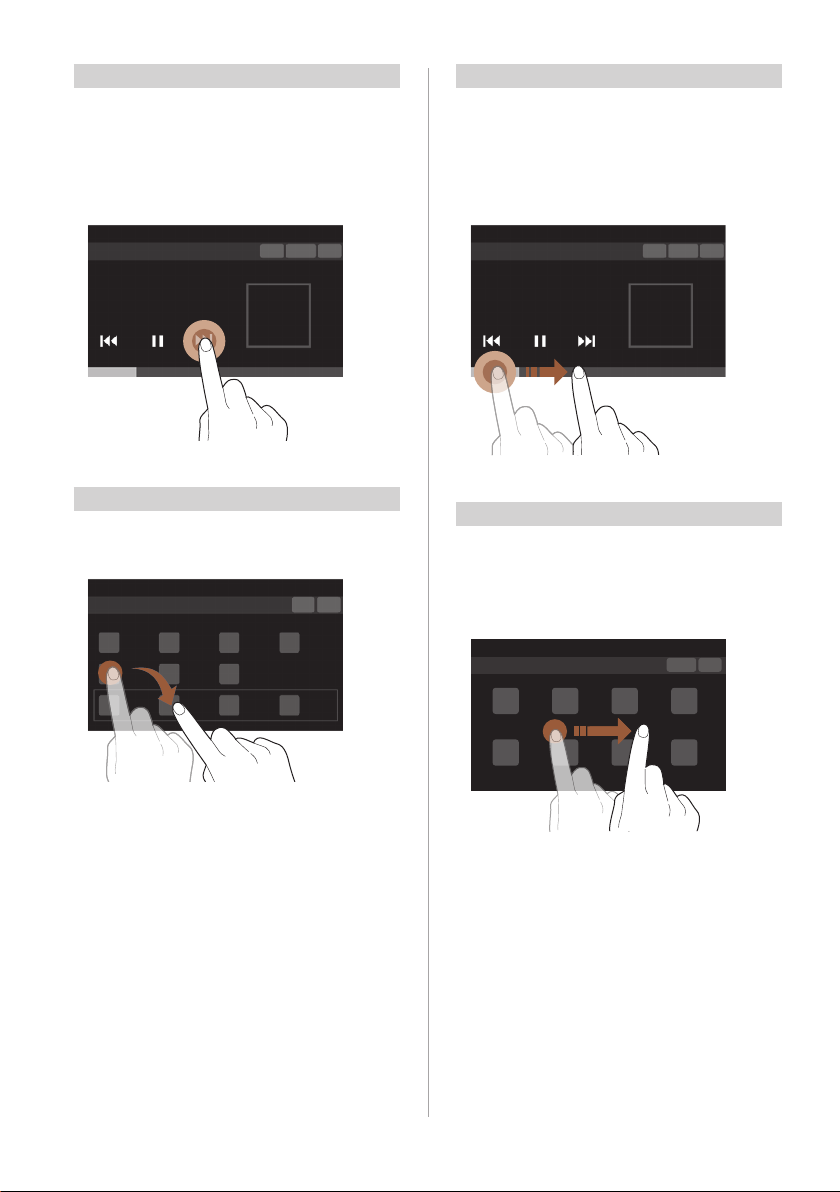

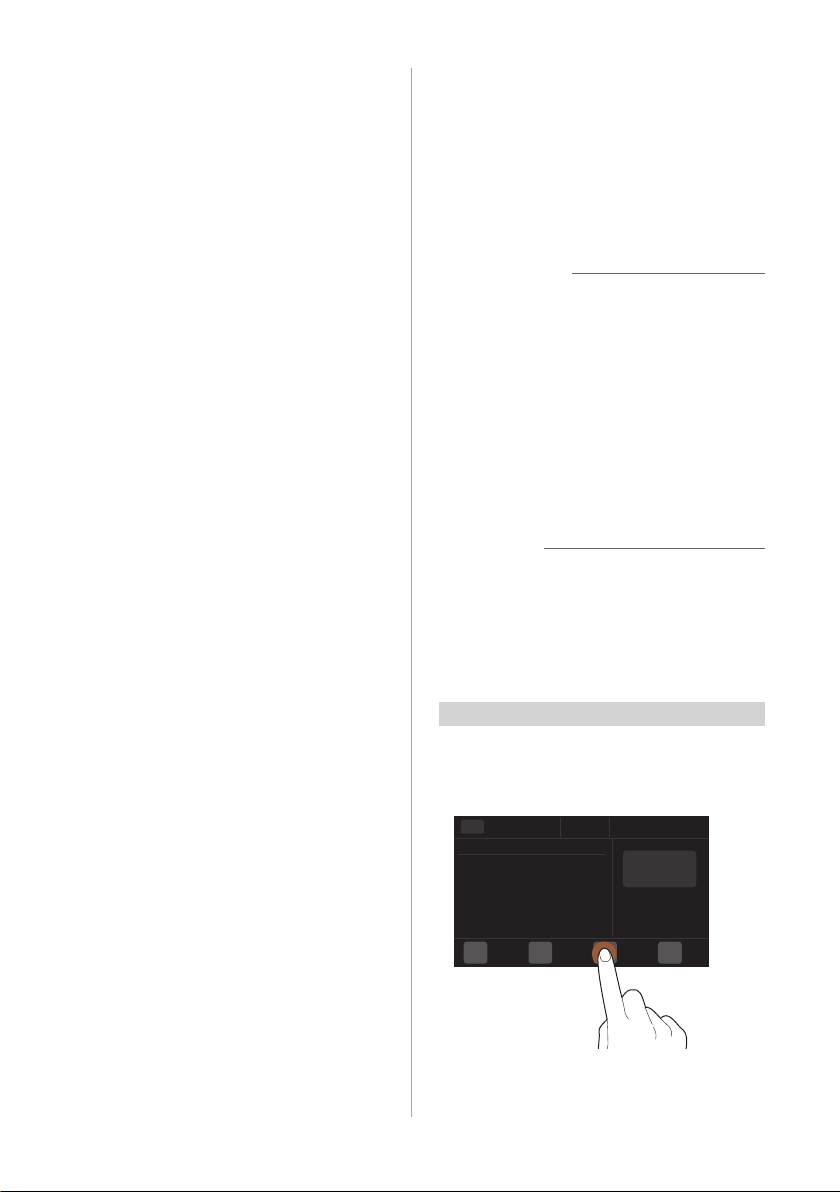

Press
Press an object lightly and lift your
finger. You can perform a function or
select an option.
1-7
Press and hold
Press an object and hold it for at least
one second without lifting your finger.
You can rewind or fast forward media
by pressing and holding an appropriate
button.
Drag
Press an object, drag it, and then drop it
on a new location.
Slide
You can change the playback position
during media playback. On a playback
screen, press and hold the progress bar,
slide your finger along the progress bar,
and then lift it at a desired location.
Swipe
Swipe the screen lightly in an
appropriate direction. This is an easy
way to scroll through a menu or list
quickly.
1-8
Getting to know the
Home screen
From the Home screen, you can access
various functions.

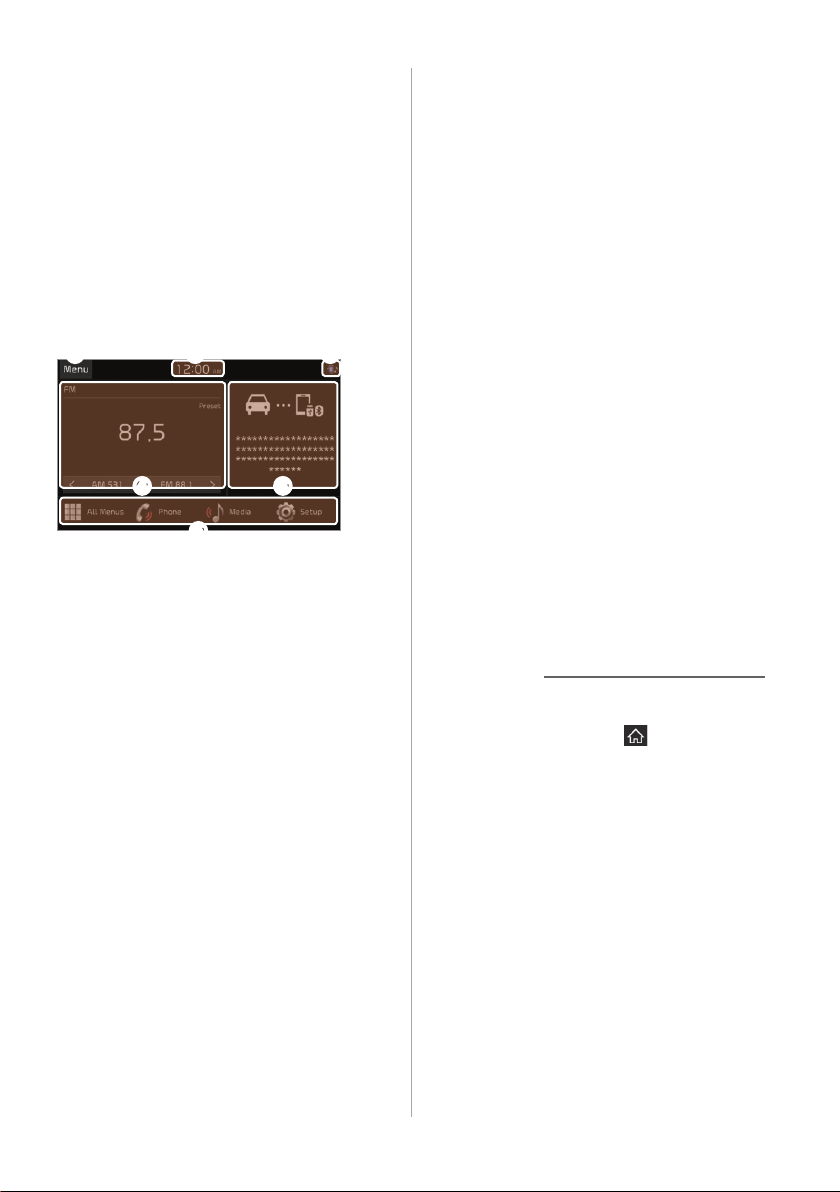

Getting familiar with the
Home screen layout
d
ba
f
e
c
a Display the options list.
•Edit Left Widget: Change the
functions of the left widget.
•Edit Right Widget: Change the
functions of the right widget.
•Edit Home Icons: Change the
shortcuts for menus you use
frequently on the Home screen.
•User′s Manual on Web (QR Code):
Access the web manual via the QR
code. For safety reasons, you can
access the QR code only when your
vehicle is stationary.
b Current time. Depending on your
vehicle model or specifications, time
and date display may vary. Press to
access the time and date settings
screen. >See ″Date/Time.″
c System status icons. Status icons are
not included in the screenshots in this
guide, because their appearance may
differ depending on the system status
or mode. >See ″System status icons.″
d Left widget. Press to activate the
corresponding function in full screen.
Press and hold to change the widget
to another one. >See ″Changing the
Home screen widgets.″
e Right widget. Press to activate the
corresponding function in full screen.
Press and hold to change the widget
to another one. >See ″Changing the
Home screen widgets.″
f Menu icons. Press to access a selected
function. Press and hold to change
the menu′s type and location. >See
″Changing the Home screen menu icons.″
Û Note
•To move to the Home screen from
another screen, press .
•Depending on the vehicle model or
specifications, displayed screens and
available functions may vary.
1-9
Changing the Home screen
widgets
You can change the types of widgets
displayed on the Home screen.
1 On the Home screen, press
Menu >Edit Left Widget or
Edit Right Widget.
•Alternatively, press and hold the
widget you want to change.
2 Select a desired function.
Û Note
•You cannot set the same function for the
left and right widgets.
•Press Reset to restore the default
settings for the widget.
Changing the Home screen
menu icons
You can change the types and locations of
menus on the Home screen.
1 On the Home screen, press
Menu >Edit Home Icons.
•Alternatively, press and hold a menu
icon.
2 Press an icon on the menu list,
and drag it to the icon field at
the bottom of the screen.
•To change an icon′s location, press
the icon in the icon field, and drag it
to a desired location.
Û Note
•The All Menus icon cannot be changed
to another menu. You can only change
its location.
•Press Reset to restore the default
settings for menus.
•Once you change the menus displayed
on the Home screen, it may affect how
to access or perform some functions.
If you cannot find a function you want
from the Home screen, press All Menus
to access or perform it.
1-10
Getting to know the
All Menus screen
You can view all menus and access a
desired function in the system.

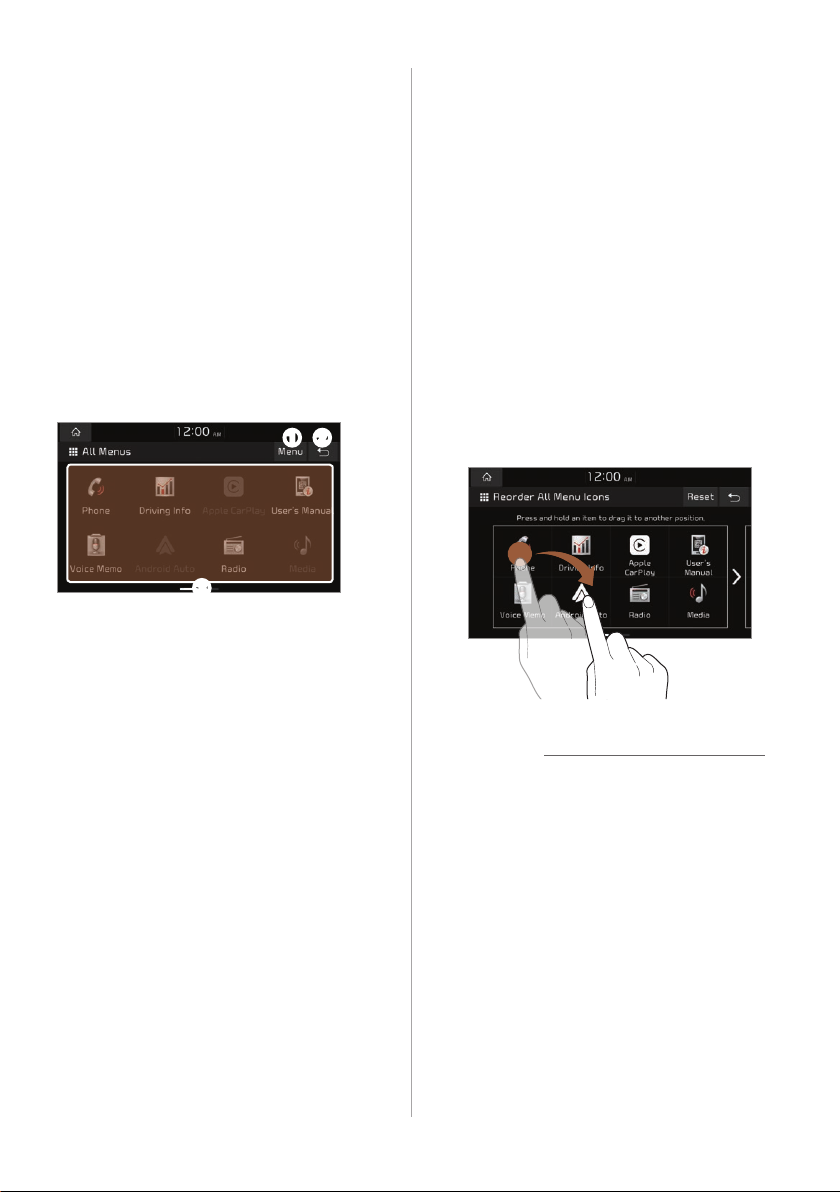

Getting familiar with the
All Menus screen layout
On the Home screen, press All
Menus.
a b
c
a Display the options list.
•Reorder Icons: Rearrange the
menus on the All Menus screen.
>See ″Rearranging the All Menus
screen.″
•User′s Manual on Web (QR Code):
Access the web manual via the QR
code. For safety reasons, you can
access the QR code only when your
vehicle is stationary.
b Return to the previous level.
c All menus available on your system
Rearranging the All Menus
screen
Rearrange the menus on the All Menus
screen.
1 On the Home screen, press All
Menus.
2 Press Menu >Reorder Icons.
•Alternatively, press and hold
anywhere on the All Menus screen.
3 Drag a menu to the desired
location.
Û Note
Press Reset to restore the default settings
for the menu order.
1-11
Using Favorites
(if
equipped)
Add your frequently used functions to
Favorites to access them quickly. You can
add up to 24 items.
Adding favorite items
1 On the Home screen, press All
Menus >Favorites >Add to
Favorites.
•If you have already added items, on
the Favorites screen, press Menu >
Add.
2 Select items to add and press
Add >Yes.
Rearranging the items in
Favorites
You can rearrange the items added to
Favorites.
1 On the Home screen, press All
Menus >Favorites >Menu >
Reorder Icons.
•Alternatively, press and hold an
added item.
2 Drag an item to a desired
location.
Û Note
You can only rearrange the items, and
cannot move an item to an empty slot.
Deleting favorite items
You can delete the items added to
Favorites.
1 On the Home screen, press All
Menus >Favorites >Menu >
Delete.
2 Select items to delete and
press Delete >Yes.
2-2
Using phone
projection
Phone projection enables you to connect
your Android smartphone or iPhone to
your system and use their functions via
the system. You can perform and control
your smartphone applications by using
the larger screen and enhance your use of
the system.
Ý Caution
•Using an approved USB cable provided
by your smartphone manufacturer is
recommended. Using unapproved USB
cables may cause a phone projection
error or a system malfunction.
•Use only applications that are
compatible with phone projection.
Using incompatible applications may
cause problems for your system or
smartphone.
•Only compatible applications will be
displayed on the phone projection
screen. You can also check compatible
applications by visiting the following
websites:
- Apple CarPlay: https://www.apple.
com/ios/carplay
- Android Auto: https://www.android.
com/auto
Connecting your Android
smartphone via Android
Auto
You can connect your Android
smartphone and system via Android Auto
and control your smartphone applications
on the system′s screen.
Before using Android Auto, be sure to
check the following:
Android Auto support on your
smartphone
Visit the Android homepage (https://
www.android.com/auto) and check the
regions, device types, and models that
support Android Auto.
Android Auto installed on your
smartphone
Download and install the Android Auto
application from Google Play. If you
are in a region where Android Auto is
not supported, you cannot install the
application.
2-3
Start Android Auto by following the steps
below:

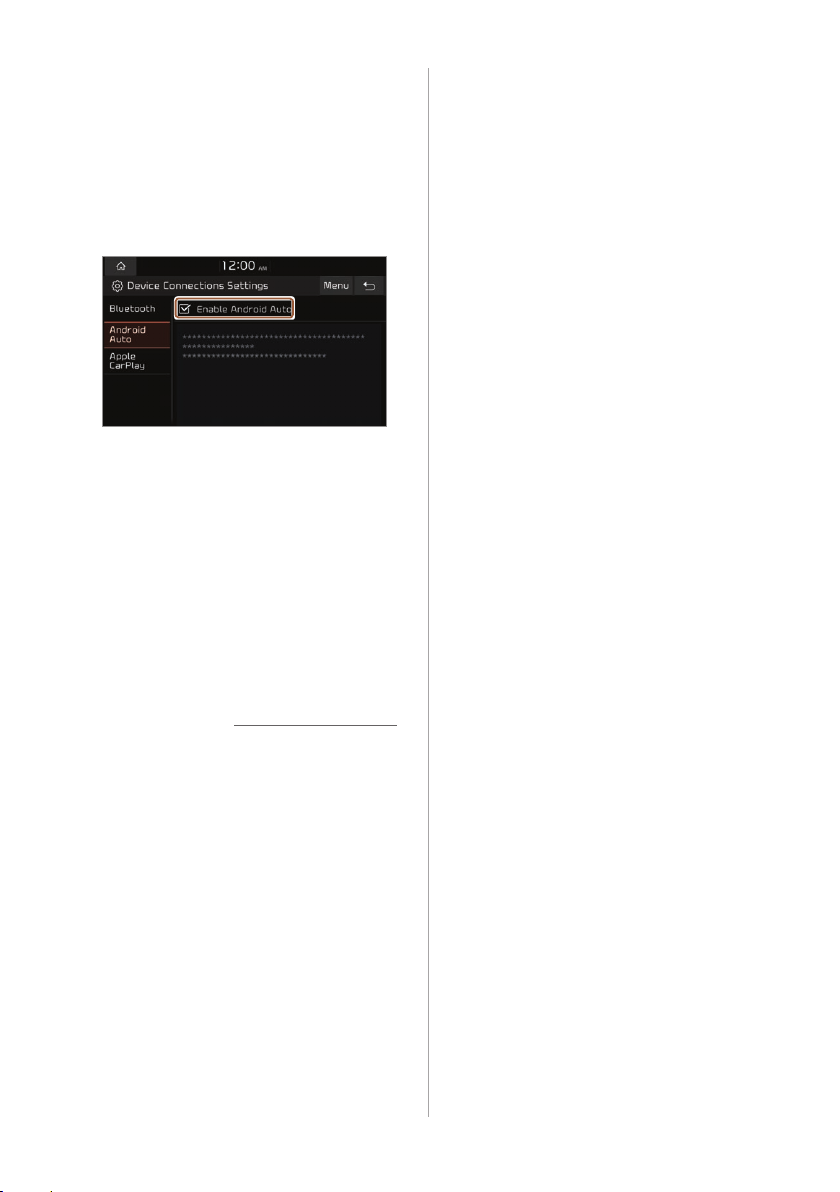

1 On the Home screen, press
All Menus >Setup >Device
Connections >Android Auto
>Enable Android Auto.
2 Connect your smartphone to
the USB port in your vehicle
via the cable supplied with the
smartphone.
•If you are connecting the device for
phone projection for the first time,
read the message on the notification
pop-up window and press Next >
OK.
Ý Caution
Do not connect and disconnect a USB
connector repeatedly in a short time.
Doing so may cause an error in the
device or a system malfunction.
3 If your smartphone is locked,
unlock it and agree to use
phone projection.
•When the smartphone is recognized
successfully, the Android Auto menu
is activated on the All Menus screen.
4 On the Home screen, press All
Menus >Android Auto.
5 Use your smartphone's
functions, such as calling and
messaging, on your system.
•Press an icon on the screen to run an
application or perform a function.
•Press the Voice recognition button
on the steering wheel to start
Google voice recognition.
•Press the Call/Answer button on
the steering wheel to start using
Bluetooth call functions.
6 To end Android Auto, remove
the USB cable from your
system.
This manual suits for next models
8
Table of contents
Other Kia Car Video System manuals
