Kichler Lighting BISC 300710MWH User manual

56" BISCTM LED
INSTRUCTION MANUAL
Product images may vary slightly from actual product.

TABLE OF CONTENTS
SAFETY RULES.......................................................................... 4
5
5
6
7
10
11
13
14
14
TOOLS REQUIRED....................................................................
PACKAGE CONTENTS.............................................................
MOUNTING OPTIONS.............................................................
HANGING THE FAN..................................................................
INSTALLATION OF SAFETY SUPPORT..........................
ELECTRICAL CONNECTIONS.............................................
FINISHING THE INSTALLATION........................................
ATTACHING THE FAN BLADES..........................................
INSTALLING THE LIGHT PLATE.......................................
INSTALLING THE LED LIGHT KIT
AND GLASS SHADE................................................................15
16
17
18
19
20
CONTROL SYSTEM SET-UP...............................................
BUTTON INSTRUCTION........................................................
INSTALLING THE WALL CONTROL
SYSTEM WALL PLATE...........................................................
OPERATION INSTRUCTIONS.............................................
TROUBLESHOOTING............................................................
56" BISC TM LED | 3

4 | KICHLER.COM
SAFETY RULES
1. To reduce the risk of electric shock, insure electricity has been turned
o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and
local electrical codes. Electrical installation should be performed by a
qualified licensed electrician.
3. WARNING: Not suitable for use with solid-state speed controls.
4. WARNING: To reduce the risk of fire, electric shock, or personal
injury, mount to outlet box marked "acceptable for fan support of 15.8
kg (35 lbs.) or less" and use mounting screws provided with the outlet
box. Most outlet boxes commonly used for the support of light
fixtures are not acceptable for fan support and may need to be
replaced. Due to the complexity of the installation of this fan, a
qualified licensed electrician is strongly recommended.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED
"ACCEPTABLE FOR FAN SUPPORT".
5. The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 50 pounds. Use only CUL
Listed outlet boxes marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor.
7. To operate the reverse function on this fan, press the reverse button
while the fan is running.
8. Avoid placing objects in the path of the blades.
9. To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
10. Do not use water or detergents when cleaning the fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for most
cleaning.
11. After marking electrical connections, spliced conductors should be
turned upward and pushed carefully up into outlet box. The wires
should be spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the outlet box.
12. Electrical diagrams are reference only. Light kits that are not packed
with the fan must be CUL Listed and marked suitable for use with the
model fan you are installing. Switches must be CUL General Use
Switches. Refer to the Instructions packaged with the light kits and
switches for proper assembly.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT
BEND THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)
DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT
OBJECTS IN THE PATH OF THE BLADES.

TOOLS REQUIRED
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
PACKAGE CONTENTS
Unpack your fan and check the
contents. You should have the
following items:
a. Fan blades (3)
b. Canopy & Ceiling mounting bracket
c. Ball/downrod assembly
d. Secure ring
e. Coupling cover
f. Fan motor assembly
g. Light plate
h. 16W LED light kit
i. Glass shade
j. Wall Transmitter
k. Allen wrench
l. Part bag contents
1) Mounting hardware:
star washers (2), wire nuts (3),
machine screws (2), washers (2),
screws (2)
2) Blade attachment hardware:
screws (11),
fiber washers (11)
3) Safety cable hardware:
wood screw, lock washer, flat
washer
4) Balance Kit
56" BISC TM LED | 5
i
j
k
l
f
g
h
a
b
c
d
e

6 | KICHLER.COM
If there isn't an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use appropriate
fasteners and building materials. The outlet box and its support must be
able to fully support the moving weight of the fan (at least 50 lbs). Do not
use plastic outlet boxes.
Figures 1, 2 and 3 are examples of dierent ways to mount the outlet
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted) ceiling,
you may need a longer downrod to maintain proper clearance between
the tip of the blade and the ceiling. A minimum clearance of 12" is
suggested for optimal operation.
NOTE: Depending on the location you have selected for installation, you
may need to purchase and install a "Joist Hanger" for the support of the
outlet box. Make sure the joist hanger you purchase has been designed
for use with ceiling fans. (Fig. 4)
MOUNTING OPTIONS
Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Fig. 3
ANGLED CEILING
MAXIMUM 20° ANGLE
Outlet box
Fig. 4

HANGING THE FAN
REMEMBER to turn o the power before you begin.
To properly install your ceiling fan, follow the steps below.
Step 1. Remove the decorative canopy bottom cover from the canopy
by turning the cover counter clockwise. (Fig. 5)
Step 2. Remove the ceiling mounting bracket from the canopy by
removing (and save one of the two screws. Loosen the remaining screw
by a half turn. (Fig. 5)
Step 3. Pass the 120 volt supply wires from the ceiling outlet box through
the center of the ceiling mounting bracket. (Fig. 6)
Step 4. Attach the ceiling mounting bracket to the outlet box using the
screws and washers included with the outlet box. (Fig.6)
Fig. 5
Fig. 6
Hanger bracket
Ceiling
canopy
Canopy
cover
Ceiling
hanger
bracket
Mounting screws (supplied
with electrical box)
UL Listed
electrial
box
120V Wires
Washers
56" BISC TM LED | 7

8 | KICHLER.COM
Step 5. Remove the hanger ball from the downrod assembly by
loosening the set screw, unscrewing and removing removing the cross
pin and unscrewing the ball o the rod. (Fig. 7)
Step 6. Loosen the two set screws and remove the hitch pin and
retaining clip from the coupling on top of the motor assembly. (Fig. 8)
Step 7. Carefully feed the electrical lead wires from the fan up through
the downrod. Thread
the downrod into the coupling until the Hitch pin holes are aligned.
Next, replace the hitch pin and retaining clip. Tighten both set screws.
(Fig. 8)
HANGING THE FAN(continued)
Fig. 7
Fig. 8
Downrod
Cross pin
Hanger
ball Set screw
Supply wires
Downrod
Hitch pin
Retaining clip Set screws
Set screws

Fig. 9
Fig. 10
HANGING THE FAN(continued)
Step 8. Slip the coupling cover, secure ring , canopy cover and canopy
onto the downrod. (Fig. 9)
Slide the secure ring, and fasten using the collar setscrew and Allen
wranch provided. (Fig. 9)
Thread the hanger ball onto the downrod, insert the cross pin through
the downrod and tighten. Now tighten the set screw. (Fig. 9)
Step 9. Lift the motor assembly into position and place the hanger ball
into the ceiling mounting bracket.
Rotate the entire assembly until the "Check Tab" has dropped into the
"Registration Slot" and seats firmly. (Fig. 10)
The entire motor assembly should not rotate (left or right) when seated
properly.
WARNING: Failure to reattach the cross pin and seat the "Check Tab"
can cause the fan to fall from the ceiling during operation. Take special
care to make sure this pin is reattached.
Registration slot
Downrod
Canopy
Canopy cover
Set screws
Hitch pin Retaining clip
Coupling cover
Secure ring
Collar setscrew
Allen wrench
56" BISC TM LED | 9

10 | KICHLER.COM

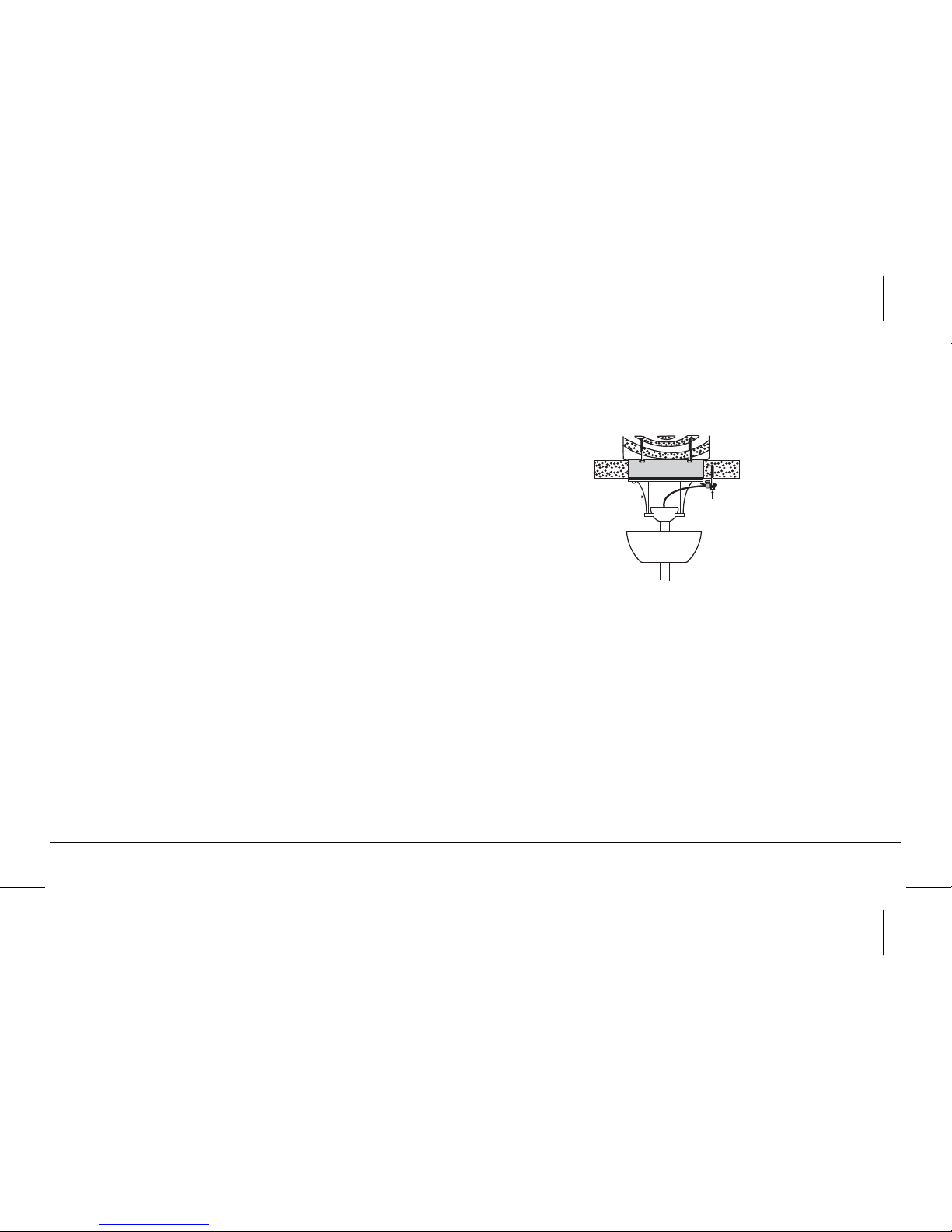

A safety support cable is provided to help prevent the ceiling fan from
falling.
Step 1. Attach the provided wood screw and washers to the ceiling joist
next to the mounting bracket but do not tighten. (Fig. 11)
Step 2. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the
overall length is correct, put the end of the cable back through the cable
clamp, forming a loop at the end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the safety cable over the wood
screw and under the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is required for Canadian
installations only. It's a good idea to make the attachment with any
installation.
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
Fig. 11
Ceiling mounting
bracket
Attach
safety cable
to ceiling joist
with screw and
washer

ELECTRICAL CONNECTIONS
WARNING: Carefully read and retain this Instruction Manual for future reference.
WARNING:To avoid possible electrical shock, be sure the electricity is turned o at the main panel by removing the fuse or opening the circuit breaker.
WARNING: This control control is designed for use with "DC Motor Ceiling Fans" ONLY. DO NOT use with any other type of electrical appliance.
WARNING: All wiring must conform to national and local electrical codes. If you feel you do not have enough electrical knowledge, have a licensed
electrician install the control.
WARNING: The amperage for your fan should not exceed 1A. The total wattage for the lights 300W.

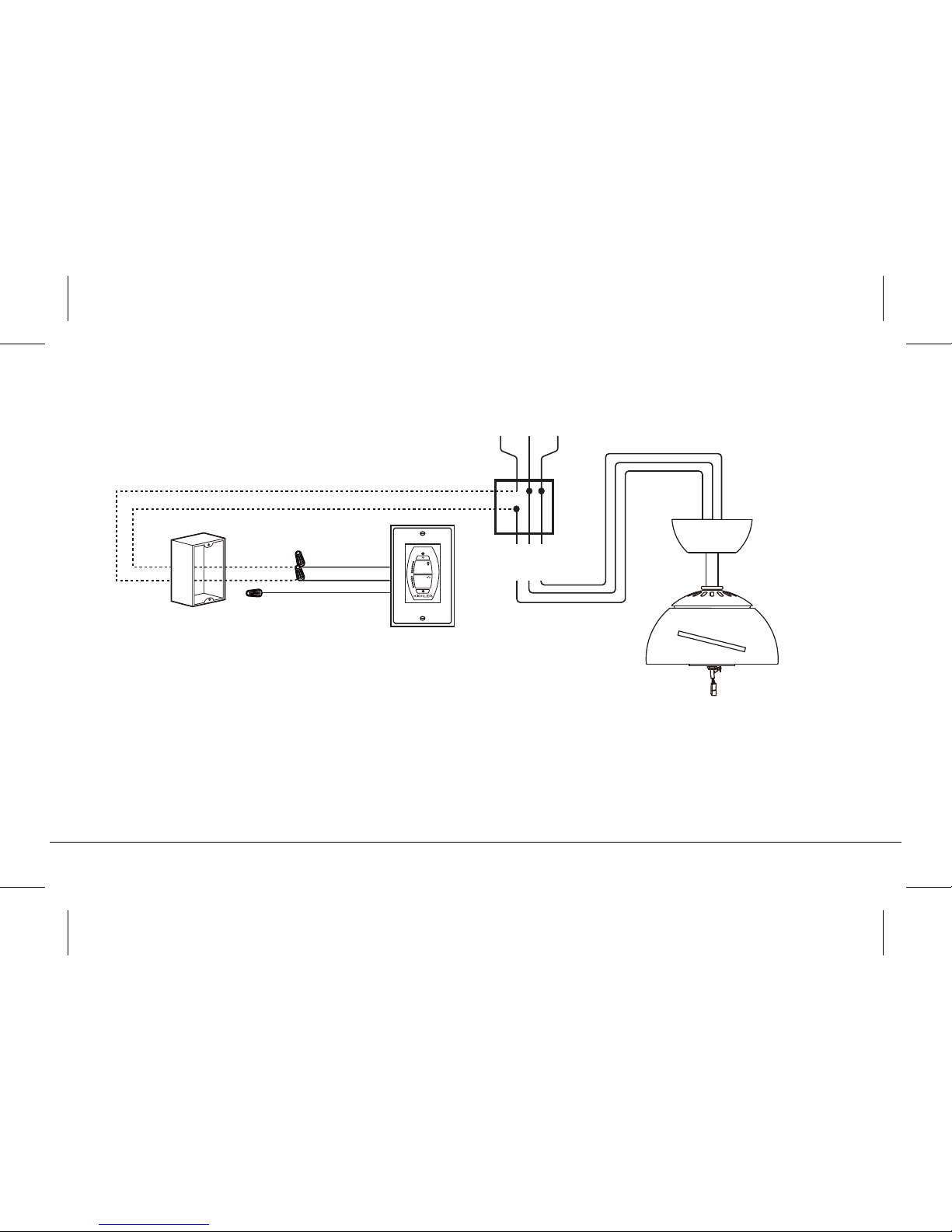

Make each of the wire connections illustrated in Figure 13. Secure each with the wire nuts provided. (Fig. 12)
A. Fan wire connection
Step 1. Black wire from the fan (motor) to the Black wire from the Wall Control's. (Fig. 12)
Step 2. White wire from the fan (motor) to the White (neutral) wire from the Household Supply. (Fig. 12)
Step 3. If your ceiling outlet box has a ground wire (green or bare copper) connect it to the ground wire from the ceiling fan and/or the ceiling mounting
bracket. (Fig. 12)
B. Wall control wire connection
Step 1. Black wire (TO MOTOR L) from the Wall Control to the Black wire from the Wall Outlet Box. (Fig. 12)
Step 2. Black wire (AC IN L) from the Wall Control to the Black wire from the Wall Outlet Box. (Fig. 12)
Step 3. If your wall outlet box has a ground wire (green or bare copper), connect the wall control's yellow/green ground wire to it; otherwise connect
the wall control's yellow/green ground wire directly to one of the screws from the wall outlet box. (Fig. 12)
56" BISC TM LED | 11

12 | KICHLER.COM
Fig. 12
Black White
Black
Black
Ground
conductor
Outlet
box
Wall outlet box
Yellow/green ground
Black
Black
Black
Black
Black
White
Green
SUPPLY CIRCUIT

Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the mounting bracket and place one of
the key hole slots over the mounting screw on the mounting bracket.
Rotate the canopy until the screw head locks in place at the narrow
section of the key hole. See figure 13.
Step 3. Align the remaining circular hole on the canopy with the
remaining hole on the Ceiling Mounting Bracket. Insert and tighten the
mounting screw you removed earlier and the mounting screw from
Step 2 above. Now, attach the canopy cover to the mounting screw
heads by inserting the screw heads into the bottom side of the canopy
cover and rotating the cover clockwise.
NOTE: Adjust the canopy screws as necessary until the canopy and
canopy cover are snug. (Fig. 13)
WARNING: Make sure the "Check Tab" at the bottom of the hanger
bracket is properly seated in the "Registration Slot" on the side of the
hanger ball before attaching the canopy to the bracket. Failure to
properly seat the "Check Tab" could damage the electrical wires when
to ceiling fan blade direction is changed while the fan is running.
FINISHING THE INSTALLATION
Fig. 13
Outlet box
Ceiling
mounting
bracket
Canopy
Canopy cover
Screws
Screws
56" BISC TM LED | 13

14 | KICHLER.COM
Fig. 15
Fig. 14
ATTACHING THE FAN BLADES
Insert the blade through the blade slot in the motor housing. Align the
holes in blade and blade bracket, making sure the holes are also aligned
and secure with the screws, fiber washers and blade support plates
provided. Repeat process with other blades. (Fig. 14)
INSTALLING THE LIGHT PLATE
Step 1. Loosen the two screws on the mounting ring attached to the
motor shaft and "remove" and save the third screw. (Fig. 15)
Step 2. Place the key hole slots on the light plate over the two screws
previously loosened on the mounting ring.
Turn the light plate until is locks in place at the narrow section of the key
hole slots.
Tighten both key hole screws and replace the third screw previously
removed and tighten securely.
Blades
Screws
Fiber
washers
Mounting ring
Screws
Light plate

56" BISC TM LED | 15

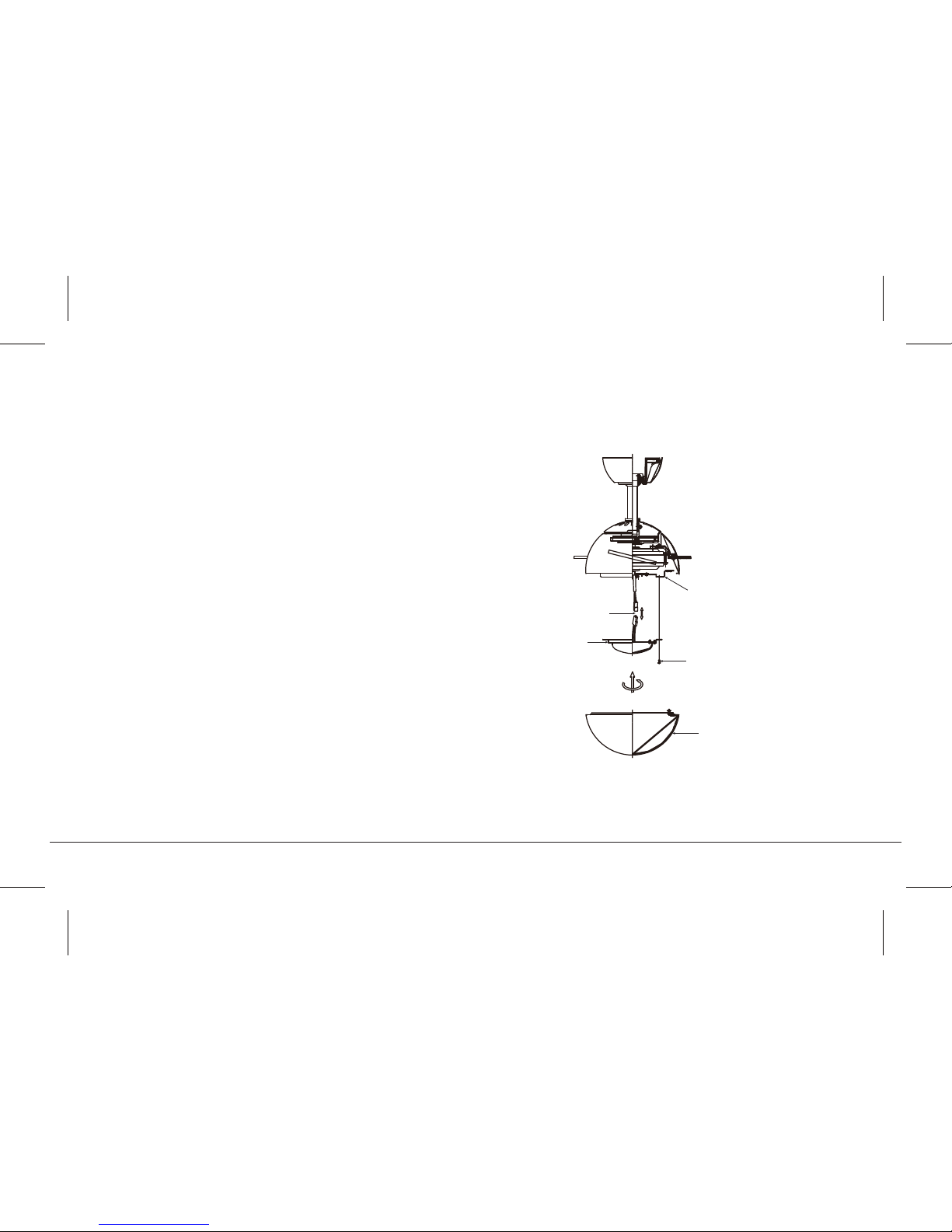

Fig. 16
NOTE: Before starting installation, disconnect the power by turning o
the circuit breaker or removing the fuse at fuse box.
Step 1. Loosen the three mounting screws on the inside of the LED light
kit. (Fig.16)
Step 2. While holding the LED light kit under the fan motor, make the
wire connections: (Fig. 16)
- Red to white
- Black to black
Step 3. Tuck the connections neatly into the light plate. Place the key
holes on the LED light kit over the 2 screws previously loosened
from the light plate, turn the LED light kit until it locks in place at the
narrow section of the key holes. Secure by tightening all three screws.
(Fig.16)
Step 4. Raise the glass shade against the LED light kit and turn
clockwise until snug, DO NOT OVERTIGHTEN. (Fig. 16)
INSTALLING THE LED LIGHT KIT
AND GLASS SHADE
Screws
Glass shade
Wire connectors
LED light kit
Light plate

16 | KICHLER.COM

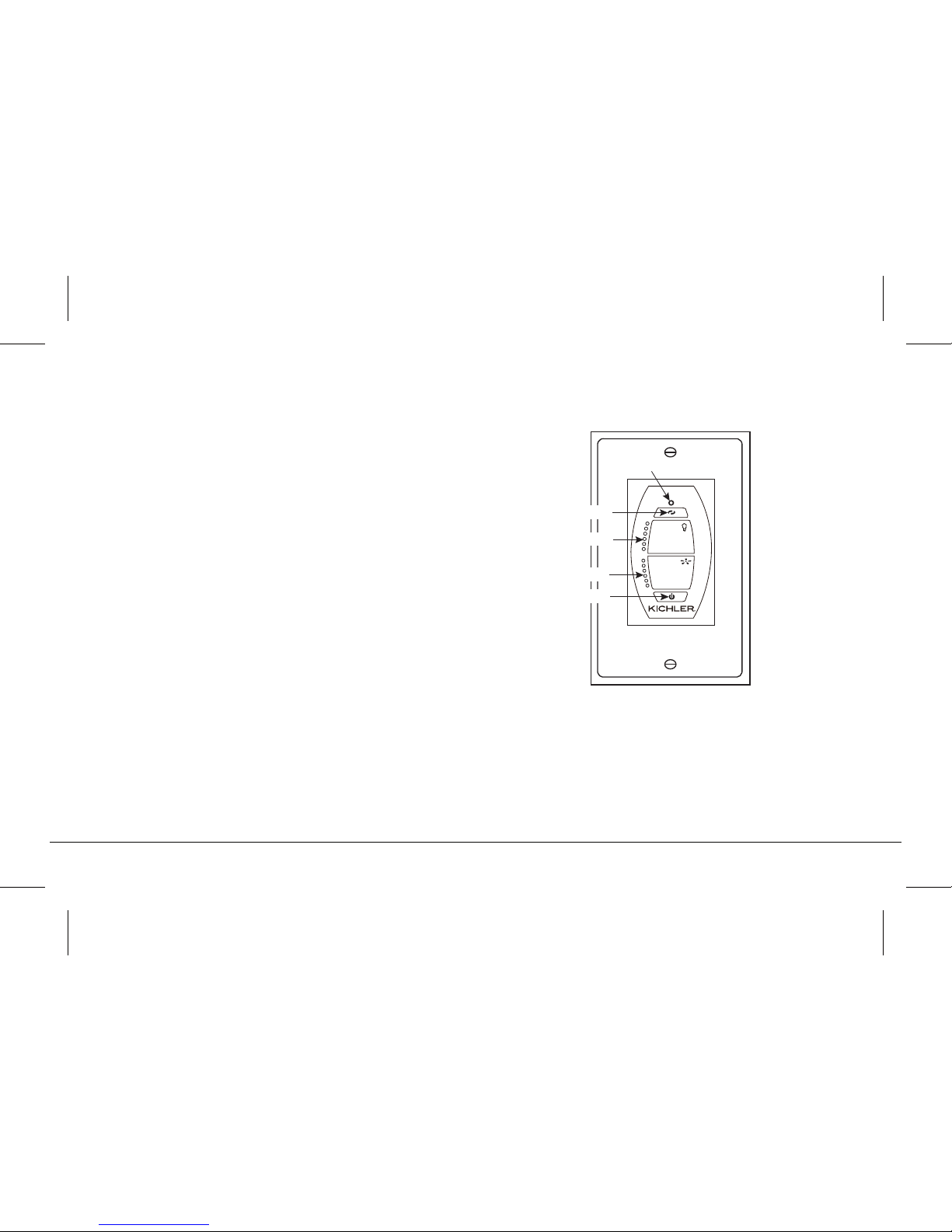

Fig. 17
Press the power button on wall control to TURN THE POWER ON. The
LED lights on the wall control will blink thru the power up process,
approximately 3 seconds.
Within 60 seconds of powering the unit on, Press and hold the REV/FOR
button on the wall control until the light kit blinks twice (or for 5 seconds
if no light kit). Fan will begin operating moving a little and the ceiling fan
will shut o. This is your indication that the programming process is
complete and your ceiling fan is ready for normal use.
NOTE: To purge unwanted frequency codes in a fan receiver:
From the desired control, turn the power on to the fan.
Within 60 seconds of powering the unit on, press the REV/FOR button
for 10 seconds. This purges all codes in the fan receiver leaving only one
code from the control used for this step.
This is your indication that the programming process is complete and
your ceiling fan is ready for normal use.
CONTROL SYSTEM SET-UP
Green Light
For/Rev switch
Light status indicator
Fan speed indicator
Power switch

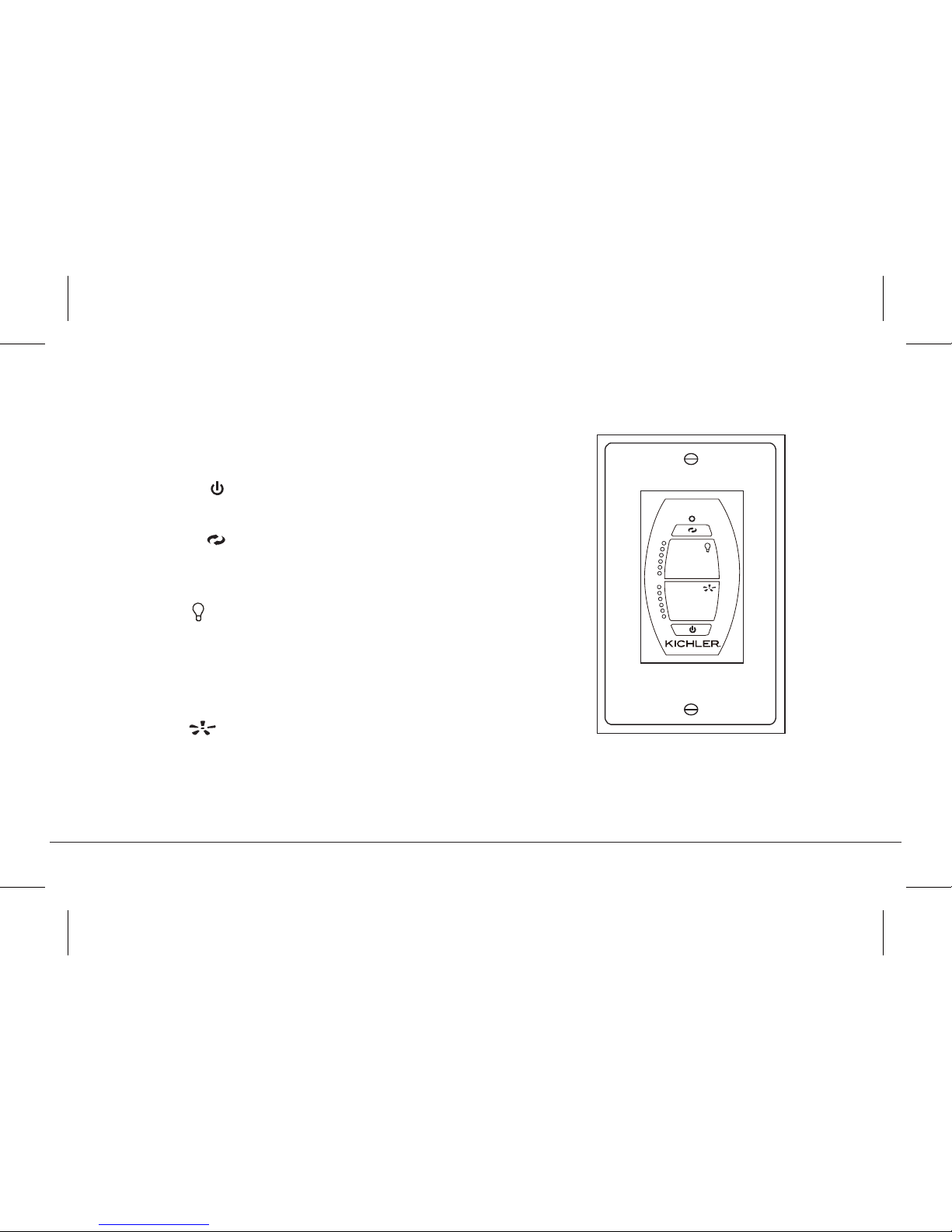

Fig. 18
LED Indicator Red LED: Transmitter signal indicator. When RF signal is
sending, the red light will illuminate.
Green LED: To show the Forward and Reverse indicator.
ON/OFF button " "
ON: Turn on the power.
OFF: Turn o the power.
Reverse button " "
When the fan is running, press and release the Reverse button one time,
the fan will change operating direction.
Downflow: Green indicator LED will be o.
Reverse: Green indicator LED will be on.
Light button " "
Press and release the Light button for light ON/OFF control.
Light indicator LEDs will show current light status. If the light kit is OFF,
the Light indicator LEDs are also all o. Press AND HOLD the light
button for more than 1 second and the light kit will begin dimming. Light
indicator LED will show the change in light level status. The light level
cycles from bright to dim and back to bright when the light button is
held.
Fan control " "
Press and release the Fan speed button for Fan ON/OFF control.
Fan indicator LED will illustrate the current fan speed. If the fan is OFF,
the fan speed indicator LEDs will also be OFF. Press and hold Fans
speed button for more than 1second to begin adjusting the fan speeds.
The indicator LEDs will shows the current speed level. The fan speed
adjustments adjust in a repeat cycle when the speed button is held
down. The speeds adjust from High to Low, then back up to High.
BUTTON INSTRUCTION
56" BISC TM LED | 17

18 | KICHLER.COM
Fig. 19
Select a location to install the Wall Control System Transmitter and Wall
Plate.
REMEMBER also this should state that the control is not to be mounted
outdoors. You can safely use the transmitter outdoors but it should be
mounted indoors away from excess heat and away from contact with
water or humidity.
Install the wall plate using an existing wall switch outlet box. Make sure
the electrical power is TURNED OFF at the main panel before
continuing.
If your ceiling outlet box has a ground wire (green or bare copper)
connect it to the ground wire from the wall switch and/or the ceiling
mounting bracket and push back inside the outlet box.
Install the wall plate on the existing wall outlet box using the screws
provided. (Fig. 19)
After installing the wall anchors, attached the wall plate with the
mounting screws to finish the installation.
INSTALLING THE WALL CONTROL
SYSTEM WALL PLATE
Screws
Outlet box
Screws
Wall plate
Switch

Fig. 20
Fig. 21
Warm weather - Forward (counter clockwise) A downward airflow
creates a cooling eect as shown in Fig. 20. This allows you to set your
air conditioner on a warmer setting without aecting your comfort.
Cool weather - Reverse (clockwise) An upward airflow moves warm air
o the ceiling area as shown in Fig. 21. This allows you to set your
heating unit on a cooler setting without aecting your comfort.
NOTE: To change the airflow direction of your ceiling fan use the
FOR/REV button on the wall control transmitter.
OPERATING INSTRUCTIONS
56" BISC TM LED | 19

20 | KICHLER.COM
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check all electrical connections to insure proper contact.
CAUTION: Make sure the main power is OFF when checking any electrical connection.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade brackets to the motor are tight.
3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing. CAUTION:
Make sure main power is o.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware are tight. Make sure the light bulbs are not
touching any other component.
6. Do not connect this fan to wall mounted variable speed control(s). they are not compatible with ceiling fan motors or
remote controls.
7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by selecting a point on the ceiling
above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is positioned for measurement.
Repeat for each blade. The distance deviation should be equal within 1/8".
3. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the weight and
possibly result in smoother operation.
1. Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control system EXCEPT a
basic On/O wall switch, if desired.
TROUBLESHOOTING
