INSTRUCTION MANUAL

TABLE OF CONTENTS
SAFETY RULES ………………………………………………………. 3
TOOLS REQUIRED ……………………………………………… 4
PACKAGE CONTENTS …………………………………………. 4
MOUNTING OPTIONS ………………………………………… 5
INSTALLING THE TOP HOUSING ……………………… 6
HANGING THE FAN ………………………………………....... 8
INSTALLATION OF SAFETY SUPPORT ……………… 9
ELECTRIC CONNECTIONS ………………………………… 10
WIRE DIAGRAM ……………………………………………………… 11
2
FINISHING THE INSTALLATION ………………………….. 12
ATTACHING THE FAN BLADES …………………………… 13
INSTALLING THE LOWER HOUSING……………………13
INSTALLING THE SWITCH HOUSING ………………… 13
INSTALLING THE WALL CONTROL …………………… 16
CONTROL SYSTEM SET-UP ………………………………… 17
OPERATING INSTRUCTIONS ……………………………… 17
TROUBLESHOOTING………………………………………………18
FCC WARNING…………………………………………………………..19

2 |KICHLER.COM 60” PINION 3
8. The fan must be mounted with a minimum of 2.13 m (7 ft.) fro
the floor and 76 cm (30 in.) from any wall or obstruction.
9. Do not use water or detergents when cleaning the fan or fa
blades. A dry dust cloth or lightly dampened cloth will be suitable
for most cleaning.
10. After making the electrical connections, spliced conducto
should be turned upward and pushed carefully up into outlet box.
The wires should be spread apart with the ground wire and white
(common) wire to one side with the black (load) wire to the other
side of the outlet box.
11. Electrical diagrams are reference only.Light kits that are n
packed with the fan must be ETL Listed and marked suitable
for use with the model fan you are installing. Switches must
be ETL General Use Switches. Refer to the Instructions
packaged with the light kits and switches for proper assembly.
SAFETY RULES
READ AND SAVE THESE INSTRUCTIONS
1. To reduce the risk of electric shock, insure electricity ha
been turned o at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the Nation
Electrical Code and local electrical codes. Electrical
installation should be performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of fire or electric shock, use
only the control provided with the fan.
4. WARNING: To reduce the risk of fire, electric shock, or
Personal Injury, mount directly to a structural framing
member or to an outlet box marked “Acceptable for Fan
Support of 15.9kg(35 lbs)or less”. For outlet box mounting,
use mounting screws provided with the outlet box.
5. To operate the reverse function on this fan, press th
reverse button while the fan is running.
6. Avoid placing objects in the path of the blade
7. To avoid personal injury or damage to the fan and oth
items, be cautious when working around or cleaning the
fan.
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT
BEND THE BLADE BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER INSTALLATION.
DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

4
PACKAGE CONTENTS

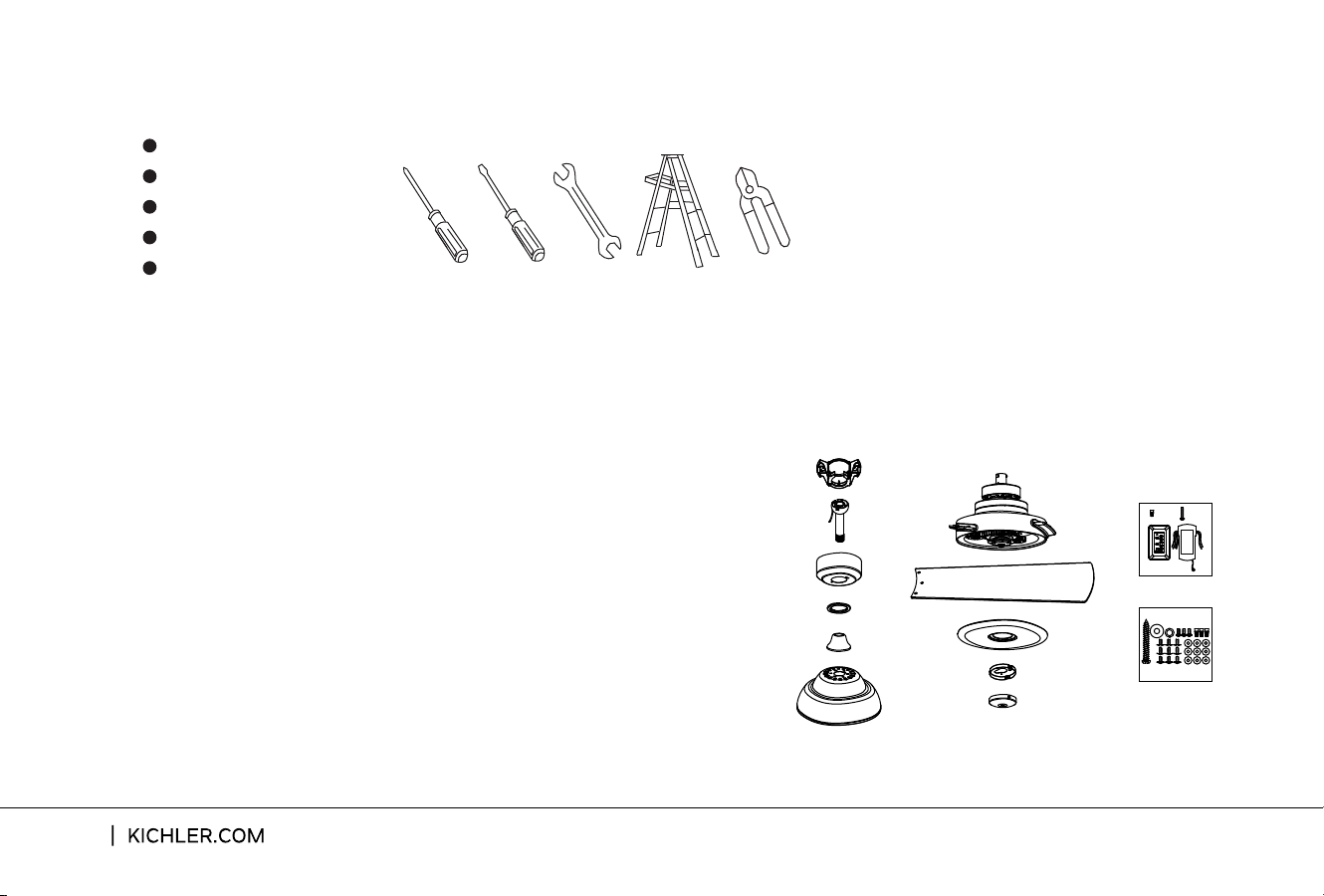

Unpack your fan and check the contents . You should have the following items:
A. Mounting bracket
B. Ball / downrod assembly
C. Canopy
D. Canopy Hole Cover
E. Coupling Cover
F. Top Housing
G. Motor Body
H. Fan Blade (3)
I. Lower Housing
J .Switch Housing
K.Switch Housing Cover
Phillips screwdriver
Blade screwdriver
11 mm wrench
Step ladder
Wire cutters
TOOLS REQUIRED
L. Wall Control System
M. Package hardware
1) Mounting hardware :
Wire Connector (3)
2) Blade attachment hardware :
Screws (9) ,washer (9)
3) Safety cable hardware :
Wood screw (1) ,Spring washer (1),
Flat washer (1)
4) Top housing hardware: screw (3)
H
K
G
I
J
A
B
D
C
E
F
L
x11 x2
M

MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12” is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
NOTE: : You must use 12” or longer downrod for 30° slope (max
angle 30°). (Fig. 3)
you may need to purchase and install a “Joist Hanger” for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)

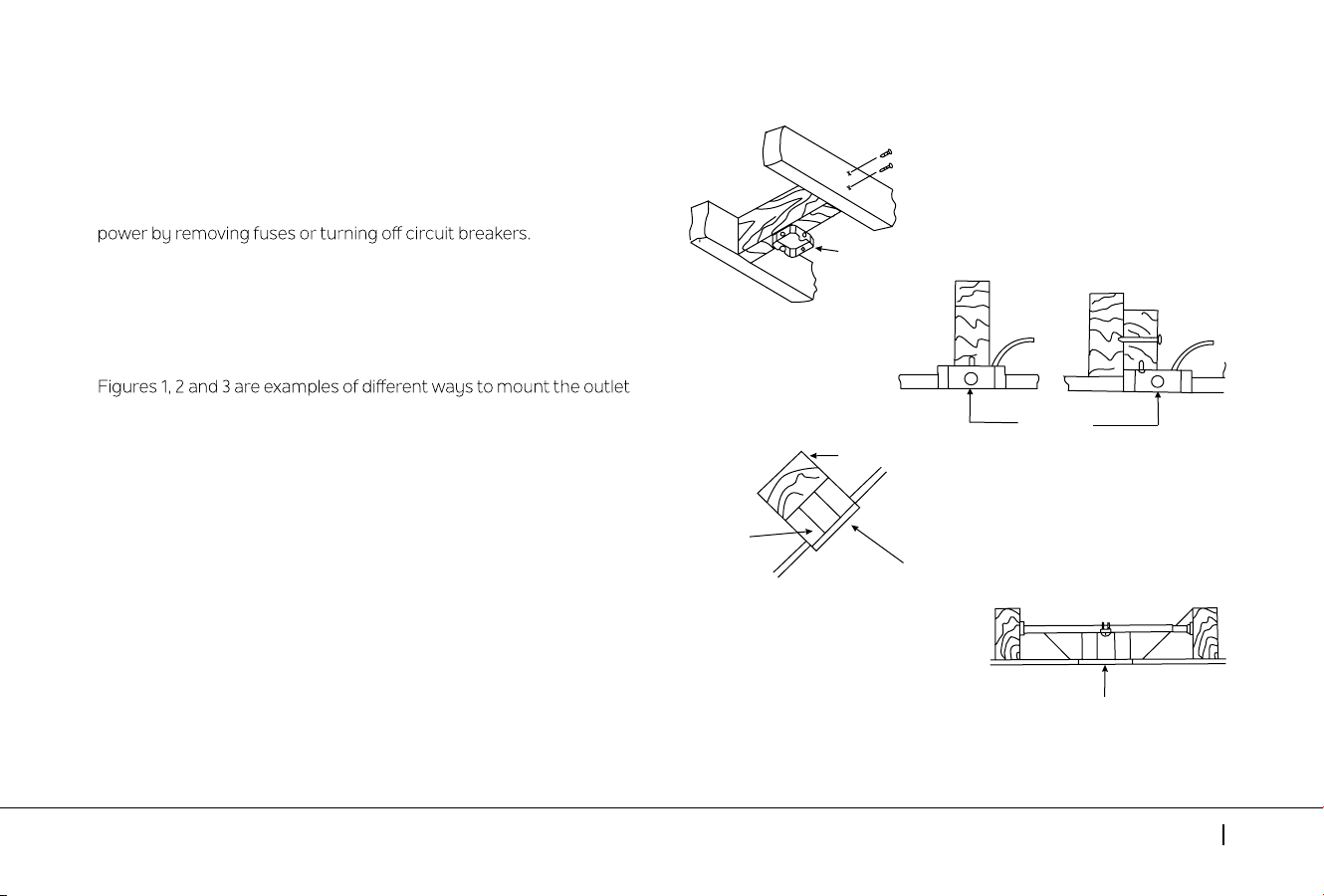

Fig. 1
Outlet box
Outlet box
Fig. 2
Provide strong
support
Recessed
outlet box Ceiling
mounting
plane
Fig. 3
ANGLED CEILING
MAXIMUM 30° ANGLE
Outlet box
Fig. 4
60" PINION
5

6
INSTALLING THE TOP HOUSING

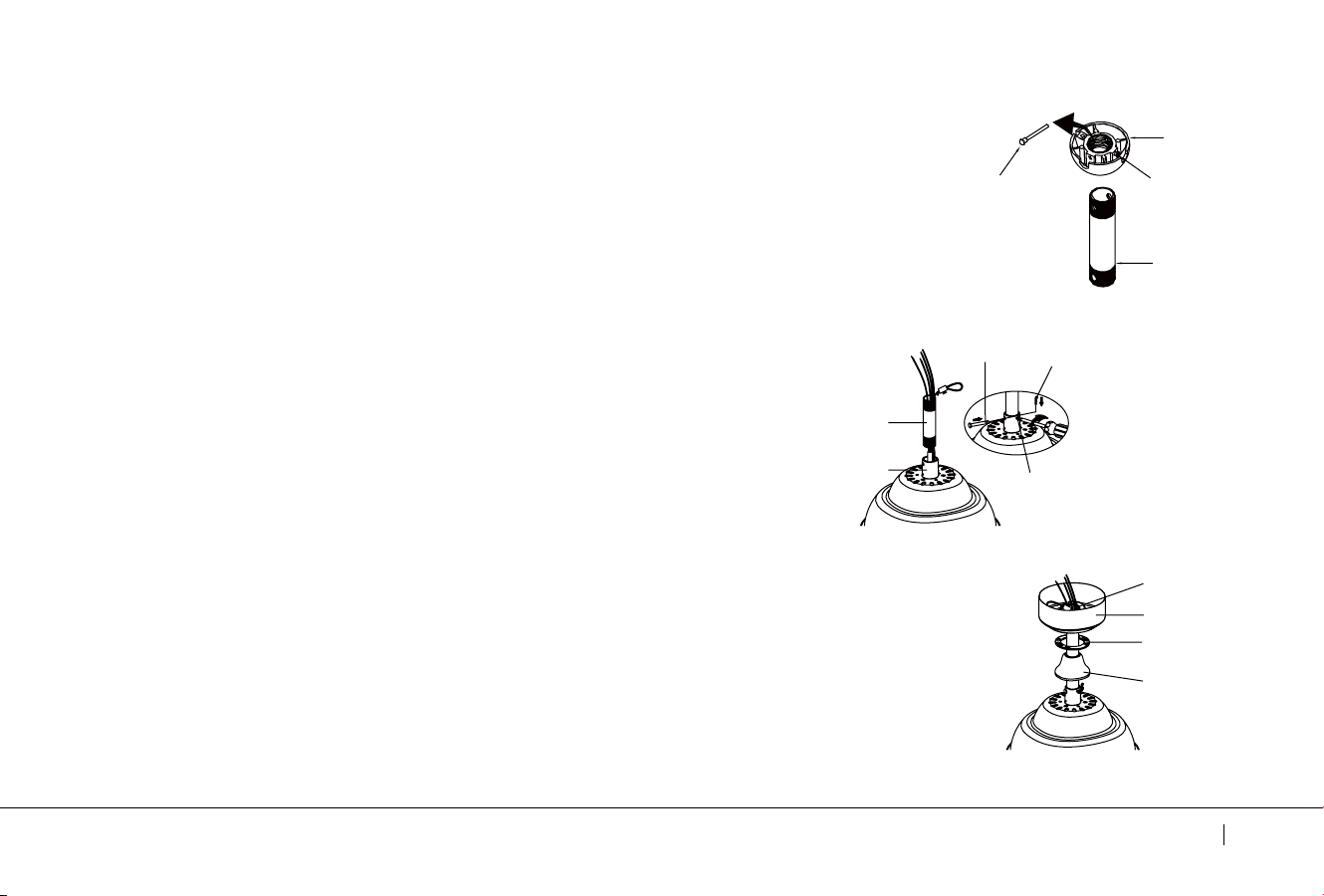

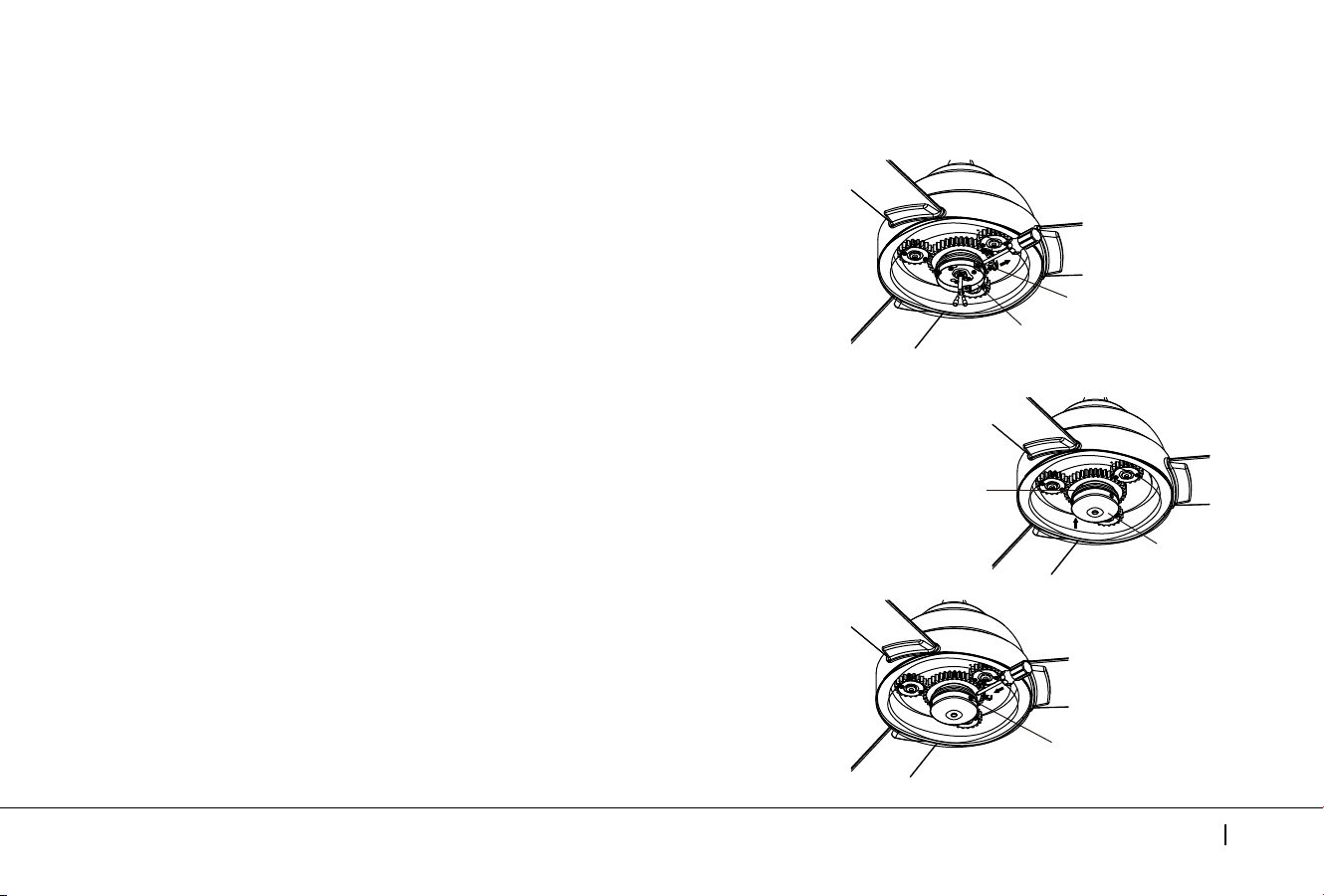

Step 1. Remove the clip, cross pin and two set screws from the top coupling of the
motor body, and save for later use on step 4. (Fig. 5)
Step 2. Carefully feed the fan wires up through the center hole of top housing, place
the top housing over the motor body and align the holes. Insert three (3) screws
from the hardware pack into the holes and securely tighten them. (Fig.6)
Crosspin
Clip
Set Screw
Screw ( 3 )
Top Housing
Motor Body
Fig. 5
Fig. 6

60" PINION
7
INSTALLING THE TOP HOUSING(continued)

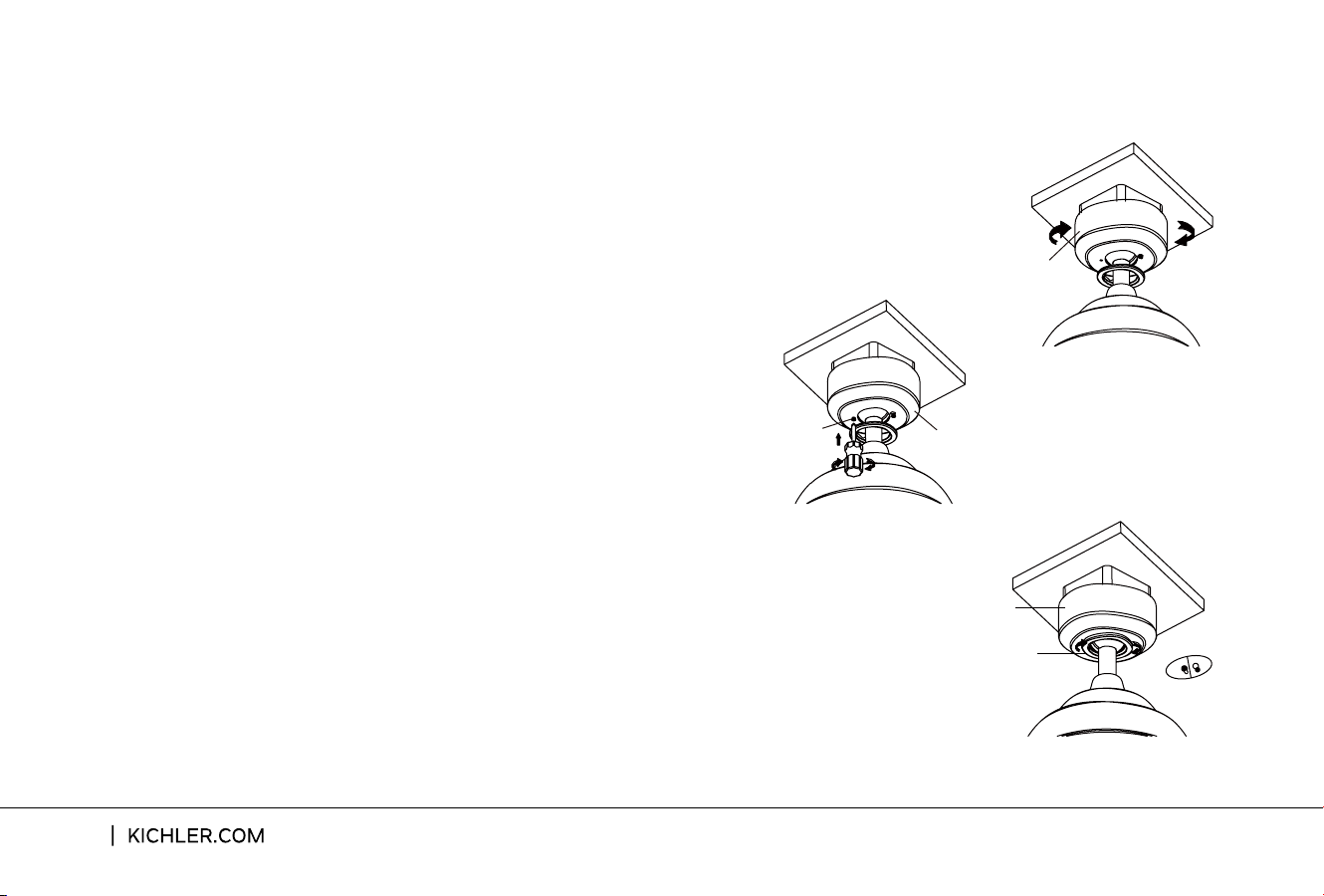

Step5. Slip the coupling cover, canopy hole cover and canopy onto the
downrod. Carefully reinstall the hanger ball onto the downrod. Make
sure the cross pin is in the correct position and the set screw is tight
and the wires are not twisted . ( Fig. 9)
Step 4. Carefully feed the fan wires and safety cable up through the downrod.
Thread the downrod onto the motor coupling until the cross pin holes are
aligned. Next, replace the cross pin and clip, and tighten both set screws. (Fig. 8)
Coupling Cover
Canopy Hole
Cover
Hanger Ball
Canopy
Downrod
Coupling Set Screw
Clip
Cross Pin
Downrod
Cross Pin Set Screw
Hanger Ball
Step3. Remove the hanger ball from downrod assembly by loosening set screws ,
removing the cross pin, and sliding ball o the rod.( Fig. 7)
Fig. 7
Fig. 8
Fig. 9

Fig. 10
Fig. 11
Fig. 12
Check Tab
Registration Slot
Step 3
WARNING:
. Now lift the motor body into position and place the hanger ball into the
hanger bracket. Rotate until the "Check Tab" has dropped into the "Registration Slot "
and seats firmly. The entire motor body should not rotate if this is done correctly.
(Fig. 12)
Failure to properly seat the "Check Tab" can damage the ceiling fan during
operation.

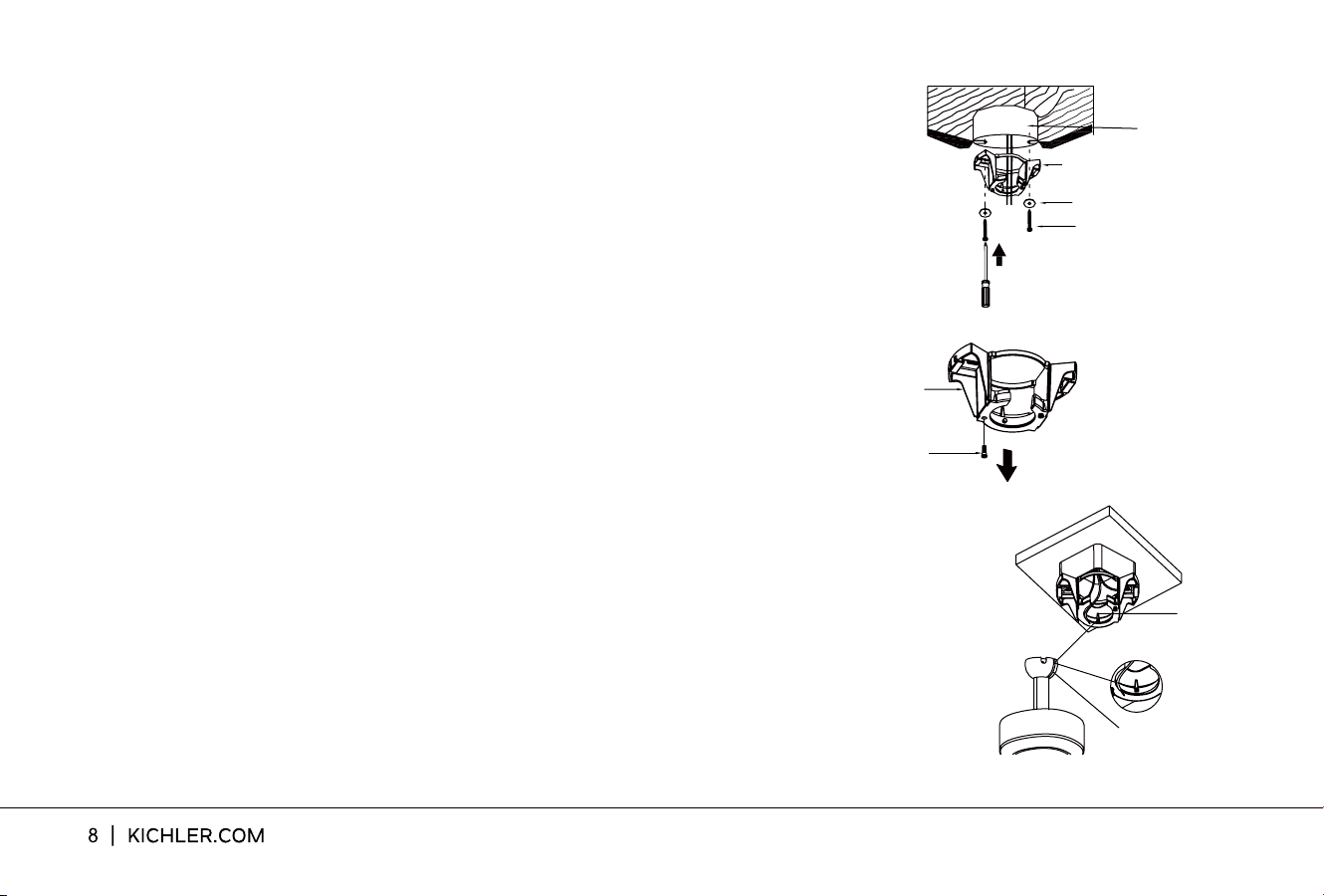

Step 2. Remove one of the two shoulder screws in the mounting bracket,and keep for
use on Page 12 Step 2. Loosen the second shoulder screw without fully removing it.
(Fig. 11)
HANGING THE FAN
REMEMBER to turn o the power before you begin installation. This is necessary
for your safety and also the proper programming of the control system.To properly
install your ceiling fan, follow the steps below.
Step 1. Before attaching fan to outlet box (not included), ensure the outlet box is
securely fastened to at least two points to a structural ceiling member (a loose box
will cause the fan to wobble). Pass the 120 volt supply wires from the ceiling outlet
box through the center of the ceiling mounting bracket. Install mounting bracket to
outlet box in ceiling using the screws and washers included with the outlet box. (Fig.10)
Flat Washer
Screw
Ceiling Mounting Bracket
Outlet Box
Mounting Bracket
Shoulder Screw

Step 1.
NOTE:
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from faIling, please
install it as follows.

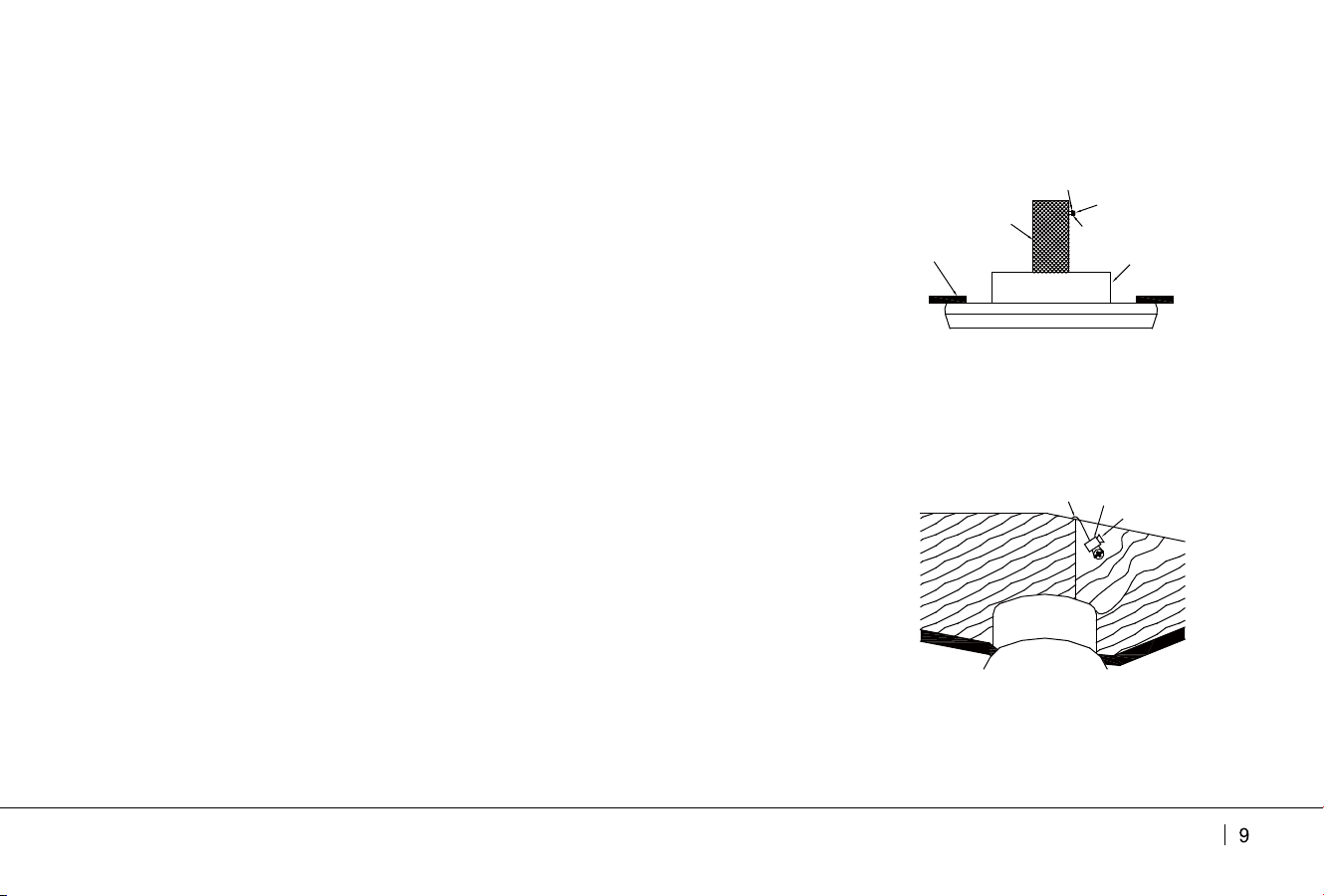

Drive a wood screw and washers into the side of the brace that holds the outlet
box. Leave 3mm (1/8") of space between the support brace and the washer. (Fig. 13)
Insert the safety cable through the mounting bracket and one of the holes in the
outlet box into the ceiling. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the overall length is
correct, put the end of the cable back through the cable clamp, forming a loop at the
end of the cable. Tighten the cable clamp securely. Now, put the loop in the end of the
safety cable over the wood screw and under the washer. Tighten the wood screw
securely. (Fig. 14)
Although the safety support cable is required for Canadian installations only.
It’s a good idea to make the attachment with any installation.
Step 2.
Fig. 13
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Support Brace
Ceiling
Fig. 14
Safety Cable Bolt Wood Screw
60" PINION

10
ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock,be sure you have turned o the power
at the main circuit panel before wiring. Follow the steps below to connect the fan to
your household wiring. Use the wire connecting nuts supplied with your fan. Secure
the connector with electrical tape. Make sure there are no loose wire stands or connections.
WARNING: If your house wires are dierent colors than referenced in this manual,
stop immediately. A professional electrician is recommended to determine proper wiring.

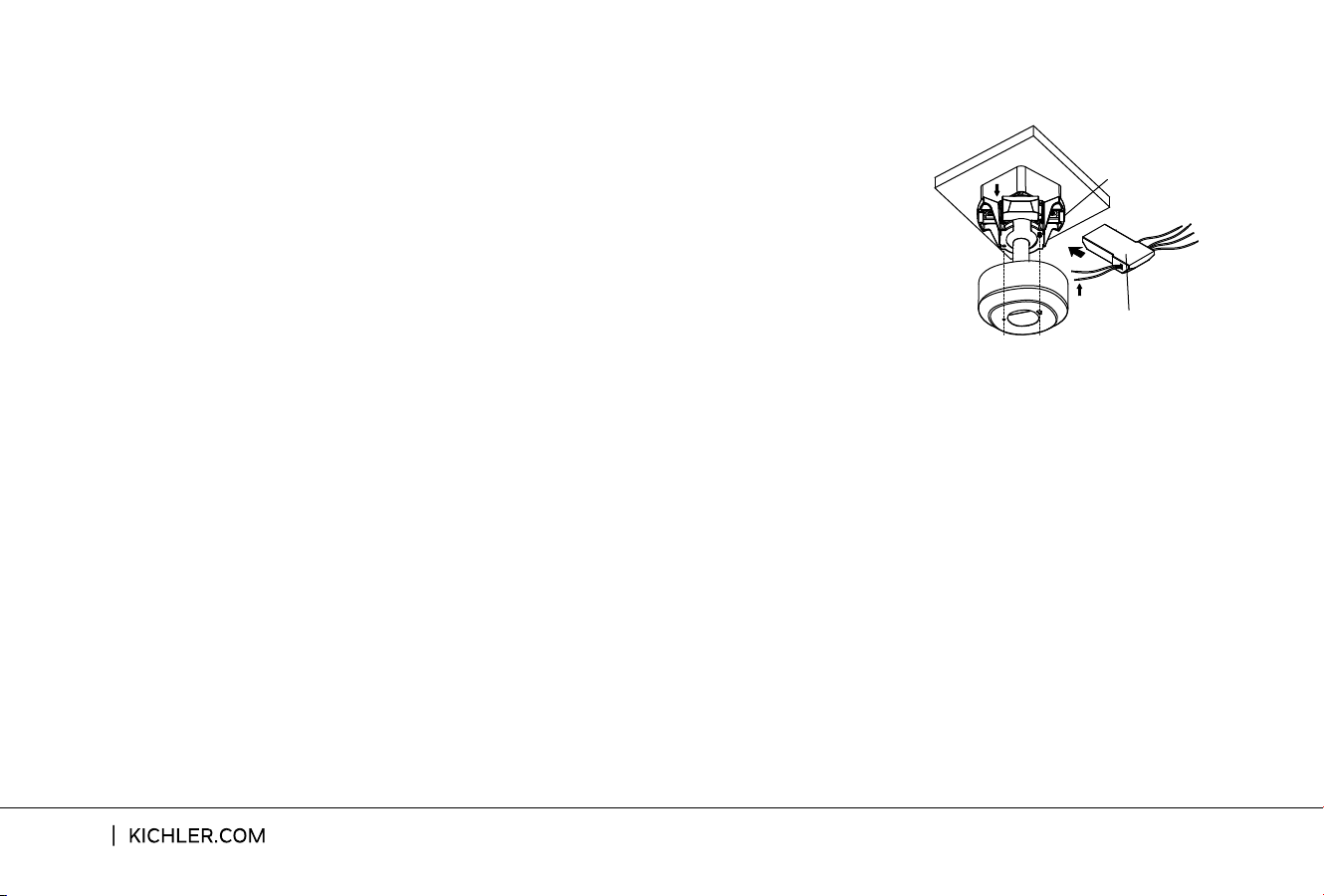

Step 1. Insert the receiver into the mounting bracket, and keep flat in opposition of ceiling. (Fig. 15)
Step 2. Motor to Receiver Electrical Connections:
Connect the WHITE wire from the fan to the WHITE wire marked "TO MOTOR N" from the receiver.
Connect the BLUE wire from the fan to the BLUE wire marked "FOR LIGHT " from the receiver.
Secure all the wire connections with the plastic wire nuts provided. ( Fig. 16)
Step 3. Remote Receiver to Outlet Box Electrical Connections:
Connect the BLACK (hot) wire from the ceiling to the BLACK wire marked “AC IN L” from the wall control .
Connect the WHITE (Neutral ) wire from the ceiling to the WHITE wire marked “ AC IN N” from the receiver.
Connect the BLACK (To Motor L) wire from the wall control to the BLACK wire marked “ AC IN L” from the receiver.
Secure the wire connections with the plastic wire connectors provided. (Fig. 16)
Connect the BLACK wire from the fan to BLACK wire marked "TO MOTOT L" from the receiver.
Connect the ORANGE wire from the fan to the ORANGE wire from the receiver.
Step 4. Connect GROUND (GREEN) wires from hanger ball and mounting bracket, so GROUND (GREEN or BARE COPPER ) from house.
Secure the wire connection w ith a plastic connectors provided. After connecting the wires, spread them apart so that the green and white
wires are on one side of the outlet box and black and blue wires are on the other side. (Fig. 16)
NOTE: Carefully tuck the wire connections up into the outlet box.
NOTE: Fan must be installed at a maximum distance of 30 feet from the transmitting unit for proper signal transmission between the
transmitting unit and t he fan’s receiving unit.
Receiver
Mounting Bracket
Fig. 15

60" PINION
11
White (Neutral)
White("AC IN N")
White("TO MOTOR N")
Ground wire
White (Neutral)
Blue(FOR LIGHT)
Black (motor)
Receiver
Outlex box
Black ("TO MOTOR L")
Black("AC" IN L")
Blue(for light)
Black (hot)
Orange
Orange
Ground wire
Ground wire
Black ("AC IN L")
Black ("TO MOTOR L")
WIRE DIAGRAM
Fig. 16

12
FINISHING THE INSTALLATION
Step 3. Securely attach and tighten the canopy hole cover over the shoulder
screws in the mounting bracket utilizing the keyslot twist-lock feature. (Fig. 19)
Canopy
Canopy Hole Cover
NOTE: Before continuing installation, confirm that the power is still turned o at
the main circuit breaker or by removing the correct fuse. Turning the power o
using a wall switch is not sucient to prevent electrical stock.
Step 1. Assemble canopy by rotating key slot in canopy over shoulder screw
in mounting bracket. (Fig. 17)
Canopy
Canopy
Screw
Step 2. Reinstall the shoulder screw that was previously removed on Page 8
step 2, then retighten two shoulder screws securely.(Fig.18)
Fig. 17
Fig. 18
Fig. 19

60" PINION
13
Blade Arm
Screw
Screw
Lower Housing
Washer
Blade
Screw
INSTALLING THE LOWER HOUSING
NOTE: Before continuing , make sure the power is disconnected by turning
o the circuit breaker of removing the fuse at the circuit box.
Step 1. Remove three (3) screws as shown and save for later use. (Fig. 21)
Step 2. Attach the lower housing to motor body, insert three (3) screws
previously removed into the holes and securely tighten them. (Fig. 22)
ATTACHING THE FAN BLADES
NOTE: Before continuing , make sure the power is disconnected by turning
o the circuit breaker of removing the fuse at the circuit box.
Step 1. Position the blade over the blade arm with threaded posts showing.
Make sure the bottom edge of the blade is fully seated against the blade arm.
With a Phillips screwdriver, start a blade screw and washer into the blade
arm (do not tighten) and repeat for the 2 remaining blade screws and
washers. Tighten each screw securely starting with the center screw. Make
sure the blade is straight. Repeat steps for the remaining blades. (Fig. 20)
Fig. 20
Fig. 21
Fig. 22

INSTALLING THE SWITCH HOUSING
NOTE:
at the main circuit breaker or by removing the circuit fuse. Turning the power
Step 1. Remove the screw marked with a dot label which preinstalled on the
mounting plate and keep for later use. Loosen the other two (do not remove).
(Fig. 23)
Step 2. Place the two slot holes on the switch housing over the two (2) screws
previously loosened from the mounting plate. Rotate the switch housing until
it locks in place at the narrowed end of the key holes. (Fig. 24)
Step 3. Securely by tightening the 2 screws previously loosened and the one
previously removed. (Fig. 25)
Fig. 23
Fig. 24
14
Fig. 25
Screw
Screw
Mounting
Plate
Switch Housing

60" PINION
15
INSTALLING THE SWITCH HOUSING(continued)
Step 4. Remove three (3) screws from the switch housing as shown and save for later
use. (Fig. 26)
Step 5. Attach the switch housing cover to the switch housing and securely tighten
with three (3) screws previously removed. (Fig. 27 & Fig. 28)
Fig. 26
Fig. 28
Fig. 27
Screw
Switch Housing
Cover
Switch Housing
Switch Housing
Screw

16
INSTALLING THE WALL CONTROL
All wiring must be in accordance with the National Electrical Code and local electrical codes.
Electrical installation should be performed by a qualified licensed electrician. Select a location
to install your wall control. You can replace an existing wall switch, or install the wall control on
ANY flat surface.
NOTE: SWITCH INSTALLATION MUST COMPLY WITH ALL LOCAL AND NATIONAL
ELECTRIC CODE .
Step 1. Remove the existing wall plate and the old switch from the wall outlet box.
Step 3.
Step 2.
Secure the wires connections and make sure there are no loose strands or
connections. Put wire connections back inside outlet box and secure the wall control
to outlet box with screws provided. Snug the face plate to wall control. (Fig. 30)
Place the wall control to the outlet box, connect the wires with wire connectors
provided. (Fig. 30)
*Connect the lead wire (HOT) from outlet box to BLACK wire marked “AC IN L” from wall
control.
*Connect the lead wire (LOAD) from outlet box to BLACK wire marked “TO MOTOR L”from
wall control.
*Connect the GROUND wire from outlet box to the GROUND wire from wall control.
HOT
TO 120V SOURCE
Outlet Box
Outlet Box Switch
Wall Plate
Wall Control
Face Plate
TO LOAD
GROUND
GROUND WIRE
FROM CEILING
BLACK
("AC IN L")
BLACK
("TO MOTOR L")
Fig. 30
Disconnect wires. (Fig. 29)
Fig. 29

CONTROL SYSTEM SET-UP
OPERATING INSTRUCTIONS
Restore power to ceiling fan and test for proper operation (Fig. 31)
1. Fan Control: To start the fan. Press the selected speed button to run the fan at the
desired speed: Hi-high speed; MED-medium speed; LOW-low speed; Press the "FAN
OFF" button to turn o the fan.
2. Light button: Press once to turn the light on or o. Continuous pressure on the light
button dims light in a continuous cycle from light to dark, or dark to light.
3. REV button: Controls direction, forward or reverse.
4. If your ceiling fan has fluorescent lighting, please slide the switch to “O” position. If
the ceiling fan has incandescent or halogen lighting or LED, please slide the switch to
“D” position.
Step 1. After installation is complete, press the LEARN button for 3 seconds within 30
seconds once AC power is turned on. Fan will turn on at medium speed and light (if installed)
will turn on. This confirms that the SMART SYNC setting is active and ok. (Fig. 31）
Step 2. If you cannot finish the setting within the 30 seconds time frame, the main power
must be turned o and re-started again. This will repeat step 1 until the LEARN feature is
activated as indicated.
60" PINION
17
Learn
ON/OFF
Fig. 31

18
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Solution
1.Check circuit fuses or breakers.
2.Check all electrical connections to ensure proper contact. CAUTION: Make sure the main power is
OFF when checking any electrical connection.
3.Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
4.Insure the batteries have a good charge.
1.Make sure all motor housing screws are snug.
2.Make sure the screws that attach the fan blade brackets to the motor are tight.
3.Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.
CAUTION: Make sure main power is o.
4.Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
5.If using an optional light kit, make sure the screws securing the glassware are tight.Make sure the light
bulbs are not touching any other component.
6.Do not connect this fan to a wall mounted variable speed control(s). They are not compatible with ceiling
fan motors or remote controls.
7.Make sure the upper canopy has a short distance from the ceiling. It should not touch the ceiling.
1.Check that all blade and blade arm screws are secure.
2.Most fan wobbling problems are caused when blade levels are unequal.Check this level by selecting a point
on the ceiling above the tip of one of the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation should be equal within 1/8".
3.If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute the
weight and possibly result in smoother operation.
TROUBLESHOOTING
Remote control
malfunction.
1.Ceiling Fans with remote control systems CAN NOT be operated in conjunction with any other control
system EXCEPT a basic On/O wall switch, if desired.

FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interfenence to radio or television reception, which can be determined by turning the equipment o and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna, increase the separation between the equipment and receiver, and connect the equipment into
an outlet on a circuit dierent from that to which the fan is connected.
60" PINION
19

www.kichler.com
KICHLER®LIGHTING
7711 EAST PLEASANT VALLEY ROAD P.O. BOX 318010
CLEVELAND, OHIO 44131-8010
CUSTOMER SERVICE 866.558.5706
8:30 AM TO 5:00 PM EST, MONDAY - FRIDAY
