Kilotech KWD 750SS User manual

Operation Manual Page 1
KWD 750SS
Weighing scale
Operation manual

Operation Manual Page 2
INDEX 
1. S a f e t y w a r n i n g s …………………………………3
2. F e a t u r e s ……………………………………………..4
3. Options…………………………………………..………...……..4
4. Product package…..……………………………………………….5
5. Keypad and display description………………………………5
6. Connections……………………………………………….………7
7. Basic function operation…….…………………………………..8
7.1 Zero Adjust………….……………………………...….. 8
7.2 Tare Function…….……….……………………………7
7.3 Auto Tare ……..………….…………………………… 11
7.4 Current Weighting..………..…………………………12
7.5 Accumulative Weighting..............……………………13
7.6 Piece Counting function…………………….……… 14
7.7 Piece Counting Preset………………………………15

Operation Manual Page 3
7.8 Weight limit function…….…….……..……………… 17
7.9 Weight limit saving and reply mode ………….…….17
8. Second Platform ………………………………………....……… 21
9. Advanced Functions …………………….………………………22
9.1 Backlight Activation…………...………….22
9.2 Auto Hold mode function…………….…..23
9.3 Auto Power off ……………………….......24
9.4 Auto Tare……..…………………………….24
9.5 Stable Filter……………………..……….25
9.6 Sound Activation………………………….26
9.7 AD conversor verification function………26
9.8 RS-232C data output configuration…..…27
9.9 Print Format………………………………..27
Manuel en Français et en Espagnol
disponible sur www.kilotech.com
1. Safety warnings
Disconnect from supply before installation or disassembly.
Although scale will withstand regular water spills, never submerge the
scale and never wash the scale with high pressure device. Electrical
adapter must be disconnected when washing scale.
Do not rest the scale of its platter or sub-platter because it can damage
the load cell. When manipulating the device, the scale should rest on
its sides, never on its platter.
Do not drop anything onto the scale platter or sub-platter as this could
damage the load cell. This scale is a precision instrument and should
be treated as such. It should also only be used for its intended use.
Before you start using the scale, make sure adapter is well connected
and wire is not pinched in any way.

Operation Manual Page 4
The scale should only be used under proper environmental conditions
and supervision as indicated in this operation manual.
Do not use this scale in places where there are unstable conditions or
danger of explosion.
Do not place the scale near heat sources or in direct sunlight.
Keep the scale far away from other electromagnetic sources as these
could affect the weighting precision.
When low-battery advisement appears, the battery should be charged.
If the battery remains discharged for on 60 days, the battery
deteriorates and could stop working.
When changing battery, make sure (+) and (-) terminal wires are
connected to the same and correct battery terminals.
IMPORTANT!
Inappropriate use of the scale, modification or tampering with the
scale or abuse / misuse of the scale will void the warranty of the scale.
2. Features
Liquid crystal display with backlight
Cross keypad for intuitive menu use
4 weighting units.

Operation Manual Page 5
IP-65 equivalent protection against liquids and dust.
20 numeric tare memory
20 limit weights for +/-control memory.
50 products memory for piece counting.
Checking function for Hi/OK/Low with optical and acoustic indication
Automatic OFF function.
3. Options
Optional rechargeable battery.
Double RS-232C data output ( PC and printer).
External Tare input (pedal or button).

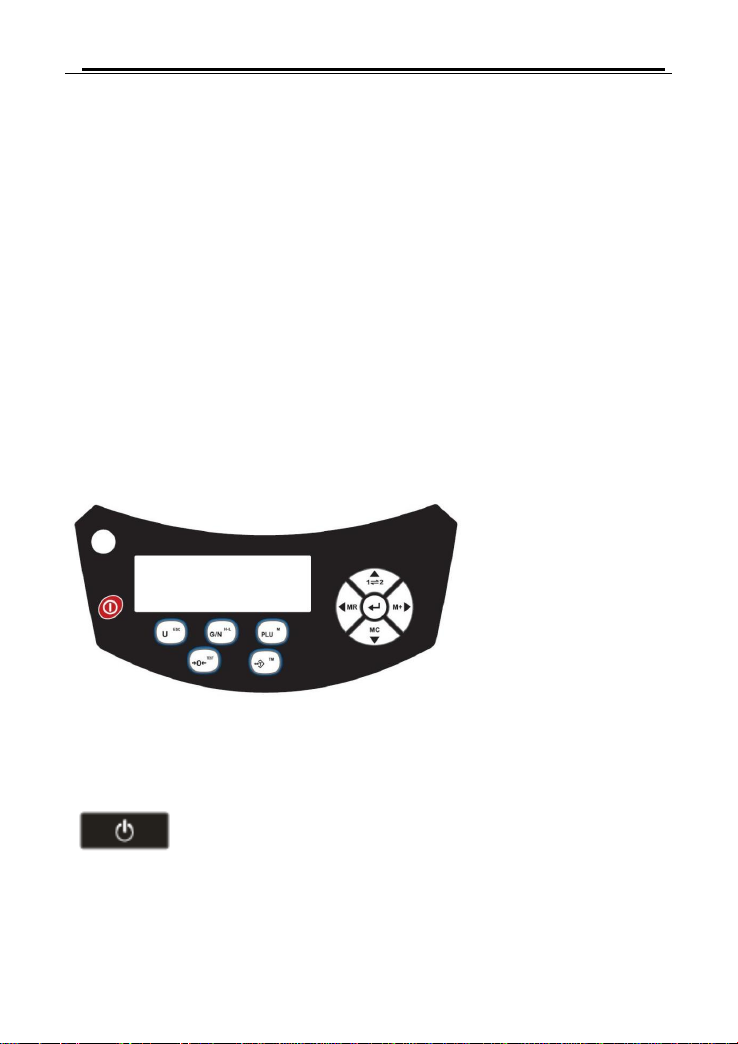

4. Keypad and display description
Keypad:
Turn on/off key. Press button to turn it on. To turn it off,
press and hold the button for one second.

Operation Manual Page 6
Change unit key. Press it to change unit. In menu
mode, press it to escape from menu and return to
normal mode.
Gross/Net key. When using tare mode, press it to show
total weight, press it again and it will show net weight.
To select “weight limit” mode, press and hold it for a
few seconds.
PLU key. Press it to enter menu, it has access to limit
memories, piece counting, tare mode and other
utility functions.
Zero key. It adjusts scale to zero, correcting its
deviations. Do it always when platter is empty. If you press it longer
than a second, it shows display test.
Tare key. Press it to deduct the weight of any container
or box placed on scale platter. Keep pressing to access tare
memory.

Operation Manual Page 7
MR and left arrow key. Press it to show accumulated total
weight. In menu mode, confirm the selected adjust value, and return
to previous menu.
M+ and right arrow key. Press it to save the value shown on
the display. In menu mode, it shows the next function.
Up arrow key. In menu mode, it increases the value
(number) on display.
MC and down arrow key. Press it to erase accumulated
weight memory. In menu mode, it decreases the value (number) on
display.
Enter key. To confirm the selection done in programming
mode.

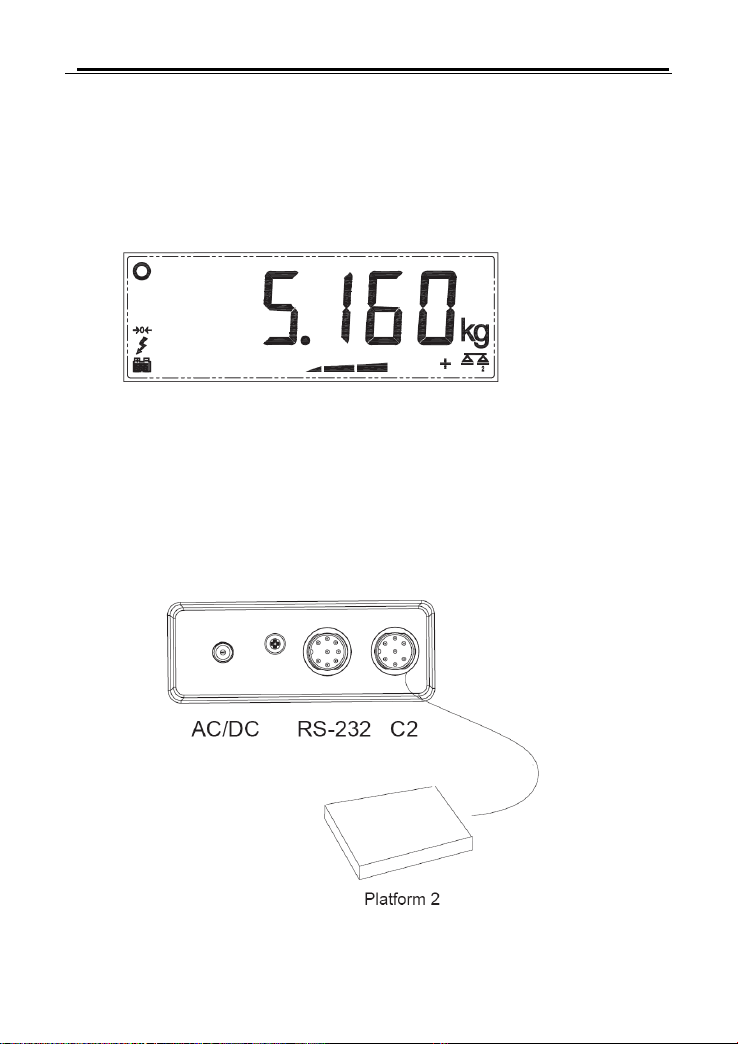

6. Connections

Operation Manual Page 8
AC/DC: Supply connector.
RS-232C: Double RS-232C data output RS-232C and tare (optional)
C2: External platform connector.
7. Basic function operation
7.1 Zero adjust
When scale platter is empty and it does not show zero value, press Zero
key to correct it.
7.2 Tare function

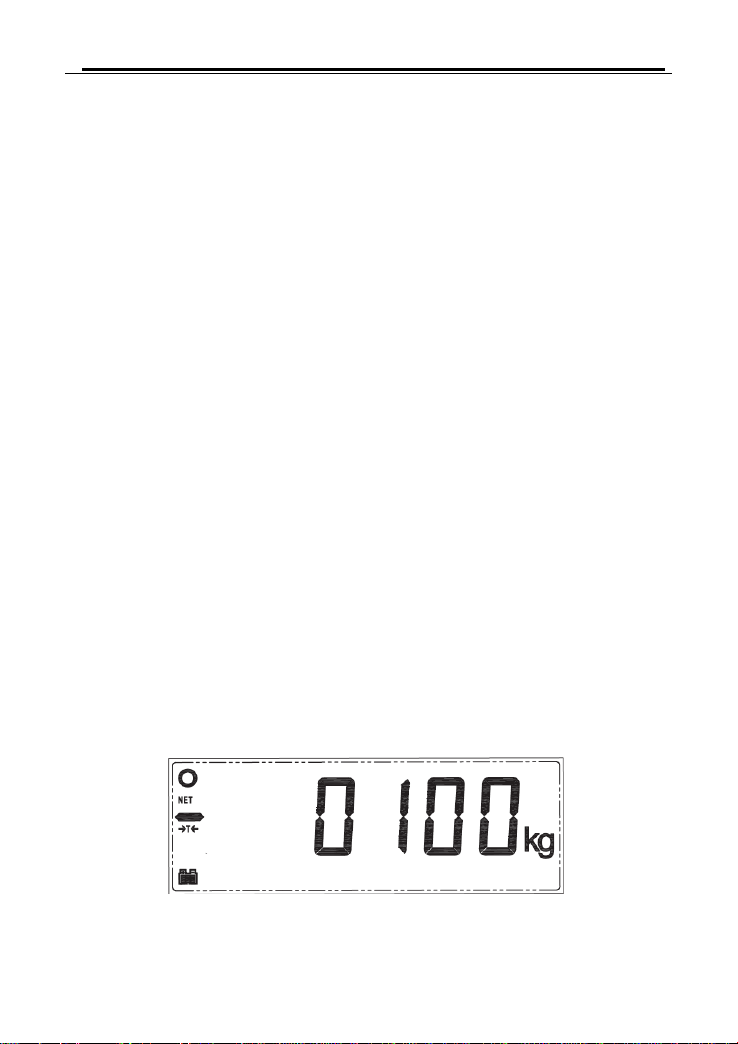

Place a container on the platter. Display will show tare value. Press “TARE”
and it will show “0” value, deducting object weight. Now you can place other
objects on the container, and display will show its net weight.
You can see the total value (gross weight) pressing “G/N” key. Press it again
to return to net weight.
To cancel tare, remove all objects from the platter, and press “TARE”.
Display will show zero value.

Operation Manual Page 9
Tips: If there is instable or temperature differences, display may not show 0
value. In this case, press “Zero” key to correct it.
Max tare range: Tare value cannot exceed the maximum scale capacity. The
real scale capacity is the sum of maximum capacity minus the tare done.
Real cap. = max cap. –tare.
TARE memory
The scale has 20 numeric tares available. To store tares, follow the
procedure below:
Storing a tare

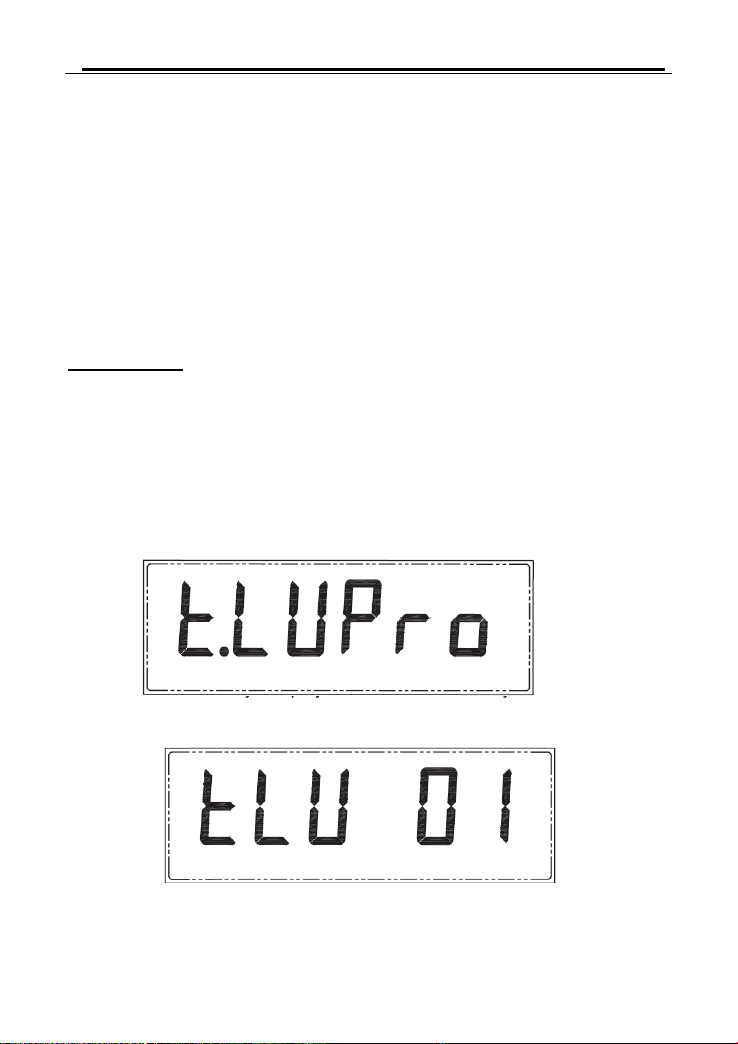

1) Press “PLU” key. Display will show “PLUPro”. Press “RIGHT ARROW”
key several times till display shows “TLUPro”.
2) Press “ENTER” key. Display will show the memory used last time (for
instance “lLU 01”). Last digits indicate the memory number.
Once memory position desired is selected, press “ENTER” and display will
show one number. To modify it and introduce a tare value, use “UP
ARROW” and “DOWN ARROW” to select the desired digit. To go to right

Operation Manual Page 10
digit, press “RIGHT ARROW”, to modify it use “UP ARROW”and “DOWN
ARROW”. To modify any digit on the left, press “LEFT ARROW”.Follow the
same procedure explained before.
To finish, press “ENTER” key and tare will be saved. If we wish to keep
saved tares, press again “ENTER” and follow the same procedure.
To finish, after confirming the last tare saved, display will show “ILUPro”.
Press “U/ESCAPE” to escape to weighting mode.
TARE memory use
In weighting mode, with empty platter, press “TARE”longer than a second

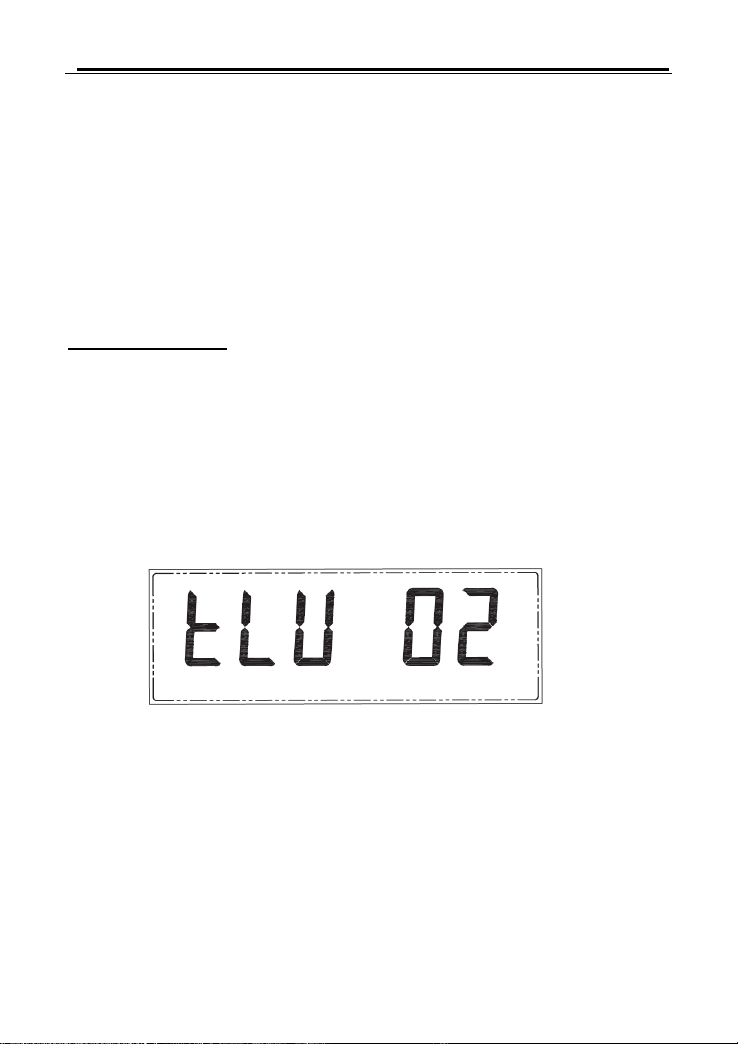

till “TLU XX” is shown, where XX is the last digit of the TARE memory saved.
To access another memory position, press “UP ARROW”and “DOWN
ARROW” to surf along the tare memories until you find the desired memory
number.
To confirm, press “ENTER”. Display will show tare memory value with
negative sign. Now you can place the object on the platter, and the tare
value will be deducted from weighting value (shows net weight).
You can operate with the object on the platter, then display indicate net
weighting value.
7.3 Auto Tare

Operation Manual Page 11
This function allows tare function with recipient or box to be done
automatically, without pressing “TARE” button. Display detects the first
weight (recipient or box), then operates tare function (sets to 0), and gets
ready to weight the product in the box or recipient. Afterwards, it sets to 0
and you can start again the same procedure repeatedly without pressing
any button.
Function activation
To enable Auto Tare, follow this instructions:
1. Press “PLU”. Display will show “PLUPro”. Press “RIGHT ARROW”
several times, still display shows “AUT-t”.

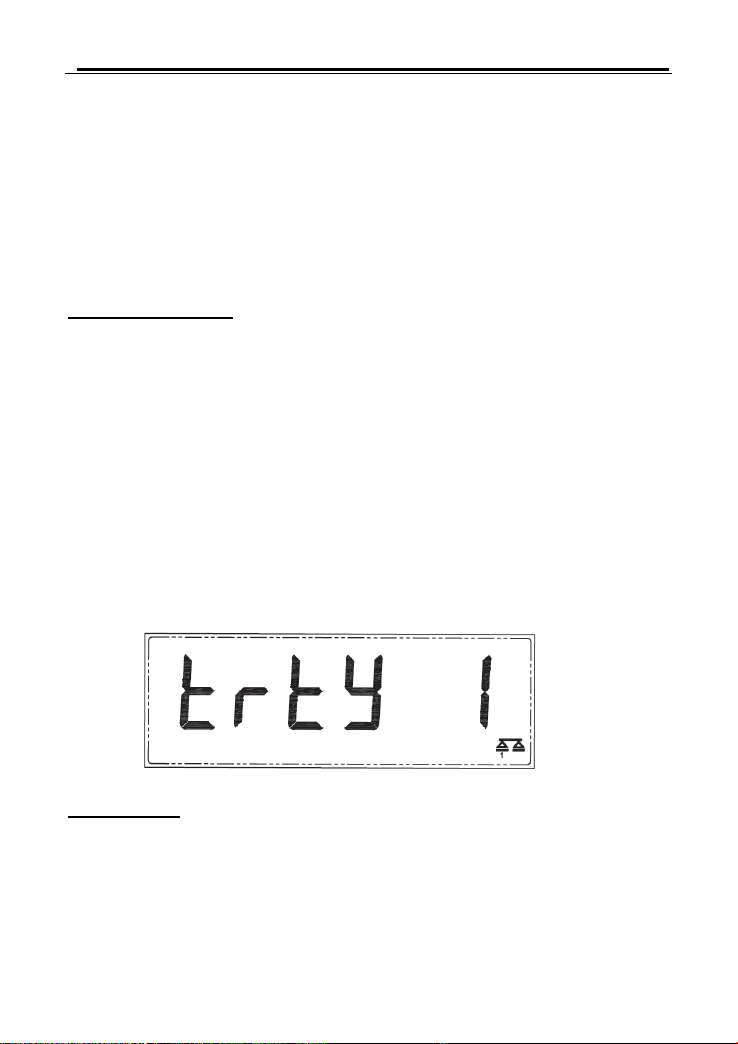

2. Press “ENTER”. Display will show in the last position one digit, in
accordance with the following meaning:
0 –Unable function.
1 –Enabled Function.
3. Press “ENTER” to confirm. Press “U/ESCAPE” to return to
weighting mode.
Function use
1. Place the recipient or box on the platter. Scale will operate the tare function
and display will show 0 and tare symbol will be on.
2. Place the object or objects inside the recipient or box. Display will show net
weight, deducting the tare (recipient/box weight).
3. Remove all objects from the platter. Display will cancel tare and set to 0.

Operation Manual Page 12
4. To weight again, repeat the same operation. You can use it indefinitely
without pressing any button.
7.4 Current weighting
Switch on the scale pressing “ON/OFF” button.
Display will be on in a few seconds, afterwards it will show zero value.
If there is any object on the platter, display will show the object weight,
except in the case its weight is very low, then scale will display zero.
Press “U” to select desired weighting unit (default unit is “g or kg”,
depending on its configuration).
Place the object you desire to weight on the platter. Screen will indicate
object weight value, it should be read when “stable” symbol is shown at the
top left side on the display.
7.5 Accumulative weighting
This function adds up all weighting values accumulated, and shows its total
value.
To use it, place the object you desire to weight on the platter. When display
show stabilized weight value (stable symbol on), press “RIGHT ARROW”.
Then, weight value adds to total.

Operation Manual Page 13
Repeat procedure for every object to add to the total.
To know accumulated sum value, press “LEFT ARROW” and display will
show total accumulated value.
To erase memory, press “DOWN ARROW” and accumulated value will be
deleted.
7.6 Piece counting function
The use of this mode is to count pieces of homogeneous weight. After
doing a simple sampling, scale saves the piece weight, and indicate the
number of pieces placed on the platter.
Sampling
To do the sampling, when scale shows 0 and platter is empty, press and
hold for longer than one second the “U” button until display shows “10” or
other flashing value..
This value is the quantity of pieces you can place on the platter as sampling.

Operation Manual Page 14
If pieces are small, to increase the precision of counting it is recommended
to place a number larger than 10. To do it, press “UP ARROW”, then
increase the sampling value to 20, 30, 50 or 100. To decrease, press
“DOWN ARROW”.
RTEMEMBER THAT TLE GREATER THE SAMPLE QUANTITY, THE
MORE THE MORE YOU ELIMINATE THE CHANCES OF ERROR.
Once desired value is selected, count the number of pieces indicated on the
display, place them on the platter and press “ENTER”. Display will stop
flashing and will show sampling value.
Counting
Place the pieces you desire to count (it should be the same unitary weight
from the sampling) on the weighting platter. It can be counted inside a
recipient, if tare has been done before (check Tare Use chapter)
Display will show the total quantity of pieces.
To return to Weight mode in the standard weight unit, press “U”.
If you desire to return to piece counting mode using the same unitary weight
than last time, press “U” several times still display shows “PCS” symbol.

Operation Manual Page 15
7.7 Piece Counting Preset (Saving a piece average weight)
When display on piece counting mode (“PCS” on) and the stable symbol on,
press “M”.
Press “RIGHT ARROW” once, and display will show “CLUPro”.
The two digits on the right are the 100 memory position available (from 00 to
99).
Use “UP ARROW” and “DOWN ARROW” to set the target value in the
flashing digit, use “RIGHT ARROW” and “LEFT ARROW” to set the other
digit. Use “UP ARROW” and “DOWN ARROW” to set the desired memory
position value, and confirm by pressing “ENTER”.
Display will show again “CLUPro”. Press “U” to escape to counting mode.
To access to memory database and change one position, press and hold
“G/N”. Scale will show “CLU XX”, where XX is the memory position.

Operation Manual Page 16
Use “UP ARROW” and “DOWN ARROW” to increase and decrease the
flashing digit, use “LEFT ARROW” and “RIGHT ARROW” to move the digit
on the right or the left. When setting desired memory position, press
“ENTER” to confirm it. Scale from now will be programmed with the set
piece counting memory.
You can start piece counting by placing pieces on the platter or in a recipient
if we use tare function.
7.8 Weight limit function (+/-) (HI/LO)
This function is suitable to classify a list of products by weight, ruling out
those that are under or on the desired min or max weight.
Scale shows a bar with negative left extreme, and positive right extreme,
and in the center the accepted products.
This figure indicates if each product is in the desired range set. It uses a
beep as acoustic signaling. We offer a relay card to connect external Hi/Lo
or control devices.
Scale has 20 memories available for this function.
7.9 Weight limit saving and reply mode.
1) Press “PLU”. Scale will show “PLUPro”. Press “ENTER” to confirm,
and display will show at right the function memory position number.

Operation Manual Page 17
2) To access to desired memory position, use “UP ARROW”and
“DOWN ARROW” to increase and decrease position number and
set the desired one.
3) To confirm, press “ENTER”.
4) Select nominal value, use “UP ARROW” and “DOWN ARROW” to
increase and decrease position to find the desired one. Use “LEFT
ARROW” and “RIGHT ARROW” to move to right or left digit. Once
you find the desired nominal value, press “ENTER” to confirm.
5) Now we should introduce superior increase value for each display
segment. We do the selection using the previous procedure. To
confirm, press “ENTER”
6) Do the same operation for the lower increase, which normally is

Operation Manual Page 18
the same as the superior one, but in some cases could be different,
then it should be introduced.
Hi/Lo mode selection
Hi/Lo mode should be programmed for limit function. Scale indicates by a
“BEEP” if weight is in or out the set limits. It can be programmed in two
different ways:
1- Advise when weight is within the set limits.
2- Advise when weight is outside of the set limits.
Use “UP ARROW” and DOWN ARROW” to select the desired set limit
(value), and use “ENTER” to confirm.
Type of Hi/Lo selection
Hi/Lo mode could be either a continuous beep, or just a one time beep. To
set it, use “UP ARROW” and DOWN ARROW” to select the desired
value, and to confirm press “ENTER”.
1- No sound.

Operation Manual Page 19
2- One-time “BEEP”
3- One continuous “BEEEEEEP”.
Press “ENTER” to confirm introduced data, escape using “U”.
Scale returns to normal use mode
Limit function activation(+/-)
1) Press and hold “G/N” still it shows “Hi-Lo X”, where “X” indicates if
function is enabled or unabled.
To enable, use “UP ARROW” and “DOWN ARROW”, select one out of
the two following options.
0- Limit function unabled.
1- Limit function enabled.
2) Press “ENTER”to confirm. Display will show “PLU XX”where XX is
the memory position.
3) Select one of the positions, use “UP ARROW” and “DOWN ARROW” to
modify the flashing value, and also “LEFT ARROW” and “RIGHT
ARROW”
3) Confirm the selection with “ENTER”,and press “LEFT ARROW”to

Operation Manual Page 20
escape.
4) Place the object on the platter, and scale will show one part of the bar
on, depending on its weighting value and weight limits saved, it will
show (+) or (-) symbols. In case weighting is in the limits, it will show a
central value in the bar on.
8. Secondary platform (available only on selected models)
Scale models which have external weighting platform let scale platter and
another accessory external platform work at the same time.
External platform should be connected to scale C2 connector.
To change from scale platter to external platform 2, you should press “UP
ARROW”, also shown as changing platform symbol.
