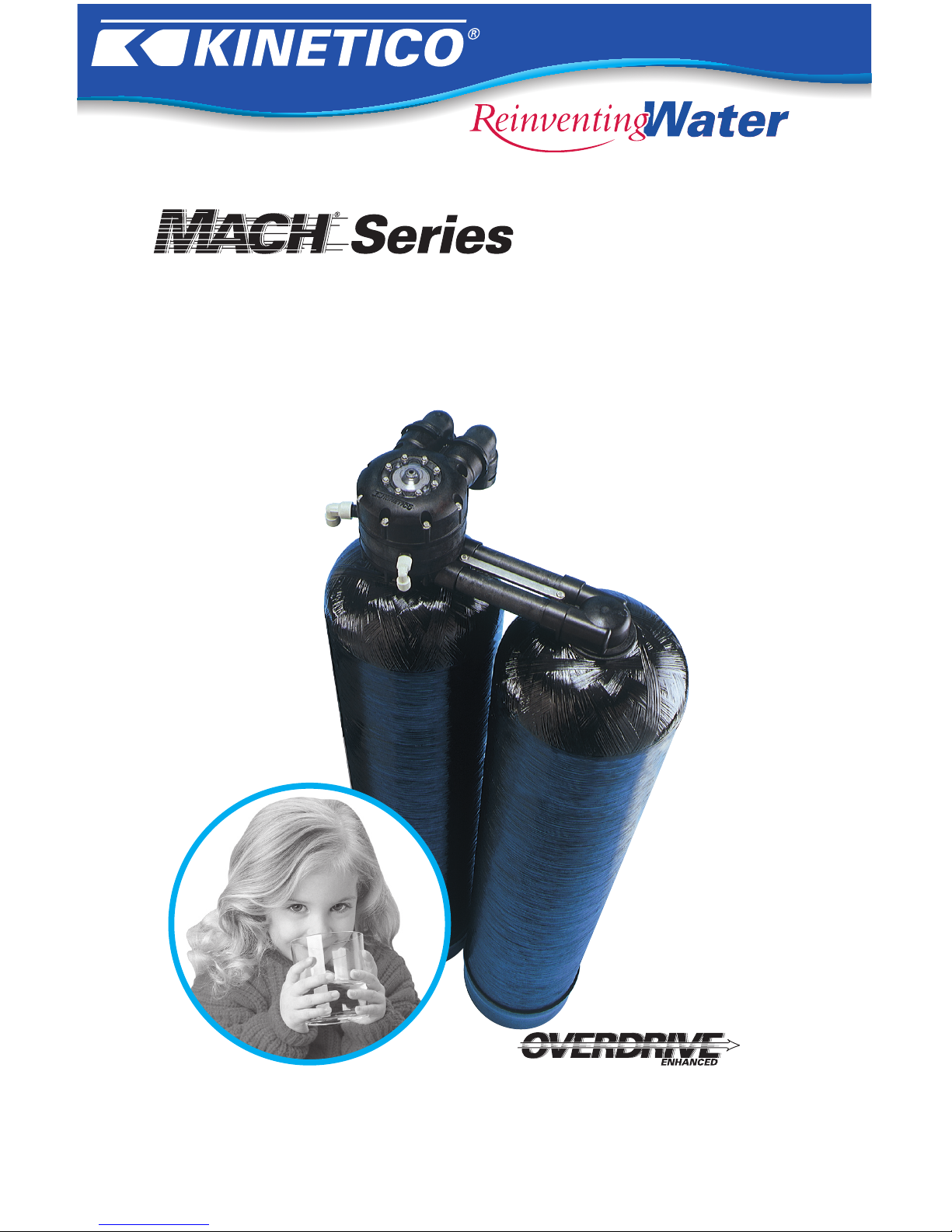

Kinetico Mach Series 2060f User manual

• Kinetico Mach Series Backwashing Filters
• Filtre de lavage à contre-courant Kinetico Mach SeriesMD
• Filtro Mach SeriesTM Backwashing Kinetico
Owner’s Manual • Guide d’utilisation • Manual del usuario

Congratulations for choosing Kinetico to improve the quality of your
water. You will immediately begin to notice the numerous benefits of
having quality water throughout your home and the benefits of having
a Kinetico Quality Water System.
Since 1970, Kinetico Incorporated has designed and manufactured prod-
ucts to improve the quality of your water. Kinetico offers a complete
line of quality water systems to solve your water problems. Pioneers in
non-electric, demand operated water treatment, Kinetico continually
sets the direction for the entire water quality industry.
Kinetico Mach Series Backwashing Filters
Owner’s Manual
“Kinetico,” the Kinetico logo
and the
“girl drinking water” are registered trademarks of Kinetico Incorporated, Newbury, Ohio. MADE IN U.S.A.
and the “girl drinking water” are registered trademarks of Kinetico Incorporated, Newbury, Ohio. MADE IN U.S.A.and the
For more information about Kinetico, visit us at
www.kinetico.com

Table of Contents
About The Kinetico Mach Series Backwashing Filter
...................
3
How Your
Mach Series Backwashing Filter
Works
.......................
4
What Makes Your Kinetico
Mach Series Backwashing
Filter
Different
Is What Makes It Better
.....................................
5
Maintaining Your
Mach Series Backwashing Filter
.......................
7
Commonly Asked Questions
.........................................................
9
Glossary of Terms
........................................................................
10
Maintenance Rec
ord
...................................................................
12
Product Specifications
.................................................................
13
Version Française
.........................................................................
F1
Version Español
...........................................................................
E1
Kinetico Incorporated
10845 Kinsman Rd
Newbury, Ohio, 44065
USA
www.kinetico.com
Kinetico UK Limited
Bridge House
Park Gate Business Centre
Park Gate Hampshire SO31
1FQ
England
www.kinetico.co.uk
Kinetico Canada
Incorporated
16524 Hurontario St.
Caledon, Ontario L0N 1C0
Canada
www.kinetico.com
Kinetico France Sarl
B.P.54
Parc d’Activités de la
demi-Lune
2, rue Gutenberg
95420 Magny en Vexin
France
www.kinetico.fr
Kinetico Denmark ApS
Tigervej 12-14
Køge, DK-4600
Denmark

Kinetico Mach Series Backwashing Filters
3
About The Kinetico Mach Series
Backwashing Filter
Now that your Kinetico Mach Series Backwashing Filter is
installed, you can start enjoying the benefits of problem-
free water.
Kinetico offers a variety of backwashing filters to han-
dle problem water which may have iron or be dirty,
cloudy, smelly or acidic. All these water problems
cause havoc in the home. Your water can stain and ruin
clothing, plumbing, fixtures and water-using appliances
as well as be just plain difficult to live with.
Water Problems Solved With Kinetico Mach Series
Backwashing Filters
Iron
– Iron in water can cause rust colored stains on clothing, plumbing,
fixtures and water-using appliances. It can also give water a metallic taste.
Offensive Taste and Odors
– Algae, chlorine and
other elements that could be in your water can
cause a foul smell and taste and make using and
drinking your water unpleasant.
Acid
– Acidic water can cause blue-green stains
Acid – Acidic water can cause blue-green stains Acid
on sinks, tubs, toilets and fixtures. It can also cause
corrosion of plumbing and water-using appliances.
Turbidity
– Cloudy or dirty water can be caused by
Turbidity
– Cloudy or dirty water can be caused by Turbidity
sediment, silt, dirt or other suspended matter. Turbid water can create prob-
lems with plumbing and water-using appliances as well as make drinking,
cleaning and cooking with water unpleasant.
Your water conditions determine what is necessary to solve your water problems.
In many cases, several pieces of equipment may be needed to do the job. Your
authorized Kinetico dealer has analyzed your water and has recommended the
most appropriate system(s) to solve your specific water problems.
Kinetico Mach Series Backwashing Filters are customized and contain filter
media most appropriate for your application. Please refer to the Maintenance
Record section of this manual to identify the media used in your system or
contact your authorized Kinetico dealer.

4
Media Options for Kinetico Mach Series
Backwashing Filters
Activated Carbon
– used to remove objectionable taste, odors and color
from water
Calcite
–used to neutralize water by raising its pH level
Macrolite
®
Ceramic Media
– used to remove extremely fine particles from
water such as iron, sediment, dirt, silt and suspended matter
Manganese Greensand
- used to oxidize and filter iron, manganese and
hydrogen sulfide from water supplies.
How Your Kinetico Mach Series
Backwashing Filter Works
Problem water usually has something in it that needs to be removed. Running
your water through a backwashing filter that contains the appropriate media
is basically how it’s done. The filtering media traps the matter that needs to
be filtered from your water and allows the virtually particle-free water to
leave the system and be used throughout your home.
Once the media bed is loaded with the trapped particles,
it must be cleansed. This is done through a process
called backwashing. During backwash, water is
forced through the media bed in the opposite
flow direction of the system to clean the par-
ticles off the media and flush them to drain.
Once the process is complete, the media is
again ready to filter your water.
The 2080 Greensand Filter has an additional step
in the backwasing process where it draws in potas-
sium permanganate (KMnO4) that restores the media's
oxidizing capacity.

Kinetico Mach Series Backwashing Filters
5
What Makes Your Kinetico Water System
Different Is What Makes It Better
Overdrive Enhanced Service
Kinetico Backwashing Filters feature Overdrive Enhanced Service – both
tanks of the twin tank system are filtering your water simultaneously. This
is the best and most thorough way to filter your water since it allows your
water to have longer contact with the filter media, improves the flow rate
and is less taxing on the system.
Non-Electric Operation
Kinetico Mach Series Backwashing Filters are powered by the energy of mov-
ing water, not electricity. So there’s nothing to plug in, no buttons to push,
timers to set and reset, or adjustments to make. You really don’t need to do
anything special to operate your Kinetico system – it runs itself, not you.
Demand Operation
Your Kinetico Mach Series Backwashing Filter has a built-in water meter
which means it operates “on demand” based on your actual water usage.
So a simple flush of the toilet or run of the faucet can send your Kinetico
Mach Series Backwashing Filter into backwash. Depending on your water
usage, your Kinetico Filter could backwash more frequently (if you have a
house full of guests, for instance) or not at all for several days (if you’re on
vacation). Demand operation means the system backwashes when neces-
sary (when the media tank’s capacity is reached), not based on an estimated
time interval. So demand operation ensures maximum efficiency and less
waste from unnecessary backwashes while providing you with a continu-
ous supply of filtered water, even as your water usage changes.
Countercurrent Backwash
A process known as countercurrent backwashing forces water through the
media bed in the opposite water flow direction. Particles trapped in the
media bed are loosened and flushed to drain. Kinetico is able to effectively
use countercurrent backwashing, recognized as the optimum process for
backwashing, since our filters have twin tanks and can backwash with filtered
water. If filtered water isn’t used, countercurrent backwash is less effective.
Twin Tank Design
The twin tank design of a Kinetico Mach Series Backwashing Filter allows
the unit to provide Overdrive service – both tanks are in service simulta-
neously. Twin tanks also provide you with a continuous supply of filtered

6
water 24 hours a day, even through the backwashing process. When a
backwash is necessary, one tank backwashes while the other tank remains
in service. When the backwash process is complete, the tank that was
backwashed goes back into service. Once again, both tanks are in service
simultaneously. When the second tank needs to be backwashed, the first
tank remains in service while the second backwashes. Overdrive service
resumes again after the backwash process. Thanks to the twin tank design,
you can do a week’s worth of laundry in one day. Your Kinetico Filter can
handle it.
Your Kinetico Mach Series Backwashing Filter is engineered to provide you
with quality water without requiring extensive maintenance. Should you
have any questions or need any assistance, contact your local, authorized
Kinetico dealer.
NOTE:
Repair
l
eaky faucets, toilets or pipes to ensure proper product performance.

Kinetico Mach Series Backwashing Filters
7
Maintaining Your Kinetico Mach Series
Backwashing Filter.
The media used in your Kinetico Mach Series Backwashing Filter will pro-
vide you with years of service, but certain media may eventually require
replenishment or replacement. How long the filtering media lasts depends
on your specific water conditions. If the problem your system was installed
to correct returns, it could mean your water conditions have changed and
your system may only require a slight adjustment by your local, authorized
Kinetico dealer. Your Kinetico water professional will determine if the sys-
tem needs adjustments or if the media bed needs to be replenished.
Manual Backwash
If your water problem reappears, manually backwash your system to see if the
change in your water conditions is temporary.
To manually backwash your filter, use a #2 Phillips screwdriver, push down
firmly on the filter valve screw located on top of the control valve and slow-
ly turn clockwise (fig. 1) until the actuator has advanced the indicator dot
to the “BACKWASH” position. You should hear at least five “clicks” while
turning the screw before the indicator dot reaches the “BACKWASH” posi-
tion. At this point you should hear water begin to run through the system.
If you do not hear water running through the system, the indicator dot has
not been advanced far enough and you must repeat the previous procedure.
After one tank backwashes, repeat the procedure for manual regeneration
after the water flow stops to be sure both media tanks are backwashed.
By–pass
There may be times when you need to shut off the water supply to your
entire house. To do this, set the by–pass valve to the “OFF” position. No
water will flow through the house. To restart the water, set the by–pass valve
to the “SERVICE” position. You may put the filter into by–pass at any time,
if necessary, by putting the by–pass valve into the "BY–PASS” position.
You will still get water throughout the house; however, all of the water
will be untreated. To return the filter to service, set the by–pass valve to the
“SERVICE” position.
NOTE:
By–pass styles vary and yours may not be as described. Contact your Kinetico
dealer for further assistance.

8
Cold Weather Protection
If your Kinetico water system is installed outside or in an area that is not
heated, you may need to take precautionary measures to prevent damage to
your unit from freezing.
NOTE:
Kinetico's warranty doesn't cover damage to your system due to freezing.
If you have questions about your Kinetico water system, or if you suspect that it
isn't working properly, contact your local, authorized Kinetico dealer.
B
A
C
K
W
A
S
H
P
U
R
G
E
P
U
R
G
E
B
A
C
K
W
A
S
H
fig. 1
Indicator Dot
Filter Valve Screw
Backwashing Filter
Top of Valve
BW
B
W
B
R
I
N
E
•
R
I
N
S
E
B
W
P
U
R
G
E
B
W
B
R
I
N
E
•
R
I
N
S
E
B
W
P
U
R
G
E
Indicator Dot
Filter Valve Screw
fig. 2
Greensand
Filter
Top of Valve

Kinetico Mach Series Backwashing Filters
9
Commonly Asked Questions
There has been a drop in my home's water pressure. What can be the cause?
A reduction in your home's water pressure can indicate that the filter is in a
backwashing cycle. Normal pressure should return when the cycle is com-
plete. If not, contact your local, authorized Kinetico dealer.
My system seems to be backwashing more frequently. Is this normal?
Remember, your Kinetico system is demand–operated, adjusting auto matically
to your water usage. If you do not think that your water usage has increased
due to extra house guests, additional laundry or some other reason, check
for any leaky plumbing, dripping faucets or running toilets; all of which can
contribute to more frequent backwashing.
I can hear my Kinetico system running or backwashing during the day. My
old filter only used to run at night. Is this normal?
Single tank, electric water filters are set to backwash at night because of the
unavailability of filtered water during the backwash pro cess. Unlike tra-
ditional water filters, Kinetico systems operate on demand based on your
water usage, without timers or electronics. So your system backwashes
whenever necessary, at any time of day. And Kinetico’s twin tank design
allows one tank to provide treated water while the other backwashes, so
you’ll never be without filtered water.
How will I know when it is time to change the filter media?
Generally, the media in your filter needs to be changed when the original
water problem returns to the filtered water. Depending on water usage and
water conditions, the media could last for several years.
If at any time you feel your Kinetico water system is not operating properly, put the
system in by–pass and call your local, authorized Kinetico dealer.

10
Glossary of Terms
Backwash
: High velocity rinsing of softening resin or filtration media,
: High velocity rinsing of softening resin or filtration media,
normally upflow.
By-pass
: Manually operated valves to divert flow around POE
equipment.
Carbon
: Activated carbon found in POE equipment for dechlorination, taste
and odor reduction.
Countercurrent
: Direction of service flow and regeneration flow are opposite.
DIR
: Demand initiated regeneration.
Downflow
: Direction of water flow with gravity through filtration media.
GPM
: Gallons per minute.
Macrolite
: Engineered ceramic filtration media.
Meter
: Device to measure flow to service from POE softener or filter for DIR.
Micron
: Micrometer (µm) for solid particle diameter.
Overdrive
: Parallel service flow.
PPM
: Parts per million.
Peak flow rate
: Maximum design process flow for intermittent high demand
through POE filter or softener.
POE
: Point of Entry. A system installed where water enters the home.
Sanitize
: The periodic addition of a sanitizing agent such as chlorine for
: The periodic addition of a sanitizing agent such as chlorine for
microbiological control.
Service flow
: Process water flow rate through a POE system, often measured
at the point of 15 psi lost.
Upflow
: Direction of water flow against gravity through filtration media.

Kinetico Mach Series Backwashing Filters
11
Backwashing System Diagram
By-Pass Valve
Media Tanks
Backwash Cycle
Indicator
Indicator
Media Tanks
Media Tanks
Media Tanks
Control Valve

12
Dealer Name:
________________________________________________
Dealer Address:
________________________________________________
Dealer Address: ________________________________________________Dealer Address:
Web Address:
________________________________________________
E–mail Address:
_______________________________________________
Dealer Phone:
________________________________________________
Salesperson Name:
_____________________________________________
Salesperson Name: _____________________________________________Salesperson Name:
Other Equipment:
_____________________________________________
Other Equipment: _____________________________________________Other Equipment:
_____________________________________________
Model Number:
______________________________________________
Date Installed:
________________________________________________
Number of People in Household:
________________________________
Meter Disk Number:
______
Meter Disk Number: ______Meter Disk Number:
Hardness:
_________________
Hardness: _________________ Hardness:
gpg
Ferrous Iron:
____________
ppm Ferric Iron:
_______________
ppm Ferric Iron: _______________ ppm Ferric Iron:
ppm
_______________ ppm _______________
pH:
___________________
TDS:
____________________
TDS: ____________________ TDS:
ppm
____________________ ppm ____________________
Hydrogen Sulfide:
________
Hydrogen Sulfide: ________Hydrogen Sulfide:
ppm
Temperature:
____________
Pressure:
_____________________

Kinetico Mach Series Backwashing Filters
13
Mach Series 2060f
with Overdrive
Macrolite
Carbon/Calcite
Service Flow Rate (
GPM
) @ 15 psid:
8 (30 Lpm)
8 (30 Lpm)
Peak Flow Rate (
GPM
)
@ 30 psid
: 12 (45 Lpm)
15 (57 Lpm)
Optimal Med
ia Flow (
GPM
): 7 (26 Lpm) 4 (15 Lpm)
Media per Tank (
cu. ft
.):
0.4 (11.32 L) 0
.7 (19.82 L)
Max. Flow Rate to Drain
During Backwashing (
GPM
):
4 (15 Lpm)
4 (15 Lpm)
Mach Series 2100f
with Overdrive
Macrolite
Carbon/Calcite
Service Flow Rate (
GPM
) @ 15 psid:
10 (38 Lpm)
10 (38 Lpm)
Peak Flow Rate (
GPM
)
@ 30 psid
: 18 (68 Lpm
)
18 (68 Lpm)
Optimal Med
ia Flow (
GPM
): 10 (38 Lpm)
5 (19 Lpm)
Media per Tank (
cu. ft
.):
0.7 (19.82 L)
1.5
(42.47 L)
Max. Flow Rate to Drain
During Backwashing
(
GPM
)
:
6
(23 Lpm)
6
(23 Lpm)
Mach Series 4060f
with Overdrive
Macrolite
/
Carbon
Service Flow Rate (
GPM
) @ 15 psid:
1
1 (42 Lpm)
Peak Flow Rate (
GPM
)
@ 30 psid
: 18 (68 Lpm)
Optimal Med
ia Flow (
GPM
): 1
1 (42 Lpm)
Media per Tank (upper)
(
cu. ft
.)
:
0.2 (5.66 L)
Media per Tank (lower)
(
cu. ft
.)
:
0.7 (19.82 L)
Max. Flow Rate to Drain
During Backwashing
(
GPM
)
:
3 (11 Lpm)
For all models (except 2080f Greensand)
Min./Max. Operating Pressure: 20-125 psi (137.8-861.8 kPa)
Min./Max. Operating Temperature: 35° - 120° F (1.6° - 48° C)
Mach Series 2080f with Overdri
ve Green
sand
Service Flow Rate (
GPM
) at
15 ps
id - 8 (30 Lpm)
Service Flow Rate (
GPM
) at 30 psid - 10 (38 Lpm)
Optimal Media Flow (
GPM
)
: 8 (30 Lpm)
Media per tank (
cu. ft.
) : 0.82 (23.22 L)
Max Flow Rate to Drain During Regeneration : 6
gpm (23 Lpm
)
Min/Max Operating Pressure: 30-125 psid (206.8-861.8 kPa)
(Recommend low 40 psid) (275.8 kPa)
Min/Max Operating
Temperature: 35
°
- 120
°
F (1.6
° - 48
° C
)
System Specifications Media
System Specifications Media

14
Potassium permanganate is a poison, use caution at all times
when handling it.
20
80f Greensand Filters require a two-ounce solution draw during
regeneration
.
Note: The brine valve assembly has been preset to deliver 2 ounces
of potassium permanganate.
IMPORTANT
DO NOT MAKE ANY ADJUSTMENTS TO THE BRINE VALVE
A
dd 5 lbs. of potassium permanganate to brine tank.
Four stainless steel screw
s are provided with eac
h tank to secure
its lid.
Tighten all screws thorough
ly when replacing
the lid.
Contains Potassium
Permanganate (KMnO
4
)
Harmful if Swallowed
Causes Severe Burns
Avoid contact with eyes,
mucous membranes and skin.
Do not take internally.
FIRST AID
External: Irrigate with water.
Internal: Give one or two
glasses of milk or water.
Eyes: Flush with plenty of water.
Call physician immediately!
KEEP OUT OF REACH OF CHILDREN
Keep locking screws secure at all times.
IMPORTANT
KINETICO REQUIRES THE INSTALLATION OF
A
N OVERFLOW
LINE ON EVERY POTASSIUM PERMANGANATE SOLUTION
TANK TO PREVENT PROPERTY DAMA
GE
DANGER

Kinetico Mach Series Backwashing Filters
15
Notes

16
Notes

Lo felicitamos por haber escogido el sistema Kinetico para mejorar la calidad
de su agua potable. Notara inmediatamente los numerosos beneficios que le
brinda el sistema de agua Kinetico a través de un agua potable de alta calidad
disponible en toda su casa.
Desde 1970, Kinetico Incorporated ha estado diseñando y fabricando pro-
ductos para mejorar la calidad del agua potable. Kinetico le ofrece una línea
completa de productos fabricados y formulados para mejorar la calidad del
agua que usted bebe. La compañía Kinetico es pionera en el tratamiento del
agua potable por demanda, sin utilizar sistemas eléctricos. Kinetico establece
constantemente la norma en la industria
Le filtre de lavage à
contre-courant
Backwashing Filters
Guide d’utilisation
For more information about Kinetico, visit us at
www.kinetico.com
“Kinetico,” the Kinetico logo, and girl drinking water are registered trademarks of Kinetico Incorporated, Newbury, Ohio. MADE IN U.S.A.

Kinetico Incorporated
10845 Kinsman Rd
Newbury, Ohio, 44065
USA
www.kinetico.com
Kinetico UK Limited
Bridge House
Park Gate Business Centre
Park Gate Hampshire SO31
1FQ
England
www.kinetico.co.uk
Kinetico Canada
Incorporated
16524 Hurontario St.
Caledon, Ontario L0N 1C0
Canada
www.kinetico.com
Kinetico France Sarl
B.P.54
Parc d’Activités de la
demi-Lune
2, rue Gutenberg
95420 Magny en Vexin
France
www.kinetico.fr
Kinetico Denmark ApS
Tigervej 12-14
Køge, DK-4600
Denmark
Table des matières
Le filtre de lavage à contre-courant
Para-FloMD de Kinetico
................................................................
19
Fonctionnement du filtre de
lavage à contre-courant Para-FloMD
............................................
20
Les avantages du filtre de lavage à contre-courant Para-FloMD
de Kinetico s’appuient sur ses particularités uniques
.................
21
Entretien du filtre de lavage à
contre-courant Para-FloMD
..........................................................
23
Questions fréquentes
...................................................................
25
Glossaire
.......................................................................................
27
Journal d’entretien
........................................................................
29
Caractéristiques du produit
..........................................................
30

Filtre avec lavage à contre-courant de la gamme Mach de Kinetico
19
A propos des filtres avec lavage à
contre-courant de la gamme Mach
Maintenant que votre filtre avec lavage à contre-courant
Kinetico est installé, savourez les avantages d’une eau
de boisson sans problème.
Kinetico offre une gamme de filtres avec lavage à
contre-courant afin de traiter les problèmes d’eau
liés à la présence de fer, à la saleté, à la turbidité, aux
mauvaises odeurs ou à la présence d’acide. Tous ces
problèmes d’eau causent vraiment des dégâts dans la
maison : l’eau peut souiller et abîmer les vêtements, les
tuyaux et les accessoires de plomberie, ainsi que les appareils ménagers fonc-
tionnant à l’eau. En résumé, elle peut vous rendre la vie très difficile.
Résoudre les problèmes d’eau grâce aux filtres avec
lavage à contre-courant de la gamme Mach
Fer
– l’eau à forte teneur en fer risque de laisser des taches de rouille sur le
Fer – l’eau à forte teneur en fer risque de laisser des taches de rouille sur le Fer
linge, sur la plomberie ainsi que sur les appareils ménagers fonctionnant à
l’eau. Le fer peut également donner un goût métallique à l’eau.
Saveurs et odeurs désagréables
– Les algues, le chlore et d’autres éléments
pouvant être présents dans l’eau, risquent de lui donner un mauvais
goût ainsi qu’une odeur fétide, une eau par conséquent désagréable à
boire et à utiliser.
Acide
– L’eau acide risque de provoquer une décoloration bleu-vert sur les
éviers, les baignoires, les cuvettes et les accessoires de plomberie. Par ailleurs,
elle a un pouvoir corrosif sur les tuyaux et les appareils ménagers fonction-
nant à l’eau.
Turbidité
– La présence de matières en suspension telles que les sédiments,
la vase ou la saleté, donne un aspect trouble ou sale à l’eau. L’eau turbide
peut occasionner des problèmes avec la plomberie et les appareils utilisant
de l’eau. Elle est tout aussi déplaisante à boire qu’à utiliser pour le nettoyage
ou la cuisine.
La solution à vos problèmes d’eau est déterminée en fonction des caracté-
ristiques de votre eau. Plusieurs appareils sont souvent nécessaires. Votre
distributeur Kinetico régional a fait une analyse de votre eau et a suggéré le
ou les appareils adéquats pour résoudre vos problèmes d’eau.
