We are very grateful for your purchasing KIRISUN brand two-way radios produced
by Kirisun Communications Co., Ltd.
We believe KIRISUN two-way radio, which always incorporates the latest
technology, can bring great convenience to your life and work.
We also believe that the quality and functions of KIRISUN two-way radio can meet your
demands on reliable communication.

FM540 Mobile Radio Instruction Manual
III
6.2 Emergency Alarm ......................................................................错误！未定义书签。

FM540 Mobile Radio Instruction Manual
II
Important Information
◆Copyright
Kirisun and our authorized partners own the intellectual property of all the parts of this product
(include accessories). Any design and materials may not be modified, copied, extracted or
translated without the authorization of Kirisun or its authorized parities.
Due to the update or modification of the product, Kirisun owns the right to change the specifications
of software and hardware described in this manual without further notice. Specifications and
information contained in this manual are for reference only.
◆Safety Notice
The unauthorized operation of wireless transmitting radios is prohibited by local government
regulations. Unauthorized operating will be fined and captured by local government. The
maintenance can only be operated by professional technicians.
Safety: The acknowledge of general dangers is very important for user to operate radio
Warning:
Please turn off the radios when you are in explosive environment (flammable gas, dust and particles
etc.).

FM540 Mobile Radio Instruction Manual
III
Notice for User
To avoid fire accidents, personal injury and radio damage, please comply with the following notice:
◆1 minute for transmitting and 4 minutes for receiving is recommended. Long period of
transmitting and operating in high power mode will cause high temperature in the bottom of the
radio.
◆Please do not disassemble and assemble the radio in any situation.
◆Keep the radio away from long period of sunlight radiation and heating device.
◆Keep the radio away from dusty, damp and splashy environment. Make sure the radio is not
placed on uneven surface.
◆The power supply should be cut off once abnormal smell and smoke occur from the radio. And
then please contact the local distributor of KIRISUN.
◆As the radio is designed to use 13.8V DC, do not connect it to 24V battery.

FM540 Mobile Radio Instruction Manual
IV
Contents
1 Unpacking and Checking ......................................................................................... 1
2 Preparation .............................................................................................................. 3
2.1 Mobile Radio Installation.......................................................................................... 3
2.2 Attaching the DC Power Cable ................................................................................4
2.3 Attaching the Antenna.............................................................................................. 6
2.4 Attaching the Accessories........................................................................................ 7
3 Product Overview .................................................................................................... 8
3.1 Front Panel ..............................................................................................................8
3.2 ICON......................................................................................................................10
3.3 Rear Panel............................................................................................................. 11
3.4 Microphone(Hand-held) ......................................................................................... 12
4 Basic Operation ..................................................................................................... 14
4.1 Switch Power ......................................................................................................... 14
4.2 Adjusting the Volume.............................................................................................14
4.3 Selecting a Channel............................................................................................... 14
4.4 Making a call.......................................................................................................... 14
4.5 Receiving ............................................................................................................... 15
5 Menu Operation ..................................................................................................... 16
5.1 Digital Mode Menu ................................................................................................. 16
5.2 Analog Mode Menu................................................................................................ 22
6.1 Time Out Timer ...................................................................................................... 23
6.2 Emergency Alarm .................................................................................................. 23
6.3 Voice Encryption.................................................................................................... 25
7 Troubleshooting ..................................................................................................... 26

FM540 Mobile Radio Instruction Manual
1
1 Unpacking and Checking
Unpack the mobile carefully. We recommend that you check the mobile and the supplied
accessories listed in the following table before discarding the packing material. If any damage or
loss has occurred during shipment, please contact the delivery man or the dealer without delay.
ITEM QUANTITY
Mobile 1
Microphone (hand-held) 1
Mounting Bracket 1
Micphone Hanger 1
Fuse 5
DC Power Cable 1
Wing Screws 4
Self-tapping Screws （ST5*16）4
Spring Gasket, Flat Gasket 4+4
Instruction Manual 1

FM540 Mobile R
a
a
dio Inst
r
r
uction Manual
2

FM540 Mobile Radio Instruction Manual
3
2 Preparation
2.1 Mobile Radio Installation
When installing, please choose a safe and convenient
place and try to avoid the danger which may occur
during driving. When selecting the installation location,
please take into consideration that the knee or leg may
hit the mobile during an emergency brake. The best
location choice is a well-ventilated place where
sunshine can’t reach.
1. Use the supplied self-tapping screws to
install the mounting bracket in the car.
2. Insert and tighten the screws and washers
supplied with the mobile. Carefully check and
make sure all screws are tightened to avoid
the loose bracket or loose mobile caused by
the vibrations of vehicles.

FM540 Mobile R
a
2.2 Attaching t
h
◆
V
ehicle Power S
u
The rated voltage o
f
not connect the mo
b
12V vehicle batter
y
otherwise the displ
a
output power dropp
e
1. Confirm the pola
r
(+), Black: negative
●Use the whole ca
b
than it is required,
d
particular, be caref
u
from the cable.
●It is recommend
e
lighter socket so a
s
drop.
a
dio
h
e DC Power Cable
u
pply Connection
f
the vehicle batter
y
must be 1
2
b
ile to a 24V battery. Make su
r
y
of sufficient current capacit
y
a
y may darken during transmis
s
e
d significantly.
r
ity and connect the power cab
l
(-).
b
le, even if the cable is longer
d
o not cut off the excess. In
u
l not to remove the fuse box
e
d not to use the cigarette
s
to prevent possible voltage
Inst
r
2
V, and do
r
e that the
y
is used,
s
ion or TX
l
e to the vehicle battery termin
a
r
uction Manual
4
a
ls. Red: positive

FM540 Mobile Radio Instruction Manual
5
2. Connecting the mobile to the power supply.
●Pressing two connectors until the locking tab clicks .
Note: If you use the mobile for a long time in the case of the vehicle battery is not fully charged, the
engine flameout may consume battery power net, and the remainder of the charge is insufficient to
start the vehicle. So please avoid using mobile in the above case.
◆Connecting the Mobile to the Power Supply
The machine can be installed as a mobile radio or as a base station.
To install the mobile as a base station, the voltage regulated DC power supply of 13.8V voltage and
15A current is required.
1．Connect the DC power cable to the voltage regulated DC power supply, and check if the polarity is
correct (red: positive, Black: negative).
●Do not directly connect the mobile to an AC socket.
●Use the supplied DC power cable to connect the mobile to the voltage regulated DC power supply.
●Do not use a smaller gauge electric wire to replace the cable.
2．Connect the mobile radio DC power connector to the DC power cable connector. Press two joints
until the lock click is heard.
●Before connecting the DC power supply with the mobile radio, turn off the power of the mobile and
the DC power supply

FM540 Mobile Radio Instruction Manual
6
●Please connect all the wires before connecting the DC power supply to an AC socket.
◆Replacing the fuse
If the fuse is broken, first identify the cause, and then
solve the problem. Replace the fuse after the problem is
solved. If the new fuse is continuously broken,
disconnect the power cable and contact your dealer or
service center for help.
●Use only the specified type and rating of fuse ,
otherwise the mobile radio may be damaged.
●fuse rating : 15A/32V.
2.3 Attaching the Antenna
Before the operation, please attach the antenna
with high efficiency which is precisely tuned. The
successful attaching depends on the antenna
type and the correct method of attaching it. If the
antenna is carefully chosen and attached, the
mobile radio can achieve its optimum
performance.

FM540 Mobile R
a
7
Please use the a
n
low-loss coaxial fe
e
input impedance of
t
Note: Make sure th
a
proper antenna or it
stations shall be
e
reduce the possibil
damage.

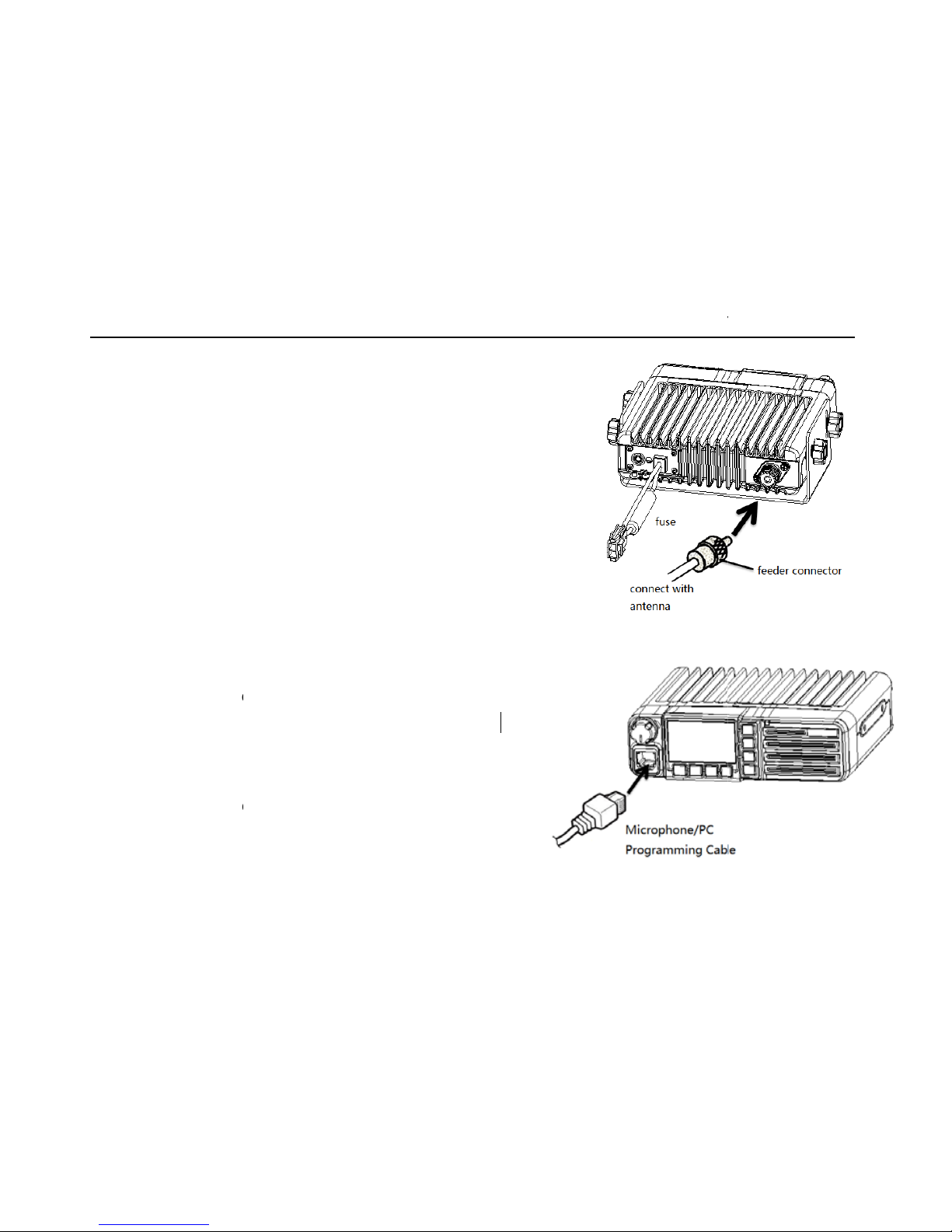

2.4 Attaching t
h
◆External Speaker
Please select the s
p
connect it to the sp
e
jack accommodates
◆Microphone (Han
d
For voice communi
c
standard 8-pin cryst
connector of the m
o
until a click is heard.
a
dio
n
tenna of 50Ωimpedance
a
e
der of 50Ωimpedance to m
a
t
he mobile radio.
a
t the mobile radio is attached
w
may damage the mobile. All t
h
e
quipped with lightning prot
e
ity of fire, electric shock, an
h
e Accessories
p
eaker with impedance of 8Ω
a
e
aker jack. The external spea
k
3.5mm mono (double wire) plu
d
-held Mic)
c
ation, please plug the mic
w
al head to the mic / programm
o
bile front panel. Press the p
Use screws to fix the hand-he
l
Inst
r
a
nd the
a
tch the
w
ith the
h
e base
e
ctor to
d radio
a
nd
k
er
g.
w
ith
ing
lug
l
d mic hanger to the proper pla
c
r
uction Manual
c
e.

FM540 Mobile Radio Instruction Manual
8
◆PC Connection
Please use a specialized programming cable to connect the mobile radio to your PC computer
(through speaker/programming connector)
3 Product Overview
3.1 Front Panel

FM540 Mobile Radio Instruction Manual
9
①Microphone/Programming Interface
②Volume Control Knob
*Adjusting the volume.
LCD Screen③
*See “LCD display” section for details
④P1 key (programmable key)
⑤P2 key (programmable key)
⑥LED Indicator
*Glows red when transmitting and glows green when receiving carrier wave.
⑦Speaker
⑧P3 key (programmable key)
⑨Power Switch Key
*Long press (at least 1.5 seconds) power switch key to turn on/off the mobile.
⑩[BACK/CANCEL] Key
⑾Down Key
⑿Up Key
⒀[MENU/OK] Key

FM540 Mobile Radio Instruction Manual
10
3.2 ICON
Icon Indication
Signal strength indication. The signal gets stronger with more bars.
Unread message.
Full inbox
Scanning
High power on the current channel
Middle power on the current channel
Low power on the current channel
Keypad is locked.
Speaker is on
Indicates emergency alarm and it appears when receiving
emergency alarm.
Private call contact
Group call contact
All call contact

FM540 Mobile Radio Instruction Manual
11
Transmitting signal
Receiving signal
Call holding
401.12500 Channel frequency
CH 8 Channel number or channel alias
3.3 Rear Panel
①Antenna Connector
②Power Connector
③External Speaker Connector

FM540 Mobile Radio Instruction Manual
12
3.4 Microphone(Hand-held)

FM540 Mobile Radio Instruction Manual
13
1. [PTT] Key
Press the key to transmit signal and release it to receive.
2. [*] Key
Switch between English upper case and lower case in the edit interface.
3. [#] Key
Switch typewriting in the edit interface
4. Numeric Keypad（1,2,3,～9,0）：
10 Keys in total. Enter the dialing number or edit messages/new contacts with pressing these keys.
5. Mic Hole
Press the PTT key and speaker to the mic hole.
6. [BACK/CANCEL] Key
7. [DOWN] Key
Press the key to change the channel downwards.
8. [UP] Key
Press the key to change the channel upwards.
9. [MENU/OK] Key
Press this key during the stand-by status to enter the menu, and press this key to confirm the current
selection in the menu.
