KITO EQ series User manual

1
Persons performing disassembly/reassembly
Disassembly/reassembly shall be performed by a competent person (a person duly authorized by the company as having
expertise on the structure and device of the electric chain hoist) or consult KITO.
This Disassembly and Reassembly Manual includes contents to prevent injury to any person performing
disassembly and reassembly, users, and other persons and damage to property, and to disassemble/
reassemble the electric chain hoist safely and correctly.
Before performing disassembly/reassembly, be sure to read and follow this manual as well as the EQ
Series Electric Chain Hoist Owner’s Manual (separate document) since its contents are also important for
disassembly/reassembly.
Disassembly/reassembly of the electric chain hoist is required operations for regular inspection and repair.
Carry out disassembly/reassembly properly in accordance with these manuals.
Safety precaution
EQ Series Electric Chain Hoist (125kg to 1t)
Disassembly and Reassembly Manual
AS No.EQ-1209-MG-01

2
DANGER
■Disassembly and reassembly (general)
Safety Precaution
Safety Precaution
Prohibited
Prohibited
Prohibited
Prohibited
Prohibited
Prohibited
Mandatory
Mandatory
Mandatory
Mandatory
• Do not use gear oil or grease in areas near a re or spark.
Failure to follow this instruction may result in re or severe injury arising from ignition.
•
Carry out the installation or removal work of the electric chain hoist after securing the stable foothold.
Failure to follow this instruction may result in death or severe injury due to falling or dropping.
• Do not cut, extend, or weld the load chain.
Failure to follow this instruction may result in death or severe injury.
• Carry out the installation or removal work of the electric chain hoist after shutting down
the power distribution panel.
Failure to follow this instruction may result in death or severe injury due to an electric shock.
• When reassembly is complete, perform a function check (preoperational check) to make sure
it operates properly.
Failure to follow this instruction may result in death or severe injury.
For details, refer to ‘Periodic Inspection’ in the separated Owner’s Manual.
• Tighten the bolts and nuts with the specied tightening torque.
Failure to follow this instruction may result in death or severe injury.
• Only competent persons must disassemble/reassemble the electric chain hoist.
Disassembly/reassembly by anyone other than competent persons may result in death or severe injury.
• Do not use unauthorized parts for EQ series electric chain hoist.
Even if the part is an authorized part, it may not be used for a different model.
Use parts correctly in accordance with this manual.
Failure to follow this instruction may result in death or severe injury.
• Do not perform disassembly/reassembly during conduction.
Failure to follow this instruction may result in death or severe injury due to an electric shock or
unexpected operation.
• Do not adjust or disassemble the friction clutch.
Failure to follow this instruction may result in death or severe injury.
If adjustment and disassembly are required, contact KITO.
Prohibited
• Do not disassemble/reassemble the electric chain hoist subject to a load.
When disassembling/reassembling an electric chain hoist, place it on a oor and perform them on the workbench.
Failure to follow this instruction may result in death or severe injury.

3
CAUTION
■Before disassembly and reassembly
Safety Precaution
Mandatory
Mandatory
Mandatory
The disassembly and reassembly procedures are described based on the representative model.
Note that components may be slightly different for different capacities.
The specications may be changed without prior notice and may be different from the actual products.
• Only competent persons with expertise and experience must disassemble/reassemble the electric
chain hoist. Alternately, contact the nearest distributor or KITO. Disassembling/reassembling
improperly causes death or severe injury.
Perform disassembly and reassembly in correct procedures as described in the manual.•
Do not extend the load chain.•
Before reassembling the parts such as gear, clean and remove oil and dust on them.•
Especially when a plastic hammer is used, clean them thoroughly so that no chip of the
hammer remains inside.
Prepare anti-loosening (screw lock) for bolts. Apply it to the specied locations.•
Use only authorized parts for replacement.•
Failure to follow these instructions may result in death or severe injury.
• When reassembling, follow the instructions below.
Before reassembly, remove dust and oil on the part to be reused.•
Insert snap rings completely in the groove.•
Assemble the load chain without torsion.•
Failure to follow these instructions may cause bodily injury or loss of property arising from damaged product
or dropped parts.
• When reassembling, replace the following parts with new ones.
Gear oil (type and required amount of oil vary depending on the specication and main body size. •
Refer to page 24.)
Packing•
Grease•
Oil seal•
Snap ring•
O ring•
Liquid gasket•
Failure to follow these instructions may cause bodily injury or loss of property.
NOTE
DANGER

4
Safety Precaution ....................................................................................2
Table of Contents.....................................................................................4
Disassembly and Reassembly Tools.......................................................5
Name of Parts..........................................................................................6
Disassembly Procedure.........................................................................10
1. Removing the outer circumference parts ...................................10
2. Disconnecting the power supply cable and push button cord ....10
3. Removing the internal electrical components............................. 11
4. Disassembling the gear parts.....................................................11
5. Disassembling the load chain circumference.............................12
6. Disassembling the load sheave..................................................13
7. Removing the suspension eye ...................................................13
8. Removing the chain guide..........................................................13
9. Removing the braking resistor....................................................13
10. Disassembling the motor and brake.........................................14
Reassembly Procedure .........................................................................15
1. Assembling
the rotor (when disassembled to the pull rotor) ........15
2. Assembling the stator and rotor..................................................15
3. Assembling the suspension eye .................................................17
4. Assembling the braking resistor and fan cover...........................17
5. Assembling the chain guide assembly .......................................17
6. Assembling the load sheave.......................................................18
7. Installing the load chain..............................................................19
8. Assembling the gear parts..........................................................20
9. Assembling the internal electrical components ..........................21
10. Connecting the power supply cable and push button cord .....22
11. Installing the bottom hook (if removed from the chain).............23
12. Oil lling....................................................................................24
13. Operation check, etc. ...............................................................24
Table of Contents
Table of Contents

5
For disassembly and reassembly, prepare the following tools.
No. Tool name Application Icon
1Wrench
13mm Bolts and nuts
2Hexagon wrench
4mm/5mm/6mm/8mm Socket bolts
3Snap ring pliers S
(Large) (Small) Snap rings (shaft)
4Snap ring pliers R Snap rings (hole)
5Socket wrench 10mm Bottom yokes
6Adjustable wrench Bolts and nuts
7Plastic hammer
8Screwdrivers (+) (-) Screws
9Puller Bearings and fan
10 Vices (2 pcs.) Pull rotor
11 Torque wrench/nut runner
12 Plier Set pin
●Use the following types of grease.
• JIS K2220 Grease type 1 No. 2 for Roller shaft bearing
• Molybdenum disulde lubricant Molytherm No. 2 (Specied brand: SUMICO LUBRICANT)
●Use the following liquid gasket.
• Liquid gasket TB1121 (made by ThreeBond)
●Use the following screw lock.
• ThreeBond 1401 (made by ThreeBond) or its equivalent
●Helpful tools
• Remover: Prepare a remover for bearings (for inner race & outer race) and one for oil seal for precise operation.
• Preparing wooden block (used as sleepers) and wire for guiding lead wires will be helpful.
Disassembly and Reassembly Tools
Disassembly and Reassembly Tools
Torque

6
A16
A17
Name of Parts
A41
A42
A40
A44 A43
A46
A45
A47 A48
A49
A50 A51
A52 A53
A54
A55
A
A
A23 A19
A21
A18
A1
A2
A7
A3
A4
A8
A24
A25
A23
A19
A27
A28
A22
A23
A30
A37
A38 A39
A33
A34
A32
A31
A35 A36
A29
C
B
A26
A6
A5
A9
A10 A12
A11
A13
A14
A15
C
B
Block A
A20
Name of Parts

7
Figure # Part Number Part Name Remark
A1 001 Suspension eye
A2 121 Top pin
A3 033 Machine screw socket bolt For Top pin
A4 5501 Body with stator
A5 238 Ball bearing
A6 137 Set pin S
A7 820 Warning sticker HW
A8 960 Name plate load side E
A9 1223 Friction clutch complete set
A10 244 Oil seal
A11 241 Load sheave
A12 242 Ball bearing
A13 245 Oil seal
A14 243 Ball bearing
A15 207 Snap ring
A16 240 Load gear
A17 208 Snap ring
A18 187 Packing
A19 153 Cable holder
A20 5505 Braking resister assembly
A21 194 Machine screw with spring washer For Braking register
A22 151 Limit switch cord cover
A23 152 Machine screw with spring washer
For Limit switch cord cover, Cable holder
A24 331 Chain guide
A25 1060 Limit switch complete set
A26 333 Limit switch cover
A27 335 Machine screw
A28 165 Machine screw socket bolt For Chain guide
A29 110 Gear case
A30 239 Ball bearing
A31 133 Oil plug
A32 136 Plug packing
A33 810 Name plate OF
A34 815 Name plate SP
A35 167 Machine screw socket bolt For Gear case (shorter)
A36 162 Machine screw socket bolt For Gear case (longer)
A37 116 Packing G
A38 135 Oil plug B
A39 173 Eyebolt packing
A40 107 Fan cover
A41 164 Socket bolt For Fan cover
A42 225 Toothed lock washer For Fan cover
A43 108 Fan
A44 323 Snap ring
A45 106 Motor cover
A46 163 Machine screw socket bolt For Motor cover
A47 209 Ball bearing
A48 5212 Brake drum assembly
A49 214 Brake spring
A50 324 O ring
A51 318 Collar
A52 317 Thrust disc
A53 503 Pull rotor
A54 316 Coned disc spring
A55 5502 Motor shaft with rotor
Name of Parts

8
Block B
㻱㻽㻜㻜㻠㻵㻿
㻱㻽㻜㻜㻡㻵㻿
㻱㻽㻜㻝㻜㻵㻿
㻱㻽㻜㻜㻝㻵㻿
㻱㻽㻜㻜㻟㻵㻿
B28
B27
B22 B24
B23
B21
B25
B26
B38
B34
B30
B29
B13 B12
B14
B15
B18
B20
B19
B37 B1
B5
B3
B4
B6
B9
B8
B7
B36
B40
B11
B10
B16
B17
B12
B41
B33
B32
B31
B35
B39
Name of Parts

9
Figure # Part Number Part Name Remark
B1 2104 Controller cover assembly
B3 161 Socket bolt For Controller cover
B4 224 Toothed lock washer For Controller cover
B5 800 Name plate B
B6 935 Warning sticker E
B7 1571 Inverter assembly
B8 508 HBB board
B9 191 Machine screw with spring washer For Inverter
B10 1011 Bottom hook complete set
B11 002 Hook latch assembly
B12 874 NC load chain
B13 054 Limiting plate For EQ004IS, EQ005IS, EQ010IS
B14 051 Chain spring For EQ004IS, EQ005IS, EQ010IS
B15 055 Spring guide For EQ004IS, EQ005IS, EQ010IS
B16 041 Stopper
B17 1951 Lubricant tube assembly For Load chain
B18 401 Chain container P assembly
B19 166 Socket bolt For Chain container
B20 226 U nut For Chain container
B21 1521 Power supply cable 4C assembly
B22 521 Power supply cable 4C
B23 541 Cable support arm
B24 1542 Cable support 12 assembly
B25 569 Holder A
B26 574 Cable packing
B27 823 Name plate G
B28 542 Machine screw with spring washer For Cable support arm
B29 1557 3 push button cord 5C complete set
B30 557 Push button cord 5C
B31 1561 3 push button switch assembly
B32 565 Warning tag PB
B33 566 Tag holder
B34 569 Holder A
B35 574 Cable packing
B36 535 Cord support (wire stopper)
B37 536 Machine screw with spring washer For Cord support
B38 891 Holder B
B39 892 Holder packing
B40 893 Holder nut
B41 053 Cushion rubber For EQ001IS, EQ003IS
Name of Parts

10
CAUTION
Disassembly Procedure
DANGER

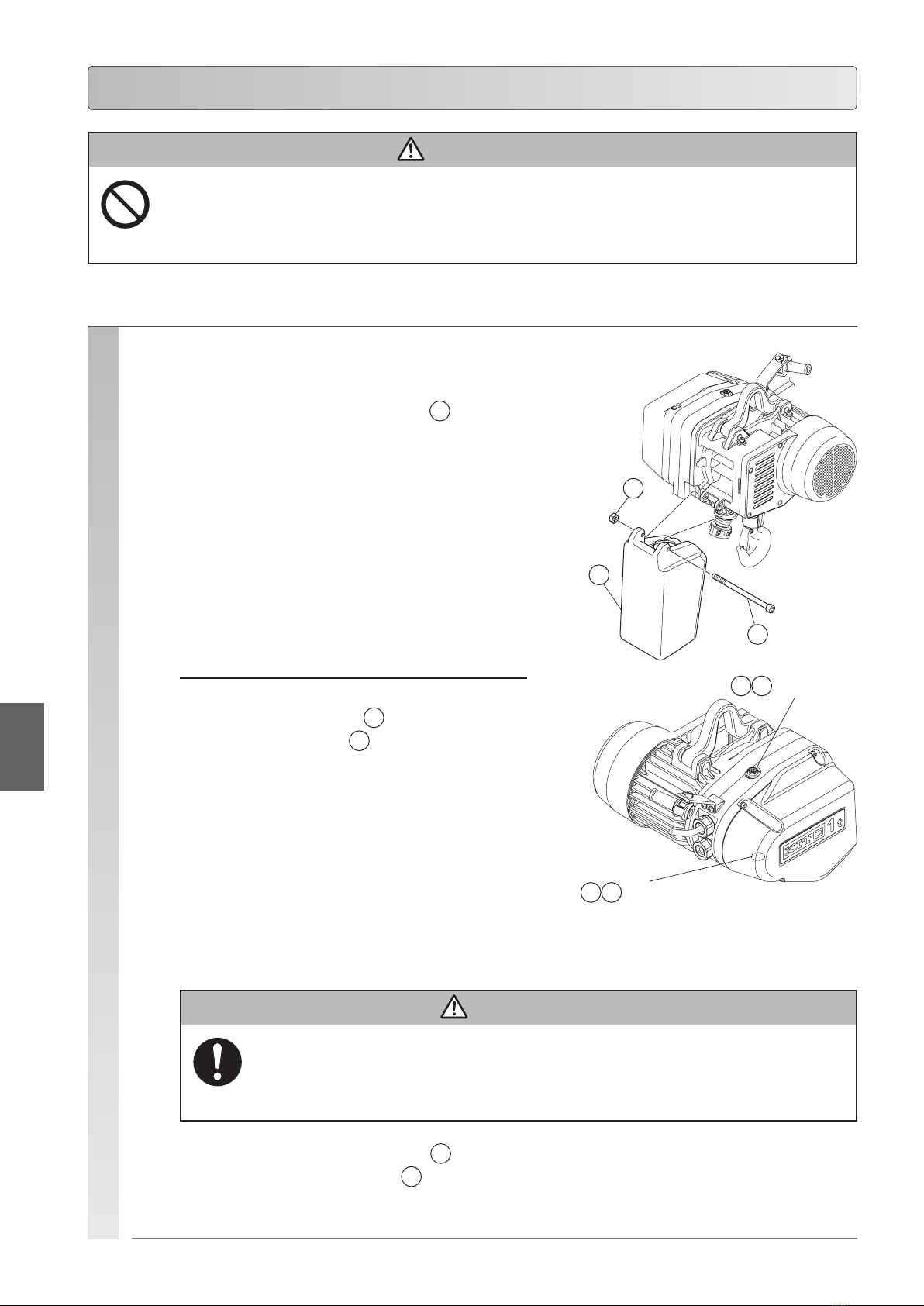

Remove the chain container(1) B18 from the
main body.
Removing the outer circumference parts
1
• Do not disassemble the electric chain hoist while it is being suspended.
Failure to follow this instruction may result in death or severe injury due to dropped parts.
Be sure to place the electric chain hoist on a oor and perform the disassembly on the workbench.
The overall disassembly procedure is shown below. Perform disassembly of only necessary parts.
Prohibited
• When opening the controller cover, support it with your hand and open it slowly and
carefully.
Failure to follow this instruction may cause the controller cover to hit the internal electrical
components, resulting in damage.
Mandatory
2

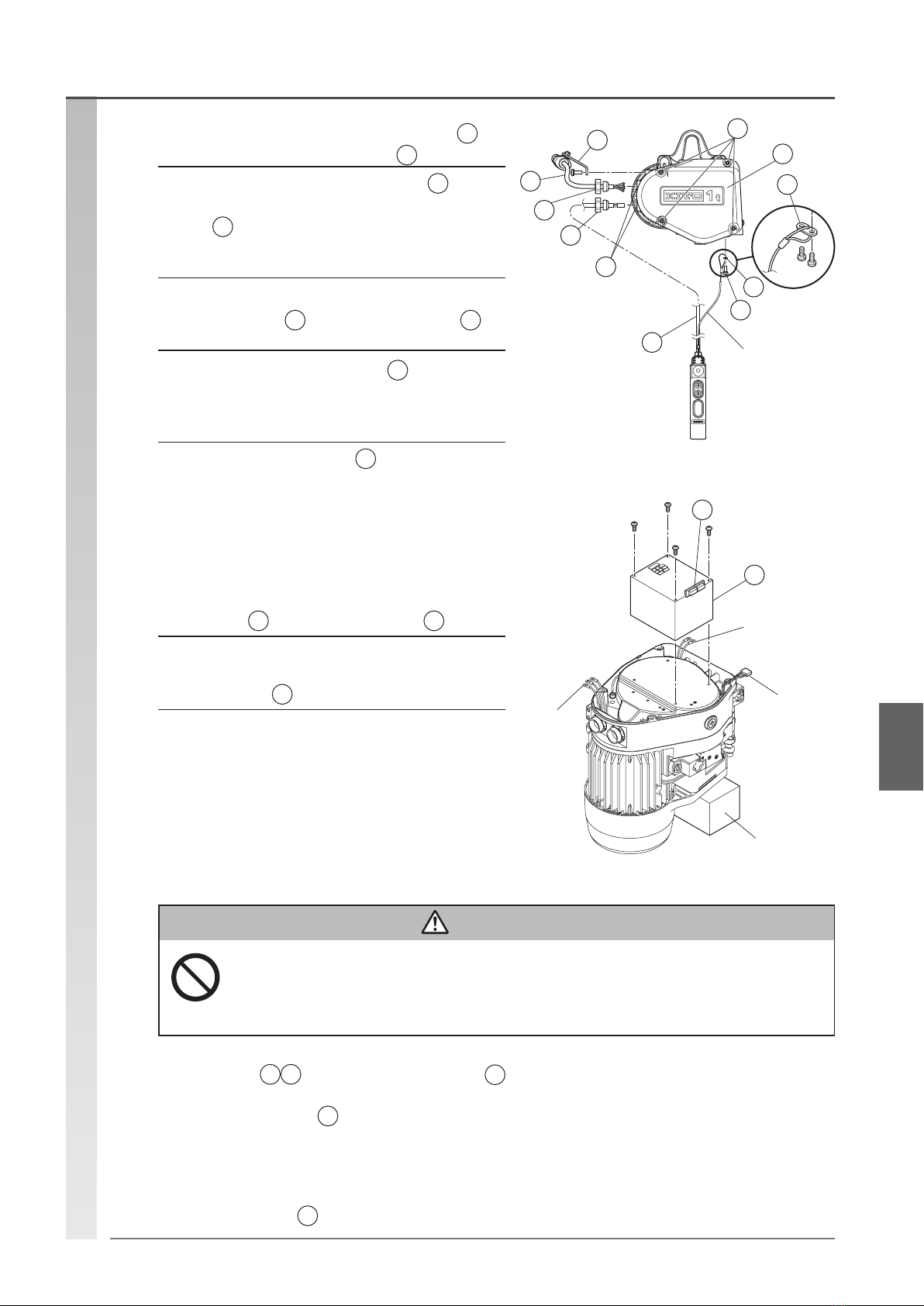

Disconnecting the power supply cable and push button cord
Remove the controller cover(1) B1 .
Loosen the 4 socket bolts
•B3
and remove the
controller cover.
When disassembling the gear part,(2)
remove the oil plug A31 (for waste oil hole)
and plug packing A32 from the bottom of
the gear case, and then remove gear oil.
Check stain and viscosity of the removed oil.
•
If any metal powder is discovered, perform a
•
careful inspection suspecting abnormal wear of
the gear.
Disassembly Procedure
B19
B18
B20
A38 A39 (for oil hole)
A31 A32 (for waste oil hole)

11

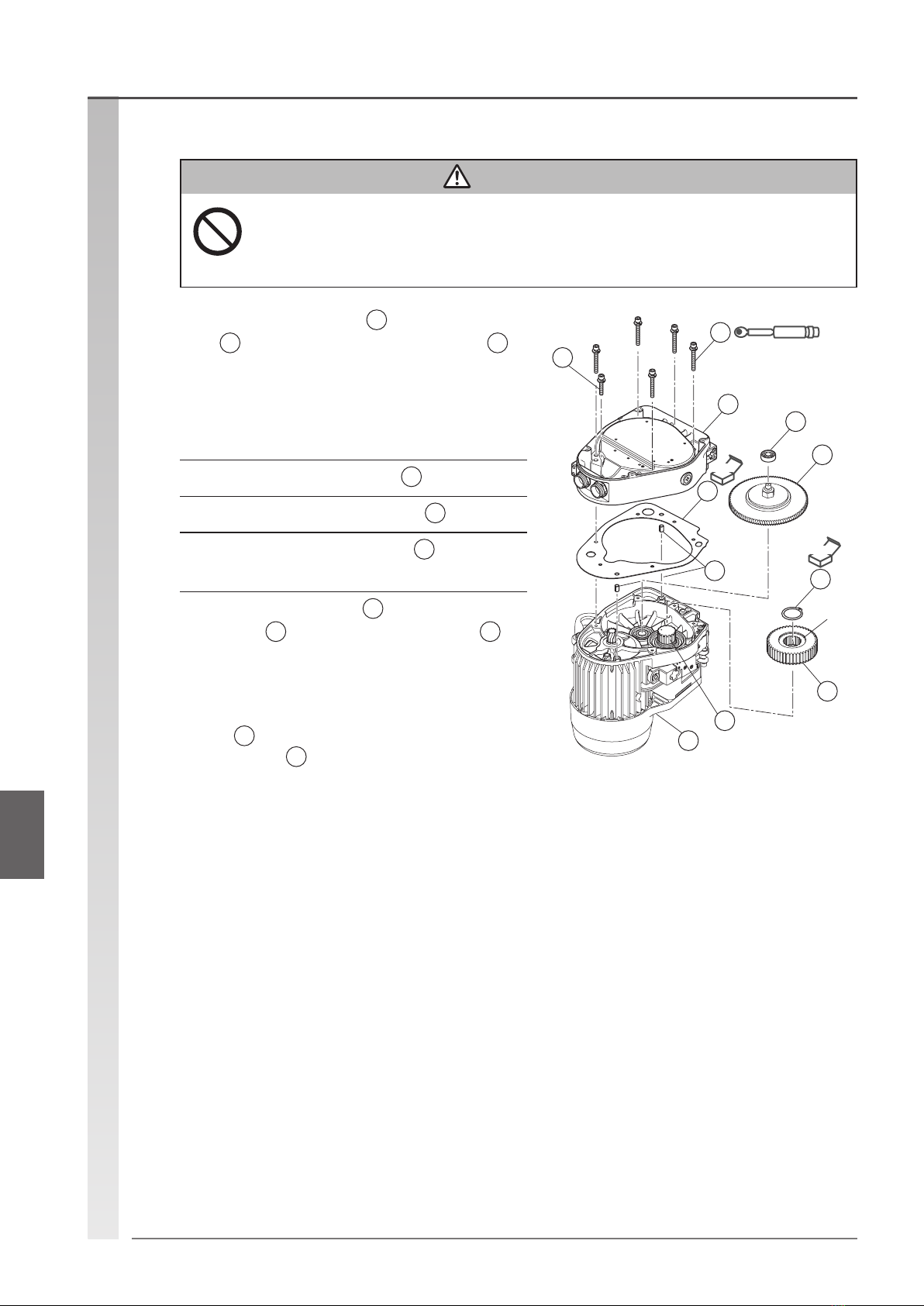

DANGER
Removing the internal
electrical components
3
Remove the machine screw socket bolts(1)
(6 pcs.) A35 A36 . Striking the gear case A29
with a plastic hammer, remove it from the
body with stator A4 .
Disconnect the lead wires of the motor, braking
•
resistor and limit switch carefully without pulling
them by force.
Note that the gear case may come off with the
•
friction clutch A9 attached to it.
(To be continued)
Disconnect the connector wires of the limit(1)
switch A25 from the HBB board B8 .
Disconnect the lead wires of the braking(2)
resistor connected to the inverter
assembly B7 and motor wires.
Remove the inverter assembly.(3)
Disassembling the gear parts
4
• Do not disassemble the friction clutch.
Failure to follow this instruction may result in death or severe injury due to a falling load.
Prohibited
Disconnect the power supply cable(2) B21
from the inverter assembly B7 .
Remove the cable support arm(3) B23 from
the main body, followed by the holder
A B25 of the power supply cable, and
disconnect the power supply cable from
the main body.
Disconnect the connector of the push(4)
button cord B29 from the HBB board B8 of
the inverter.
Remove the cord support(5) B36 securing the
protective wire of the push button cord
from the main body (lower surface of the
gear case).
Remove the holder A(6) B34 of the push
button cord and disconnect the push
button cord from the main body.
Lead wires
of braking
resistor
Connector
wires of limit
switch
Motor wires
B7
B8
Wooden block
Disassembly Procedure
B23
B25
B34
B38
B36
B36
B37
Protective wire
B21
B3
B1
B29

12
Disassembly Procedure (continued)
● 125kg to 250kg

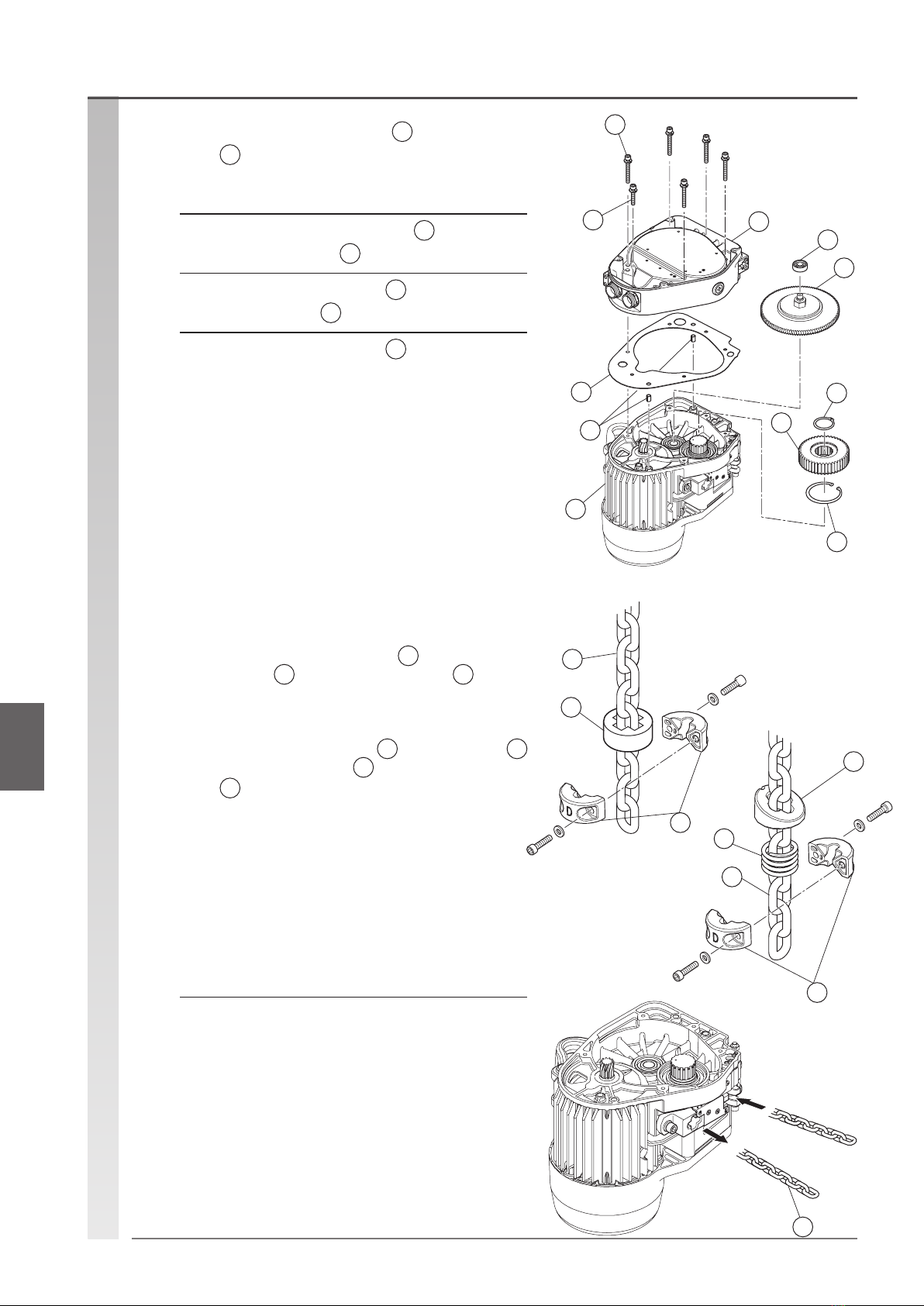

(1) Remove the stopper B16 and cushion
rubber B41 from the load chain B12 on the
no load side.
● 490kg to 1t
(1) Remove the stopper B16 , chain spring B14
and spring guide B15 from the load chain
B12 on the no load side.
5Disassembling the load chain circumference
Load side
No load side
A36
A29
A30
A9
A17
A37
A6
A4
A16
A15
B12
Remove the packing G(2) A37 and set pins S
A6 (2 pcs.).
Be careful not to scratch the gear case junction
•
face.
Remove the friction clutch(3) A9 from the
body with stator A4 .
Remove the snap ring(4) A17 , followed by
the load gear A16 .
Remove the snap ring(5) A15 from the load
sheave bearing.
(2) Remove the load chain from the load side.
Remove the bottom hook as required.
•
A35
Disassembly Procedure
B15
B14
B12
B41
B12
B16
B16
125kg to 250kg
490kg to 1t

13
(To be continued)
Remove the fan cover(1) A40 .
Aligning the load sheave(2) A11 with an
assembly mark punch position, strike the
load sheave from the braking resistor A20
side with a plastic hammer to remove it.
Align the punch mark of the load sheave with
•
the concave mark of the body with stator A4 .
Check that the snap ring
•A15 of the load sheave
bearing has been removed.
Note that striking the load sheave hard may
•
cause it to y out.

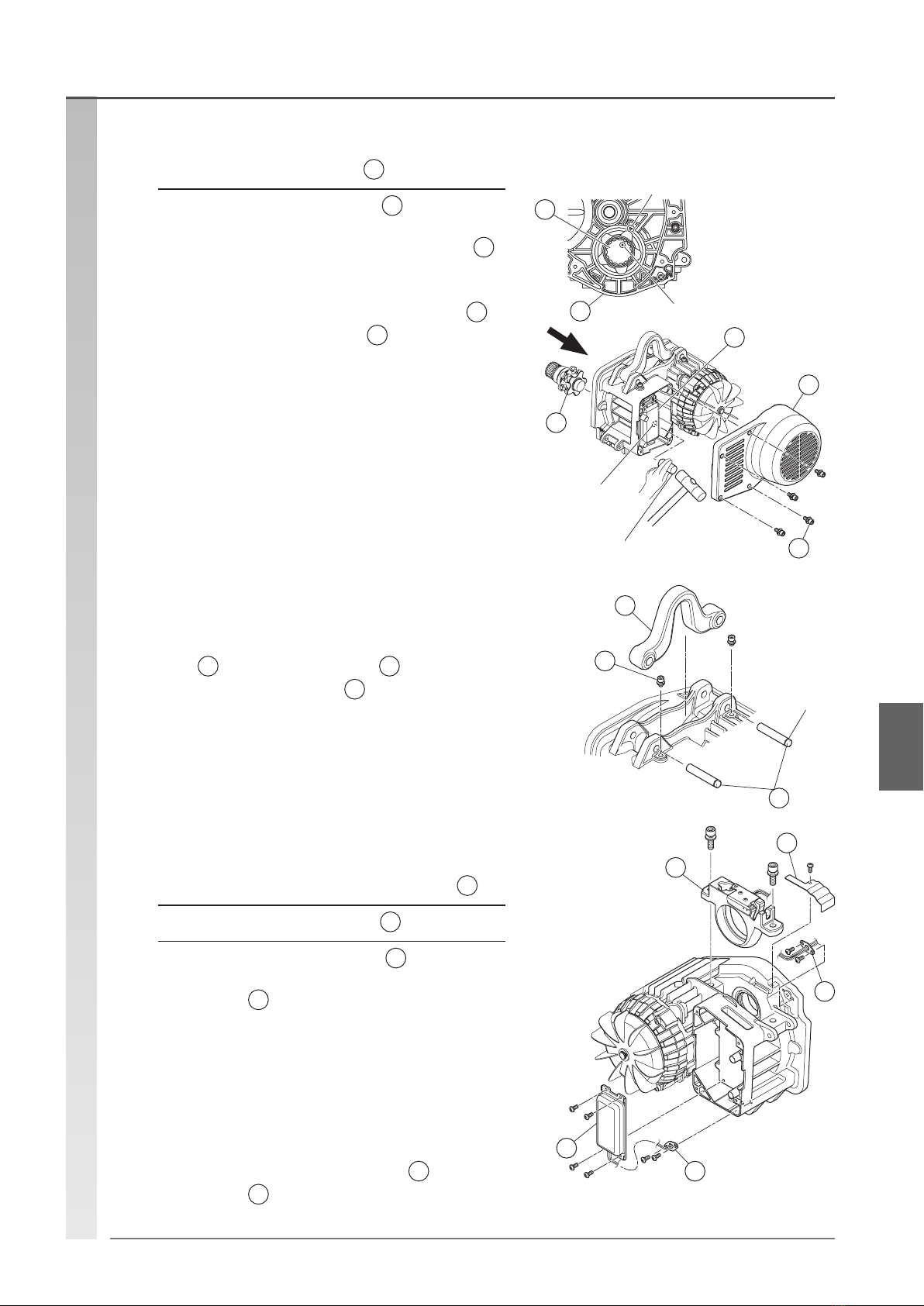

Remove the machine screw socket bolts(1)
A3 , pull out the top pins A2 and remove
the suspension eye A1 .
Make use of a groove in the top pin.
•
6Disassembling the load sheave
7Removing the suspension eye
8Removing the chain guide
9Removing the braking resistor
Remove the limit switch cord cover(1) A22 .
Remove the chain guide(2) A24 .
Remove the cable holder(3) A19 and
disconnect the lead wires of the limit
switch A25 from the body with stator.
Remove the braking resistor(1) A20 and cable
holder A19 , and disconnect the lead wires
from the body with stator.
A11
A22
A24
A19
A19
A20
Concave mark
Alignment with punch position
when viewed from A
Disassembly Procedure
A2
A1
A3
A4
A20
A40
A41
A11
Punch mark
Load sheave
shaft
Rod
Groove
Hammer
(Strike)
A

14
Disassembly Procedure (continued)

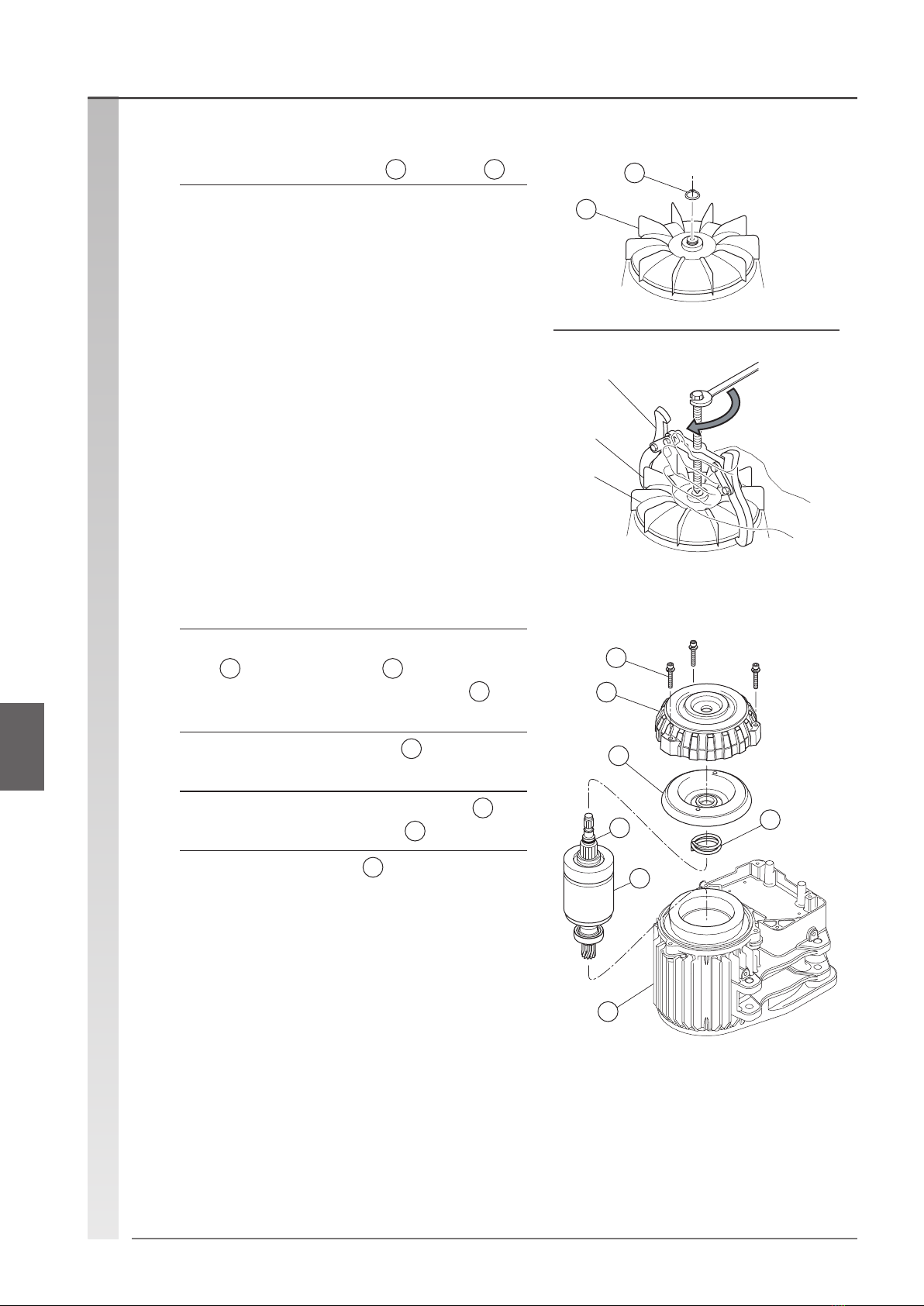

Remove the snap ring(1) A44 of the fan A43 .
Insert the “pawl” part of the puller to the(2)
outer circumference bottom of the fan to
remove the fan.
Insert it as close to the blade as possible.
•
Be careful not to damage the fan.
Use a three-pawl puller for safer operation.
•
Disassembling the motor and brake
10
Puller
Blade
Fan
Remove
it with the
puller.
A44
A43
A45
A46
A48
A49
A50
A55
Remove the machine screw socket bolts(3)
A46 of the motor cover A45 .
They are pressed by the brake spring
•A49 .
Remove them slowly and gradually.
Remove the brake drum(4) A48 and brake
spring.
Remove the motor shaft with rotor(5) A55
from the body with stator A4 .
Remove the O ring(6) A50 .
A4
Disassembly Procedure

15
DANGER
DANGER
Assembling the rotor (when disassembled to the pull rotor)
1

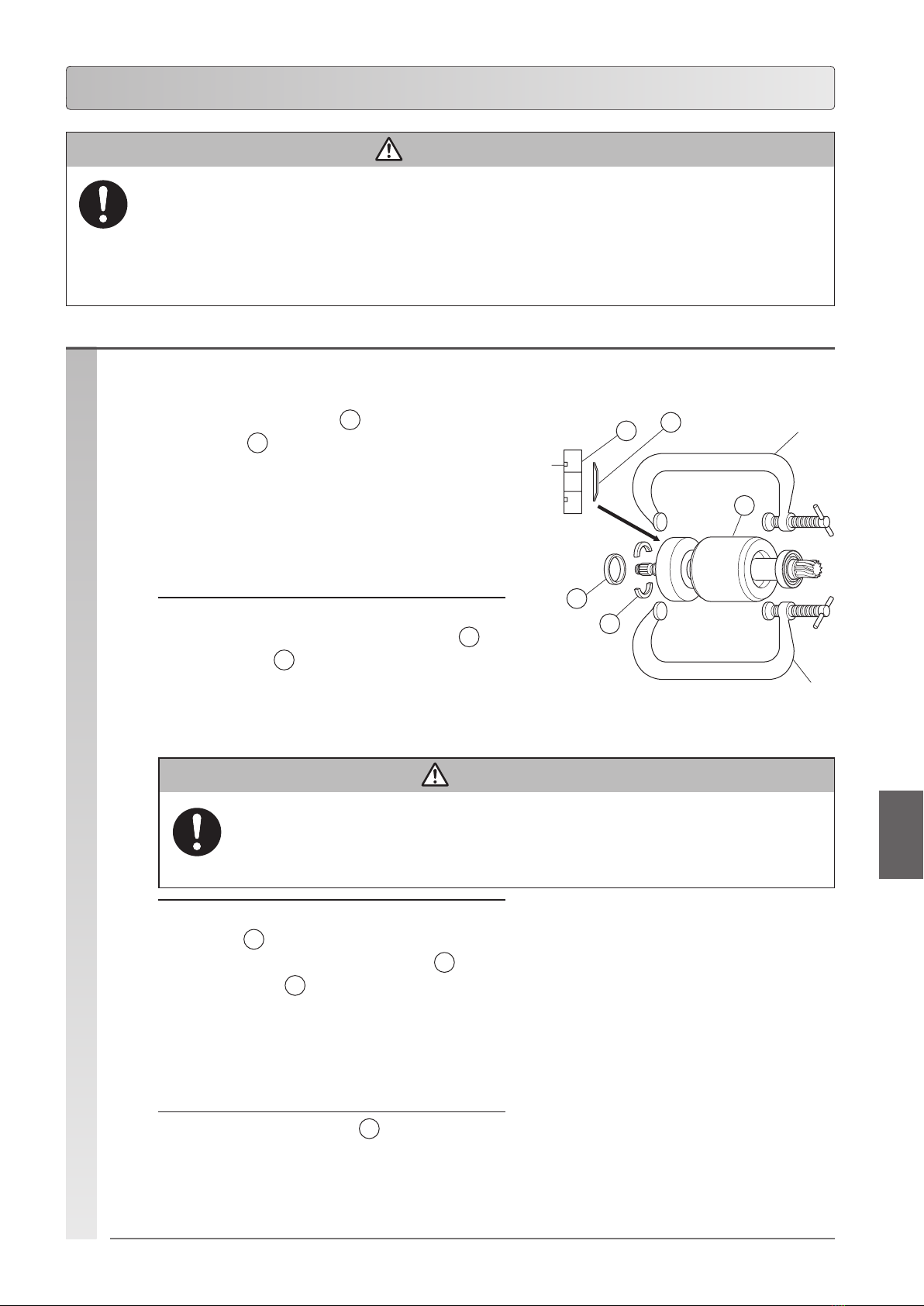

Insert the pull rotor(1) A53 and coned disc
spring A54 (beware of the direction) into
the motor shaft with rotor.
Insert the pull rotor in such a manner that its
•
grooves (into which the brake spring is set)
face outside.
Ensure that the outer circumference of the
•
coned disc spring comes into contact with the
pull rotor.
Clamp the rotor and pull rotor with two(2)
vices, and assemble the thrust disc A52
and collar A51 .
Apply the liquid gasket to the body with(1)
stator A4 (motor cover joint) (Refer to
page 16), assemble the bearing A56 to the
motor shaft A55 , and insert into the body
with stator.
Apply the liquid gasket to the entire
•
circumference seamlessly.
Liquid gasket: TB1121, 5 g,
Made by ThreeBond
Assemble new O ring(2) A50 to the motor
shaft.
Care should be taken not to damage the O ring.
•
• Do not perform reassembly using parts exceeding application limits.
For parts to be replaced with new parts upon reassembly, refer to page 3.•
Tighten the bolts and nuts securely with the specied torque.•
Apply oil, grease, and screw lock as instructed.•
Failure to follow these instructions may result in death or severe injury.
Reassembly Procedure
Mandatory
Assembling the stator and rotor
2
• Apply the specied grease on the spline part of the motor shaft.
Failure to follow this instruction may cause a falling load due to wear or damage of parts and
result in death or severe injury.
Mandatory
Groove
Direction of parts
Vice
A53
A54
A55
A52
A51
Vice
Reassembly Procedure

16
Reassembly Procedure (continued)
Liquid gasket
Grease
application
area
Apply liquid gasket
Use a jig.
A46
A49
A4
A44
A45
A47
A48
A43
A45
Assemble the brake spring(3) A49 and brake
drum A48 to the motor shaft A55 .
Apply molybdenum disulde grease (Molytherm
•
No. 2) to the spline portion thinly and uniformly.
The brake spring is set in a groove in the pull
•
rotor.
Check that the brake drum moves smoothly.
•
Wipe off the overowing grease.
•
Molytherm No. 2, 2 g
Assemble the ball bearing(4) A47 to the motor
shaft.
Set the motor cover(5) A45 and fasten it with
the machine screw socket bolts (3 pcs.).
Wipe off the overowing liquid gasket.
•
Tighten the bolts uniformly and gradually.
•
Tightening torque M6: 10.8 N･m
With spring lock washer
Apply the liquid gasket to the serrated(6)
portion of the motor shaft, and assemble
the fan A43 .
Care should be taken not to directly strike the
•
motor shaft and ns.
Attach the fan with new snap ring
•A44 .
Liquid gasket: TB1121, 1 g,
Made by ThreeBond
ＮＥＷ
ＮＥＷ
Reassembly Procedure
トルク
Torque
A50
A55

17
(To be continued)
Assembling the suspension eye
Assembling the braking resistor and fan cover
Assembling the chain guide assembly
3
4
5
Assemble the suspension eye(1) A1 to the
body with stator A4 , using the top pins A2 .
Insert the top pins in such a manner that the
•
grooved side will be visible.
Set the machine screw socket bolts(2) A3
onto the body with stator to prevent the
top pins from coming off.
Tightening torque M6: 10.8 N･m
With spring lock washer
Put the lead wires of the braking resistor(1)
A20 through the body with stator A4 to
adjust their length, and assemble the
cable holder A19 with the machine screws
with spring washer A23 to secure the lead
wires.
Assemble the braking resistor to the body(2)
with stator with the machine screws with
spring washer A21 .
Assemble the fan cover(3) A40 with the
socket bolts A41 (4 pcs.).
Tightening torque M5: 8.4 N･m
With toothed lock washer

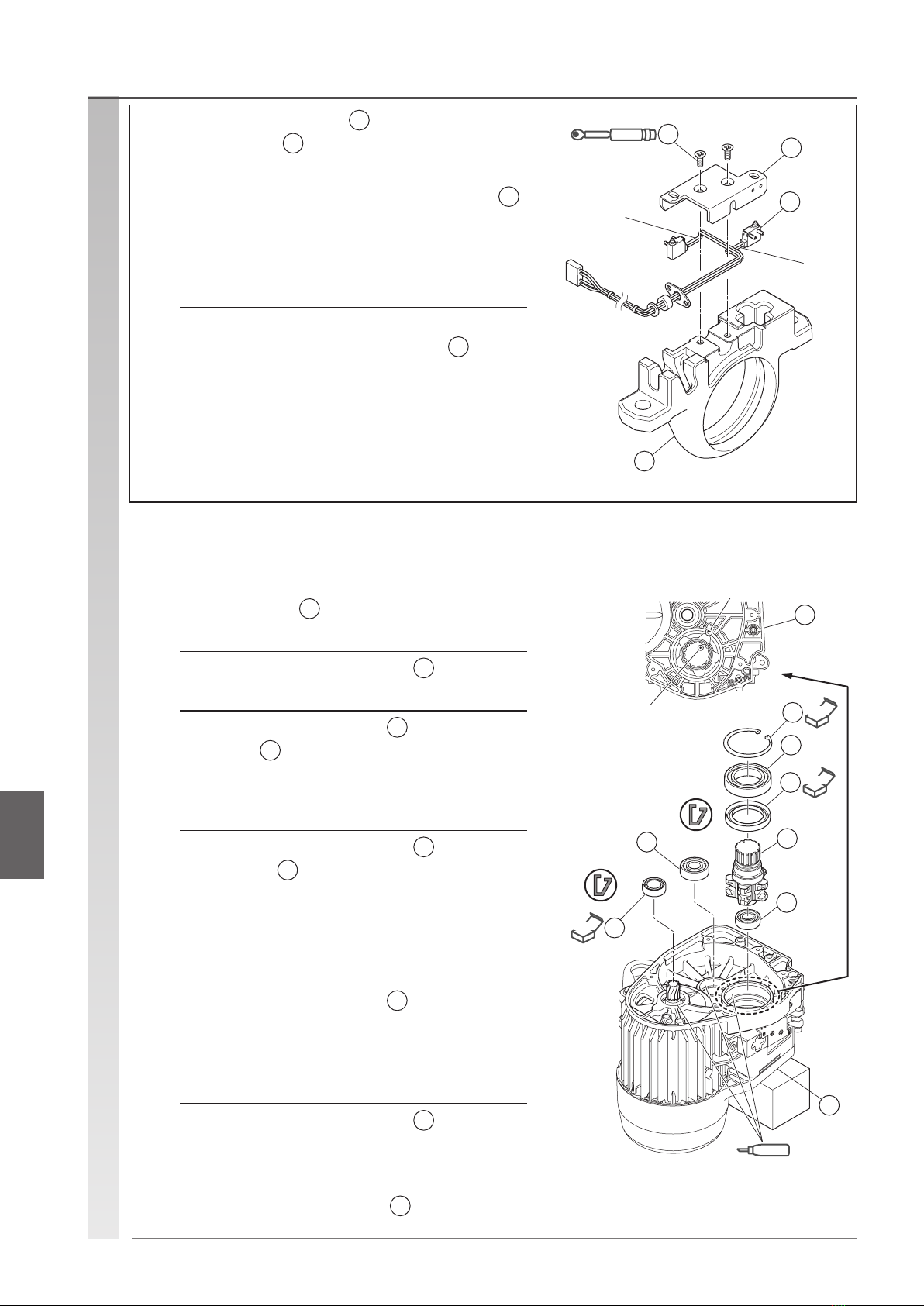

Put the lead wires of the limit switch(1) A25
through the body with stator to adjust their
length, and assemble the cable holder
A19 with the machine screws with spring
washer A23 .
Assemble the chain guide(2) A24 with the
machine screw socket bolts (2 pcs.).
● 125kg to 500kg
Tightening torque M8: 24.5 N･m
With spring washer
● 1t
Tightening torque M10: 49.0 N･m
With spring washer
Assemble the limit switch cord cover(3)
A22 with the machine screw with spring
washer A23 .
Care should be taken not to catch the lead
•
wires.
A41
A40
A19
A20
A28
A24
A19
A22
A21
A23
A23
A23
A25
Reassembly Procedure
トルク
Torque
トルク
Torque
A2
A3
A1
Grooved side
A4
トルク
Torque

18
Assemble the load and no-load sides of(1)
the limit switch to the limit switch cover A26 .
Assemble the load side (shorter lead wires) of
•
the limit switch to the grooved side of the limit
switch cover.
The limit switch is a precision part and fragile.
•
Assemble it carefully.
Secure the limit switch cover to the chain(2)
guide with the machine screws A27 .
Beware of the direction of the limit switch cover.
•
Care should be taken not to catch the lead
•
wires.
Check that the limit switch can be pressed
•
properly.
Tightening torque M4: 1.3 N･m
Apply gear oil to all the parts of the body(1)
with stator A4 , where the ball bearing and
oil seal are to be attached.
Assemble the ball bearing(2) A5 for the
friction clutch.
Assemble new oil seal(3) A10 to the motor
shaft A55 .
Beware of the direction of the oil seal.
•
Apply oil to the lip and assemble carefully
•
without damaging it.
Assemble the ball bearing(4) A12 for the load
sheave A11 .
If it cannot be easily inserted, strike a jig lightly
•
with a plastic hammer.
Insert the load sheave in alignment with a(5)
punch mark.
Assemble new oil seal(6) A13 for the load
sheave.
Beware of the direction of the oil seal.
•
Apply oil to the lip and assemble carefully
•
without damaging it.
Assemble the ball bearing(7) A14 for the load
sheave.
If it cannot be easily inserted, strike a jig lightly
•
with a plastic hammer.
Assemble new snap ring
•A17 .
Reassembly Procedure (continued)
Assembling the load sheave
6
●When the chain guide A24 and limit switch
complete set A25 have been disassembled
Shorter
(load side)
Longer
lead wires
(no load side)
Load side
No load
side
Cross-section
Cross-section
A25
A17
A14
A13
A11
A12
A5
A24
A26
A27
A10
ＮＥＷ
ＮＥＷ
ＮＥＷ
A4
A4
Reassembly Procedure
トルク
Torque
オイル
Oil
Punch mark
Concave mark

19
DANGER
(To be continued)
Install the load chain(1) B12 so that the
welded part comes outside of the load
sheave A11 .
Be sure to insert a horizontal link rst (as
•
shown in the gure) into the chain guide A24 .
Insert the load chain from the load side(2)
(bottom hook side) of chain guide, wind it
up by rotating the load sheave manually
to guide it out to the load chain outlet (no
load side).
Once engaged with the load sheave, shift the
•
body with stator to the no load side and rotate
the load sheave manually. The load chain is
taken up and comes out smoothly.
Re-check the orientation of the load chain,(3)
and check for any twist.
• Insert the load chain so that the welded part comes outside when it is engaged with
the load sheave.
Failure to follow this instruction may cause defective operation or abnormal wear and result
in severe injury due to a falling load.
Mandatory
Installing the load chain
7
No load
side
No load
side
Load
side
Load
side
Chain
welded part
Insert chain.
Rotate
Horizontal link rst
A24
B12
B12
A24
A11
Reassembly Procedure
● 125kg to 250kg
(4) Install the stopper B16 and cushion rubber
B41 to the 3rd link from the end of the no
load side load chain as they were before
disassembly.
Tightening torque M6: 10.8 N･m
With spring washer
● 490kg to 1t
(4) Install the stopper B16 , chain spring B14
and spring guide B15 (no load side) to
the 3rd link from the end of the no load
side load chain as they were before
disassembly.
Assemble the spring guide as shown in the
•
gure, paying heed to its direction.
Tightening torque M6: 10.8 N･m
With spring washer
B15
B14
B16
To rque
B41
B16
125kg to 250kg
490kg to 1t
To rque

20
DANGER
• Do not adjust the friction clutch.
Failure to follow this instruction may result in death or severe injury.
Insert the load gear(1) A16 to the load sheave
A11 , and lock it with a new snap ring A17 .
The load gear should be assembled with its
•
concave surface facing upward. (If assembled
the other way around, a groove for the snap
ring is invisible.)
Make sure that the snap ring is inserted fully.
•
Assemble the set pins S(2) A6 (2 pcs.).
Assemble the friction clutch(3) A9 .
Assemble the ball bearing(4) A30 to the
friction clutch.
Put new packing G(5) A37 on the body with
stator A4 , and strike the gear case A29
with a plastic hammer to assemble.
Care should be taken not to catch the lead
•
wires.
Use one machine screw socket bolt (shorter)
•
A35 and ve machine screw socket bolts
(longer) A36 , totally 6 of them.
Assemble the gear case temporarily to the
•
body with stator with the machine screw socket
bolts, and then, tighten them diagonally and
uniformly.
Tightening torque M6: 10.8 N･m
With spring lock washer
Reassembly Procedure (continued)
Prohibited
Assembling the gear parts
8
Concave
surface
A35
A36
A29
A30
A37
A6
A9
A17
A16
A11
ＮＥＷ
ＮＥＷ
A4
Reassembly Procedure
トルク
Torque
