Kogan SMARTERHOME KABLFAN3RSA User manual

KOGAN SMARTERHOME™
BLADELESS PURIFIER
FAN HEATER
KABLFAN3RSA

2
Safety & Warnings 3
Overview 5
Operation 6
Connection to SmarterHome™ App 13
Google Home Control 19
Amazon Alexa Control 22
Cleaning & Care 25
Specifications 27

3
Ensure to read all instructions and warnings in this user guide prior to first use. Retain this
user guide for future reference.
•This fan heater is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the fan heater by a
person responsible for their safety. Children should be supervised to ensure that they do
not play with the fan heater.
•This fan heater is only suitable for indoor use and should not be used outdoors.
•Before plugging in the power supply, ensure the rated voltage matches the voltage
used of the power supply.
•This fan heater must be connected to a fixed wall socket with a voltage and frequency
of 220-240V, 50-60 Hz.
•Before use, check that the power cord and the plug are in good condition. If the power
cord is damaged, do not use the fan heater. Contact help.Kogan.com for assistance.
•If this fan heater is covered or incorrectly placed, it can cause a fire hazard. Keep the
fan heater at least 1.5 meters away from any direct heat sources (for example, stoves,
ovens).
•Ensure there is at least a 1m clearance with walls and objects from the fan heater.
•When in use, do not block the air inlet and outlet.
•Do not use this fan heater near objects that are flammable, explosive, or when subject
to heat, can cause deformation, discoloration, or deterioration.
•Do not use this fan heater in areas with severe dust.
•Do not allow skin to come into direct contact with the surface of the air outlet. This may
cause severe burns.
•This fan heater is not waterproof. Do not use this fan heater in any area commonly met
with water or other liquids (for example, bathtubs, swimming pools).
•Do not immerse the fan heater in water.
•To avoid overheating, do not place any objects on the air inlet or outlet.
•To avoid electric shock, do not insert metal wires or any other foreign objects into the
crevices of this fan heater.
•Do not place this fan heater under hanging objects that may be prone to fall.
•Do not use this fan heater on unstable surfaces.
•Do not use this fan heater under direct sunlight.
•Do not use this fan heater as a method of heat perseveration or as heating equipment
for animals and plants.
SAFETY & WARNINGS

4
•Do not use this fan heater if it has been dropped or if it is damaged. Contact
help.Kogan.com for assistance.
•If the fan heater stops working, turn off the power and unplug the power cord
immediately. Contact help.Kogan.com for assistance.
•Do not attempt to repair the fan heater yourself. Contact help.Kogan.com for
assistance.
•Do not use the fan heater if it is facing an electrical outlet or is under a power outlet.
•Do not use this fan heater with a shared power socket connected to other high-power
appliances.
•Do not turn the fan heater on or off by pulling or inserting the power cord. Use the
ON/OFF button to switch the fan heater on or off.
•Do not directly pull on the power cord to move the fan heater’s body.
•When in use, the power cord should be placed behind the fan heater’s body to avoid
overheating, damage and potential injuries.
•Do not use third-party devices with this fan heater (for example, programmable timers).
•If the connection between the power cord and socket becomes loose, or the power cord
becomes abnormally hot, it may be necessary to replace the socket. Consult a qualified
electrician to replace the socket.
WARNING — KEEP BATTERIES OUT OF REACH OF
CHILDREN
•Swallowing may lead to serious injury or death in as
little as 2 hours, due to chemical burns and potential
perforation of the oesophagus.
•If you suspect your child has swallowed or inserted a
button battery immediately call the 24-hour Poisons Information Centre on 13 11 26
(Australia) or 0800 764 766 (New Zealand) for fast, expert advice.
•Examine devices and make sure the battery compartment Is correctly secured, e.g.
that the screw or other mechanical fastener is tightened. Do not use if compartment is
not secure.
•Dispose of used button batteries immediately and safely. Flat batteries can still be
dangerous.
•Tell others about the risk associated with button batteries and how to keep their
children safe.

5

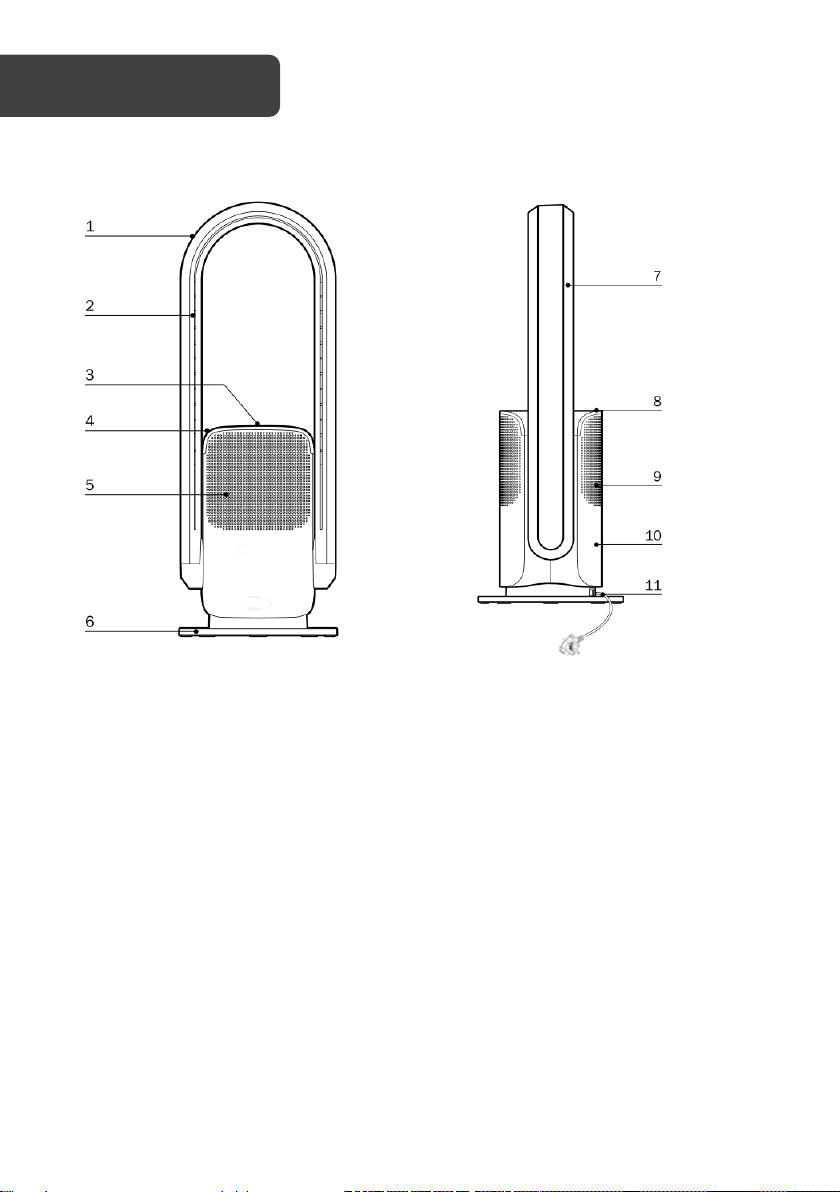

Front view Side view
1 Air duct 7Air duct
2 Air outlet 8Top cover
3 LED display 9Air inlet
4 Top cover 10 Fan heater body
5 Air inlet 11 Power cord
6 Base
OVERVIEW

6
Placement
Place the fan heater on a stable level surface. Ensure there at least a 1m clearance with the
fan heater from any walls or obstructions. This will make sure there is optimal airflow from
the air inlet and outlet.
Do not use it in hot and humid areas (for example, bathroom and kitchen).
Keep the fan heater away from curtains as they may obstruct airflow and cause the fan
heater from working optimally.
Powering on and off
•Connect the power cord into a socket. Press the power button in the base. The fan
heater will enter standby.
•Press the ON/OFF button ‘ ’ on the LED display or remote. The fan heater will beep
once then start operating.
•Press the ON/OFF button ‘ ’ again to return the fan heater to standby.
•To turn off the fan heater, when operating, press and hold the ON/OFF button ‘ ’ for
2 seconds. The fan heater will beep twice and the fan heater will stop operating.
OPERATION

7
Changing the angle of the air duct
The angle of the air duct can be changed manually. Before adjusting the air duct angle,
ensure the fan heater is turned off.
Hold fan heater body with one hand and set the air duct 15° forward or backward.
LED display
Wi-Fi light indicator
UV-C disinfection
light indicator
Filter replacement light indicator
Temperature display
Mode and humidity display
ON/OFF
Notes:
•When operating in Warm mode, the air duct will become hot. Shortly after the fan
heater is turned off, residual heat may make the air duct too hot to touch. Wait for
the air duct to cool before setting the desired angle.
•This fan heater features a built-in overheating protection sensor. If the fan heater
falls over and overheats, the fan heater will automatically stop operating. Unplug
the fan heater and allow it to cool before resuming use.

8
Name Icon Description
ON/OFF
•When in standby, press this button to turn the fan
heater on.
•Press and hold the button for 1 second to turn the
oscillating function on and off.
•Press and hold the button for 2 seconds to turn the
fan heater off.
Filter
replacement light
indicator
After operating for 720 hours, this indicator will light up.
This indicates the filter needs to be replaced. Refer to
the Cleaning & Care section of this user guide for
instructions on replacing the filter.
After the filter has been replaced, press and hold the
ON/OFF button for 5 seconds. The filter replacement
light indicator will turn off and the fan heater will begin
another 720-hour cycle.
UV-C disinfection
light indicator
When the UV-C disinfection button is pressed on the
remote
control, this light indicator will illuminate. This
disinfection process will automatically finish after 1 hour
and the light indicator will turn off.
Wi-Fi light
indicator
This indicator is used to connect the fan heater to your
smart device.
Refer to the ‘Connect to the SmarterHome™ app’
section of this user guide for further instructions.
Temperature
display
•In Cool mode, the display will light up in blue.
•In Warm mode, the display will light up in orange.
Mode and
humidity display
The display will reflect the current mode and humidity
level.

9
Remote control
UV-C
Sterilisation
UV-C sterilisation is effective in eliminating various kinds of
viruses and bacteria in the air.
•Press once to turn on the UV-C sterilisation function.
•Press again to turn off the UV-C sterilisation function.
•The UV sterilisation function will automatically turn off after
operating for 1 hour.
Name Button Description
ON/OFF
Identical functions to the ON/OFF button on the LED display.
•Pressing the button repeatedly can also change and cycle
through the fan speeds.
Note:
The remote control should be pointed directly at the signal receiver located near the
LED display when used.
Modes
Timer
UV-C sterilisation
Increase fan speed
Cool mode
Decrease fan speed
ON/OFF
Oscillation
Increase temperature
Warm mode
Decrease temperature

10
Modes
This fan heater features 4 speed modes. These include Normal
mode, Sleep mode, Natural mode, and Max mode.
•Press this button repeatedly to cycle through and select the
desired mode.
•Normal mode: Standard operation at the selected fan
speed.
•Sleep mode: ‘LL’ will be shown on the mode and humidity
display, and the fan speed will fall to the lowest setting. This
is ideal for a quiet sleep and overnight use.
•Natural mode: ‘--' will be shown on the mode and humidity
display. The fan speeds will go through an automatically
cycle between speed setting 4, 5 and 6, simulating a varied
natural breeze.
•Max mode: “HH” will be shown on the mode and humidity
display. The fan heater will operate at the maximum fan
speed.
Oscillation
•Press once to turn on the oscillation function. The fan heater
will begin to oscillate left and right up to 80°± 5°.
•Press again to turn off the oscillation function.
Timer
This fan heater can be timed to operate between 1-8 hours
before it automatically turns off.
•Press this button to set timer up to the desired hours.
•After the timer is triggered and the fan heater is off, press the
ON/OFF button as normal to resume use.
Warm mode
•Press this button once to switch the fan heater to Warm
mode.
•In Warm mode, the LED display lights up as orange.
•Press the ‘Increase temperature’ and ‘Decrease
temperature’ buttons to adjust temperature between 1-
30°C.
•Press the ‘Increase fan speed’ and ‘Decrease fan speed’
buttons to adjust the fan speed.
•Warm mode contains four levels of speed.
Note:
These buttons do not function in Cool mode.

11
Cool mode
•Press this button once to switch the fan heater into Cool
mode.
•In Cool mode, the LED display lights up as white.
•Press the ‘Increase fan speed’ and ‘Decrease fan speed’
buttons to adjust the fan speed.
•Cool mode contains nine levels of speed.
•This fan heater may respond to the remote control of other devices.
•Other devices may respond to the fan heater’s remote control. This is due to
overlapping frequencies between different remote controls. It is not an issue with the
fan heater itself and is a normal phenomenon. To avoid this interference, keep the
remote control away from other electrical devices during operation.
•Turning off the fan heater using the remote control does not disconnect the power
supply from the fan heater. If the fan heater will not be for an extended period, unplug
the power cord from the socket.
Remote control battery replacement
This remote control requires x1 CR2025 battery to operate.
1. Press the buckle on the battery cover inward and pull the battery slot out. Remove the
old battery.
2.Identify the battery polarity and insert a new battery onto the slot.
3.Place the battery slot back into the bottom of the remote control.
Notes:
•If the remote control will not be used for an extended period, remove the battery.
•This battery is not rechargeable.

12
Warm mode
1. Press the “Warm mode” button to activate. The LED display will show the current
temperature.
2.Press the ‘Increase temperature’ and ‘Decrease temperature’ buttons. The LED display
will start flashing and users can adjust the desired temperature between
1-30°C.
3.After the desired temperature is set, wait and the LED display will stop flashing. It will
change to show the current temperature. This will increase as the area heats up.
4.After the Warm mode has run for over 9 hours, the fan heater will automatically stop
operating. Restart by pressing the ON/OFF button on the LED display or remote
control.
Notes:
•The default set temperature is 25°C.
•The temperature set should be higher than the current temperature. The heater
will not turn on otherwise.
Notes:
•When the ambient temperature reaches the set temperature, the heating
function will stop, and the fan heater will begin to blow cool air under lowest
speed.
•When the ambient temperature drops lower than the set temperature, the
heating function will automatically reactivate to maintain the set temperature.

13
Install App
Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS).
Register
If you do not have a Kogan SmarterHome™ account, register or sign in with a verification
code sent by SMS.
To register:
1. Ta p to enter registration page.
2. The system automatically recognises your country/area. You can also select your
country code manually. Enter your email address and tap ‘Next.’
3. Alternatively, you can select ‘Register by mobile number’ and enter the verification
code sent to you by SMS.
4. Create a profile on the next page to define your location and room.
CONNECT TO SMARTERHOME™ APP

14
Set device in pairing mode
When the device is first turned on, it may automatically enter pairing mode (the Wi-Fi light
indicator will be rapidly flashing).
If not automatically in pairing mode when powered on, you can manually set the device in
pairing mode by pressing and holding the Wi-Fi light indicator on the LED display for 5
seconds until the Wi-Fi light indicator is flashing.
Add device through network
5. Once registered, tap “+” in the upper right corner of the app’s home page to add a
new device through the network.
6. Select the fan heater type from the list of options in the app (Heating & Cooling >
Fans).
7. Ensure that the device is in pairing mode, with the Wi-Fi light indicator flashing,
and tap “Confirm light is rapidly flashing”.

15
8. Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important
that your SmarterHome™ device and the app are connected to the same Wi-Fi
network during setup.
9. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
10. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
If you are unable to connect the fan heater after repeated attempts, try following the AP
mode connection steps on the following page.
Notes:
•The device and the app have to use the same Wi-Fi network.
•The device is only compatible with 2.4Ghz networks.

16
AP mode connection steps
Set device in pairing mode
To set the device for AP mode pairing, press and hold the Wi-Fi light indicator again for 5
seconds until the Wi-Fi light indicator is flashing slowly.
Using AP Mode to add device
1. Once registered, tap “+” in the upper right corner of the app’s home page to add a
new device through the network.
2. Select the fan heater type from the list of options in the app (Heating & Cooling >
Fans), and then select “Other Mode” from the top-right corner when asked to reset
the device.

17
3. Select “AP Mode” for the set-up type.
4. Ensure that the device is in pairing mode, with the Wi-Fi light indicator flashing
slowly, and tap “Confirm light is slowly flashing”.
5. Enter your Wi-Fi details. It is important that your SmarterHome™ device and the
app are connected to the same Wi-Fi network during setup.

18
6. Follow the in-app prompts to continue AP Mode connection, which will pair your
mobile phone to the device’s Wi-Fi hotspot to ensure a connection.
7. The device will commence the pairing process and connect to the app. Ensure your
Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until
connection is complete.
8. After successfully being added, you will have the option to rename the device and
assign it to a location. It will now be listed on the app’s home page. Tap the device
listing to enter its control page.
Notes:
•The device and the app have to use the same Wi-Fi network.
•The device is only compatible with 2.4Ghz networks.
Note:
If the Wi-Fi hotspot does not appear on your phone in the list of available
networks, your device may not be set in AP Pairing Mode correctly. Try repeating
the steps outlined above to ensure your device is ready for connection.

19
Adding “SmarterHome” to the Google Home app
9. From the home page of the Google Home app, select the “+” icon to access the
‘Add and manage’ page.
10. Select ‘Set up device’, then under the Works with Google banner, select ‘Have
something already set up?’
11. Select the search bar and type ‘Smarter Home’ to locate the Kogan
SmarterHome™ service.
GOOGLE HOME CONTROL

20
12. Tap ‘Authorise’ to grant Google permission to access the SmarterHome™ app and
your devices.
13. From here, you will be prompted to sign into your SmarterHome™ account using
either your email or mobile phone number, depending on which method you used
to register your account.
