Kohler K-1239 User manual

Installation Guide
Bath Whirlpool with Custom Pump
K-1106, K-1126, K-1131,
K-1139, K-1144, K-1146,
K-1148, K-1157, K-1192,
K-1194, K-1196, K-1198,
K-1201, K-1209, K-1221,
K-1224, K-1226, K-1231,
K-1239, K-1244, K-1246,
K-1248, K-1257, K-1263,
K-1266, K-1337, K-1458
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
1055820-2-C

Important Information
WARNING: When using electrical products, basic precautions should always be followed,
including the following:
DANGER: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault
Circuit-Interrupter (GFCI).
Building materials and wiring should be routed away from the pump body and other heat-producing
components of the unit.
Install to permit access for servicing.
Grounding is required. The unit should be installed by a qualified service representative, and grounded.
WARNING: Risk of electric shock. A qualified electrician should make all electrical connections.
WARNING: Risk of electric shock. Disconnect power before servicing.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation, including the following requirements.
NOTICE: Follow all local plumbing and electrical codes.
Product Information
Electrical Requirements
The installation must have a Class A Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device
(RCD). The GFCI or RCD protects against line-to-ground shock hazard. Use a 120 V, 15 A, 60 Hz dedicated
service for the whirlpool.
″H″models require a separate 120 V, 15 A, 60 Hz dedicated service for the heater.
NOTE: If the pump supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard. The heater supply cord cannot be replaced. If the
cord is damaged the heater should be replaced.
Product Notices
WARNING: Unauthorized modification may cause unsafe operation and poor performance of the
whirlpool. Do not relocate the whirlpool pump, or make other modifications to the whirlpool
system, as this could adversely affect the performance and safe operation of the whirlpool. Kohler
Co. shall not be liable under its warranty or otherwise for personal injury or damage caused by any
such unauthorized modification.
WARNING: Risk of electrical shock. Disconnect power before servicing.
WARNING: Risk of electrical shock. A qualified electrician should make all electrical connections.
WARNING: Risk of injury or property damage. Please read all instructions thoroughly before
beginning installation.
NOTICE: Follow all local plumbing and electrical codes.
Factory-Assembled Features
Factory installed components include pump with power supply cord and air switch transmitter, and air
control. No installation is needed.
″H″models are supplied with a factory assembled in-line heater.
The whirlpool pump and piping are factory-assembled.
1055820-2-C 2 Kohler Co.

Product Information (cont.)
Connections and Service Access
Before installation, ensure proper access to the final connections.
NOTICE: Provide unrestricted service access to the pump. You must provide access for servicing the
pump and controls. The access must be located immediately next to the pump. Study the Roughing-In
Guide packed with the whirlpool.
Table of Contents
Important Information .............................................................. 2
Product Information ............................................................... 2
Tools and Materials ............................................................... 3
Before You Begin ................................................................. 3
Prepare the Site ................................................................. 5
Prepare the Whirlpool ............................................................. 5
Disconnect the Pump .............................................................. 5
Secure the Unit — Models With Support Blocks .......................................... 6
Secure the Unit — Models With Whirlpool Base .......................................... 8
Relocate and Mount the Pump ...................................................... 10
Install the Plumbing .............................................................. 11
Install a Rim-Mounted Faucet ....................................................... 11
Make Electrical Connections ........................................................ 12
Test Run the Whirlpool ............................................................ 12
Complete the Finished Wall ........................................................ 13
Clean-Up After Installation ......................................................... 13
Confirm Proper Operation .......................................................... 14
Troubleshooting ................................................................. 15

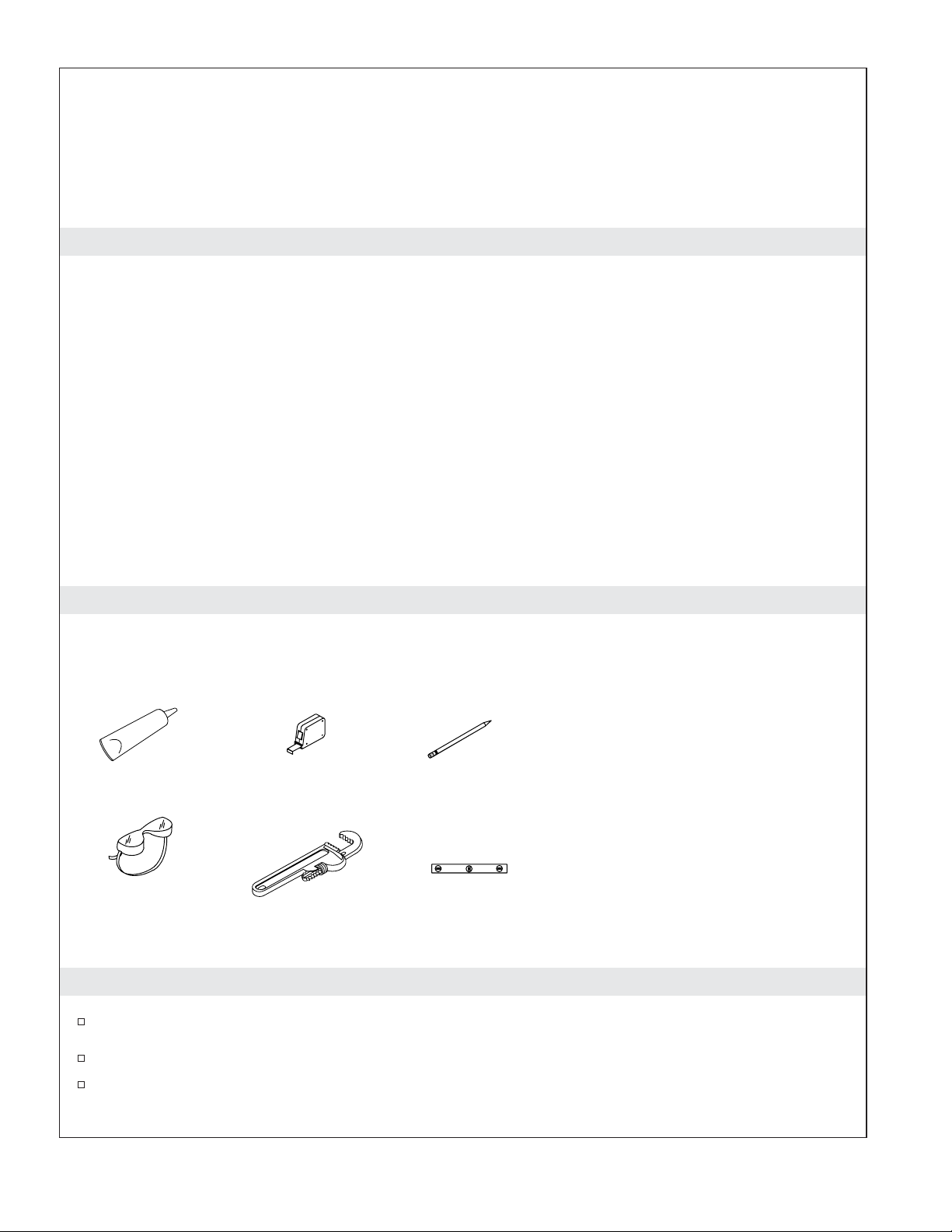

Tools and Materials
Before You Begin
We recommend this whirlpool for drop-in installation.
Inspect the whirlpool for damage before you begin installation.
Confirm adequate mounting and connection space for the faucet specified for your installation.
Silicone Sealant Pencil
Level
Safety Glasses
Tape Measure
Pipe Wrench
Plus:
• Conventional woodworking tools
and materials
• Drop Cloth
• Construction adhesive (optional)
• Cement or mortar (optional)
• 2x4s or 2x6s
• Screws or Lag Bolts
Kohler Co. 3 1055820-2-C

Before You Begin (cont.)
Kohler Co. reserves the right to make revisions in the design of products without notice, as specified
in the Price Book.
1055820-2-C 4 Kohler Co.

1. Prepare the Site
NOTICE: Refer to the Roughing-in Guide packed with your whirlpool for the required minimum
lb/square foot (kg/square meter) floor support loading.
Make sure the flooring offers adequate support for your whirlpool, and verify that the subfloor is
flat and level.
Construct 2x4 or 2x6 stud framing for the drop-in installation.
NOTICE: The whirlpool must be supported by its feet or base. Do not support the load weight of the
whirlpool by the perimeter of the rim.
For a raised installation: Frame the floor or construct a frame in accordance with the roughing-in
information packed with the whirlpool.
Carefully lay out and cut the rough deck material. Use the cut-out template, if one is provided, or
refer to the Roughing-In Guide for cutout information.
Position the plumbing according to the roughing-in information packed. Cap the supplies, and
check for leaks.
2. Prepare the Whirlpool
Install the drain to the whirlpool according to the drain manufacturer’s instructions. Do not connect
the trap at this time.
Position a clean drop cloth or similar material in the bottom of the whirlpool. Be careful not to
scratch the surface of the whirlpool.
3. Disconnect the Pump
NOTE: No cutting of the whirlpool harness (piping) is required for this installation. Any cutting of the
harness will void the warranty.
Disconnect the pump and heater (if equipped) from the shipping location by cutting the two
banding straps with tin snips.
Move the pump and heater (if equipped) aside.
Relocate the pump and heater (if equipped) next to the customized inlet/outlet connections of the
whirlpool harness. The pump may protrude beyond the rim of the bath. See the rough-in details.
Access
Panel
Frame the floor
according to the
roughing-in information.
Construct 2x4 or 2x6 stud
framing according to the
roughing-in information.
Position the
rough plumbing.
Verify that the subfloor
offers adequate support,
and is flat and level. Cut the pump
banding straps.
Kohler Co. 5 1055820-2-C

4. Secure the Unit — Models With Support Blocks
NOTICE: Do not lift the whirlpool by the piping or pump, or use the piping or pump for structural
support of the whirlpool. To avoid damage to the whirlpool, lift at the sides of the whirlpool.
NOTICE: Do not support the load weight of the whirlpool by the perimeter of the rim. The rim perimeter
must be adequately supported, but must not support the load weight of the whirlpool.
If the subfloor is not level, shim the whirlpool support blocks as necessary.
Choose the installation option that best applies to your particular installation. Follow the appropriate
instructions.

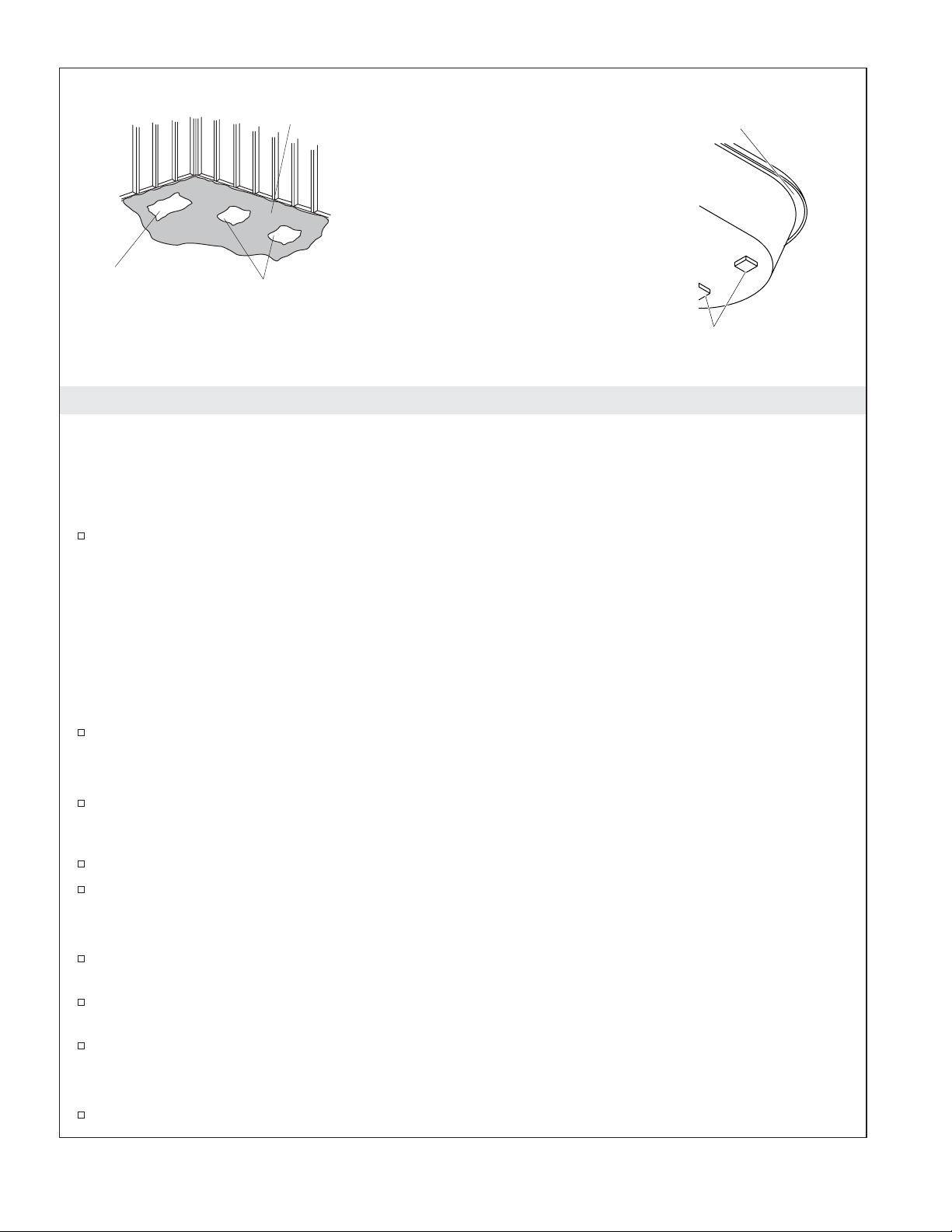

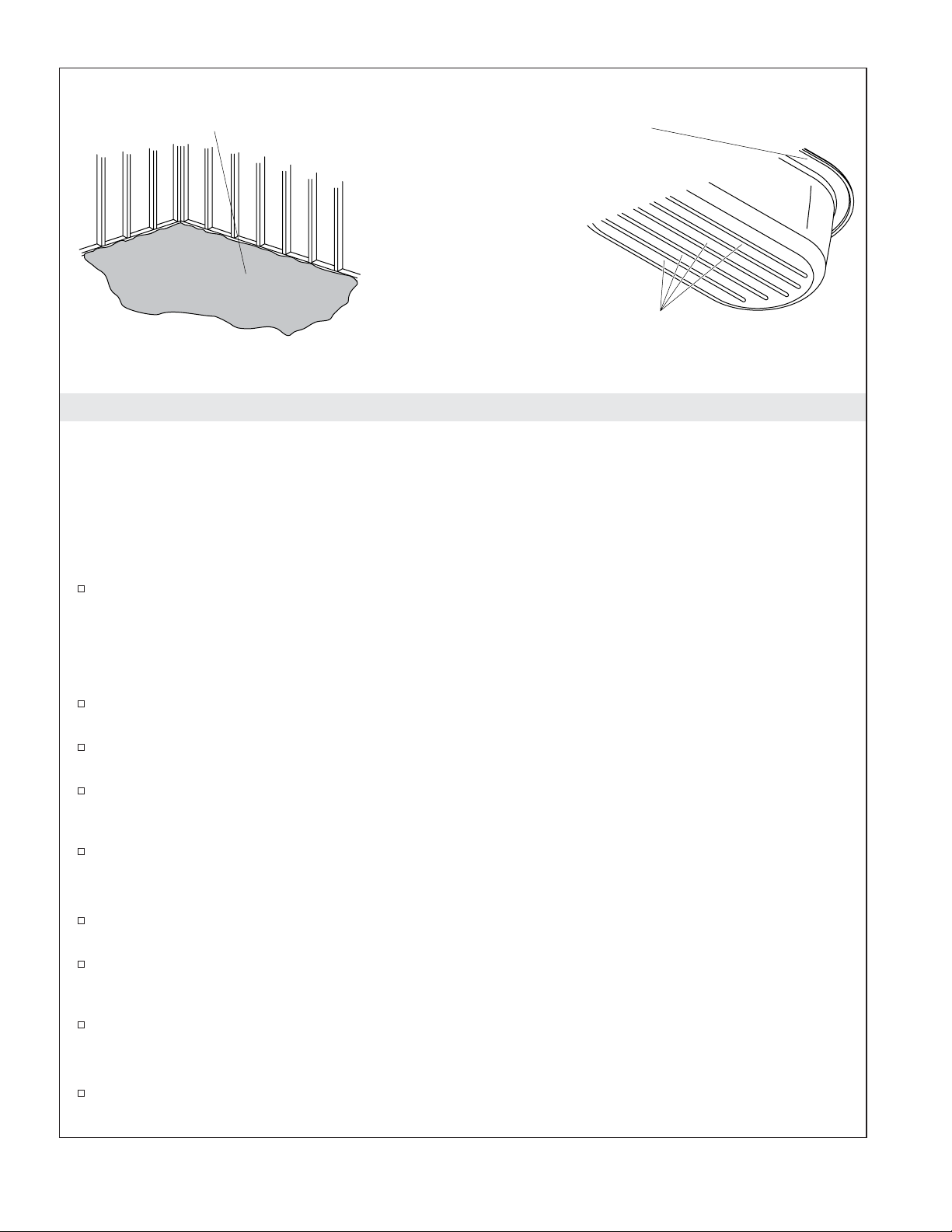

Option Using a Cement or Mortar Bed
NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an
acceptable, durable bond.
NOTE: The pump support bracket (when the pump banding straps are cut) and support blocks must
rest directly on the subfloor.
Spread a 2″(5.1 cm) thick layer of cement or mortar on the subfloor where the whirlpool will be set.
This will help secure, level, and support the unit. Clear all the material away from the pump
support bracket and support block locations.
Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help,
carefully lift the whirlpool into place, and make sure the pump support bracket and support blocks
do not rest in the bed material.
Secure the drain tailpiece to the trap. Ensure the whirlpool is level and resting on all support blocks.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the whirlpool.
Option Using Construction Adhesive
Apply a generous amount of high-quality construction adhesive to the bottom of the support blocks.
With help, carefully lift the whirlpool into position.
Insert the drain tailpiece into the trap. Ensure the whirlpool is level and resting on all support
blocks.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the whirlpool.
Option Using Silicone Sealant
With help, carefully lift the whirlpool into position.
Clear space for pump.
Spread a 2" (5.1 cm) layer of
cement or mortar bed material.
Clear spaces for
support blocks.
Apply a bead of silicone
sealant around the entire rim.
Apply construction adhesive
to the support blocks.
1055820-2-C 6 Kohler Co.

Secure the Unit — Models With Support Blocks (cont.)
Insert the drain tailpiece into the trap. Ensure the whirlpool is level and resting on all support
blocks.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the whirlpool.
Kohler Co. 7 1055820-2-C

5. Secure the Unit — Models With Whirlpool Base
NOTICE: Do not lift the whirlpool by the piping or pump, or use the piping or pump for structural
support of the whirlpool. To avoid damage to the whirlpool, lift at the sides of the whirlpool.
NOTICE: Do not support the load weight of the whirlpool by the perimeter of the rim. The rim perimeter
must be adequately supported, but must not support the load weight of the whirlpool.
Choose the installation option that best applies to your particular installation. Follow the appropriate
instructions.
If the subfloor is not level, shim the whirlpool base as necessary.
Option Using a Cement or Mortar Bed
NOTE: Do not use gypsum cement or drywall compound for this application, as they will not provide an
acceptable, durable bond.
Spread a 2″(5.1 cm) thick layer of cement or mortar on the subfloor where the whirlpool will be set.
This will help secure, level, and support the unit.
Position a piece of plastic drop cloth material on top of the cement or mortar bed. With help,
carefully lift the whirlpool into place.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level. Use screws or lag bolts (not
provided) to secure the whirlpool base to the floor. Drill small pilot holes through the whirlpool
base as needed.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the whirlpool.
Option Using Construction Adhesive
Apply a generous amount of high-quality construction adhesive to the bottom of the whirlpool base.
With help, carefully lift the whirlpool into position.
Insert the drain tailpiece into the trap. Make sure the whirlpool is level. Use screws or lag bolts (not
provided) to secure the whirlpool base to the floor. Drill small pilot holes through the whirlpool
base as needed.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the whirlpool.
Option Using Silicone Sealant
With help, carefully lift the whirlpool into position.
Spread a 2" (5.1 cm) layer of
cement or mortar bed material.
Apply construction
adhesive to the
whirlpool base.
Apply a bead of
silicone sealant
around the entire rim.
1055820-2-C 8 Kohler Co.

Secure the Unit — Models With Whirlpool Base (cont.)
Insert the drain tailpiece into the trap. Make sure the whirlpool is level. Use screws or lag bolts to
secure the whirlpool base to the floor. Drill small pilot holes through the whirlpool base as needed.
Remove the protective tape from the rim. Apply a continuous bead of high-quality silicone sealant
around the entire rim of the whirlpool.
Kohler Co. 9 1055820-2-C

6. Relocate and Mount the Pump
Relocate the pump and heater (if equipped) next to the customized inlet and outlet connections of
the whirlpool harness. The pump may extend beyond the rim of the whirlpool.
Remove all protective packaging from around the whirlpool harness. Cut only those cable ties
supporting the harness attachment nuts.
Remove the plugs from the pump inlet and outlet openings. Install the O-rings into the grooves on
the inlet and outlet connector fittings.
Set the pump on the support bracket.
Thread the plastic inlet and outlet attachment nuts onto the pump until the O-rings make initial
contact.
Tighten each nut a quarter turn after initial contact. Do not overtighten these nuts.
NOTE: Do not shim the pump more than 1/2″(1.3 cm). Raising the pump too high will prevent the pump
from priming properly.
Make sure the whirlpool harness inlet piping (suction line) is pitched downward from the pump
toward the suction fitting. This is important so the pump will drain water properly. Shim the pump
if necessary to promote proper drainage.
Secure the pump support bracket with four screws or lag bolts (not provided).
Connect the air actuator tubing to the air switch on the pump.
When installing the pump,
make sure to remove the plugs
from the inlet and outlet piping.
Provide access to the installed pump for servicing.
Relocate pump.
Pump
O-Rings
Air Switch
1055820-2-C 10 Kohler Co.

7. Install the Plumbing
CAUTION: Risk of property damage. A watertight seal must exist on the whirlpool drain. The
watertight seal will prevent property damage.
Connect the drain to the trap according to the drain manufacturer’s instructions.
NOTICE: An access panel will simplify future maintenance.
Install the faucet valving according to the faucet manufacturer’s instructions. Do not install the
faucet trim until instructed. Open the hot and cold water supplies, and check the supply
connections for leakage.
Run water into the whirlpool, and check the drain connections for leakage.
8. Install a Rim-Mounted Faucet
K-1226 Only
Measure and cut a piece of 1/2″exterior grade plywood 4″(10.2 cm) x 11-1/2″(29.2 cm) for the
K-1226.
The faucet should be located in the center of the flat area of the rim. Refer to the faucet
manufacturer’s instructions. Use a pencil to mark the faucet centerlines for drilling.
NOTE: The K-1226 will accept faucets with 4″(10.2 cm) centers.
NOTICE: Position a thin piece of cardboard on the finished surface of the whirlpool before clamping the
plywood in place. Make sure the clamps do not make direct contact with the finished surface of the
whirlpool. This will reduce the risk of damaging the surface of the whirlpool.
Set a thin piece of cardboard on the finished surface of the whirlpool rim. Position the plywood on
the bottom of the rim, and carefully clamp the plywood in place. Make sure the clamps are in
contact with the cardboard, not the finished surface of the whirlpool.
Carefully drill the faucet holes to the size required by the faucet manufacturer. Remove the clamps
and cardboard.
Install the faucet to the rim and plywood according to the faucet manufacturer’s instructions.
Open the hot and cold water supplies, and check the supply connections for leakage.
Run water into the whirlpool, and check the drain connections for leakage.
4" (10.2 cm)
Measure, cut, and drill a piece of 1/2" exterior
grade plywood 4" (10.2 cm) x 11-1/2" (29.2 cm) for
the K-1226.
Whirlpool Rim
Install the faucet to the rim and
plywood according to the faucet
manufacturer's instructions.
Kohler Co. 11 1055820-2-C

9. Make Electrical Connections
WARNING: Risk of electric shock. Make sure the power has been disconnected before performing
the following procedures.
WARNING: Risk of electric shock. Connect the pump and in-line heater (if included) to properly
grounded, grounding-type receptacles protected by Ground-Fault Circuit-Interrupters (GFCI’s) or
Residual Current Devices (RCD’s). Do not remove the grounding pins from the plug. Do not use
grounding adapters.
NOTE: A label identifying the model number and electrical rating of the whirlpool is located near the
whirlpool pump.
NOTICE: The pump (supplied) and heater (if supplied) are equipped with a cord and plug. All wiring for
the heater has been completed at the factory. A qualified electrician must install a GFCI- or RCD-protected,
120 V, 15 A, grounded outlet. No other load should be on this circuit.
Pump Wiring
Locate the outlet behind the whirlpool, and within 24″(61 cm) of the pump.
Plug the pump into this outlet.
NOTE: Make sure the air actuator tubing is securely attached to the pump, and is not kinked or damaged.
Heater Wiring – “H” Models
Locate the outlet behind the whirlpool, and within 24″(61 cm) of the heater.
Plug the heater into this outlet.
10. Test Run the Whirlpool
Check all electrical connections, and make sure the electrical power to the whirlpool and heater (if
equipped) is on.
Make sure all union connections to the pump and heater are securely hand tightened.
Verify that the pump banding straps have been cut (if applicable), and that the pump is resting
directly on the subfloor or whirlpool base.
Fill the whirlpool to a level at least 2″(5.1 cm) above the top of the highest jet. Refer to ″Confirm
Proper Operation″section for additional information.
Operate the whirlpool for 5 minutes, and check all whirlpool piping connections for leaks.
NOTE:
Pump model illustrated may differ from your actual product.
Install a GFCI- or RCD-protected 120 V, 15 A grounded outlet. Install
a second GFCI- or RCD-protected outlet for "H" models for the heater.
Make sure air actuator tubing is
securely attached to the pump.
Optional Heater
either T-style (shown) or water intake (not shown).
(models may vary)
Bond in accordance with applicable codes.
Plug pump and heater
into these outlets.
1055820-2-C 12 Kohler Co.

11. Complete the Finished Wall
If you have not already done so, carefully remove the protective tape from the whirlpool rim.
Cover the framing with water-resistant wall material.
Tape and mud the water-resistant wall material. Install the finished wall to the water-resistant wall
material.
Seal the joints between the whirlpool rim and the finished wall material with silicone sealant.
Install the faucet trim according to the instructions packed with the trim.
12. Clean-Up After Installation
When cleaning up after installation, do not use abrasive cleansers, as they may scratch and dull the
whirlpool surface. Use warm water and a liquid detergent to clean the surface.
Remove stubborn stains, paint, or tar with turpentine or paint thinner. Do not allow cleaners
containing petroleum distillates to remain in contact with any whirlpool surfaces for long periods
of time. Remove plaster by carefully scraping with a wood edge. Do not use metal scrapers, wire
brushes, or other metal tools. Use a powder-type detergent on a damp cloth to provide mild
abrasive action to any residual plaster.

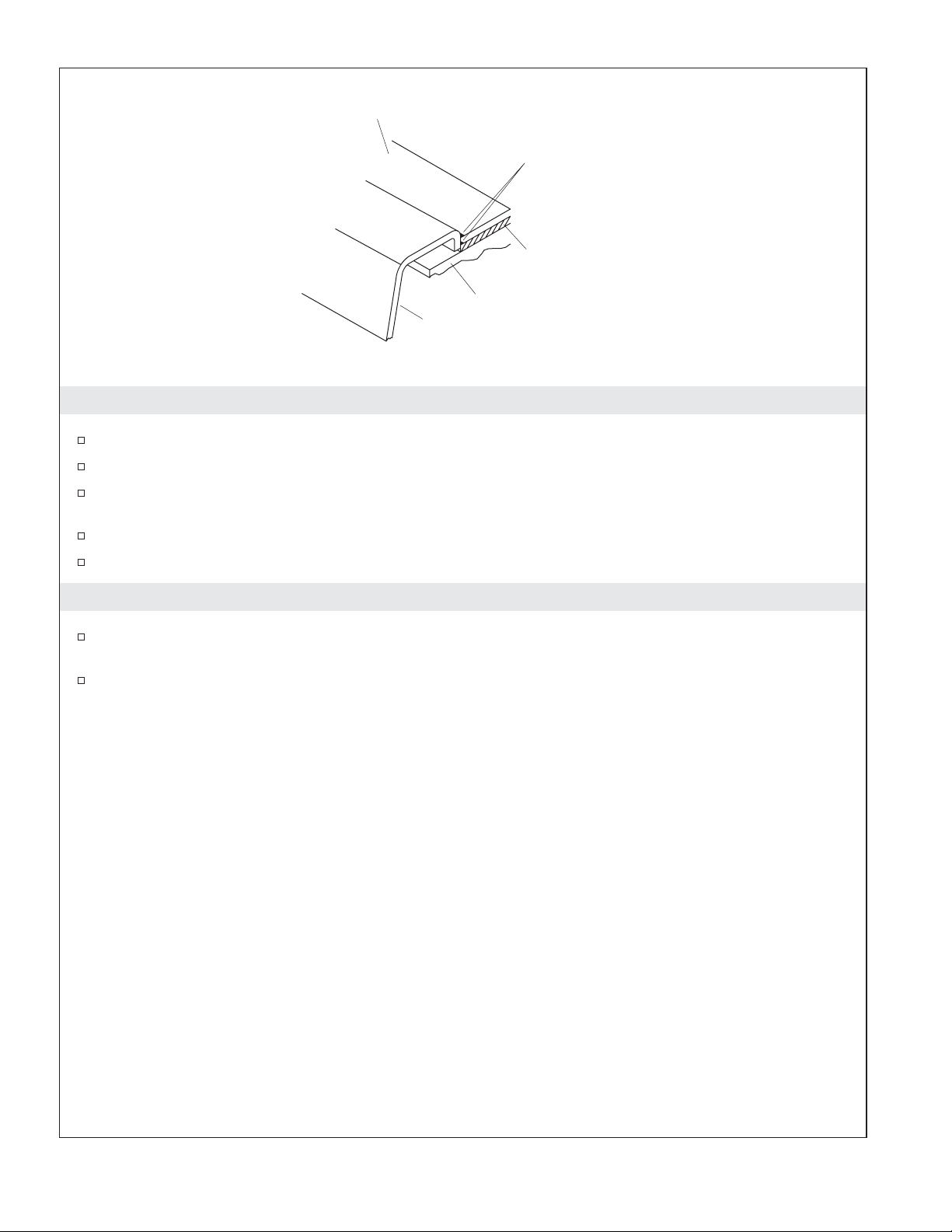

Apply silicone sealant to the
edges of the water-resistant
deck material and the
finished deck.
Finished Deck
Material
Water-Resistant
Deck Material
Framing Material
Whirlpool
Drop-In Installation
Kohler Co. 13 1055820-2-C

13. Confirm Proper Operation
Fill the Whirlpool
Position the jet nozzles so they face down toward the basin. Turn the jet trim rings fully
counterclockwise.
Fill the whirlpool to a water level at least 2″(5.1 cm) above the top of the highest jet.
NOTE: The water temperature in the whirlpool should not exceed 104°F (40°C).
To service orifices insert a pencil into the end of the jet nozzle and push the orifice out. After
removing any blockage, check the orifice to make sure it is clear and press it into the jet housing.
NOTE: Orifices are only installed in whirlpool jets when there are six or more jets in the whirlpool system.
Operating Sequence
Press the air actuator to turn on the whirlpool jets.
Adjust each jet for optimum air/water mixture. Turn the trim ring clockwise to reduce the air flow,
and counterclockwise to increase the air flow.
If equipped with a heater, the heater will engage automatically when the pump is turned on and
will disengage when the pump is turned off. The heater will not turn on if the water temperature
exceeds 104°F (40°C).
Press the air actuator a second time to turn off the whirlpool.

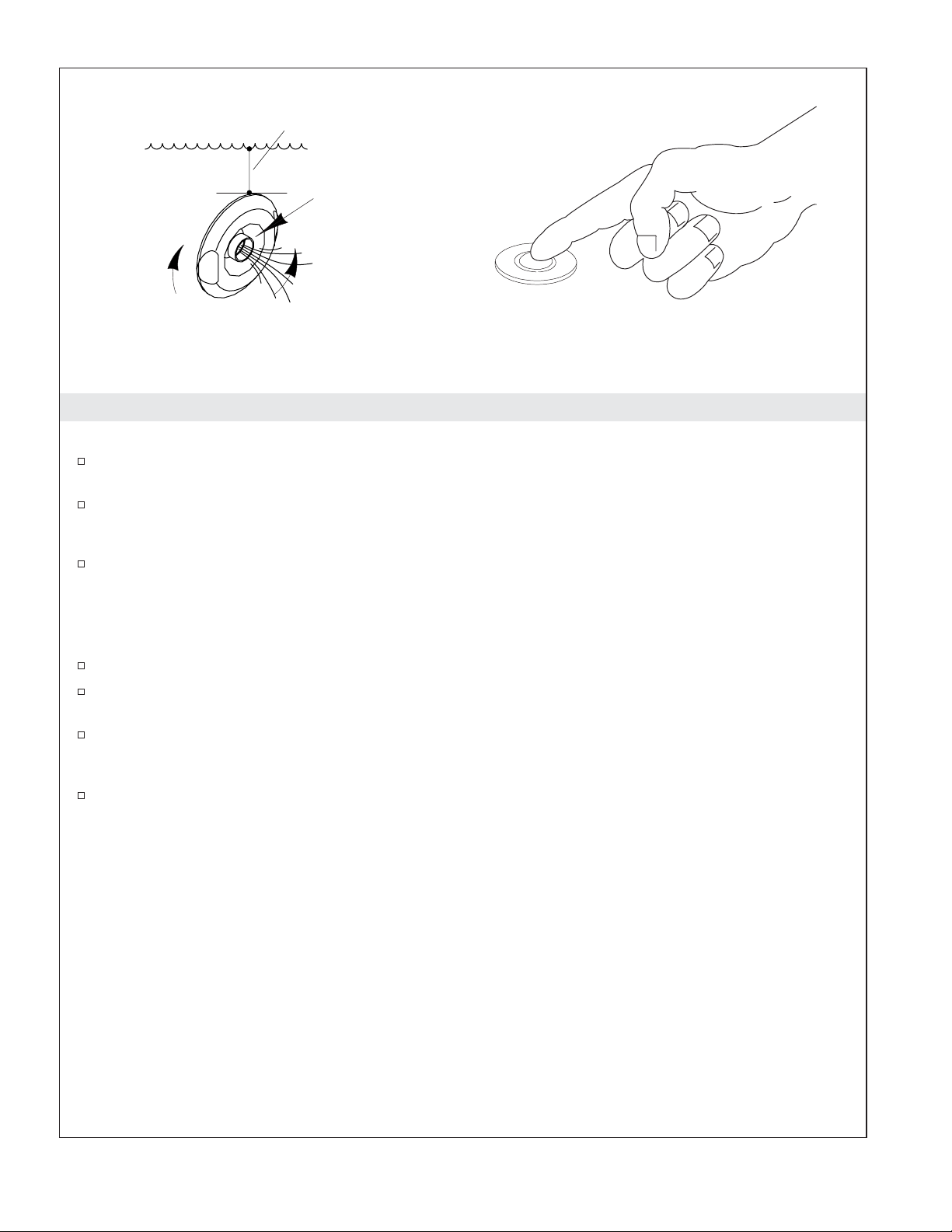

Fill with water at least 2" (5.1 cm)
above the highest jet.
Turn the jet trim ring
clockwise to
decrease the flow. Position the jet
nozzles to direct
the water flow as
desired.
Turn the jet trim ring counterclockwise
to increase the flow.
Press the air actuator to turn
on and off the whirlpool.
1055820-2-C 14 Kohler Co.

Troubleshooting
NOTICE: This section is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct any electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Remove the Jets
NOTE: A special tool is provided with the replacement jets that will allow you to remove the jets from the
whirlpool. This tool is also supplied with each trim kit.
Position the jet ball nozzle so it is pointing upward.
NOTE: The nozzle must remain pointed up or the tool will slip off.
Insert the removal tool, hooked end up, into the opening of the jet and hook the inside top of the
nozzle.
Grasp the tool firmly and place your thumb against the whirlpool wall. Pull steadily on the tool
until the jet assembly pulls free of the hole. Be careful not to lose the O-ring.
Reinstall the Jets
NOTE: To allow easy rotation and proper operation of the jet, the O-ring must be: (1) correctly positioned,
(2) lubricated, and (3) in good condition.
Install the O-ring onto the first shoulder of the jet.
Using the silicone lube packet (provided), lubricate the O-ring to prevent noisy operation of the jet.
Carefully insert the jet into the housing, then lightly push and rotate the jet until it snaps into
position. Do not force the jet.
Verify the jet is installed correctly. The jet should turn smoothly both clockwise and
counterclockwise. Remove and reinstall, if necessary.
Remove the Jets
Insert the tool hook as shown and pull the jet out of the
housing. The jet should be facing up when this is done.
Housing
Reinstall the Jets
Insert the jet into the housing, and lightly
push and rotate until it snaps in position.
Inspect and
lubricate the O-ring.
Slide the O-ring
onto the first
shoulder of the jet.
Kohler Co. 15 1055820-2-C

Troubleshooting (cont.)
Symptoms Probable Causes Recommended Action
1. Whirlpool does not start
or stop. A. No power to motor. A. Check that the pump and heater are plugged in and that the GFCI
or RCD is switched to the correct
position. Plug in or reset the
GFCI/RCD as needed.
B. Air hose is loose or disconnected. B. Check that the hose is connected
at both the receiver/pump end
and to the air switch. Reconnect
if needed.
C. Air hose is pinched or kinked. C. Adjust hose to clear the
pinched/kinked area. If the
tubing is pinched/kinked and
cannot be readjusted, or no
noticeable pinch/kink is
apparent, poke a small hole in
the tubing with a tack and try
the system again.
D. Part(s) of the push button
assembly is/are damaged. D. Replace the push button assembly.
E. Push button has grease in the
bleed area. E. Disassemble the push button assembly and wipe away any
excess grease. Reassemble the
button and retry the system.
F. Air hose is damaged. F. Replace the air hose.
G. Motor/pump does not work. G. Rebuild or replace motor/pump.
2. Motor starts, not all jets
are functioning. A. Jet is closed. A. Rotate jet trim ring counterclockwise to open.
B. Jet not installed correctly. B. Reinstall jet; check for O-ring
damage.
C. Jets are blocked. C. Remove blockage.
3. Whirlpool stops
automatically before 18
minutes.
A. The GFCI or RCD trips. A. Identify source of fault, and
correct.
B. Suction blocked. B. Remove obstruction.
C. Jets are blocked. C. Remove blockage.
D. Motor overheated and protection
device activated. D. Check for blockage at motor vents. Remove blockage and
allow motor to cool.
Check for suction blockage.
Remove blockage and allow
motor to cool.
Check for jet blockage. Remove
blockage and allow motor to
cool.
4. Pump does not prime.
(Models with support
blocks only.)
A. Pump shimmed too high. A. Lower pump support bracket.
5. Noisy operation. A. Pump banding straps have not
been cut. (Models with support
blocks only.)
A. Cut pump banding straps with
tin snips.
B. Jet O-ring dislodged. B. Remove jet, replace and lubricate
O-ring, and reinstall jet.
6. Heater does not operate.
(“H” models only) A. No power to heater. A. Reset the GFCI or RCD.
B. Water temperature exceeds 104°F
(40°C). B. Allow water to cool and heater will reengage.
C. Heater does not work. C. Replace heater.
1055820-2-C 16 Kohler Co.

Guide d’installation
Baignoire à hydromassage avec pompe customisée
Informations importantes
AVERTISSEMENT : Lors de l’utilisation des produits électriques, des précautions de base
doivent toujours être observées, incluant ce qui suit :
DANGER : Risque d’électrocution. Raccorder uniquement à un circuit protégé par un disjoncteur
de fuite de terre (GFCI).
Les matériaux de construction et le câblage devraient être acheminés loin du corps de la pompe et des autres
composants qui dégagent de la chaleur de l’unité.
Installer de façon à permettre l’accès pour l’entretien.
Une mise à la terre est requise. L’unité doit être installée par un représentant qualifié, et mise à la terre.
AVERTISSEMENT : Risque d’électrocution. Un électricien qualifié devrait effectuer toutes les
connexions électriques.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à
l’entretien.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez s’il vous
plaît lire avec attention toutes les instructions avant de commencer l’installation, y compris les
conditions suivantes:
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Information sur le produit
Branchements électriques requis
L’installation électrique doit avoir un Disjoncteur de Fuite de Terre (GFCI) ou un appareil de courant
résiduel (RCD) de classe A. Le GFCI ou le RCD protège contre une électrocution par la mise à la terre.
Utiliser une alimentation de 120 V, 15 A, 60 Hz dédiée à la baignoire à hydromassage.
Les modèles«H»nécessitent une alimentation dédiée de 120 V, 15 A, 60 Hz pour le chauffe-eau.
REMARQUE : Si le câble d’alimentation de la pompe est endommagé, il doit être remplacé par le
fabricant, son représentant ou autre personnel similaire qualifié pour éviter tout danger. Le cordon
d’alimentation du chauffe-eau ne peut pas être remplacé. Si le cordon est endommagé, le chauffe-eau
devrait être remplacé.
Notices du produit
AVERTISSEMENT : Des modifications non approuvées pourraient provoquer un fonctionnement
dangereux ou un mauvais fonctionnement de la baignoire à hydromassage. Ne pas déplacer la
pompe d’hydromassage ou effectuer d’autres modifications au système d’hydromassage car cela
pourrait affecter les performances et la sécurité de la baignoire à hydromassage. Kohler Co. décline
toute responsabilité sous ses garanties quant à toutes blessures ou dommages causés par des
modifications non autorisées.
AVERTISSEMENT : Risque d’électrocution. Débrancher l’alimentation avant de procéder à
l’entretien.
Kohler Co. Français-1 1055820-2-C

Information sur le produit (cont.)
AVERTISSEMENT : Risque d’électrocution. Un électricien qualifié devrait effectuer toutes les
connexions électriques.
AVERTISSEMENT : Risque de blessures ou d’endommagement du matériel. Veuillez lire toutes
les instructions avant de commencer l’installation.
AVIS : Respecter tous les codes de plomberie et électriques locaux.
Pièces assemblées en usine
Les composants installés en usine comprennent la pompe avec câble d’alimentation électrique, interrupteur et
contrôle d’air. Aucune installation n’est nécessaire.
Les modèles«H»sont fournis avec un chauffe-eau en ligne assemblé en usine.
La pompe et la tuyauterie de la baignoire à hydromassage ont été assemblées en usine.
Connexions et accès pour l’entretien
S’assurer d’avoir suffisamment d’accès pour les connexions finales avant l’installation.
1055820-2-C Français-2 Kohler Co.

Information sur le produit (cont.)
AVIS : Fournir un panneau d’accès libre à la pompe. Il faut prévoir un accès pour l’entretien de la pompe
et des contrôles. L’accès doit être situé tout près de la pompe. Étudier le guide de raccordement
accompagnant la baignoire à hydromassage.
Sommaire
Informations importantes ........................................................... 1
Information sur le produit ........................................................... 1
Outils et matériels ................................................................ 3
Avant de commencer .............................................................. 3
Préparer le site .................................................................. 4
Préparer la baignoire à hydromassage ................................................. 4
Débrancher la pompe .............................................................. 4
Sécuriser les modèles d’unités avec blocs de support ...................................... 5
Sécuriser les modèles d’unité avec base de baignoire à hydromassage ......................... 7
Repositionner et monter la pompe .................................................... 9
Installer la plomberie ............................................................. 10
Installer un robinet monté sur rebord ................................................. 10
Faire les connexions électriques ..................................................... 11
Tester la baignoire à hydromassage .................................................. 11
Compléter le mur fini ............................................................. 13
Nettoyage après installation ........................................................ 13
Confirmer le bon fonctionnement .................................................... 14
Dépannage .................................................................... 15
Outils et matériels
Avant de commencer
Nous recommandons cette baignoire à hydromassage pour une installation encastrée.
Avant de commencer l’installation, examiner la baignoire à hydromassage pour y déceler tout
dommage.
S’assurer que l’espace de montage et de raccordement du robinet soit adéquat pour l’installation.
Kohler se réserve le droit d’apporter des modifications à la conception de ses produits sans préavis
comme cela est indiqué dans le catalogue des prix.
Mastic à la silicone Crayon
Lunettes de protection
Mètre ruban
Niveau à bulle
Clé à tuyau
Plus:
• Outils conventionnels de menuiserie et
matériaux
• Toile de protection
• Adhésif de construction (optionnel)
• Ciment ou mortier (optionnel)
• 2x4 ou 2x6
• Vis ou tire-fonds
Kohler Co. Français-3 1055820-2-C

1. Préparer le site
AVIS : Se référer au guide de raccordement emballé avec la baignoire à hydromassage pour la charge de
support de sol minimum requis lb/pied carré (kg/mètre carré).
S’assurer que le sol constitue un support adéquat pour la baignoire à hydromassage et que le
plancher soit plat et nivelé.
Construire un cadre de support de 2x4 ou de 2x6 pour l’installation encastrée.
AVIS : La baignoire à hydromassage doit être supportée par ses pieds ou la base. Ne pas supporter le
poids de charge de la baignoire à hydromassage par le périmètre du rebord.
Pour une installation surélevée : Encadrer le plancher ou construire un cadre conforme aux
informations du plan de raccordement qui accompagne la baignoire à hydromassage.
Disposer et découper soigneusement le matériau du comptoir brut. Employer le gabarit s’il est
fourni, ou se référer au guide de raccordement pour l’information de découpe.
Déterminer l’emplacement de la plomberie selon le plan de raccordement fourni. Boucher les
alimentations et vérifier s’il y a des fuites.
2. Préparer la baignoire à hydromassage
Installer le drain sur la baignoire à hydromassage selon les instructions du fabricant. Ne pas
connecter le siphon à ce moment.
Placer un chiffon propre ou matière similaire à la base de la baignoire à hydromassage. S’assurer de
ne pas rayer la surface de la baignoire à hydromassage.
3. Débrancher la pompe
REMARQUE : Pour cette installation, aucune découpe du harnais (tuyauterie) de la baignoire à
hydromassage n’est nécessaire. Toute découpe du harnais annulera la garantie.
Déconnecter la pompe et le chauffe-eau (si présents) de l’emplacement d’expédition en coupant les
deux sangles de retenue avec une cisaille de ferblantier.
Mettre la pompe et le chauffe-eau (si présentes) de côté.
Relocaliser le chauffe-eau et la pompe (si équipé) à côté des connexions d’alimentation/évacuation
sur mesure du harnais de la baignoire à hydromassage. Il se peut que la pompe dépasse le rebord
de baignoire. Voir les détails du plan de raccordement.
Panneaux
d'accs
Préparer le sol selon
les informations du
plan de raccordement.
Construire le cadre avec
des montants de 2 x 4
ou de 2 x 6 selon
les informations du
plan de raccordement.
Positionner la
plomberie.
Vérifier que le sous-
plancher peut supporter
le poids nécessaire qu'il
soit plat et nivel.
Couper les sangles
de retenue de
la pompe.
1055820-2-C Français-4 Kohler Co.
