Kohler K-702205 User manual

Installation Guide
Bypass Shower Doors
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-702205, K-702207, K-702209
1054857-2-A

Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before
you start installation. If you encounter any installation or performance problems, please don’t hesitate to
contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler
Company.

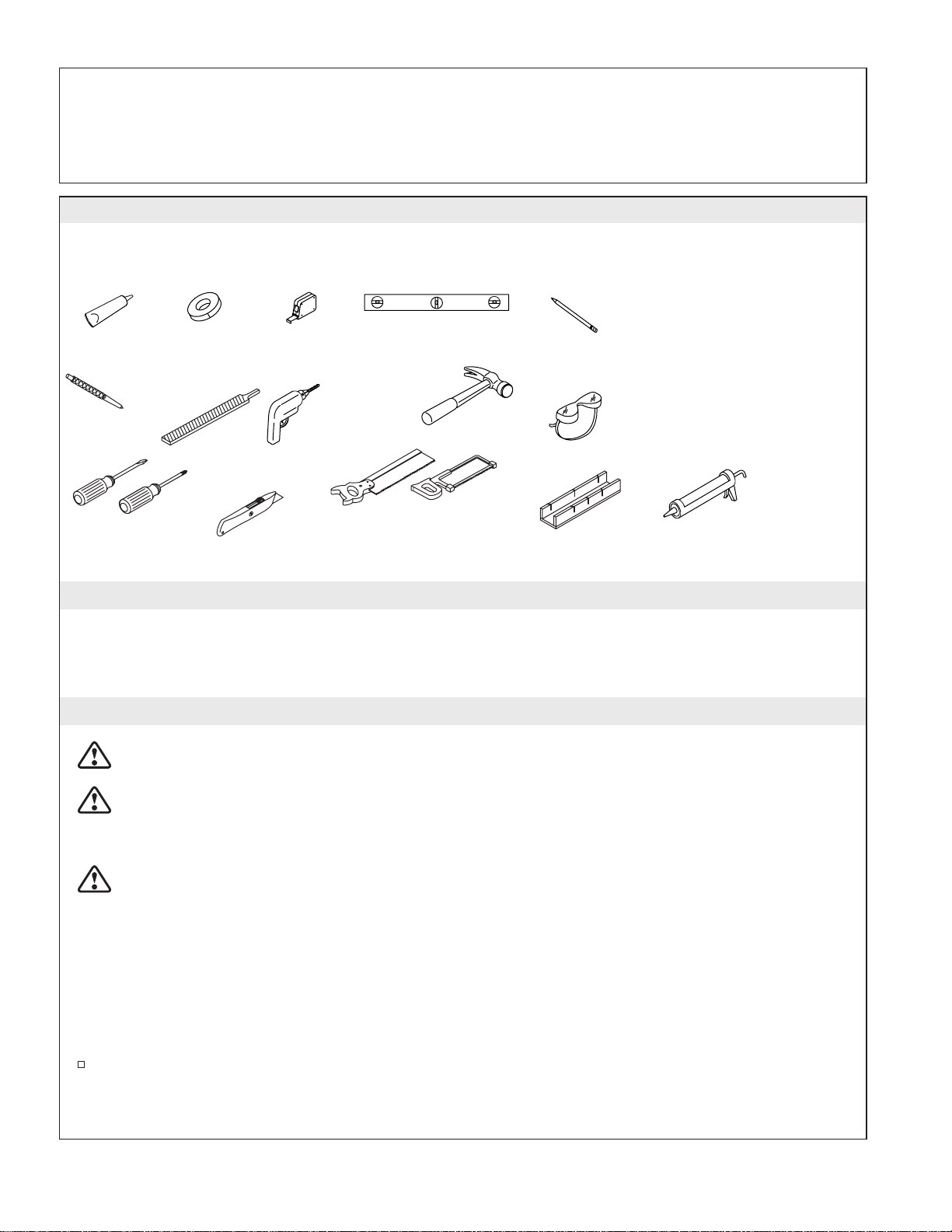

Tools and Materials
Before You Begin
CAUTION: Risk of injury or product damage. Two people should perform this installation due to the
weight of the door panels.
CAUTION: Risk of injury or product damage. Unframed tempered glass should not contact hard
surfaces or it may shatter. Do not touch the edge of the tempered glass panel with tools or any hard
objects. Do not set unframed tempered glass directly on the floor or any other hard surface without the
protective vinyl surface attached.
CAUTION: Risk of injury or product damage. Do not cut tempered glass. It will shatter.
IMPORTANT! Do not remove the protective strip from the bottom of the door panels until after they are
installed.
IMPORTANT! Pay special attention to the section titled ″Very Important Instructions.″Failure to follow
the directions could result in product damage.
NOTE: When using a retractable case tape measure, make sure you add the length of the case to the
measurement or measure in a manner that excludes the case.
The shower bath or receptor should be installed/prepared, including finished wall materials, before
continuing.
Before starting the installation, lay out and identify all of the parts. Inspect them for damage.
Once inspected, return the glass panels to their packaging and place them in a safe area until they
are needed.
Safety Glasses
Level
Caulk Gun
Silicone
Sealant Tape
Measure
Claw
Hammer
Drill and
Assorted
Drill Bits
Pencil & Felt
Tip Marker
Masking
Tape • Drop Cloth
Plus:
Center
Punch File
Knife
Assorted
Screwdrivers Miter Saw or Hacksaw with
32 Teeth per Inch Blade Miter Box
1054857-2-A 2 Kohler Co.

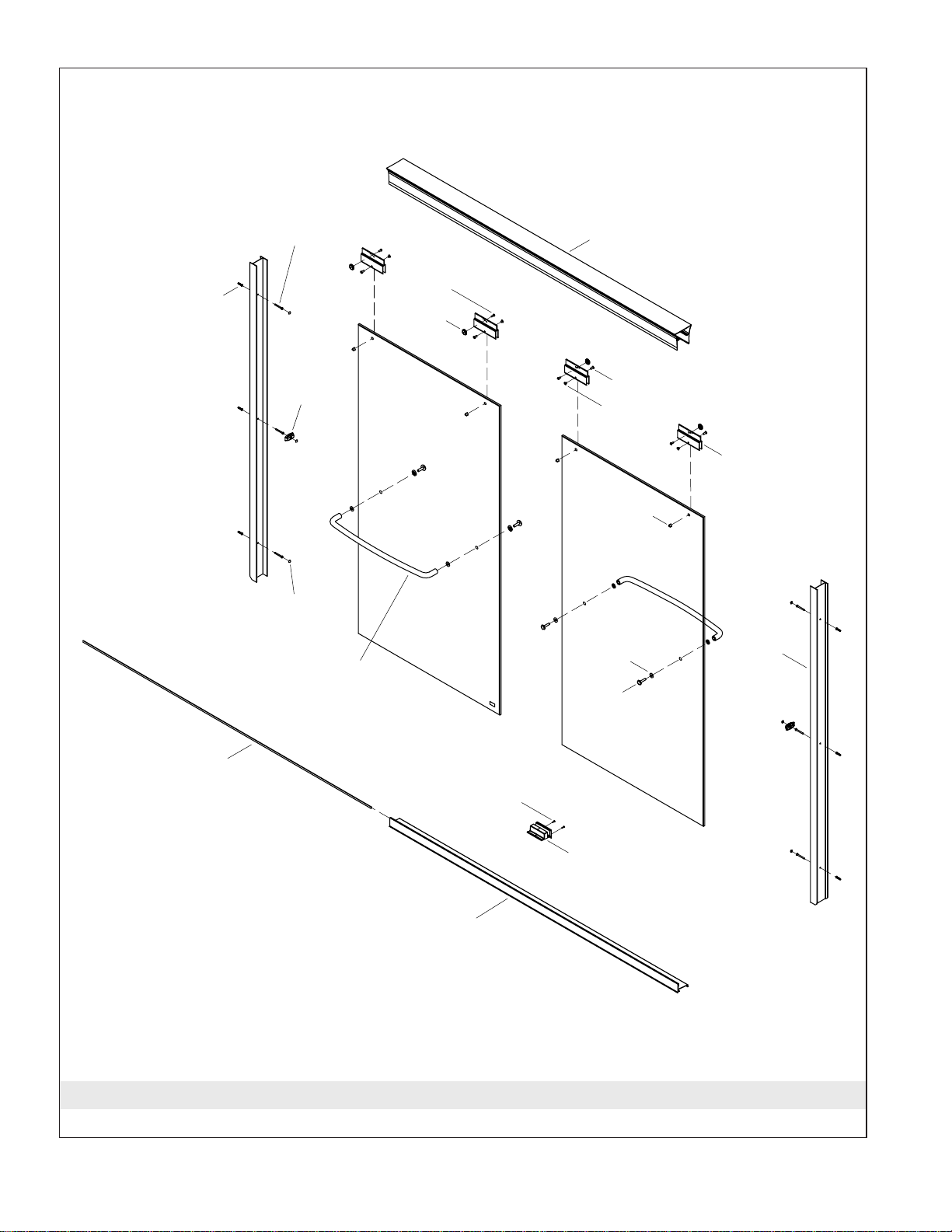

Parts Identification
Top Track
Hanger Bracket
Bushing
Roller
#8-32 Sems
Screw
Bolt
Blind Nut
Towel Bar Washer
Screw
Anchor
Bumper
Wall
Jamb
Center Guide
Bottom Track
Insert Inside
Panel
Outside
Panel
#8-18 x 1-1/2"
Panhead Screw
Screw Cover
#6-20 Flathead Screw
Kohler Co. 3 1054857-2-A

Very Important Instructions
IMPORTANT!
Most Common Installation Mistake
Do not cut the top and bottom track the same
length for this installation.
Please read these installation instructions
carefully before cutting the top and bottom
track.
If uncertain about cutting tracks, please contact
a customer service representative.
1-888-783-7546
1054857-2-A 4 Kohler Co.

1. Measure and Cut the Bottom Track
CAUTION: Risk of personal injury. Always wear safety glasses when cutting materials.
IMPORTANT! Risk of product damage.Do not cut the top track at this time. The top track dimension is
not the same as the bottom track.
IMPORTANT! If your shower has a curve in the corners where they meet the sidewalls, be sure to
measure from wall to wall above the curves. Failure to measure above the curve or angle could result in
the bottom track being cut too short.
Measure from wall to wall at the flattest part of the shower ledge (dimension ″D″).
Mark dimension ″D″on the bottom track.
IMPORTANT! For best results, use a 32-tooth hacksaw blade and a miter box to cut the bottom track.
On the end opposite the mark, align the end of the insert flush with the end of the bottom track.
Subtract 1-1/8″(2.9 cm) from dimension ″D″and simultaneously cut the bottom track and insert to
this dimension.
File the rough edges smooth where the bottom track was cut, taking care not to mar the finished
surface.
NOTE: If there are curves where the sidewalls meet the threshold, use a file to contour the bottom track
edges to match the curves as necessary.
D
Measure
Here. Measure
Here.
Measure distance
"D" above curves in
the corners.

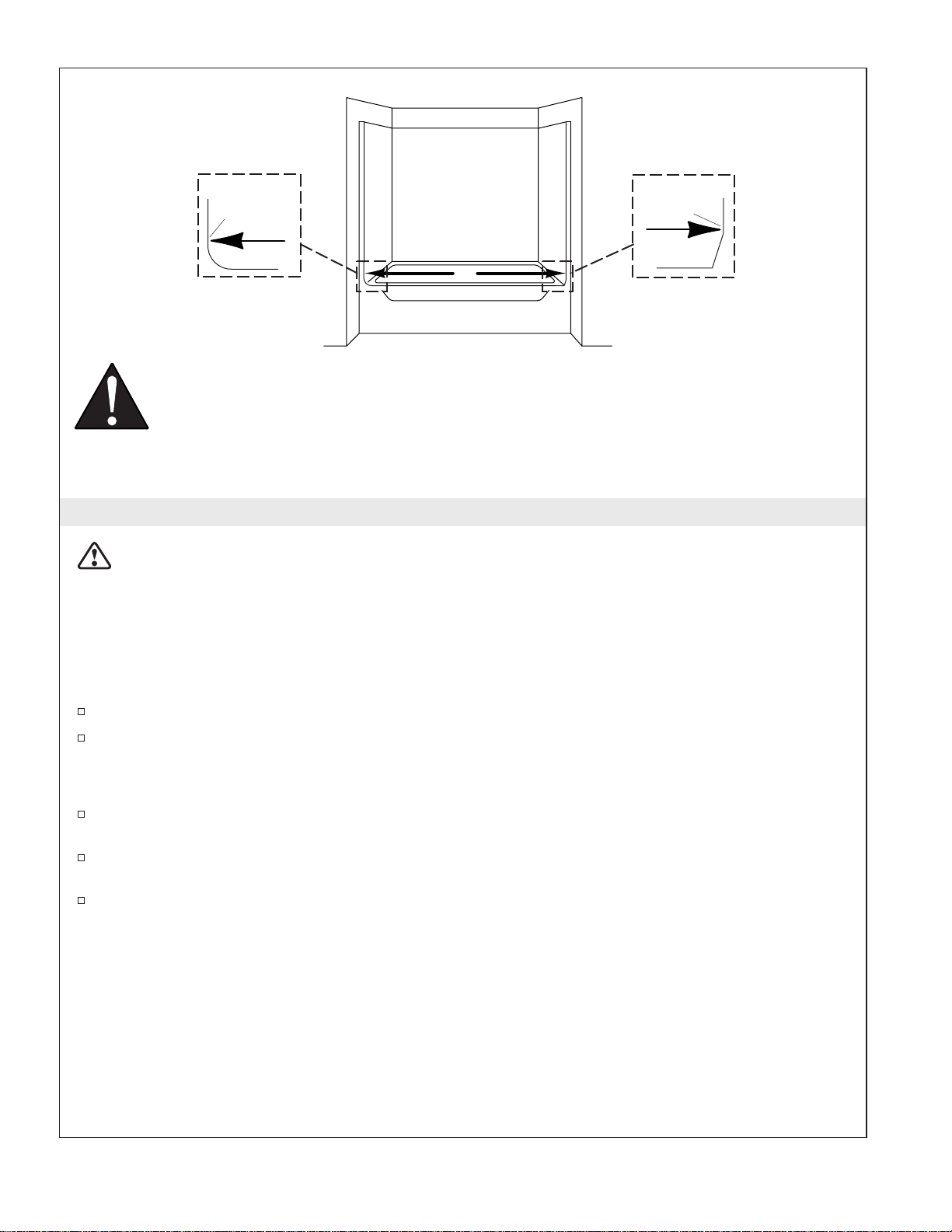

Measure carefully. If your walls are curved or
angled, measure above the curve or angle. Failure
to do so can result in an improperly cut bottom
track and can void the warranty.
Curved Base
Important:
Angled Base
Kohler Co. 5 1054857-2-A

2. Install the Bottom Track
Apply a 1/4″(6 mm) bead of silicone sealant into the groove on the underside of the track.
Install the bottom track 5/8″back from the front of the bath/shower ledge with the sealant side
down, the front leg facing the outside of the shower, and an equal gap on each end between the
wall and track.
Temporarily secure the bottom track to the threshold with masking tape.
Bottom
Track
Apply
sealant.
Leg faces outside
of shower.
Bottom
Track
1054857-2-A 6 Kohler Co.

3. Install the Wall Jambs
IMPORTANT! The wall jamb must sit flat against the wall with the legs of the jamb fully engaged with
the bottom track. The wider edge is located toward the outside of the shower.
NOTE: If the bottom corner of the ledge is rounded, the contoured ends of the jambs face down. If the
corner is square, the square ends of the jambs face down.
Determine which end of the wall jambs face down. The ends will fit into the lower corner of the
ledge where the bath/shower threshold and bath/shower wall meet.
Position the wall jamb against the wall on the bottom track.
Mark the location of the bottom mounting screw.
NOTE: On ceramic tile, use a center punch to nick the surface glaze at the mark. Tap the punch lightly
with your hammer so you do not crack the tile.
Remove the wall jamb, lightly center punch the hole location, and drill the screw hole using a 3/16″
drill bit. Use a masonry bit for ceramic tile.
Insert an anchor in the drilled hole.
Loosely secure the wall jamb to the wall with a #8-18 x 1-1/2″panhead screw.
Use a level to plumb the wall jamb.
Mark the remaining two hole locations.
Slide the wall jamb aside and lightly center punch the hole locations.
Drill each hole with a 3/16″drill bit. Use a masonry bit for ceramic tile.
Insert an anchor in the drilled hole.
Square end
of wall jamb
Contoured (rounded)
end of wall jamb
Level
Mark holes.
Wall Jamb
Threshold
Drill holes.
Insert anchors.
Bumper
#8-18 x 1-1/2"
Panhead Screw
Kohler Co. 7 1054857-2-A

Install the Wall Jambs (cont.)
Align the holes in the wall jamb with the holes in the wall and secure the wall jamb to the wall
with two #8–18 x 1–1/2″panhead screws. Insert a screw through a bumper at the center screw hole
location and tighten. Do not overtighten. The bumper may lose its shape.
Repeat the steps to locate the second wall jamb on the opposite wall, making sure the wall jambs
are located directly opposite of each other.
1054857-2-A 8 Kohler Co.

4. Measure, Cut, and Install the Top Track
Carefully measure the wall to wall opening (dimension ″D″) at the top of the installed wall jambs.
NOTE: For best results, use a 32 teeth per inch hacksaw blade and a miter box.
Cut the top track 1/32” (1 mm) less than the dimension ″D.″
Taking care not to scratch the finished surfaces, carefully file the rough edges at the cut end of the
top track.
Install the top track over the ends of both wall jambs.
D
Top Track Length =
D – 1/32" (1 mm)
Top Track
Inside of
Shower
Outside of
Shower
Top Track
Wall Jamb
Kohler Co. 9 1054857-2-A

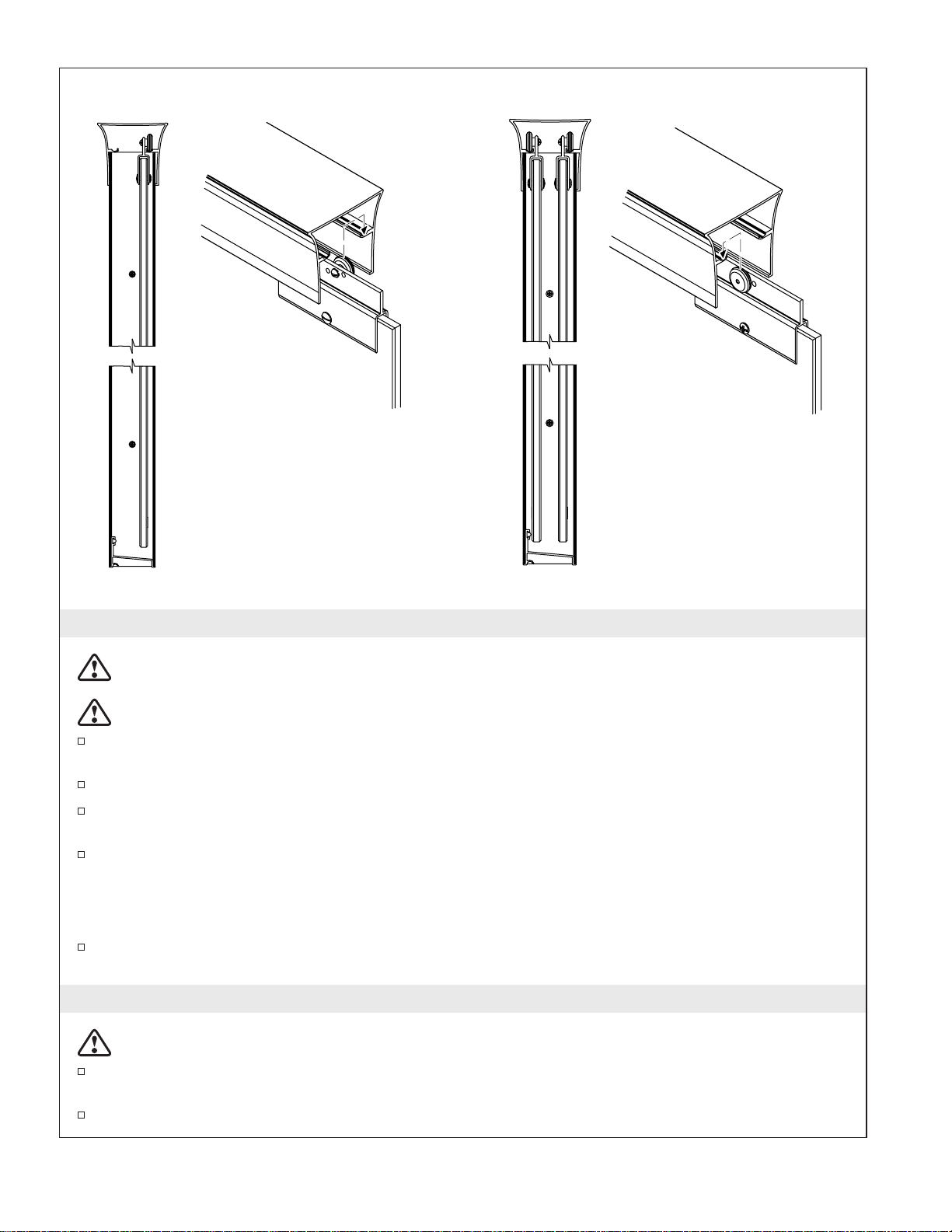

5. Install the Inside Door Panel
CAUTION: Risk of product damage. For the protection of your bath unit, use a drop cloth or similar
material as a protective cover during these steps.
CAUTION: Risk of injury. The door panels are very heavy. Two people should lift them into place.
From outside of the shower, install the inside panel first. Position the panel with the rollers toward
the inside of the shower.
Carefully lift the inside panel up inside the top track and hang the rollers on the inside rail.
Roll the panel back and forth along the track to make sure it operates smoothly. Align the panel
with the showerhead side wall jamb.
If the panel does not operate smoothly, adjustment may be needed. If adjustment is needed, remove
the panel.
NOTE: Moving the rollers to the top hole of the hanger brackets will cause the glass to hang lower.
Moving the rollers to the bottom hole of the hanging brackets will cause the glass to hang higher.
Loosen the roller screw(s) and move the roller to another hole in the hanging bracket. Insert and
tighten the screw(s) and rehang the panel.
6. Install the Outside Door Panel
CAUTION: Risk of injury. The door panels are very heavy. Two people should lift them into place.
From outside of the shower, install the outside panel. Position the panel with the rollers facing the
outside of the shower/bath.
Carefully lift the door panel up inside of the top track and hang the rollers on the outside rail.
Inside
Panel Outside Panel
1054857-2-A 10 Kohler Co.

Install the Outside Door Panel (cont.)
Roll the panel back and forth along the track to make sure it operates smoothly.
Carefully remove the caution tape and protective strip from both door panels.
Align the panel with the showerhead side wall jamb next to the inside panel.
If the panel does not operate smoothly, adjustment may be needed. If adjustment is needed, remove
the panel.
NOTE: Moving the rollers to the top hole of the hanger brackets will cause the glass to hang lower.
Moving the rollers to the bottom hole of the hanging brackets will cause the glass to hang higher.
Loosen the roller screw(s) and move the roller to another hole in the hanging bracket. Insert and
tighten the screw(s) and rehang the panel.
Kohler Co. 11 1054857-2-A

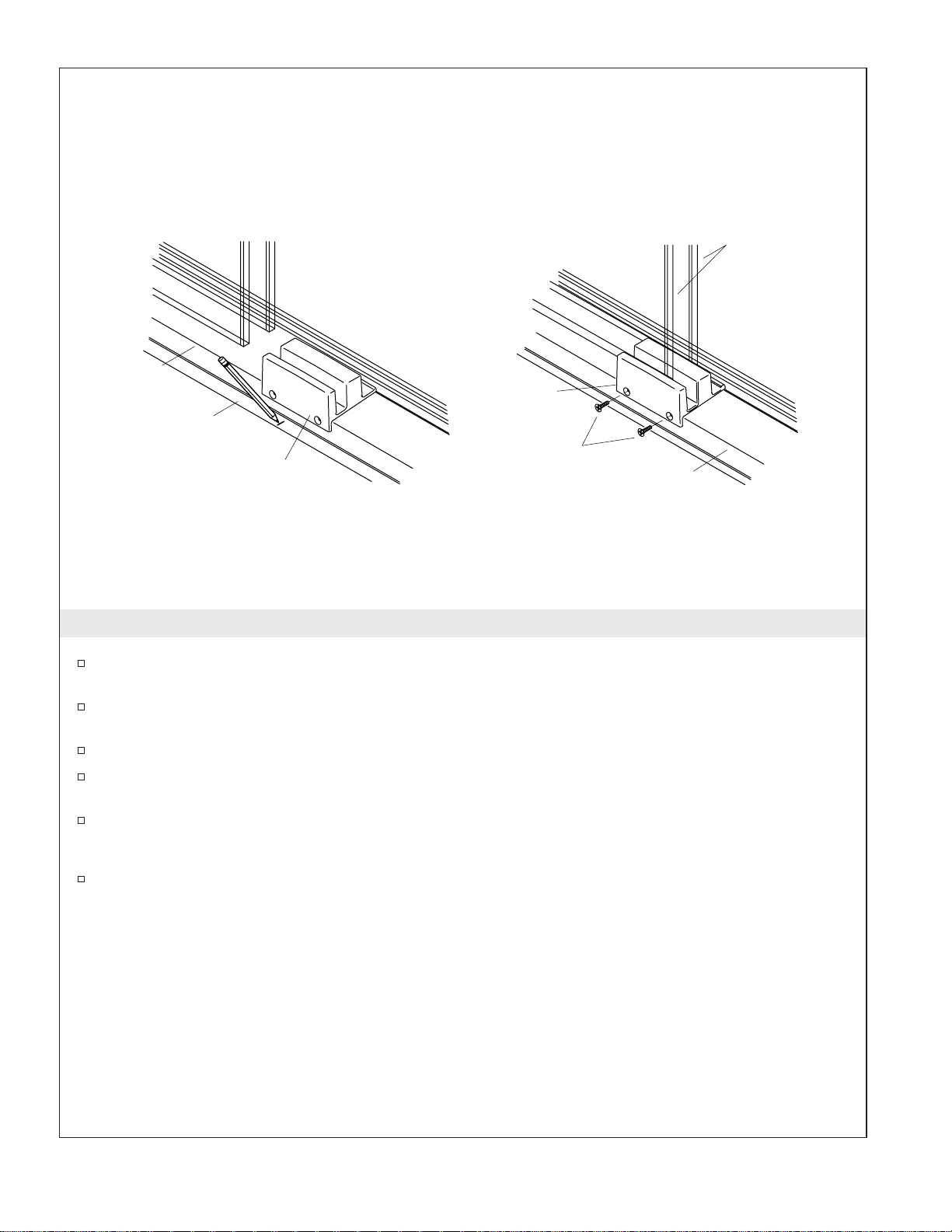

7. Install the Center Guide
Using a pencil, make a small mark on the threshold at the center of the bottom track on the inside
of the shower.
Position the center guide on the bottom track with the front lip of the center guide in the groove of
the bottom track.
Position both door panels so they are aligned in the slots in the center guide.
Holding the center guide tightly against the bottom track, make sure the door panels can roll from
wall-to-wall without binding.
If the doors bind, refer to the panel installation sections and make the needed adjustments.
IMPORTANT! Risk of product damage. Do not overtighten the screws. The center guide may crack.
While holding the center guide tightly against the bottom track, drive in the provided self-tapping
screw with a screwdriver. Repeat with the second screw.
Center
Guide
Bottom
Track
Threshold
Bottom
Track
Center
Guide
Self-tapping
Screws
Panels
1054857-2-A 12 Kohler Co.

8. Install the Towel Bar
NOTE: Installation of the towel bar is easiest with two people.
Place a washer onto the screw.
Insert the screw through the mounting hole in the panel.
Slide a washer over the screw.
IMPORTANT! Do not overtighten the screws. The glass may break.
Have a second person hold the other end of the towel bar over the second hole.
Position the towel bar over the screw and tighten the screw by inserting a 5/64″hex wrench into
the hole in the screw head and turning. Do not overtighten or the glass may break.
Repeat with the other side of the towel bar.
1/4" x 20 Screw
1/4" x 20 Screw
Washer
Washer
Towel Bar
Insert a 5/64" Hex wrench into hole
in screw head and turn clockwise to
secure tower bar.
Kohler Co. 13 1054857-2-A

9. Caulk the Bottom Track and Wall Jambs
NOTE: Your shower door may not appear exactly as shown. The application of sealant or caulk is the
same.
NOTE: Thoroughly clean and dry all dust, dirt, and grease from the bottom track and shower ledge
surfaces where caulk or sealant will be applied.
Carefully apply caulk or sealant where:
the wall jambs and wall meet inside the shower.
the bottom track and wall jamb meet.
the outside area of the bottom track meets the bath/shower threshold on the outside of the door.
Seal
here.
Inside
of Bath
Seal
here.
Seal
here.
Seal
here.
1054857-2-A 14 Kohler Co.

10. Install the Screw Covers
Install the provided screw covers (6) over the wall jamb screws.
Screw Cover
Kohler Co. 15 1054857-2-A

Guide d’installation
Portes coulissantes de douche
Outils et matériels
Merci d’avoir choisi la compagnie Kohler
Nous apprécions votre engagement envers la qualité Kohler. Veuillez prendre s’il vous plaît quelques
minutes pour lire ce manuel avant de commencer l’installation. Ne pas hésiter à nous contacter en cas de
problème d’installation ou de performance. Nos numéros de téléphone et notre adresse du site internet sont
au verso. Merci encore d’avoir choisi la compagnie Kohler.
Avant de commencer
ATTENTION : Risque de blessure ou d’endommagement du produit. Deux personnes devraient
achever cette installation à cause du poids des panneaux de porte.
ATTENTION : Risque de blessure ou d’endommagement du produit. Le verre trempé non encadré ne
doit pas être en contact avec les surfaces dures pour ne pas briser. Ne pas toucher les bords du
panneau de verre avec des outils ou des matériaux durs. Ne pas placer le panneau non encadré
directement sur le sol ou autre surface solide sans surface de protection en vinyle attachée.
ATTENTION : Risque de blessure ou d’endommagement du produit. Ne pas découper le verre
trempé. Il se brisera.
IMPORTANT ! Ne pas retirer la languette protectrice d’en-dessous des panneaux de porte jusqu’à ce qu’ils
soient installés
IMPORTANT ! Prêter une attention particulière à la section ″Instructions très importantes.″Le non-respect
des instructions pourrait entraîner un endommagement du produit.
REMARQUE : Lorsqu’un mètre à ruban rétractable est utilisé, prendre en compte la longueur de la boîte
du mètre dans la prise de mesure ou mesurer sans la longueur de la boîte.
La baignoire de douche ou le receveur devraient être installés/préparés, y compris les matériaux du
mur fini avant de continuer.
Lunettes de protection
Niveau à bulle
Pistolet à mastic
Joint en
silicone Mètre
ruban
Marteau de
charpentier
Perceuse et
mèches
assorties
Crayon à
papier et feutre
Ruban-
cache •Toile de protection
Plus:
Poinçon Lime
Couteau
Tournevis
assortis
Scie à onglets ou à métaux avec
une lame de 32 dents par pouce Boîte à onglets
Kohler Co. Français-1 1054857-2-A

Avant de commencer (cont.)
Avant de commencer l’installation, préparer et identifier toutes les pièces. Inspecter les pièces de
tout dommage.
Une fois inspectés, remettre les panneaux de verre dans l’emballage de protection en attendant d’en
avoir besoin.
Kohler Co. Français-2 1054857-2-A

Identification des pièces
Rail supérieur
Support d'ancrage
Bague
Rouleau
Vis Sems
#8-32
Boulon
Écrou borgne
Porte-serviettes Rondelle
Vis
Ancrage
Amortisseur
Montant
du mur
Guide central
Rail inférieur
Insertion Panneau
intérieur
Panneau
extérieur
Vis à tête ronde
#8-18 x 1-1/2"
Cache-vis
Vis à tête plate #6-20
1054857-2-A Français-3 Kohler Co.

Instructions très importantes
IMPORTANT!
L'erreur la plus commune d'installation
Ne pas couper le rail supérieur et inférieur à la
même longueur pour cette installation.
Veuillez s'il vous plaît lire avec attention ces
instructions d'installation avant de couper le rail
supérieur et inférieur.
Si vous ne savez pas vraiment comment
couper les rails, veuillez contacter un
représentant du service clientèle.
1-888-783-7546
Kohler Co. Français-4 1054857-2-A

1. Mesurer et couper le rail inférieur
ATTENTION : Risque de blessures corporelles. Porter des lunettes de protection lors de la découpe
des matériaux.
IMPORTANT ! Risque d’endommagement du produit.Ne pas couper le rail supérieur à ce moment. La
dimension du rail supérieur n’est pas la même que le rail inférieur.
IMPORTANT ! Si la baignoire à des coins arrondis, veiller à mesurer d’un mur à l’autre au-dessus des
courbes. Ne pas mesurer au-dessus de la courbe ou de l’angle pourrait résulter en une découpe trop
courte du rail inférieur.
Mesurer d’un mur à l’autre à la partie la plus plate du rebord de la douche (dimension ″D″).
Marquer la dimension ″D″sur le rail inférieur.
IMPORTANT ! Pour de meilleurs résultats, utiliser une scie à métaux à 32 dents et une boîte à onglets
pour couper le rail inférieur.
A l’extrémité opposée à la marque, aligner l’extrémité de l’insertion à égalité avec l’extrémité du rail
inférieur.
Soustraire 1-1/8″(2,9 cm) à la dimension ″D″et couper simultanément le rail inférieur et l’insertion
à cette dimension.
Limer les rebords rugueux à l’endroit de découpe du rail inférieur en évitant d’endommager la
surface finie.
REMARQUE : S’il y a des courbes à la rencontre des parois latérales et du seuil, utiliser une lime pour
former les rebords de rail inférieur en conséquence.
D
Mesurer
ici. Mesurer
ici.
Mesurer la distance
"D" au-dessus des
courbes des angles.
Mesurer avec précaution. Si vos murs sont arrondis
ou inclinés, mesurer au-dessus de la courbe ou de
l'angle. Le cas échéant peut résulter en une découpe
imparfaite du rail inférieur et peut annuler la garantie.
Base courbée
Important:
Base inclinée
1054857-2-A Français-5 Kohler Co.
