Kolpin 98310 Instruction sheet

1
© 2018 Kolpin Outdoors Inc. REV 05
Universal UTV Rear View Mirror
Product Instructions | Part No: 98310
Kit contents:
2
1
4
3
5
9
8
Item Qt Part Description
11Rearview Mirror Assembly, Center
21Threaded Ball Stud
32Tube Clamp Adapter
42Button Screw, Zinc Plated, M -1.0 x 45mm
512.0” OD Clamp
2Hex Locknut, Zinc Plated, M -1.0
711.75” OD Clamp
81U-Type Rubber Gripping Pad
91Flat Rubber Shim Pad
Before you begin, read these instructions and check to be sure all parts and tools are accounted for. Please retain these installation
instructions for future reference and parts ordering information. Note: If any hardware is missing, do not return to the store.
Call us to help, Toll Free 1-877- 56-5746.
7
Kolpin Outdoors, Inc. | 9955 59th Ave N | Plymouth, MN 55442
(877) 95 -574 or (7 3) 478-5800 | www.kolpin.com | customerserv[email protected]
Tools and Supplies Required
• 5mm Hex Allen Wrench or Socket Bit
• Ratchet (if socket is used)
This mirror is designed to quickly and easily universal mount to any
tubular bar, specifically UTV roll cages. The kit fits tubing sizes from
1-5/8” to 2.0” in diameter. The clamp can be used in the vertical and
horizontal positions. The ball joint is easy to adjust and increases
viewing positions. Note, installation may be easier if certain items
are removed from vehicle first.
Use and Care Information:
• Check the accessory mounts frequently and retighten if necessary.
• Replace this accessory with a new one if it is damaged or
discolored excessively.
• When this accessory becomes dirty, rinse it thoroughly with cool
water to remove loose dirt, then wipe with a clean cloth or sponge.
Never use petroleum solvents such as gasoline, thinner, benzene,
acid or alkaline cleaners.
• Rearview mirror is not intended for on-road use.

2
© 2018 Kolpin Outdoors Inc. REV 05
Mirror Install Preparation:
1. Remove the mirror assemblies from packaging. Verify that the
mirror is in good condition and that all the hardware is present.
Items 1-2 will be pre-assembled. The mirror kit includes extra
clamps to fit various tube sizes and not all hardware will be
used depending on application.
2. For installing onto 2.0” round tubing, use the 2.0 inch clamp
(item #5) with the u-type rubber grip pad (item #8). The u-type
gripping pad will be inserted between the clamp and vehicle
tube to increase friction and dampen vibrations as shown. (See
illustration 1-1). Note, orientate the ends of the u-type pad
(item #8) to allow the clamp adapters (item #3) to make
contact with tube as shown.
3. For installing onto 1.75” round tubing, use the 1.75 inch
clamp (item #7) with the u-type rubber grip pad (item #8). The
u-type gripping pad will be inserted between the clamp and
vehicle tube to increase friction and dampen vibrations as
shown. (See illustration 1-1). Note, orientate the ends of the u
-type pad (item #8) to allow the clamp adapter (item #3) to
make contact with tube as shown. Note, the u-type shim
will need to be trimmed to best fit 1.75” round tubing using
a scissors or knife. Cut 1” of material from end of pad as
shown. (See illustration 1-3).
4. For installing onto 1-7/8” round tubing, use the 2.0 inch
clamp (item #5) with the u-type rubber grip pad (item #8) and
flat rubber shim (item #9). The u-type gripping pad will be
inserted between the clamp and flat shim to increase friction
and dampen vibrations as shown. The flat shim fits between
u-type pad and vehicle tubing. (See illustration 1-2). Note,
orientate the ends of the u-type pad (item #8) and shim
(item # ) to allow the clamp adapters (item #3) to make
contact with tube as shown. (See illustration 1-2).
5. For installing onto 1-5/8” round tubing, use the 1.75 inch
clamp (item #7) with the u-type rubber grip pad (item #8) and
flat rubber shim (item #9). The u-type gripping pad will be
inserted between the clamp and flat shim to increase friction
and dampen vibrations as shown. The flat shim fits between
u-type pad and vehicle tubing. (See illustration 1-2). Note, the
both shims will need to be trimmed to best fit 1.63” round
tubing using a scissors or knife. Cut 1” of material from
end of pad as shown. (See illustration 1-3). Note, orientate
the ends of the u-type pad (item #8) and shim (item # ) to
allow the clamp adapters (item #3) to make contact with
tube as shown. (See illustration 1-2).

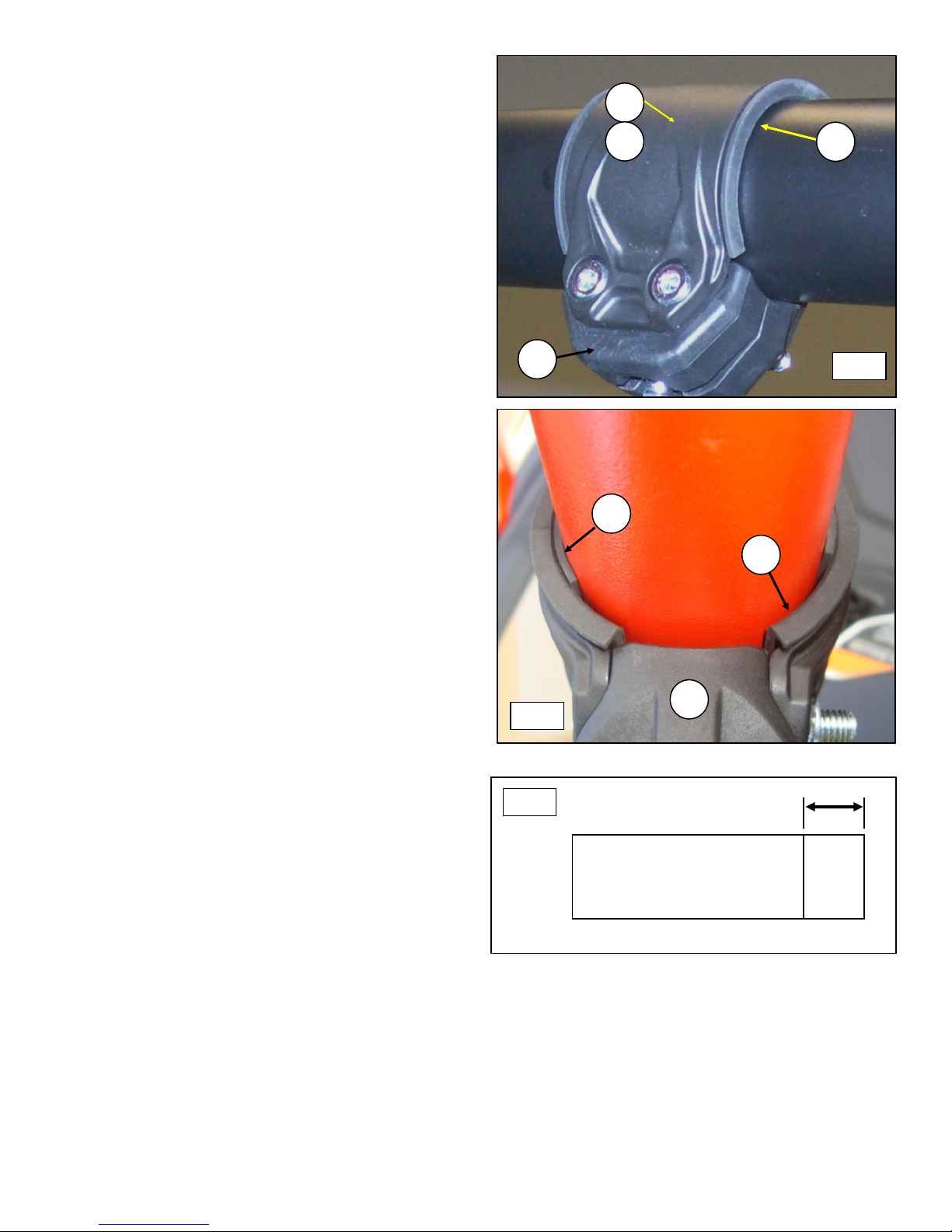

Ill. 1-1
Ill. 1-2
5
78
3
9
8
3
Ill. 1-3
Rubber pads, item #8, #9
Trim 1.0”

3
© 2018 Kolpin Outdoors Inc. REV 05
Mirror Mounting Instructions:
1. For your specific vehicle configuration listed on page 2, position -
clamp and fasten the assembled mirror onto the vehicle in desired
location. The clamp adapters (item #3) have a socket receptacle to
hold the ball stud (item #2). Insert the mirror assembly into the
clamp adapters as shown. Use the two screws (item #4) and two
locknuts (item # ) to secure the clamp and mirror assembly into
position. (See illustrations 2-1 and 2-2).
2. Tighten the screws to specified torque setting. WARNING: Do not
over tighten hardware or damage can occur.
Torque Charts: Tighten all screws to their specified torque values
listed in below table.
3. Pivot mirror to desired viewing angle by loosening (turn counter-
clockwise) the screws (item #4) and then tighten (turn clockwise)
to secure into position. Note, if the screws (item #4) are
loosened too much, the clamp adapters (item #3) can allow
mirror (item #1) to become disconnected from the clamp
assembly - please support mirror while making adjustments.
For additional assistance, please contact Kolpin technical service
department at (877) 95 -574 or (7 3) 478-5800
or email [email protected]
One Year Limited Warrant
For the period of one (1) year from the purchase date, Kolpin will replace for the original purchaser, free of charge, any part or parts
found upon examination by Kolpin to be defective in material, workmanship, or both.
All transportation costs incurred submitting product to Kolpin for warranty consideration must be borne by the purchaser. If Kolpin
determines that the product must be returned to the factory for credit, please call 1-877-95 -574 for a Return Merchandise
Authorization (RMA) number and shipping instructions.
This warranty does not apply to parts that have been damaged by accident, alteration, abuse, improper maintenance, normal wear, or
other causes beyond the manufacturer’s control. In order to protect you and your ATV, certain parts of the accessory system and/or
hardware are designed to fail when the equipment is over-stressed. Parts that are lost due to loosening and improper maintenance
are not covered under warranty. This warranty does not cover removal or reinstallation labor fees of the plow system and related
components.
Peripheral products such as engines, electric motors, and actuators may carry an original manufacturer’s warranty. Most hardware is
general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification.
Ill. 2-1
3
SPARE KITS
Hardware &
clamp kit P/N:
98316Item Description
4Button Screw, Zinc Plated, M -1.0 x 45mm 2x
52.0” OD Clamp 1x
Hex Locknut, Zinc Plated, M -1.0 3x
71.75” OD Clamp 1x
8U-Type Rubber Gripping Pad 1x
9Flat Rubber Shim Pad 1x
Spare kit contains extra hardware that is used for other mirror kits. Extra hardware
can be discarded.
Item N*m kgf*m lbf*ft
450.5 4
2
4
Ill. 2-2
