Konica Minolta SPECTRAMAGIC NX - User manual

Professional/Lite
Ver. 2.6
Instruction Manual
E

Formal designations of application software used in this manual
(Designation in this manual) (Formal designation)
Windows, Windows Vista Microsoft®Windows®Vista Business Operating System
Windows, Windows 7 Microsoft®Windows®7 Professional Operating System
Windows, Windows 8 Microsoft®Windows®8 Pro Operating System
Windows, Windows 8.1 Microsoft®Windows®8.1 Pro Operating System
Trademarks
• “Microsoft”, “Windows”, “Windows Vista”, “Windows 7”, “Windows 8” and “Windows 8.1” are
registered trademarks of Microsoft Corporation in the U.S.A. and other countries.
• “Intel” and “Pentium” are registered trademarks of Intel Corporation in the U.S.A. and other
countries.
Other company names and product names mentioned in this manual are the registered trademarks
or trademarks of their respective companies.
Notes on this manual
• No part of this manual may be reprinted or reproduced in any form or by any means without the
permission of Konica Minolta, Inc.
• The contents of this manual are subject to change without notice.
• Every effort has been made to ensure the accuracy of the contents of this manual. However,
should you have any questions or comments, or find an error or missing section, please contact
your local sales office.
• Konica Minolta accepts no responsibility for consequences resulting from failure to follow the
instructions outlined in this manual, the condition above notwithstanding.
About this manual
• Some of the screen capture shots in this manual may be from previous versions.

E1
Introduction
The SpectraMagic NX software is color data software designed to connect spectrophotometers such as
the CM-3600A or chroma meters to a PC (personal computer) to enable the measurement and graphic
display of sample data, as well as various other operations.
The SpectraMagic NX is available as two types: The Professional Edition, which features a variety of
functions, and the Lite Edition, which features only basic functions.
Package Contents
• Installation DVD-ROM of SpectraMagic NX (Qty: 1)
• USB protection key
• Installation Guide
• Authorized Service Facility
The Instruction Manual is also installed in PDF form with a shortcut in the start menu during the soft-
ware installation.
To read the manual, go to Start Menu →All programs →KONICAMINOLTA →SpectraMagic NX →
SpectraMagic NX Manual.
Versions of the Instruction Manual in other languages are also included on the installation DVD-ROM.
You will need Adobe Reader®from Adobe Corporation. The latest Adobe Reader®can be downloaded
for free from the Adobe website. Also, it is possible to use the Adobe Reader®installer included on the
installation DVD-ROM.
(Example) When the DVD-ROM is in E drive E:\Adobe Reader\EN
Software License Agreement
The terms of the license agreement of the SpectraMagic NX software are provided in the Software
License Agreement dialog box displayed on-screen during the installation process. This software can be
installed only if you agree to all the terms of the agreement.
Notes on Use
• The SpectraMagic NX application software is designed to be used with the Windows Vista,
Windows 7, Windows 8 or Windows 8.1 operating system. Note that neither operating system is
included with this software.
• One of these operating systems must be installed on the PC before this software can be installed.
• When inserting the DVD-ROM into the DVD-ROM drive, note the correct orientation of the disc.
Insert it gently.
• Keep the DVD-ROM clean and free from scratches. If the recorded surface becomes dirty or the
label surface is scratched, a read error may result.
• Avoid exposing the DVD-ROM to rapid temperature changes and condensation.
• Avoid leaving it in locations where it may be exposed to high temperatures from direct sunlight or
heaters.
• Do not drop the DVD-ROM or subject it to strong impact.
Safety Precautions
Before you use the SpectraMagic NX software, we recommend that you thoroughly read this
manual as well as the instruction manuals of your PC and the spectrophotometer.
If you want to view the instruction manual while using the software, select Help - Instruction Manual
from the menu bar.

E2
• Keep the DVD-ROM away from water, alcohol, paint thinners, and other such substances.
• Remove the DVD-ROM from the DVD-ROM drive while the computer is turned on.
Notes on Storage
• After using the DVD-ROM, return it to its case and store in a safe place.
• Avoid leaving the DVD-ROM in locations where it may be exposed to high temperatures from
direct sunlight or heaters.
• The DVD-ROM should not be kept in areas of high humidity.
Every effort has been made to ensure the accurate operation of this software. However, should you have
any questions or comments, please contact the nearest KONICA MINOLTA authorized service facility.

E3

E4
CONTENTS
CHAPTER 1OVERVIEW ................................................. E5
1.1 System Requirements ................................................................. E6
1.2 Major Functions ........................................................................... E7
1.3 Operation Flow ............................................................................ E9
1.4 Window Configuration .............................................................. E10
CHAPTER 2OPERATION GUIDE ................................... E25
2.1 Starting the SpectraMagic NX software ..................................E27
2.2 Calibration .................................................................................. E34
2.3 Preparing for Measurement ..................................................... E36
2.4 Specifying Target Data/Tolerance ............................................E68
2.5 Measurement ............................................................................. E92
2.6 List Window Operation ...........................................................E107
2.7 Canvas Window Operation ..................................................... E119
2.8 Printing ..................................................................................... E126
2.9 Saving Data .............................................................................. E131
2.10 Other Functions ....................................................................... E132
CHAPTER 3GRAPHIC OBJECT PROPERTIES ................ E199
3.1 Spectral Graph Object ............................................................ E201
3.2 Absolute Graph (L*a*b, Hunter Lab) Object ........................E210
3.3 Color Difference Graph (ΔL*Δa*Δb*, ΔL Δa Δb) Object ..... E218
3.4 xy Chromaticity Diagram .................................................. E226
3.5 3D Graph (ΔL*Δa*Δb*) ........................................................... E234
3.6 Two-axis Graph ...................................................................... E243
3.7 Data List Object ....................................................................... E250
3.8 Trend Chart/Histogram Object .............................................. E251
3.9 Image Object ........................................................................... E261
3.10 Numeric Label Object ............................................................. E264
3.11 String Label Object ................................................................. E268
3.12 Pseudo Color Object ............................................................... E269
3.13 Line Graph Object ................................................................... E272
3.14 Statistic Object ........................................................................ E280
3.15 Line Object .............................................................................. E283
3.16 Rectangle Object ..................................................................... E284
3.17 Operation of the Canvas Window in Edit Mode ................... E285

System
Requirements
Major
Functions
Operation
Flow
Window
Configuration
E5
CHAPTER 1
OVERVIEW
1.1 System Requirements................................................................................ E6
1.1.1 System Requirements ................................................................................. E6
1.1.2 Compatible Instruments.............................................................................. E6
1.1.3 Language ...................................................................................................... E6
1.2 Major Functions.......................................................................................... E7
1.3 Operation Flow ........................................................................................... E9
1.4 Window Configuration............................................................................. E10
1.4.1 Operation Window......................................................................................E10

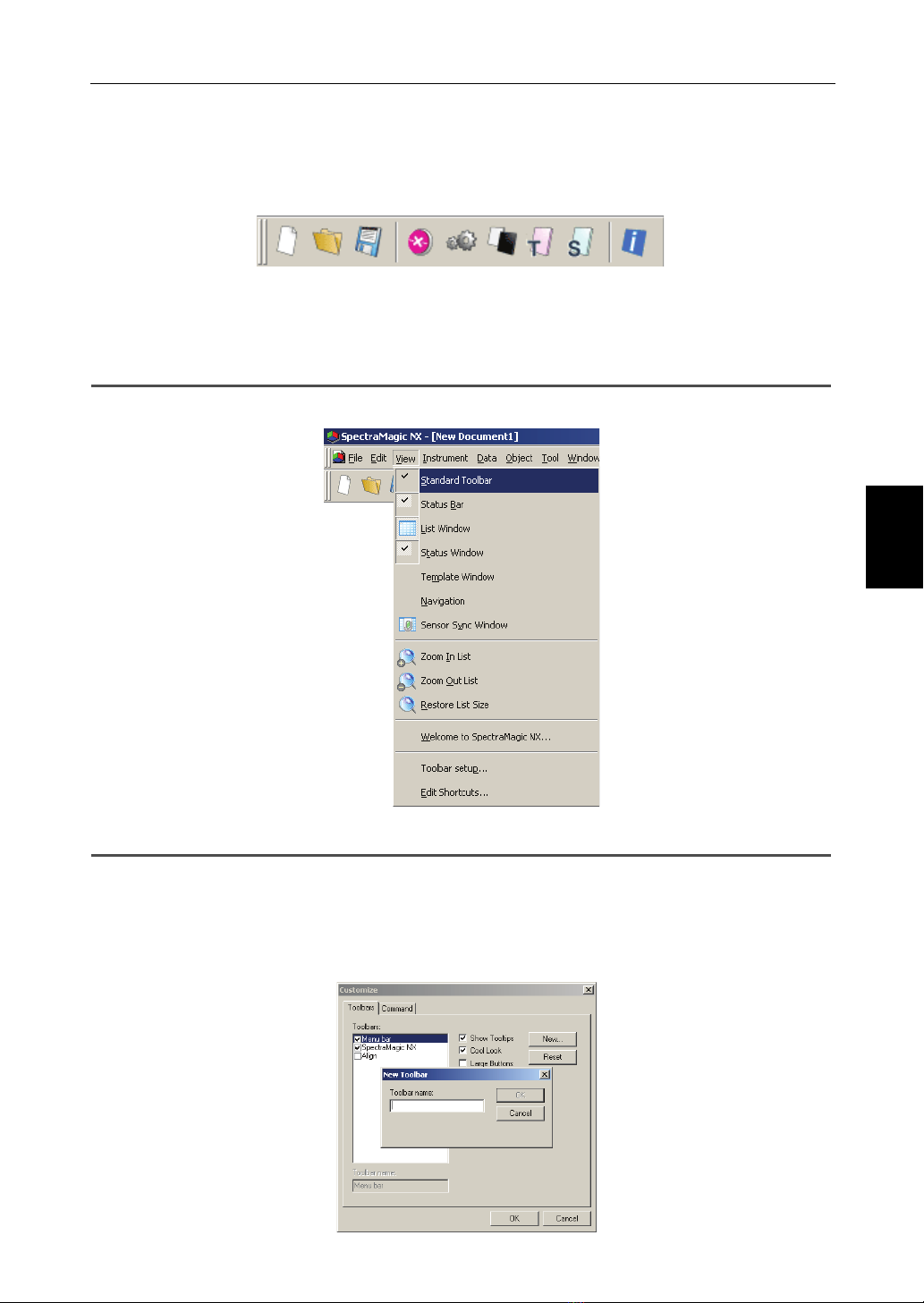

1.4.2 Menu Bar ..................................................................................................... E11

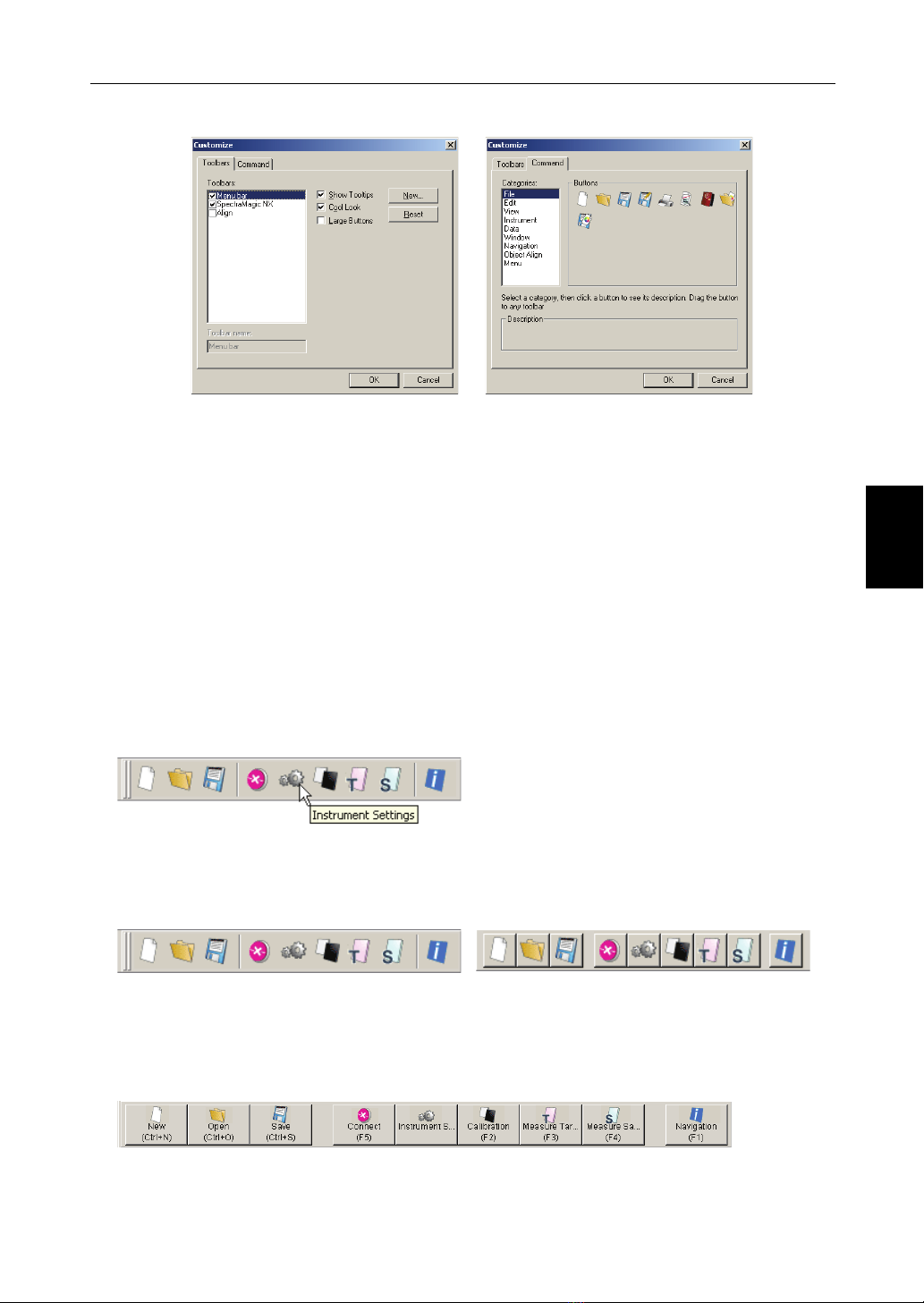

1.4.3 Standard Toolbar ........................................................................................E13
1.4.4 Shortcut Keys ..............................................................................................E16

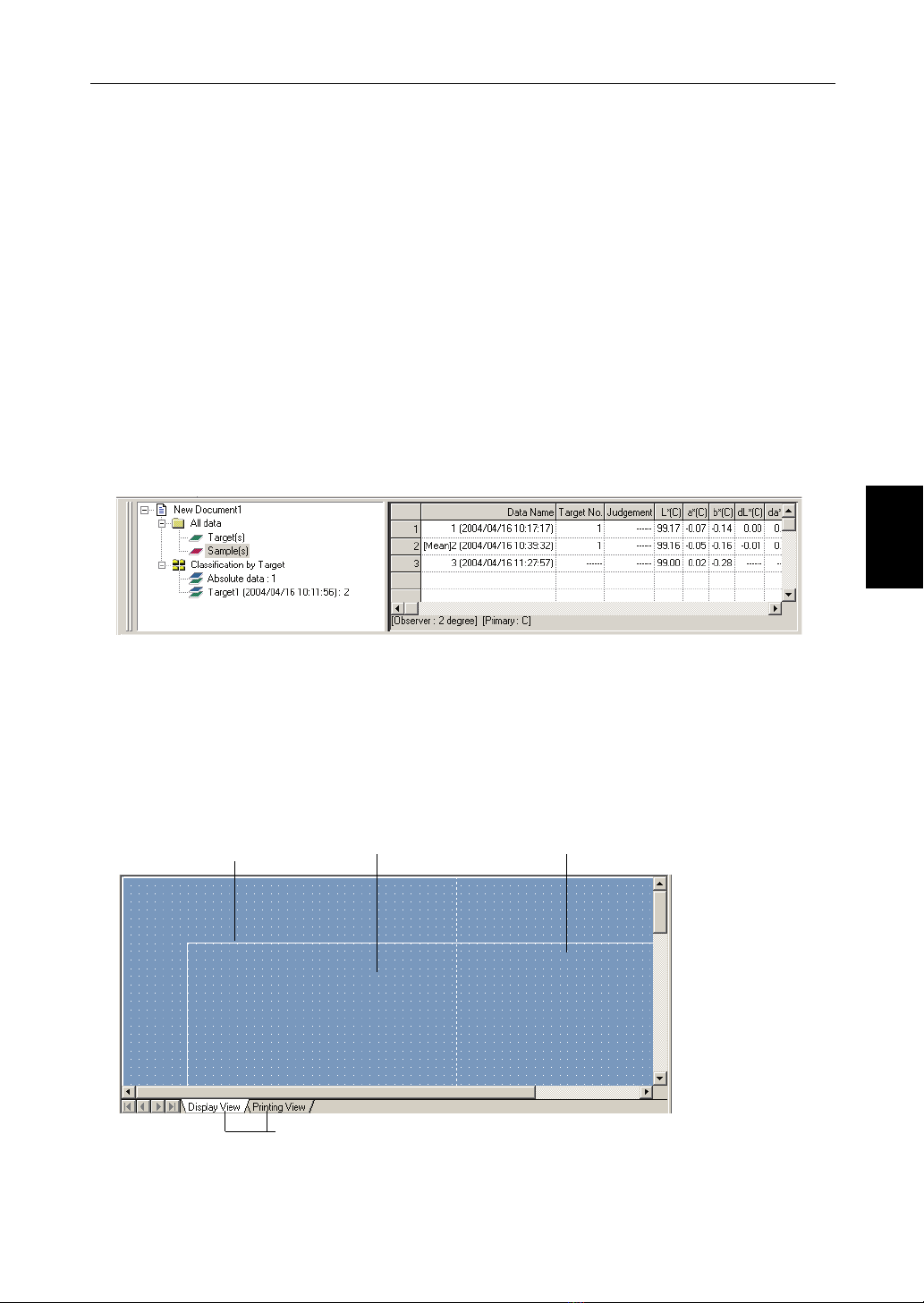

1.4.5 List Window.................................................................................................E17
1.4.6 Canvas Window ..........................................................................................E17
1.4.7 Tool Icon Bar................................................................................................E18
1.4.8 Sensor Sync Window .................................................................................E19
1.4.9 Template Window ...................................................................................... E20
1.4.10 Status Window........................................................................................... E21
1.4.11 Status Bar ................................................................................................... E22
1.4.12 Navigation Window ................................................................................... E23

CHAPTER 1 : OVERVIEW
E6
System
Requirements
1.1 System Requirements
1.1.1 System Requirements
1.1.2 Compatible Instruments
CM-3700A, CM-3700A-U, CM-3600A, CM-3610A, CM-3700d, CM-3600d, CM-3610d, CM-3630,
CM-3500d, CM-2600d/2500d, CM-2500c, CM-700d/600d, CM-512m3A, CM-512m3, CM-5/CR-5,
CR-400/410, DP-400
1.1.3 Language
OS Windows Vista Business 32-bit
Windows Vista Business 64-bit
Windows 7 Professional 32-bit
Windows 7 Professional 64-bit
Windows 8 Pro 32-bit
Windows 8 Pro 64-bit
Windows 8.1 Pro 32-bit
Windows 8.1 Pro 64-bit
• (English, Japanese, German, French, Spanish, Italian, Portuguese, Simpli-
fied Chinese, Traditional Chinese, and Hangul versions)
The hardware of the computer system to be used must meet or exceed the
greater of the recommended system requirements for the compatible OS
being used or the following specifications.
Computer PC equipped with a processor equivalent to Pentium III 600MHz or better
Memory 128 MB (256 MB recommended)
Hard disk drive 450 MB of available hard disk space
At least 400 MB of available disk space is required on the system drive (drive
where the OS is installed).
Display
Display hardware capable of displaying 1024 x 768 pixels / 16-bit color or better
Optical disc drive DVD-ROM drive
USB or parallel port Required for protection key
USB or serial port Required for instrument
USB port Required for Bluetooth®adapter when the CM-700d/600d is connected by
using Bluetooth®communication
Browser Internet Explorer Ver. 5.01 or later
Display language English, German, French, Spanish, Italian, Portuguese, Japanese, Chinese
(Simplified and Traditional)
(Select one during installation.)

CHAPTER 1 : OVERVIEW
E7
Major
Functions
1.2 Major Functions
Items marked with are supported only by SpectraMagic NX Professional Edition.
Color space L*a*b*, L*C*h, Lab99, LCh99, XYZ, Hunter Lab, Yxy, L*u'v', L*u*v*,
Munsell C, Munsell D65 and their color differences (Excluding Munsell C and Mun-
sell D65)
Index MI, WI (CIE1982, ASTM E313-73, ASTM E313-96, HUNTER,
BERGER, TAUBE, STENSBY, Ganz), Tint (CIE1982, ASTM E313-
96, Ganz), YI (ASTM D1925-70, ASTM E313-73, ASTM E313-96,
DIN6167), WB (ASTM E313-73), Standard Depth (ISO 105.A06),
Brightness (TAPPI T452, ISO2470), Opacity (ISO 2471, TAPPI T425 89%
White Plate ), Haze (ASTM D1003-97), Density (Status A, Status T),
Dominant Wavelength, Excitation Purity, RXRYRZ, Gardner, Hazen (APHA)
colour scale, Iodine color number, European Pharmacopoeia, US Pharmacopeia, 8
degree gloss value (CM-3600A, CM-3610A, CM-3600d, CM-2600d/2500d, CM-
700d/600d only), user equation, each difference, 555
Note on Haze (ASTM D1003-97):
With some instrument types, the illumination/observation system may not satisfy the
definition of haze (ASTM D1003-97). However, this presents no problem as long as
the value is used as a relative value.
Color
difference
equation
ΔE*ab (CIE 1976), ΔE*94 (CIE 1994)and each component of lightness, saturation
and hue, ΔE00 (CIE 2000) and each component of lightness, saturation and hue, ΔE99
(DIN99), ΔE (Hunter), CMC (I:c)and each component of lightness, saturation and
hue, FMC-2, NBS 100, NBS 200, ΔEc (degree) (DIN 6175-2), ΔEp
(degree) (DIN 6175-2)
Index
Difference
Strength, Pseudo Strength, Staining degree (ISO 105.A04E), Staining degree
rating (ISO 105.A04E), Grey scale (ISO 105.A05), Grey Scale Rating (ISO
105.A05), K/S strength (Apparent (ΔE*ab, ΔL*, ΔC*, ΔH*, Δa*, Δb*) maximum
absorption, total wavelength, user wavelength), NC#, NC# Grade, Ns, Ns
Grade
Notes concerning displayed values:
The SpectraMagic NX software enhances calculation accuracy by performing inter-
nal calculations with numbers greater in magnitude than those actually displayed.
Consequently, the least significant digit displayed may differ from that of the instru-
ment by one digit due to rounding or color space conversion.
Because the tolerance judgement calculation and graph-plotted points are also pro-
cessed with numbers greater in magnitude than those actually displayed, the judge-
ment result or plotted points may differ from those obtained with the values
displayed on the instrument.
Each colorimetric value of the data measured with a spectrophotometer or obtained
by manual input of spectral reflectance data is calculated from spectral reflectance.
Each colorimetric value of the data measured with a colorimeter or obtained by man-
ual input of colorimetric data is calculated from XYZ data. As a result, the colorimet-
ric value of the average value obtained by the manual averaging measurement or by
the averaging of list data may differ from the average of colorimetric values dis-
played in the list.
Observer 2 degree , 10 degree

CHAPTER 1 : OVERVIEW
E8
Major
Functions
Illuminants A, C, D50, D55, D65, D75, F2, F6, F7, F8, F10, F11, F12, U50, ID50,
ID65, User illuminant 1 to 3
Up to three illuminants can be displayed simultaneously.
Graph Spectral reflectance/(transmittance) and its difference, L*a*b* absolute value,
ΔL*a*b* (color difference distribution, MI, 3D), Hunter Lab absolute value, Hunter
ΔLab (color difference distribution), Trend chart and histogram of each color space
and color difference equation, Pseudo Color display
Image display Can be linked to sample data and images (JPEG or BMP).
Instrument
control
functions
Measurement/calibration
Automatic averaging measurement: 2 to 999 measurements
Manual averaging measurement: Optional (user-determined) number of times (The
standard deviation and average for the color space selected for measurement are dis-
played.)
Remote measurement (Excluding CM-3000 Series)
Downloading of configuration data to the instrument (Excluding CM-3000 Series)
Uploading of data stored in instrument memory (Excluding CM-3000 Series)
Targ et dat a Two or more pieces of target data can be registered (automatic selection).
Colorimetric data can be registered manually by specifying the color space.
Target data can be downloaded to the instrument. (Excluding CM-3000 Series)
Data list Listing of target data and sample data
Editing (delete, sort, average, copy & paste, search, file merge)
Link between JPEG images, Display of statistic value and pass/fail ratio, Visual
judgement result input function, Additional data information inputting/listing func-
tion
External I/O Uploading/saving of data file(s) in original formats (with “mes” file extension).
Uploading/saving of template file(s) in original format (with “mtp” file extension).
Uploading/saving of data in text format.
Saving of data in XML format.
Copying of lists in clipboard.
Help Navigable display, “Precise Color Communication” Tutorial, Manual

CHAPTER 1 : OVERVIEW
E9
Operation
Flow
1.3 Operation Flow
The shaded sections indicate functions available only when the spectrophotometer is connected and the
protection key is attached to the computer.
Start the SpectraMagic NX software. (pp. 27 & 28)
Connect the spectrophotometer to a PC. (pp. 29-31)
Calibration (p. 34)
Zero calibration
White calibration
Specify target data
(pp. 68-81).
Measure target data.
Input data manually.
Upload data from the instrument.
Select target data from list items.
Set tolerance
(pp. 86-88)
Measurement
(pp. 92-100)
Pass/fail judgement
(p. 90-91)
Data management (pp. 107-131)
Display Print Save
Disconnect the spectrophotometer (p. 29)
Exit the SpectraMagic NX software.
To conduct
absolute value
measurement
(p. 84)
To conduct color difference measurement
Data exchange with the instrument
Download target data. (p. 176)
Upload sample data. (p. 101-

CHAPTER 1 : OVERVIEW
E10
Window
Configuration
1.4 Window Configuration
1.4.1 Operation Window
The SpectraMagic NX software includes the following windows and bars.
Menu bar (p. 11)
Shows functions
categorized
among menus.
Standard toolbar (p. 13)
Displays icons corresponding
to frequently used functions.
List window (p. 17)
Displays sample data.
Status window
(p. 21)
Displays the
detailed status of
the instrument.
Tool icon bar (p. 18)
Displays icons representing
graphic objects. You can
select graphic objects from
this bar and place them in
the canvas window.
Canvas window
(p. 17)
Graphic objects
are pasted in this
window.
Status bar (p. 22)
Displays the details
or status of each
function of the
SpectraMagic NX.

CHAPTER 1 : OVERVIEW
E11
Window
Configuration
1.4.2 Menu Bar
When the SpectraMagic NX software is started, a menu bar appears at the top of the window in a man-
ner similar to other Windows-based software. This section lists the functions available in the menu bar
and the manual pages on which these functions are described.
File
New ...............................143
Open Ctrl+O
Close
Save Ctrl+S
Save As ...............................131
Save Selection As Text....................... 113
Save List Items As XML..................... 113
Te m p l a t e
Load Template..............................133
Save as Template .........................132
Page Setup ...............................126
Printer Setup
Print Preview ...............................128
Print Ctrl+P ....................128
Serial Printer ...............................129
Serial PrintOut...............................129
Serial Printer Setting .....................130
Startup Options ...............................134
Send Mail ...............................158
Property .................................57
File Locking ...............................136
Documents recently opened with
the SpectraMagic NX software.
(Up to five files are displayed.) .............12
Exit Shift+X
Edit
Cut Ctrl+X .... 112, 122, 285
Copy Ctrl+C .... 112, 122, 285
Paste Ctrl+V .... 112, 122, 285
Delete Del ......................... 113
Search Ctrl+F..................... 116
Merge Ctrl+G ....................149
Bring Forward ...............................285
Send Backward ...............................285
Bring to Front ...............................285
Send to Back ...............................285
The commands under the Instrument menu are available
only when the spectrophotometer or the chroma meter is
connected and the protection key is attached to the
computer.
Instrument - Standalone Configuration - User Index menu
is displayed only when the CR-400/410 is connected.
View
Standard Toolbar ...........................10, 13
Status Bar .......................... 10, 22
List Window ...................10, 17, 107
Status Window .......................... 10, 21
Template Window................................ 20
Navigation Window ............................. 23
Sensor Sync Window .......................... 19
Zoom In List ...............................118
Zoom Out List ...............................118
Restore List Size ...............................118
Welcome to SpectraMagic NX ............ 28
Toolbar setup ......................... 13,125
Edit Shortcuts ................................ 16
Instrument
Connect/Disconnect F5/Shift+F5 ...... 29
Communication Setup ...................... 31
Instrument Settings ...................... 33
Calibration F2.................. 34
Measure Target F3.................. 69
Measure Sample F4.................. 92
Measurement Options ...................... 63
UV Adjustment ...................... 38
Averaged Measurement ...................... 98
Target Averaged Measurement .. 73
Sample Averaged Measurement 98
Remote Measurement ...................... 70
Target Remote Measurement F6.. 70
Sample Remote Measurement F7. 94
Remote Measurement Option ......... 195
Upload/Download
Upload Samples .....................101
Upload Target ...................... 79
Download Target .....................176
Clear Stored Data
Set Calibration Data........................... 159
Standalone Configuration .................. 163
Standalone Configuration ............. 163
User Index ...............................174
Initialize Instrument

CHAPTER 1 : OVERVIEW
E12
Window
Configuration
Data
Tolerance Setting .................................87
Judgement Format..........................59,90
Default Tolerance Setting .....................86
Supplementary data information .....65
Auto Target .................................82
Input Spectral Target ............................ 76
Input Colorimetric Target......................77
Observer and Iluminant........................36
List Items .................................46
Decimal Places .................................62
Next Data ...............................125
Previous Data ...............................125
Data Property ...............................103
Object
Align ...............................122
Align ...............................122
Size
Select ...............................120
Line ...............................283
Rectangle ...............................284
Delta L*a*b* ...............................218
Delta HunterLab ...............................210
Spectral Graph ...............................201
L*a*b* ...............................210
Hunter Lab ...............................210
Trend/Histgram ...............................251
Image ...............................261
Data Label ...............................264
String Label ...............................268
Pseudo Color ...............................269
Line Graph ...............................272
Statistic ...............................280
Xy chromaticity diagram.....................226
L*a*b*3D ...............................234
Two-axis graph ...............................243
Data List ...............................250
Property
To o l
Macro .............................. 191
Edit .............................. 191
Start .............................. 194
End
MRU
Change Target ...............................114
Move to Target
Average ...............................115
Sort ...............................113
Working Target ................................ 84
View Settings .......... 109,110,119,151
Security Setting ............................. 137
Edit Mode ...............................119
Option .............................. 155
Window
Cascade .............................. 149
Tile .............................. 149
Documents currently open
Help
Navigation ........................ 23, 150
Next .............................. 150
Previous .............................. 150
Manual .............................. 150
About SpectraMagic NX ...................... 27
Items marked with are supported only by
SpectraMagic NX Professional Edition.
In the standard tool-
bar, this icon repre-
sents the
command. See
page 13 for details.
Shortcut keys for
this command. See
page 16 for details.
Documents recently
opened with the
SpectraMagic NX
software. (Up to five
files are displayed.)

CHAPTER 1 : OVERVIEW
E13
Window
Configuration
1.4.3 Standard Toolbar
The standard toolbar contains buttons corresponding to frequently used functions. To invoke the com-
mand, simply click the button with the mouse.
• Place the mouse pointer over a button to display a brief description of its function.
• The buttons can be displayed in two different sizes and can be arranged in any order desired.
Showing/hiding the standard toolbar
Click View - Standard Toolbar in the menu bar to show/hide the standard toolbar.
Customizing the standard toolbar
To customize your toolbar with a desired combination of icons, select View - Toolbar setup from the
menu bar.
1. Click the New button.
2. Type the name of a toolbar and click the OK button.

CHAPTER 1 : OVERVIEW
E14
Window
Configuration
3. Select the Command tab and select the category of icon you want to add to the new toolbar from the
list displayed below Categories.
The button icons for the selected category are displayed in the Buttons area.
4. Drag-and-drop the button icon to the new toolbar.
The button appears in the toolbar.

CHAPTER 1 : OVERVIEW
E15
Window
Configuration
■ Settings in the Customize dialog box
Toolbars tab
SpectraMagic NX
This is the standard toolbar. When this item is checked, the standard toolbar appears. Uncheck this
item to hide the toolbar.
To return to the initial setting, click the Reset button.
Align
This is the graphic object alignment bar. When this item is checked, the graphic object alignment bar
appears. Uncheck this item to hide the bar.
To return to the initial setting, click the Reset button.
Show Tooltips
Position the mouse pointer over a button to see brief explanation of the function of the icon dis-
played as a tooltip.
Check this option to have a tooltip appear. Uncheck this item if you do not want a tooltip to appear.
Cool Look
The appearance of the icons shown on the toolbar can be changed.
When this option is checked, the icons normally appear flat but change to a three-dimensional but-
ton appearance when the mouse pointer is positioned over them.
Large Buttons
The default size of the icons in the toolbar can be increased to a larger size with a text description of
each button displayed below the icon.
Command tab
Select this tab to add or remove the buttons appearing in the toolbar.
Cool look display Button display

CHAPTER 1 : OVERVIEW
E16
Window
Configuration
1.4.4 Shortcut Keys
You can also access the menu commands of the SpectraMagic NX software simply by pressing various
shortcut keys.
Editing shortcut keys
You can customize the shortcut keys by selecting View - Edit Shortcuts from the menu bar.
1. To create a shortcut or edit an existing shortcut key, select the desired process under “Select a
macro.”
2. Click the Create Shortcut button.
3. The Assign Shortcut dialog box opens. Press the key(s) you want to assign to the shortcut.
In the box below “Press new shortcut key:”, “Ctrl” and the key(s) you pressed are displayed. If you
pressed any key while holding down the Shift or Alt key, or if you pressed a function key, the key(s)
you pressed will be displayed.
If the key(s) you pressed have already been assigned to another macro, the corresponding macro is
displayed below “Current Assignment.” If the key is not assigned to any macro, “(Unassigned)” is
displayed.
4. Click the OK button.
Example:
When the Ctrl and M
keys are pressed

CHAPTER 1 : OVERVIEW
E17
Window
Configuration
■ Shortcut Keys dialog box
Create Shortcut
Press this button to create a new shortcut.
Reset All
Press this button to reset all shortcuts that have been created. The SpectraMagic NX software returns
to the initial settings as shown on pages 11 and 12.
Remove
Select a macro whose shortcut you want to delete. Select its shortcut and click this button to delete
it.
1.4.5 List Window
The list window lists the sample data.
Each document file has its own list window. When the canvas window is closed, the list window also
closes.
1.4.6 Canvas Window
The canvas window is the window in which graphic objects are pasted.
Two views of the canvas window are available for each document file: Display View and Printing View.
In edit mode, graphic objects can be placed differently in each window as desired.
Margin line Print area
Area where graphic
objects are pasted
View selection tabs
Used to switch the canvas window between the display and printing views.
Right-clicking the tab opens the pop-up menu, which you can use to add a
new view.
(Supported only by SpectraMagic NX Professional Edition)

CHAPTER 1 : OVERVIEW
E18
Window
Configuration
1.4.7 Tool Icon Bar
You can select graphic objects from this bar and place them in the canvas window.
This bar appears in the window when the SpectraMagic NX software is in edit mode.
1) Selection tool
2) Line object
3) Rectangle object
4) Data list object
5) Color difference graph (ΔL*a*b) object
6) Color difference graph (ΔHunter Lab) object
7) Spectral graph object
8) Absolute graph (L*a*b) object
9) Absolute graph (Hunter Lab) object
10) Trend chart/histogram object
11) Image object
12) Numeric label object
13) String label object
14) Pseudo color object
15) Line graph object
16) Statistic object
17) xy chromaticity object
18) 3D (ΔL*a*b*) graph object
19) Two-axis graph object
For details of the graphic objects, see “Graphic Object Properties” on page 199.
123
4567
891011
12 13 14 15 16 17 18 19
