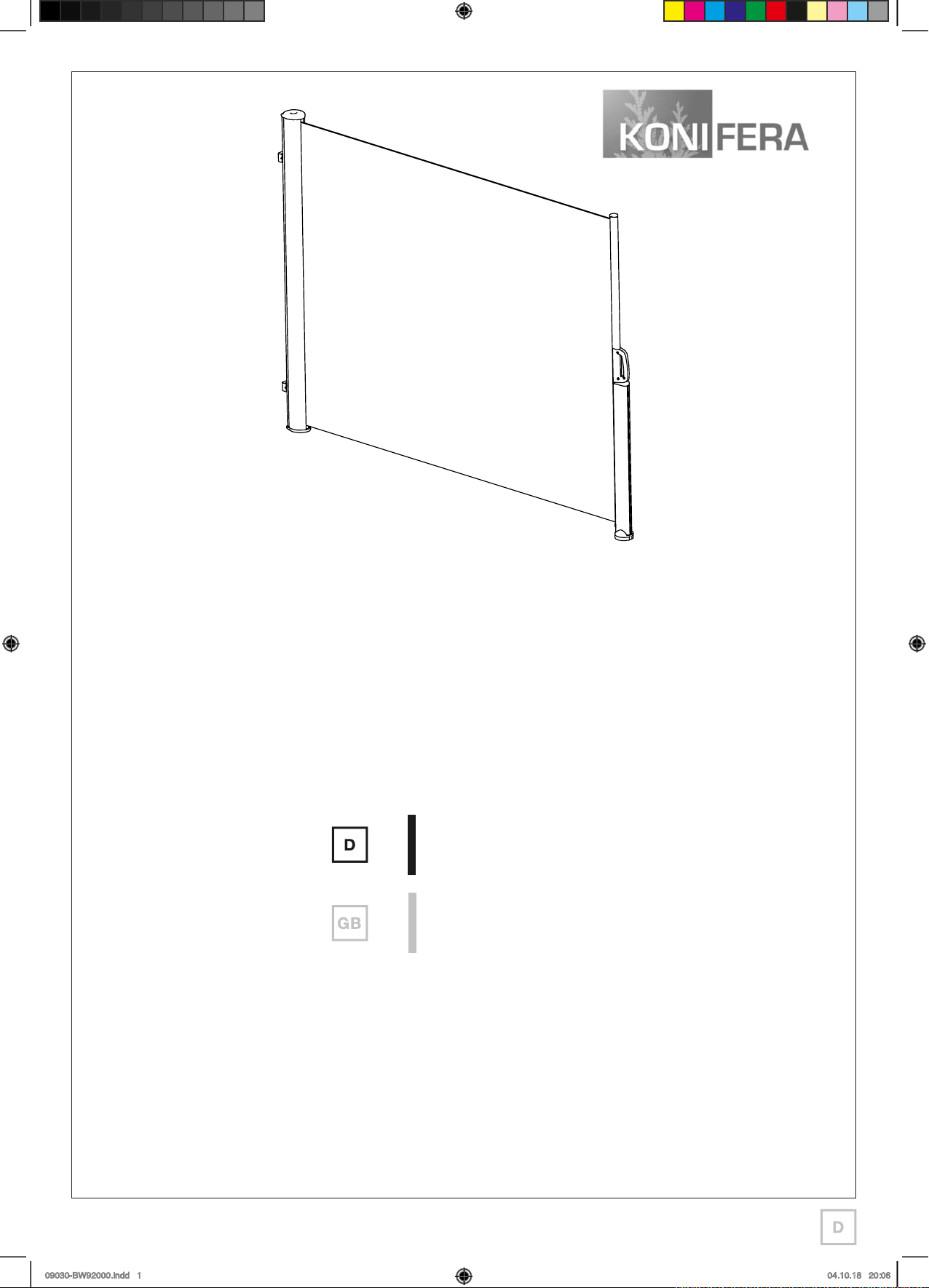

Konifera BW92000 User manual

D: Nachdruck, auch auszugsweise, nicht gestattet! GB: Reproduction, even in extracts, is not permitted! NL: Nadruk, ook slechts gedeeltelijk, niet toegestaan!
Anleitung Nr.: 20180903092000
Einziehbare Markise
BW92000
Gebrauchsanleitung
Installation Instruction
FOR FUTURE REFERENCE
Contents
Specifications/Precautions and safety
warnings for installation and operation
Accessories and required tools
Installation procedure
Operation instructions
Maintenance
Name list of parts

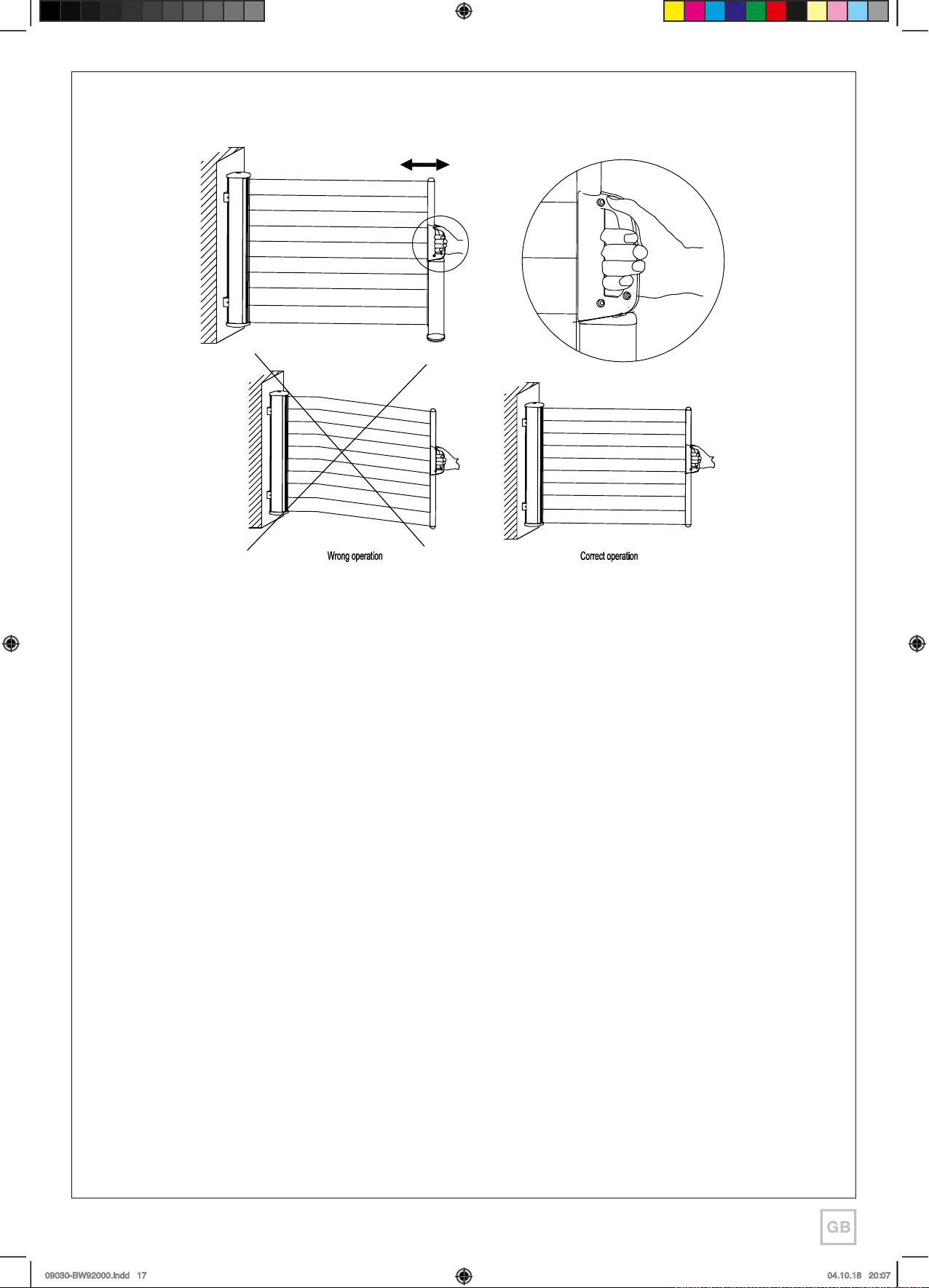

DO NOT RELEASE THE HANDLE GRIP WHEN
EXTRACTING/RETRACTING THE FABRIC SCREEN
09030-BW92000.indd 1 04.10.18 20:06

- 2 -
Inhaltsverzeichnis
Spezikationen/Vorsichtsmaßnahmen und Sicherheitshinweise
zum Einbau und zur Bedienung ...................................2-3
► Zubehörteile und erforderliche Werkzeuge...........................4
► Einbauvorgang ..............................................5-6
► Bedienungsanweisungen ........................................6
► Instandhaltung ................................................7
► Liste der Bauteilbezeichnungen ...................................8
Spezikation
Artikelnummer Tatsächliche Schatten- Nettogewicht Tuch Windwiderstands-
Ausmaße (cm) größe (cm) (Kg) klasse
BW92000 160×300 151×297 Polyester Klasse 1 (28Km/h)
WARNUNG!
DIESE BEDIENUNGSANLEITUNG SOLL VOR BENUTZUNG UND DEM EINBAU DES PRODUKTS
GELESEN WERDEN.
WARNUNG!
FÜR DIE SICHERHEIT VON PERSONEN IST ES WICHTIG, DIESE ANWEISUNGEN ZU BEFOLGEN.
BEWAHREN SIE DIESE ANLEITUNG ZUM SPÄTEREN NACHSCHLAGEN AUF.
09030-BW92000.indd 2 04.10.18 20:06

- 3 -
Spezi kationen/Vorsichtsmaßnahmen und Sicherheits-
hinweise zum Einbau und zur Bedienung
Achtung!
Bevor Sie die Markise öffnen, stellen Sie sicher, dass alle Befes-
tigungsschrauben und Sicherheitsvorrichtungen ordnungsgemäß
eingebaut und festgezogen sind.
Schließen Sie die Markise an Regentagen, windigen Tagen oder
wenn die Markise nicht verwendet wird.
Nichtbeachtung des Sicherheitshinweises kann zu Material- und
Konstruktionsschaden der Markise führen.
Die Markisenarme be nden sich unter Spannung und können Schaden oder Verletzungen verursa-
chen, wenn sie zu plötzlich geöffnet werden.
Versuchen Sie niemals, die Markise auseinanderzunehmen oder sie selber zu reparieren. Kontaktie-
ren Sie einen kompetenten Techniker, damit er Ihnen hilft.
LESEN SIE ZUERST DIE BEDIENUNGSANLEITUNG, BEVOR SIE DAS GERÄT BENUTZEN.
Save enough free space around the awning while rolling or unrolling.
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
Do not barbecue under the awning or ignite a fire near tothe awning
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
Do not open the awning when maintenance,such as window cleaning,is being carried out in the vicinity.
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Check the awning every 3 months to ensure all fixing are tightened and no damage on the products.
Do not use the awning if repair is needed.Do not try to repair the product by yourself,contact qaulified person
for repairing.
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
Save enough free space around the awning while rolling or unrolling.
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
Do not barbecue under the awning or ignite a fire near tothe awning
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
Do not open the awning when maintenance,such as window cleaning,is being carried out in the vicinity.
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Check the awning every 3 months to ensure all fixing are tightened and no damage on the products.
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
Save enough free space around the awning while rolling or unrolling.
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
N difi tio f th nin in kind i ll ed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
Save enough free space around the awning while rolling or unrolling.
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
Do not barbecue under the awning or ignite a fire near tothe awning
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
Do not open the awning when maintenance,such as window cleaning,is being carried out in the vicinity.
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Check the awning every 3 months to ensure all fixing are tightened and no damage on the products.
Do not use the awning if repair is needed.Do not try to repair the product by yourself,contact qaulified person
for repairing.
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
Save enough free space around the awning while rolling or unrolling.
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
Do not barbecue under the awning or ignite a fire near tothe awning
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
Do not open the awning when maintenance,such as window cleaning,is being carried out in the vicinity.
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Check the awning every 3 months to ensure all fixing are tightened and no damage on the products.
Do not use the awning if repair is needed.Do not try to repair the product by yourself,contact qaulified person
for repairing.
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
Save enough free space around the awning while rolling or unrolling.
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
Do not barbecue under the awning or ignite a fire near tothe awning
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
Do not open the awning when maintenance,such as window cleaning,is being carried out in the vicinity.
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Check the awning every 3 months to ensure all fixing are tightened and no damage on the products.
Do not use the awning if repair is needed.Do not try to repair the product by yourself,contact qaulified person
for repairing.
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
Save enough free space around the awning while rolling or unrolling.
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
Do not barbecue under the awning or ignite a fire near tothe awning
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
Do not open the awning when maintenance,such as window cleaning,is being carried out in the vicinity.
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Check the awning every 3 months to ensure all fixing are tightened and no damage on the products.
Do not use the awning if repair is needed.Do not try to repair the product by yourself,contact qaulified person
for repairing.
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
Save enough free space around the awning while rolling or unrolling.
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
Do not barbecue under the awning or ignite a fire near tothe awning
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
Do not open the awning when maintenance,such as window cleaning,is being carried out in the vicinity.
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Check the awning every 3 months to ensure all fixing are tightened and no damage on the products.
Do not use the awning if repair is needed.Do not try to repair the product by yourself,contact qaulified person
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
Save enough free space around the awning while rolling or unrolling.
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
Do not barbecue under the awning or ignite a fire near tothe awning
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
Do not open the awning when maintenance,such as window cleaning,is being carried out in the vicinity.
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Check the awning every 3 months to ensure all fixing are tightened and no damage on the products.
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
D 't hythi th f the foldi th ning f ll do nd da
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
Symbolerklärung:
Bedeutet, es ist verboten
Bedeutet, wichtig
Niemals an hohen und windigen Orten installieren, weil der Sonnenschutz fallen und Menschen verletzen könnte.
Wenn Sie bereit sind, die Markise auszupacken und zusammenzubauen, stellen Sie sicher, dass Sie die geeigneten Werk-
zeuge, ausreichend Personen (2 Personen werden vorgeschlagen) und Platz genug in einem sauberen und trockenen
Bereich haben, um den Einbau durchzuführen.
Verwenden Sie sie nicht an Orten, die Vibrationen und Impulsen ausgesetzt sind.
Die Installation kann von nicht-professionellen Anwendern durchgeführt werden, vorausgesetzt, sie befolgen die Bedie-
nungsanleitung ordnungsgemäß. Sollten Sie während des Aufbaus Probleme bekommen, holen Sie sich bitte eine quali -
zierte Person zur Hilfe.
Verwenden Sie bitte alle Schrauben und Muttern, da es ansonsten sehr gefährlich ist, die Markise locker befestigt zu
lassen.
Achten Sie beim Einbau auf Ihre Finger.
Nicht an Orten hoher Temperatur verwenden, wie z.B. an Wänden in der Nähe von Öfen.
Hängen Sie nichts an das Gestell oder die Schwenkarme, da die Markise herunterfallen und Personenschäden hervorru-
fen könnte.
Niemals an regnerischen und windigen Tagen anwenden.
Niemals für andere Zwecke verwenden.
Der Betrieb bei Frost kann die Markise beschädigen.
Fahren Sie die Markise an windigen und regnerischen Tagen ein.
Änderungen der Markise auf irgeneine Weise sind nicht erlaubt.
Sorgen Sie für genug Freiraum um die Markise herum, währen sie aus- oder eingerollt wird.
Grillen Sie nicht unterhalb der Markise und entzünden Sie kein Feuer in der Nähe der Markise.
Fahren Sie die Markise nicht aus, wenn Wartungsarbeiten, wie z.B. Fensterputzen in der Nähe durchgeführt wird.
Überprüfen Sie die Markise alle 3 Monate, um sicherzustellen, dass alle Befestigungen fest angezogen sind und das Pro-
dukt keine Schäden aufweist.
Verwenden Sie die Markise nicht, falls Reparaturen notwendig sind. Reparieren Sie das Produkt nicht selber, kontaktieren
Sie eine quali zierte Person für die Reparatur.
09030-BW92000.indd 3 04.10.18 20:07

- 4 -
Zubehörteile und erforderliche Werkzeuge
Screwdriver
Please prepare below tools before installation:
Power drill with drilling bit
of Ø8mm and Ø10mm
Tape measure Wrench (wrenches of
M6 )
Bereiten Sie bitte die nachstehenden Werkzeuge vor dem
Einbau vor:
Schlagbohrmaschine mit
einer Ø 8mm und Ø 10mm
Bohrspitze
Maßband Schraubenschlüssel
M6
Schrauben-
zieher
09030-BW92000.indd 4 04.10.18 20:07
A F
C
D
G
x1
x2
x2
x1
x4
H
E
J
I
x1
x2
x4
x2
x1
x1
K
x3
L

- 5 -
Einbauvorgang
40mm
Max.3000mm
1200~1300mm
3
Installation Procedure
48mm
48mm
Wall
≤3000mm
Ø8x4
Ø8x4
B
F
E
H
A
F
B
2x
C
F
B
2x
CD
G
E
Hook mouth
GD
E
Make sure to be
perpendicular to the wall
Vergewissern Sie sich, dass
senkrecht eingebaut werden
kann
Hakenmaul
09030-BW92000.indd 5 04.10.18 20:07

- 6 -
D
Ix2
Jx2
Ø10x2
4
CAUTION! DO NOT RELEASE THEHANDLE GRIPWHEN EXTRACTING / RETRACTING THEFABRIC
SCREEN!
1) Open / Extraction
i) Hold the handle grip firmly throughout the whole extraction process.
ii) Pull the handle grip out of the folding screen gently.
iii) Slowly walk toward the fastness bracket.
iv) Secure the handle grip on the knot of fastness bracket.
2) Close / Retraction
i) Hold the handle grip firmly throughout the whole retraction process.
ii) Unlock the handle grip from the fastness bracket.
iii) Slowly walk toward the folding screen until whole fabric screen be rolled into it.
Operation instructions
The other installation method when two wall face to each other:
Die andere Einbaumethode, wenn zwei Wände sich gegenüber stehen:
Öffnen Sie das Markisentuch und befestigen Sie den Handgriff an der Befestigungsklammer.
Bedienungsanweisungen
VORSICHT! LASSEN SIE DEN HANDGRIFF NICHT LOS, WENN SIE DAS MARKISENTUCH
AUS- ODER EINFAHREN!
1) Öffnen / Ausfahren
i) Halten Sie den Handgriff fest während des gesamten Ausfahrvorgangs.
ii) Ziehen Sie den Handgriff vorsichtig aus dem Markisentuch.
iii) Gehen Sie langsam zur Befestigungsklammer.
iv) Sichern Sie den Handgriff auf dem Knoten der Befestigungsklammer.
2) Schließen / Einfahren
i) Halten Sie den Handgriff fest während des gesamten Einfahrvorgangs.
ii) Entriegeln Sie den Handgriff von der Befestigungsklammer.
iii) Gehen Sie langsam bis zum Markisentuch, bis das gesamte Tuch eingerollt ist.
09030-BW92000.indd 6 04.10.18 20:07
DritteInstallationsmethode:
A
72mm
Ø8x4
F
L
3x
L
K
3x A
L
57mm
Entfernen
Hakenmaul

- 7 -
5
1. Always close the Fold Screen in windy days, heavy rain and when you are not using it.
2. Pls do not unpick and wash the fabric. If you need replace the fabric,please turn to experts for
help.
3. Check the overall installation and all the fasteners regularly,especially at the beginning of a new
season,to ensure the fasteners are tightened and in good conditions.
Maintenance
Instandhaltung
1. Fahren Sie immer das Markisentuch ein: an windigen Tagen, bei schwerem Regen und wenn Sie es
nicht verwenden.
2. Nehmen Sie den Stoff nicht ab, um ihn zu waschen. Falls Sie den Stoff ersetzen müssen, wenden Sie
sich bitte an einen Experten.
3. Überprüfen Sie die gesamte Installation und die Befestigungsvorrichtungen regelmäßig, vor allem nach
längerer Nichtverwendung, um sicherzustellen, dass die Befestigungen angezogen und in einem guten
Zustand sind.
Fehlerhafte Bedienung Ordnungsgemäße Bedienung
09030-BW92000.indd 7 04.10.18 20:07

- 8 -
Name list of parts
◆front bar
◆end cap ◆wall bracket
fabric
※Note:
1. When the parts with ◆are damaged, don't use the
product before they are replaced.
6
◆ Handle grip
◆Verbindung ◆Fastness bracket
Liste der Bauteilbezeichnungen
Endkappe Wandhalterung
Fallstange
Befestigungsklammer Handgriff
Tuch
Anmerkung:
Wenn die Zubehörteile mit beschädigt sind, verwenden Sie das Produkt
nicht, bevor sie ersetzt wurden.
09030-BW92000.indd 8 04.10.18 20:07

- 9 -
Name • Nome • Nom • Naam
Nr. • No. • n°
Typ • Type • Tipo
Service • Servizio
Imported by baumarkt direkt GmbH & Co KG
Alter Teichweg 25, 22081 Hamburg, Germany
Produktberatung: 01806/ 63 06 30 Festnetz 20 Cent/Anruf, Mobilfunk max. 60 Cent/Anruf
Quelle D Fachberatung: 01806/111 100 Festnetz 20 Cent/Anruf, Mobilfunk max. 60 Cent/Anruf
D
CH
F
I
A
Bei Problemen oder Fragen wenden Sie sich bitte an unsere Servicehotline!
Quelle CH: 0848 85 85 00 Ackermann CH: 0848 85 85 11, Jelmoli Technik: 0848 858 530
Si vous avez des problèmes ou des ques
In caso di problemi o ulteriori domande, chiamate il nostro servizio clienti!
Quelle CH: 0848 85 85 02 Ackermann CH: 0848 85 85 31, Jelmoli Technik: 0848 858 530
tions, contactez notre service en ligne!
Quelle CH: 0848 85 85 01 Ackermann CH: 0848 85 85 21, Jelmoli Technik: 0848 858 530
Universal: 0043/662/4485 59 Fachberatung Heimwerken (zum Festnetztarif – je nach Betreiber)
Otto: 0043/316/606 159 Beratung Heimwerken (zum Festnetztarif – je nach Betreiber)
Quelle: 0043/662/9005 59 Fachberatung Heimwerken (zum Festnetztarif – je nach Betreiber)
NL call center telefoonnummer 0900-1901 15 ct/min
Name • Nome • Nom • Naam
Nr. • No. • n°
Typ • Type • Tipo
Service • Servizio
Imported by baumarkt direkt GmbH & Co KG
Alter Teichweg 25, 22081 Hamburg, Germany
Produktberatung: 01806/ 63 06 30 Festnetz 20 Cent/Anruf, Mobilfunk max. 60 Cent/Anruf
Quelle D Fachberatung: 01806/111 100 Festnetz 20 Cent/Anruf, Mobilfunk max. 60 Cent/Anruf
D
CH
F
I
A
Bei Problemen oder Fragen wenden Sie sich bitte an unsere Servicehotline!
Quelle CH: 0848 85 85 00 Ackermann CH: 0848 85 85 11, Jelmoli Technik: 0848 858 530
Si vous avez des problèmes ou des ques
In caso di problemi o ulteriori domande, chiamate il nostro servizio clienti!
Quelle CH: 0848 85 85 02 Ackermann CH: 0848 85 85 31, Jelmoli Technik: 0848 858 530
tions, contactez notre service en ligne!
Quelle CH: 0848 85 85 01 Ackermann CH: 0848 85 85 21, Jelmoli Technik: 0848 858 530
Universal: 0043/662/4485 59 Fachberatung Heimwerken (zum Festnetztarif – je nach Betreiber)
Otto: 0043/316/606 159 Beratung Heimwerken (zum Festnetztarif – je nach Betreiber)
Quelle: 0043/662/9005 59 Fachberatung Heimwerken (zum Festnetztarif – je nach Betreiber)
NL call center telefoonnummer 0900-1901 15 ct/min
EINZIEHBARE
MARKISE
BW13000
09030-BW92000.indd 9 04.10.18 20:07

09030-BW92000.indd 10 04.10.18 20:07

D: Nachdruck, auch auszugsweise, nicht gestattet! GB: Reproduction, even in extracts, is not permitted! NL: Nadruk, ook slechts gedeeltelijk, niet toegestaan!
Instruction No.: 20180903092000
Retractable Awning
BW92000
Gebrauchsanleitung
Installation Instruction
FOR FUTURE REFERENCE
Contents
Specifications/Precautions and safety
warnings for installation and operation
Accessories and required tools
Installation procedure
Operation instructions
Maintenance
Name list of parts
DO NOT RELEASE THE HANDLE GRIP WHEN
EXTRACTING/RETRACTING THE FABRIC SCREEN
09030-BW92000.indd 11 04.10.18 20:07

- 12 -
Contents
Specications/Precautions and safety warnings for installation and operation ....12-13
►Accessories and required tools ........................................ 14
►Installation procedure..............................................15-16
►Operation instructions ............................................... 16
►Maintenance ...................................................... 17
►Name list of parts................................................... 18
WARNING!
THIS INSTRUCTION MANUAL SHALL BE READ BEOFRE THE USE AND THE
INSTALLATION OF THE PRODUCT
WARNING!
IT IS IMPORTANT FOR SAFETY OF PERSONS TO FOLLOW THESE INSTRUCTIONS.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Specication
Artical number Actual size (cm) Shade Net weight Fabric Wind resistance
Dimension (cm) (Kg) class
BW92000 160×300 151×297 Polyester Class 1 (28Km/h)
09030-BW92000.indd 12 04.10.18 20:07

- 13 -
Precautions and safety warning for installation and
operation
Attention!
Before opening the awning, make sure all the  xing bolts and secu-
rity devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the
awning is not in use.
Failed to observe the instrution may lead to material and constructi-
onal damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
READ THE INSTRUCTION BEFORE USING THE PRODUCT
Save enough free space around the awning while rolling or unrolling.
The installation can be made by non-professionals assuming the instruction is followed correctly. Should you
have any trouble during assembly, please consult a qualified person for help.
Do not barbecue under the awning or ignite a fire near tothe awning
The operation in frosty conditions may damage the awning.
1
Specification
Symbol explanation:
Means it is forbidden
Means important
Precautions and safety warning for installation and operation
Never install it in high and windy places, as the sunshade may drop and hurt people.
Don't use it in places that have vibrations or impulsions.
Don't use it in places of high temperature such as walls near furnaces.
Don't hang anything on the frame or on the folding arms as the awning may fall down and cause damage or
personal injury.
Never use it in rainy and windy days.
Never use it for other purposes.
Be careful with your finger during installation.
When you are ready to unpack and assemble the awning, make sure that you have the appropriate tools,
sufficient operators (2 persons are suggested) and space, and a clean and dry area to perform the installation."
Please use all the screws and nuts correctly during installation as it is very dangerous if you leave it loose.
Please close the awning in windy and rainy days.
No modification of the awning in any kind is allowed.
Artical number
BW13000
Inclination angle Wind resistance class
Class 1 (28Km/h)
0°～45°
Fabric
Polyester
Do not open the awning when maintenance,such as window cleaning,is being carried out in the vicinity.
READ THE INSTRUCTION BEFORE USING
THE PRODUCT
Check the awning every 3 months to ensure all fixing are tightened and no damage on the products.
Do not use the awning if repair is needed.Do not try to repair the product by yourself,contact qaulified person
for repairing.
Attention!
Before opening the awning, make sure all the fixing bolts and security devices are properly installed
and tightened.
Always close the awning during rainy days, windy days or the awning is not in use.
Failed to observe the instrution may lead to material and constructional damage of the awning.
The folding arms of the awning are under tension and can cause damage and injury when they are
open up suddenly.
Never try to disassemble the awning or repiar the awning by yourself. Consult a competent
technician for help.
Net weight
(Kg)
18-24
09030-BW92000.indd 13 04.10.18 20:07

- 14 -
Accessories and required tools
Please prepare below tools before installation:
Power drill with drilling bit
of Ø8mm and Ø10mm
Tape measure Wrench (wrenches of
M6 )
Accessories and required tools
2
Screwdriver
09030-BW92000.indd 14 04.10.18 20:07
A F
C
D
G
x1
x2
x2
x1
x4
H
E
J
I
x1
x2
x4
x2
x1
x1
K
x3
L

- 15 -
Installation procedure
40mm
Max.3000mm
1200~1300mm
3
Installation Procedure
48mm
48mm
Wall
≤3000mm
Ø8x4
Ø8x4
B
F
E
H
A
F
B
2x
C
F
B
2x
CD
G
E
Hook mouth
GD
E
Make sure to be
perpendicular to the wall
09030-BW92000.indd 15 04.10.18 20:07

- 16 -
D
Ix2
Jx2
Ø10x2
4
CAUTION! DO NOT RELEASE THEHANDLE GRIPWHEN EXTRACTING / RETRACTING THEFABRIC
SCREEN!
1) Open / Extraction
i) Hold the handle grip firmly throughout the whole extraction process.
ii) Pull the handle grip out of the folding screen gently.
iii) Slowly walk toward the fastness bracket.
iv) Secure the handle grip on the knot of fastness bracket.
2) Close / Retraction
i) Hold the handle grip firmly throughout the whole retraction process.
ii) Unlock the handle grip from the fastness bracket.
iii) Slowly walk toward the folding screen until whole fabric screen be rolled into it.
Operation instructions
The other installation method when two wall face to each other:
09030-BW92000.indd 16 04.10.18 20:07
Third installation method
A
72mm
Ø8x4
F
L
3x
L
K
3x A
L
57mm
Hook mouth
Remove

- 17 -
5
1. Always close the Fold Screen in windy days, heavy rain and when you are not using it.
2. Pls do not unpick and wash the fabric. If you need replace the fabric,please turn to experts for
help.
3. Check the overall installation and all the fasteners regularly,especially at the beginning of a new
season,to ensure the fasteners are tightened and in good conditions.
Maintenance
09030-BW92000.indd 17 04.10.18 20:07

- 18 -
Name list of parts
◆front bar
◆end cap ◆wall bracket
fabric
※Note:
1. When the parts with ◆are damaged, don't use the
product before they are replaced.
6
◆ Handle grip
◆Verbindung ◆Fastness bracket
Name list of parts
Note:
When the parts with are damaged, don‘t use the product before they are replaced
09030-BW92000.indd 18 04.10.18 20:07

- 19 -
Name • Nome • Nom • Naam
Nr. • No. • n°
Typ • Type • Tipo
Service • Servizio
Imported by baumarkt direkt GmbH & Co KG
Alter Teichweg 25, 22081 Hamburg, Germany
Produktberatung: 01806/ 63 06 30 Festnetz 20 Cent/Anruf, Mobilfunk max. 60 Cent/Anruf
Quelle D Fachberatung: 01806/111 100 Festnetz 20 Cent/Anruf, Mobilfunk max. 60 Cent/Anruf
D
CH
F
I
A
Bei Problemen oder Fragen wenden Sie sich bitte an unsere Servicehotline!
Quelle CH: 0848 85 85 00 Ackermann CH: 0848 85 85 11, Jelmoli Technik: 0848 858 530
Si vous avez des problèmes ou des ques
In caso di problemi o ulteriori domande, chiamate il nostro servizio clienti!
Quelle CH: 0848 85 85 02 Ackermann CH: 0848 85 85 31, Jelmoli Technik: 0848 858 530
tions, contactez notre service en ligne!
Quelle CH: 0848 85 85 01 Ackermann CH: 0848 85 85 21, Jelmoli Technik: 0848 858 530
Universal: 0043/662/4485 59 Fachberatung Heimwerken (zum Festnetztarif – je nach Betreiber)
Otto: 0043/316/606 159 Beratung Heimwerken (zum Festnetztarif – je nach Betreiber)
Quelle: 0043/662/9005 59 Fachberatung Heimwerken (zum Festnetztarif – je nach Betreiber)
NL call center telefoonnummer 0900-1901 15 ct/min
Name • Nome • Nom • Naam
Nr. • No. • n°
Typ • Type • Tipo
Service • Servizio
Imported by baumarkt direkt GmbH & Co KG
Alter Teichweg 25, 22081 Hamburg, Germany
Produktberatung: 01806/ 63 06 30 Festnetz 20 Cent/Anruf, Mobilfunk max. 60 Cent/Anruf
Quelle D Fachberatung: 01806/111 100 Festnetz 20 Cent/Anruf, Mobilfunk max. 60 Cent/Anruf
D
CH
F
I
A
Bei Problemen oder Fragen wenden Sie sich bitte an unsere Servicehotline!
Quelle CH: 0848 85 85 00 Ackermann CH: 0848 85 85 11, Jelmoli Technik: 0848 858 530
Si vous avez des problèmes ou des ques
In caso di problemi o ulteriori domande, chiamate il nostro servizio clienti!
Quelle CH: 0848 85 85 02 Ackermann CH: 0848 85 85 31, Jelmoli Technik: 0848 858 530
tions, contactez notre service en ligne!
Quelle CH: 0848 85 85 01 Ackermann CH: 0848 85 85 21, Jelmoli Technik: 0848 858 530
Universal: 0043/662/4485 59 Fachberatung Heimwerken (zum Festnetztarif – je nach Betreiber)
Otto: 0043/316/606 159 Beratung Heimwerken (zum Festnetztarif – je nach Betreiber)
Quelle: 0043/662/9005 59 Fachberatung Heimwerken (zum Festnetztarif – je nach Betreiber)
NL call center telefoonnummer 0900-1901 15 ct/min
RETRACTABLE
AWNING
BW13000
09030-BW92000.indd 19 04.10.18 20:07

09030-BW92000.indd 20 04.10.18 20:07
