Kramer FC-340 User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
FC-340
SDI Scaler/Embedder/Scan
Converter
P/N: 2900-000768 Rev 5

FC-340 –Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3
3Overview 4
4Defining the FC-340 5
5Installing the FC-340 in a Rack 7
6Connecting the FC-340 8
6.1 Connecting a Serial Controller to the FC-340 9
6.2 Connecting to the FC-340 via Ethernet 9
6.3 Connecting the Balanced/Unbalanced Stereo Audio Output 12
7Operating the FC-340 13
7.1 Changing the Output Resolution 13
7.2 Using the Menu 14
7.3 Resetting the Device to Factory Default Configuration 16
7.4 Locking and Unlocking the Front Panel 17
7.5 Updating the Firmware Using the K-Upload Software 17
8Technical Specifications 18
9Default Parameters 19
9.1 Default Communication Parameters 19
10 Kramer Protocol 20
10.1 Protocol 3000 Syntax 20
10.2 Command Part Details 21
10.3 Kramer Protocol 3000 Commands 22
Figures
Figure 1: FC-340 SDI Scaler/Embedder/Scan Converter Front Panel 5
Figure 2: FC-340 SDI Scaler/Embedder/Scan Converter Rear Panel 6
Figure 3: Connecting the FC-340 SDI Scaler/Embedder/Scan Converter 8
Figure 4: Local Area Connection Properties Window 10
Figure 5: Internet Protocol (TCP/IP) Properties Window 11
Figure 6: Balanced Stereo Audio Connection 12
Figure 7: Unbalanced Stereo Audio Connection 12

FC-340 - Getting Started
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP
5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP
7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and
GROUP 14: Collaboration.
Congratulations on purchasing your FC-340 SDI Scaler/Embedder/Scan
Converter which is ideal for broadcast and production studios as well as digital
and analog AV authoring.

2
FC-340 - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check if
firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer FC-340 away from moisture, excessive sunlight and
dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the power cord that is supplied with the unit
Warning:
Do not open the unit. High voltages can cause
electrical shock! Servicing by qualified personnel only
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!
!

FC-340 - Getting Started
3
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
.

4
FC-340 - Overview
3 Overview
The FC-340 SDI Scaler/Embedder/Scan Converter is ideal as a broadcast-quality
video scaler and audio embedder/de-embedder for digital signals up to 3G
HD-SDI.
All mentions of SDI in this manual include signals up to and including 3G HD-SDI.
The FC-340 features:
A maximum data rate of 3Gpbs
1 SDI video input and 2 SDI video outputs
1 re-clocked, looping video output
1 composite video output
2 balanced audio outputs
2 AES/3id audio inputs and 2 AES/3id audio outputs
Note: Some machines may have AES/EBU printed instead of
AES-3id.
The option to select either the embedded audio or to embed two
independent audio groups
Kramer reKlocking™ & Equalization Technology that rebuilds the digital
signal to travel longer distances
An LCD text display for easy configuration and operation
i

4 Defining the FC-340
Figure 1 defines the front panel of the FC-340.
Figure 1: FC-340 SDI Scaler/Embedder/Scan Converter Front Panel
#
Feature
Function
1
LCD Readout
Displays either the input/output resolution currently selected or the menu during
configuration
2
Menu Navigation Buttons
Press the Enter, up (▲), down (▼), left (◄) and right (►) buttons to navigate the
menu, and modify parameters or values (see Section 7.2)
3
PANEL LOCK Button
Press and hold to lock the front panel buttons. Press and hold again to unlock the
buttons (see Section 7.4)
4
ESC Button
Press to move back one level through the menu (see Section 7.2)
Figure 2 defines the rear panel of the FC-340.
FC-340 –Overview
5

Figure 2: FC-340 SDI Scaler/Embedder/Scan Converter Rear Panel
#
Feature
Function
1
ANALOG OUTPUT
CV BNC Video Connector
Connect to a composite video acceptor (see the Note in Section 7.1)
2
Audio 15-pin Terminal Block
Connect to a balanced audio acceptor (see Section 6)
3
Audio 25-pin Terminal Block
Connect to a balanced audio acceptor
4
RS-232 3-pin Serial Port Terminal Block
Connect to a serial controller (see Section 6.1)
5
ETHERNET RJ-45 Connector
Connect to a PC controller via a LAN (see Section 6.2)
6
IN SDI BNC Connector
Connect to an SDI signal source
7
LOOP BNC Connector
Connect to an SDI acceptor
8
OUT 1 BNC Connector
Connect to an SDI acceptor
9
OUT 2 BNC Connector
Connect to an SDI acceptor
10
RESET Button
Press and hold while switching on the device to reset to factory default
parameters (see Section 9)
11
AES/3id
(AES/EBU in
some machines)
IN 1 BNC Connector
Connect to an AES/3id audio source
12
IN 2 BNC Connector
Connect to an AES/3id audio source
13
OUT 1 BNC Connector
Connect to an AES/3id audio acceptor
14
OUT 2 BNC Connector
Connect to an AES/3id audio acceptor
15
AC Mains
Power Socket
Connect the mains power cord
16
Fuse
AC mains supply protection fuse
17
Power Switch
Turns the device on and off
6
FC-340 –Defining theFC-340

FC-340 - Installing the FC-340 in a Rack
7
7
5 Installing the FC-340 in a Rack

8
FC-340 - Connecting the FC-340
6 Connecting the FC-340
Switch off the power to all devices before connecting them to your
FC-340. After connecting your FC-340, connect its power and then
switch on the power to the other devices.

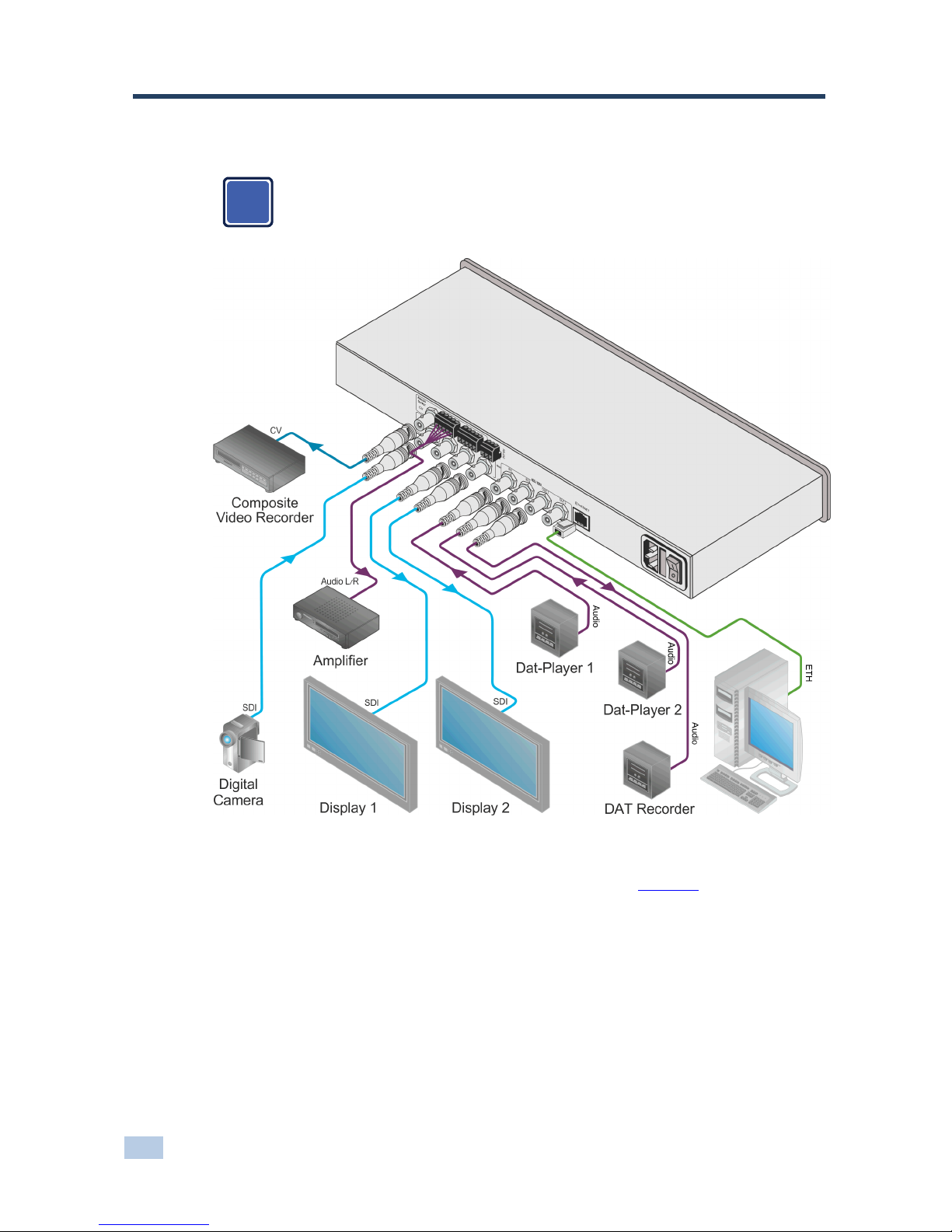

Figure 3: Connecting the FC-340 SDI Scaler/Embedder/Scan Converter
To connect the FC-340 as illustrated in the example in Figure 3:
1. Connect an SD/HD/3G HD-SDI source (for example, an HD digital video
camera) to the SDI IN BNC connector.
2. Connect the SDI OUT 1 BNC connector to an SDI acceptor (for example, an
SDI display).
i

FC-340 - Connecting the FC-340
9
9
3. Connect the SDI OUT 2 BNC connector to an SDI acceptor (for example, an
SDI display).
4. Connect the CV ANALOG OUTPUT BNC connector to a composite video
acceptor (for example, a composite video recorder). See the Note in
Section 7.1.
5. Connect the CV 5-pin terminal block to a balanced audio acceptor (for
example, an amplifier).
6. Connect AES digital audio sources (for example, DAT players) to the
AES/3id IN 1 and IN 2 BNC connectors.
7. Connect the AES/3id OUT 1 BNC connector to an AES digital audio
acceptor (for example, a DAT recorder).
Some machines may have AES/EBU printed instead of AES-3id.
8. Optional—Connect a controller via either RS-232 or a LAN to the Ethernet
RJ-45 connector.
6.1 Connecting a Serial Controller to the FC-340
You can connect to the FC-340 via an RS-232 connection using, for example, a
PC.
To connect to the FC-340 via RS-232:
Connect the 3-pin terminal block on the rear panel port of the FC-340 (pin G
to pin 5, pin Rx to pin 3, pin Tx to pin 2) to the RS 232 9-pin D-sub port on
your PC
6.2 Connecting to the FC-340 via Ethernet
You can connect the FC-340 via Ethernet via either of the following methods:
A crossover cable (see Section 6.2.1) for direct connection to the PC
A straight through cable (see Section 6.2.2) for connection via a network hub
or network router
After connecting the Ethernet port, you have to install and configure your Ethernet Port. For
detailed instructions, see the Ethernet Configuration Guide (Lantronix) in the technical support
section on our Web site http://www.kramerelectronics.com.

10
FC-340 - Connecting the FC-340
6.2.1 Connecting the Ethernet Port Directly to a PC
You can connect the Ethernet port on the FC-340 to the Ethernet port on your PC
via a crossover cable with RJ-45 connectors. This type of connection is
recommended for identification of the factory default IP Address of the FC-340
during the initial configuration.
To configure your PC after connecting the Ethernet port:
1. Right-click the My Network Places icon on your desktop.
2. Select Properties.
3. Right-click Local Area Connection Properties.
4. Select Properties.
The Local Area Connection Properties window appears.
5. Select the Internet Protocol (TCP/IP) and click the Properties Button.

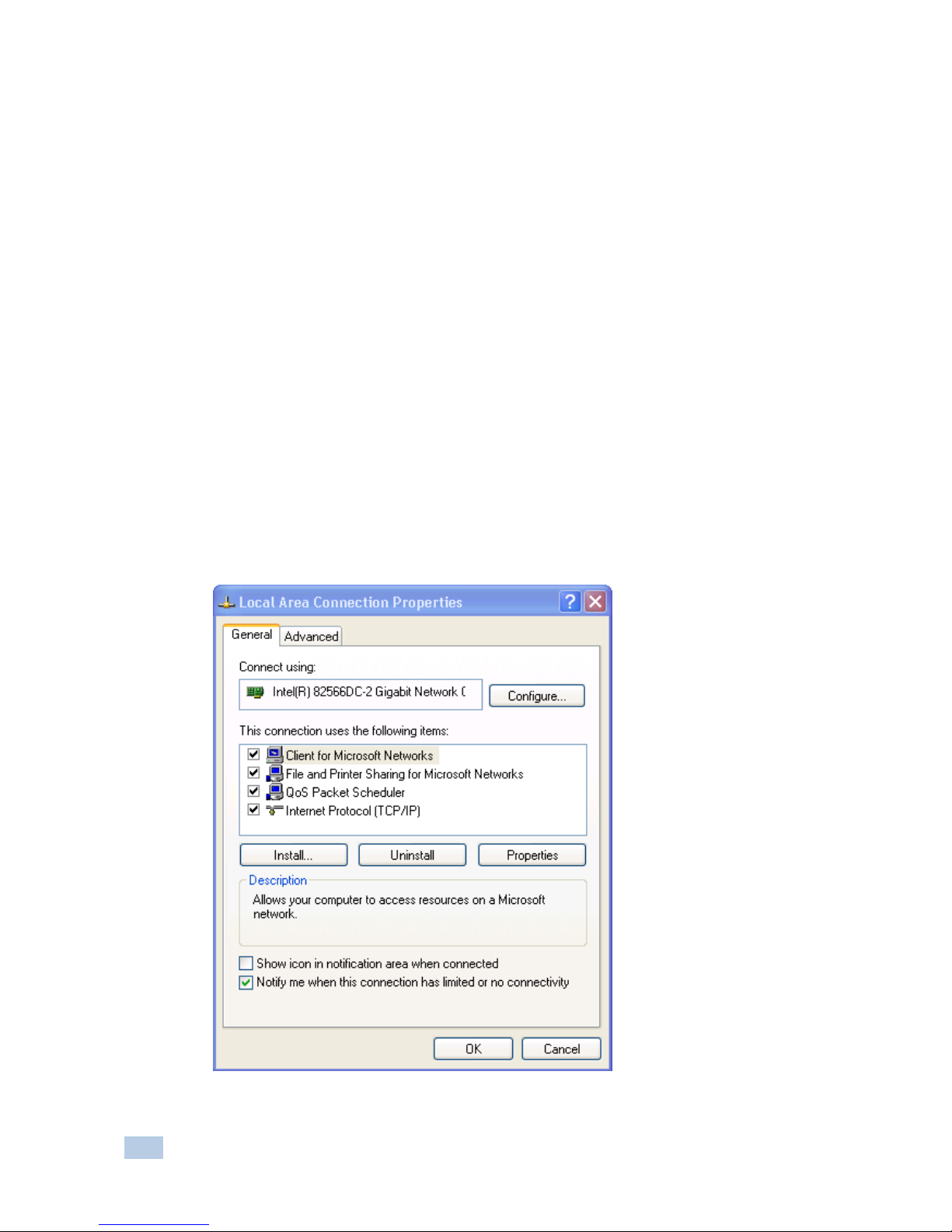

Figure 4: Local Area Connection Properties Window

FC-340 - Connecting the FC-340
11
11
6. Select Use the following IP Address and enter the details as shown in
Figure 5. You can use any IP address in the range 192.168.1.1 to
192.168.1.255 (excluding 192.168.1.39) that is provided by your IT
department.
Figure 5: Internet Protocol (TCP/IP) Properties Window
7. Click OK.
6.2.2 Connecting to the Ethernet Port via a Network Switch/Hub
To connect to the Ethernet port on the FC-340 via a network switch/hub:
Connect the PC to the Ethernet network switch/hub using a straight through
cable

12
FC-340 - Connecting the FC-340
6.3 Connecting the Balanced/Unbalanced Stereo Audio
Output
This section illustrates how to wire the devices to the balanced audio output:
A balanced stereo output connection, see Figure 6
An unbalanced stereo output connection, see Figure 7
Figure 6: Balanced Stereo Audio Connection
Figure 7: Unbalanced Stereo Audio Connection

FC-340 - Operating the FC-340
13
13
7 Operating the FC-340
In general operation, the video signal received on the SDI IN connector is output
simultaneously on both SDI OUT connectors as well as the composite video
ANALOG OUTPUT connector. The audio embedded in the SDI input signal is
output on both AES/3id connectors simultaneously as well as on the balanced
audio ANALOG OUTPUT.
When the FC-340 is powered on, the following is displayed briefly:
FC340
KRAMER
The device then performs a self test. If the test is successful the Menu is displayed
as shown below.
VIDEO OUT >
AUDIO OUT >
If there is no button activity for approximately 30 seconds, the display reverts to
displaying the input status and output resolution similar to that shown below:
IN unlocked
OUT 1080p59.94
7.1 Changing the Output Resolution
To change the output resolution:
1. Press the Enter button to display the menu.
The menu is displayed.
2. Using the up (▲) or down (▼) button, move through the menu options until
the flashing cursor is on Video Out.

14
FC-340 - Operating the FC-340
3. Press Enter.
The Video Out options are displayed.
4. Using the up (▲) or down (▼) button, move through the Video Out options
until the flashing cursor is on Resolution.
5. Press Enter.
The Resolution options are displayed.
6. Using the up (▲) or down (▼) button, select the required output resolution.
7. Press Enter.
The selected output resolution is saved.
Note: The CV output follows the frame rate of the selected resolution. For 50Hz
resolutions the PAL standard is used, and for 59.94/60Hz resolutions NTSC is used.
7.2 Using the Menu
The menu is shown on the display when the Enter button is pressed. If there is no
button activity for approximately 30 seconds, the display reverts back to the
Input/Output display.
Navigation through the menu is performed as follows:
Enter—display the menu or select a parameter/value
Up (▲) or Right (►)—scroll up through the parameter/value list
Down (▼) or Left (◄)—scroll down through the parameter/value list
ESC—Move to the first level menu
The main menu comprises six sections:
Video Out (see Section 7.2.1)
Audio Out (see Section 7.2.2)
Status (see Section 7.2.3)
Comm Settings (see Section 7.2.4)
System (see Section 7.2.5)

FC-340 - Operating the FC-340
15
15
7.2.1 Video Out Sub-menu
The parameters in the Video Out sub-menu set the output video characteristics.
Parameter
Description
Options
Resolution
Sets the output
resolution
1080p59.94, 1080p60, 1080p50, NTSC, PAL,
720p59.94, 720p60, 720p50, 1080i59.94,
1080i60, 1080i50
Default—720p/59.94
Genlock
Mode
Sets the source for
the genlock signal
No Genlock, Input
Default—No Genlock
Note: The CV output frame rate follows the above settings (see Section 7.1)
7.2.2 Audio Out Sub-menu
The parameters in the Audio Out sub-menu set the audio output characteristics.
Parameter
Description
Options
Embedding >
Sets the audio group to
embed Group 1, Group
2, Group 3 and Group 4
Off, Embedded input, AES input
Default—Embedded input
AES Out 1
Embeds the AES audio
input 1
Gr1 Pair1, Gr1 Pair2, Gr2 Pair1, Gr2 Pair2,
Gr3 Pair1, Gr3 Pair2, Gr4 Pair1, Gr4 Pair2,
AES In1, AES In2, Off
Default—Gr1 Pair1
AES Out 2
Embeds the AES audio
input 2
Gr1 Pair1, Gr1 Pair2, Gr2 Pair1, Gr2 Pair2,
Gr3 Pair1, Gr3 Pair2, Gr4 Pair1, Gr4 Pair2,
AES In1, AES In2, Off
Default—Gr1 Pair2
7.2.3 Status Sub-menu
The parameters in the Status sub-menu display the input conditions.
Parameter
Description
Options
Video Input >
Displays the locked/unlocked status of
the video format and genlock
Format Unlocked
Genlock Unlocked
Audio Input
Displays the audio group status
G1 G2 G3 G4

16
FC-340 - Operating the FC-340
7.2.4 Comm Settings Sub-menu
The parameters in the Comm Settings sub-menu set the network IP and display
the serial communications values.
Parameter
Description
Options
NETWORK
IP address
Sets the IP network address
Any valid IP address
Default—192.168.001.039
IP mask
Sets the IP network mask
Any valid subnet
Default—255.255.000.000
IP gateway
Sets the IP gateway address
Any valid gateway address
Default—000.000.000.000
IP port
Sets the IP port number
Any valid TCP port
Default—05000
RS-232
Baud
Displays the baud rate
115200
Parity
Displays the parity bit setting
none
7.2.5 System Sub-menu
The parameters in the System sub-menu display the device versions and set the
LCD display characteristics.
Parameter
Description
FIRMWARE
The device firmware version
FPGA VER
The device FPGA version
S/N
The device serial number
7.3 Resetting the Device to Factory Default Configuration
To reset the device to the factory default configuration:
1. Turn the device off.
2. Press and hold the Reset button on the rear panel of the device.
3. While holding the button depressed, turn the device on.
4. Hold the button depressed for 10 seconds and release the button.
The configuration is reset to the factory default.

FC-340 - Operating the FC-340
17
17
7.4 Locking and Unlocking the Front Panel
You can lock the front panel buttons to prevent unwanted key presses from
changing the current configuration.
To lock the front panel:
Press and hold the Panel Lock button.
The button lights, the Locked message is displayed briefly, and the front
panel buttons are locked. Pressing any button causes the Locked message
to display briefly and the Panel Lock button to flash
To unlock the front panel:
Press and hold the Panel Lock button.
The button no longer lights and the front panel buttons are unlocked
7.5 Updating the Firmware Using the K-Upload Software
The FC-340 uses a microcontroller that runs firmware located in flash memory.
The latest version of firmware and upgrade instructions (Kramer K-Upload Guide)
can be downloaded from the Kramer Web site at
http://www.kramerelectronics.com.
