Kramer VM-2DP User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
VM-2DP
1:2 DisplayPort Distributor
P/N: 2900
-000769 Rev 1

1. Connect the power.
2. Connect the output(s) from which you want to acquire the EDID.
3. Press and hold the EDID SETUP button to select the desired EDID.
The OUT LEDs illuminate in the following cycle: OUT 1, OUT 2 and both blink (default).
4. Release the button when reaching the desired set up.
The EDID is now acquired.
Step 1: Check what’s in the box
VM-2DP Quick Start Guide
Step 2: Install the VM-2DP
Step 3: Connect the inputs and outputs
Mount the machine in a rack (using the RK-3T, RK-6T or RK-9T rack adapters) or place
on the table.
This page guides you through a basic installation and first-time use of your .
For more detailed information, see
VM-2DP
the user manual. You can download the latest
Kramer user manuals at for detailed instructions.
VM-2DP
http://www.kramerelectronics.com
It's a good idea to save the original box and packaging materials in case
your Kramer product needs to be returned to the factory for service.
Computer Graphics
Source (PC)
Always switch OFF the power on each device before connecting it to your .VM-2DP
For best results, we recommend
that you always use Kramer high-
performance cables to connect
your AV equipment to the VM-2DP.
The 1:2 DisplayPort Distributor
1 power adapter (5V DC input)
VM-2DP
4 rubber feet
1 Quick start sheet
1 User Manual
Display
Display
Step 4: Connect the power
Connect the 5V DC power adapter to the power socket and connect the adapter to the mains
electricity.
After connecting your , connect its power and then switch on the power on
each device.
VM-2DP
Step 5: Operate the VM-2DP
Acquire the EDID
To restore the default EDID, disconnect the outputs and repeat the above procedure

VM-2DP – Contents i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
3Overview 3
3.1 About DisplayPort 3
3.2 About HDCP 4
3.3 Defining EDID 4
4Your VM-2DP 1:2 DisplayPort Distributor 5
5Connecting the VM-2DP 1:2 DisplayPort Distributor 6
5.1 Acquiring the EDID 7
6Technical Specifications 8
Figures
UFigure 1: VM-2DP 1:2 DisplayPort DistributorU5
UFigure 2: Connecting a VM-2DP 1:2 DisplayPort DistributorU6

VM-2DP - Introduction 1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better! Our 1,000-plus different models now
appear in 11 groups that are clearly defined by function.
Our 1,000-plus different models now appear in 11 groups that are clearly defined by
function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix
Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;
GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;
GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters;
GROUP 11: Sierra Products
Congratulations on purchasing your Kramer DigiTOOLS®VM-2DP1:2 DisplayPort
Distributor.The VM-2DP is ideal for:
•Home theater, presentation and multimedia applications
•Rental and staging
The package includes the VM-2DP 1:2 DisplayPort Distributor together with those
items described in the check what’s in the box section of the quick start and listed in
the Accessories spec.

2 VM-2DP - Getting Started
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high-performance high-resolution cables
•Use only the power cord that is supplied with this machine
date user-to-to check for uphttp://www.kramerelectronics.comGo to
manuals, application programs (where appropriate), and to check if
firmware upgrades are available.
2.1 Achieving the Best Performance
To achieve the best performance:
•Use only good quality connection cables to avoid interference, deterioration
in signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
•Avoid interference from neighboring electrical appliances that may adversely
influence signal quality and position your Kramer VM-2DP away from
moisture, excessive sunlight and dust
Caution:
No operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics input power wall
adapter that is provided with the unit
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!

VM-2DP - Overview 3
3
3 Overview
The high-quality VM-2DP 1:2 DisplayPort Distributor takes a DisplayPort (DP) input
signal and distributes it to two DisplayPort (DP) outputs. In particular, the VM-2DP
features:
•One DisplayPort (DP) input, two DisplayPort (DP) outputs, two output status
LEDs, an active input status LED, as well as an EDID select button
•Up to 2.7Gbps bandwidth per lane
•A maximum resolution of 2560x1600 pixels and a total maximum bandwidth
of 10.8Gbps over four lanes
•I-EDIDPro™ Kramer Intelligent EDID Processing™, an intelligent EDID
handling and processing algorithm that ensures Plug and Play operation for
DisplayPort systems
•Compliance to HDCP
•High-resolution and rich colors and transports audio and multiple video
streams
•5V DC power
3.1 About DisplayPort
DisplayPort (DP) is a digital display interface standard for the PC industry. It
delivers the highest resolutions and sound quality.
In addition, DisplayPort:
•Provides a simple interface between a PC and a display, projector or TV
•Supports 1 to 4 data pairs ("lanes") at a transfer rate of 1.62Gb or 2.7Gb per
second
•Has a maximum length of 15 meters for video transmission, at a resolution of
1080p/60Hz and 3 meters for full bandwidth transmission
•Video specs include a video path that supports 6 to 16 bits per color channel,
a maximum resolution of 2560x1600 pixels and a total maximum bandwidth
of 10.8Gbps over four lanes
•Is backward-compatible with HDMI, DVI (Digital Visual Interface) and VGA,
via an appropriate adapter

4 VM-2DP - Overview
•Version 1.1 supports HDCP (see section 3.2)
•Supports two-way communication over its auxiliary channel between the
video source (for example, a PC) and the digital display, enabling new
functionality such as automatic configuration and one-button play
•Replaces the interface needed between the PC and an external display, as
well as the low voltage differential signaling (LVDS) interface in notebook
computers, monitors, to connect to LCD panels
3.2 About HDCP
The High-Bandwidth Digital Content Protection (HDCP) standard developed by Intel
protects digital video and audio signals transmitted over DVI or HDMI connections
between two HDCP-enabled devices to eliminate the reproduction of copyrighted
material. To protect copyright holders (such as movie studios) from having their
programs copied and shared, the HDCP standard provides for the secure and
encrypted transmission of digital signals.
3.3 Defining EDID
The Extended Display Identification Data (EDID) is a data-structure provided by a
display, to describe its capabilities to a graphics card (that is connected to the
display’s source). The EDID enables the VM-2DP to “know” what kind of monitor is
connected to the output. The EDID includes the manufacturer’s name, the product
type, the timing data supported by the display, the display size, luminance data and
(for digital displays only) the pixel mapping data.
EDID is defined by a standard published by the Video Electronics Standards
Association (VESA).

VM-2DP - Your VM-2DP 1:2 DisplayPort Distributor 5
5
4 Your VM-2DP 1:2 DisplayPort Distributor

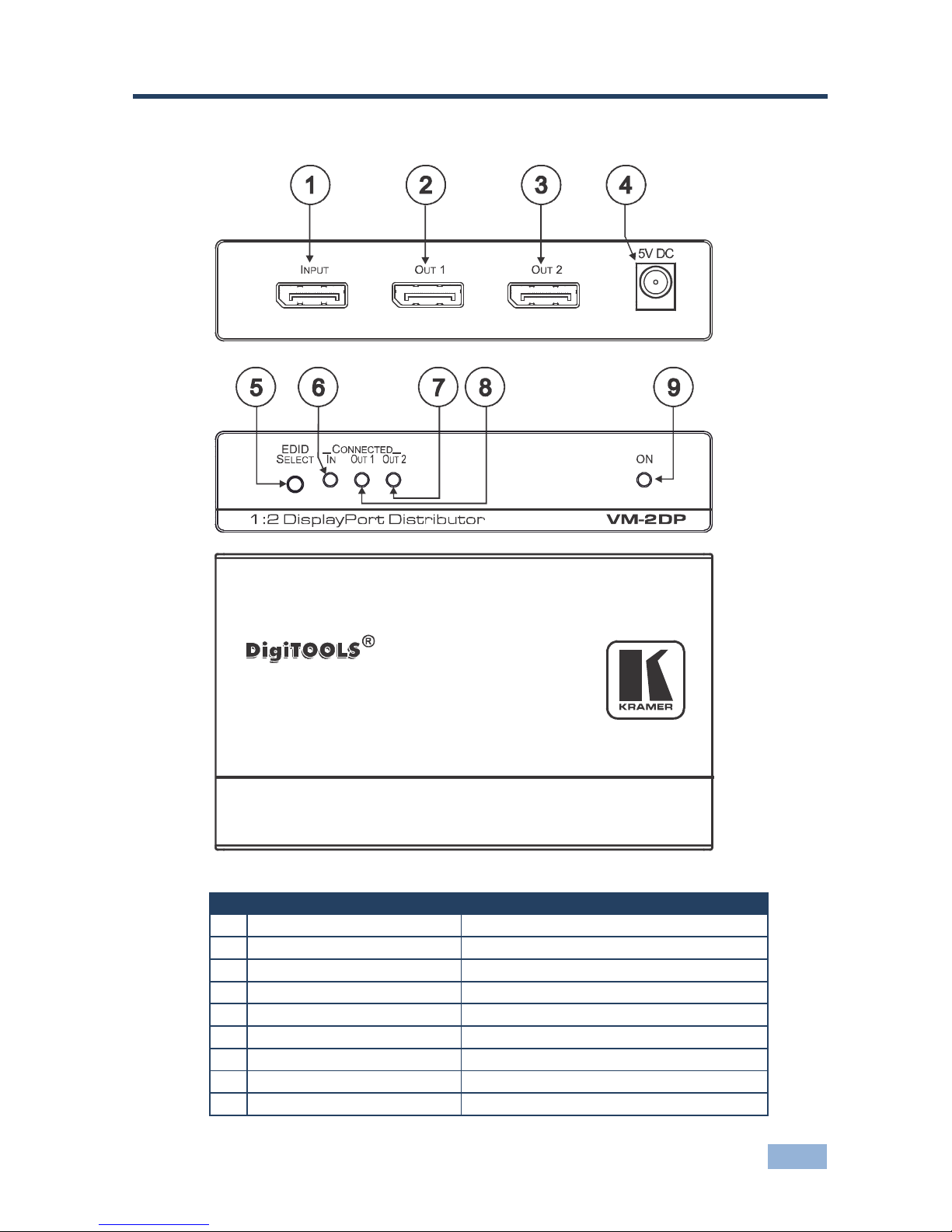

Figure 1: VM-2DP 1:2 DisplayPort Distributor
#
Feature
Function
1 INPUT DisplayPort Connector Connects to the DP source
2 OUT 1 DisplayPort Connector Connects to the DP acceptor 1
3 OUT 2 DisplayPort Connector Connects to the DP acceptor 2
4 5V DC +5V DC connector for powering the unit
5 EDID SELECT Button Press to select the EDID
6 IN LED Illuminates green when the input is selected
7 OUT 2LED Illuminates green when output 2 is selected
8 OUT 1LED Illuminates green when output 1 is selected
9 ON LED Illuminates green when receiving power

6 VM-2DP - Connecting the VM-2DP 1:2 DisplayPort Distributor
5 Connecting the VM-2DP 1:2 DisplayPort
Distributor
Always switch OFF the power on each device before connecting it to
your VM-2DP. After connecting your VM-2DP, connect its power and
then switch on the power on each device.
To connect the VM-2DP, as the example in Figure 2 shows, do the following:
1. Connect the DP source (for example, a PC with a DP output) to the INPUT
DP connector.
2. Connect the DP OUT connectors to up to two acceptors, as follows:
DP OUT 1 connector to a display
DP OUT 2 connector to a display
3. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity.

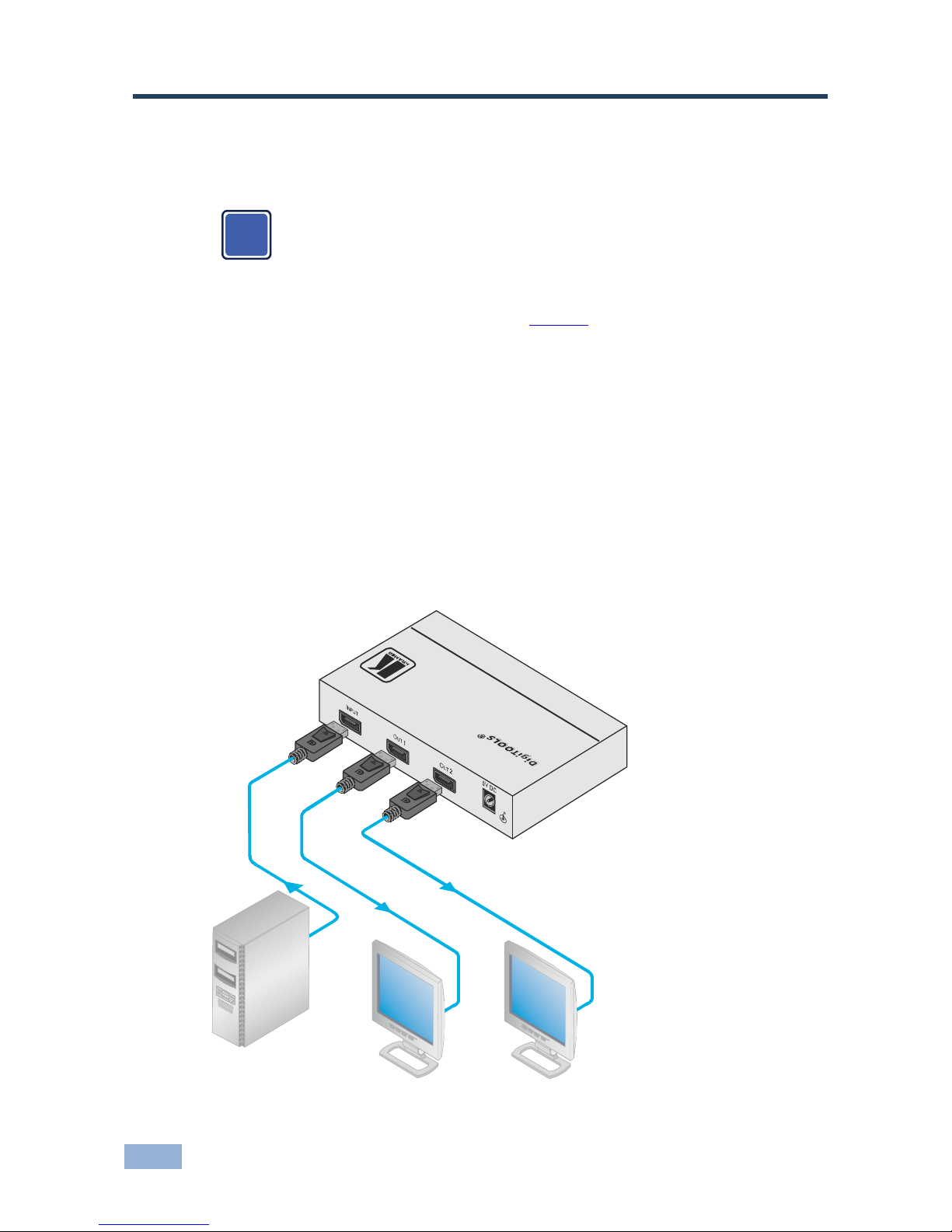

Figure 2: Connecting a VM-2DP 1:2 DisplayPort Distributor
i
Display
Port
Computer
Graphics
Source Display 1 Display 2
Display
Port
Display
Port

VM-2DP - Connecting the VM-2DP 1:2 DisplayPort Distributor 7
7
5.1 Acquiring the EDID
Initially, the VM-2DPoperates with the factory default EDID (the VM-2DP reads the
EDID, which is stored in its non-volatile memory). This lets you connect the power
before connecting one of the acceptors or sources.
The EDID is usually acquired once, when the machine is being set up in an
installation. Once acquired, the EDID is saved in non-volatile memory and further
acquisition is not necessary.
You can acquire the EDID from:
•One output (the relevant output blinks)
•The default EDID (both output LEDs blink)
When pressing the EDID SETUP button momentarily, the OUT LEDs indicate which
type of EDID was last acquired. If the:
•OUT 1 LED illuminates, the OUT 1 EDID is stored in the non-volatile memory
•OUT 2 LED illuminates, the OUT 2 EDID is stored in the non-volatile memory
•OUT 1 and OUT 2 LEDs illuminate, the default EDID is stored in the non-
volatile memory
To acquire the EDID, do the following:
1. Connect the power.
2. Connect the output or outputs from which you want to acquire the EDID.
3. Press and hold the EDID SELECT button to select the desired EDID.
The OUT LEDs illuminate in the following cycle: OUT 1, OUT 2 and both
OUT 1 and OUT 2 blink (default).
4. Release the button when reaching the desired set up.
The EDID is now acquired.
If you set the machine to acquire the EDID from an output that is not
connected, the default EDID is acquired.
i

8 VM-2DP - Technical Specifications
6 Technical Specifications
INPUT: 1 DisplayPort Connector
OUTPUTS: 2 DisplayPort Connectors
BANDWIDTH: Supports up to 2.7Gbps bandwidth per lane and a total of
10.8Gps for all four lanes
COMPLIANCE WITH HDMI
STANDARD:
Supports: DisplayPort 1.1a and HDCP 1.3
CONTROLS: Output select button and LEDs; EDID select button and
LEDs
INDICATOR LEDs: IN, OUT 1, OUT 2, and ON LEDs
POWER SOURCE: 5V DC, 90mA
OPERATING TEMPERATURE: 0° to +55°C (32° to 131°F)
STORAGE TEMPERATURE: -45° to +72°C (-49° to 162°F)
HUMIDITY: 10% to 90%, RHL non-condensing
DIMENSIONS: 12cm x 7.15cm x 2.44cm (4.7" x 2.81" 0.96") W, D, H
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: Power supply, bracket installation kit
OPTIONS: Kramer DisplayPort cables
Rack adapters: RK-3T, RK-6T or RK-9T
Specifications are subject to change without notice
Go to our Web site at http://www.kramerelectronics.com to access the list of resolutions

VM-2DP - Technical Specifications 9
9
LIMITED WARRANTY
WHO IS PROTECTED?
WHAT IS COVERED AND WHAT IS NOT COVERED
WHATWE WILLPAYFORAND WHATWE WILL NOT PAY FOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OF IMPLIED WARRANTIES
EXCLUSION OF DAMAGES
CAUTION!
We warrant this product free from defects in material and workmanship under the following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for three years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items. We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer
shall not be liable for:
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not
covered by the warranty:
1. Any product which is not distributed by us or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are
the responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of
warranty coverage, and should be included in any shipment of the product. Please also include in any mailing a
contact name, company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration
to the length of this warranty.
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the
product, loss of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on
how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations and exclusions may not apply to you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
IF reattached, removed or otherwise interfered with.
* FCC and CE approved using STP cable (for twisted pair products)
NOTE
Part 1:

For the latest information on our products and a list of Kramer distributors,
visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site:
E-mail:
www.kramerelectronics.com
[e-mail]
!
SAFETY WARNING
Disconnect the unit from the power
supply before opening and servicing
