Kramer FC-202NET User manual

KRAMER ELECTRONICS LTD.
PRELIMINARY
USER MANUAL
MODEL:
FC-202NET
2x 2 Dante Interface
P/N: 2900-300405 Rev 1

FC-202NET –Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3
3Overview 4
4Defining the FC-202NET 2 x 2 Dante Interface 5
5Connecting the FC-202NET 6
5.1 Connecting the FC-202NET 6
5.2 Connecting the Inputs 7
5.3 Connecting the Outputs 9
6Setting the DIP-switch 10
7Troubleshooting 11
8Technical Specifications 12
Figures
Figure 1: FC-202NET 2 x 2 Dante Interface Rear Panel 5
Figure 2: Connecting the FC-202NET 2 x 2 Dante Interface 6
Figure 3: Connecting a Balanced XLR Input 8
Figure 4: Connecting a Balanced 6.5mm Phone Jack 8
Figure 5: Connecting an unbalanced RCA Input 8
Figure 6: Connecting an unbalanced 6.5mm Phone Jack 9

FC-202NET - Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix
Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters;
GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors;
GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and
GROUP 11: Sierra Products; GROUP 12: Digital Signage; and GROUP 13: Audio,
and GROUP 14: Collaboration.
Congratulations on purchasing your Kramer FC-202NET 2 x 2 Dante Interface,
which is ideal for the following typical applications:
Boardrooms
Classrooms
Hospitality
Transportation
Retail
Entertainment
Houses of worship

2
FC-202NET - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerav.com/downloads/FC-202Net to check for up-to-
date user manuals, application programs, and to check if firmware
upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer FC-202NET away from moisture, excessive sunlight
and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics power supply that is
provided with the unit
Warning:
Disconnect the power and unplug the unit from the wall
before installing
i
!
!

FC-202NET - Getting Started
3
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4
FC-202NET - Overview
3 Overview
The Kramer FC-202NET is a high-performance mono, audio power amplifier for
balanced signals that can output 50W of audio into 70V or 100V speaker systems.
The FC-202NET 2 x 2 Dante Interface features:
A Dante network interface
Two balanced, line-level/mic inputs
Two balanced, line-level outputs from the network
Independent gain setting per channel
Independent phantom power setting per channel
1/4U Rack housing

FC-202NET - Defining the FC-202NET 2 x 2 Dante Interface
5
4 Defining the FC-202NET 2 x 2 Dante
Interface
Figure 1: FC-202NET 2 x 2 Dante Interface Rear Panel
#
Feature
Function
1
5V DC Power
Connector
Connect to the power adapter
2
Dante RJ-45 Ethernet
Connector
Connect to the Dante audio source via the LAN
3
OUTPUT 6-pin
Terminal Block
2
Connect to the second balanced line-level audio acceptor,
(G, –, +)
4
1
Connect to the first balanced line-level audio acceptor, (G, –, +)
5
INPUT 6-pin
Terminal Block
2
Connect to the second balanced line-level audio source,
(G, –, +)
6
1
Connect to the first balanced line-level audio source, (G, –, +)
7
8-way DIP-switch
Sets the phantom power and gain per channel, (see Section 6)

6
FC-202NET - Connecting the FC-202NET
5 Connecting the FC-202NET
This chapter comprises the following sections:
Connecting the FC-202NET (see Section 5.1)
Connecting the inputs (see Section 5.2)
Connecting the outputs (see Section 5.3)
5.1 Connecting the FC-202NET
Always switch off the power to each device before connecting it to your
FC-202NET. After connecting your FC-202NET, connect its power and
then switch on the power to each device.

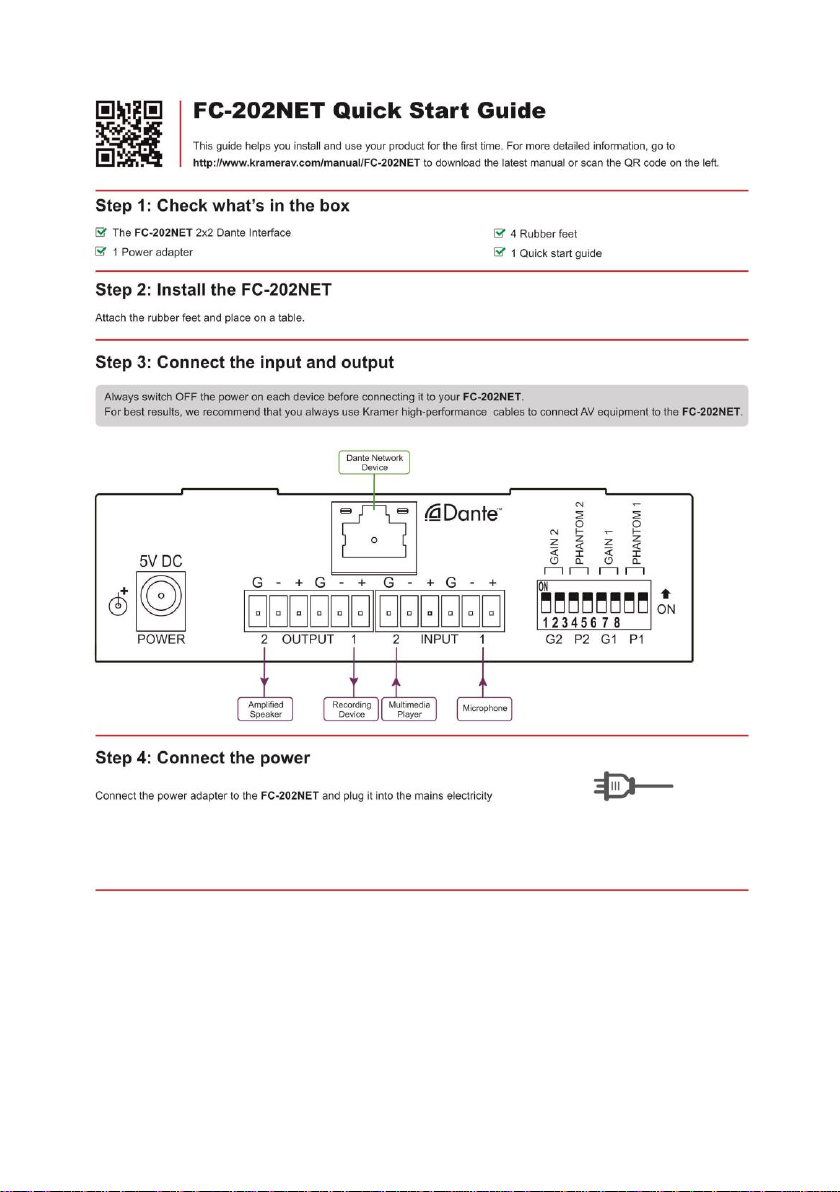

Figure 2: Connecting the FC-202NET 2 x 2 Dante Interface
i

FC-202NET - Connecting the FC-202NET
7
To connect the FC-202NET as illustrated in the example in Figure 2:
1. Connect a balanced audio source, (for example, a microphone) to the 3-pin
Input 1 terminal block.
2. Connect a balanced audio source, (for example, a multimedia player) to the
3-pin Input 2 terminal block.
3. Connect a Dante audio network source via the network to the Dante RJ-45
connector.
4. Connect the Output 2 3-pin terminal block to the first balanced, line-level
audio acceptor, (for example, a recording device).
5. Connect the Output 1 3-pin terminal block to the second balanced, audio
acceptor, (for example, an amplified speaker).
6. Connect the power adapter to the FC-202NET and plug the power adapter
into the mains power supply.
5.2 Connecting the Inputs
Your FC-202NET is provided with a 3-pin terminal block for each input channel.
This connector can accept either a balanced or an unbalanced connection,
however, some modifications must be made for an unbalanced connection. See
the next two sections for instructions on connecting the NetAV I/O 2x2 to its input
source.
5.2.1 Connecting Balanced Inputs
When using a balanced input source and connector, you must ensure that the hot,
cold, and ground pins of the connector are matched up to the +, –, and ground
pins of the FC-202NET terminal block connector respectively. The following
diagrams illustrate how to connect standard XLR and 6.5mm phone jack.

8
FC-202NET - Connecting the FC-202NET

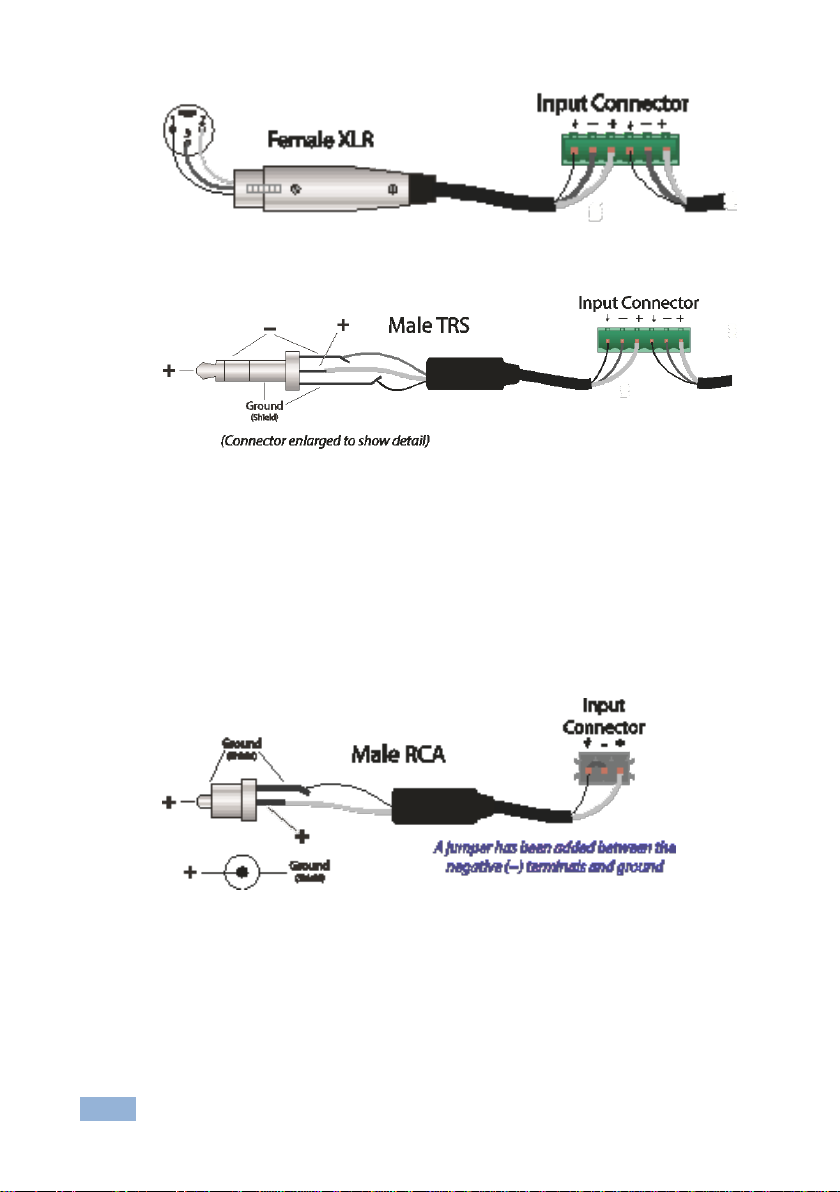

Figure 3: Connecting a Balanced XLR Input
Figure 4: Connecting a Balanced 6.5mm Phone Jack
5.2.2 Connecting Unbalanced Inputs
When using an unbalanced input source, a jumper must be added between the
negative (–) and ground terminals. The unbalanced source is connected to the
positive (+) and ground terminals.
Note: A jumper is required for connecting an unbalanced input.
Figure 5: Connecting an unbalanced RCA Input

FC-202NET - Connecting the FC-202NET
9

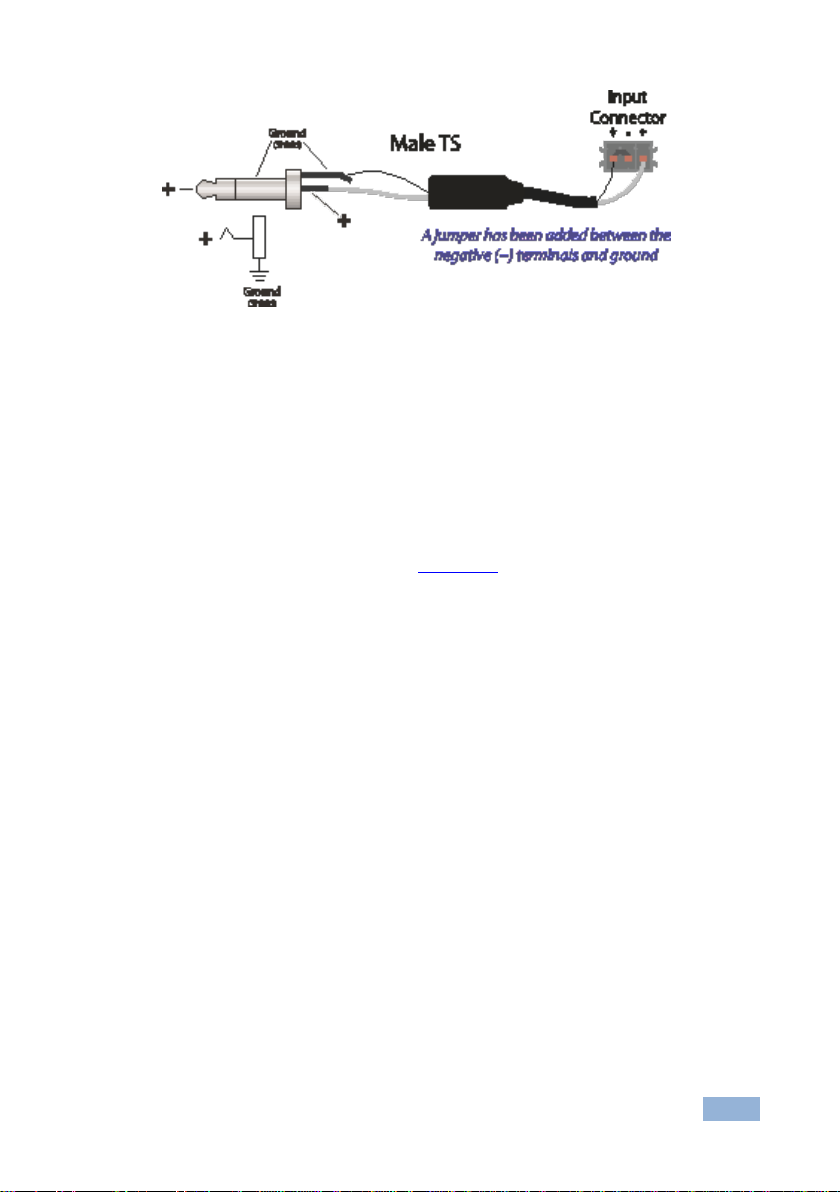

Figure 6: Connecting an unbalanced 6.5mm Phone Jack
5.3 Connecting the Outputs
Your FC-202NET is provided with a 3-pin terminal block for each output channel.
This connector offers a balanced output to interface with the input of another
device.
Connection methods for balanced and unbalanced outputs are identical as the
methods for inputs as referenced in Section 5.2.

10
FC-202NET - Setting the DIP-switch
6 Setting the DIP-switch
The 8-way DIP-switch on the rear panel sets the gain and enables/disables the
phantom power to each channel according to the DIP-switch settings shown in the
following table.
DIP-switch
Number
Channel
Function
Switch Setting
State
1, 2
2
Gain
On, On
Low gain
Off, Off
High gain
3, 4
Phantom Power
On, On
Power on
Off, Off
Power off
5, 6
1
Gain
On, On
Low gain
Off, Off
High gain
7, 8
Phantom Power
On, On
Power on
Off, Off
Power off

FC-202NET - Troubleshooting
11
7 Troubleshooting
No output on one or both channels; the power indicator is lit.
Check that Dante has been configured properly.
The input is not sent to another network device or the sound is distorted.
Check that Dante has been configured properly. Check that the inputs are properly
configured. If the input source requires pre-amplification or phantom power, see
Section 6.

12
FC-202NET - Technical Specifications
8 Technical Specifications
INPUTS:
1 Dante NETWORK on an RJ-45 connector
2 balanced, line-level analog on 3-pin terminal block
connectors
OUTPUTS:
2 balanced, line-level analog on 3-pin terminal block
connectors
CONTROLS:
Phantom power: +24V switchable
Mic/Line gain: 0dB, +28dB switchable
INPUT IMPEDANCE:
20kΩ balanced
10kΩ unbalanced
1.2kΩ when phantom power is on
EQUIVALENT INPUT NOISE:
-110dBu
MAXIMUM INPUT LEVEL:
–3.6dBu
OUTPUT GAIN:
0dB nominal
FREQUENCY RESPONSE:
100Hz (0dB) to 20kHz (–3dB)
SYSTEM THD:
<0.05% at any gain, input signal 3dB below maximum
OUTPUT SIGNAL to NOISE
RATIO:
0dB 1Vpp @1kHz 0.06%
MAXIMUM OUTPUT LEVEL:
–3.6dBu
POWER CONSUMPTION:
5V DC, 1.1A
CLASS:
D
OPERATING TEMPERATURE:
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:
–40° to +70°C (–40° to 158°F)
HUMIDITY:
10% to 90%, RHL non-condensing
COOLING:
Convection, vents
ENCLOSURE TYPE:
Aluminium chassis
DIMENSIONS:
11.6cm x 8.1cm x 3.2cm (4.57" x 3.19" x 1.26") W, D, H
WEIGHT:
0.3kg (0.66lbs) approx.
SHIPPING WEIGHT:
0.5kg (1.1lbs) approx.
INCLUDED ACCESSORIES:
Power supply 5V DC
Specifications are subject to change without notice at http://www.kramerelectronics.com
