Kramer PS-1FW User manual

Kramer Electronics, Ltd.
USER MANUAL
Model:
PS-1FW
DV Interface /PSU

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
2.1 Quick Start 2
3 Overview 3
3.1 Understanding FireWire 3
3.2 FireWire Compliance 4
3.3 Recommendations for Achieving the Best Performance 4
4 Your PS-1FW DV Interface / PSU 5
5 Connecting a PS-1FW DV Interface / PSU 6
6 Technical Specifications 7
Figures
Figure 1: PS-1FW DV Interface / PSU 5
Figure 2: Connecting the PS-1FW DV Interface / PSU 6
Tables
Table 1: PS-1FW DV Interface / PSU Features 5
Table 2: Technical Specifications of the PS-1FW 7

Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video, audio
and presentation professional on a daily basis. In recent years, we have redesigned
and upgraded most of our line, making the best even better! Our 500-plus different
models now appear in 8 Groups
1
, which are clearly defined by function.
Congratulations on purchasing your PS-1FW DV Interface / PSU,which is
ideal for connecting a device with a 6-pin FireWire connector (such as a
camera or an external hard disk) to the 4-pin FireWire connector on a laptop
while powering it.
The package includes the following items:
 PS-1FW DV Interface / PSU
 Power adapter (12V DC Input)
 One 4-pin to 4-pin short cable
 This user manual
2
2 Getting Started
We recommend that you:
 Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
 Review the contents of this user manual
 Use Kramer high performance high resolution cables
3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
Video Camera
Laptop
12V Power Supply
3
1
3
1
2
2

Overview
3
3 Overview
The PS-1FW interfaces between two devices with FireWire connectors such
as a laptop, for example, on one side and a camera (or external hard disk) on
the other side, via 4-pin and 6-pin connectors respectively.
The PS-1FW routes the data between the 4-pin connector and the appropriate pins
on the 6-pin connector, while supplying power to the remaining two pins on the
6-pin connector to power the connected device.
The Kramer PS-1FW:
 Offers a simple-to-connect configuration that operates bi-directionally
 Can be operated with FireWire™/i.Link™ implementation of the IEEE 1394-
1995 and the IEEE 1394A standards at data rates of up to 400Mbits/sec
 Supports hot insertion and removal, as well as all the features of the
1394/FireWire interface
 Can source the power to the device connected via the 6-pin connector
 Includes a LED display indicating power to the unit
This section describes:
 Understanding FireWire (see section 3.1)
 FireWire Compliance (see section 3.2)
 Recommendations for achieving the best performance (see section 3.3)
3.1 Understanding FireWire
FireWire is a serial bus standard that enables quick universal interfacing
between video and computer hardware items. FireWire is simple to use and
operates independently of the host system. In addition, FireWire supports Plug
and Play
1
and hot swapping
2
.
Many computers today come with one or more FireWire ports on the rear
panel. These ports let you attach many devices to your computer quickly and
easily. The operating system also supports FireWire, so the installation of the
device drivers is also quick and easy. Compared to other ways of connecting
devices to your computer (including parallel ports, serial ports and special
cards that you install inside the computer's case), FireWire devices are simple.
Many peripheral devices (including: DV Camcorders, Digital still cameras,
Storage devices such as External Hard Drives and Arrays, and Network
connections) now come in a FireWire version.
1 Configures automatically without any driver. Whenever a device is added or removed the 1394 bus re-enumerates.
2 You can connect and disconnect inputs and outputs dynamically, without having to restart the PC or cycle power

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
3.2 FireWire Compliance
The PS-1FW:
 Fully supports the provisions of the IEEE 1394-1995 Standard for High
Performance Serial Bus and the P1394a Supplement
 Is fully interoperable with FireWire™ and i.LINK™ implementation of
IEEE Std 1394
 Is fully compliant with Open HCI requirements
 Provides P1394a Fully Compliant Cable Ports at 100/200/400 Megabits
per Second (Mbits/s)
 Includes full P1394a support, that is, Connection Debounce, Arbitrated
Short Reset, Multispeed Concatenation, Arbitration Acceleration, Fly-By
Concatenation, Port Disable/Suspend/Resume
 Includes Extended Resume Signaling for Compatibility with Legacy DV
Devices
 Includes built-in protection from electrostatic discharge (ESD)
1
,by suppressing
all transient high voltages down to the allowed level. In particular, ESD
protection for high-speed data lines to IEC 61000-4-2 (ESD) 15kV (air), 8kV
(contact), IEC 61000-4-5 (Lightning) 12A (8/20us), and IEC 61000-4-4 (EFT)
40A (5/50ns)
3.3 Recommendations for Achieving the Best Performance
To achieve the best performance:
 Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
 Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer PS-1FW
away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
2
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 When connecting a "live" DV source to a receptor, an electrical potential difference or any other element creating a high voltage
(such as ESD or a live chassis) may permanently damage one or both of the connected devices. This high voltage may be seen as a
spark occurring at the instant of connection, or may not be seen at all, but nevertheless can result in costly damage
2 For example: model number AD2512C, part number 2535-000251

Your PS-1FW DV Interface / PSU
5
4 Your PS-1FW DV Interface / PSU

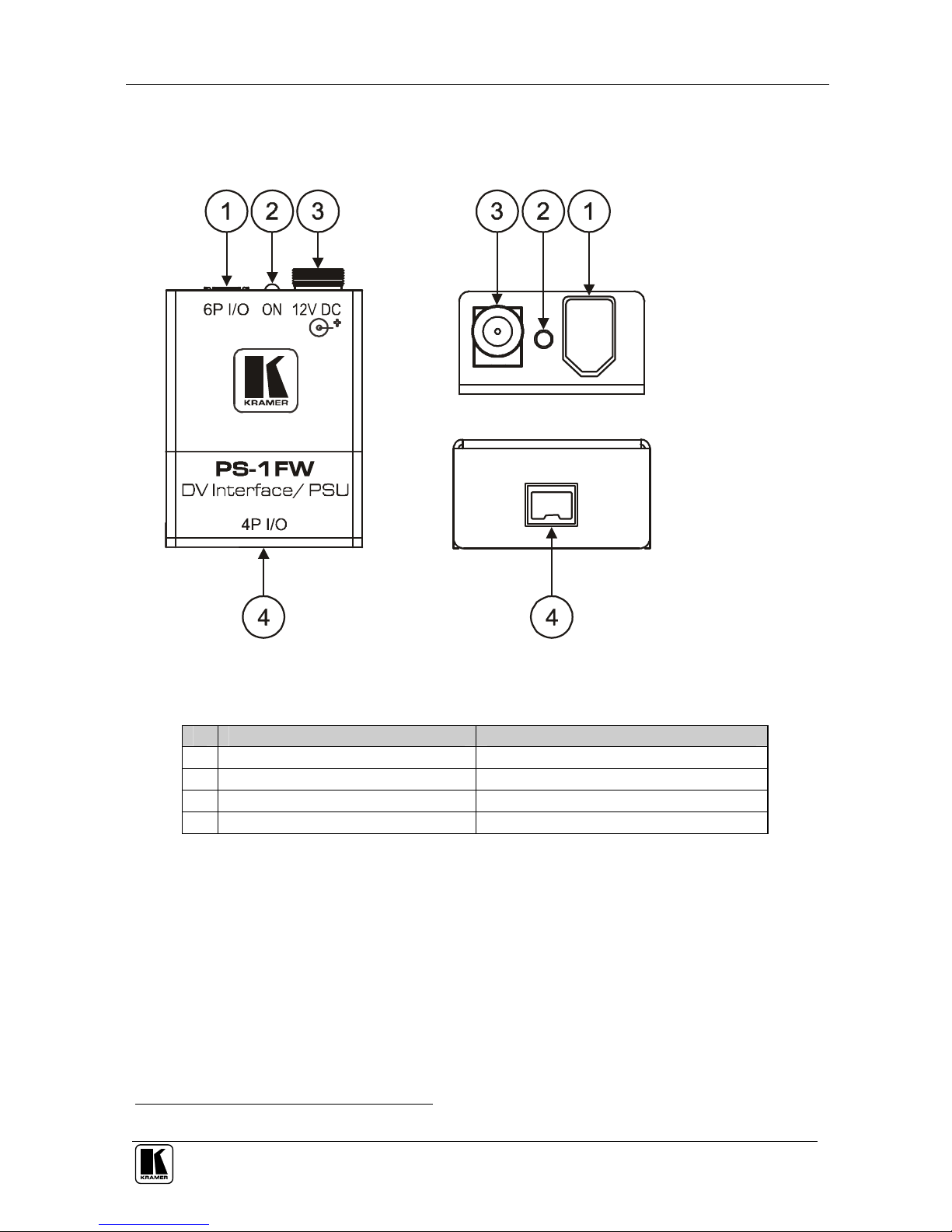

Figure 1 and Table 1 define the PS-1FW DV Interface / PSU:
Top Side Panel
Lower Side Panel
Figure 1: PS-1FW DV Interface / PSU
Table 1: PS-1FW DV Interface / PSU Features
# Feature Function
1 6P I/O 6-pin FireWire Connector Connects to the FireWire device
2 ON LED Illuminates when receiving power
3 12V DC +12V DC connector for powering the unit
4 4P I/O 4-pin FireWire Connector Connects to the laptop
1
1 Or to any FireWire device having a 4-pin FireWire connector

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting a PS-1FW DV Interface / PSU
6
5 Connecting a PS-1FW DV Interface / PSU
To connect the PS-1FW, as illustrated in the example in Figure 2, do the
following:
1. Connect the FireWire port of a laptop, to the 4P I/O 4-pin FireWire connector
on the PS-1FW via the 4-pin-to-4-pin cable supplied with the unit.
2. Connect the 12V DC power adapter to the power socket on the PS-1FW and
connect the adapter to the mains electricity.
3. Connect the 6P I/O 6-pin FireWire connector to the 6-pin FireWire port of a
FireWire device (for example, a video camera
1
).
Video Camera
Laptop
12V Power Supply
Figure 2: Connecting the PS-1FW DV Interface / PSU
1 Or alternatively, an external hard disk

Technical Specifications
7
6 Technical Specifications
Table 2 includes the technical specifications:
Table 2: Technical Specifications
1
of the PS-1FW
INPUTS/OUTPUTS: 1 port on a 6 pin IEEE-1394A, 1 port on a 4 pin IEEE-1394A connector
STANDARDS: Compliant with IEEE 1394 – 1995 and 1394A-2000 standards
BUS TRANSFER RATE: Up to 400Mb/s signaling rates for high performance serial bus
SOURCED POWER: 12V 1.5A total for 6-pin port
COMPATIBILITY: PC and MAC
POWER SOURCE: 12V DC
DIMENSIONS
2
: 3.82cm x 2.12cm x 5cm (1.5" x 0.83" x 1.97") W, D, H
WEIGHT: 0.15kg. (0.55lbs.) approx.
ACCESSORIES: One 4-pin to 4-pin short cable, power adapter
1 Specifications are subject to change without notice
2 Some versions may be smaller in size

KRAMER: SIMPLE CREATIVE TECHNOLOGY
8
Kramer Electronics (hereafter Kramer) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage,
and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and
a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer
shall not be liable for:
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Part 1: Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B – Unintentional radiators”
CAUTION!
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to
the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N: 2900-000222 REV 1
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
