USER MANUAL
Model:
VS-12DPIR
1x2 DisplayPort Selector

Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1 Quick Start 2
3Overview 3
3.1 About DisplayPort 3
3.2 About HDCP 4
3.3 Recommendations for Best Performance 4
4Your VS-12DPIR 1x2 DisplayPort Selector 5
5Connecting the VS-12DPIR 1x2 DisplayPort Selector 6
5.1 Controlling via the REMOTE Terminal Block Connector 7
6Technical Specifications 7
Figures
Figure 1: VS-12DPIR 1x2 DisplayPort Selector 5
Figure 2: Connecting a VS-12DPIR 1x2 DisplayPort Selector 6
Figure 3: Connecting the REMOTE Input Select Connector 7
Tables
Table 1: VS-12DPIR 1x2 DisplayPort Selector Features 5
Table 2: Technical Specifications of the VS-12DPIR 7

Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1
Congratulations on purchasing your Kramer DigiTOOLS®VS-12DPIR 1x2
DisplayPort Selector. The VS-12DPIR is ideal for:
that are clearly defined
by function.
•Home theater, presentation and multimedia applications
•Rental and staging
The package includes the following items:
•VS-12DPIR 1x2 DisplayPort Selector
•Power adapter (5V DC input)
•Kramer RC-IR3 Infrared Remote Control Transmitter (including the
required battery and a separate user manual2)
•This user manual2

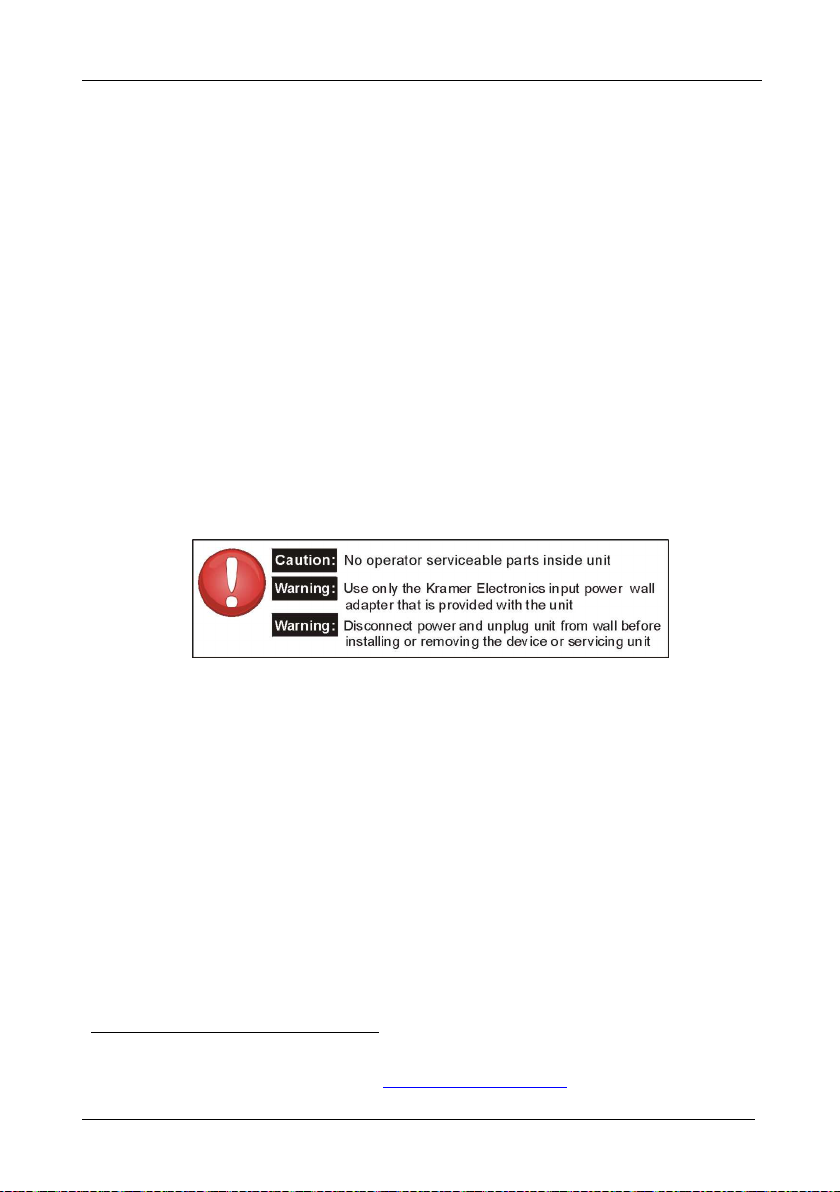

2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high-performance high-resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2

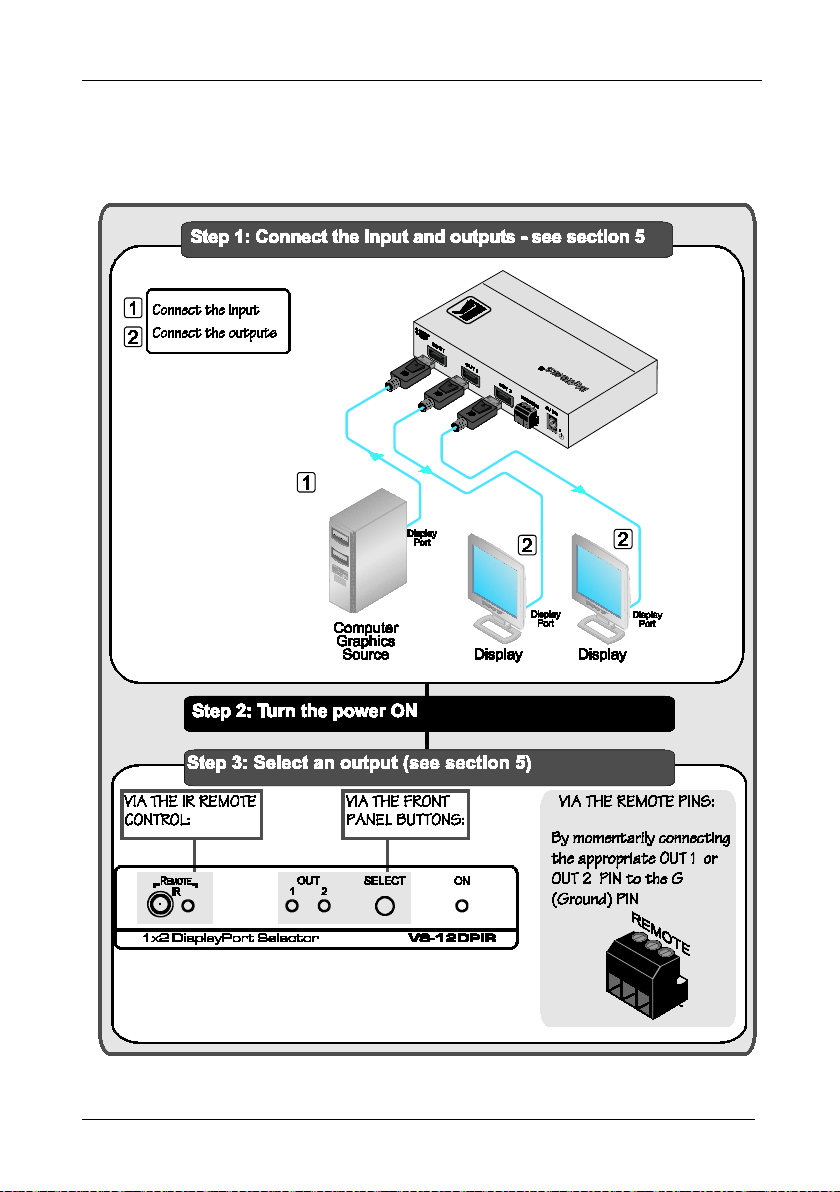

2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps of the
VS-12DPIR.

Overview
3
3
3 Overview
The high-quality VS-12DPIR accepts a DisplayPort (DP) input and
distributes the signal to one of two selectable outputs.
In particular, the VS-12DPIR features:
•Up to 2.7Gbps bandwidth per graphic channel
•A maximum resolution of 2560x1600 pixels and a total maximum
bandwidth of 10.8Gbps over four lanes
•A high-resolution, and rich colors, and transports audio and multiple
video streams
•EDID PassThru – Passes EDID/HDCP signals from source to display
•HDCP compliancy
•5V DC power
•Remote control capability
3.1 About DisplayPort
DisplayPort (DP) is a digital display interface standard for the PC industry. It
delivers the highest resolutions and sound quality.
In addition, DisplayPort:
•Provides a simple interface between a PC and a display, projector or TV
•Supports 1 to 4 data pairs ("lanes") at a transfer rate of 1.62Gb or 2.7Gb
per second
•Has a maximum length of 15 meters for video transmission, at a
resolution of 1080p/60Hz and 3 meters for full bandwidth transmission
•Video specs include a video path that supports 6 to 16 bits per color
channel, a maximum resolution of 2560x1600 pixels and a total maximum
bandwidth of 10.8Gbps over four lanes
•Is backward-compatible with HDMI, DVI (Digital Visual Interface) and
VGA, via an appropriate adapter
•Version 1.1 supports HDCP (see section 3.2)
•Supports two-way communication over its auxiliary channel between the
video source (for example, a PC) and the digital display, enabling new
functionality such as automatic configuration and one-button play
•Replaces the interface needed between the PC and an external display, as
well as the low voltage differential signaling (LVDS) interface in
notebook computers, monitors, to connect to LCD panels

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
4
3.2 About HDCP
The High-Bandwidth Digital Content Protection (HDCP) standard1
3.3 Recommendations for Best Performance
protects
digital video and audio signals transmitted over DVI or HDMI connections
between two HDCP-enabled devices to eliminate the reproduction of
copyrighted material. To protect copyright holders (such as movie studios)
from having their programs copied and shared, the HDCP standard provides
for the secure and encrypted transmission of digital signals.
To achieve the best performance:
•Use only good quality connection cables2
•Avoid interference from neighboring electrical appliances that may
adversely influence signal quality and position your Kramer VS-12DPIR
away from moisture, excessive sunlight and dust
to avoid interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables).
1 Developed by Intel
2 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

Your VS-12DPIR 1x2 DisplayPort Selector
5
5
4 Your VS-12DPIR 1x2 DisplayPort Selector
Figure 1 and Table 1 define the VS-12DPIR 1x2 DisplayPort Selector:
Figure 1: VS-12DPIR 1x2 DisplayPort Selector
Table 1: VS-12DPIR 1x2 DisplayPort Selector Features
# Feature Function
1 5V DC +5V DC connector for powering the unit
2 REMOTE Terminal Block Connectors Connect to a contact closure switch
3 OUT 2 DisplayPort Connector Connects to the DP acceptor 2
4 OUT 1 DisplayPort Connector Connects to the DP acceptor 1
5 INPUT DisplayPort Connector Connects to the DP source
6 REMOTE IR Receiver Window Receives signals from the infrared remote control transmitter
7 LED The red LED lights when receiving signals from the infrared remote
control transmitter
8 OUT 1 LED Illuminates when output 1 is selected
9 OUT 2 LED Illuminates when output 2 is selected
10 SELECT Button Press to select the active output
11 ON LED Illuminates when receiving power

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VS-12DPIR 1x2 DisplayPort Selector
6
5 Connecting the VS-12DPIR 1x2 DisplayPort Selector
To connect the VS-12DPIR, as the example in Figure 2 shows, do the
following1
1. Connect the DP source (for example, a PC with a DP output) to the INPUT DP
connector.
:
2. Connect the DP OUT connectors to up to two acceptors, as follows:
DP OUT 1 connector to a display
DP OUT 2 connector to a display
3. Connect the 5V DC power adapter to the power socket and connect the adapter
to the mains electricity.

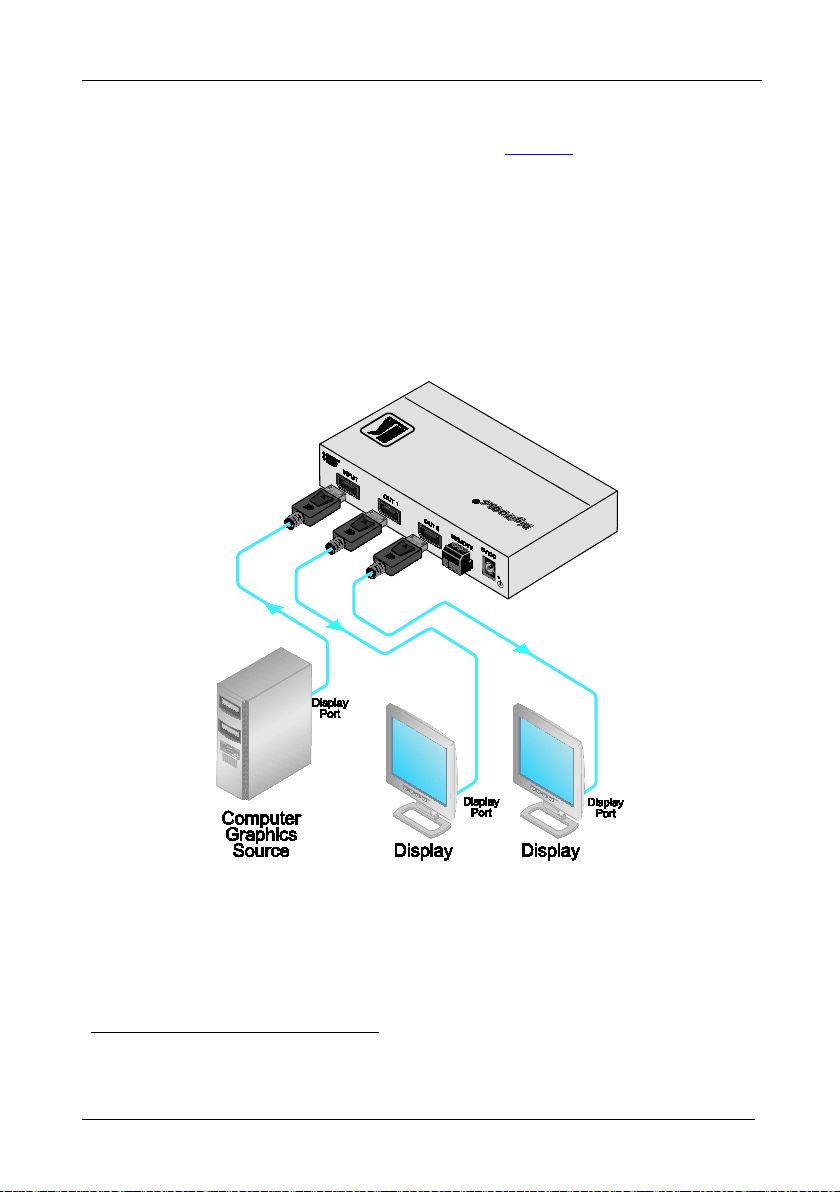

Figure 2: Connecting a VS-12DPIR 1x2 DisplayPort Selector
1 Switch OFF the power on each device before connecting it to your VS-12DPIR. After connecting your VS-12DPIR, switch
on its power and then switch on the power on each device

Technical Specifications
7
7
5.1 Controlling via the REMOTE Terminal Block Connector
The contact closure remote control pins operate in a similar way to the output
SELECT button. Using the contact closure remote control lets you select an
output by remote control. To do so, temporarily connect the required input
(OUT1 or OUT2) pin on the REMOTE terminal block connector to the G
(ground) pin, as illustrated in the examples in Figure 3.
DO NOT connect more than one PIN to the G PIN at the same time
To select OUT 1, attach PIN OUT1 to the G
PIN:
To select OUT 2, attach PIN OUT2 to the G
PIN:

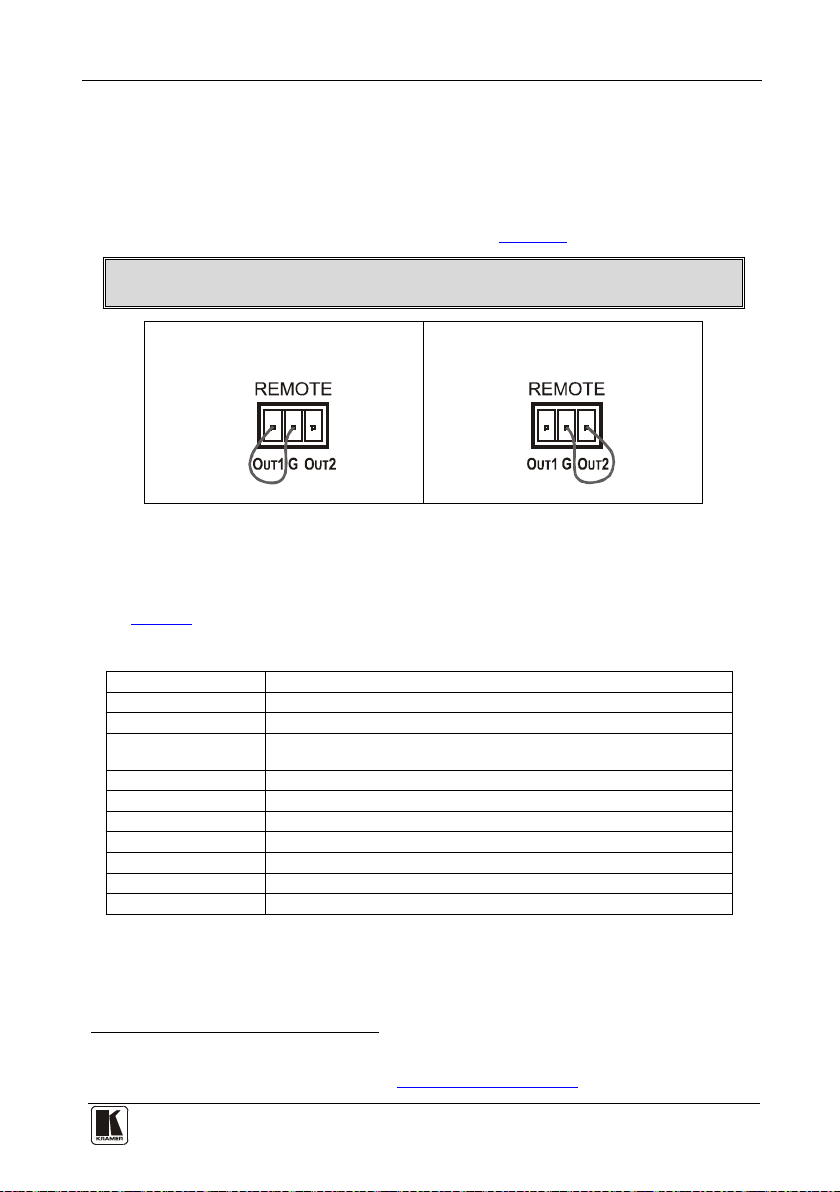

Figure 3: Connecting the REMOTE Input Select Connector
6 Technical Specifications
Table 2 includes the technical specifications1
Table 2: Technical Specifications of the VS-12DPIR
of the VS-12DPIR:
INPUT: 1 DisplayPort Connector
OUTPUTS: 2 DisplayPort Connectors
BANDWIDTH: Supports up to 2.7Gbps bandwidth per graphic channel
COMPLIANCE WITH
HDMI STANDARD:
Supports: DisplayPort 1.1 and HDCP 1.3
CONTROLS: Output select button, IR remote control, contact closure remote control pins
INDICATOR LEDs: OUT 1, OUT 2, and ON LEDs
POWER SOURCE: 5V DC, 90mA
DIMENSIONS: 12cm x 7.15cm x 2.44cm (4.7" x 2.81" 0.96") W, D, H
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: Power supply, IR remote control, bracket installation kit
OPTIONS: Kramer DisplayPort cables
2
1 Specifications are subject to change without notice
2 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
8
LIMITED WARRANTY
WHOIS PROTECTED?
WHAT IS COVEREDANDWHAT IS NOT COVERED
WH AT WE WI L L PAY FO R AND W HAT WE WI LL NOT PAY FOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OFIMPLIEDWARRANTIES
EXCLUSIONOFDAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
Kramer
HOW LONGIS THE WARRANTY
Labor and parts are warranted for three years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items. We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
Thiswarranty gives you specific legalrights, andyou may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
Thisequipment has been tested todetermine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility(EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility(EMC) generic immunity standard.
Part 1: Residential,commercial and lightindustry environment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage, deterioration or malfunctionresulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other actsof nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product(claims must be presentedto the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to aproduct defect
vii) Cartons, equipment enclosures, cables or accessoriesusedin conjunction with the product
1. Removal or installations charges.
2. Costs of
initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to otherproperty caused by defects in this product, damages basedupon inconvenience, loss of use of the product, loss
of time, commercialloss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations andexclusions may not applyto you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
IF reattached, removed or otherwise interfered with.
* FCC and CE approvedusing STP cable (for twistedpair products)
NOTE:
Part 1:

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [e-mail]
P/N: 2900-000529 REV 2
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
