Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range
of problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better! Our 1,000-plus different models
now appear in 11 groups1
Congratulations on purchasing your Kramer Pico TOOLS™ PT-102VN 1:2
Video DA (distribution amplifier), which is ideal for:
that are clearly defined by function.
•Video duplication studios
•CCTV and home theater use
•Rental and staging applications
•Any professional display system requiring an identical picture on several
monitors
The package includes the following items:
•The PT-102VN Video 1:2 DA
•Power adapter (12V DC Input), mounting bracket and this user manual2
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high performance high resolution cables3
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit4
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories
and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
4 For example: model number AD2512C, part number 2535-000251

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Overview
3
3
3 Overview
The Kramer PT-102VN is a distribution amplifier for composite video or SDI
signals. It takes one input, provides correct buffering and isolation and distributes
the signal to two identical outputs.
•Accepts a single input and distributes it to 2 identical outputs using BNC
connectors
•Has a bandwidth of 430MHz, ensuring that it remains transparent even in the
most critical applications
•Has gain and equalization (EQ.) controls to compensate for cable losses
•Is ideally suited to work with the Pico TOOLS™ PT-102AN 1:2 Audio DA
Achieving the best performance means:
•Connecting only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise levels
(often associated with low quality cables)
•Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your PT-102VN in a
location free from moisture and away from excessive sunlight and dust

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your PT-102VN 1:2 Video DA
4
4 Your PT-102VN 1:2 Video DA

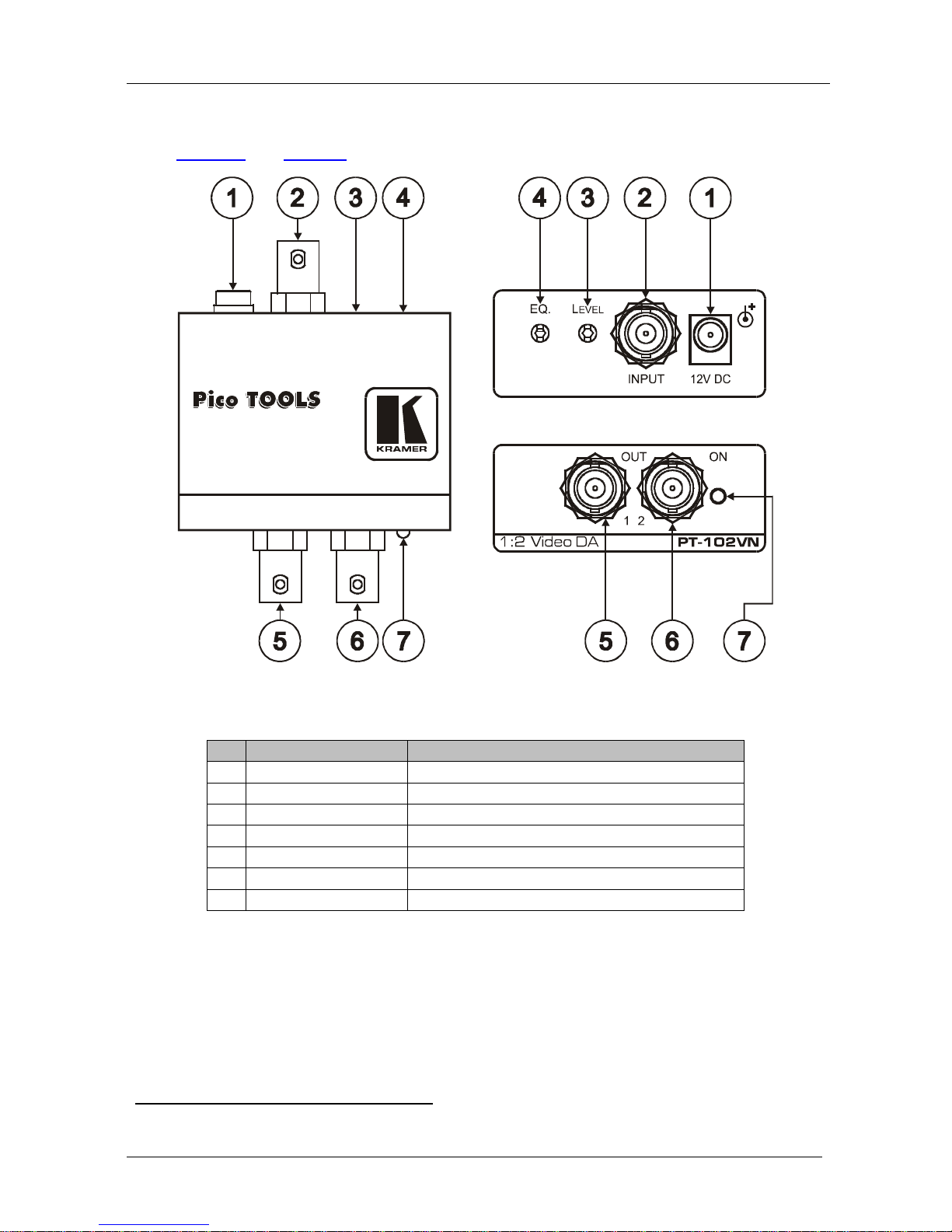

Figure 1and Table 1define the PT-102VN 1:2 Video DA:
Figure 1: PT-102VN 1:2 Video DA
Table 1: Features and Functions of the PT-102VN 1:2 Video DA
# Feature Function
1 12V DC +12V DC connector for powering the unit
2 INPUT BNC Connector Connects to the composite video source
3 LEVEL Trimmer Adjusts
1
4 the video signal level for outputs 1 and 2 EQ. Trimmer Adjusts1the cable compensation equalization level
5 OUT 1 BNC Connector Connects to composite video acceptor 1
6 OUT 2 BNC Connector Connects to the composite video acceptor 2
7 ON LED Illuminates when receiving power
1 Insert a screwdriver into the hole and carefully rotate it, to trim the level

Using the PT-102VN 1:2 Video DA
5
5
5 Using the PT-102VN 1:2 Video DA
You can connect your PT-102VN:
•As a 1:2 video DA (see section 5.1)
•To a 4x1VB 4x1 High Resolution Video Switcher to increase the number of
inputs (see section 5.2)
•To two 105VB 1:5 High Resolution Video DA units to increase the number of
outputs (see section 5.3)
5.1 Connecting the PT-102VN 1:2 Video DA

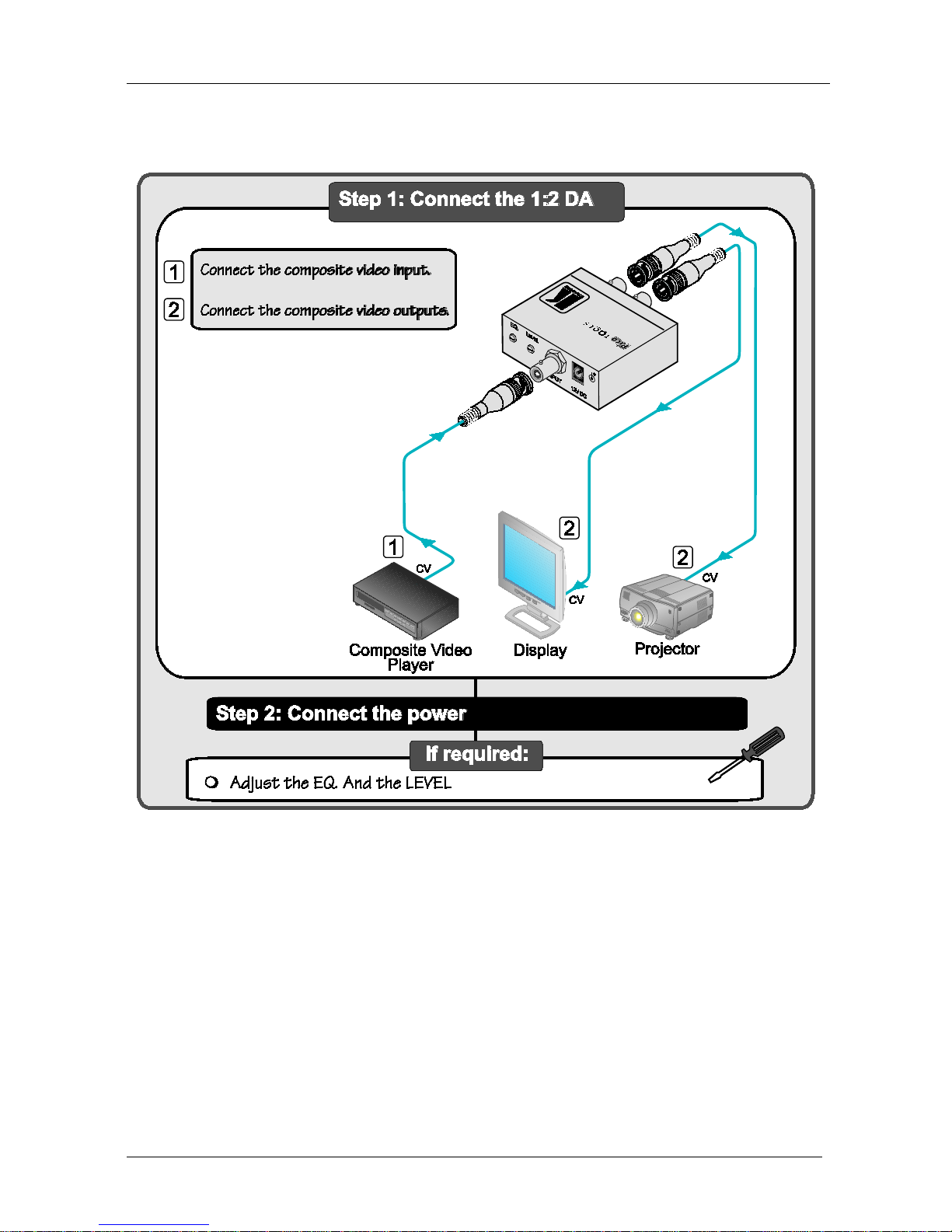

To connect the PT-102VN 1:2 Video DA, as the example in Figure 2illustrates,
connect the following1
1. Connect a composite video source (for example, a composite video
player) to the INPUT BNC connector.
:
2. Connect the two OUT BNC connectors to up to two composite video
acceptors, as follows:
Connect the OUT 1 connector to video acceptor 1 (for example, a
projector)
Connect the OUT 2 connector to video acceptor 2 (for example, a
display)
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity.
4. If required, adjust the output signal level and/or cable compensation
equalization level.
1 Switch OFF the power on each device before connecting it to your PT-102VN. After connecting your PT-102VN, switch on
its power and then switch on the power on each device

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Using the PT-102VN 1:2 Video DA
6

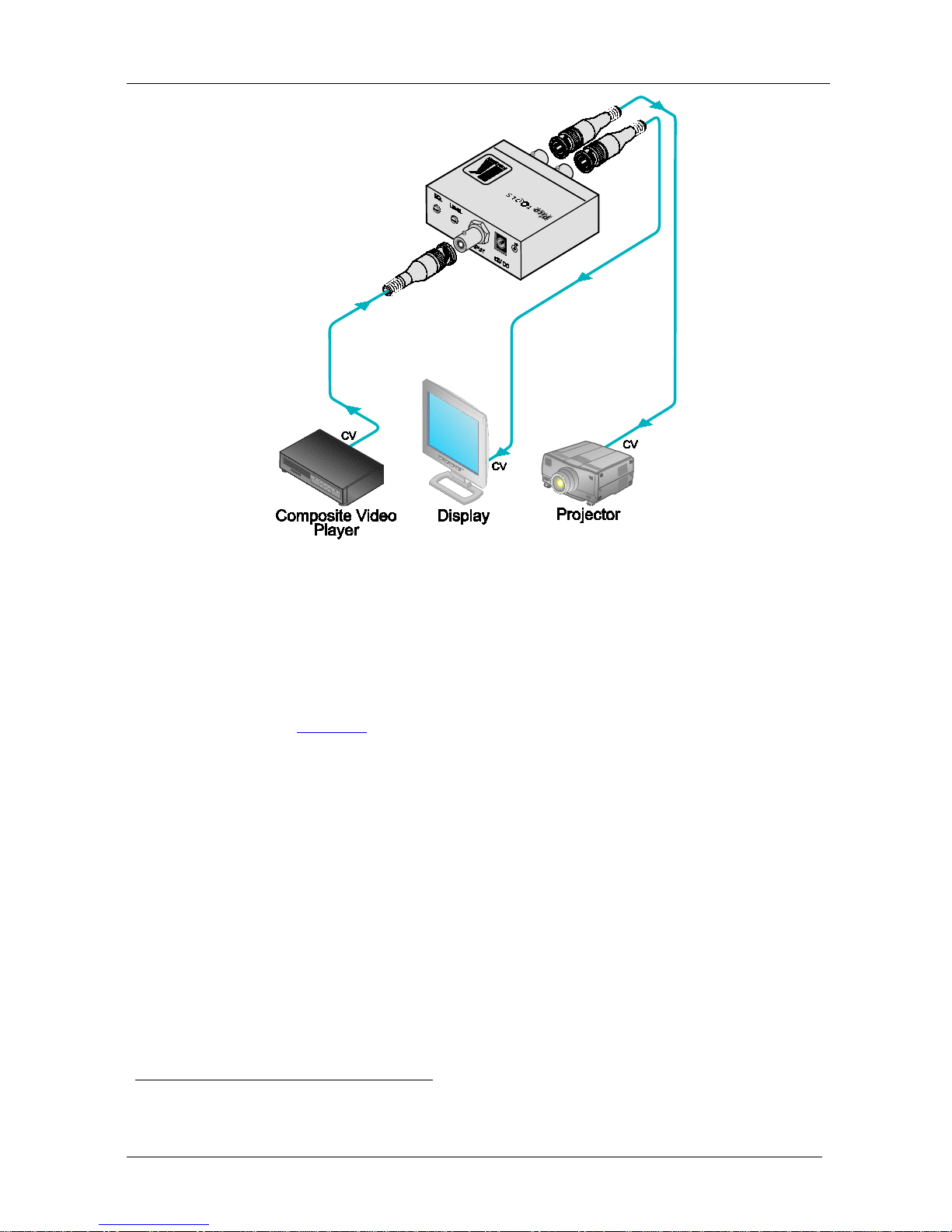

Figure 2: Connecting the PT-102VN 1:2 Video DA
5.2 Increasing the Inputs

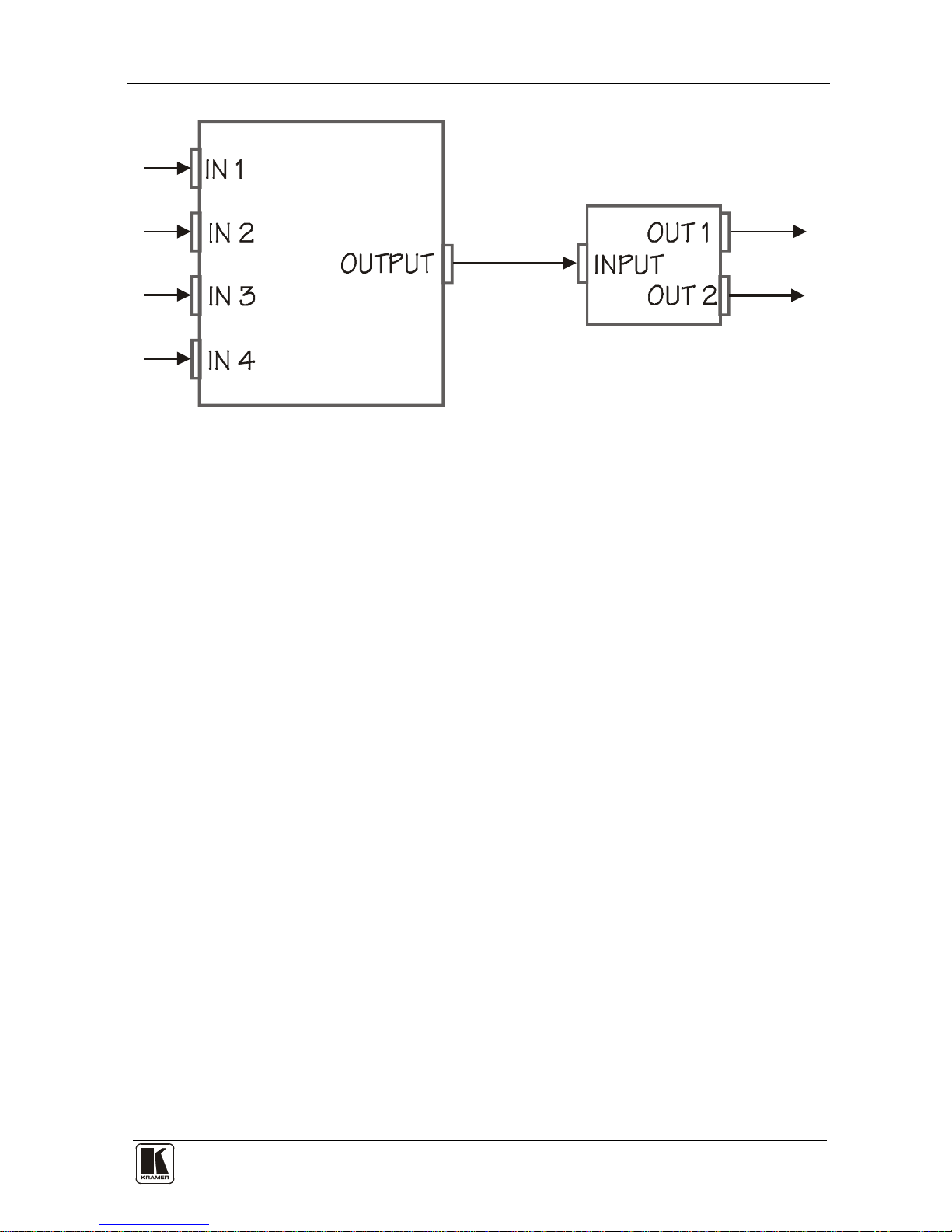

When it is necessary to handle more than one input, you can increase the number
of inputs for example, from one to four, by connecting the Kramer 4x1VB 4x1
High Resolution Video Switcher1in addition to the PT-102VN 1:2 Video DA, as
the example in Figure 3illustrates:
1. Connect up to four sources to the four IN connectors of the 4x1VB.
2. Connect the OUTPUT connector of the 4x1VB to the INPUT connector
of the PT-102VN.
3. Connect the OUT connectors of the PT-102VN to up to two acceptors.
4. Select the desired input via the INPUT SELECTOR switch of the 4x1VB.
5. Connect the 12V DC power adapter to the power socket of the
PT-102VN and connect the adapter to the mains electricity.
6. Adjust the output signal level and/or cable compensation equalization
level of the PT-102VN, if required.
1 A mechanical switcher that lets you select any input to route to one output via its INPUT SELECTOR buttons.
Alternatively, you could connect the PT-102VN to a video switcher with more than four inputs

Using the PT-102VN 1:2 Video DA
7
7
4x1VB
PT-102VN
Figure 3: Increasing the Inputs: Arranging a 4:2 DA
5.3 Increasing the Outputs

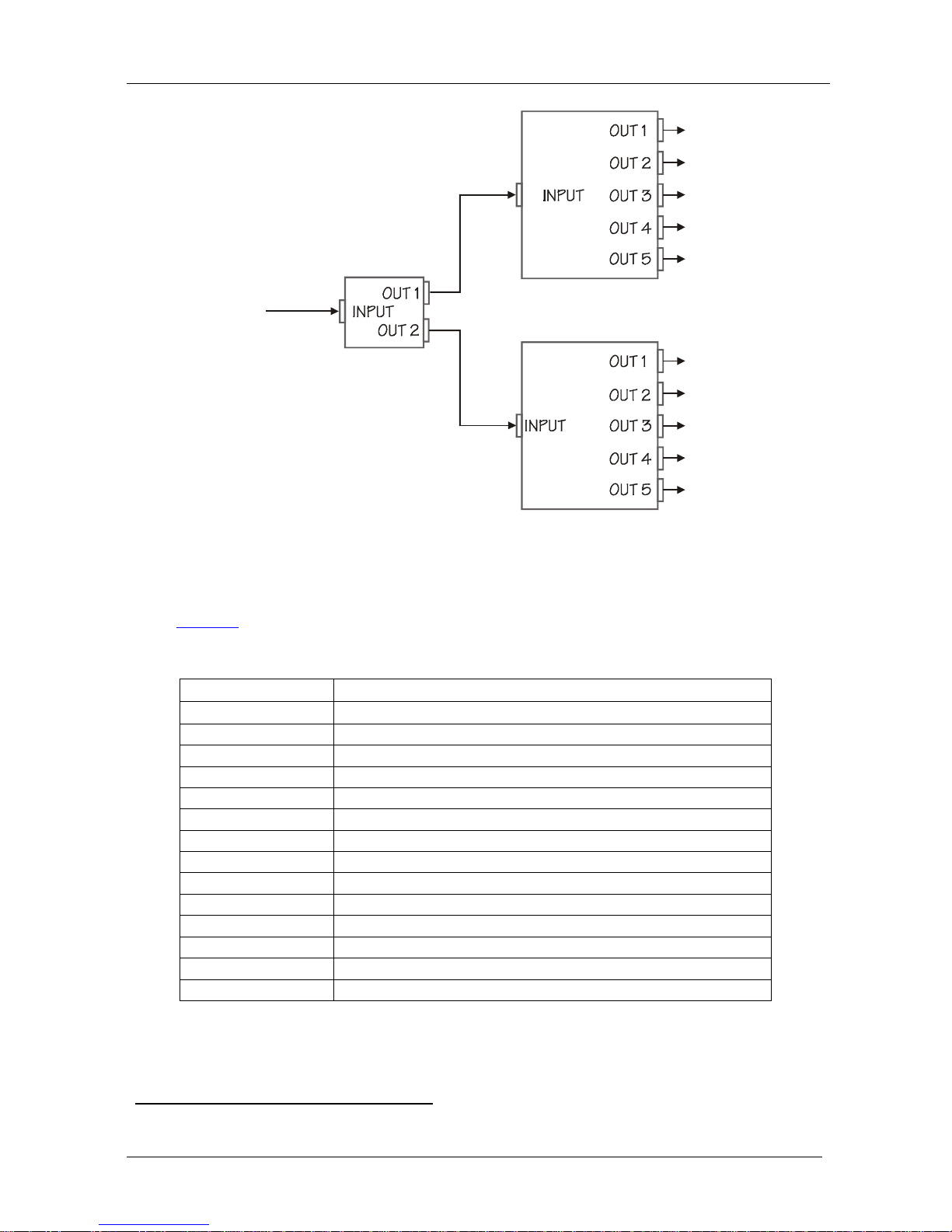

The PT-102VN can be cascaded with other high quality distribution amplifiers to
distribute a video source to more than two outputs. For example, you can increase
the number of outputs from two to ten, by connecting a PT-102VN 1:2 Video DA
unit to two Kramer 105VB 1:5 High Resolution Video DA units, forming a 1:10
DA, as the example in Figure 4illustrates:
To form a 1:10 DA, do the following:
1. Connect a source to the INPUT BNC connector of the PT-102VN.
2. Connect the OUT 1 BNC connector of the PT-102VN to the INPUT BNC
connector of the first 105VB.
3. Connect the OUT 2 BNC connector of the PT-102VN to the INPUT BNC
connector of the second 105VB.
4. Connect the five OUT BNC connectors of the first 105VB to the video
acceptors 1 to 5, and connect the five OUT BNC connectors of the second
105VB to five video acceptors as well.
5. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity (for the PT-102VN and both 105VB
units).
6. Adjust the output signal level and/or cable compensation equalization
level of the PT-102VN, if required.

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
8
PT-102VN
105VB
105VB
Figure 4: Increasing the Outputs: Arranging a 1:10 DA
6 Technical Specifications
Table 2includes the technical specifications:
Table 2: Technical Specifications1
INPUTS:
of the PT-102VN
1 Video, 1Vpp /75Ωon a BNC connector
OUTPUTS: 2 Video, 1Vpp /75Ωon BNC connectors
MAX. OUTPUT LEVEL: 2 Vpp
BANDWIDTH (-3dB): 430MHz
DIFF. GAIN: 0.05%
DIFF. PHASE: 0.05 Deg.
K-FACTOR: <0.05%
S/N RATIO: 76.1dB
CONTROLS: Level: -1.2dB to +6dB, EQ.: 0 to + 7.5dB @50MHz via the trimmers
COUPLING: AC
POWER SOURCE: 12VDC, 30mA
DIMENSIONS: 6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1") W, D, H
WEIGHT: 0.14kg (0.31lbs) approx.
ACCESSORIES: Power supply, mounting bracket
OPTIONS: RK-4PT 19" rack adapter
1 Specifications are subject to change without notice
