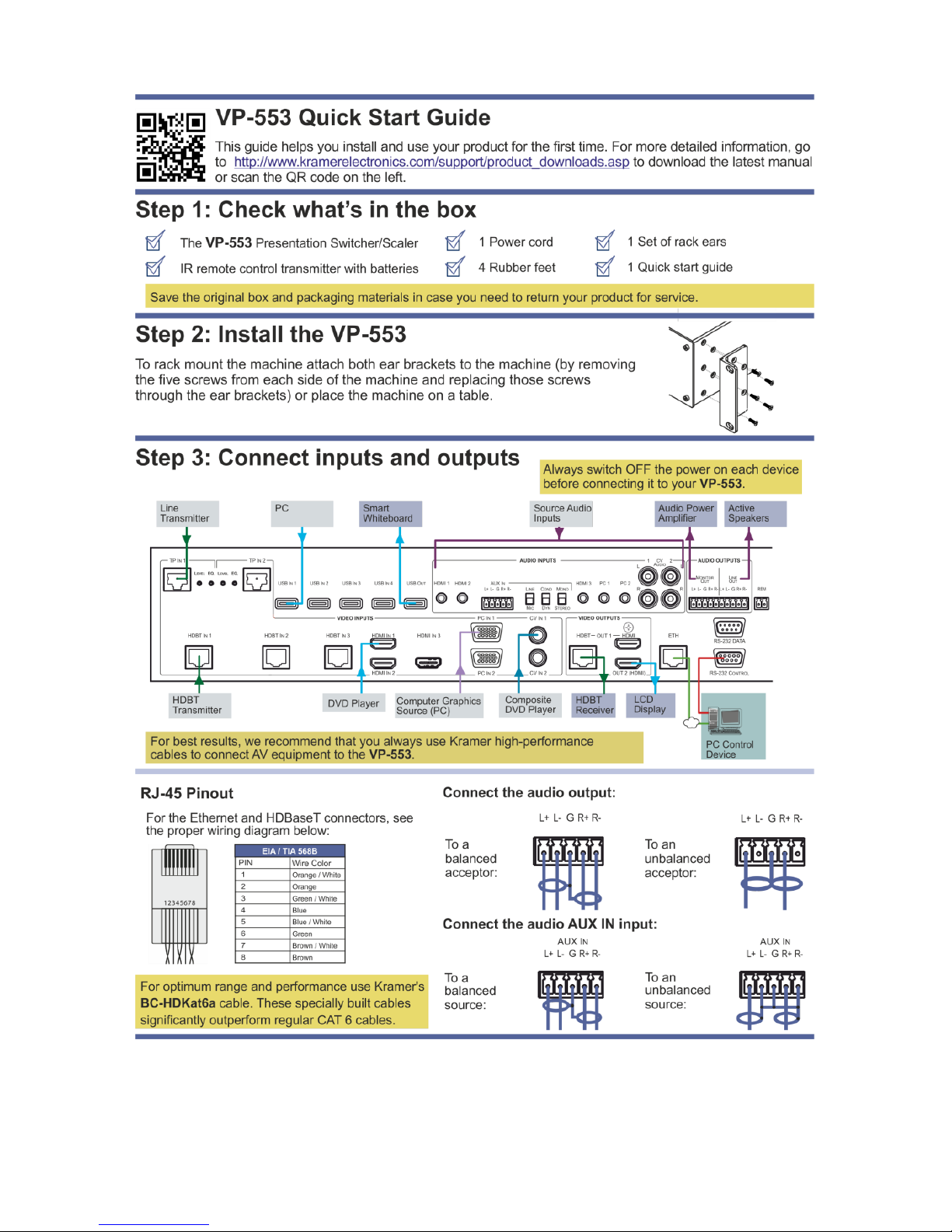

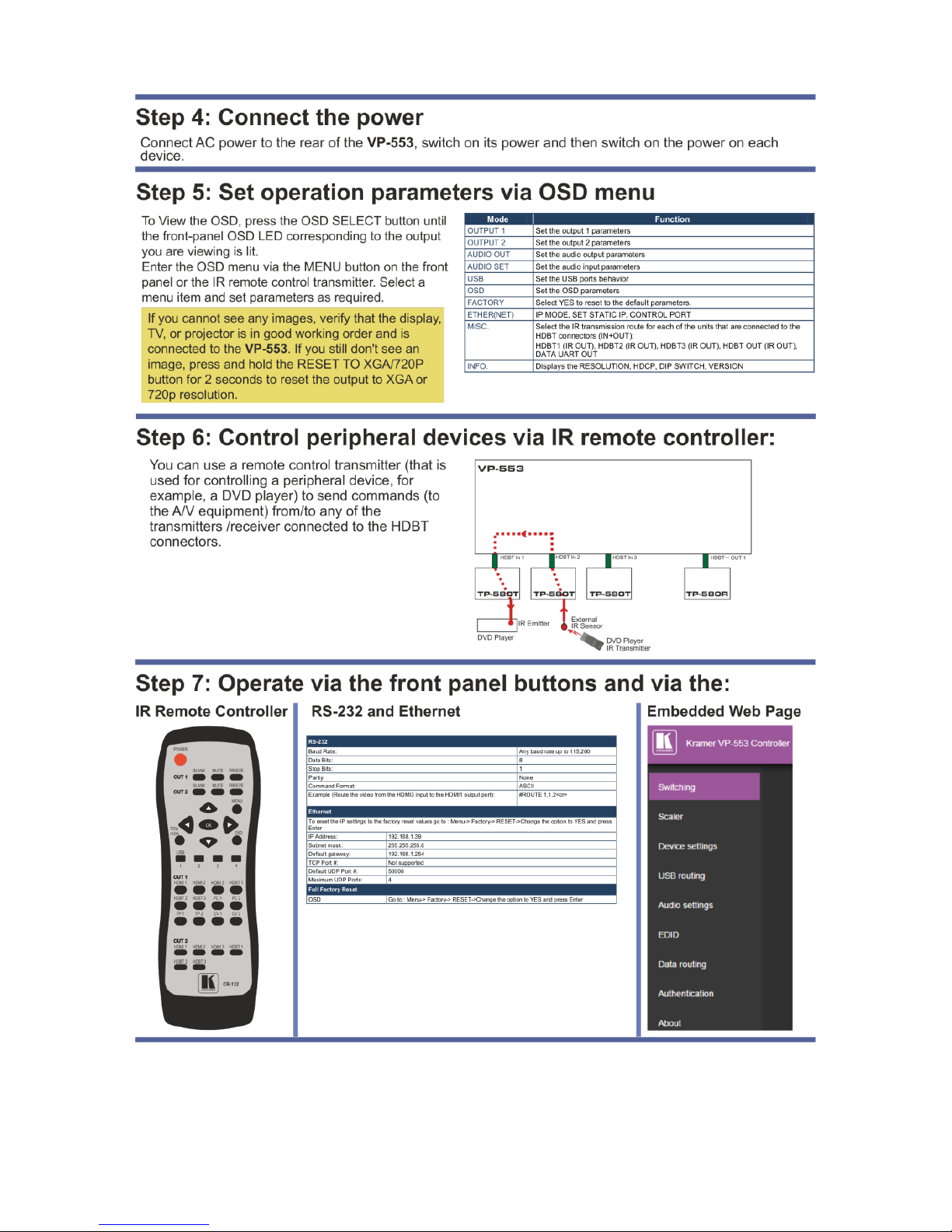

Kramer VP-553 User manual

KRAMER ELECTRONICS LTD.
USER MANUAL
MODEL:
VP-553
Presentation Switcher/Scaler
P/N: 2900-300326 Rev 2

VP-553 – Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3
3Overview 4
3.1 Using the USB Switcher 6
3.2 Using Twisted Pair Cable for HDBT 6
3.3 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 7
3.4 Defining the VP-553 Presentation Switcher/Scaler 7
4Installing in a Rack 11
5Connecting the VP-553 12
5.1 Connecting the Balanced Stereo Audio Input and Outputs 15
6Controlling the VP-553 16
6.1 Controlling via the Front Panel Buttons 16
6.2 Using the OSD Menu 17
6.3 Connecting to the VP-553 via RS-232 22
6.4 Operating via Ethernet 23
6.5 Controlling via the Infrared Remote Control Transmitter 27
7Using the Embedded Web Pages 28
7.1 Browsing the VP-553 Web Pages 28
7.2 The Switching Page 29
7.3 The Scaler Page 36
7.4 The Device Settings Page 39
7.5 The USB Routing Page 41
7.6 The Audio Settings Page 42
7.7 The EDID Page 45
7.8 The Data Routing Page 47
7.9 The Authentication Page 48
7.10 The About Page 49
8Technical Specifications 50
8.1 Default Communication Parameters 51
8.2 Input Resolutions 52
9The VP-553 RS-232 Communication Protocol 53
9.1 Kramer Protocol 3000 Syntax 53
9.2 Kramer Protocol 3000 –Command List 56
9.3 Kramer Protocol 3000 –Detailed Commands 58
Figures

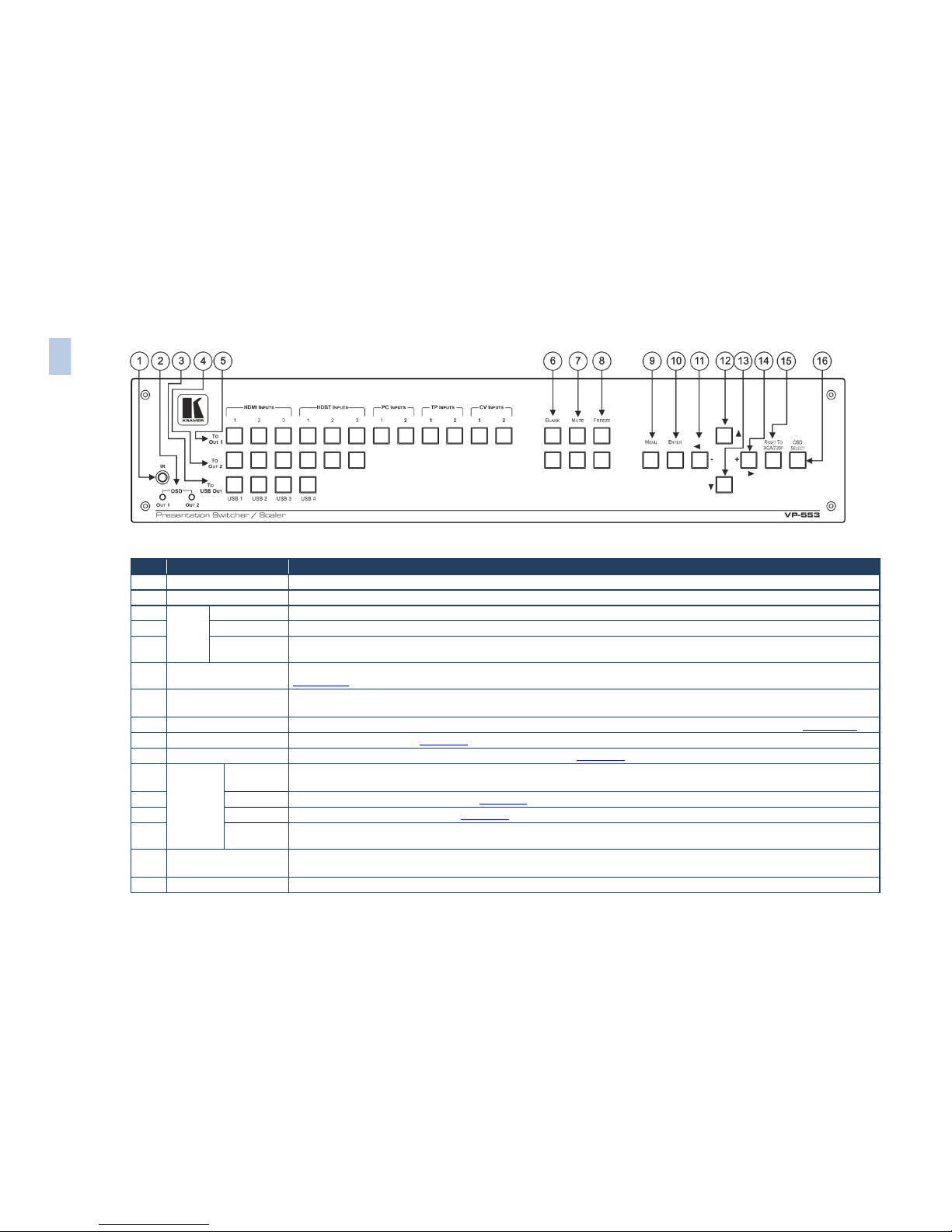

Figure 1: VP-553 Presentation Switcher/Scaler Front Panel 8

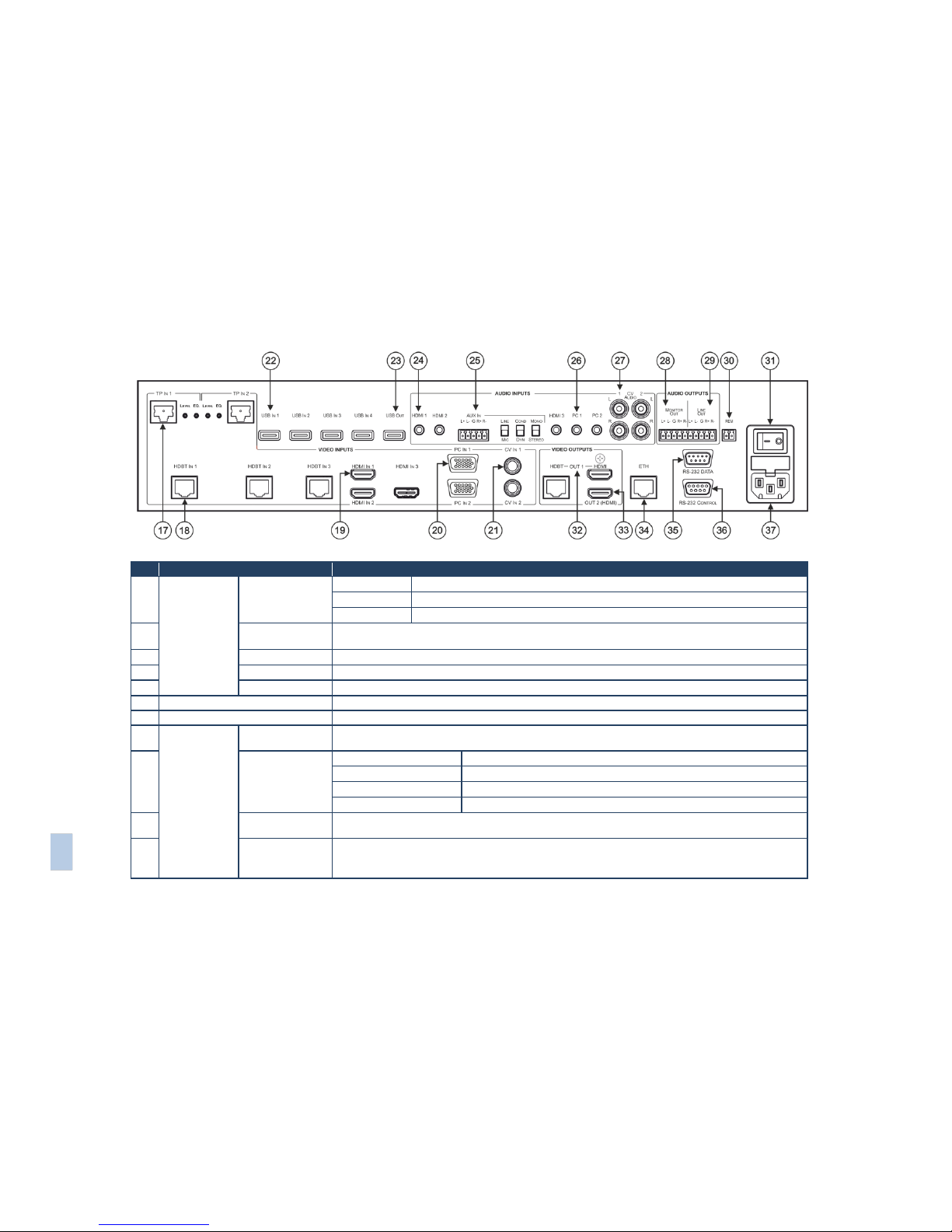

Figure 2: VP-553 Presentation Switcher/Scaler Rear Panel 9
Figure 3: Connecting the VP-553 Presentation Switcher / Scaler 14

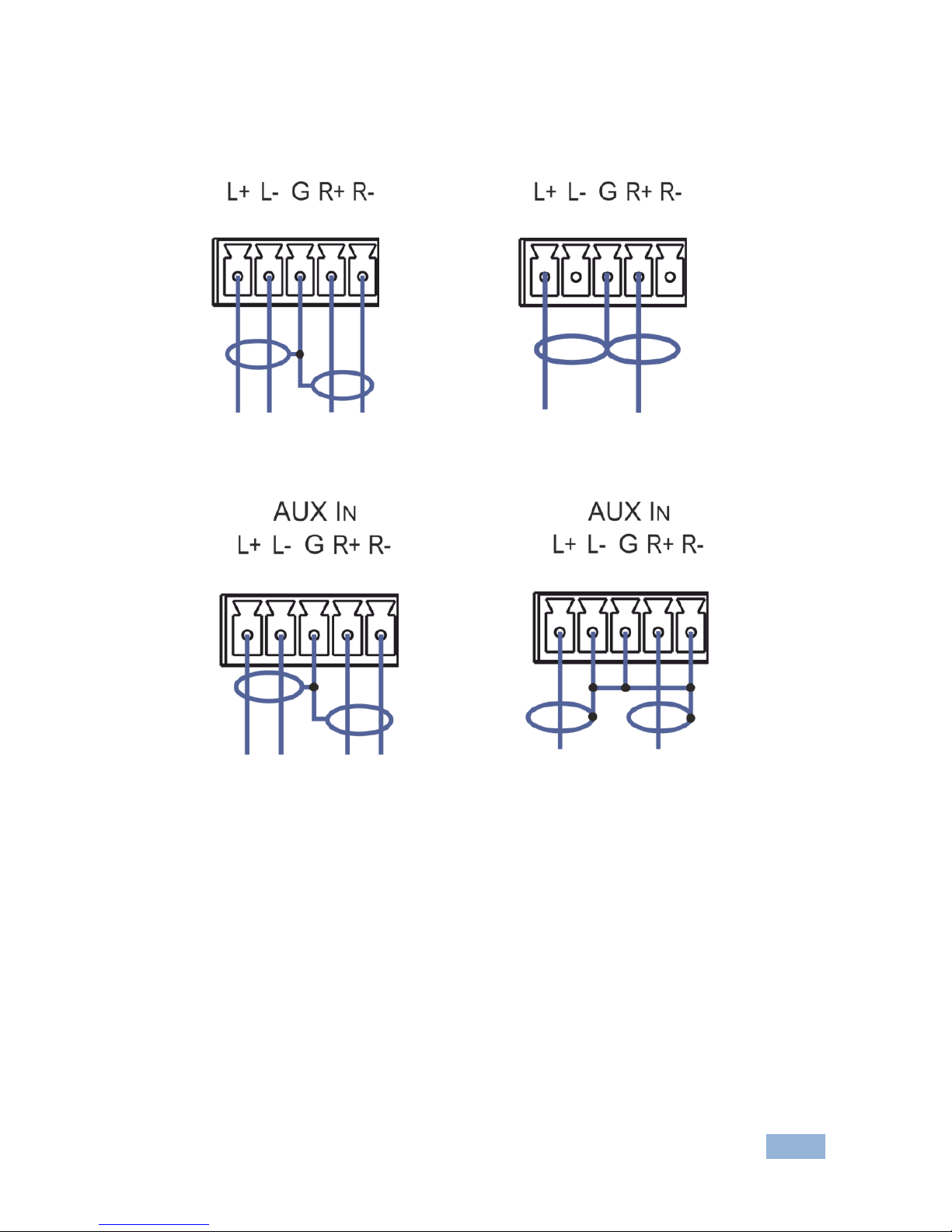

Figure 4: Balanced Stereo Audio Connection 15
Figure 5: Unbalanced Stereo Audio Output Connection 15
Figure 6: balanced Stereo Audio Input Connection 15
Figure 7: Unbalanced Stereo Audio Input Connection 15

ii
VP-553 - Contents
Figure 8: Local Area Connection Properties Window 24
Figure 9: Internet Protocol Version 4 Properties Window 25
Figure 10: Internet Protocol Version 6 Properties Window 25
Figure 11: Internet Protocol Properties Window 26
Figure 12: Infrared Remote Control Transmitter 27
Figure 13: The Loading Page 29
Figure 14: Enter Username and Password 29
Figure 15: The Switching Page 30
Figure 16: Switching Page –Input and Output Icons 30
Figure 17: Edit Output Buttons 31
Figure 18: Edit Output Buttons 31
Figure 19: Edit Input Buttons 32
Figure 20: Switching Page –HDMI input Window 33
Figure 21: Switching Page –HDBT input Window 33
Figure 22: Switching Page –SID-X2N Setup Icon 34
Figure 23: Switching Page –SID-X2N Setup Window 34
Figure 24: Switching Page –PC, TP or CV input Window 34
Figure 25: HDBT IR transmission Example 35
Figure 26: The Scaler Page –Output 1 37
Figure 27: The Scaler Page –Output 1 for an Analog Input 37
Figure 28: The Scaler Page –Output 2 38
Figure 29: The Device Settings Page 39
Figure 30: The Device Settings Page –Static IP Confirmation 39
Figure 31: The Device Settings Page –Uploading the New Firmware File 40
Figure 32: The Device Settings Page –New Firmware Updated 40
Figure 33: The Device Settings Page –Soft Factory Reset Message 41
Figure 34: The USB Routing Page 41
Figure 35: The USB Tied to a Selected Input 42
Figure 36: The Audio Settings Page –Inputs 43
Figure 37: The Audio Settings Page –Output 1 43
Figure 38: The Audio Settings Page –Output 2 44
Figure 39: The Audio Settings Page –Monitor 44
Figure 40: The EDID Page 45
Figure 41: The EDID Page –Copying the Native Timing 46
Figure 42: The EDID Page –Copying the Default 46
Figure 43: The EDID Page –The Copy EDID Results 47
Figure 44: The Data Routing Page 48
Figure 45: The Authentication Page 49
Figure 46: The About Page 49

VP-553 – Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined by
function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and
GROUP 14: Collaboration.
Congratulations on purchasing your Kramer VP-553 Presentation Switcher/Scaler.
This product, which incorporates HDMI™ technology, is ideal for:
Projection systems in conference rooms, boardrooms, hotels and churches
Video conferencing setups

2
VP-553 - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Go to http://www.kramerelectronics.com/support/product_downloads.asp
to check for up-to-date user manuals, application programs, and to check
if firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
Do not secure the cables in tight bundles or roll the slack into tight coils
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality
Position your Kramer VP-553 away from moisture, excessive sunlight and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
i
!

VP-553 – Getting Started
3
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the power cord that is supplied with the unit
Warning:
Do not open the unit. High voltages can cause
electrical shock! Servicing by qualified personnel only
Warning:
Disconnect the power and unplug the unit from the wall
before installing
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims
to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country go
to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
!

4
VP-553 - Overview
3 Overview
The VP-553 is a high-performance 6x2 presentation switcher/scaler for HDMI,
HDBaseT and analog signals, and a 4x1 USB switcher. The unit has dual,
independent, scaled outputs, the first on both HDMI and HDBaseT connectors,
and the second on an HDMI connector. Both can take from the six digital inputs:
three HDBaseT and three HDMI signals; while the first also includes analog inputs
–for two computer graphics signals, two composite video and two analog TP
inputs. Analog, digital and embedded audio are supported, and the unit also
includes a microphone input and rich DSP features.
The VP-553 features:
Pix-Perfect™ scaling technology - Kramer’s precision pixel mapping and
high quality scaling technology. High-quality 3:2 and 2:2 pull down
de-interlacing and full up- and down-scaling of video input signals
System Range for the HDBT inputs and outputs - Up to 70m (230ft)
For optimum range and performance using HDBaseT™, use Kramer's
BC−HDKat6a cable. Note that the transmission range depends on the
signal resolution, source and display used. The distance using
non−Kramer CAT 6 cable may not reach these ranges.
System Range for the TP inputs and outputs - over 250m (more than 820ft)
For optimum range and performance using TP, use Kramer's BC-STP
cable where skewing is not an issue or the Kramer BC-XTP Unshielded
Twisted Pair (UTP) skew-free cable. Note that the transmission range
depends on the signal resolution, source and display used. The
distance using non−Kramer CAT 6 cable may not reach these ranges.
HDTV compatibility
HDCP compliance - the HDCP (High Definition Content Protection) license
agreement allows copy-protected data on the HDMI input to pass only to the
HDMI outputs
Video inputs - three HDMI connectors, two VGA on 15-pin HD connectors
each with unbalanced stereo audio on 3.5mm connectors, two composite
video on RCA connectors with unbalanced stereo audio on RCA connectors,
three HDBaseT on RJ-45 connectors and two analog TP on RJ-45
connectors
i
i

VP-553 – Overview
5
Two scaled HDMI outputs (OUT 1 also outputs HDBaseT)
Output resolutions - HDTV and computer graphics and 1080p/UXGA with
selectable refresh rates
A 4x1 USB switcher that can be set to follow the switching of the video layer
or can be used as an independent switcher
OSD (On Screen Display) - for easy setup and adjustment, accessible via
the IR remote control and via the front panel buttons
Powerful audio features via DSP technology
Input and output audio level adjustment
Selectable microphone talkover or mix modes
Automatic audio detection and selection of the HDMI input source (the
default selection is HDMI). If not present, the unit uses the audio from the
analog input. Manual audio selection is also available
Audio inputs - three analog HDMI audio and two analog PC audio on 3.5mm
mini jacks; two stereo CV audio on RCA connectors each with individual
level controls
A microphone input - dynamic or condenser (with 48V phantom voltage)
Audio outputs - two balanced stereo audio on terminal blocks
Multiple aspect ratio selections - full, over scan, under scan, letter box, pan
scan and best fit
Built-in ProcAmp - color, hue, sharpness, noise, contrast and brightness
Front panel control - audio mute, video blanking and freeze frame
Built-in Web pages for easy setup and remote control
Firmware upgrade via the Ethernet
Non-Volatile memory that saves the final settings
