Kramer 691 User manual

P/N: 2900-300523 Rev 1 www.KramerAV.com
USER MANUAL
MODEL:
691HDBT 2.0 Optical Transmitter

691 – Contents
i
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3
3Overview 4
4Defining the 691 HDBT 2.0 Optical Transmitter 6
5Connecting the 691 HDBT 2.0 Optical Transmitter 8
5.1 Using the OSP SFP+ Module 12
5.2 Connecting to 691 via RS-232 15
5.3 Connecting 691 via the Ethernet Port 16
6Principles of Operation 20
6.1 Audio Output 20
6.2 Video Output and Audio Switching Timeouts 20
6.3 Controlling A/V Equipment via an IR Remote Control 20
7Configuring the 691 HDBT 2.0 Optical Transmitter 23
8Using the Embedded Web Pages 24
8.1 Browsing the 691 Web Pages 24
8.2 Setting the Sleep Mode, HDCP Mode and Audio Switching Delay Time 26
8.3 Setting Device Parameters 28
8.4 Managing the EDID 32
8.5 Authentication Page 34
8.6 Viewing the About Page 35
9Firmware Upgrade 36
10 Technical Specifications 37
10.1 Default Communication Parameters 39
10.2 Default Parameters 39
10.3 Default EDID 39
11 Protocol 3000 42
11.1 Understanding Protocol 3000 43
11.2 Kramer Protocol 3000 Syntax 45
11.3 Protocol 3000 Commands 46
Figures
Figure 1: 691 Front Panel 6
Figure 2: 691 Rear Panel 7
Figure 3: Connecting the Fiber Optic Cable 9
Figure 4: Connecting the 691 and 692 11
Figure 5: System Layout Example for Optical Reach Evaluation 13
Figure 6: Inserting the Transceiver Module 14
Figure 7: RS-232 Connection 15
Figure 8: Local Area Connection Properties Window 17
Figure 9: Internet Protocol Version 4 Properties Window 18
Figure 10: Internet Protocol Version 6 Properties Window 18
Figure 11: Internet Protocol Properties Window 19

ii
691 - Contents
Figure 12: Controlling a Blu-ray Disk Player via the 692 Receiver 21
Figure 13: Controlling a Projector via the 691 Transmitter 22
Figure 14: 691 DIP-Switch 23
Figure 15: Entering Logon Credentials 25
Figure 16: Video & Audio Settings Page 26
Figure 17: The Device Settings Page 29
Figure 18: Turning DHCP Off Dialog Box 29
Figure 19: Turning DHCP On Warning 30
Figure 20: The EDID Management Page 33
Figure 21: The EDID Message 33
Figure 22: The Authentication Page 34
Figure 23: The About Page 35

691 - Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined
by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP
5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP
7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and
GROUP 14: Collaboration.
Congratulations on purchasing your Kramer 691 HDBT 2.0 Optical Transmitter
which is part of the Kramer Video and Audio Distribution System and is ideal for:
Ultra-long signals extension for:
Multi-room and inter-building ultra-long connectivity.
Large dividable auditoriums and lecture halls.
Highly secured and reliable signals ultra-long extension for:
Governmental applications.
Medical applications.
Rental and staging applications.
691 HDBT 2.0 Optical Transmitter and 692 HDBT 2.0 Optical
Receiver are standard compliant and can be connected to other
HDBT-certified transmitters and receivers.

2
691 - Getting Started
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment.
Review the contents of this user manual.
Go to www.kramerav.com/downloads/691 to check for up-to-date user
manuals, application programs, and to check if firmware upgrades are
available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables).
Do not secure the cables in tight bundles or roll the slack into tight coils.
Avoid interference from neighboring electrical appliances that may adversely
influence signal quality.
Position your 691 HDBT 2.0 Optical Transmitter away from moisture,
excessive sunlight and dust.
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit.
Warning:
Use only the power cord that is supplied with the unit.
Warning:
Disconnect the power and unplug the unit from the wall
before installing.

691 - Getting Started
3
3
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC
aims to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country
go to our recycling pages at www.kramerav.com/support/recycling/.

4
691 - Overview
3 Overview
691 is a high-performance HDBaseT 2.0 fiber transmitter for ultra-reach extension
of 4K60Hz (4:2:0) HDMI, USB 2.0, Ethernet, RS-232, IR and stereo audio signals
over either multi-mode or single-mode fiber optic. 691 converts all the input
signals into the transmitted HDBaseT 2.0 signal over fiber optic cable. The
extended line receiver, such as Kramer 692, converts the HDBaseT 2.0 signal
back to 4K60Hz (4:2:0) HDMI, USB 2.0, Ethernet, RS-232, IR and stereo audio
output signals.
691 extends video signals to up to 33km (20.5 miles) over single-mode fiber at up
to 4K@60Hz (4:2:0) resolution.
The 691 transmitter features:
High performance standard fiber extender –HDBaseT 2.0 fiber transmitter for
providing ultra-reach signals over either multi-mode or single-mode optical
fiber infrastructures, using Kramer pluggable OSP SFP+ units. 691 is a
standard fiber extender that can be connected to any market-available
HDBaseT-compliant extension product.
To ensure Kramer support and warranty of the 691 product, use only
Kramer's certified high-performance OSP SFP+ pluggable optical
modules:
OSP-MM1: Optical MM 850nm 10G SFP+ Transceiver
OSP-SM10: Optical SM 1310nm 10G SFP+ Transceiver
For optimum extension reach and performance, use Kramer's OSP SFP+
units and recommended Kramer cables. Non-Kramer cables may not
reach these ranges.
Note that the maximum transmission reach is typical and may vary
depending on fiber cables performance, signal resolution, connectors and
splicing optical losses, modal or chromatic dispersion, and similar optical-
related factors.
HDMI signal extension –HDMI 2.0 and HDCP 1.4 compliant. Supports deep
color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby
TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC signals are passed
through from the source to the display.

691 - Overview
5
5
I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID
handling, processing and pass-through algorithm that ensures Plug-and-Play
operation for HDMI source and display systems.
USB extension –USB 2.0 interface data flows in both directions, allowing
extension of HID (Human Interface Devices) peripheral devices, such as a
mouse or a keyboard. High-bandwidth USB peripheral devices, such as USB
isochronous streaming cameras and audio devices, transfer data continuously
and periodically. Delivery of their transferred data is not guaranteed by the
USB standard and is subject to both USB and HDBaseT line bandwidth
management limitations. When such devices are connected, check their
functionality to ensure bandwidth limitations are not exceeded.
Ethernet extension –Ethernet interface data flows in both directions allowing
extension of up to 100Mbps Ethernet connectivity for LAN communication and
device control.
Bidirectional RS-232 extension –Serial interface data flows in both directions
allowing data transmission and device control.
Bidirectional infrared extension –IR interface data flows in both directions
allowing remote control of peripheral devices located at either end of the
extended line.
Audio embedding (Adding) –A selectable analog unbalanced stereo audio
input is converted into a digital signal and added (embedded) to the
transmitted HDMI signal, replacing the embedded HDMI audio input signal.
This enables embedding a selectable audio source over HDMI. For example,
a presenter can display a video clip and temporarily override the audio of the
source media with another audio source, such as from a microphone.
Cost-effective maintenance –Status LED indicators for the HDMI input and
HDBT output link facilitate easy local troubleshooting. Remote device
management via built-in web UI and RS-232 connection enable simple
device maintenance. Kramer Network support provides remote device and
network management. Local and remote firmware upgrade via mini-USB,
RS-232 or Ethernet connection and the K-Upload tool ensure lasting,
field-proven deployment.
Easy installation –Half 19” 1U rack mountable fan-less enclosure enables
side-by-side mounting of 2 units in a 1U rack space.

6
691 - Defining the 691 HDBT 2.0 Optical Transmitter
4 Defining the 691 HDBT 2.0 Optical
Transmitter
Figure 1 defines the front panel of the 691.
Figure 1: 691 Front Panel
#
Feature
Function
1
USB Connector
Connect to the USB host for traffic extension (for example, a
laptop).
2
LINK LED
Lights green when the HDBT link is valid.
3
IN LED
Lights green when an HDMI active signal device is connected.
4
ON LED
Lights green when the device receives power.

691 - Defining the 691 HDBT 2.0 Optical Transmitter
7
7

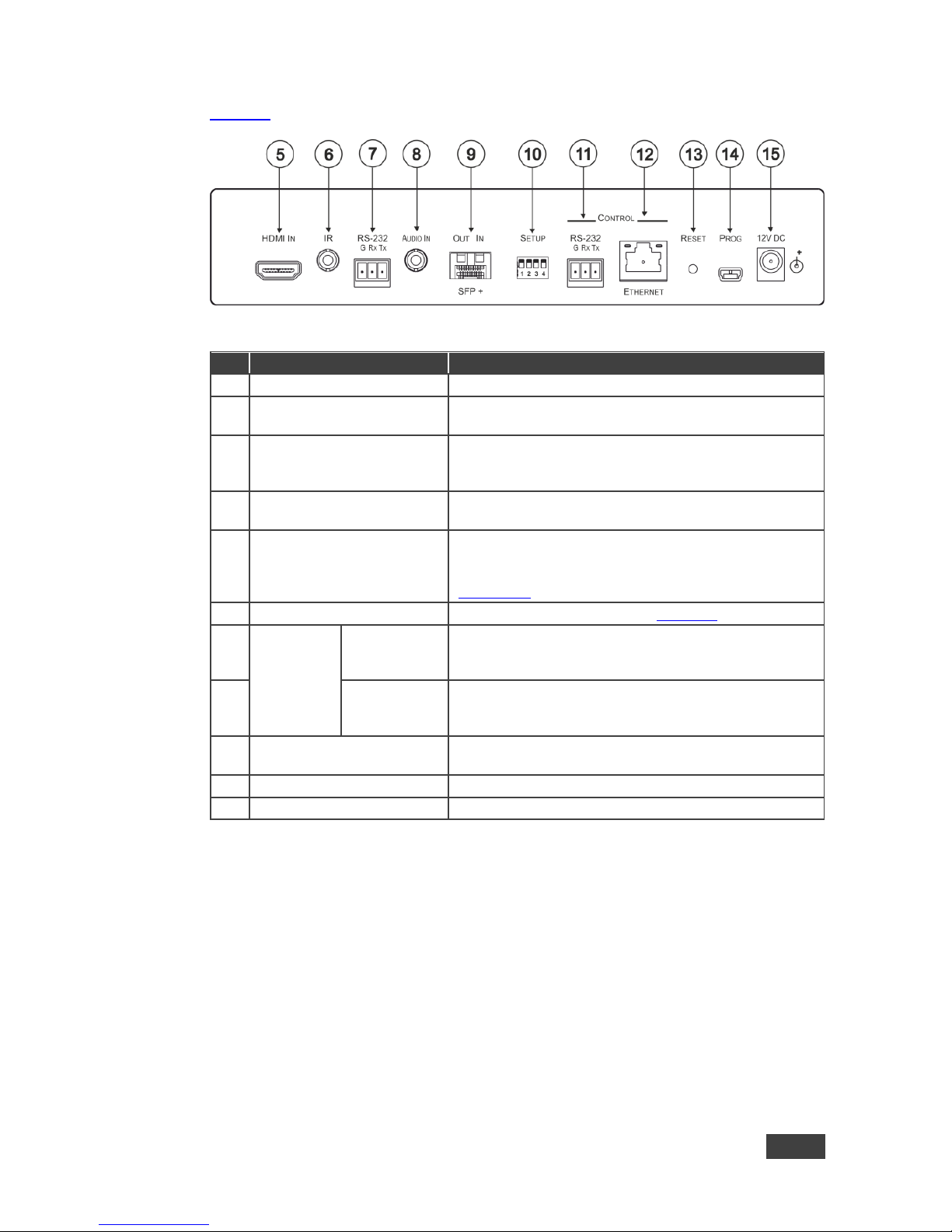

Figure 2 defines the rear panel of the 691.
Figure 2: 691 Rear Panel
#
Feature
Function
5
HDMI IN Connector
Connect to an HDMI source.
6
IR 3.5mm Mini Jack
Connector
Connect to an external infrared transmitter or sensor
for traffic extension.
7
RS-232 3-pin Terminal
Block
Connect to an RS-232 controller for traffic extension
(for example, a PC to control the projector on the
receiver side).
8
AUDIO IN 3.5mm Mini Jack
Connect to the stereo, unbalanced, analog audio
source.
9
OUT IN SFP+ Connector
opening
Plug the Kramer certified optical SFP+, and connect
the fiber optic cable to the OUT IN SFP+ LC connector
(OSP-MM1 or OSP-SM10, purchased separately, see
Section 5.1).
10

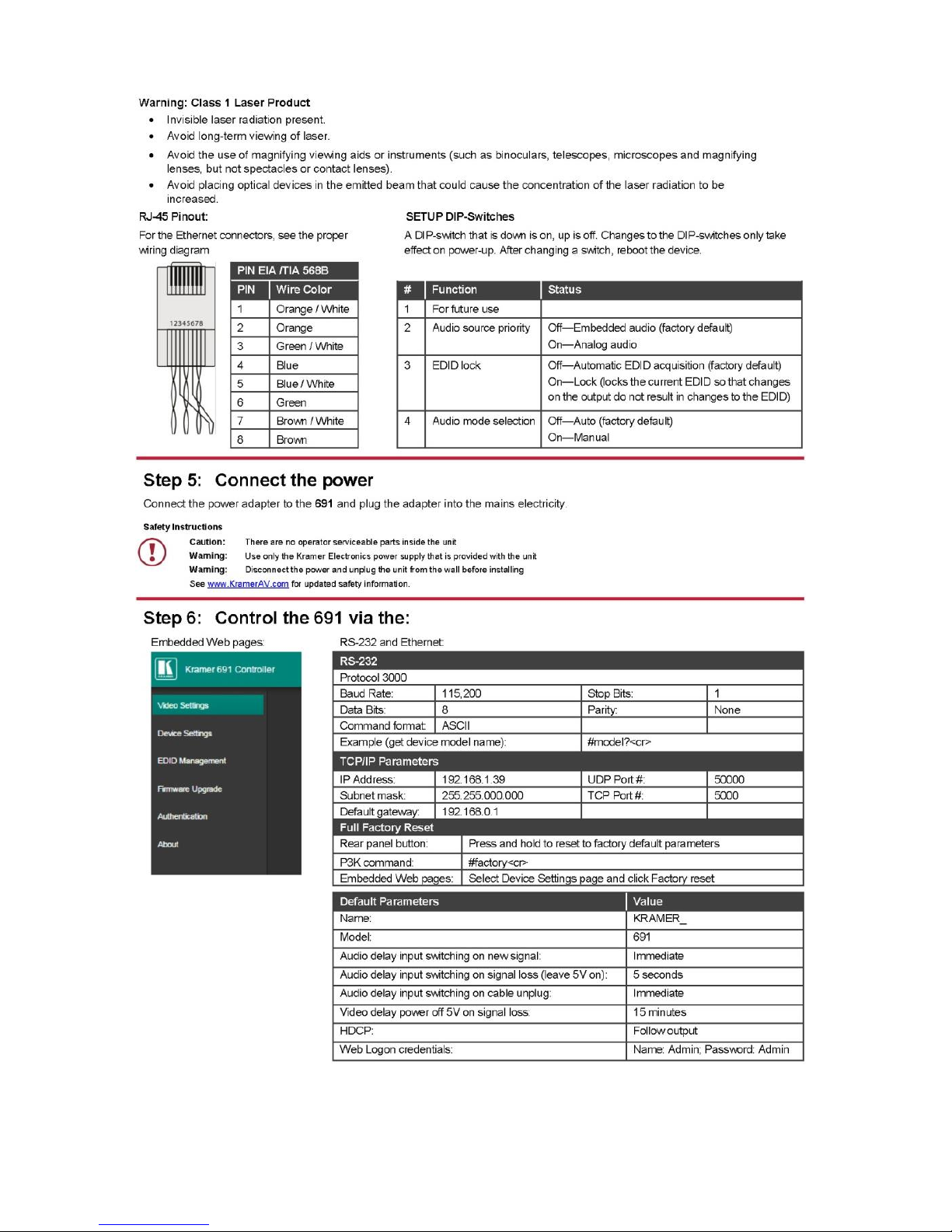

SETUP 4-way DIP-switch
Sets the device behavior, (see Section 7).
11
CONTROL
RS-232 3-pin
Terminal
Block
Connect to a serial controller to control this device.
12
ETHERNET
RJ-45
Connector
Connect to an Ethernet controller to control this device
or to a LAN to extend network traffic to the receiver.
13
RESET Switch
Press and hold to reset settings to factory default
values.
14
PROG Mini USB Connector
Use for firmware upgrade.
15
12V DC Power Connector
Connect to the supplied power adapter.

8
691 - Connecting the 691 HDBT 2.0 Optical Transmitter
5 Connecting the 691 HDBT 2.0 Optical
Transmitter
Always switch off the power to each device before connecting it to
your 691. After connecting your 691, connect the power to and switch
on each device.
You can use the 691 HDBT 2.0 Optical Transmitter and a compatible receiver, for
example, the Kramer 692 HDBT 2.0 Optical Receiver to configure a paired HDMI
transmitter/receiver system, as shown in the example in Figure 4.
To connect the 691 HDBT 2.0 Optical Transmitter:
On the 691 transmitter:
1. Connect an HDMI source, (for example, a laptop) to the HDMI IN connector.
2. Connect an RS-232 serial controller to the RS-232 3-pin terminal block for
traffic extension, to control the projector (on the receiver side).
3. Connect a stereo analog audio source (for example, the audio output of a
PC) to the AUDIO IN 3.5mm mini jack for traffic extension.
4. Connect the USB port on a PC to the USB port on the front panel of the 691
for traffic extension.
5. Connect an external IR emitter to the IR 3.5mm mini jack for traffic
extension.
6. Insert the OSP-MM1/OSP-SM10 transceiver module into the OUT/IN SFP+
opening, see Section 5.1.

691 - Connecting the 691 HDBT 2.0 Optical Transmitter
9
9
7. Connect the OUT IN SFP+ LC(UPC) connector (see Section 5.1) to the
OUT/IN LC(UPC) fiber optic cable extension towards the 692 receiver.
Always cross-connect the fiber connections, Rx OUT to Tx IN and Rx IN
to Tx OUT, as transmission is carried on simplex fiber strands.
Figure 3: Connecting the Fiber Optic Cable
Always inspect and clean the connectors before you make a connection.
Always plug or unplug the fiber by holding the connector housing.
Never touch the end face of the optic fiber connectors.
8. Connect the supplied power adapter to the power socket and plug the
adapter into the mains electricity (not shown in Figure 4).
On the 692 receiver:
9. Connect the HDMI OUT connector to an HDMI acceptor, (for example, a
projector).
10. Connect the RS-232 3-pin terminal block to the device to be controlled (for
example, the projector that is controlled by a serial controller which is
connected to 691).
11. Connect the AUDIO OUT 3.5mm mini jack to an audio acceptor, (for
example, amplified speakers).

10
691 - Connecting the 691 HDBT 2.0 Optical Transmitter
12. Connect the USB ports (for example, USB keyboard and mouse and a USB
external memory device).
13. Connect the IR 3.5mm mini jack to an IR sensor.
14. Insert the recommended OSP SFP+ modules (make sure the bail is closed
and in the upward position) into the IN OUT SFP+ slot and push it in until it
clicks, see Section 5.1.
15. Remove the protective cap and keep for future use.
16. Connect the OUT IN SFP+ LC(UPC) connector to the IN/OUT LC(UPC)
connector of the fiber optic cable extension towards the 691 transmitter.
Always cross-connect the fiber connections, Rx OUT to Tx IN and Rx IN
to Tx OUT, as transmission is carried on simplex fiber strands (see
Figure 3).
Always inspect and clean the connectors before you make a connection.
Always plug or unplug the fiber by holding the connector housing.
Never touch the end face of the fiber connectors.
17. Connect the supplied power adapter to the power socket and plug the
adapter into the mains electricity (not shown in Figure 4).

691 - Connecting the 691 HDBT 2.0 Optical Transmitter
11
11

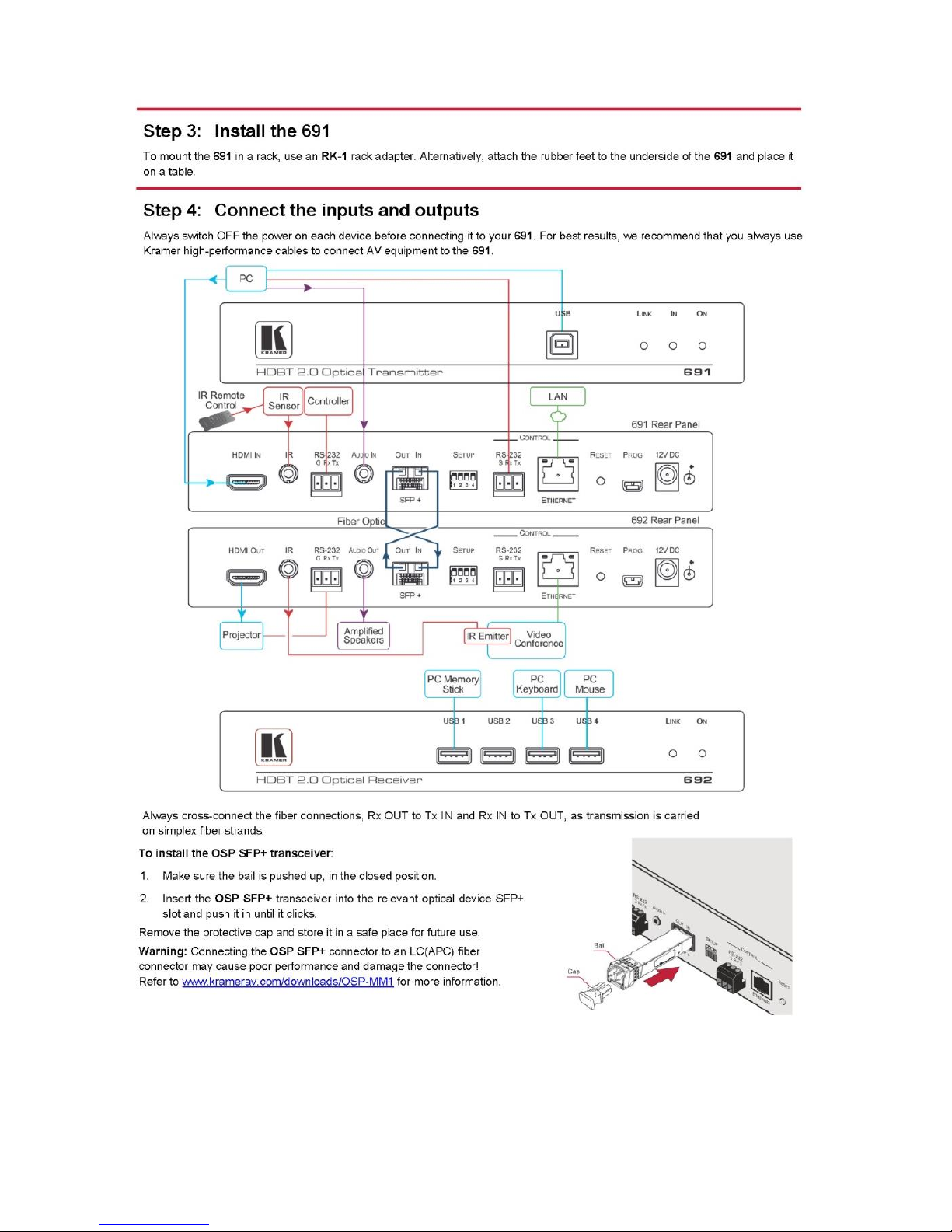

Figure 4: Connecting the 691 and 692

12
691 - Connecting the 691 HDBT 2.0 Optical Transmitter
5.1 Using the OSP SFP+ Module
Before connecting the 691 to an optical receiver, you need to insert the same type
of SFP+ transceiver both into the SFP+ opening on the 691 and the compatible
receiver.
Two types of Kramer SFP+ optical transceiver modules are available:
OSP-MM1: Optical MM 850nm 10G SFP+ Transceiver
OSP-SM10: Optical SM 1310nm 10G SFP+ Transceiver
Before deciding which transceiver module to use, consider the infra-structure of
the installation area, the desired distance, optical loss budget and typical expected
loss.
Use the same type of SFP+ optical transceiver module both on the 691
transmitter and the receiver (for example 692).
The following table defines various typical Fiber cable characteristics, used for
optical reach evaluation:
Cable Category
Core
Diameter
[µm]
Wavelength
Fiber
Loss
[dB/km]
Connector
Loss
[dB]
Splice
Loss
[dB]
MM OM1 [G.651.1]
62.5/125
850nm
3
Typical: 0.3
Max.: 0.75
0.3
MM OM2 [G.651.1]
50/125
MM OM3 [G.651.1,
Laser Optimized]
2.5
MM OM4 [G.651.1,
Laser Optimized]
MM OM5
SM OS1 [G.652A/B]
8
1310nm
1
SM OS2 [G.652C/D]
0.4
OSP-MM1 and OSP-SM10 modules are designed to be used only with
LC(UPC) blue or LC(PC) white connectors. Using an LC(APC) green
connector with the module causes poor performance and can damage
the module connector.
For all other cable connections that do not connect directly to the
OSP-MM1 or OSP-SM10 modules, such as the optical patch panel and
bulk cables illustrated in Figure 5, we recommend using Angled Physical
Contact (APC) green connectors for improved end-to-end reach
performance.

691 - Connecting the 691 HDBT 2.0 Optical Transmitter
13
13
When using OSP modules consider the following:
Modules are Class 1 Laser products.
There may be Invisible laser radiation present.
Avoid long-term viewing of laser.
Avoid the use of magnifying viewing aids or instruments (such as
binoculars, telescopes, microscopes and magnifying lenses, but not
spectacles or contact lenses).
Avoid placing optical devices in the emitted beam that could cause
the concentration of the laser radiation to be increased.
5.1.1 Optical Reach Evaluation
The following examples show how to calculate dB loss during optical signal
transmission over fiber optical infrastructure.
In the optical system layout example, illustrated in Figure 5:
691 and 692 are connected to a patch panel via 100m patch cords.
There are 6 connectors and no splices.

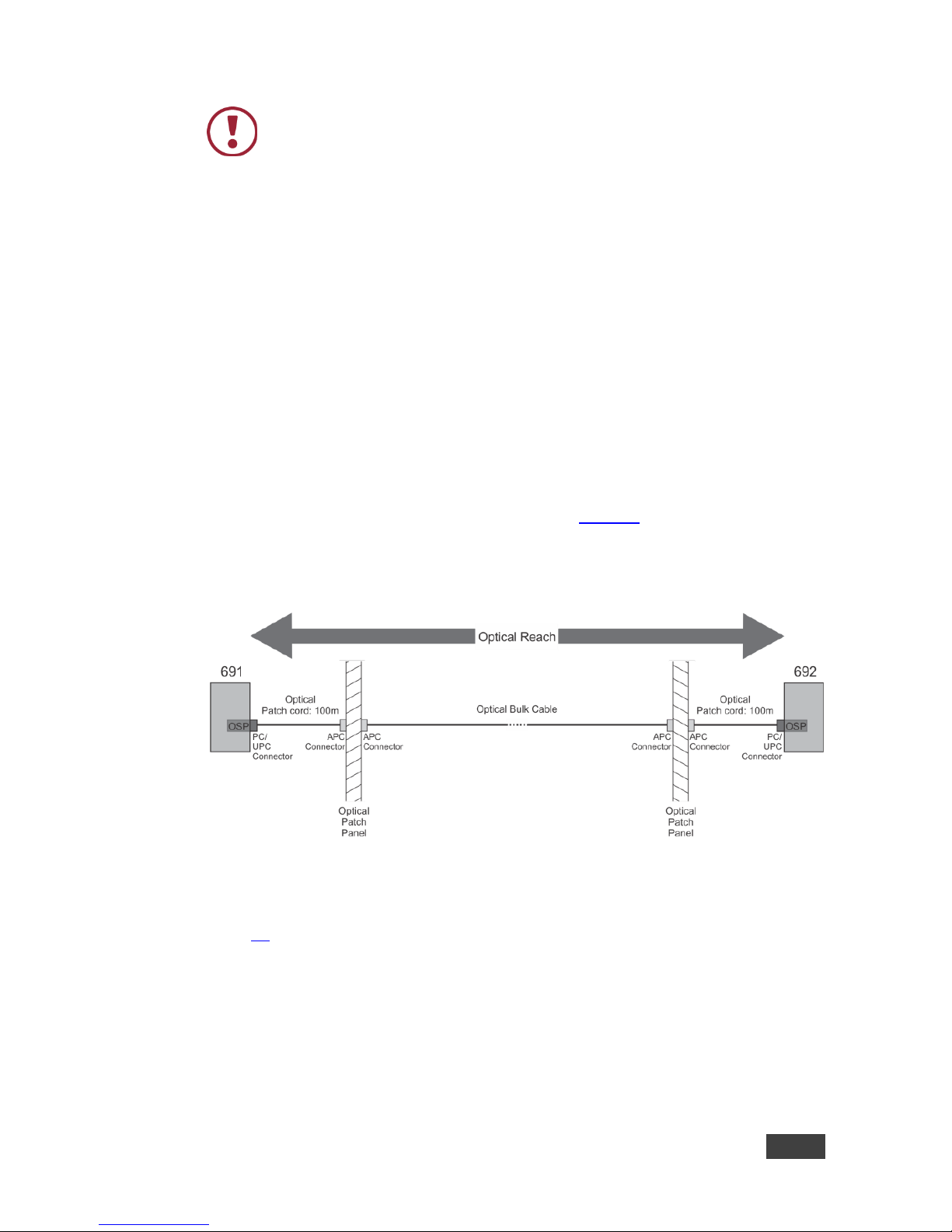

Figure 5: System Layout Example for Optical Reach Evaluation
For multi-mode lines (MM OM3 cable category, as defined in the table on
page 12):
Maximum loss budget is: 8.6dB.
Typical loss per connector is 0.3dB.
Typical loss for each patch cord (100m) is 0.25dB.
Fiber optic loss is 2.5 dB/km.

14
691 - Connecting the 691 HDBT 2.0 Optical Transmitter
Multi-mode bulk line budget is: 8.6 –(0.3x6 +0.25x2) = 6.3dB.
Evaluated bulk line length is: 6.3/2.5=~2.5km.
For single-mode lines (SM OS1 cable category, as defined in the table on
page 12):
Maximum loss budget is: 11.9dB.
Typical loss per connector is 0.3dB.
Typical loss for each patch cord (100m) is 0.1dB.
Fiber optic loss is 1 dB/km.
Single-mode bulk line loss budget is: 11.9 –(0.3x6 +0.1x2) = 9.9dB.
Evaluated bulk line length is: 9.9/1=~9.9km.
5.1.2 Inserting the SFP+ Module
To insert the SFP+ module:
1. Make sure the bail is pushed up, in the closed position.
2. Insert the OSP-MM1/OSP-SM10 into the IN OUT SFP+ slot and push it in
until it clicks.
Figure 6: Inserting the Transceiver Module
