Kraus Allyn KPF-4102 User manual

INSTALLATION MANUAL
Allyn™ Industrial Pull Down
Single Handle Kitchen Faucet
KPF-4102
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. April 11, 2023

2
Congratulations on the purchase of your new
R
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

13
3

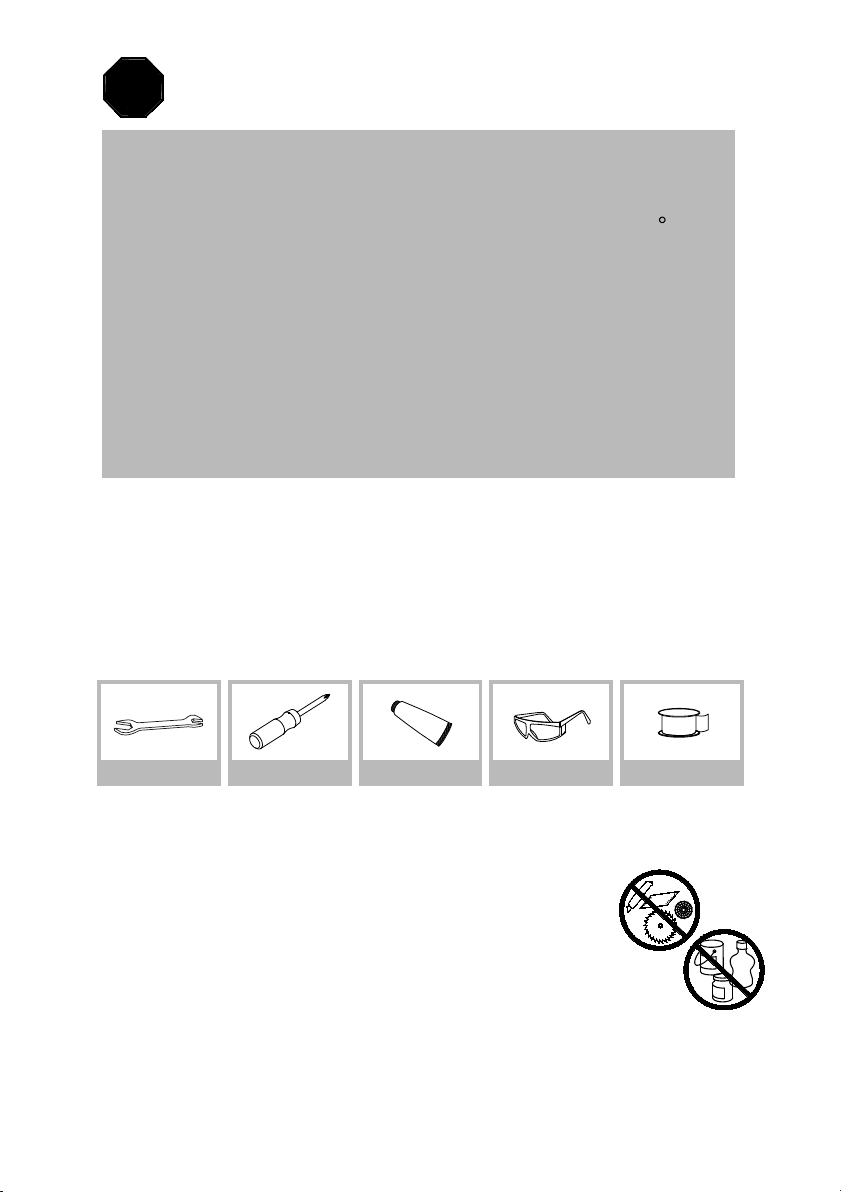

Prior to Installation:
·Make sure you have all necessary parts by checking the diagram and
parts list. If any part is missing or damaged, please contact Kraus
Customer Service at 800-775-0703 for a replacement.
·Read all instructions and safety warnings and ensure you have all tools,
parts, and equipment necessary for a safe installation.
·Turn off the hot and cold water supply at the angle stops and turn on
the old faucet to release any built up pressure. Remove existing faucet.
·
·
Pre-drilled hole size requirement: 1 3/8" (min)
Max countertop thickness: 3 1/2”
Care & Maintenance
* To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
* This installation manual is subject to change without further notice.
ACID
R
STOP
For technical assistance or replacement parts, please contact Kraus Customer
Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
Tools Required
Wrench Phillips Screwdriver Silicone Sealant Safety Goggles Pipe Tape

B

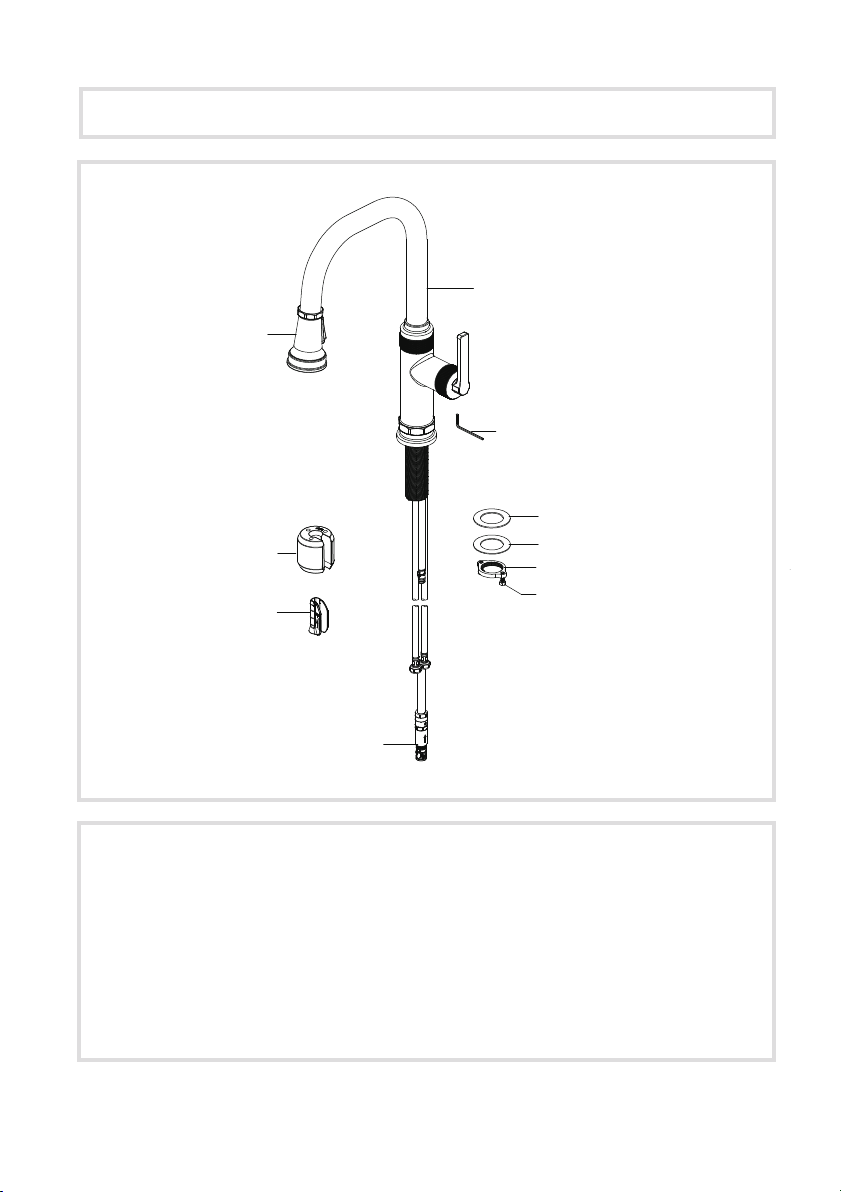

Diagram and Parts List
J
A. Spray Head
B. Faucet Body
C. Rubber Washer
D. Metal Washer
E. Mounting Nut
F. Screws
C
D
H
I
G. Weight
H. Weight Clip
I. Quick Connector
J. Hex Wrench
G
A
E
F
4

Faucet Dimensions
3/8”-compression
3.2
5''
[128.1mm]
16 3/4''
[425.7mm]
Max: 3 1/2''
[89.6mm]
11 1/8''
[283.7mm]
8 7/8''
[226.4mm]
8 1/2''
[217.4mm]
Ø2 1/4''
[58.0mm]
Installer Tip:
Shut off main water supply before installing new faucet.
5

F
C
D
F
B
E
a
I
(2 N.m
Max)
Step 1: Installing the faucet
Step 2: Securing the faucet assembly
Push the quick connector (I) firmly
upward and attach it to the receiving
block (a). Pull down moderately to
ensure the connection has been made.
Shut off the water supply. Place the
faucet (B) through the hole in the
countertop. Secure the faucet (B) to
the countertop using the rubber
washer (C), metal washer (D) and
mounting nut (E) provided. Hand
tighten the nut (E) onto the faucet
assembly. Lock the nut (E) into position
by tightening the screws (F) with a
phillips screwdriver. Do not
overtighten.
6

Weight
here
Weight
here
H
G
A
1
7

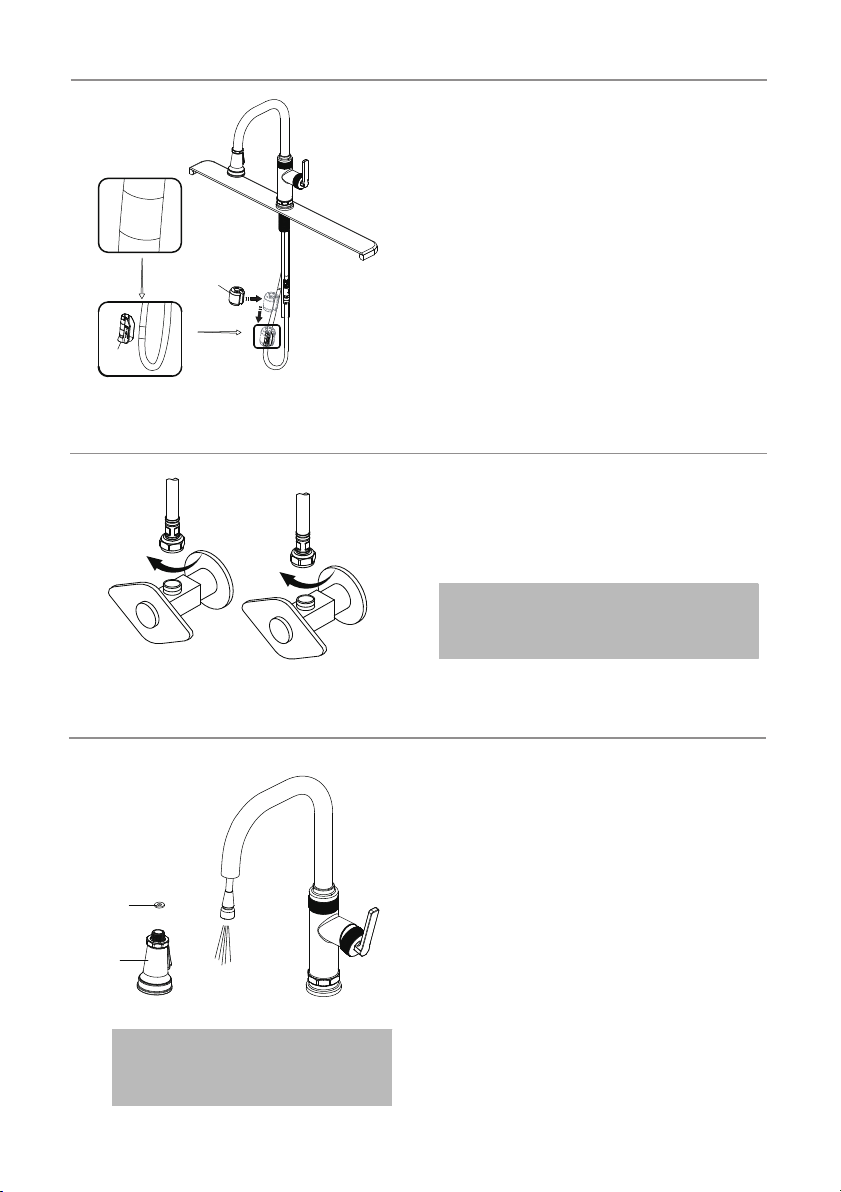

Step 3: Installing the counterweight
Step 4: Connect waterlines to main valve
Attach waterlines to angle stops and
tighten until snug. Turn on angle stops
and check for leaks (DO NOT TURN
FAUCET ON).
Install the weight clip (H) at the point of
the hose marking "weight here". Insert
the weight (G) onto the weight clip (H) by
sliding it down onto the weight clip (H).
Step 5: Flush faucet
Pull the hose assembly out of the spout
and remove the spray head (A) by
unscrewing it from the hose in a
counterclockwise direction. Be sure to
hold the end of the hose down into the
sink and turn the faucet on to the warm
position where it mixes hot and cold
water. Flush the water lines for one
minute. This flushes away any debris that
could cause damage to internal parts.
Check for leaks. Retighten any
connections if necessary, but do not
overtighten. Reinstall the spray head (A)
by hand tightening it back onto the spray
hose. After installation is completed, turn
on the hot and cold water supplies. Check
for leaks.
NOTE: Please make sure filter washers
are installed before connecting to the
main valve.
NOTE: Please make sure the washer
(1) is installed before attaching the
spray head to the hose.

18
4
20
21
2
Replacement Parts
1. Spray Head
2. Sprayer Washer
3. Sprayer Hose
5. O-Ring
6. Inverter
7. Cartridge
9. Bonnet Nut
10. Cap & O-ring
11. Handle
KP27210
KP27211
KP27257
KP27299
KP27300
KP27301
KP27298
KP27208
KP27209
8. Screw
4. Quick Connector Assembly KP27090
12. Set Screw
KP27307
KP27001
SFACB, CH, MB
SFSB, SFS**
13. Cover Button
14. Hex Wrench
KP27194
15. Rubber & Metal Washer
KP27020
KP27028
16. Mounting Nut & Screw
17. Inverter
KP27079
18. 1.8GPM Flow Restrictor
KP27123
KP27074
19. Weight & Clip Assembly
20. Block
21. O-Ring
KP27212
KP27092
22. Filter Washer
BL, GR**
GRCH, GRSFS,
BLMB, BLSFSB,
BLSFACB*
SFACB, CH, MB
SFSB, SFS**
SFACB, SFSMB,
SFSB, SFS, CH
SFSCH, MB**
14
7
13
12
15
16
19
17
22
3
1
5
6
11
KP27073
KP27167
10
89
Replacement Parts List Part #Finish / Color
8
*Denotes spray hose assembly color options:
Spray hose assembly color options:
Black hose with Matte Black connector (BLMB);
Gray hose with Spot-Free Stainless connector
(GRSFS); Grey hose with Chrome connector
(GRCH); Black hose with Spot-Free Black
Stainless connector (BLSFSB); Black hose with
Spot-Free Antique Champagne Bronze
connector (BLSFACB)
**Denotes faucet component color options:
SFSB - Spot Free Black Stainless
SFS - Spot Free Stainless
CH - Chrome
MB - Matte Black
SFSMB - Spot Free Stainless/Matte Black
SFSCH - Spot Free Stainless/Chrome
SFACB - Spot Free Antique Champagne Bronze
GR - Grey
BL - Black

9
Troubleshooting
If you have followed the instructions carefully and your faucet still does not work properly,
take the following corrective steps:
Leakage under the handle.
PROBLEM CAUSE ACTION
Bonnet nut (9) has
come loose.
Remove the cover button (13). Loosen
set screw (12) with hex wrench (14).
Remove the handle (11). Unscrew cap
(10) (by hand only). Tighten bonnet nut
(9) with an adjustable wrench.
The aerator has an irregular
or reduced water flow.
The aerator is dirty or
misfitted.
Remove the aerator and check for
debris. Ensure that the rubber washer is
properly installed.
Water will not shut off
completely.
Cartridge may need to be
adjusted or replaced.
Remove the cover button (13). Loosen set
screw (12) with hex wrench (14). Remove
the handle (11). Unscrew cap (10) (by
hand only). Loosen the bonnet nut (9) with
an adjustable wrench. Remove the
cartridge (8). Check for cracks.
There is a low flow of water. The filter washers in the
hose connectors are dirty.
Turn off the water supply at the water
valves and unscrew the hose connectors
from the water supply lines. Clean the
washers in the water lines with hot water,
removing any debris or calcium build up.

Faucet - Lifetime Limited Warranty
R
Kraus USA Plumbing, LLC (“Kraus”) extends this warranty to the original purchaser for personal household use of the
Faucet when purchased from an authorized Kraus dealer and in the location of original installation. This warranty is
non-transferable.
Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal
usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
Kraus warrants the Faucet's sprayhead assembly (including the engine, aerators, structure, restrictors, back flow
preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon and stainless steel) of the product
to be free from defects in material and workmanship under normal usage for a period of one (1) year from the date of
purchase.
Kraus warrants the Faucet's cartridge to be free from defects in material and workmanship under normal usage for a
period of five (5) years from the date of purchase.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired
or replaced with a product of equal value at the option of Kraus.
Commercial Warranty
Kraus USA Plumbing, LLC (“Kraus”) warrants its Products for a period of one (1) year to commercial purchasers of
Products used in industrial, commercial and business applications.
Care and Cleaning Instructions
Certain cleaning products may cause damage to a Product's finish and use of the following on the Product will void this
warranty:
Abrasive cleaners such as powders, bleach, ammonia, alcohol or chorine
Abrasive pads, steel wool or wire brushes
What is Not Covered
This warranty does not cover Products that were discontinued when purchased or display Products, whether such
Products were purchased at discount outlets, unauthorized dealers, and/or sold on clearance. This warranty does not
cover any free gifts included with purchase.
This warranty does not cover damage resulting from neglect, misuse (including use for an unintended application),
abuse, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, improper maintenance,
alteration of the Product, or failure to follow care, cleaning or installation instructions enclosed with your Product. Kraus
recommends that all Kraus Products be installed by a fully licensed and insured trade professional with experience in the
installation of bathroom and/or kitchen manufactured goods.
Codes/Standards Applicable:
•
•
UPC
CR
NSF/ANSI 372
ASME A112.18.1
1.8GPM 6.8L/min maximum
IAP
TM
LEAD FREE
NSF/ANSI 61
MOR&T
UPC
CR
NSF/ANSI/CAN 61: Q ≤ 1
10

Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
How to Make a Warranty Claim
R
If you are a consumer purchaser, please contact a Kraus Customer Service Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an authorized partner, please contact a Partner Support Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
In requesting warranty service, please be ready to provide your proof of purchase and a description of the problem. Shipping charges
will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto Rico shipping charges may apply).
International shipping fees are not included.
Limitation on Duration of Implied Warranties
Please note that some states/provinces (including Quebec) do not allow limitations on how long an implied warranty lasts, so the
below limitations may not apply to you. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ANY IMPLIED WARRANTY,
INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO
THE STATUTORY PERIOD OR THE DURATION OF THIS WARRANTY, WHICHEVER IS SHORTER.
Limitation of Special, Incidental or Consequential Damages
Please note that some states/provinces (including Quebec) do not allow the exclusion or limitation of special, incidental or
consequential damages, so the below limitations and exclusions may not apply to you. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS
PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR
OTHERWISE.
This warranty gives you specific legal rights, and you may also have other rights which vary from state/province to state/province.
11

Register Your Kraus Product
Activate Your Warranty
Access Premium Customer Support
Get Product Information
REGISTER TODAY
http://www.kraususa.com/registration
R
www.kraususa.com
IMPORTANT
