INSTALLATION MANUAL
Bolden™ Sensor Single Handle
Pull Down Kitchen Faucet
KSF-1610
www.kraususa.com I Toll Free: 1.800.775.0703 I © 2023 Kraus USA Plumbing LLC I Rev. March 13, 2023

2
Congratulations on the purchase of your new
R
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

13
3
Prior to Installation:
·Make sure you have all necessary parts by checking the diagram and
parts list. If any part is missing or damaged, please contact Kraus
Customer Service at 800-775-0703 for a replacement.
·Read all instructions and safety warnings and ensure you have all tools,
parts, and equipment necessary for a safe installation.
·Turn off the hot and cold water supply at the angle stops and turn on
the old faucet to release any built up pressure. Remove existing faucet.
·Pre-drilled hole size requirement: 1 3/8" (min)
·Max countertop thickness: 3 3/8”
Care & Maintenance
* To keep the product clean & shining, follow the steps below:
1. Rinse with clean water & dry with a soft cloth
2. Do not clean with soaps, acid, polish, abrasives or harsh cleaners
3. Do not use cloth with a coarse surface
4. Unscrew the aerator and clean when necessary
* This installation manual is subject to change without further notice.
ACID
R
STOP
For technical assistance or replacement parts, please contact Kraus Customer
Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
Tools Required
Wrench Phillips Screwdriver Silicone Sealant Safety Goggles Pipe Tape

4

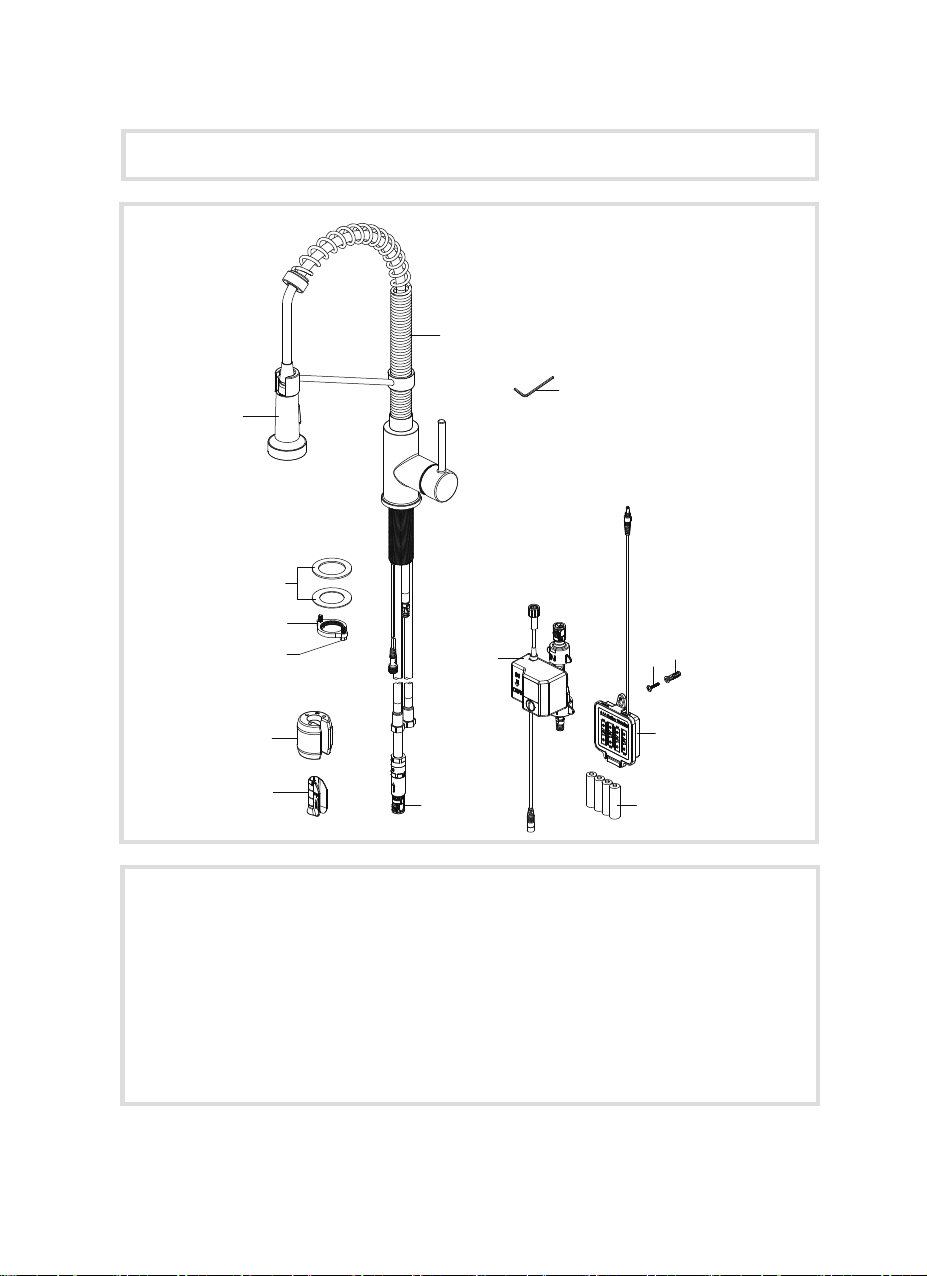

Diagram and Parts List
A
B
C
D
E
F
GH
I
J1
J2 J3
K
L
A. Spray Head
B. Faucet Body
C. Washers
D. Mounting Nut
E. Screws
F. Weight
G. Weight Clip
H. Quick Connector Assembly
I. Sensor Control Box
J. Battery Pack
J1. Battery Pack
J2. Screw
J3. Anchor
K. Battery
L. 2.5mm Hex Wrench

5

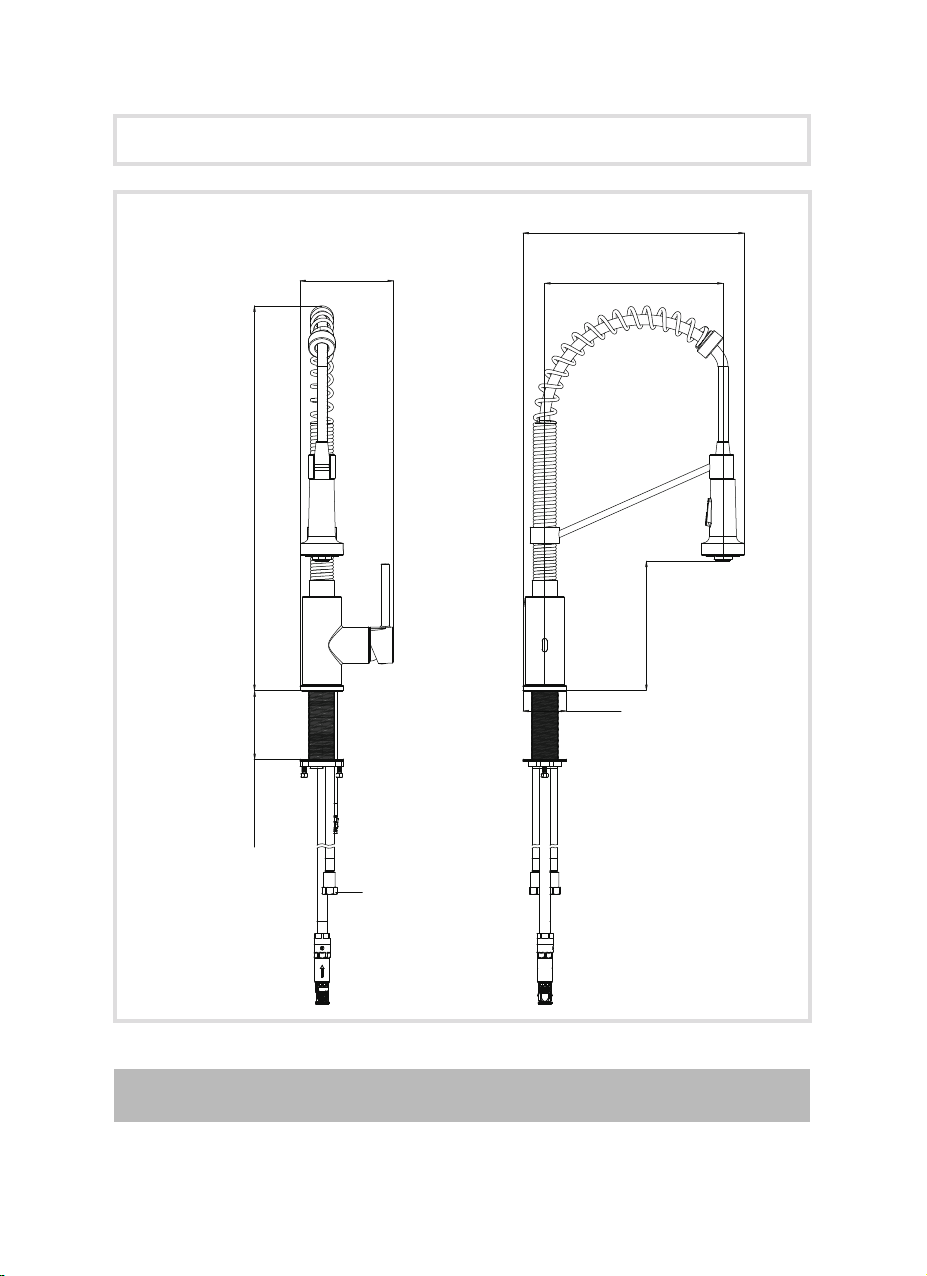

Faucet Dimensions
3/8”compression
6 1/4"
[159.7mm]
Ø2 1/8"
[54.0mm]
4 1/2"
[115.4mm]
18"
[456mm]
8 5/8"
[220.0mm]
10 3/4"
[273.5mm]
Max: 3 3/8’’
[84.7mm]
Installer Tip:
Shut off main water supply before installing new faucet.

6
E
B
C
DE
(2N.m
Max)
Step 1: Installing the faucet
Shut off the water supply. Insert faucet
body (B) through the hole in the sink.
Step 2: Securing the faucet assembly
Install the washers (C) onto the
threaded mounting shank. Thread the
mounting nut (D) onto the mounting
shank. Lock the mounting nut (D) into
position by tightening the screws (E).
Do not overtighten.

7
1
23
2
3
4
1
5
CAUTION: If the connections are not
made properly, the sensor feature will
not work.

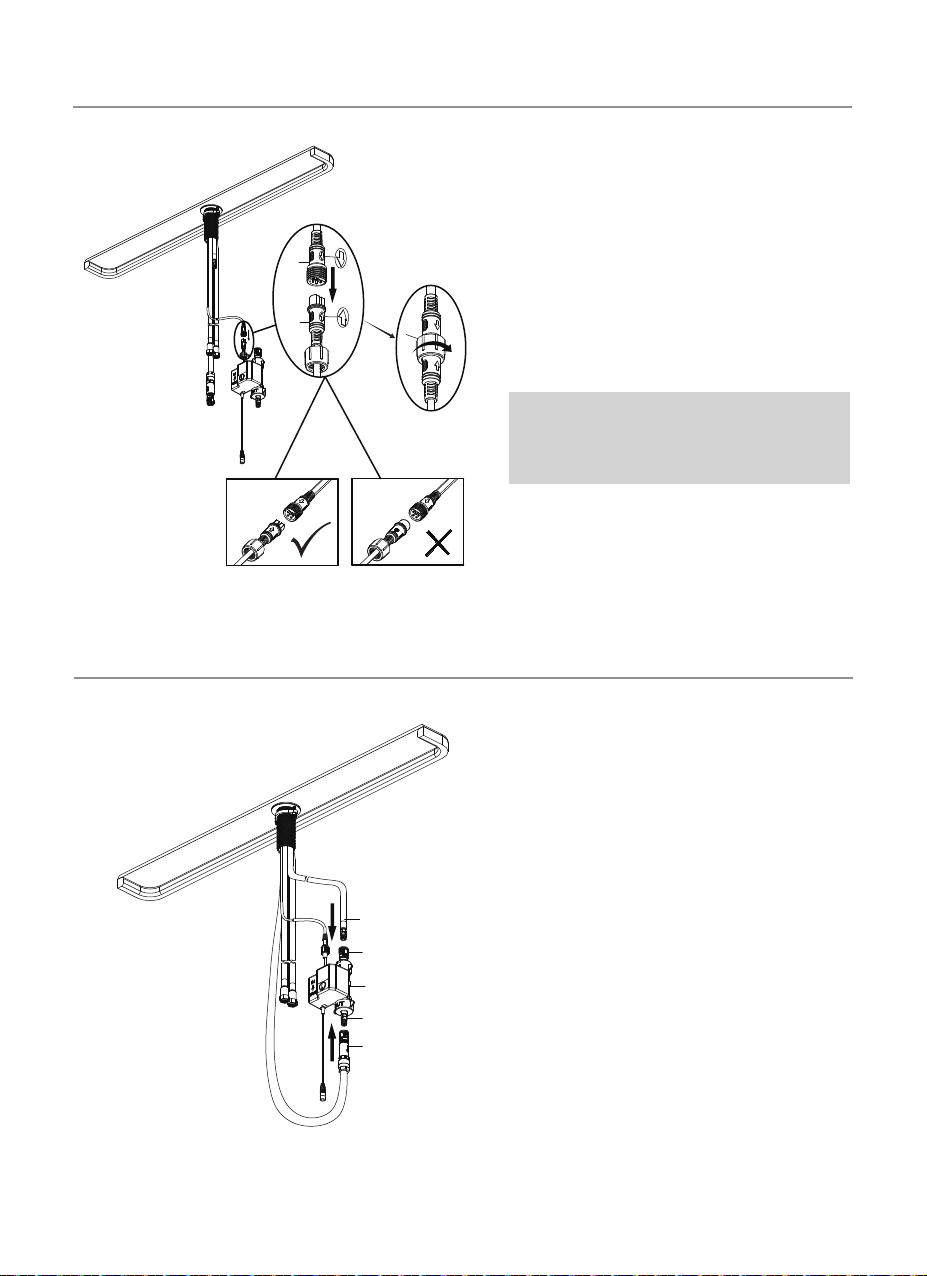

Step 3: Installing the sensor control box
Install the data cable (1) to the control
box connection (2). Ensure the arrows
on the data cable and control box
connection are aligned to one another
to ensure proper installation. Ensure
they are tightly connected by firmly
pushing together. Secure the
connection by hand tightening the nut
(3) in a clockwise direction onto the
threaded sensor cable.
Step 4: Installing the sensor control box
Connect the hose (1& 2) to the
connector (3 & 4) on the control box
(5). Push firmly together until they
snap into place.

8
Weight
here
Weight
here
G
F
G
F
2
1
2
3
4
4
NOTE: When the sensor flashes 10
times continuously and slowly, the
batteries have lost their charge.
Replace the batteries (3).
Step 5: Installing the counterweight
Install the weight clip (G) at the point
of the hose marking "weight here".
Insert the weight (F) onto the weight
clip (G) by sliding it down onto the
weight clip (G).
Step 6: Installing the battery pack
To open the battery housing, squeeze
the tabs (1) on the cover (2), then
remove the cover (2). Install the four
AA batteries (3) included by matching
the positive (+) and negative (-) ends
on the battery (3) to the (+) and (-)
markings in the battery pack (4). The
negative ends of the battery (3) should
always connect to the spring end of
the battery slots in the battery pack (4).
Reinstall the battery pack cover (2) by
pushing up and snapping into place.

9
6mm
(1/4") dia.
2
1
J3
J2
J1
Step 7: Installing the battery pack
Step 8: Connect waterlines to main valve
Drill a hole in the wall using a 6mm
(1/4 in.) diameter drill bit. Install the
battery pack (J1) using the molly
anchor (J3) and screw (J2) provided.
Insert the battery pack cable (1) into
the control box connection (2).
NOTE: After installing the battery
pack, the light on the sensor will flash
and the faucet will sound when you
move your hand in the sensor area. If
not, check to ensure the batteries are
installed correctly.
NOTE: Please make sure filter washers
are installed before connecting to the
main valve.
Attach waterlines to angle stops
and tighten until snug. Turn on angle
stops and check for leaks (DO NOT
TURN FAUCET ON).

10
Cold
Hot
1
2
3
6cm MAX
NOTE: Please make sure washer (1) is
installed attaching spray head to hose.
Step 9: Flush faucet
Flushing and checking for leaks: After
the installation is complete, unscrew
and remove the spray head in order to
flush the line. Turn on the water supply
and allow both hot and cold water to
run for at least one minute each. This
flushes away any debris that could
cause damage to internal parts. Check
for leaks. Reattach the spray head. Do
not lose the gasket (1) in the hose.
Operating the sensor: Turn the handle
(2) away from the faucet to the full on
position. Turn the water on by
activating the sensor (3) by waving
your hand within 6cm of the sensor.
Move the handle towards you and
away from you, the water flow pattern
can be switched from hot water to cold
water. If the sensor does not work,
then you can refer to the
troubleshooting. If you want to use the
faucet without the sensor feature, then
you can refer to troubleshooting 5.
Then, turning on the water can be
done by moving the handle away from
the faucet to the full on position.
NOTE: The sensor is active only when
the handle is in the ON position. As a
water saving feature, the water will
turn off automatically after 3 minutes
of continuous flow.

11
Replacement Parts
1. Sprayer Head
Replacement Parts List Part #
2. Washer
3. Sprayer Hose
5. Sprayer Support Assembly
5.1. Inverter
6. Screw
8. Cartridge
9. Bonnet Nut
10. Cap
Finish / Color
KP27218
KP27245
KP27084
KP27124
KP27083
KP27082
KP27216
KP27208
KP27217
7. Index
4. Spring Assembly KP27322
11. Handle
KP27081
KP27072
SFS, MB, SFACB, BB**
12. Screw KP27001
SFS, MB, SFACB, BB**
13. Index
14. Hex Wrench
KP27002
KP27020
SFS, MB, SFACB, BB*
WHITE
2
1
14
15
16
17
21
22
19
18
20
67
11
12
13
25
26
27
24
23
8910
3
4
5
5.1
SFACB, SFS, BB**
SFS, MB, SFACB, BB
BLMB, GRSFS, BLBB
BLSFACB, BLSFS*
BL, GR**
15. Block KP27073
16. O-Ring
17. Filter Washer
KP27092
KP27248
18. Washers
19. Nut & Screw
KP27028
KP27079
20. Weight & Clip Assembly KP27236
21. 1.8GPM Flow Restrictor KP27074-WH
22. Quick Connector Assembly KP27090
23. Control Box KP27186
24. Battery Housing
25. Inlet Connector
KP27188
KP27190
26. Filter Washer
27. Outlet Connector
KP27189
KP27191
BL, GR**
28 (optional)
28. AC Adapter (optional) KP27187
4. Spring Assembly KP27220
MB**
*Denotes spray hose assembly color options:
Spray hose assembly color options:
Black hose w/ Matte Black connector (BLMB);
Black hose with Brushed Brass connector
(BLBB); Gray hose with Spot-Free Stainless
connector (GRSFS); Black hose with Spot-Free
Stainless connector (BLSFS); Black hose with
Spot-Free Antique Champagne Bronze
connector (BLSFACB);
SFSMB, BBMB**
**Denotes faucet component color options:
BB - Brushed Brass
SFS - Spot Free Stainless Steel
MB - Matte Black
SFSMB - Spot Free Stainless Steel/Matte Black
SFACB - Spot Free Antique Champagne Bronze
BBMB - Brushed Brass/Matte Black
GR - Grey
BL - Black

12
1
1a 1b 1c
2
3Hose
Connector
Washer
Control box
3
1

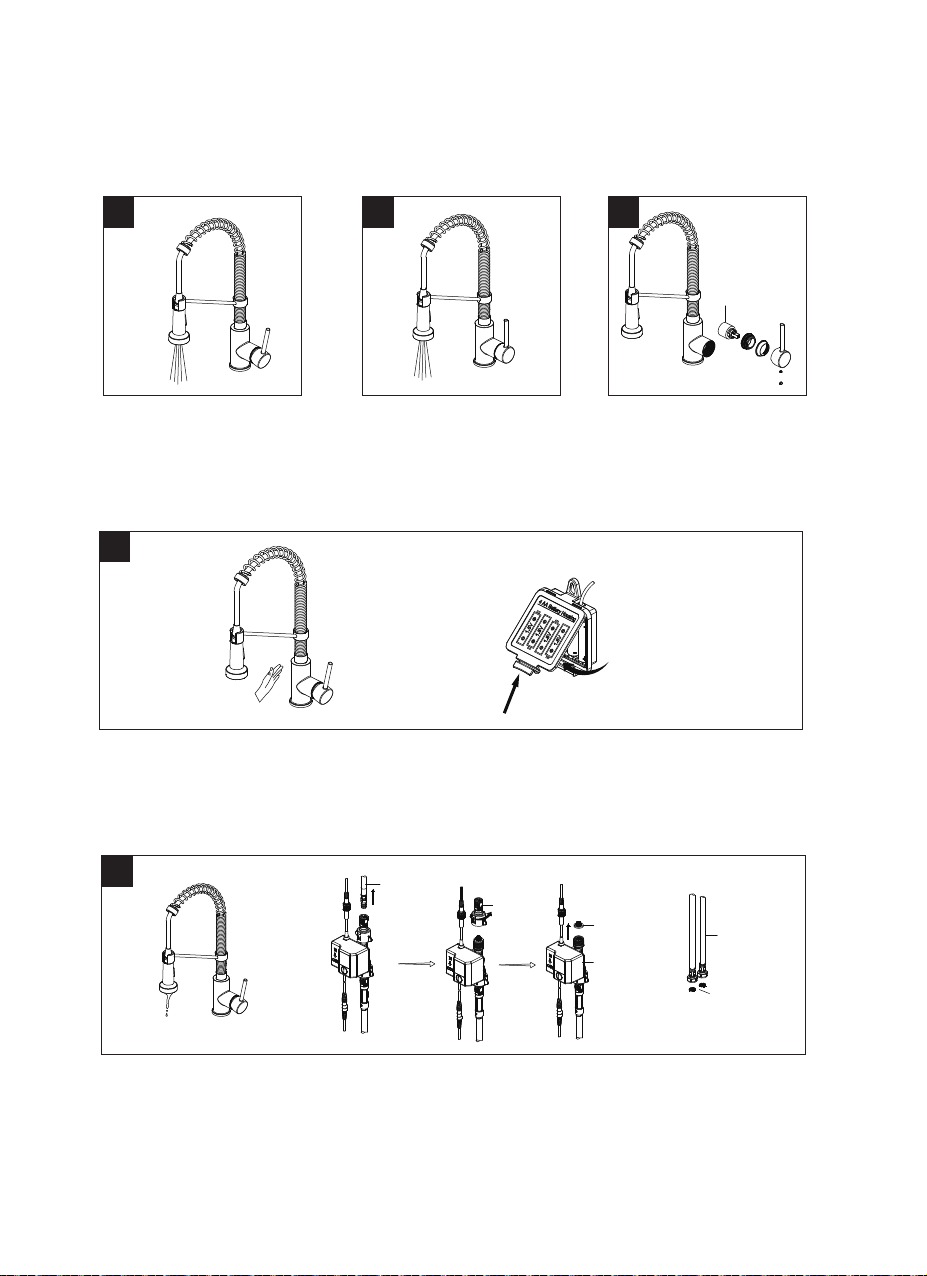

Troubleshooting
If you have followed the instructions carefully and your faucet still does not work
properly, take the following corrective steps:
Problem 1: Water will not shut off when turning the handle to the OFF position.
Problem 2: The light on the sensor is flashing continuously.
When you turn the handle to
the full on position, the water
will turn on.
This indicates that the cartridge
is damaged. Turn off the water
supply, remove the handle and
replace the cartridge (1).
But when you turn the handle
to the full off position, the
water does not turn off.
If the handle is closed, turn the handle to the on position and move your hand in the sensor area. If the sensor
flashes 10 times continuously and slowly, then replace the 4 "AA" batteries.
functioning.
Problem 3: There is a low flow of water or LED indicator in the faucet body is not
a. This could indicate that the washer in the control box is dirty or damaged. Remove the hose and unscrew the
connector. Take out the washer from the control box. Clear the washer or replace the washer. Reassemble the
connector and hose.
b. The filter washers (17 & 26) are dirty. Turn off the water supply at the water valves and unscrew the hose
connectors from the water supply lines. Clean the filter washers in the water lines with hot water, removing any
debris or calcium build up.
Washers
Water lines

13
4a 4b
5a 5b
2
1
4c
Switch button Switch button
Problem 4: The sensor is not activating the water flow.
When you turn the handle to
the full on position, the water
will turn on.
However, when you move your
hand in front of the sensor, the
water does not turn off as it
should.
Check whether the switch
button (1) is tight, if it is
loose, tighten the switch button (1)
completely with a coin clockwise.
If the switch button (1) is tight, this
indicates that the control
box (2) is damaged. Call customer
service to request a replacement
control box. Replace the old
control box with the new control box.
Problem 5: The function of the switch button.
If you want to use the faucet
without the sensor feature, you
can loosen the switch button
completely with a coin
counterclockwise. At this time,
you can use the sensor faucet
just like a regular kitchen faucet.
However, if you want to continue
to use the faucet with the sensor
feature, you need to tighten the
switch button completely with a coin
clockwise. At this time, you can
use the faucet with the sensor feature.

14
Faucet - Lifetime Limited Warranty
Kraus USA Plumbing, LLC (“Kraus”) extends this warranty to the original purchaser for personal household use of the
Faucet when purchased from an authorized Kraus dealer and in the location of original installation. This warranty is
non-transferable.
Kraus warrants the structure and finish of the Faucet to be free from defects in material and workmanship under normal
usage for as long as the original purchaser resides in the residence in which the Faucet was first installed.
Kraus warrants the Faucet's sprayhead assembly (including the engine, aerators, structure, restrictors, back flow
preventers, sprayer hoses, braided supply line hoses which encompasses nylon, silicon and stainless steel) of the product
to be free from defects in material and workmanship under normal usage for a period of one (1) year from the date of
purchase.
Kraus warrants the Faucet's cartridge to be free from defects in material and workmanship under normal usage for a
period of five (5) years from the date of purchase.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired
or replaced with a product of equal value at the option of Kraus.
Commercial Warranty
Kraus USA Plumbing, LLC (“Kraus”) warrants its Products for a period of one (1) year to commercial purchasers of
Products used in industrial, commercial and business applications.
Care and Cleaning Instructions
Certain cleaning products may cause damage to a Product's finish and use of the following on the Product will void this
warranty:
Abrasive cleaners such as powders, bleach, ammonia, alcohol or chorine
Abrasive pads, steel wool or wire brushes
What is Not Covered
This warranty does not cover Products that were discontinued when purchased or display Products, whether such
Products were purchased at discount outlets, unauthorized dealers, and/or sold on clearance. This warranty does not
cover any free gifts included with purchase.
This warranty does not cover damage resulting from neglect, misuse (including use for an unintended application),
abuse, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, improper maintenance,
alteration of the Product, or failure to follow care, cleaning or installation instructions enclosed with your Product. Kraus
recommends that all Kraus Products be installed by a fully licensed and insured trade professional with experience in the
installation of bathroom and/or kitchen manufactured goods.
Codes/Standards Applicable:
UPC
CR
NSF/ANSI 372
ASME A112.18.1
1.8GPM 6.8L/min maximum
IP
TM
LEAD FREE
NSF/ANSI 61
AMOR&T
R
•
•
UPC
CR
NSF/ANSI/CAN 61: Q ≤ 1

15
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance
How to Make a Warranty Claim
If you are a consumer purchaser, please contact a Kraus Customer Service Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
Toll-free 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional, please contact a Kraus Pro Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an authorized partner, please contact a Partner Support Representative at:
Kraus USA Plumbing, LLC
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
In requesting warranty service, please be ready to provide your proof of purchase and a description of the problem. Shipping charges
will be covered for the first (1) year of the warranted replacement part or product (HI, AK, and Puerto Rico shipping charges may apply).
International shipping fees are not included.
Limitation on Duration of Implied Warranties
Please note that some states/provinces (including Quebec) do not allow limitations on how long an implied warranty lasts, so the
below limitations may not apply to you. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, ANY IMPLIED WARRANTY,
INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO
THE STATUTORY PERIOD OR THE DURATION OF THIS WARRANTY, WHICHEVER IS SHORTER.
Limitation of Special, Incidental or Consequential Damages
Please note that some states/provinces (including Quebec) do not allow the exclusion or limitation of special, incidental or
consequential damages, so the below limitations and exclusions may not apply to you. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, THIS WARRANTY DOES NOT COVER, AND KRAUS USA PLUMBING, LLC SHALL NOT BE LIABLE FOR, ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR CHARGES TO REPAIR, REPLACE, INSTALL OR REMOVE THIS
PRODUCT), WHETHER ARISING OUT OF BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, TORT, OR
OTHERWISE.
This warranty gives you specific legal rights, and you may also have other rights which vary from state/province to state/province.
R

Register Your Kraus Product
Activate Your Warranty
Access Premium Customer Support
Get Product Information
REGISTER TODAY
http://www.kraususa.com/registration
R
www.kraususa.com
IMPORTANT
