INSTALLATION
PROOF-OF-PURCHASE
PART # INCLUDED
407704R 1 Right Cylinder Base Cover — Chrome
407704L 1 Left Cylinder Base Cover — Chrome
407704RL 1 Right Lower Cylinder Base Cover — Chrome
407704SF 1 Front Mount Spacer — Chrome
407704SR 1 Rear Mount Spacer — Chrome
907704 1 H/W Kit including the Following:
3 10-24 X 1/2” Button Socket Cap Screw — Chrome
1 1/4”–20 X 6” Socket Head Cap Screw — Chrome
1 10–24 X 5/8” Phillips Head Pan Screw
307704 1 Installation Instructions
THANK YOU FOR CHOOSING KURYAKYN!
NOTE
For some models, loosening the exhaust where the pipes fasten to the heads and on lower
bracketry may be necessary to gain clearance to install the engine case covers.
TOOLS SUGGESTED
A set of Metric and Standard Allen Wrenches, and a Torque Wrench
PROCEDURE

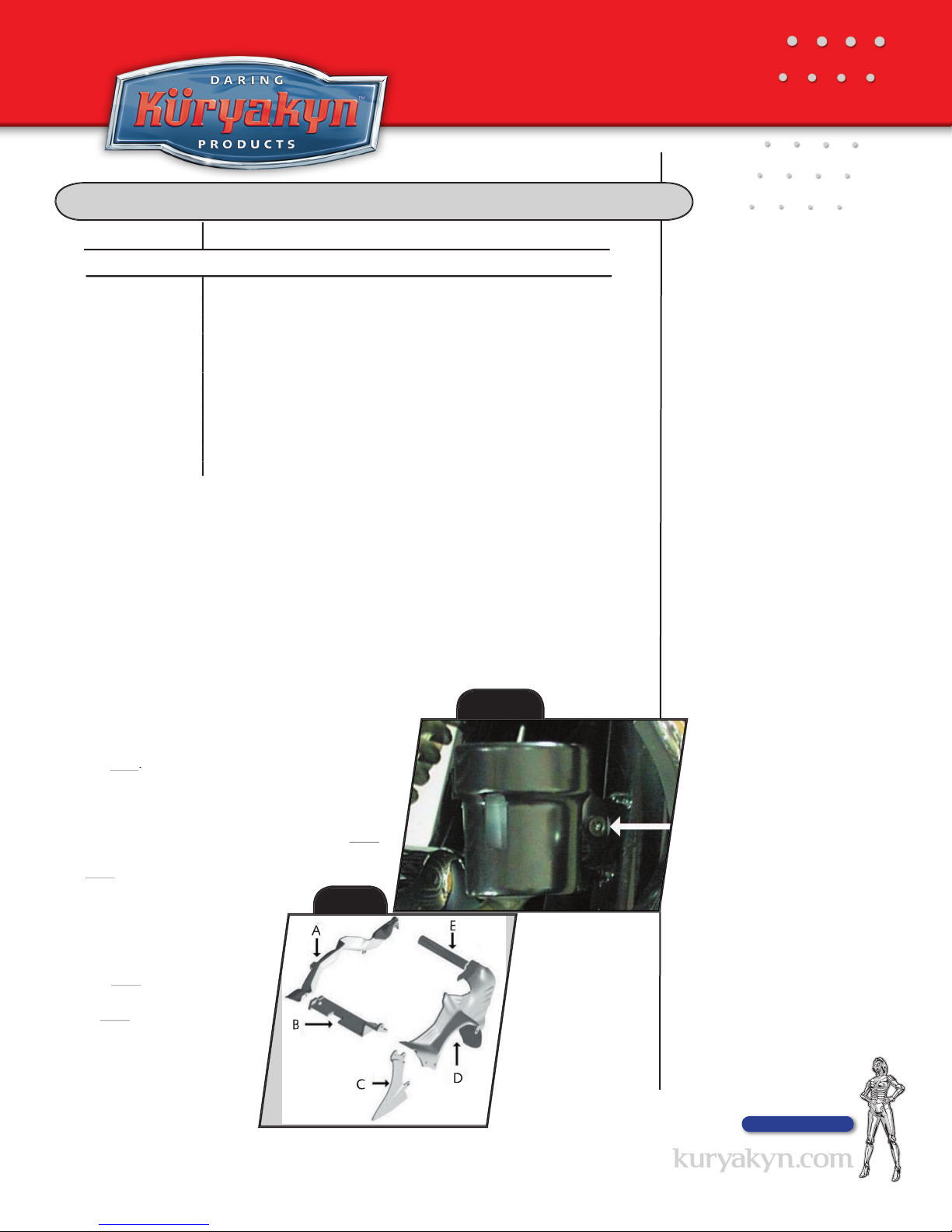

STEP 1
Using a 5mm Allen wrench, remove the
fastener that secures the master cylinder to the
frame. The master cylinder is located under the
front exhaust pipe on the right side of the bike.
See
PIC.1
.
STEP 2
Using two of the supplied 10–24 X 1/2”
Button Socket Cap Screws, Secure the Right
Lower Cylinder Base Cover (labeled as C in
FIG.1
)
to the Right Cylinder Base Cover (labeled as D in
FIG.1
).
STEP 3
Using the supplied
10–24 X 5/8” Phillips Head
Pan Screw, secure the Rear
Mount Spacer (labeled as
B in
FIG.1
) to the Right Cylin-
der Base Cover (labeled as D
in
FIG.1
).
-cont.-
FITS: ALL HONDA VTX 1800
7704-12MC-0705
ENGINE CASE COVERS 7704
PART # INCLUDED
407704R 1 Right Cylinder Base Cover — Chrome
407704L 1 Left Cylinder Base Cover — Chrome
407704RL 1 Right Lower Cylinder Base Cover — Chrome
407704SF 1 Front Mount Spacer — Chrome
407704SR 1 Rear Mount Spacer — Chrome
907704 1 H/W Kit including the Following:
3 10-24 X 1/2” Button Socket Cap Screw — Chrome
1 1/4”–20 X 6” Socket Head Cap Screw — Chrome
1 10–24 X 5/8” Phillips Head Pan Screw
307704 1 Installation Instructions
PIC.1
FIG.1
A
B
C
D
E

INSTALLATION
STEP 4
On the right side of the bike, remove the two OEM fasteners shown in
PIC.2
. Then maneuver
the Right Cylinder Base Cover into position on the engine case.
STEP 5
Loosely reinstall the two OEM fasteners removed in STEP 4 through the mounting tabs on the
Right Cylinder Base Cover.
STEP 6
On the left side of the bike, remove the two OEM fasteners shown in
PIC.3
and maneuver
the Left Cylinder Base Cover into position on the engine case.
STEP 7
Loosely reinstall the two OEM fasteners removed in STEP 6 through the mounting tabs on
the Left Cylinder Base Cover.
STEP 8
Using the remaining supplied 10–24 X 1/2” Button Socket Cap Screw, loosely secure the
Left Cylinder Base Cover (labeled as A in
FIG.1
) to the Rear Mount Spacer (labeled as B in
FIG.1
).
STEP 9
Slide the supplied 1/4”–20 X 6” Socket Head Cap Screw
through the fastener hole at the front of the Right Cylinder Base Cover
(labeled as A in
FIG.1
) and the Front Mount Spacer (labeled as E in
FIG.1
).
Then thread it into to the Right Cylinder Base Cover (labeled as D in
FIG.1
). Do not tighten fully at this time.
STEP 10
Tighten the fasteners in the specific order outlined below:
•
Tighten the OEM fasteners that were loosely installed in STEP 5 and
STEP 7, to 10 foot-pounds of torque.
•
Snuggly tighten the 10–24 X 1/2” Button Socket Cap Screw that was
loosely installed in STEP 8.
•
Tighten the 1/4”–20 X 6” Socket Head
Cap Screw loosely installed in STEP 9.
Ride On!
ENGINE CASE COVERS
FIG.1
A
B
C
D
E
INSTALLATION
