Labnet BioPette PLUS User manual

Labnet BioPette Plus
Single-channel, 8-channel,
and 12-channel Pipettors
Instruction Manual
This manual is available in additional languages
at www.labnetlink.com.

Table of Contents
1. Product Description ............................................................... 1
2. Packing.........................................................................................2
3. Pipettor Design.........................................................................2
4. Safety Recommendations .................................................. 4
5. Specications ............................................................................5
6. Pipettor Operation ..................................................................7
7. Operating Instructions ....................................................... 11
8. Aspiration and Dispensing Instructions.......................12
9. Checking Pipetting Accuracy Parameters
and Pipettor Recalibration.................................................14
10. Pipettor Maintenance .........................................................18
11. Troubleshooting ....................................................................19
12. Spare Parts................................................................................21
13. Limited Warranty ..................................................................24

Instruction Manual – 1
1. Product Description
The BioPette Plus single-channel pipettor isavolumetric
instrument designed to measure and transfer liquids
precisely and safely. It is available in volumes from 0.1μL
to 10,000 μL.
The BioPette Plus 8-channel and 12-channel pipettors
are designed for microplate lling. Thepipettors enable
precise and simultaneous delivery of8 or 12 preset
volumes ofliquid. These pipettors are available in four
volume ranges: 0.5-10 μL, 5-50 μL, 20-200 μL, and 50-300 μL.
Nominal Volume
(µL) Cat. No.
Range of Pipettor
Volumes (µL)
Single-channel pipettors
2 P3942-2 0.1 - 2
10 P3942-10 0.5 - 10
20 P3942-20 2 - 20
100 P3942-100 10 - 100
200 P3942-200 20 - 200
1,000 P3942-1000 100 - 1,000
5,000 P3942-5000 1,000 - 5,000
10,000 P3942-10000 1,000 - 10,000
8-channel and 12-channel Pipettors
8-10
12-10
P4808-10
P4812-10 0.5 - 10
8-50
12-50
P4808-50
P4812-50 5 - 50
8-200
12-200
P4808-200
P4812-200 20 - 200
8-300
12-300
P4808-300
P4812-300 50 - 300
Labnet pipettors operate using an air-cushion (i.e.,the
aspirated liquid does not come into contact with the
shaft or plunger of the pipettor). The liquid is drawn into
thedisposable tip attached to the pipettor.

2 – LABNET BIOPETTE PLUS PIPETTORS
2. Packing
The pipettors are delivered with the following:
Description Qty/Pk
Instruction manual 1
Quality Control certicate 1
Calibration key 1
Pipettor hanger 1
Identication labels 1
Lubricant (for single-channel pipettor) 1
Ejector cap (for pipettor models P3942-2,
P3942-10, P3942-5000, P3942-10000) 1
Filters (for pipettor models
P3942-5000, P3942-10000) 3
Filters
The 5,000 μL and 10,000 μL pipettors include areplaceable
lter, tted at the bottom of the shaft which prevents
aspirated liquid from entering the shaft and contaminating
the inner surface and plunger. Use of the lter is particularly
important when aspirating and dispensing large volumes
ofliquid. The lter should be replaced if it becomes wet.
3. Pipettor Design
Model Identication
The volume range of the pipettor is shown on the
pushbutton and on the tip ejector bar in multi-channel
pipettors.

Instruction Manual – 3

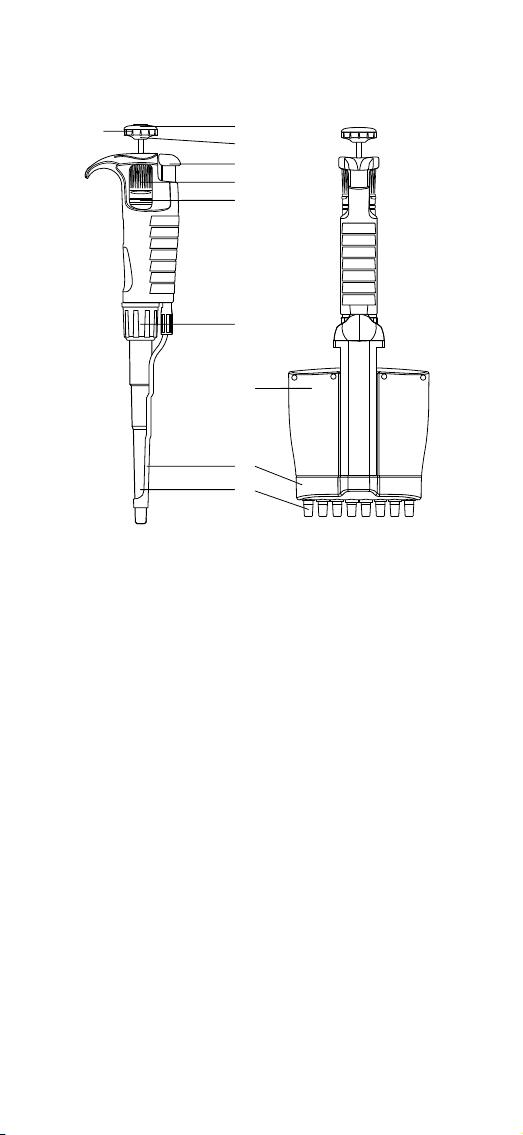

Single- and Multi-channel Pipettors
A1
A2
N
B1
B2
C
D
R
A
F
A. Pipetting pushbutton: Consists of 2 parts:
thepushbutton (A1) and the knob (A2).
B1. Volume adjustment knob: Used to set thevolume.
B2. Locking Ring: Allows the volume setting to be locked by
pushing the ring upwards.
C. Shaft: Manufactured using high quality plastic,
ensuring high chemical and mechanical strength.
D. Tip ejector: For multi-channel pipettors, the tips are
ejected sequentially, reducing the required force.
F. Shaft nut
N. Ejector pushbutton
R. Multi-channel manifold: Contains a set of plungers
andaset of exible-suspension shafts, which function
to reduce the force required to attach the tip.

4 – LABNET BIOPETTE PLUS PIPETTORS
4. Safety Recommendations
Long-term use of the pipettor relies on correct method of use.
Please read and follow the instructions for use carefully.
Symbols used:
Danger, risk of injury.
NOTE Risk of damage to the pipettor or errors in pipetting.
NOTE:
• The pipettor is designed for the transfer of liquids only
using the tip. Do not aspirate liquids without the tip
attached. The aspirated liquid should not enter the
pipettor, asit may cause damage.
• Single-use tips reduce the risk of contamination of
samples.
• Keep the pipettor clean, avoiding the use of abrasive or
corrosive cleaning agents (e.g., acetone).
• Keep the pipettor upright when there is liquid in the tip.
• Only using the pipettor in accordance with the
manufacturer’s instructions ensures the correct pipettor
parameters are maintained.
• After replacing the plunger or the shaft, the pipettor
should be calibrated.
• In the case of incorrect operation, the device should
be cleaned in accordance with the Instructions for Use
ortransferred to a service point.
• Ambient operating temperature is +5°C to 45°C.
• Ambient storage conditions (in the original packaging
during transport and short storage) is -25°C to 55°C.
When working with the pipettor:
• Follow general work safety regulations regarding
hazards related to work in the laboratory.
• Take special care when pipetting aggressive substances.
• Use appropriate protective attire (e.g., clothing, goggles,
and gloves).
• Avoid pointing the pipettor at yourself or others during use.
• Only use parts and accessories recommended by the
manufacturer.

Instruction Manual – 5
5. Specications
The pipettor is a high quality instrument which oers
excellent accuracy and precision. The accuracy and precision
(repeatability) of the liquid volume depends on the quality
of pipet tips used. The values for accuracy and precision
shown in the table below were obtained using manufacturer
non-lter pipet tips. Those tips are recommended for use to
ensure compatibility, accuracy and precision when pipetting.
Nominal
Volume
(μL)
Volume
(μL)
Accuracy
(%)
Precision
(%)
Non-lter
Tips (μL)
Single-channel Pipettors
2
Min. 0.1 ±40.0 ≤12.0
10
0.2 ±12.0 ≤6.0
1 ±2.7 ≤1.3
Max. 2 ±1.5 ≤0.7
10
Min. 0.5 ±4.0 ≤2.8
10
1.0 ±2.5 ≤1.8
5.0 ±1.0 ≤0.6
Max. 10.0 ±0.5 ≤0.4
20
Min. 2 ±3.0 ≤1.5
20010 ±1.0 ≤0.5
Max. 20 ±0.8 ≤0.3
100
Min. 10 ±1.6 ≤0.80
20050 ±0.8 ≤0.24
Max. 100 ±0.8 ≤0.20
200
Min. 20 ±1.2 ≤0.60
200100 ±0.8 ≤0.25
Max. 200 ±0.6 ≤0.20
1,000
Min. 100 ±1.6 ≤0.40
1,000500 ±0.7 ≤0.20
Max. 1,000 ±0.6 ≤0.15
5,000
Min. 1,000 ±0.6 ≤0.25
5,0002,500 ±0.6 ≤0.20
Max. 5,000 ±0.5 ≤0.15
10,000
Min. 1,000 ±2.5 ≤0.6
10,0005,000 ±0.8 ≤0.3
Max. 10,000 ±0.5 ≤0.2

6 – LABNET BIOPETTE PLUS PIPETTORS
Nominal
Volume
(μL)
Volume
(μL)
Accuracy
(%)
Precision
(%)
Non-lter
Tips (μL)
8-channel and 12-channel Pipettors
8 - 10
12 - 10
Min. 0.5 ±10.0 ≤8.0
10
1 ±8.0 ≤6.0
5 ±4.0 ≤2.0
Max. 10 ±2.0 ≤1.2
8 - 50
12 - 50
Min. 5 ±4.0 ≤2.5
20025 ±3.0 ≤1.2
Max. 50 ±1.6 ≤0.6
8 - 200
12 - 200
Min. 20 ±3.0 ≤1.5
200100 ±1.5 ≤0.8
Max. 200 ±1.0 ≤0.6
8 - 300
12 - 300
Min. 50 ±1.6 ≤1.5
300150 ±1.2 ≤1.0
Max. 300 ±1.0 ≤0.6
The accuracy and precision were obtained gravimetrically
using manufacturer tips performing at least 10measurements
ofdistilled water at a temperature of 20°C ± 1°C according to
ENISO 8655 standards.
The use of tips from other manufacturers or lter tips may
result in incorrect liquid aspiration and require pipettor
recalibration.
The design of the pipettor enables the user to recalibrate it
according to the information presented in Section 9.

Instruction Manual – 7
6. Pipettor Operation
Attaching the Tips
• Attach the correct tip corresponding to the model number
displayed on the pipettor pushbutton (Section5).
• Position the pipettor vertically when attaching tips.
• Single-channel pipettors: push the pipet tip on rmly
using a slight twisting motion to ensure an airtight seal.
• Multi-channel pipettors: press the pipettor against the
tips positioned in the rack box until the shaft retracts
approximately 1.5mm into the manifold. The suspension
system ensured even and airtight sealing of the pipet tips.
The rocking motion does not have to be performed to seal
the pipet tips tightly.
✓✕ ✓✕
NOTE:
• Do not attach the tips with a rocking movement,
as this may damage the shaft or plunger. Observe this
rule particularly with single-channel pipettors of low
volume range.
• Never draw liquids directly into the pipettor without
thetip attached.

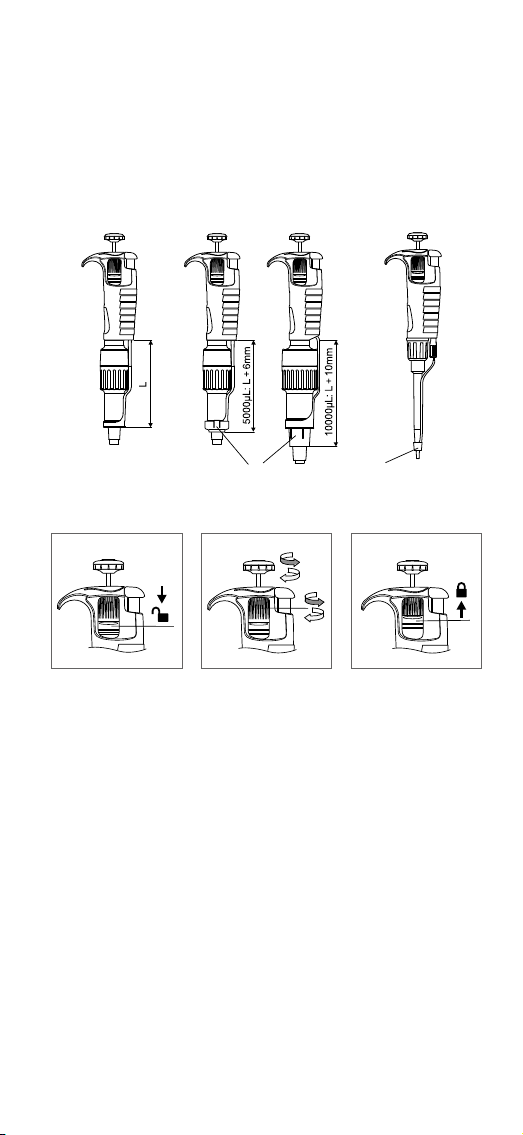

Adjusting the tip ejector
The tip ejector can be adjusted by the user and can
accommodate most types of tip available on the market.
When using narrow tubes, it may be necessary to remove
the tip ejector.

8 – LABNET BIOPETTE PLUS PIPETTORS
2-1,000 μL pipettors
M
M
4
M
M
4
M
M
4
1. Tip ejector disassembly
• Press the tip ejector pushbutton.
• Turn the tip ejector bush 1/3 turn counter-clockwise.
• Slide the ejector from the plastic arbor.
2. Tip ejector assembly
• Press the tip ejector pushbutton.
• Line the tip ejector up with the plastic arbor.
• Turn the tip ejector bush clockwise until it has fully
latched.
3. Tip ejector adjustment
• Remove the tip ejector pushbutton.
• To increase the ejector length turn the plastic bush
counter-clockwise.
• To decrease the ejector length turn the plastic bush
clockwise.

Instruction Manual – 9
5,000 and 10,000 μL pipettors
M
M
4
M
M
4
M
M
4
1. Tip ejector disassembly
• Remove the tip ejector pushbutton.
• Using a screwdriver, turn the metal arbor counter-
clockwise to unscrew the ejector from the arbor.
• Release the ejector.
2. Tip ejector assembly
• Remove the tip ejector pushbutton.
• Using a screwdriver, turn the metal arbor clockwise
to secure the ejector and adjust its length.
NOTE: Leave a space of at least 1mm between the
shaft and tip ejector collar.
3. Tip ejector adjustment
• Remove the ejector pushbutton.
• Use the screwdriver to increase or decrease the
ejector length.
• Following ejector assembly or adjustment, ensure
the ejector pushbutton is relocated.

10 – LABNET BIOPETTE PLUS PIPETTORS
If the tip ejector cannot be adjusted suciently, or if the
diameter of the ejector is insucient to eject the tip, it
may be necessary to attach the ejector cap “M” to the
ejector.
In 2 and 10 μL pipettors place the cap, supplied with the
pipettor, on the bottom of the pipettor shaft and slide
thecap upwards to the bottom of the tip ejector.
M
M
4

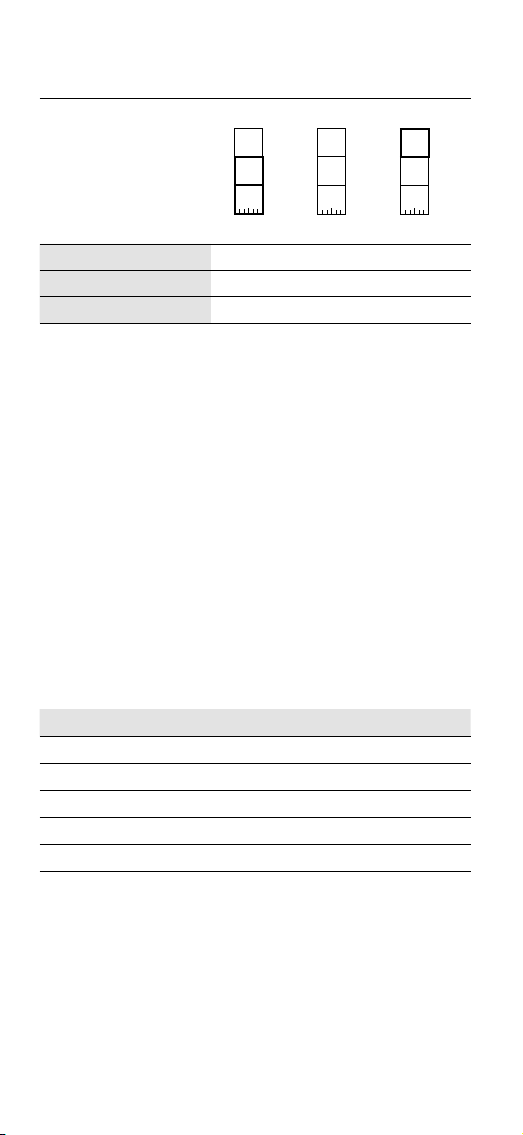

Volume Setting
1. 2. 3.
1. To enable volume selection, set the locking ring to the
lower position.
2. Aspiration volume can be set by either turning the
pipetting pushbutton knob, or the adjustment knob.
The volume setting is displayed as a three digit counter,
which should be read from top to bottom. The smallest
volume increment is printed on the bottom counter drum.
3. After the volume has been set, set the locking ring to the
upper position to avoid inadvertent changing of volume.

Instruction Manual – 11
Examples of counter indications
The decimal point in the
volume of aspirated liquid
(µL or mL) is indicated by
change in colour of digits.
Black digits represent
integer numbers, and red
digits represent decimal
fractions (sizes up to 20 µL).
1
2
5
red
red
0
3
5
0
7
5
red
Volume Ranges 0.1-2 µL 5-50 µL 100-1,000 µL
Set Volume 1.25 µL 35 µL 750 µL (0.75 mL)
Increment 0.002 μL 0.2 μL 2.0 μL
For maximum accuracy, the set volume must be approached
from a higher value by decreasing counter readings. Before
reaching the desired value, reduce the speed of turning
the adjustment knob to avoid inadvertently exceeding the
desired value.
7. Operating Instructions
Observing the following recommendations will ensure
maximum possible accuracy and precision of liquid sampling.
• During operation, the volume setting should be locked,
with black adjustment knob in the lower position.
• Ensure smooth and slow operation of the pipettor.
• Immersion of the tip into the sample liquid should
be kept to a minimum depth, which should remain
constant during aspiration. The recommended
immersion depths are given in the table below:
Model Volume Range (µL) Immersion Depth (mm)
0.1-1 ≤1
1-100 2-3
101-1,000 2-4
5,000 3-6
10,000 5-7
• The pipettor should be held in a vertical position.
• The pipet tip should be changed whenever the volume
setting is altered, and when a dierent liquid is to be
aspirated.
• The pipet tip should be changed if a droplet remains on
the end ofthe tip from the previous pipetting operation.

12 – LABNET BIOPETTE PLUS PIPETTORS
• Each new pipet tip should be pre-rinsed with the liquid
to be pipetted.
• Liquid should never enter the pipettor shaft. To prevent this:
– Press and release the pushbutton slowly and
smoothly.
– Never turn the pipettor upside down.
– Never lay the pipettor on its side when there is liquid
in the tip.
• Never force the volume setting beyond therecommended
limits.
• When pipetting liquids with a dierent temperature
from the ambient temperature, it is recommended to
pre-rinse the tip several times prior to use.
• Do not pipettor liquids with temperatures above 70°C.
NOTE: When pipetting acids or corrosive solutions which
emit vapors, it is recommended to disassemble the shaft
and rinse the plunger and O-ring with distilled water after
nishing the pipetting operation.

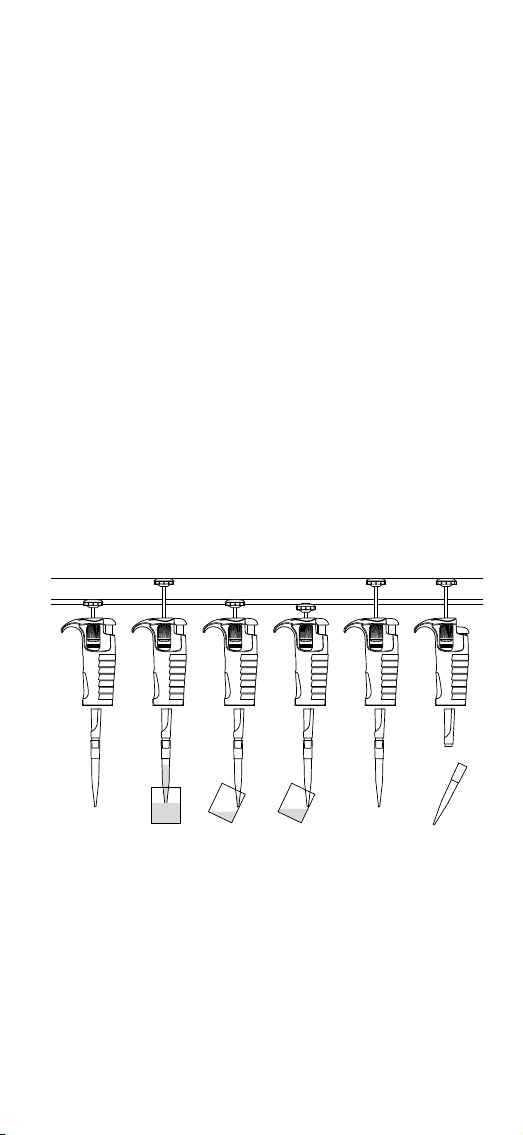

8. Aspiration and Dispensing Instructions
1. 2. 3. 5.4. 6.
Aspirating Liquid
1. Press the pushbutton to the rst stop point.
Holdingthe pipettor vertically, immerse the pipet tip
into the sample liquid to the recommended depth (for
recommended values see Section 7). Ifthepipet tip
is not immersed to the recommended depth or if the
pipetting pushbutton is rapidly released, air may enter
the pipet tip.

Instruction Manual – 13
2. Release the pipetting pushbutton slowly and smoothly
to aspirate the sample. Wait one second and then
withdraw the pipet tip from the liquid.
CAUTION: Do not touch the used tip.
Dispensing Liquid
3. Place the end of the pipet tip against the inside wall of
the vessel at an angle of 10° to 40°. Press the pushbutton
smoothly to the rst stop. Wait one second.
4. Press the pushbutton to the second stop to expel
any remaining liquid. While keeping the pushbutton
depressed, remove the pipettor from the vessel by
drawing the pipet tip against the inside surface of
thevessel.
5. Release the pushbutton to its starting position.
6. Eject the pipet tip by pressing the tip ejector pushbutton.
Remember to change the pipet tip whenever a dierent
type of liquid is to be sampled.
Aspirating High-density Liquids
When pipetting liquids of higher viscosity or lower surface
tension than water (e.g., sera or organic solvents), a lm
of liquid may be formed on the inside of the pipet tip
which may produce erroneous results. As the lm remains
relatively constant in successive pipetting operations with
the same tip, this error can be eliminated by pre-rinsing
the tip and allowing a lm to form before transferring the
rst sample. This is achieved by aspirating asample and
dispensing it back into the same vessel. Allowing a lm
to form prior to sampling ensures optimal accuracy and
repeatability.
This pre-rinsing operation should be repeated when
thevolume to be aspirated is changed or when a new
pipet tip is used.
NOTE: Normally the degree of error resulting from viscous
liquids is negligible if pipetting is performed slowly and
carefully, however can be minimized further by holding the
pipet tip in position for at least 2 seconds after aspiration
to allow the liquid time to react to the change in pressure
before it is dispensed.
If the above method does not result in accurate values,
recalibrate the pipettor in accordance with Section 9.
It is recommended to record recalibration and correction
values, in order to facilitate reverse calibration to astandard
liquid.

14 – LABNET BIOPETTE PLUS PIPETTORS
Filters
The 5,000 μL and 10,000 μL pipettors include a replaceable
lter (L), tted at the bottom of the shaft which
prevents aspirated liquid from entering the shaft and
contaminating the inner surface and plunger. Use of
the lter is particularly important when aspirating and
dispensing large volumes of liquid. The lter should be
replaced if it becomes wet.
9. Checking Pipetting Accuracy Parameters
and Pipettor Recalibration
The pipettors have been factory-calibrated using
gravimetric methods with manufacturer pipet tips and
distilled water, in accordance with ISO 8655 guidelines
for the maximum (nominal) liquid volume drawn by the
pipettor and for 10% of the maximum or minimum liquid
volume according to the values given (Section 5).
The pipettors are designed to enable recalibration and
adaptation to dierent pipetting techniques and liquid
properties (e.g., temperature, density, and viscosity).
Periodic checks of the operation of the pipettor are
recommended at least once per year. Frequency of checks
should be increased depending on workload, sterilization
or autoclave processes, and frequency of replacement of
component parts.
If during pipettor operation the accuracy error (the
dierence between the real aspirated volume and the
preset volume) exceeds the permissible value given
inthetable in Section 5, pipettor recalibration should be
carried out.
Recalibration of the pipettor involves volume adjustment
based on the value obtained by weighing. Recalibration of
the pipettor is performed only for one liquid volume drawn
by the pipettor.
The recommended volume for recalibration is 10% of the
maximum (nominal) value or minimum volume depending
on which of these values is greater. See table on page 16 for
more details.

Instruction Manual – 15
Parameters for Checking the Pipetting Accuracy
The pipetting accuracy is inuenced by factors such as:
tips used, characteristics of the pipetted liquid (density,
viscosity), and operating conditions (ambient temperature,
pressure).
To determine the accuracy error of the pipettor, the following
conditions should be met:
• Ambient temperature and temperature of the pipettor,
pipet tips, and liquid should be within the range of 20°C
to 25°C and stabilized during weighing within ±0.5°C.
• Measurements should be conducted using distilled water.
• Balance sensitivity should be suitable for the volume “V”
to be measured.
Volume Checked (V, μL) Balance Sensitivity (mg)
0.1≤V≤10 0.001
10≤V≤100 0.01
100≤V≤1,000 0.1
V>1,000 0.1
• When calculating the liquid volume aspirated by
thepipettor, the conversion factor (Z) [μL/mg] for
distilled water or a liquid with comparable density
should be taken into account. Sample values of
conversion factors are given in the following table.
Temperature
(°C)
Pressure (kPa)
95.0 101.3 105.0
20 1.0028 1.0029 1.0029
21 1.0030 1.0031 1.0031
22 1.0032 1.0033 1.0033
23 1.0034 1.0035 1.0036
24 1.0037 1.0038 1.0038
25 1.0039 1.0040 1.0040
See ISO 8655 for the full table of conversion factors (Z).
NOTE: Pipetting should be performed in accordance with
guidance described in Sections 7 and 8.

16 – LABNET BIOPETTE PLUS PIPETTORS
Checking the Pipetting Accuracy Parameters
• Set the preset volume depending on the pipettor
volume according to the following table.
Nominal
volume
(µL)
Preset
volume
(μL)
Permissible
values (μL)
Volume Change ΔV (μL) for a
Turn of a Calibration Key by
1 Turn 1 Increment
Single-channel Pipettors
20.2 0.176 - 0.224 0.06 0.0025
10 1 0.975 - 1.025 0.33 0.0137
20 2 1.94 - 2.06 0.63 0.0262
100 10 9.84 - 10.16 2.50 0.104
200 20 19.76 - 20.24 6.30 0.262
1,000 100 98.4 - 101.6 25.00 1.04
5,000 500 494 - 506 125.00 5.2
10,000 1,000 975 - 1,025 250.00 10.4
8-channel and 12-channel Pipettors
10 1 0.92 - 1.08 0.33 0.0137
50 5 4.8 - 5.2 1.67 0.070
200 20 19.4 - 20.6 6.30 0.262
300 50 49.2 - 50.8 10.00 0.42
• Perform 10 aspirations, and calculate the average value
in [mg].
• Calculate the volume in [μL] by multiplying the value
in[mg] by the conversion factor Z [μL/mg].
If the average aspirated volume exceeds the permissible
values of the range, the pipettor should be recalibrated.

Instruction Manual – 17
K
Pipettor Recalibration
K
1. Remove the pipetting pushbutton.
CAUTION: The pipetting pushbutton consists of 2 parts:
the knob and the pushbutton. After removal of the
pushbutton, both parts are separated.
2. Holding the volume setting knob to prevent rotation,
insert the calibration key into the calibration screw.
3. Turn the key clockwise to reduce the aspirated volume,
or counter-clockwise to increase the aspirated volume.
Use the values given in the above table to precisely
adjust the volume.
4. Remove the key and replace the pipetting pushbutton by
rst replacing the knob, then the pushbutton.
Determine the average aspirated volume. The average
volume should be within the permissible range given in
the table. If the volume exceeds the values stated, the
recalibration procedure should be repeated.
When pipetting liquids with physical properties
considerably dierent from those of water, follow
theguidance given in Section 5.
More information on the calibration procedure can be
found at www.labnetlink.com.
1. K
K
K
2. 3. 4.

18 – LABNET BIOPETTE PLUS PIPETTORS
10. Pipettor Maintenance
Depending on the applications and intensity of use, the
pipettor requires periodic maintenance. The components
exposed to corrosive vapors, such as shaft elements,
should be regularly checked and cleaned.
Do not use sharp tools for pipettor maintenance.
Itmay cause damage to the device and aect the user’s
safety.
Cleaning
External surfaces of the pipettor such as the pushbutton,
ejector pushbutton, handgrip, shaft nut, and adjustment
knob may be cleaned using a cloth dampened in isopropyl
alcohol. The remaining parts removed from the pipettor
during pipettor disassembly may be washed with distilled
water or isopropyl alcohol.
NOTE: Before using cleaning agents other than those
recommended by the manufacturer, check the compatibility
charts and consider chemical resistance of the following
plastics which form components of the pipettor: PP, PC,
POM, PA, PPS, PVDF.
Sterilization
Sterilization using an autoclave
The pipettor can be sterilized in an autoclave at 121°C
for 20 minutes. Sterilization under other conditions may
cause damage to the pipettor. It is recommended to:
• Unscrew the shaft nut slightly in the P3942-2/P3942-
1000 pipettors, and unscrew the shaft slightly in the
P3942-5000 and P3942-10000. After autoclaving these
parts should be screwed tight again.
• Set the locking ring to the lower (unlocked) position
prior tosterilization.
• Sterilize the pipettors using an autoclave with an initial
vacuum and drying cycle.
• After sterilization, the pipettor should be dried and
cooled to room temperature.
• The shaft of the P3942-5000 and P3942-10000 models
should be autoclaved without the lter.
