Landscape Forms Profile BW103-2 User manual

Included hardware
Tools Required
•Safety glasses
•Screwdrivers
•Wiring tools and connectors, for performance or wayfinding bollard
•1/2” wrench or socket
•Hammer drill, with 1/2” dia bit
•5/64 hex key, 5mm hex key
•Epoxy anchoring system for concrete
ASSEMBLE WITH CARE! Pangard IIPolyester Powdercoat is a strong, long-lasting finish. To protect this finish
during assembly, place unwrapped powdercoated parts on packaging foam or other non-marring surface. Do not
place or slide powdercoated parts on concrete or other hard or textured surface –this will damage the finish
causing rust to occur. Use touch-up paint on any gouges in the finish caused by assembly tools.
LIGHTING LAYOUT RECOMMENDATIONS:
Profile bollard spacing is the responsibility of others. Refer to the Product Data Sheet,
available on www.landscapeforms.com, for light distribution options.
Installation Guide
Profile unlit perimeter bollard, wayfinding bollard, performance bollard
www.landscapeforms.com Ph: 800.521.2546
Date: May 20, 2022
Page 1 of 3
Fig. 1 –Recommended setback
from sidewalk
SIDEWALK
Fig. 3 –Minimum footing recommendation
[57mm]
2 1/4” MAX
[50mm]
2” MIN
Fig. 2 –Minimum concrete slab size
EDGE OR
EXPANSION
JOINT
Fig. 4 –Base plate detail
BW103-2 BW103-3 BW102-2 BW102-3 BW101-T4 BW101-T5
Anchor
Template
-1X
Concrete
Anchor
-4X
5/16-18 x
1-1/4” hex hd bolt
-4X
5/16 washer
-4X
footcover bracket
2X – unlit bollard
1X – lit bollard footcover casting
2X – unlit bollard
1X – lit bollard
#8-32 Set screw for
footcover casting
2X – unlit bollard
1X – lit bollard
Installed in casting

INSTALLATION PROCEDURE FOR PATH LIGHT:
1. Prepare footing as required by local codes, see Fig. 1, Fig. 2 and Fig. 3 for recommendations.
2. Set wooden anchor template in position over conduit. “FRONT” on the template indicates the front of
the unit, locating the luminaire side of the single performance bollard and the wayfinding bollards.
“FRONT” locates the small footcover side of the double performance bollard.
3. Mark anchor hole locations and remove the template.
4. Drill holes according to anchor size and depth, see Fig. 6. Clear holes of debris.
5. Attach anchors to base plate template as shown in Fig. 5.
6. Test fit template assembly with anchors into position before installing epoxy. Make any adjustments
as necessary to allow concrete anchors to freely install. Concrete anchor should sit centered in hole
and not rest against the side of the drilled hole.
7. Add epoxy to anchor holes per epoxy manufacturer’s recommendations.
8. Slowly set template assembly with anchors into position. Wipe away any excess epoxy before it cures.
9. Allow epoxy to fully cure. Remove hex bolts and washers. Remove wooden template.
10. For lighted bollards, remove driver housing cover. Remove bottom two bolts, then lift straight up to
disengage interior bolts. See Fig. 7.
11. Set bollard in position. Place footcover bracket in position, see Fig. 6 and Fig. 8. Install washers and
hex bolts. Tighten securely.
12. Install footcover castings, see Fig. 8. Use 5/64 hex key to back out set screw that is preinstalled in
footcover casting until end of set screw is flush with casting. Align casting with hole in footcover
bracket and thread set screw in to engage.
13. For lighted bollards, run line-in voltage up through empty zip tie on driver plate before making wiring
connections to terminal block, see Fig. 9. Tighten zip tie.
14. Reinstall driver housing cover.
Landscape Forms is not responsible for site preparation and footings. Footing recommendations are included in these instructions.
Installation Guide www.landscapeforms.com Ph: 800.521.2546
Page 2 of 3

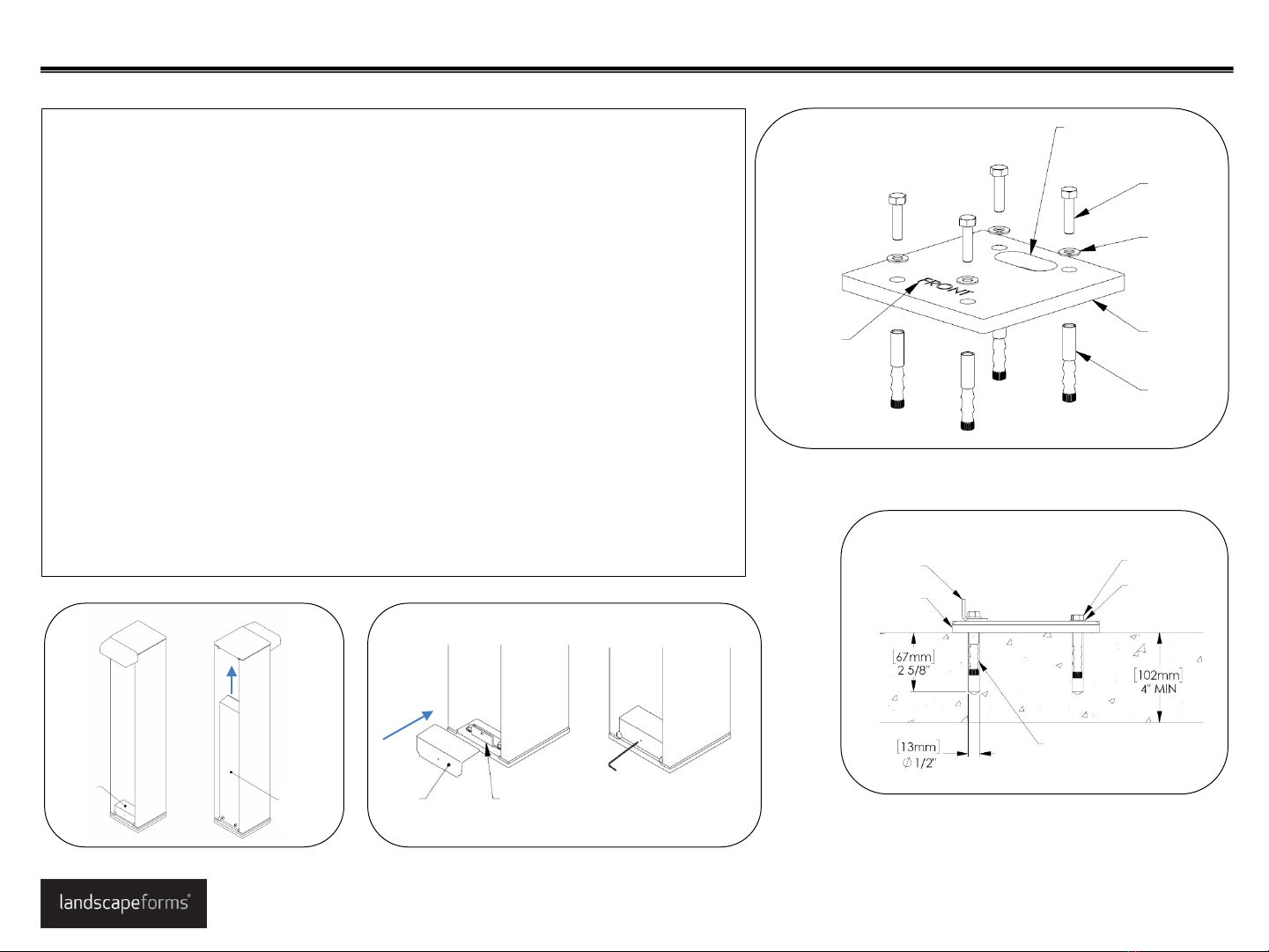

Fig. 6 –Anchor detail
HEX BOLT
5/16
WASHER
CONCRETE
ANCHOR
BASE
PLATE
FOOTCOVER
BRACKET
Profile unlit perimeter bollard, wayfinding bollard, performance bollard Date: May 20, 2022
Fig. 5 –Assembly template and anchors
5/16” HEX
BOLT
5/16”
WASHER
TEMPLATE
CONCRETE
ANCHOR
CONDUIT
OPENING
FRONT
(LUMINAIRE)
SIDE OF
TEMPLATE
Fig. 8 –install footcover
FOOT
COVER
FOOTCOVER
BRACKET
Fig. 7 –covers
FOOT
COVER DRIVER
HOUSING
COVER

PROCEDURE FOR WIRING PERFORMANCE AND WAYFINDING BOLLARDS:
The Profile bollard is assembled at the factory. The light cartridge is mounted into the head of the pole and will
not need to be removed during installation. Do not remove light cartridge during installation.
The following schematic is to be used to connect the unit to line voltage. It is the responsibility of the installer to
make sure that all connections are made in accordance with the NEC and local building codes.
WARNING!: LED cartridge and driver are not rated for connection or disconnection while energized. Doing so may
damage LEDs and will void the warranty. Disconnect incoming power before making or breaking any electrical
connections.
INSTALLATION AND SERVICE SHOULD ONLY BE PERFORMED BY QUALIFIED PERSONNEL.
Landscape Forms is not responsible for site preparation and footings. Footing recommendations are included in
these instructions.
Installation Guide www.landscapeforms.com Ph: 800.521.2546
Page 3 of 3
Profile unlit perimeter bollard, wayfinding bollard, performance bollard Date: May 20, 2022
Fig. 9 –line-in voltage wiring location
ZIPTIE
FOR LINE-IN
VOLTAGE
WIRES
Profile wayfinding bollard
wiring schematic
Profile performance bollard type
4 wiring schematic
Profile performance bollard type
5 wiring schematic
