LP-SW811

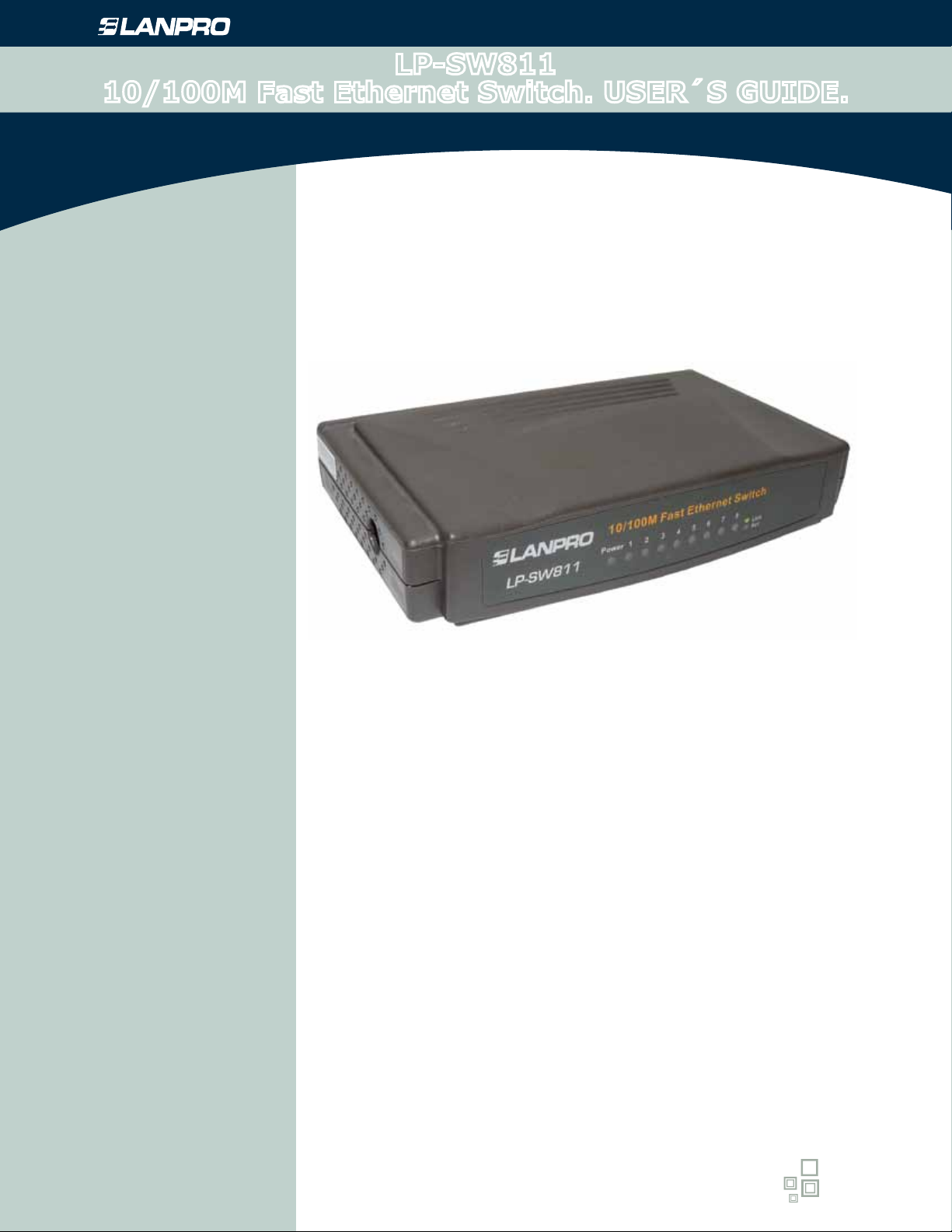

10/100M Fast Ethernet Switch. USER´S GUIDE.
LP-SW811
10/100M Fast Ethernet Switch.
USER´S GUIDE.
COPYRIGHT & TRADEMARKS
Specications are subject to change without notice. LanPro is the registered
trademark of LanPro. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specications may be reproduced in any form or by any means or
used to make any derivative such as translation, transformation, or adaptation
without permission from LanPro. Copyright © 2005 LanPro. All rights reserved.

www.lanpro.com
Active Products - Switches - LP-SW811 10/100M Fast Ethernet Switch - USER GUIDE
Table of Contents
2
1.- Package Contents......................................................................................................3
2.- Chapter 1: Introduction ............................................................................................3
1.1 Overview of the product ......................................................................................3
1.2 Features..............................................................................................................3
3.- Chapter 2: Installation...............................................................................................3
2.1 Installation..........................................................................................................3
2.2 Power on.............................................................................................................4
4.- Chapter 3: Identifying External Components.............................................................4
3.1 Front Panel..........................................................................................................4
3.2 Rear Panel ..........................................................................................................4
3.3 LED indicators.....................................................................................................4
5.- Appendix A: Specications.........................................................................................5
General......................................................................................................................5
Environmental and Physical.......................................................................................5
6.- Appendix B: Troubleshooting.....................................................................................6
7.- Appendix C: Contact Information...............................................................................6

www.lanpro.com
Active Products - Switches - LP-SW811 10/100M Fast Ethernet Switch - USER GUIDE
Package Contents
Chapter 1: Introduction
Chapter 2: Installation
1
2
3
1.1 Overview of the product
1.2 Features
2.1 Installation
The following contents should be found in your box:
Note: If any of the above contents is damaged or missing, please contact the retailer from whom you purchased the
LP-SW811 Switch for assistance.
There is one status LED indicator on the side of the wireless network adapter. It lights up and stays ON when working
correctly, and ashes when transferring data.
To install the Switch, please follow the steps:
LP-SW811 is 8 ports 10/100Mbps Auto-Negotiation Ethernet Switch. All ports support Auto MDI/MDIX function, each
port can be used for general port or Uplink port.
The LanPro 8-port Fast Ethernet Switch, LP-SW811, provides you a low-cost, easy-to-use, high-performance, seamless
and standard switch to upgrade old network to 100Mbps network. It will boost your network performance up to full
duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network
delivers those packets to them.
One LP-SW811 Switch.
One AC power Adapter.
This User’s Guide.
Wall-mounting screws.
Complies with IEEE802.3, IEEE802.3u standards.
8 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
Supports IEEE802.3x ow control for Full Duplex mode and backpressure for half-duplex modeWall-mounting
screws.
Supports MAC address auto-learning and auto-aging.
LED indicators for monitoring power, link, activity.
Plastic case.
External Power Adapter supply.
You can place the Switch on a at surface or a wall.
Please verify carefully the Power Adapter, make sure it is properly connected to a power source.
Be sure to leave enough space for heat dissipation and good ventilation in the Switch.
Don’t place heavy objects on the Switch.
3
1
2
3

www.lanpro.com
Active Products - Switches - LP-SW811 10/100M Fast Ethernet Switch - USER GUIDE
LP-SW811
10/100M Fast Ethernet Switch
Power 1 2 3 4 5 6 7 8
Link
Act
LP-SW811
10/100M Fast Ethernet Switch
Power 1 2 3 4 5 6 7 8
Link
Act
1234567
8(UPLINK)
4
2.2 Power on
3.1 Front Panel
3.2 Rear Panel
LED indicators
After the Switch powers up, it will be automatically initialized and the LED indicators should respond as follows:
This Chapter describes the front panel, rear panel and LED indicators of the Switch. The sketches of the front panel,
rear panel and LED indicators are very similar between LP-SW811. The following sketches are for LP-SW811.
The front panel of the LP-SW811 consists of several LED indicators.
The rear panel of the LP-SW811 consists of 8 10/100Mbps RJ45 Ports. All ports can be the Uplink port, and the “Uplink”
mark under Port 8 can be ignored.
The LED indicators include Power LED and Link/Act LEDs. The LED indicators are used for monitoring and troubleshooting
of the Switch. The following section shows the LED indicators for the Switch along with an explanation of each indicator.

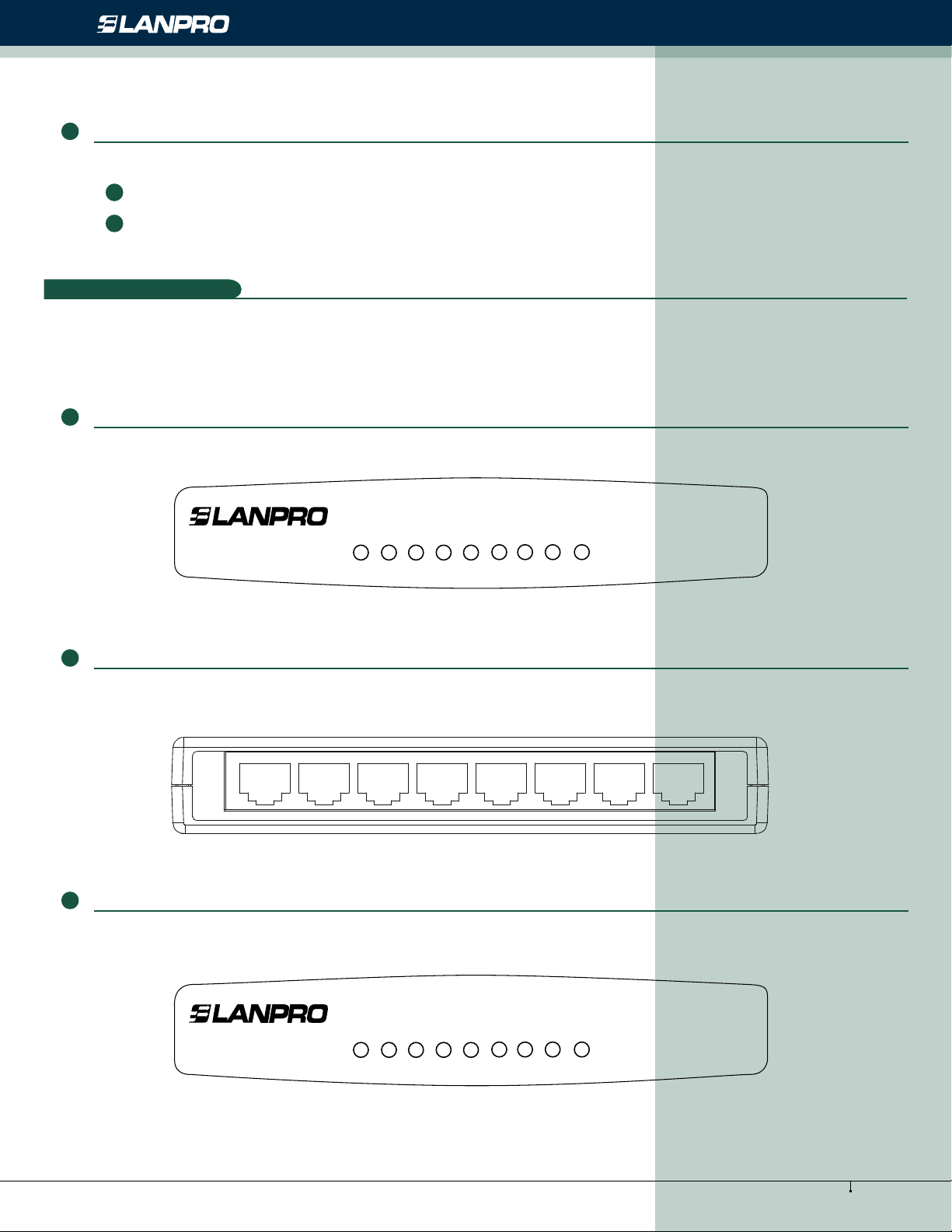

Figure 3-1 LP-SW811 Switch Front Panel sketch
Figure 3-3 LP-SW811 Switch LEDs sketch
Figure 3-2 LP-SW811 Switch Rear Panel sketch
All of the Link/Act LED indicators will ash momentarily, meaning the switch is being reset.
The Power LED indicator will light up.
1
2
Chapter 3: Identifying External Components
4

www.lanpro.com
Active Products - Switches - LP-SW811 10/100M Fast Ethernet Switch - USER GUIDE
5
Appendix A: Specications
5
Power LED: This indicator will light up when the Switch powers up. If the LED is not lit, please check the power
adapter and connection.
LINK/ACT LEDs: These LEDs indicate Link/Active status. One LED indicator will light green when a device is
connected to the corresponding port. It ashes when data is being transmitted or received on the connection.
External Power Adapter supply.
General
Standards IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
Topology Star
Protocol CSMA/CD
Data Transfer Rate Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex);
Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)
Network Media (Cable) 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Number of Ports 8 10/100Mbps Auto-Negotiation ports
LED indicators Power, Link/Act
Transfer Method Store-and-Forward
MAC Address Learning Automatic learning, automatic update
Frame Filter Rate 10BASE-T: 14880pps/Port;
100BASE-TX: 148800pps/Port
Frame Forward Rate 10BASE-T: 14880pps/Port;
100BASE-TX: 148800pps/Port
Environmental and Physical
Dimensions(W×D×H) 140mm×85mm×30mm (5.5”×3.3”×1.2”)
Power Supply AC Power Adapter: Output 9VAC 0.8A
Power consumption LP-SW811: 3.1W (maximum)
Operating
Temperature
0°C~40°C (32°C~104°C)
Storage Temperature -40~70°C (-40°C~158°C)
Operating Humidity 10%~90% non-condensing
Storage humidity 5%~95% non-condensing

www.lanpro.com
Active Products - Switches - LP-SW811 10/100M Fast Ethernet Switch - USER GUIDE
6
Appendix B: Troubleshooting
Appendix C: Contact Information
6
7
1. The Power LED is not lit
2. The Link/Act LED is not lit when a device is connected to the corresponding port
Make sure the AC power Adapter connected to the switch has the proper power source.
Make sure the power source is ON.
Make sure you are using the LANPRO power adapter supplied with your switch.
Make sure the cable connectors are rmly plugged in the Switch and the device.
Make sure the connected device is turned on and its adapter is installed correctly and is working.
Make sure the cable is less than 100 meters (328 feet).
For help with the installation or operation of the LanPro LP-SW811 Switch, please contact us.
E-mail: [email protected]
Website: http://www.lanpro.com
