LAZBOY D71 M20913 User manual

USE AND CARE GUIDE
Sears Karter 5Pc Dining Set
* Swivel Rocker
Product Code: D71 M20913
UPC Code: 7 22938 11287 6
Date of Purchase: __ / __ / __
La-Z-Boy® is a registered trademark of La-Z-Boy Incorporated and is used under license to BJI, Inc.
© 2015 La-Z-Boy Incorporated.

2
Thank you for your purchase
THANK YOU FOR YOUR PURCHASE!
We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you
enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously
considered all the way down to the smallest details, exclusively for you, by our world class design
team. We know you have a choice when it comes to your patio furniture needs, so from our team to
yours, thank you for letting us be a part of your outdoors.
Table of Contents
Table of Contents.......................................... 2
Safety Information ........................................ 3
Set up your furniture properly...................... 3
Examine your furniture................................ 3
Warranty ........................................................ 3
What is covered .......................................... 3
What is not covered .................................... 3
Care and Maintenance.................................. 4
Pre-Assembly................................................ 5
Planning assembly...................................... 5
Observe weight limits.................................. 5
Hardware included ...................................... 5
Package contents ....................................... 6
Assembly Instruction ................................... 7
Customer Service ....................................... 12

3
Safety Information
SET UP YOUR FURNITURE
PROPERLY
□Ensure that all parts are assembled
properly and fully tightened as per the
instructions.
□When placing in the desired location,
ensure that all legs are resting on the same
surface. You may adjust the legs levelers
as required to ensure that the item stands
in a rigid position.
EXAMINE YOUR FURNITURE
□Examine occasionally to ensure that there
are no loose parts. If loose parts are found,
they must be retightened fully before
additional use.
Warranty
THIS IS A RESIDENTIAL WARRANTY AND DOES NOT APPLY FOR
COMMERCIAL USE.
7 YEARS WARRANTY FOR FRAME, 1 YEAR WARRANTY FOR CUSHIONS
WHAT IS COVERED
We warrant the frame to be free of manufacturing defects to the original purchaser for 7 years,
cushions for 1 year.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service
center.
This warranty does not cover commercial use, hardware, acts of nature, fire, freezing and abusive
use.
Discoloration or fading of the finish or fabrics as a result of chemicals or spills is not covered.
Glass table top breakage and corrosion or rusting of hardware are not covered.
In addition, purchase parts are not covered under this warranty.
CAUTION: Read all of the instructions in
this manual before you begin assembly.
Failure to do so may result in faulty
assembly and potential injury!

4
Proof of purchase (dated register receipt) is required for warranty claims.
We reserve the right to make substitutions with similar merchandise, if the model in question is no
longer in production.
For a copy of our full limited warranty, please contact our customer service team below.
Contact the Customer Service Team at 1-866-391-4868 or visit www.bjifurniture.com.
Care and Maintenance
□Do not allow water to build up in frames. This will cause corrosion and possible freezing damage
in cold climates.
□Use a mild soap and water for normal cleaning. DO NOT use janitorial or alcohol based cleaners.
Some cleaners may be marked as natural, but some ingredients can cause discoloration or have
adverse reaction to your finish.
□Rinse with clean water and dry with a soft, absorbent cloth towel.
□Cushions, slings, and/or an umbrella may be cleaned by hand with a solution of soap and water
with a clean water rinse. Never machine wash as this will result in shrinking or damage. After
cleaning, tip on end and allow to drip dry. Never use a commercial or home dryer to tumble dry
fabric goods.
□Treat frames with liquid wax for maximum protection against UV rays and /or salty, damp air.
□Umbrella should be closed when not in use. Umbrella should be removed and stored in the event
of wind, rain, hail, sleet, snow, or any other inclement weather. To prevent damage to your table,
always use an umbrella base with your umbrella. Store indoors during winter months.
□Use and operation: To prolong the life of your outdoor furniture, cover when not in use. Store
indoors during winter months.
Warranty (continued)

5
Pre-Assembly
PLANNING ASSEMBLY
PLEASE READ COMPLETE USE AND CARE GUIDE PRIOR TO ASSEMBLY!
Identify all parts packed in the carton against the parts list. Remove all protective materials and place
the parts on a nonabrasive surface to avoid scratching. It takes about 45 minutes for three persons to
complete all the assembly.
OBSERVE WEIGHT LIMITS
The recommended weight limit for each item is listed below:
□Swivel Rocker: 300 lbs
HARDWARE INCLUDED
NOTE: Hardware not shown to actual
size.
Part Description Quantity
AA M6*17mm hex head bolt 16
BB M6*50mm hex/allen head bolt 16
CC M8*40mm hex head bolt 16
DD M6 washer (small) 24
EE M6 washer (large) 8
FF M8 washer 32
GG Lock washer 16
HH M8 nut 16
II Steel plate 16
JJ M6 plastic cap 32
KK M8 plastic cap 16
LL Nut cap 16
MM Hex wrench 8
NN Allen wrench 4
NOTE: More than one person may be
required to complete the assembly of this
product.

6
Pre-Assembly (continued)
PACKAGE CONTENTS
Part Description Quantity
A Left arm 4
B Right arm 4
C Seat and back frame 4
D Base 4
E T-Rocker 4
F Seat cushion 4
G Back cushion 4
H Lumbar Pillow 4
□EVERY BOLT NEEDS TO BE USED WITH A WASHER.
□DO NOT FULLY TIGHTEN BOLT UNTIL INDICATED IN STEP 2 AND 3.
Safety Information
C D
F
E
A B
G H

7
Assembly Instruction
1 Attaching the right arm
NOTE: Do not fully tighten the bolts.
□Place the back/seat frame (C) on a sofa, flat non-abrasive surface.
□Attach the right arm (B) to the top and middle of the back/seat frame (C) with M6 allen/hex
bolts (BB) and M6 small washers (DD).
□Attach the right arm (B) to the front of back/seat frame (C) with M6 hex bolts (AA), M6 small
washer (DD) and M6 large washer (EE).

8
Assembly Instruction
(continued)
2 Attaching the left arm
NOTE: Do not fully tighten the bolts.
□Attach the left arm (A) to the top and middle of the back/seat frame (C) with M6 allen/hex
bolts (BB) and M6 small washers (DD).
□Attach the left arm (A) to the front of back/seat frame (C) with M6 hex bolts (AA), M6 small
washer (DD) and M6 large washer (EE).
□Ensure all bolts are aligned and assembled correctly.
□Tighten all M6 allen/ hex bolts (BB) with the allen wrench (NN) and the M6 hex bolts (AA) with
the hex wrench (MM). Attach the M6 plastic caps (JJ).

9
Assembly Instruction
(continued)
3 Attaching the T-Rocker
□Turn the chair bucket over and place the front side down.
□Attach the T-Rocker (E) to the U bar on the back/seat frame (C) using M8 hex bolts (CC), M8
washers (FF), steel plate (II), M8 lock washer (GG) and M8 nut (HH). The sequence should
be M8 hex bolts (CC), M8 washer (FF), steel plate (II), back/seat frame (C), T-rocker (E),
steel plate (II), M8 washer (FF), M8 lock washer (GG) and M8 nut (HH).
□Ensure all bolts are aligned and assembled correctly.
□Tighten all M8 bolts (CC) and M8 nuts (HH) with the hex wrench (MM). Attach the M8 plastic
caps (KK) to M8 bolts (CC) and nut cap (LL) to M8 nut (HH).

10
Assembly Instruction
(continued)

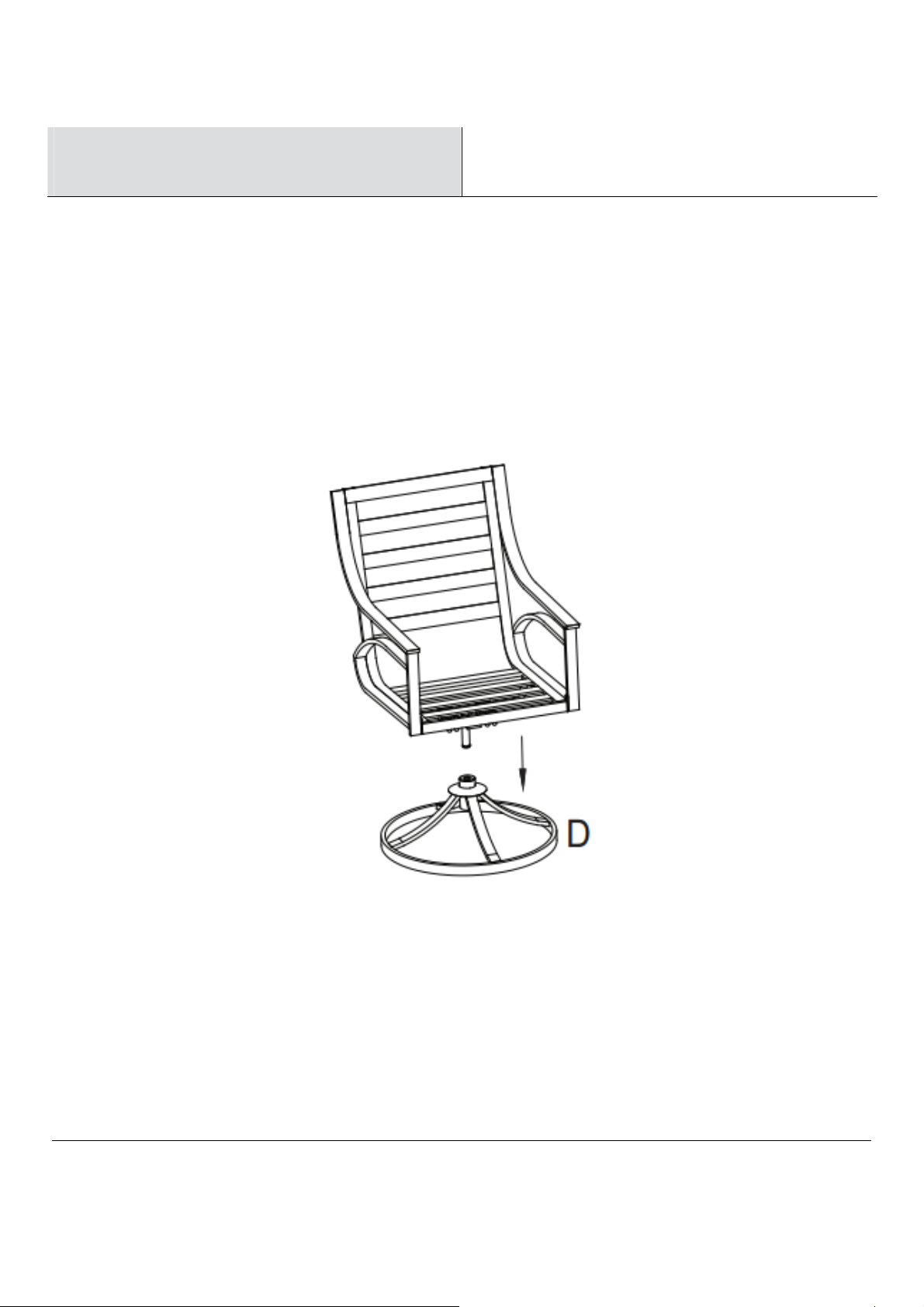

4 Inserting the T-Rocker
□Place the base (D) on a flat surface.
□With the assistance of another person carefully turn the seat bucket with the T-Rocker over.
□Align the chair seat with the center of the base (D).
□Insert the T-Rocker (E) into the base (D). Make sure the seat bottoms out in the base for
safety.

11
Assembly Instruction
(continued)

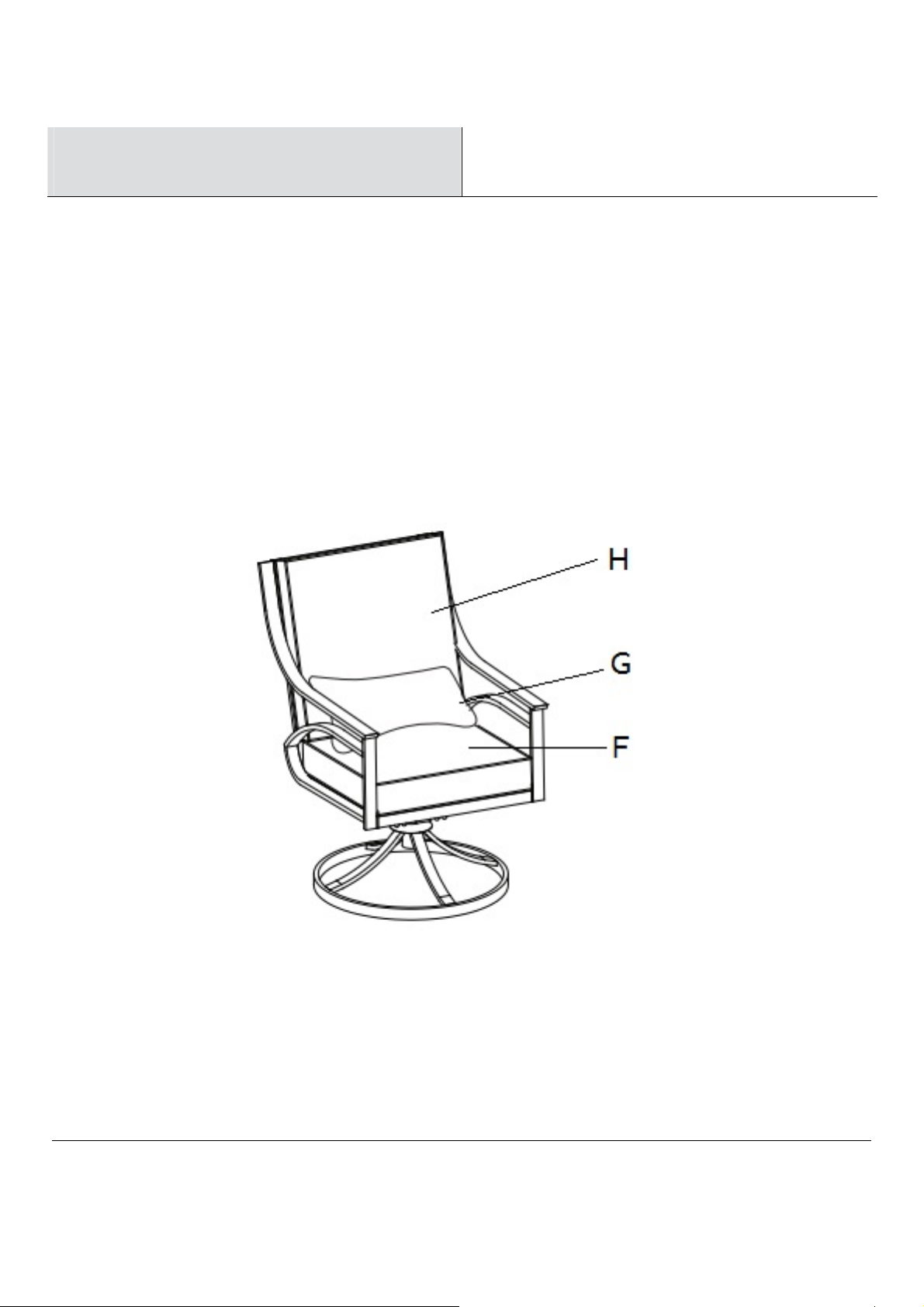

5 Placing the cushions
□Place the seat cushions (F), back cushions (G) and lumbar pillows (H) onto the rocker.
□Repeat these instructions to assemble the other three swivel rockers.
□The swivel rockers are ready for your enjoyment.

12
Please refer to part number when reordering
Questions, problems, missing parts? Before returning to the store,
call our Customer Service
8 a.m. - 5 p.m., EST, Monday-Thursday
8 a.m. – 4 p.m., EST, Friday
1-866-391-4868
Made in/ Hecho en CHINA
Distributed by Sears, Roebuck and Co., Hoffman Estates, IL60179
See our extensive assortment of outdoor living products on-line
at www.sears.com and www.kmart.com
Retain this manual for future use.

USE AND CARE GUIDE
Sears Karter 5Pc Dining Set
* Dining Table
Product Code: D71 M20913
UPC Code: 7 22938 11287 6
Date of Purchase: __ / __ / __
La-Z-Boy® is a registered trademark of La-Z-Boy Incorporated and is used under license to BJI, Inc.
© 2015 La-Z-Boy Incorporated.

2
Thank you for your purchase
THANK YOU FOR YOUR PURCHASE!
We are pleased that you have chosen Sears for your outdoor furniture purchase. We hope that you
enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously
considered all the way down to the smallest details, exclusively for you, by our world class design
team. We know you have a choice when it comes to your patio furniture needs, so from our team to
yours, thank you for letting us be a part of your outdoors.
Table of Contents
Table of Contents.......................................... 2
Safety Information ........................................ 3
Set up your furniture properly...................... 3
Examine your furniture................................ 3
Warranty ........................................................ 3
What is covered .......................................... 3
What is not covered .................................... 3
Care and Maintenance.................................. 4
Pre-Assembly................................................ 5
Planning assembly...................................... 5
Observe weight limits.................................. 5
Hardware included ...................................... 5
Package contents ....................................... 6
Assembly Instruction ................................... 7
Customer Service ....................................... 10

3
Safety Information
SET UP YOUR FURNITURE
PROPERLY
□Ensure that all parts are assembled
properly and fully tightened as per the
instructions.
□When placing in the desired location,
ensure that all legs are resting on the same
surface. You may adjust the legs levelers
as required to ensure that the item stands
in a rigid position.
EXAMINE YOUR FURNITURE
□Examine occasionally to ensure that there
are no loose parts. If loose parts are found,
they must be retightened fully before
additional use.
Warranty
THIS IS A RESIDENTIAL WARRANTY AND DOES NOT APPLY FOR
COMMERCIAL USE.
7 YEARS WARRANTY FOR FRAME
WHAT IS COVERED
We warrant the frame to be free of manufacturing defects to the original purchaser for 7 years.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service
center.
This warranty does not cover commercial use, hardware, acts of nature, fire, freezing and abusive
use.
Discoloration or fading of the finish or fabrics as a result of chemicals or spills is not covered.
Glass table top breakage and corrosion or rusting of hardware are not covered.
In addition, purchase parts are not covered under this warranty.
CAUTION: Read all of the instructions in
this manual before you begin assembly.
Failure to do so may result in faulty
assembly and potential injury!
WARNING: 1.Do not crawl, stand, or sit on
table tops.
2. Do not set or lay heavy items on table
tops.
3. Avoid extreme hot & cold items being
placed on table tops.

4
Proof of purchase (dated register receipt) is required for warranty claims.
We reserve the right to make substitutions with similar merchandise, if the model in question is no
longer in production.
For a copy of our full limited warranty, please contact our customer service team below.
Contact the Customer Service Team at 1-866-391-4868 or visit www.bjifurniture.com.
Care and Maintenance
□Do not allow water to build up in frames. This will cause corrosion and possible freezing damage
in cold climates.
□Use a mild soap and water for normal cleaning. DO NOT use janitorial or alcohol based cleaners.
Some cleaners may be marked as natural, but some ingredients can cause discoloration or have
adverse reaction to your finish.
□Rinse with clean water and dry with a soft, absorbent cloth towel.
□Cushions, slings, and/or an umbrella may be cleaned by hand with a solution of soap and water
with a clean water rinse. Never machine wash as this will result in shrinking or damage. After
cleaning, tip on end and allow to drip dry. Never use a commercial or home dryer to tumble dry
fabric goods.
□Treat frames with liquid wax for maximum protection against UV rays and /or salty, damp air.
□Umbrella should be closed when not in use. Umbrella should be removed and stored in the event
of wind, rain, hail, sleet, snow, or any other inclement weather. To prevent damage to your table,
always use an umbrella base with your umbrella. Store indoors during winter months.
□Use and operation: To prolong the life of your outdoor furniture, cover when not in use. Store
indoors during winter months.
Warranty (continued)

5
Pre-Assembly
PLANNING ASSEMBLY
PLEASE READ COMPLETE USE AND CARE GUIDE PRIOR TO ASSEMBLY!
Identify all parts packed in the carton against the parts list. Remove all protective materials and place
the parts on a nonabrasive surface to avoid scratching. It takes about 45 minutes for three persons to
complete all the assembly.
OBSERVE WEIGHT LIMITS
The recommended weight limit for each item is listed below:
□Swivel Rocker: 300 lbs
HARDWARE INCLUDED
NOTE: Hardware not shown to actual
size.
Part Description Quantity
AA M6*15mm hex bolt 8
BB M6*30mm hex bolt 8
CC M6 washer (small) 8
DD M6 washer (large) 8
EE M6 plastic cap 16
FF Hex wrench 1
NOTE: More than one person may be
required to complete the assembly of this
product.

6
Pre-Assembly (continued)
PACKAGE CONTENTS
Part Description Quantity
A Table top 1
B Leg connector 1
C Table leg 4
□EVERY BOLT NEEDS TO BE USED WITH A WASHER.
□DO NOT FULLY TIGHTEN BOLT UNTIL INDICATED IN STEP 2.
Safety Information
C
A B

7
Assembly Instruction
1 Attaching the connector
NOTE: Do not fully tighten the bolts.
□Place the leg on a soft, flat non-abrasive surface.
□Attach the leg connector (B) to the leg (C) using M6 hex bolts (AA) and M6 small washers
(CC).

8
Assembly Instruction
(continued)
2 Attaching the table top
□Attach the leg (B) to the table top (A) by using M6 hex bolts (BB) and M6 large washers (DD).
□Ensure all bolts are aligned and assembled correctly.
□Tighten all M6 hex bolts (AA) & (BB) with the hex wrench (FF). Attach the M6 plastic caps
(EE).
