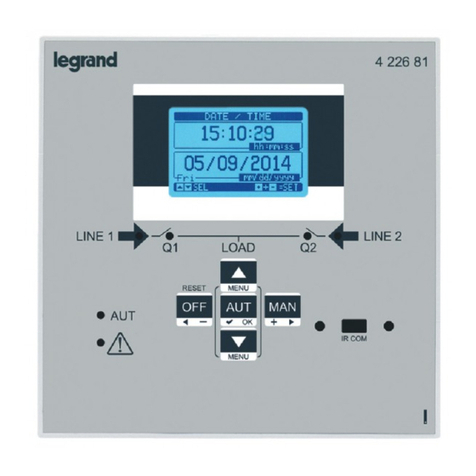

LEGRAND 4 226 81 User manual

LEGRAND

LEGRAND 4 226 81 User manual

LEGRAND Wattstopper LMDM-101-B User manual

LEGRAND

LEGRAND Wattstopper LMDM-101-B User manual

LEGRAND PRO 21 7756 36 User manual

LEGRAND

LEGRAND PRO 21 7756 36 User manual

LEGRAND In One Mosaic 916 19 User manual

LEGRAND

LEGRAND In One Mosaic 916 19 User manual

LEGRAND Raritan Dominion LX II User manual

LEGRAND

LEGRAND Raritan Dominion LX II User manual

LEGRAND Wattstopper LMSW-105 User manual

LEGRAND

LEGRAND Wattstopper LMSW-105 User manual

LEGRAND Wattstopper AS-100-A User manual

LEGRAND

LEGRAND Wattstopper AS-100-A User manual

LEGRAND Niloe LE-764500 User manual

LEGRAND

LEGRAND Niloe LE-764500 User manual

LEGRAND HPM Vivo EVM970L Series User manual

LEGRAND

LEGRAND HPM Vivo EVM970L Series User manual

LEGRAND radiant WNRL10 User manual

LEGRAND

LEGRAND radiant WNRL10 User manual

LEGRAND Raritan Dominion LX II Series User manual

LEGRAND

LEGRAND Raritan Dominion LX II Series User manual

LEGRAND Plexo 697 06 User manual

LEGRAND

LEGRAND Plexo 697 06 User manual

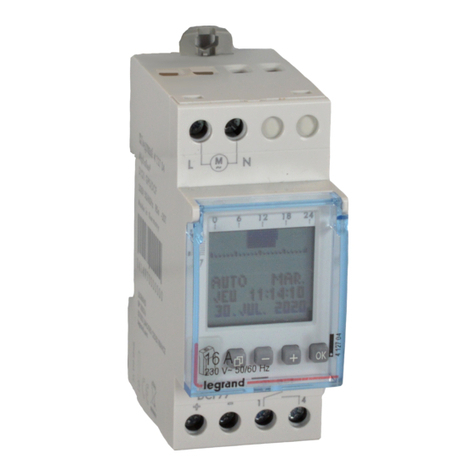

LEGRAND AlphaRex3 DY21 GPS/DCF User manual

LEGRAND

LEGRAND AlphaRex3 DY21 GPS/DCF User manual

LEGRAND adorne ASPD1531 User manual

LEGRAND

LEGRAND adorne ASPD1531 User manual

LEGRAND Pass & Seymour 1595SWT User manual

LEGRAND

LEGRAND Pass & Seymour 1595SWT User manual

LEGRAND LEXIC 037 23 User manual

LEGRAND

LEGRAND LEXIC 037 23 User manual

LEGRAND Pro 21 7756 28 User manual

LEGRAND

LEGRAND Pro 21 7756 28 User manual

LEGRAND DW-311 User manual

LEGRAND

LEGRAND DW-311 User manual

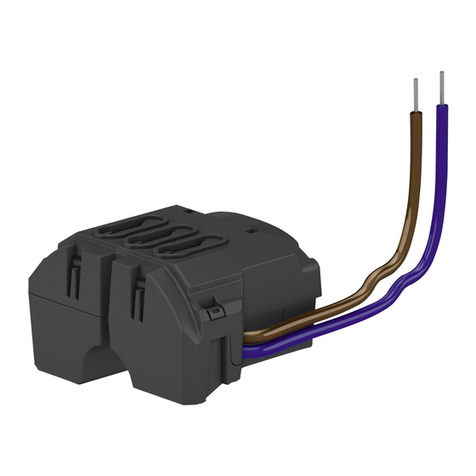

LEGRAND 300 W RF User manual

LEGRAND

LEGRAND 300 W RF User manual

LEGRAND 4128 58 User manual

LEGRAND

LEGRAND 4128 58 User manual

LEGRAND Galion 282418-C1 Instruction Manual

LEGRAND

LEGRAND Galion 282418-C1 Instruction Manual

Popular Switch manuals by other brands

TRENDnet TK-401R null

TRENDnet

TRENDnet TK-401R null

TRENDnet TK-200K null

TRENDnet

TRENDnet TK-200K null

TRENDnet TE100-S8 null

TRENDnet

TRENDnet TE100-S8 null

URC Total Control MFS-8 installation manual

URC

URC Total Control MFS-8 installation manual

Azbil HPQ-D11 user manual

Azbil

Azbil HPQ-D11 user manual

Sony DFS-900M operating instructions

Sony

Sony DFS-900M operating instructions

SICK i17S operating instructions

SICK

SICK i17S operating instructions

F&F SZR-277 quick start guide

F&F

F&F SZR-277 quick start guide

Shure UAMS/BK user guide

Shure

Shure UAMS/BK user guide

Dräger X-zone Switch Off Instructions for use

Dräger

Dräger X-zone Switch Off Instructions for use

Asco Joucomatic 349 Series manual

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

BT

BT Mini Hub user guide

D-Link DES-1226G manual

D-Link

D-Link DES-1226G manual

Johnson Controls FS80-C installation instructions

Johnson Controls

Johnson Controls FS80-C installation instructions

MicroNet SP1200A user manual

MicroNet

MicroNet SP1200A user manual

Ruijie RG-PF2920 Series Hardware  installation and reference guide

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex DA1914SX user guide

Altinex

Altinex DA1914SX user guide

RJM MASTERMIND PBC/6X user manual

RJM

RJM MASTERMIND PBC/6X user manual

https://manuals.online logo
https://manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2026 Manuals.Online. All Rights Reserved.

N0064D32/04
•Coffret de proximité •Hauptschalter
•Proximiteitskastje •Caja de proximidad
•Isolating switch •Cofànetto di prossimitá
226 00/02/04
•Caractéristiques techniques
• Technische gegevens
•Technical specifications
•Technische Daten
•Caracteristicas técnicas
•Caratteristiche techniche
•Démontage
•Demonteren
•Disassembly
•Ausbau
•Desmontaje
•Smontaggio
•Catégorie d'emploi
•Toepassingskategorie
•Utilization categorie
•Anwendungsklasse
•Categoria de empleo
•Categoria di uso
•Ne pas dévisser
à fond
•Niet volledig
losschroeven
•Do not fully
untighten
•Nicht ganz
abschrauben
•No desenroscar
a fondo
•Non svitare
a fondo
Température de stockage: - 40 à +70°C
Température d'utilisation : -20 à + 50°C
IP 65
Capacité des bornes: 2 x 6 mm2 rigide
2 x 6 mm2souple avec cosses.
Borne supplémentaire : 2 x 10 mm2
4 entrées défonçables pour presse-étoupe
de 16 ( câble Ø 14 MAXI ).
2 entrées sur le fond Ø16mm.
Opslagtemperatuur: -40 à + 70°C.
Gebruikstemperatur: -20 à + 50°C.
IP 65
Vermogen v/d klemmen: 2 x 6 mm2
2 x 6 mm2 soepel met kabelschoenen.
Extra klemmen : 2 x 10 mm2.
4 door te steken ingangen voor een
pakkingsbus 16 ( harde kabel van 4 x 6 mm2
of soepele kabel van 4 x 4 mm2).
2 ingangen op de bodemplaat , diam. 16 mm.
Storage temperature: - 40 to + 70°C
Operating temperature : - 20 to + 50°C
IP 65
Terminal section: 2 x 6 mm2.
2 x 6 mm2 flexible with lugs.
Additional terminal: 2 x 10 mm2.
4 break-inputs for Ø 16 packing glands.
Lagertemperatur: - 40°C bis + 70°C.
Betriebstemperatur: - 20°C bis + 50°C.
Schutzklasse IP 65
Klemmenkapazität: 2 x 6 mm2.
2 x 6 mm2, flexibel mit Kabelschuhen.
Zusatzklemmen: 2 x 10 mm2.
4 Eingänge zum Eindrücken für Stopfbuchsen,
Ø16 mm ( Kabel 4 x 6 mm2, steif oder 4 x 4 mm2,
flexibel ).
2 Eingänge am Boden, Ø 16 mm.
Temperatura de almacenamiento: - 40 a + 70°C
Temperatura de utilización: - 20 a + 50°C
IP 65
Capacidad de los bornes: 2 x 6 mm2.
2 x 6 mm2flexible con guardacabos.
Borne suplementario: 2 x 10 mm2.
4 entradas desfondables para prensaestopas
de 16
( cable 4 x 6 mm2rigido o 4 x 4 mm2flexible ).
2 entradas sobre el fondo Ø 16 mm.
Temperatura di stoccaggio: - 40 a + 70°C.
Temperatura di uso: - 20 a + 50°C.
IP 65
Capacità dei morsetti: 2 x 6 mm2.
2 x 6 mm2flessibile con terminale.
Morsetto supplementari: 2 x 10 mm2.
4 entrate sfondabili per premistoppa di 16
(cavo 4 x 6 mm2rigido oppure
4 x 4 mm2flessibile ).
2 entrate sul fondo diametro 16 mm.
AC 3
3 x 400V
AC 3
3 x 690V
AC 21 le (A) P (kW)
25
13,5
8
17
7,5
7,5
Ui = 690 V~ Ithe = 25 A
A
B
A
12
34
•
•
•
•
•
•
IP65
75
Ø 4,5 (M4) Ø 4,5 (M4)
109
•Fixation
•Bevestigen
•Attachment
•Befestigung
•Fijación
•Fissaggio
•Raccordement
• Aansluiten
•Connection
•Anschluß
•Conexión
•Collegamento
•Remontage
•Monteren
•Re-assembly
•Wiedereinbau
•Montaje
•Rimontaggio
•Borne supplémentaire
•Extra klem
•Additional terminal
•Zusatzklemme
•Borne suplementario
•Morsetto supplementare
•Ou
•Of
•Or
•Oder
• O
•Oppure
•Vis anti-fraude
•Anti-diefstal schroef
•Security screws
•Sicherungsschraube
• Tornillo antifraude
•Vite anti-effrazione
•Cadenassage
•Afsluiten met
hangslot
•Padlocking
•Mit Vorhängeschloß
•Cierre por candado
•Chiusura mediante
catenaccio
L1 L2 L3 13
U14VW
Z
1593711
210 12648
Z
22600
22604
L1 L2 L3 N
UNVW
Z
22602
N
B
A
A
B
C
A
227 99
12
3
