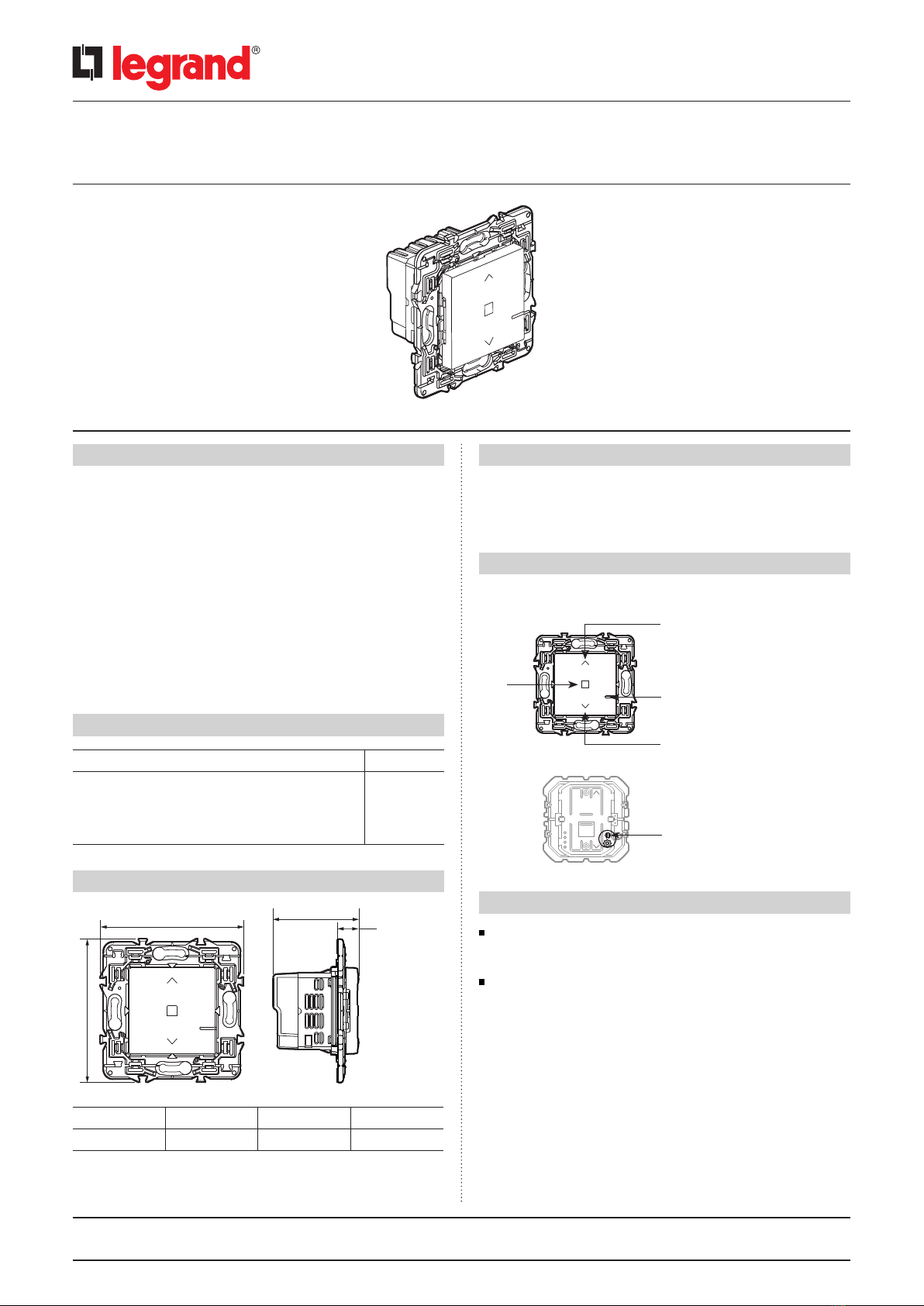

Cat. No(s): 0 777 06LA
Technical data sheet: F02534EN/03 Updated: 22/06/2022 Created: 26/02/2018
1/2
MosaicTM with Netatmo
Connected switch for roller shutters
and orientable sun shades
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel.: 33(0)5 55 06 87 87 - Fax: 33(0)5 55 06 88 88
www.legrand.com
4. CONNECTION
Terminal type: screw
Terminal capacity: 1 x 2.5 mm2- 2 x 1.5 mm2
Stripping length: 8 mm
Screwdriver: 3 mm at
5. OPERATION
Integrated time delay for up/down inversion = 500 ms
6. TECHNICAL CHARACTERISTICS
6.1 Mechanical characteristics
Protection against impacts: IK 04
Protection against solid bodies/liquids: IP 41 assembled product
6.2 Material characteristics
Rocker plate: PC
Colour: White RAL 9003
Mechanism casing: PC
Grid: 6.6 PA + Galfan steel
Halogen-free
UV-resistant
Self-extinguishing:
850°C/30 s for insulating components holding live parts in place.
650°C/30 s for other insulating components.
1. USE
For local or remote control of roller shutters or orientable sun shades
remotely or locally.
Can be combined with one or more wireless roller shutters controls.
Can be installed in place of an existing roller shutters switch in a flush-
mounting box 40 mm deep (minimum).
The Mosaic with Netatmo solution is compatible with roller shutters and
orientable sun shades (OSS) with a mechanical or electromechanical
stop, controlled by a standard wired switch for roller shutter.
Caution: Must be connected to the neutral.
Not compatible with radio-controlled roller shutter motors.
Screw fixing.
Self calibration function to enable roller shutters level control.
Orientable sun shades control function (to be selected in Home + Control
App).
3. DIMENSIONS (mm)
2. RANGE
A
BC
D
A B C D
74 74 44.5 11.5
Description White
Connected switch for roller shutters and orientable sun
shades.
Supplied with rocker plate and site protection cover.
Equipped with an LED indicator.
Hidden reset button used to return to factory settings.
0 777 06LA
STOP LED indicator:
- useful during installation
Down when pressed at the bottom:
- short press lowers to the bottom
- long press lowers until released
- OSS mode: long press tilts slats
Up when pressed at the top:
- short press raises to the top
- long press raises until released
- OSS mode: long press tilts slats
RESET button
used to return to factory settings
2/2
Cat. No(s): 0 777 06LA
MosaicTM with Netatmo
Connected switch for roller shutters
and orientable sun shades
Technical data sheet: F02534EN/03 Updated: 22/06/2022 Created: 26/02/2018
Caution: Always test before using special cleaning products.
6. TECHNICAL CHARACTERISTICS (continued)
6.3 Electrical characteristics
Voltage: 110-230 V~
Current: 2 A
Power: 500 W bulb
Standby consumption: 0.1 mA
Zigbee technology 2.4 GHz to 2.4835 GHz
Power level: < 100 mW
Range: 200 m of unobstructed space
10 m between products
6.4 Climate characteristics
Storage temperature: 0°C to +45°C
Usage temperature: +5°C to +45°C
7. CARE
Clean the surface with a cloth.
Do not use acetone, tar-removing cleaning agents or trichloroethylene.
Resistant to the following products: Hexane (EN 60669-1), methylated
spirit, soapy water, diluted ammonia, bleach diluted to 10%, window-
cleaning products, pre-impregnated wipes.
8. STANDARDS AND APPROVALS
Compliant with installation and manufacturing standards.
See e-catalogue.
The undersigned, LEGRAND, declares that the radio-electric equipment
type (0 777 06LA) complies with directive 2014/53/EU.
The full text of the EU declaration of conformity is available on the
following website: www.legrandoc.com
