LENCO DVP-1273 User manual

Model: DVP-1273
USER MANUAL PORTABLE DVD
GEBRUIKSHANDLEIDING DRAAGBARE DVD
BENUTZERHANDBUCH TRAGBARER DVD-PLAYER
MANUEL D’UTILISATION DVD PORTABLE
MANUAL DE USUARIO DE DVD PORTÁTIL

Index:
English................................................................................................................................................................. 3
Nederlands........................................................................................................................................................ 24
Deutsch............................................................................................................................................................. 45
Français............................................................................................................................................................. 66
Español.............................................................................................................................................................. 88
Version : 5.0
2

English
CAUTION:
Usage of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
PRECAUTIONS BEFORE USE
KEEP THESE INSTRUCTIONS IN MIND:
1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave
5 cm (2”) free space around the whole device.
2. Install in accordance with the supplied user manual.
3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and
other heat-generating products or naked flame. The device can only be used in moderate
climates. Extremely cold or warm environments should be avoided. Working temperature
between 0° and 35°C.
4. Avoid using the device near strong magnetic fields.
5. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and
restart the device following the instruction manual. During file transmission, please handle
with care and operate in a static-free environment.
6. Warning! Never insert an object into the product through the vents or openings. High
voltage flows through the product and inserting an object can cause electric shock and/or
short circuit internal parts. For the same reason, do not spill water or liquid on the product.
7. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming
pools.
8. The device shall not be exposed to dripping or splashing and make sure that no objects
filled with liquids, such as vases, are placed on or near the apparatus.
9. Do not use this device when condensation may occur. When the unit is used in a warm wet
room with damp, water droplets or condensation may occur inside the unit and the unit
may not function properly; let the unit stand in power OFF for 1 or 2 hours before turning
on the power: the unit should be dry before getting any power.
10. Although this device is manufactured with the utmost care and checked several times
before leaving the factory, it is still possible that problems may occur, as with all electrical
appliances. If you notice smoke, an excessive build-up of heat or any other unexpected
phenomena, you should disconnect the plug from the main power socket immediately.
11. This device must operate on a power source as specified on the specification label. If you
are not sure of the type of power supply used in your home, consult your dealer or local
power company.
12. Keep away from animals. Some animals enjoy biting on power cords.
13. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids.
To remove severe stains, you may use a damp cloth with dilute detergent.
14. The supplier is not responsible for damage or lost data caused by malfunction, misuse,
modification of the device or battery replacement.
15. Do not interrupt the connection when the device is formatting or transferring files.
Otherwise, data may be corrupted or lost.
16. If the unit has USB playback function, the USB memory stick should be plugged into the unit
directly. Don’t use an USB extension cable because it can cause interference resulting in
failing of data.
17. The rating label has been marked on the bottom or back panel of the device.
18. This device is not intended for use by people (including children) with physical, sensory or
mental disabilities, or a lack of experience and knowledge, unless they’re under supervision
or have received instructions about the correct use of the device by the person who is
responsible for their safety.
19. This product is intended for non professional use only and not for commercial or industrial
use.
20. Make sure the unit is adjusted to a stable position. Damage caused by using this product in
an unstable position vibrations or shocks or by failure to follow any other warning or
precaution contained within this user manual will not be covered by warranty.
21. Never remove the casing of this device.
22. Never place this device on other electrical equipment.
23. Do not allow children access to plastic bags.
24. Only use attachments/accessories specified by the manufacturer.
3

25. Refer all servicing to qualified service personnel. Servicing is required when the device has
been damaged in any way, such as the power supply cord or the plug, when liquid has been
spilled or objects have fallen into the device, when the device has been exposed to rain or
moisture, does not operate normally, or has been dropped.
26. Long exposure to loud sounds from personal music players may lead to temporary or
permanent hearing loss.
27. If the product is delivered with power cable or AC power adaptor:
If any trouble occur, disconnect the AC power cord and refer servicing to qualified
personnel.
Don’t step on or pinch the power adaptor. Be very careful, particularly near the
plugs and the cable’s exit point. Do not place heavy items on the power adaptor,
which may damage it. Keep the entire device out of children’s reach! When
playing with the power cable, they can seriously injure themselves.
Unplug this device during lightning storms or when unused for a long period.
The socket outlet must be installed near the equipment and must be easily accessible.
Do not overload ac outlets or extension cords. Overloading can cause fire or electric
shock.
Devices with class 1 construction should be connected to a main socket outlet with a
protective earthed connection.
Devices with class 2 construction do not require a earthed connection.
Always hold the plug when pulling it out of the main supply socket. Do not pull the
power cord. This can cause a short circuit.
Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire
or electric shock.
28. If the product contains or is delivered with a remote control containing coin/cell batteries:
Warning:
“Do not ingest battery, Chemical Burn Hazard” or equivalent working.
[The remote control supplied with] This product contains a coin/button cell
battery. If the battery is swallowed, it can cause severe internal burns in just
2 hours and can lead to death.
Keep new and used batteries away from children.
If the battery compartment does not close securely, stop using the product and
keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the
body, seek immediate medical attention.
29. Caution about the use of Batteries:
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
Battery cannot be subjected to high or low extreme temperatures, low air
pressure at high altitude during use, storage or transportation.
Replacement of a battery with an incorrect type that can result in an explosion or
the leakage of flammable liquid or gas.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of
a battery, that can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment
that can result in an explosion or that leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an explosion
or the leakage of flammable liquid or gas.
Attention should be drawn to the environmental aspects of battery disposal.
INSTALLATION
• Unpack all parts and remove protective material.
• Do not connect the unit to the mains before checking the mains voltage and before all other
connections have been made.
4

WARNING
Class 1 Laser Product
Warning : Do not touch the lens.
WARNING: When participating in the traffic listening to a personal
music player can make the listener less aware of potential dangers
such as approaching cars.
WARNING: To prevent possible hearing damage, do not listen at high
volume levels for long periods.
Power supply adaptor
Manufacturer: Dongguan Green Power One Co.,Ltd.
Model number: GA04-0901500EU
Only use the power supply listed in the user instructions
Information
Value and and precision
Manufacturers name or trade mark, commercial
registration and address
Dongguan Green Power One Co., Ltd.
No.26, Hongyun Street, Chonghe Village.
Qingxi Town, DONGGUAN CITY Guangdong
Model Identifier
GA04-0901500EU
Input voltage
100-240V
Input AC frequency
50/60HZ
Output voltage
9.0V
Output current
1.5A
Output Power
13.5W
Average active efficiency
85.47%
Efficiency at low load (10%)
82.74%
No load Power consumption
0.068W
5

Idenficaon of Controls
Main Unit
27
26
1. ANGLE
2. SOURCE
3. BACKLIGHT
4. DISPLAY
5. MUTE
6. REPEAT
7. VOL+/VOL-/
8. MENU
9. SETUP
10. ZOOM
11. AUDIO
12. SUBTITLE
13.
14. ■STOP
15. ▲/▼/◄/►//
(Le/right/up/down/Fasorward/Fast reverse)
16. OK
17. OPEN
18. USB
19. CARD SLOT
20. Earphone Socket
21. AV OUT
22. AV IN
23. POWER ON/OFF
24. DC IN 9-12V
25. ANT.
26. Baery Charging Indicator
Illuminates green flashing when the baery is
charging. Illuminates green when the baery is
fully charged.
27. Power Indicator
Illuminates red when the unis switched on.
6

Idenficaon of Controls

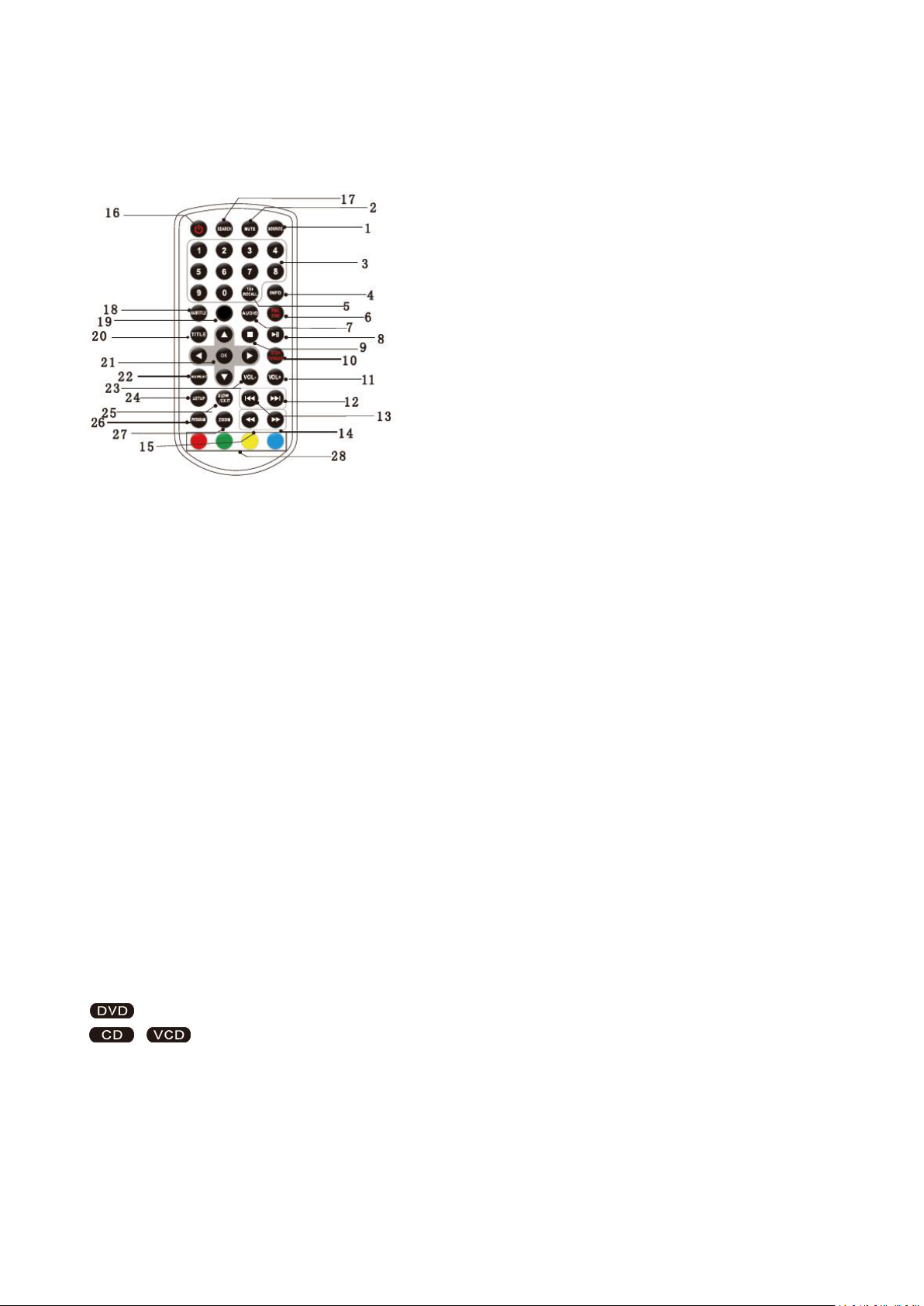

Remote control unit
LOCK
1. SOURCE
DVD/CARD/USB/DVB-T/AVIN.
2. MUTE
Disable Audio output.
3. 0-9 NUMBER BUTTON
Selects numbered items in a menu.
4. DISPLAY
To display the playtime and status information.
5. 10+ BUTTON
In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then
press number 2 button.
6. PBC/FAV
PBC on/off switch (VCD) in DVD mode. Open Favorite Programs List Menu in DVB mode.
7. AUDIO
Press AUDIO repeatedly during playback to hear a different audio language or audio track, if avilable.
Press AUDIO repeatedly during playback to hear a different audio channel (Left, Right, Mix,
and Stereo).
8. PLAY/PAUSE
Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE second time will resume the playback.
9. STOP
When this button is pressed once, the unit records the stopped point, from where playback will resume if
7

PLAY ( ) is pressed aer wards. Buf STOP buon is pressd again instead of PLAY ( ) buon, there will
be no resume funcon.
10. STEP/TV/RADIO
Step the moon in DVD mode. Switch between TV and Radio source in DVB mode.
11. VOL+
Adjust volume
12. Forward Skip
Go to next chapter/track.
13. Reverse Skip
Go to previous chapter/track to the beginning.
14. BUTTON
Press BUTTONallow skipping ahead at 5-level speed (X2->X4->X8->X1 6->X32->PLAY), press PLAY
buon return to normal playback.
15. buon
Press BUTTONallow skipping back at 5-level speed (X2->X4->X8->X16->X32->PLAY), press PLAY buon
return to normal playback.
16.
Turn on/ohe power.
17. SEARCH
Go to me point, tle or chapter you wann DVD Mode.
18. SUBTITLE
Press SUBTITLE repeatedly during playback to hear a different subtle languages.
20. TITLE
Return to DVD tle menu
21. OK
Confirms menu selecon..
22. REPEAT
Press REPEAT during playback to select a desired repeat mode.
: You can play select repeat chapter/tle/off.
: You can select repeat single/all/off.
: You can select repeat single/folder/off.
LOCK
8

23. VOL-
Adjust volume
24. SETUP
Accesses or removes setup menu.
25. SLOW
Press Slow buon repeatedly to enter slow playback, and cycle between different speeds.
The speeds are 1/2, 1/4, 1/8, 1/16, and normal.
26. PROGRAM
: The program function enables you to store your favourite tracks from the disc.
Press PROGRAM button, then PROGRAM MENU will appear on screen, now you can use the number key to
direct input the titles, chapters or tracks number and select PLAY option.
TO resume normal playback, press PROGRAM and select clear program option on the program menu, press
PROGRAM again to exit program menu.
27. ZOOM
: Use ZOOM to enlarge or shrink the video image.
1. Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears
briefly in the right bottom of the picture.
2. Each press of the ZOOM button changes the TV screen in the following sequence:
2X size → 3X size → 4X size → 1/2 size → 1/3 size → 1/4 size → normal size
: Use ZOOM to enlarge or shrink the picture.
1. Press 'ZOOM'.
2. Used " " to enlarge, or " " to shorten the picture. Use the ▲ ▼ ◄ ► button to move through the
zoomed picture.
28. RED/GREEN/YELLOW/BLUE KEY
Some specific functions in DVB mode.
SETUP Menu Setting
General Setup Page
Press SETUP button to get the setup menu. Use direction buttons ▲ ▼ ◄ ► to select the preferred item.
After finishing settings, press SETUP again to normal display.
The following menu items can be changed:
GENERAL: selects the GENERAL PAGE menu.
AUDIO: selects the AUDIO PAGE menu.
VIDEO: selects the VIDEO PAGE menu.
PREFERENCE: selects the PREFERENCE PAGE menu.
9

General Setup Page
TV DISPLAY: selects the aspect ra o o he playback picture.
4:3 PANSCAN: if you have a normal TV and want both sides o he picture to be trimmed or forma d to fit
your TV screen.
4:3 LETTERBOX: if you have a normal TV. In this case, a wide picture with black bands on the upper and
lower por ons o he TV screen will be displayed. 16:9: wide screen display.
Wide Squeeze: Set screen mode to 4:3.
Angle Mark
Displays current angle se ng informa on on the right hand corner o he TFT screen if available on the disc.
OSD Language
You can select your own preferred language se ngs.
Closed Cap ons
Closed cap ons are data that are hidden in the video signal of some discs. Before you selec his func on,
please ensure tha he disc contains closed cap ons informa on and your TV set also has this func on.
Screen Saver
Last Memory
This func on is used to turn the screen saver On or Off.
Auto Standby
If this funcon is switched to ON, the DVD will resume play on the last known posion, when the unit was
stopped, powered down or dvd was reinserted.
standby mode a r 3 hours i here is no interac on from user within this period o ime. 4 HOURS: the unit
will turn to standby mode a r 4 hours i here is no interac on from user within this period o ime. OFF:
the auto standby func on is disabled, and unit will stay in “on” mode even if no interac on from user.
AUTO STANDBY
Last Memory ON
3H
ON
OFF
OFF
3 HOUR
4 HOUR
10

Audio Setup Page
Audio Setup Page
Audio Setup Page

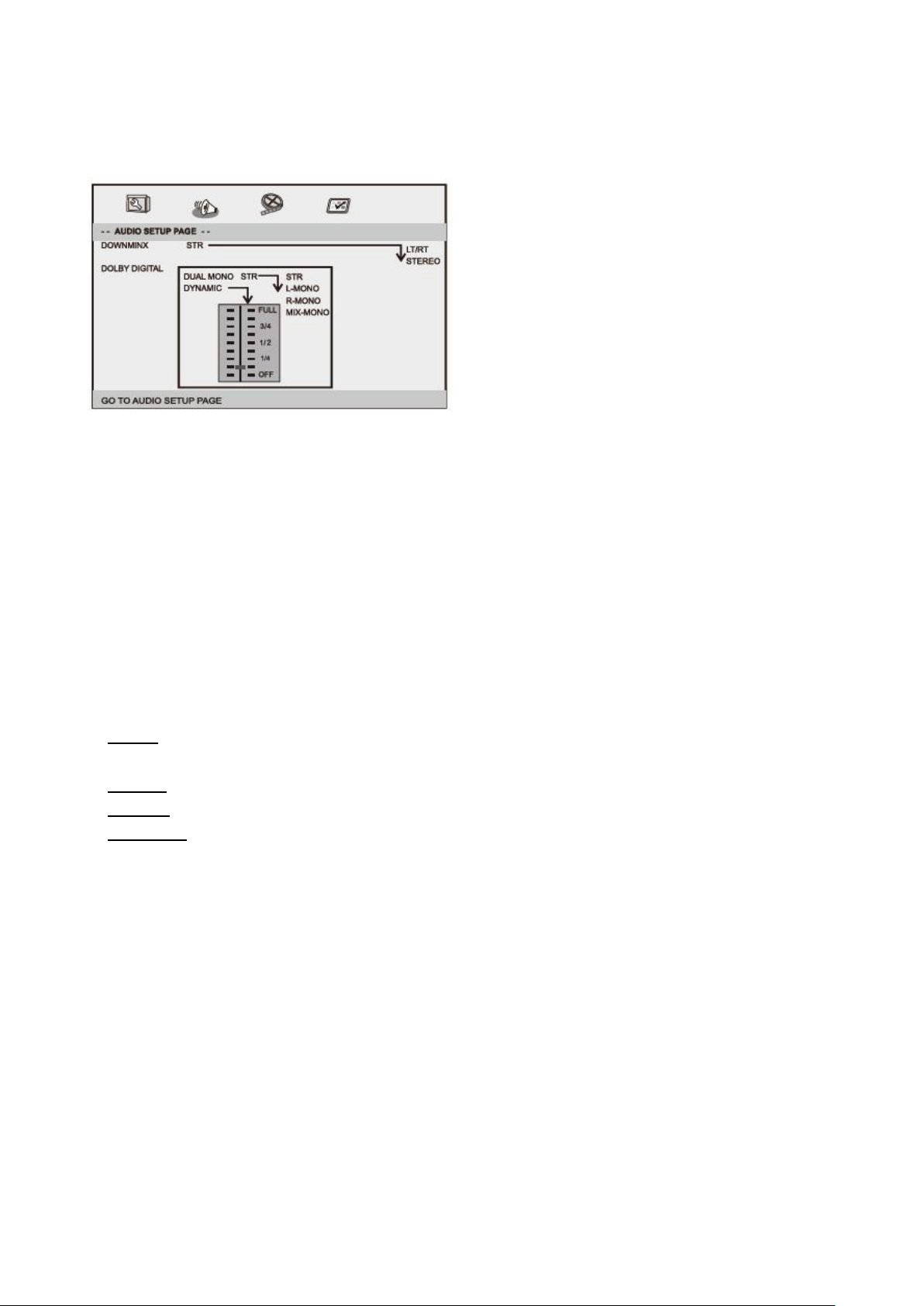

Downmix
This options allows you to set the stereo analog output of your DVD Player.
LT/RT: Select this option if your DVD Player is connected to a Dolby Pro Logic decoder.
Stereo: Select this option when output delivers sound from only the two front speakers.
Dolby digital
The options included in Dolby Digital Setup are: 'Dual Mono' and 'Dynamic'.
Dual Mono
Stereo: Left mono sound will send output signals to Left speaker and Right mono sound will send output
signals to Right speaker.
L-Mono: Left mono sound will send output signals to Left speaker and Right speaker.
R-Mono: Right mono sound will send output signals to Left speaker and Right speaker.
Mix-Mono: Left and Right mixed mono sound will send output signals to Left and Right speakers.
Dynamic
Dynamic range compression.
11

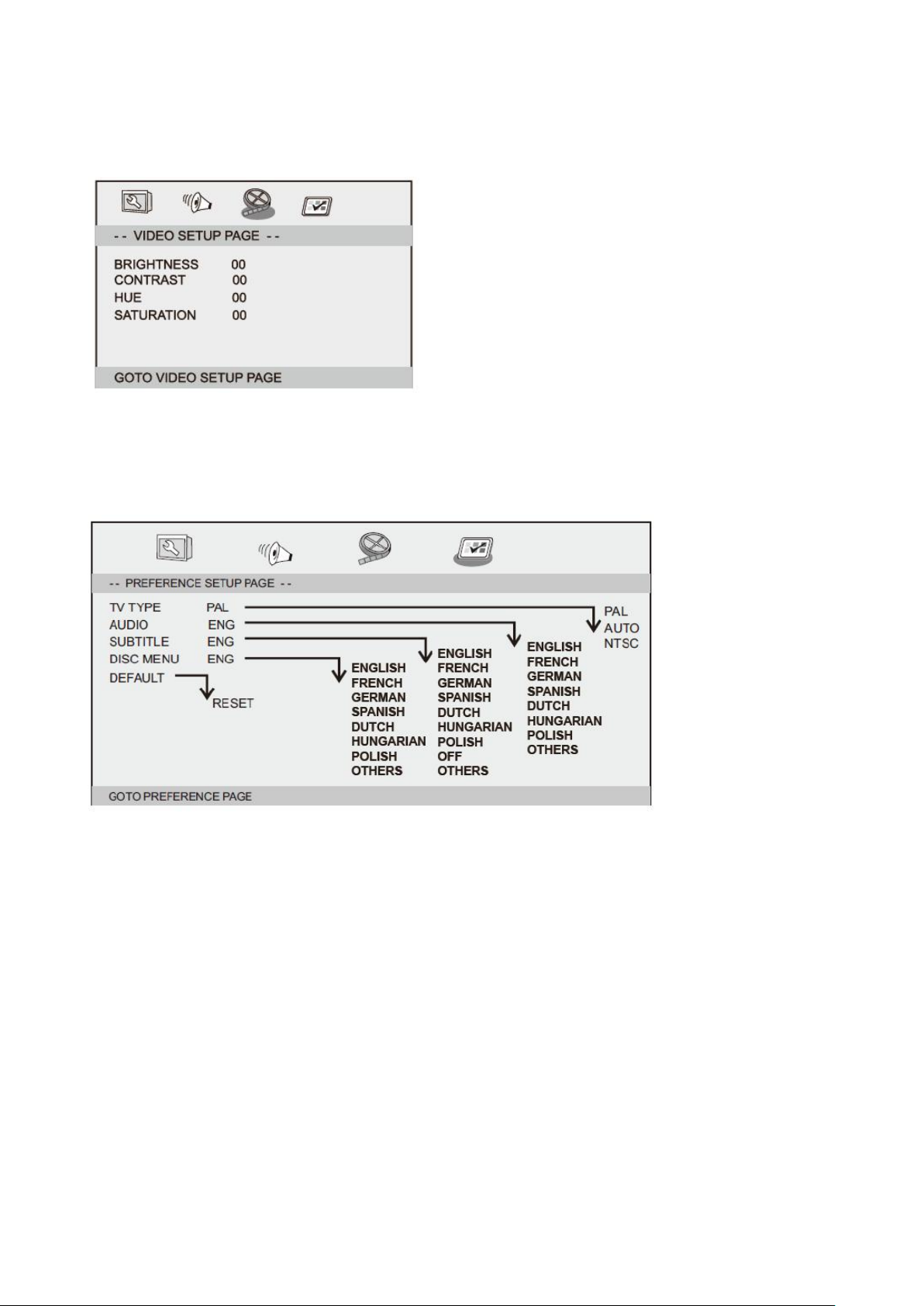

Video Setup Page
Video Setup Page
Brightness, Contrast, Hue, Saturation: setting the video quality.
Preference Page
TV Type
Selecting the colour system that corresponds to your TV when AV outputs. This DVD Player is compatible
with both NTSC and PAL.
Preference Page
PAL - Select this if the connected TV is PAL system. lt will change the video signal of a NTSC disc and output
in PAL format.
NTSC - Select this if the connected TV is NTSC system. lt will change the video signal of a PAL disc and output
in NTSC format.
Auto: Chang the video signal output automatic according to the playing disk format.
Audio: Selects a language for audio (if available).
Subtitle: Selects a language for subtitle (if available).
Disc Menu: Selects a language for disc menu (if available).
12

Default: Back to the factory seng.
Parameters and specificaons
Electronical parameters
Item
Standard requirement
Power requirements
AC 100-240 V, 50/60 Hz
Power consumption
<12W
Operating humidity
5% to 90%
Output
VIDEO OUT
AUDIO OUT
1.4 Vrms (1 KHz, 0 dB)
Audio
Speakers WX2, Headphones output
System
Laser
Semiconductor laser, wavelength 650 nm
Signal system
NTSC/PAL
Frequency response
20Hz to 20 kHz (3dB)
Signal-to-noise ratio
More than 80 dB (ANALOG OUT connectors only)
Dynamic range
More than 85 dB (DVD/CD)
Note: Design and specifications are subject to change prior notice.
Battery Parameters
Battery Specifications:
Output: 7.4V
Charge/Discharge Time:
Standard charge time: 3h ~ 4h
Storage and work circumstances:
1. Storage circumstances
Temperature
Humidity
6 months
-20°C ~ +45°C
65±20%
1 week
-20°C ~ +65°C
65±20%
2. Work circumstances
Temperature
Humidity
Standard charge
0°C ~ +45°C
65±20%
Standard discharge
-20°C ~ +65°C
65±20%
13

First Time Installaon
Aer all connecons have been made properly, switch on TV and make sure the receiver is connected to the
MainPower. Press Power Buon to switch receiver on. If you are using the receiver for the firsme or
restored to Factory Default, the Main Menu will appear on your TV screen.
(1) Select [OSD Language] and press RIGHT/LEFT key to select a language.
(2) Select [Country] and press RIGHT/LEFT key to select your country of residence.
(3) Select [Channel Search] and press RIGHT or OK key to begin Automatic channel search.
(4) Once channel tuning is complete, you are now ready to watch TV.
Basic Operation
Program Manage Settings
To access the Menu, press the SETUP button and select [Program], The Menu provides options to adjust the
Program Manage Settings.
Select an option and press OK or RIGHT to adjust that setting. Press the EXIT button to exit the Menu.
OFF
14

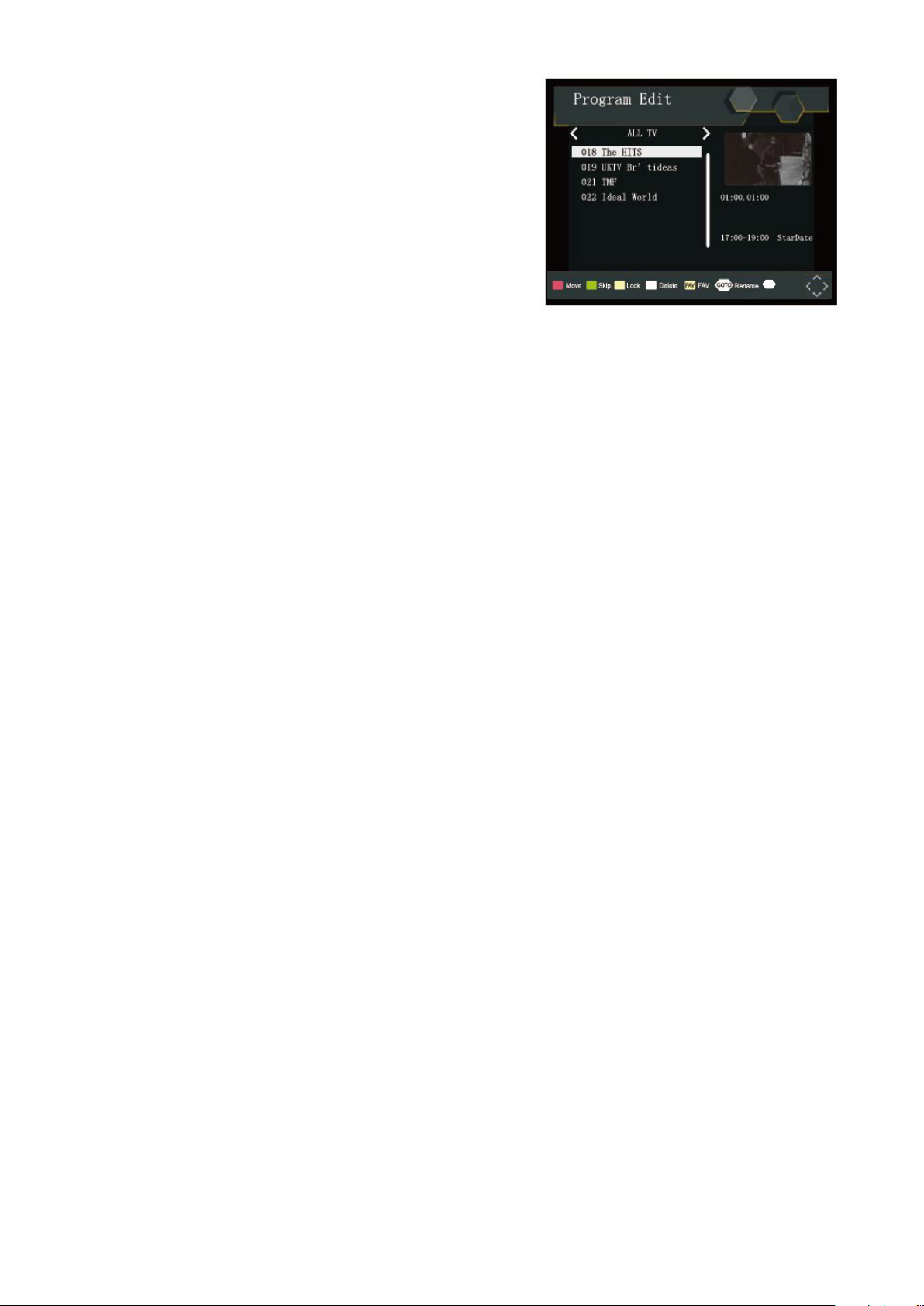

Program Edit
To edit your program preferences (lock, skip, favourite,
move or delete), you will need to enter the Program Edit
Menu. This Menu requires a password to access. Enter the
default password '000000'.
UPO TV/Radio
First Time Installation
Set Favourite Program/s
You can create a shortlist of favourite programs that you can easily access. Set Favourite TV or Radio
program:
1. Select the preferred program then press the FAVOURITE button. A heart-shaped symbol will appear and
the program is marked as a favourite.
2. Repeat the previous step to select more Favourite programs.
3. To confirm and exit the Menu, press the EXIT key.
Disable Favourite TV or Radio Program:
Press the FAV button on the Remote Control with the heart-shaped symbol.
View Favourite Programs:
1. Press the Fav button and the Favourite Menu will appear.
2. Press UP/DOWN to select your Favourite Programs.
3. Press OK to select your favourite program.
Delete a TV or Radio Program/s
1. Select the Program and then press the BLUE button A message will appear. Press OK to delete the
program.
2. Repeat the previous step to select more programs to delete.
Skip TV or Radio Program/s
1. Select the program you would like to skip and press the GREEN button A skip symbol is displayed.
The program is marked as a skip.
2. Repeat the previous step to select more programs.
3. To confirm and exit the menu, press EXIT key.
Disable a skip TV or Radio Program:
Press the GREEN button on the skip program with the skip symbol.
15

Move a TV or Radio Program/s
1. Seleche preferred program then press the RED buon.Amove symbol will appear.
2. Press UP/DOWN to move the program.
3. Press OK to confirm.
4. Repeahe above steps to move more channels.
Lock Program/s
You can lock selected programs for restricted view. Lock a TV or Radio Program:
1. Seleche preferred program then press the YELLOW buon.Alock-shaped symbol is displayed.
The program is now marked as locked.
2. Repeahe previous step to select more programs.
3. To confirm and exihe menu, press the EXIT buon.
4. Press the YELLOW buon to disable the locked program.
5. To view the locked program, you will be required to enter either the default.
First Time Installaon
Sort
Sort your channels from the following opons:
[LCN]-Sorhe channels in ascending order.
[Name] - Sorhe channels in alphabecal order.
[Service ID] - Sorhe channels according to the staon.
LCN (Logical channel number)
Set LCN on or off.
Video Seng
To access the Menu, press SETUP then select [Picture]. The Menu provides opons to adjushe video
sengs. Press UP/DOWN to select an opon and press RIGHT/LEFT to adjushat seng. Press EXIT to exit
the menu.
16

Aspect Ra o
You must set the display format o either 4:3 PanScan, 4:3 Box, 4:3 Full, 16:9 Wide Screen, 16:9
Pillar or Auto to get the maximum display when watching TV.
First Time Installa
he Menu.
Box 16:9 Pan Scan
t letter
,
on
TV format
Ihe video does not appear correctly, you need to change the se ngs. This should match the most
common se ng for TVs in your country.
[NTSC]: for NTSC system TV.
[PAL]: for PAL system TV.
Channel Search
To access the menu, press SETUP and select [Search Channel], The Menu provides op ons to adjus he
Search Channel se ngs. Select an op on and press RIGHT/LEFT to adjus he se ngs.
Press EXIT to exi

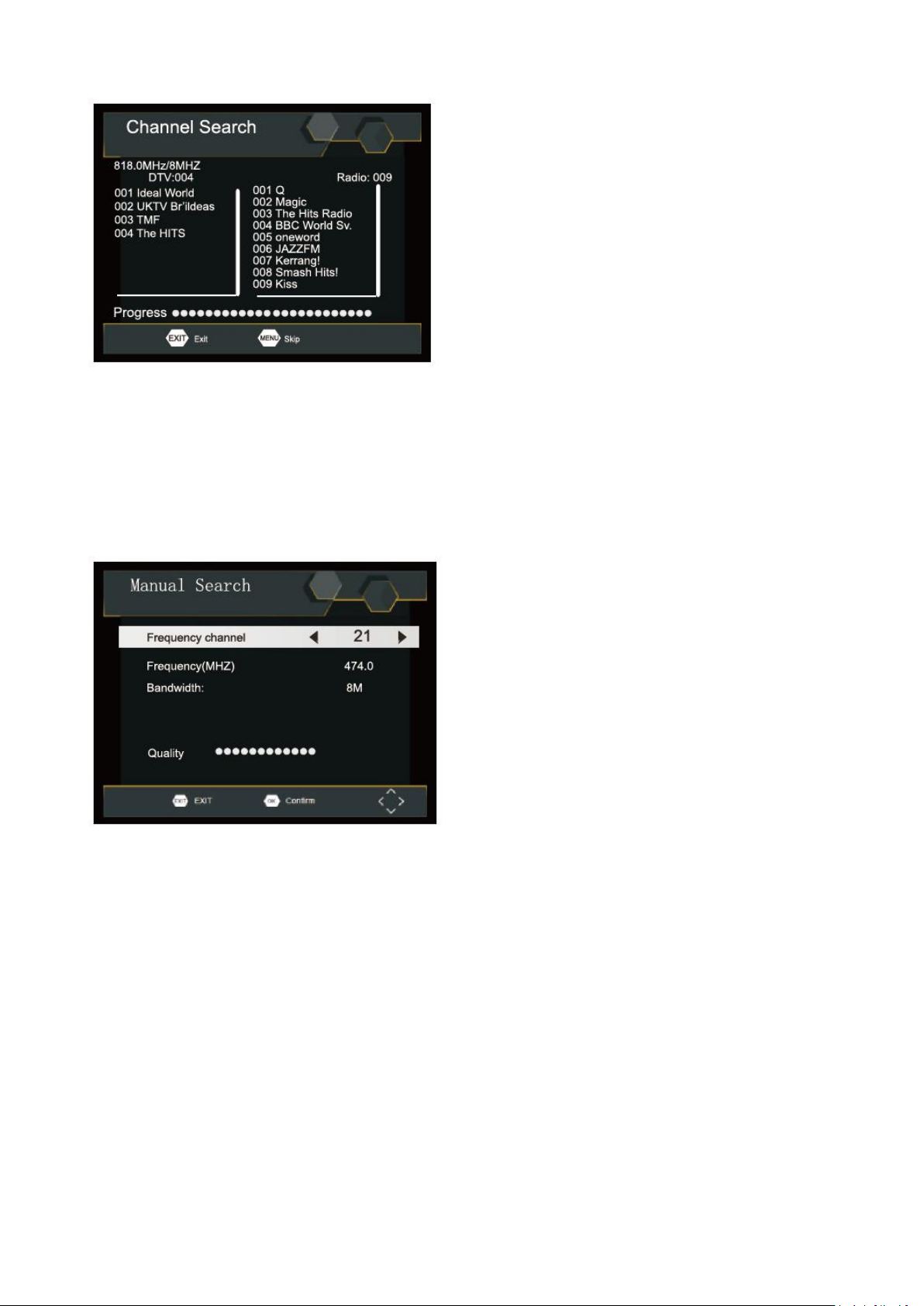

Auto Search
Search and install all channels automatically. This option overwrites all preset channels.
1. Select [Auto Search] and press OK or RIGHT to start channel search
2. To cancel channel search, press EXIT.
17

Manual Search
Install new channels manually. This option adds new channels without changing the current channels list.
1. Select [Manual Search] then press OK or RIGHT. The channel search screen will appear.
First Time Installation
2. Press the RIGHT/LEFT key to select the channel frequency.
3. Press OK to start searching channels. If a channel is found, it is saved and added to the channels list. If
channels can’t be found, then exit the menu.
Country
Select your country of residence.

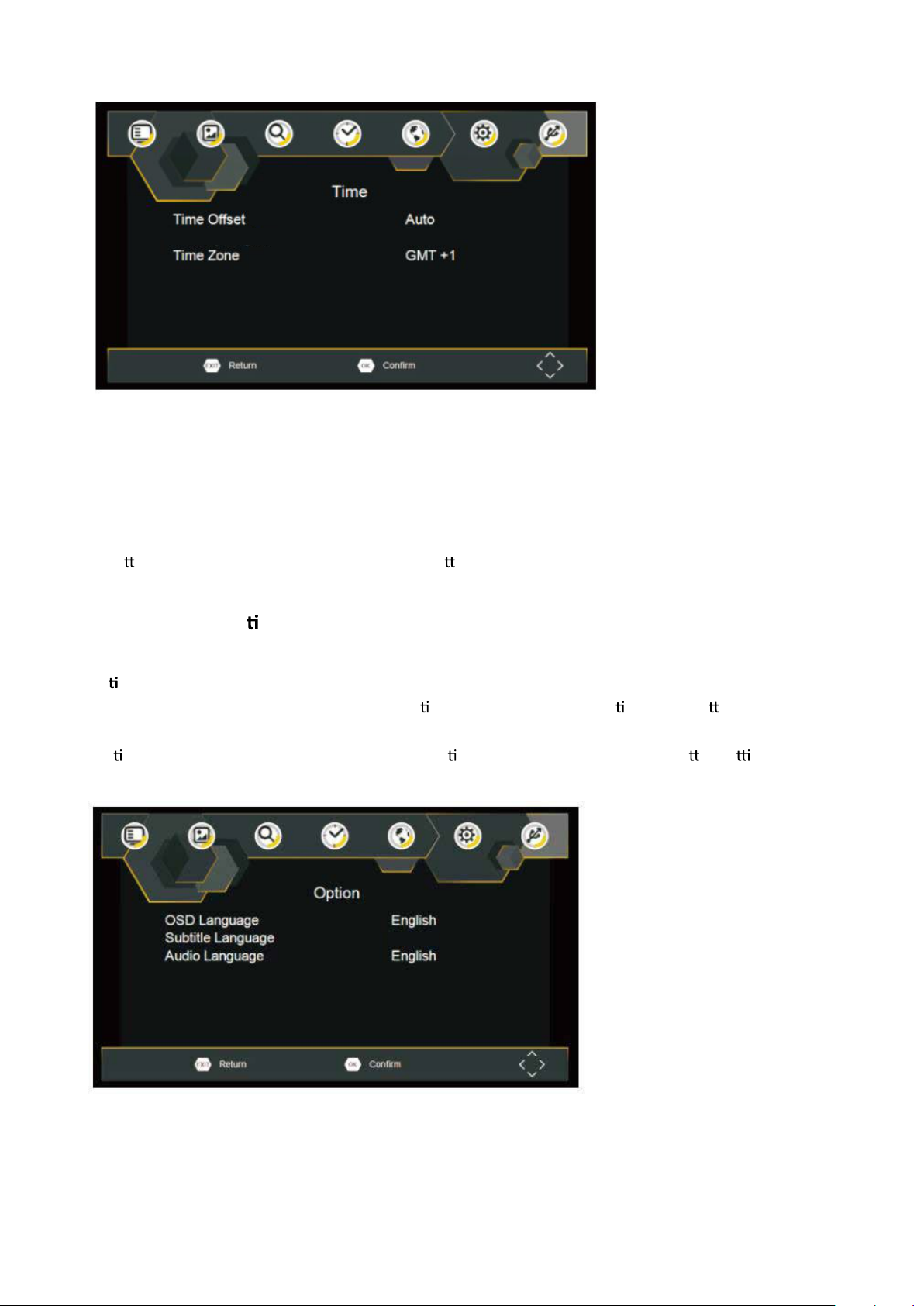

Time Setting
To access the Menu, press SETUP then select [Time]. The Menu provides options to adjust the time settings.
Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the settings.
Press EXIT to exit the menu.
18

Time offset
Select auto or manual for GMT offset adjustments.
Time Zone
Selec he Time Zone Offset when [Time Offset] is se o Manual.
First Time Installa on
Op on
To access the Menu, press SETUP and select [Op on]. The menu provides op ons to adjus he OSD
Language,
Sub tle Language and Audio Language. Select an op on and press RIGHT/LEFT to adjus he se ng.
Press EXIT to exit The Menu.
OFF
19

OSD Language
Select an OSD language.
Audio Language
Seleche preferred audio language for watching TV channels. lhe language is not available, the default
program language will be used.
Subtle Language
Seleche preferred subtle language.
System Seng
To access the Menu, press SETUP and select [System].The menu. Provides opons to adjushe system
sengs. Press the UP/DOWN key to select an opon and press RIGHT/LEFT to adjushe seng. Press EXIT
to exihe Menu.
Parental Guidance
You can restrict access to channels that are unsuitable for children. To restrict/lock the channel you will
need to enter either the default password '000000' or your own password.
First Time Installation
Set Password
Set or change the password for Locked programs. Enter your old Password or the default password '000000'.
You will then be asked to enter your new password. To confirm re-enter your new password.
Once it is confirmed, press EXIT to exit the Menu.
Restore Factory Default
Reset your Set Top Box to the Default Factory Settings. In Main Menu select [Restore Factory Default] and
press OK or RIGHT to select. Enter your password or the default password '000000' and press OK to confirm.
This option will delete all preset channels and settings.
20
