Lenze L-force CPC 2800 User manual

BA_CPCx8xx
.SRU
Ä.SRUä
Operating Instructions
Industrial PC

CPC 2800
Control cabinet PC (CPC)
L−force Controls

Please read these instructions before you start working!
Follow the enclosed safety instructions.

Contents i
3
BA_CPCx8xx EN 4.0
1 About this documentation 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 Document history 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Conventions used 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.3 Notes used 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Safety instructions 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 General safety information 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Product−specific safety instructions 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Safety instructions for the installation according to UL 12. . . . . . . . . . . . . . . . . . . . .
3 Product description 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Scope of supply 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 Application as directed 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.3 Device features 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.4 Identification 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.5 Controls and displays 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.6 Options 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.6.1 ACU UPS control unit 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

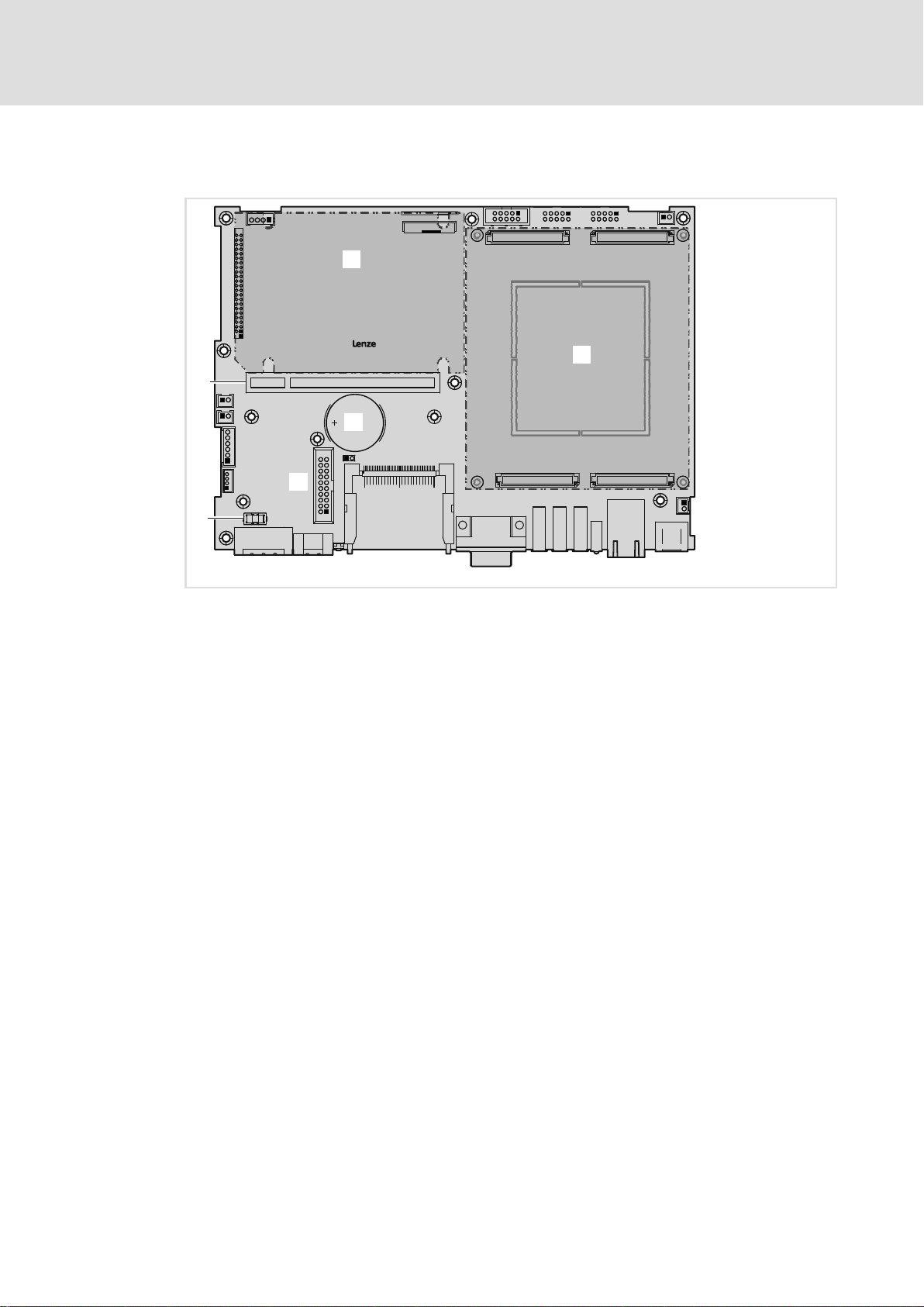

3.12 Baseboard 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 Technical data 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 General data and operating conditions 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Electrical data 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3 Mechanical data 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Mechanical installation 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Important notes 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.2 Mounting steps 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contentsi
4 BA_CPCx8xx EN 4.0
6 Electrical installation 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1 Important notes 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.2 Wiring according to EMC 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5 Connecting the supply and peripheral devices 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.1 Terminal diagram supply 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.2 24 V connection (X101) 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.3 UPS−PACK connection (X102) 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.4 Monitor interface (X109) 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.5 PS/2 interface (X108) 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.6 Serial interface (X103) 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.7 Ethernet interface (X107) 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.8 USB interface (X104, X105, X106) 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.5.9 Communication interface (MC card) 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Maintenance 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.1 Regular checks 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.2 Cleaning 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5 Repair 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5.1 Remove the PC housing 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5.2 Mount the PC housing 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5.3 Battery change 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7.5.4 Fuse change 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 Index 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

About this documentation
Document history
1
5
BA_CPCx8xx EN 4.0
0Fig. 0Tab. 0
1 About this documentation
Contents
This documentation provides you with information about the intended use of the
Industrial PC.
The present manual is part of the "PC−based automation" manual collection which you can
find on the DVDs of the same name.
Target group
This documentation is directed at qualified skilled personnel according to IEC 60364.
Qualified skilled personnel are persons who have the required qualifications to carry out
all activities involved in installing, mounting, commissioning, and operating the product.
Tip!
Information and auxiliary devices related to the Lenze products can be found
in the download area at
http://www.Lenze.com
Validity
These instructions are valid for
ƒCPC 2800 control cabinet PC
1.1 Document history
Material number Version Description
.SRU 4.0 12/2015 TD09 IntelâAtomäE3845 processor supplemented
13453526 3.0 12/2013 TD06 UL note (French language)
13370127 2.0 03/2013 TD29 General revision
13391190 1.3 10/2011 TD29 Revision of sections "Changing the battery" and
"Changing the fuse"
13370127 1.2 07/2011 TD29 Pin assignment of SUB−D plug corrected
13370127 1.1 02/2011 TD29 First edition

About this documentation
Conventions used
1

6 BA_CPCx8xx EN 4.0
1.2 Conventions used
This documentation uses the following conventions to distinguish between different
types of information:
Type of information Identification Examples/notes
Spelling of numbers
Decimal separator Point In general, the decimal point is used.
For instance: 1234.56
Warnings
UL warnings Given in English and French
UR warnings 
Text
Program name » « PC software
For example: »Engineer«, »Global Drive
Control« (GDC)
Icons
Page reference Reference to another page with additional
information
For instance: 16 = see page 16
Documentation reference Reference to another documentation with
additional information
For example: EDKxxx = see
documentation EDKxxx

About this documentation
Notes used
1
7
BA_CPCx8xx EN 4.0
1.3 Notes used
The following pictographs and signal words are used in this documentation to indicate
dangers and important information:
Safety instructions
Structure of safety instructions:
Danger!
(characterises the type and severity of danger)
Note
(describes the danger and gives information about how to prevent dangerous
situations)
Pictograph and signal word Meaning
Danger!
Danger of personal injury through dangerous electrical voltage.
Reference to an imminent danger that may result in death or
serious personal injury if the corresponding measures are not
taken.
Danger!
Danger of personal injury through a general source of danger.
Reference to an imminent danger that may result in death or
serious personal injury if the corresponding measures are not
taken.
Stop!
Danger of property damage.
Reference to a possible danger that may result in property
damage if the corresponding measures are not taken.
Application notes
Pictograph and signal word Meaning
Note! Important note to ensure troublefree operation
Tip! Useful tip for simple handling
Reference to another documentation
Special safety instructions and application notes
Pictograph and signal word Meaning
Warnings! Safety note or application note for the operation according to
UL or CSA requirements.
The measures are required to meet the requirements according
to UL or CSA.
Warnings!

Safety instructions
General safety information
2

8 BA_CPCx8xx EN 4.0
2 Safety instructions
2.1 General safety information
Scope
The following general safety instructions apply to all Lenze drive and automation
components.
The product−specific safety and application notes given in this documentation must be
observed!
For your own safety
Danger!
Disregarding the following basic safety measures may lead to severe personal
injury and damage to material assets!
ƒLenze drive and automation components ...
... must only be used for the intended purpose.
... must never be operated if damaged.
... must never be subjected to technical modifications.
... must never be operated unless completely assembled.
... must never be operated without the covers/guards.
... can − depending on their degree of protection − have live, movable or rotating parts
during or after operation. Surfaces can be hot.
ƒFor Lenze drive and automation components ...
... only use approved accessories.
... only use original manufacturer spare parts.
ƒAll specifications of the corresponding enclosed documentation must be observed.
This is vital for safe and trouble−free operation and for achieving the specified product
features.
The procedural notes and circuit details provided in this document are proposals which
the user must check for suitability for his application. The manufacturer does not
accept any liability for the suitability of the specified procedures and circuit proposals.
ƒOnly qualified skilled personnel are permitted to work with or on Lenze drive and
automation components.
According to IEC 60364 or CENELEC HD 384, these are persons ...
... who are familiar with the installation, assembly, commissioning and operation of
the product,
... possess the appropriate qualifications for their work,
... and are acquainted with and can apply all the accident prevent regulations, directives
and laws applicable at the place of use.

Safety instructions
General safety information
2
9
BA_CPCx8xx EN 4.0
Transport, storage
ƒTransport and storage in a dry, low−vibration environment without aggressive
atmosphere; preferably in the packaging provided by the manufacturer.
– Protect against dust and shocks.
– Comply with climatic conditions according to the technical data.
Mechanical installation
ƒInstall the product according to the regulations of the corresponding
documentation. In particular observe the section "Operating conditions" in the
chapter "Technical data".
ƒProvide for careful handling and avoid mechanical overload. During handling neither
bend components, nor change the insulation distances.
ƒThe product contains electrostatic sensitive devices which can easily be damaged by
short circuit or static discharge (ESD). Thus, electronic components and contacts
must not be touched unless ESD measures are taken beforehand.
Electrical installation
ƒCarry out the electrical installation according to the relevant regulations (e. g. cable
cross−sections, fusing, connection to the PE conductor). Additional notes are
included in the documentation.
ƒWhen working on live products, observe the applicable national regulations for the
prevention of accidents (e.g. BGV 3).
ƒThe documentation contains notes for the EMC−compliant installation (shielding,
earthing, arrangement of filters and installation of the cables). The manufacturer of
the system or machine is responsible for the compliance with the limit values
required in connection with EMC legislation.
ƒFor compliance with the limit values for radio interference emission at the site of
installation, the components − if specified in the technical data − have to be mounted
in housings (e. g. control cabinets). The housings have to enable an EMC−compliant
installation. In particular observe that for example control cabinet doors preferably
have a circumferential metallic connection to the housing. Reduce openings or
cutouts through the housing to a minimum.
ƒOnly plug in or remove pluggable terminals in the deenergised state!
Commissioning
ƒIf required, you have to equip the system with additional monitoring and protective
devices in accordance with the respective valid safety regulations (e. g. law on
technical equipment, regulations for the prevention of accidents).

Safety instructions
General safety information
2

10 BA_CPCx8xx EN 4.0
Maintenance and servicing
ƒThe components are maintenance−free if the required operating conditions are
observed.
ƒIf the cooling air is polluted, the cooling surfaces may be contaminated or the air
vents may be blocked. Under these operating conditions, the cooling surfaces and air
vents must be cleaned at regular intervals. Never use sharp objects for this purpose!
ƒAfter the system has been disconnected from the supply voltage, live components
and power connections must not be touched immediately because capacitors may
be charged. Please observe the corresponding notes on the device.
Disposal
ƒRecycle or dispose of the product according to the applicable regulations.
ƒThis device contains a battery. According to European legislation you are obliged to
dispose of batteries separately via the take−back systems specified.

Safety instructions
Product−specific safety instructions
2
11
BA_CPCx8xx EN 4.0
2.2 Product−specific safety instructions
ƒThe device is classified as a class A device and can cause radio interference in
residential areas. In this case, the operator may have to take special measures. Any
costs arising from these measures have to be paid by the operator.
ƒIn the event of a fault, unplug the power connector immediately and send back the
device to the manufacturer. The address can be found on the self−addressed
envelope included in this documentation. Please use the original packaging to
return the device!
ƒPrinted circuit boards which might be damaged by short circuit or electrostatic
discharge (ESD) must be handled appropriately.
ƒThe BIOS of the mainboard is configured by the factory. After the BIOS has been
updated, malfunctions are possible. Please address to our service.
ƒIf the optionally ACU UPS power supply is used:
– Before commissioning the basic device, establish the connection between the
power supply unit and the capacitor/battery pack.
– Observe that the basic device is only deenergised if the mains cable and the supply
cable of the capacitor/battery pack have been disconnected.
– If the basic device is disconnected from the mains for a longer time, the supply
cable of a battery pack has to be disconnected, so that the rechargeable batteries
are not damaged by a possible exhaustive discharge.
– If stored, the rechargeable batteries lose energy in the course of time. Thus the
rechargeable batteries have to be charged completely by the basic device at the
latest after half a year of storage.
– The rechargeable batteries of the battery pack may not be charged with external
battery chargers, but only with the ACU UPS power supply of the basic device!

Safety instructions
Safety instructions for the installation according to UL
2

12 BA_CPCx8xx EN 4.0
2.3 Safety instructions for the installation according to UL
Original − English
Approval
Underwriter Laboratories (UL), UL508 and CSA C22.2 No. 142−M1987, (UL File Number
E236341)
Ratings
ƒInput 18 ... 30 V DC , max. 4 A
ƒACCU−Pack and CAPS−Pack: max 0.6 A
ƒMax. ambient temperature 50 °C.
ƒOptional communication ratings:
– RS232−Connection: max. 3 A
– USB−Connection: max. 1 A
– PS/2−Connection: max. 1 A
– LAN−Connection: Standard ISDN or RJ45
– DVI−Connection: max. 1 A
Warnings!
Field Wiring Markings
Wiring Terminal MSTB 2,5/3−STF−5,08:
ƒUse copper wire only.
ƒAWG 18 ... AWG 12 (0.82 mm2... 3.3 mm2)
ƒTorque 5...7 lb−in (0.5 ... 0.6 Nm)
Battery
ƒReplace battery with any from the list below, Part No. CR 2450 only. Use of
another battery may present a risk of fire or explosion.
Recommended CR2450 (R/C, BBVC2) types:
Renata Part.no. CR2450N, Sony Corp. part no. CR2450B, Toshiba part no.
CR2450, Varta part no. CR2450, Matsushita part no. CR2450
ƒBattery may explode if mistreated. Do not recharge, disassemble, dispose of
in fire or heat above 100 °C (212 °F).
ƒDispose of used battery according to the regulation of recycling or waste.

Safety instructions
Safety instructions for the installation according to UL
2
13
BA_CPCx8xx EN 4.0
Original − French
Homologation
Underwriter Laboratories (UL), UL508 et CSA C22.2 n° 142−M1987, (n° de dossier UL
E236341)
Caractéristiques assignées
ƒAlimentation 18 ... 30 V CC , 4 A max.
ƒPack ACCU et CAPS : maximum 0,6 A
ƒTempérature ambiante maximale : 50 °C.
ƒCaractéristiques de communication assignées (option) :
– Port RS232 : maximum 3 A
– Port USB : maximum 1 A
– Port PS/2 : maximum 1 A
– Port LAN : RNIS standard ou RJ45
– Port DVI : maximum 1 A
Warnings!
Marquage du câblage à pied d’oeuvre
Bornier de câblage MSTB 2,5/3−STF−5,08 :
ƒUtiliser exclusivement des conducteurs en cuivre.
ƒAWG 18 ... AWG 12 (0.82 mm2... 3.3 mm2)
ƒCouple de 5 à 7 lb−in (0,5 ... 0,6 Nm)
Batterie
ƒRemplacer la batterie par l’un des types répertoriés dans la liste ci−dessous,
n° de référence CR 2450 uniquement. L’utilisation d’une autre batterie
présente un risque d’incendie ou d’explosion.
Types CR2450 recommandés (R/C, BBVC2) :
Renata référence CR2450N, Sony Corp. référence CR2450B, Toshiba
référence CR2450, Varta référence CR2450, Matsushita référence CR2450
ƒToute utilisation non conforme de la batterie entraîne un risque d’explosion.
Ne pas recharger, démonter, jeter au feu ni exposer la batterie à une chaleur
supérieure à 100 °C (212 °F).
ƒEliminer la batterie conformément à la réglementation en vigueur en
matière de recyclage ou de traitement des déchets.

Product description
Scope of supply
3

14 BA_CPCx8xx EN 4.0
3 Product description
3.1 Scope of supply
Quantity Name
1 Control cabinet PC
1Connection plug for voltage supply
1DVD "PC based Automation"
1Test report
1Device pass card
Note!
After receipt of the delivery, check immediately whether the items match the
accompanying papers. We do not accept any liability for deficiencies claimed
subsequently.
Claim
ƒvisible transport damage immediately to the forwarder
ƒvisible deficiencies/incompleteness immediately to your Lenze
representative.
3.2 Application as directed
The industrial PC is used as directed if it is solely used for implementing control and
operating concepts or for presenting information in usual industrial and commercial
fields. A different use, or one beyond these purposes, is not permissible.
A use that is not intended also includes a use harbouring fatal risks or dangers which,
without the provision of exceptionally high safety measures, may result in death, injury or
damage to material assets.
The industrial PC in particular must not be used ...
ƒin private areas.
ƒin potentially explosive atmospheres.
ƒin areas with harmful gases, oils, acids, radiation, etc.
ƒin applications where vibration and impact loads occur, exceeding the requirements
of EN 50178.
ƒfor performing safety functions, for instance
– in air traffic control / in flight−control systems
– for the monitoring/control of nuclear reactions
– for the monitoring/control of means of mass transport
– for the monitoring/control of medical systems
– for the monitoring/control of weapon systems
Higher−level safety systems must be used to guarantee the protection of persons and
material assets!

Product description
Device features
3
15
BA_CPCx8xx EN 4.0
3.3 Device features
CPC 2800
Design lPC housing made of powder−coated sheet steel and aluminium
Mounting lTo be mounted in control cabinets
Electrical supply lVoltage supply 24 V DC
lLithium battery to buffer the real−time clock (RTC)
Computer unit lETX module with
– IntelâAtom N270, 1.6 GHz, 512 kB L2 Cache
– Chip set: Intelâ945GSE, IntelâICH7M
– Ethernet controller: Intelâ82562V, 10/100 MBit Ethernet
– Integrated with IntelâGraphics Media Accelerator
(GMA950, DirectXâ9, PS 2.0)
or
– IntelâCore Duo, 1.66 GHz, 512 kB L2 Cache
– Chip set: Intelâ945GM, IntelâICH7M
– Ethernet controller: Intelâ82562VZ, 10/100 MBit Ethernet
– Integrated with IntelâGraphics Media Accelerator
(GMA950, DirectXâ9, PS 2.0)
or
– IntelâCore E3845 1.91 GHz 2M Cache
– Chip set: integrated in SoC
– Ethernet−Controller: Intelâi211 (MAC/PHY) 100 MBit−Ethernet
– Integrated with IntelâHD Graphics
Interfaces l1 x DVI−I
l1 x PS/2
l1 x LAN (Ethernet)
l3 x USB type A (V 2.0)
l1 x serial (RS232)
l2 x MC card slot
l1 x Compact Flash slot (type I)
Accessories
ƒMC card
ƒBattery pack (ACCU PACK)
ƒCapacitor pack (CAPS PACK)
ƒDVI/USB extender

Product description
Identification
3
16 BA_CPCx8xx EN 4.0
3.4 Identification
107AT12345
107AT12345
31855 Aerzen; Germany
Made in Germany
Type








DVIUSB−012
Type designation
Type code (catalogue/order no.)
Technical data
Customised material number
Bar code with serial number
Manufacturer address
Certification
CE mark

Type code CPC 2800 EP8GAC 00000 x x x x x 00− x x xx x x x x 000
Processor
C = IntelâAtomä1.6 GHz
P = IntelâAtomäE3845 1.91 GHz
9 = IntelâCoreäDuo 1.66 GHz (smart cool)
RAM
4 = ³1024 MB
5 = ³2048 MB
6 = ³4096 MB
Internal mass storage
0 = no mass storage
1 = hard disk, 6.4 cm (2.5"), ³80 GB, for continuous
operation
2 = hard disk, 6.4 cm (2.5"), ³80 GB, ext. temp. range
3 = hard disk, 6.4 cm (2.5"), ³160 GB
M = SSD, 6.4 cm (2.5"), ³80 GB
MC card slot 1
0 = none
9 = MC−CAN2
B = MC−CAN2 (with Light API licence)
1 = MC−ETH
D = MC−ISI
C = MC−MPI
5 = MC−PBM
6 = MC−PBS
8 = MC−PND

Product description
Identification
3
17
BA_CPCx8xx EN 4.0

000xxxxxxxx00−xxxxx00000EP8GACType code CPC 2800
MC card slot 2
0 = none
9 = MC−CAN2
B = MC−CAN2 (with Light API licence)
1 = MC−ETH
D = MC−ISI
C = MC−MPI
5 = MC−PBM
6 = MC−PBS
8 = MC−PND
DVD drive
0 = none
1 = DVD writer drive
UPS
0 = none
1 = ACU UPS control unit
External memory card
00 = none
C3 = Compact Flash ³512 MB
C6 = Compact Flash ³4 GB
C7 = Compact Flash ³8 GB
Operating system
0 = none
4 = WindowsâCE 6 Prof.
5 = WindowsâEmbedded Std. 2009 on Compact Flash
6 = WindowsâEmbedded Std. 2009 on hard disk
7 = WindowsâXP on hard disk
9 = Windows Embedded Standard 7 P 64bit
Control technology runtime software
0 = none
1 = LPC1000 (V2.x)
2 = MPC1200 (V2.x)
Visualisation runtime licence type
0 = none
1 = VisiWinNETâCompact
2 = VisiWinNETâStandard
Number of power tags for visualisation
0 = none
1 = 50 power tags
2 = 100 power tags
3 = 250 power tags
4 = 500 power tags
5 = 1000 power tags
6 = 2000 power tags
7 = 4000 power tags
8 = 64000 power tags
Customer version

Product description
Controls and displays
3
18 BA_CPCx8xx EN 4.0
3.5 Controls and displays
0
2
1
4
5
6
7
9
:
;
8
3
0
CPC2700−001
Pos. Description
Control cabinet PC
DVD drive (optional)
PS/2
LAN (Ethernet)
Status LEDs
Error (red):
lIs lit if a power supply failure has occurred;
HD (yellow):
lIndicates access to a storage medium.
Power (green):
lIs lit when the supply voltage is present.
lFlashes (−−−−−−−−) in the case of a hardware error.
lIs blinking (−−−−−−) when the ACU UPS (optional) is being charged.
lIs blinking (−−−−−−−−) when there is a supply voltage failure and the device is being supplied by the ACU
UPS.
lIs blinking (−−−−) when the supply voltage of the ACU UPS is too low (e.g. rechargeable battery is
empty or missing).
lBlinks 4 x per second if the ACCU−PACK causes a short circuit or if the CAPS−PACK is completely
discharged.
USB
RS 232
CF Card
MC Card
ACU UPS
24 V DC
DVI

Product description
Options
ACU UPS control unit
3
19
BA_CPCx8xx EN 4.0
3.6 Options
3.6.1 ACU UPS control unit
Description
The optional ACU UPS control unit in conjunction with a battery pack or capacitor pack
extends the industrial PC of the EL 1800−9800, CS 5800−9800, CPC 2800 and 3241 C series
by a UPS functionality.
The ACU UPS control unit is either pre−equipped at delivery or can subsequently be added
by Lenze service staff.
Features of the ACU UPS control unit
with battery pack (ACCU−PACK) with capacitor pack (CAPS−PACK)
lBridges a short mains failure or mains fluctuations
and shuts down the PC.
lSoftware−based configuration
lDocumentation for the battery pack
lProvides the possibility of data backup in the event
of mains failure.
lOnly suitable in conjunction with Windows CE /
Windows Embedded Compact.
lSoftware−based configuration
lDocumentation for the capacitor pack
POWER
EPC50
FAN2
FAN3
RESET
USB-µCON
BLIGHT
ACCU
CR2450
1
2
19
20
F1 T4A
ACU
0
USV
S
ACCU-Pack
Before opening, read the
instruction manual.
124
3
CS57x0−042
2700 battery pack or 2701 capacitor pack (accessories)
Connection cable (included in delivery of battery pack/capacitor pack)
Port on industrial PC
ACU UPS control unit
Baseboard

Product description
Baseboard
3

20 BA_CPCx8xx EN 4.0
3.7 Baseboard
COM1
POWER
POWER
VGA
FAN2
FAN3
FAN0
FAN1
CF-CARD
RESET
MOUSE
USB-µCON
BLIGHT
FLAT-PANEL-LVDS
HARDDISK / CD-ROM
ACCU
USB_A
USB_B
USB_C
RT
GE
GN
CR2450
1
2
19
20
F1 T4A
X1 X2
X3 X4
1
0
5
2
3
4
x8xx_001
Hard disk
CPU module
Battery ( 33)
ACU UPS control unit ( 19)
Fuse ( 34)
Socket connector for MC card
