Leviton GreenMAX Relay System Cabinet User manual

GreenMAX Relay System Cabinet
Cat. No. R08TC-100
For use with GreenMAX Relay Systems
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• Installation and maintenance of this unit and the associated components requires an electrician.
• All relays must be installed on a Relay Insert Panel in a Leviton GreenMAX Relay Systems cabinet.
• The covers and lower ventilation plate must be in place when any circuit in the cabinet is energized.
INSTALLATION English
DI-000-R08TC-00A-X2
To Install
MOUNT CABINET
1. WARNING: TO AVOID FIRE, SHOCK, OR DEATH; TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND
TEST THAT THE POWER IS OFF BEFORE WIRING!
2. Securely mount enclosure to wall using fasteners appropriate for wall type.
NOTE: Mounting holes are provided in the enclosure, the upper holes are keyhole slots to facilitate easy hanging.
Any field drilled mounting holes should be confined to the wire-way areas so that they do not obstruct the
installation of the Relay Insert Panels or the Command Module.
3. Install all conduit runs and pull all lighting circuit and power wiring.
NOTE: It is recommended that all wire be pulled prior to installing the Command Module and Relay Insert Panels.
This will prevent damage to the electrical components.
INSTALL COMMAND MODULE
1. Install the Command Module by sliding the slots on the bottom of the Command Module over the mounting tabs
of the cabinet. Pass the Power Supply leads through the grommet to the power wiring area while installing. The
Command Module should be free to rotate forward and back without any obstruction. Fasten the Command
Module in place with the two screws provided (see Detail on page 2).
2. Connect the incoming Line, Neutral, and Ground wires of the designated power circuit, to the cabinet electronics.
NOTE: This connection should be made in the power wiring area provided. If the source of power requires that
this area must be separated from other circuit conductors, install the metal partitions provided. The Neutral
connection must also include the Neutral wire from the uppermost Relay Insert Panel. A jumper is provided to
extend this conductor from the Relay distribution spine to the connection point.
3. Connect the Equipment Grounding conductor to the grounding location provided adjacent to the system power
supply. Use the ground screw provided for this purpose.
4. Using Cat 5 (or better) cables and RJ45 connectors, connect the Power Supply to both the MPU and the Low
Voltage input board using the designated ports.
NOTE: If Low Voltage inputs are required, make these connections according to the diagrams provided for the
specific input type. To aid this process, remove the terminal blocks by pulling the green block straight out and
away from the module. Provide enough cable length to allow the unobstructed movement of the Command
Module.
INSTALL RELAY INSERT PANEL
1. Position Relay Insert Panel on the locating tabs of the cabinet and fasten in place with the two mounting screws
provided at the top of the panel. Plug the ribbon cable into the Command Module. The Neutral jumper must be
extended to make a connection with the Power Supply neutral and the panel feed.
2. Connect Line and Load to the relays according to the panel schedule provided in the document package.
NOTE: Relay line and load terminals are suitable for wire sizes #6 to #14 AWG Copper solid or stranded.
Stranded wire should be tightly twisted before insertion into terminal.
WIRE LOW VOLTAGE INPUT CARD
1. Wire Low Voltage wiring according to the device wiring diagrams.
NOTE: Low Voltage wiring should be confined to the designated areas at the top of the enclosure. LumaCAN
wiring is interconnected with Cat5 (or better) cable and RJ45 connectors. All cables should be tested and verified
for proper operation before being connected to any components.
NOTE: Areas at the top left and right corners of the enclosure can be used for either Low Voltage or High Voltage
wiring. Metal barriers are provided to segregate Lighting/ Power Wiring and Low Voltage wiring. These barriers
can be relocated as necessary.
NOTE: Low voltage wire should be #14 - #24 AWG.
RATINGS:
• Forrelayratings,seetheInstallationSheetprovidedwitheithertheRelayInsertPanelsortheIndividualrelay.
•The power requirement of the Command Module is: 100-277VAC 50/60Hz
• TheloadratingofthePowerSupplyoftheCommandModuleis:70W@24VDC+/-10%
• ThecabinetissuitableforNEMA1applicationsonly(indooruse/notwaterorweatherresistant).
3. To test circuit, turn circuit breaker OFF, use the manual actuator handle to turn the relay to the Closed or ON
position and then turn circuit Breaker ON. This prevents damage to the relay if the circuit is shorted.
NOTE: Individual relays can be relocated or added by aligning and inserting tabs on the base of the relay in the
slots provided in the back-plate. While inserted, slide the relay toward the center until completely engaged.
Relay Insert Panel
Cat Number: R0800-000
Relays
Cat Number:
RELAY-1CB
RELAY-1CS
RELAY-1TB
RELAY-1TS
RELAY-1DS
RELAY-2CB (SHOWN)
RELAY-2CS
RELAY-2TB
RELAY-2TS
Command Module
Cat Number:
RPM00-100
RPM08-108
RPM16-116 (SHOWN)

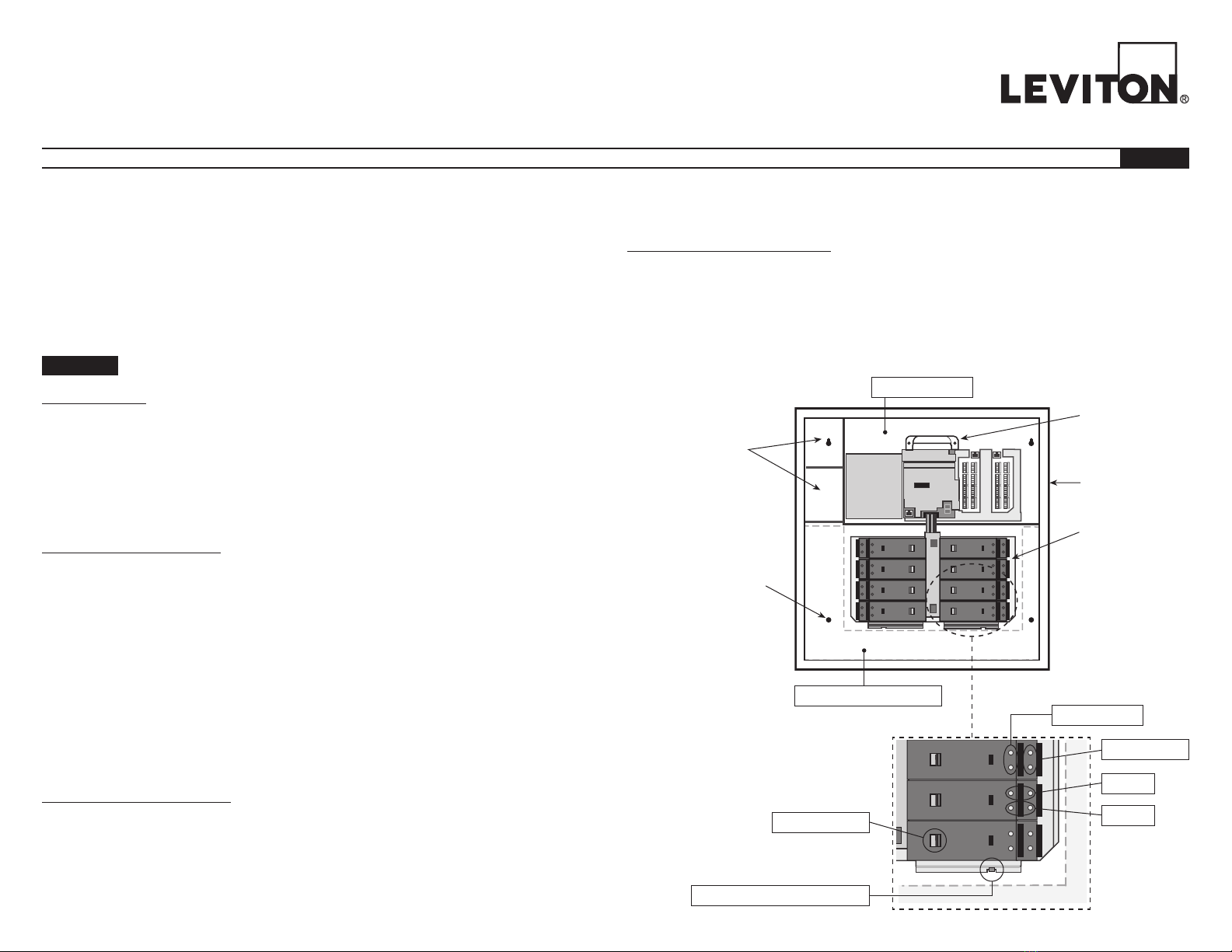

Enclosure
Cat Number:
R08TC-100
Multi-use Areas
Removable barriers
partition this area to
meet field requirements.
Mounting holes
Four (4) mounting holes
are provided in back of
cabinet. Upper holes are
slotted to ease installation.
Additonal holes may be
added in the wireway area
only. Avoid areas reserved
for the Relay Insert Panels
and the Command Module.
Conduit Entry
Conduits can enter
the cabinet on all four
(4) sides. Plan for Low
Voltage conductors at
the top of the enclosure.
Low Voltage Area
Lighting & Power Wireway
Relay Insert Panel Mounting Tab
Line Terminals
Phase 1
Phase 2
Load Terminals
Manual Actuator

Hook Detail
Left Cover Enclosure
INSTALL COVERS AND DOORS
NOTE: The Cover and Door assembly consists of four components; lower vent plate, left cover, right cover,
and the door.
NOTE: The covers and lower vent plate must be in place when any circuit in the cabinet is energized.
1. To install the left and right covers, start a mounting screw in the second from the bottom screw hole on the
cabinet flange. Do not completely tighten screw but leave enough space for the thickness of the cover. Locate
the upper mounting hook on the cover and the corresponding tab on the enclosure. Locate the keyhole slot at
the second from the bottom location. Align both the hook and the keyhole slot with their mating features of
the cabinet and slide in place. See Hook Detail.
2. Install all mounting screws provided to permanently fasten the covers in place.
3. Install the lower ventilation panel by sliding mating tabs of the left and right covers through the slots provided
in the ventilation plate. Lower the ventilation plate into place and fasten with mounting screws.
4. Install the door by sliding the halves of the hinges together. Hang the door on one hinge pin at a time, the pins
are different lengths to facilitate easy assembly.
LIMITED 10 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for ten years from the purchase date. Leviton’s only obligation is to correct such defects by repair or
replacement, at its option, if within such ten year period the product is returned prepaid, with proof of purchase date, and a description of the problem to Leviton Mfg. Co., Inc. 201 North Service Road, Melville, N.Y. 11747, U.S.A.This warranty excludes and there is disclaimed liability for labor for removal of this product
or reinstallation.This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions.There are no other or implied warranties of
any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to ten years.Leviton is not liable for incidental, indirect,
special, or consequential damages, including without limitation,damage to, or loss of use of,any equipment, lost sales or profits or delay or failure to perform this warranty obligation.The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
For Technical Assistance Call: 1-800-959-6004 (U.S.A. Only)
www.leviton.com
COMMAND MODULE DETAIL
Power Supply
Ground power
supply here MPU
Feed wires
through hole Mounting Tabs
DIP Switch
Low Voltage
Input Card
16 Inputs shown
LumCan Ports
4 LumCan Ports
DIP Switch
Hinges
8 Relay Cabinet
Lower
Vent Plate
Lock
Door
26"
DIP SWITCH SETTINGS
Set the ID Address of the Command Module and Low Voltage
Input Card - Examples shown below
ID 1 ID 2 ID 3 ID 4 ID 5 ID 6 ID 38 ID 86
1
2
4
8
16
32
64
128
O N 1 2 3 4 5 6 7 8 O N 1 2 3 4 5 6 7 8 O N 1 2 3 4 5 6 7 8 O N 1 2 3 4 5 6 7 8 O N 1 2 3 4 5 6 7 8 O N 1 2 3 4 5 6 7 8 O N 1 2 3 4 5 6 7 8 O N 1 2 3 4 5 6 7 8
ID Address Value = Sum of Switch Values
ID86=2+4+16+64
Switch
Values
DI-000-R08TC-00A-X2© 2010 Leviton Mfg. Co., Inc.
