INSTALLATION MANUAL
AIR CONDITIONER
• Please read this installation manual completely before installing the product.
• Installation work must be performed in accordance with the national wiring
standards by authorized personnel only.
• Please retain this installation manual for future reference after reading
it thoroughly.
P/NO : MFL68025101
www.lg.com
TYPE: Ceiling Concealed Duct - High Static
ENGLISH ESPAÑOL FRANÇAIS
РУССКИЙ ЯЗЫК
O‘ZBEK TILI

2Indoor Unit
Ceiling Concealed Duct - High Static Type Indoor Unit Installation Manual
TABLE OF CONTENTS
oFour type "A" screws
oConnecting cable
oPipes: Gas side
Liquid side
(Refer to Product
Data)
oInsulation materials
oAdditional drain pipe
oLevel gauge
oScrew driver
oElectric drill
oHole core drill
oFlaring tool set
oSpecified torque wrenches
(different depending on model No.)
oSpanner .......Half union
oA glass of water
oScrew driver
oHexagonal wrench
oGas-leak detector
oVacuum pump
oGauge manifold
oOwner's manual
oThermometer
Features ...................................3
Safety Precautions.................4
Installation ...............................7
Selection the best location ....7
Ceiling opening dimension
and hanging bolt location ......8
Indoor Unit Installation...........9
Wiring Connection .................9
Checking the Drainage........10
Dip Switch Setting ...............13

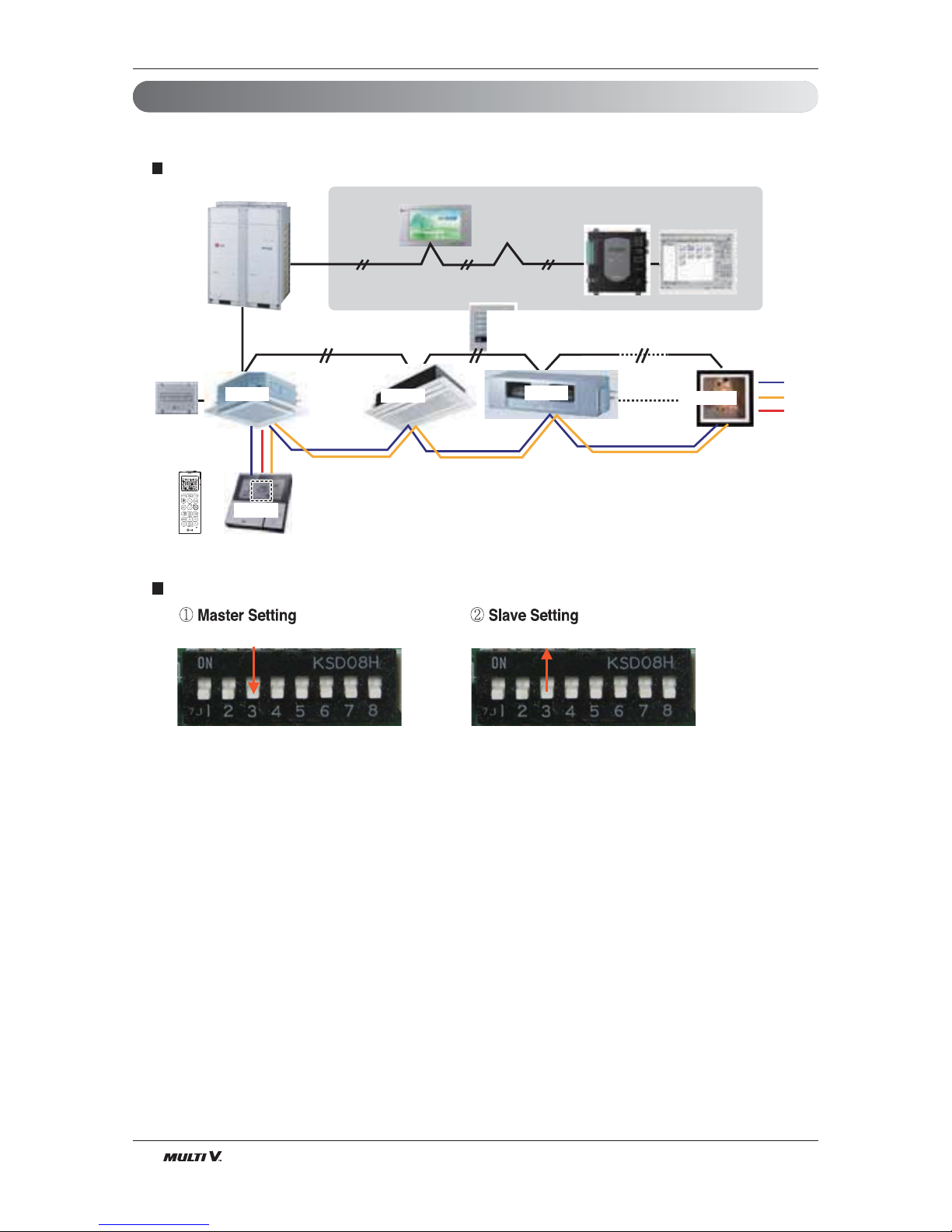

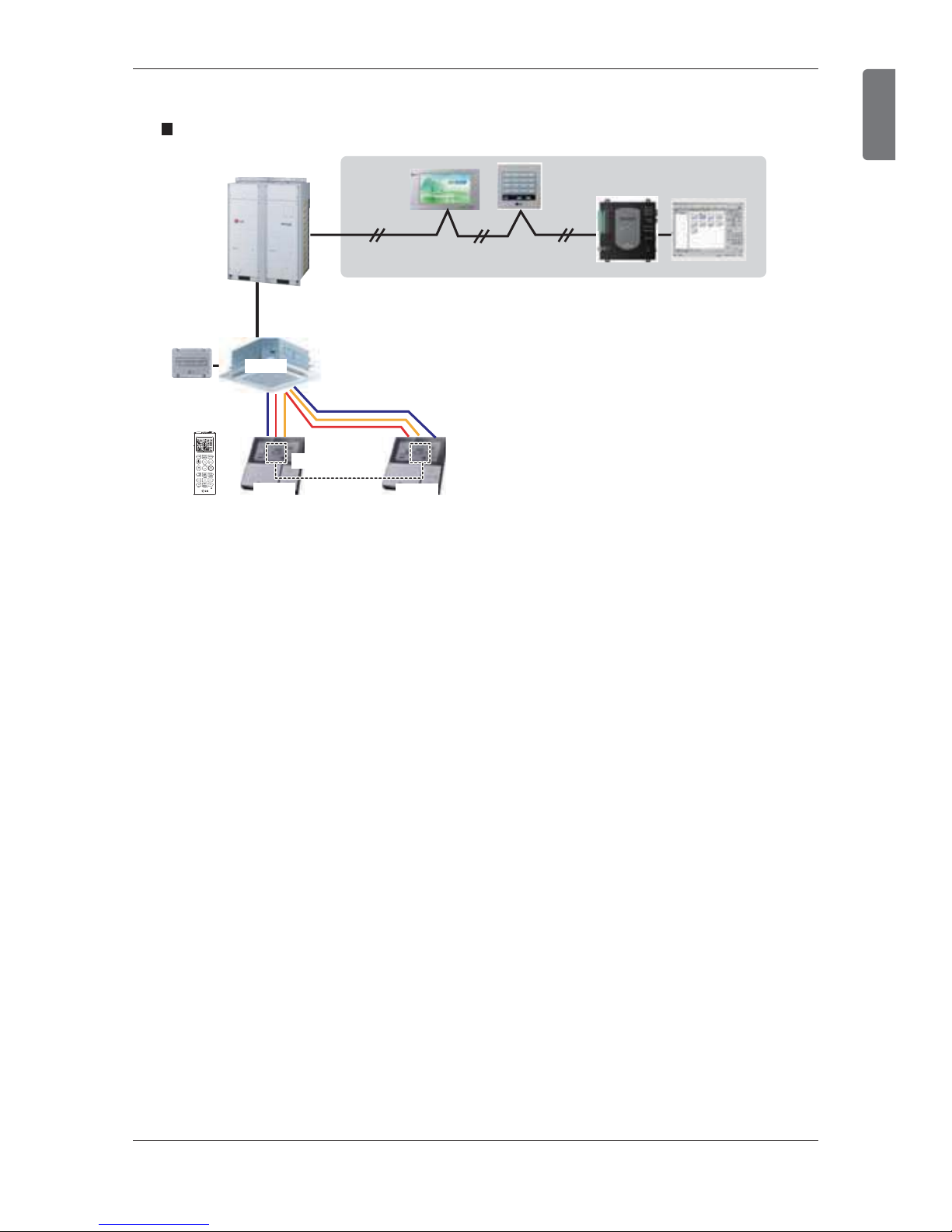

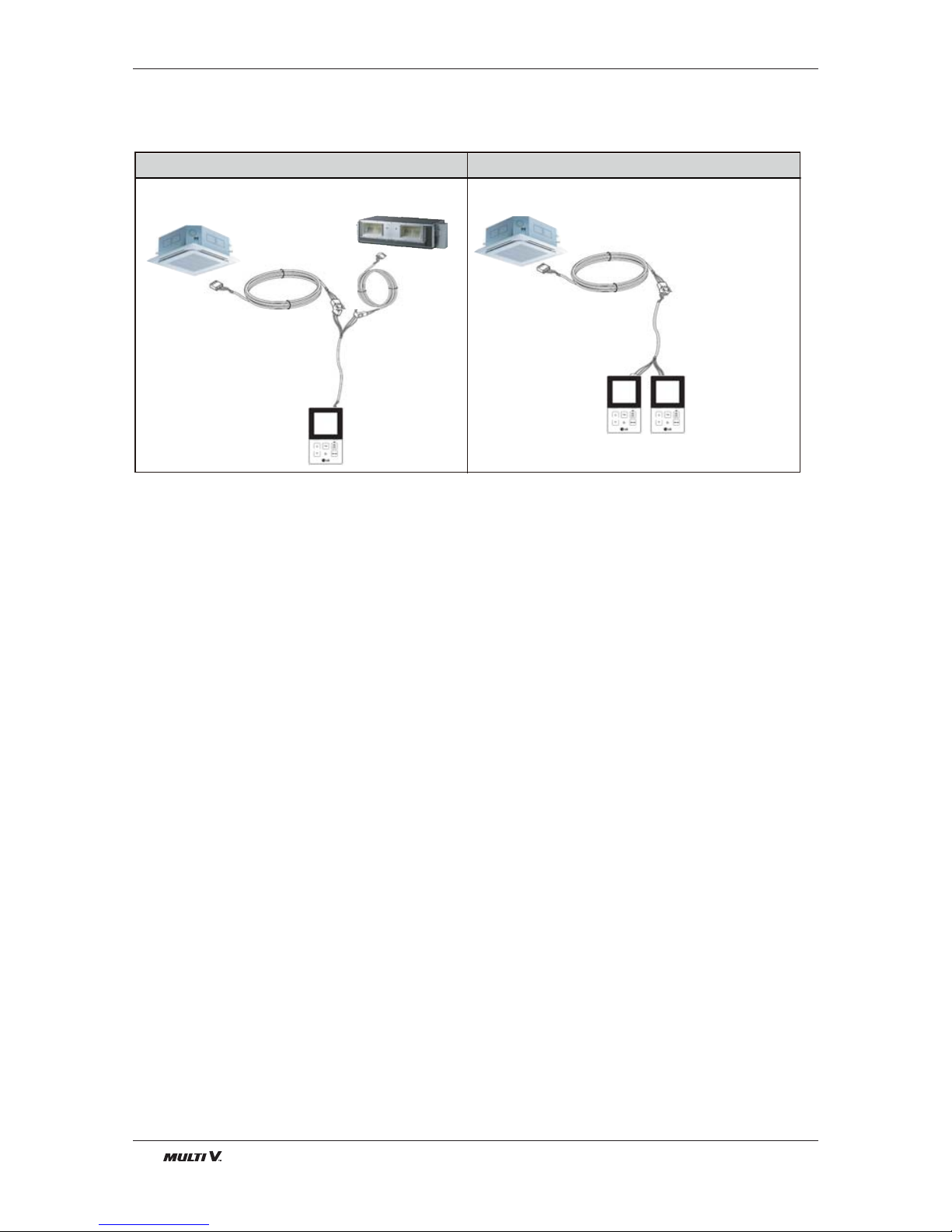

Group Control Setting..........14
How to Set E.S.P? ................19
Installation Requirements Required Parts Required Tools

Installation Manual 3
Feature
ENGLISH
Air filters
Wired Remote Controller
Air intake vents
Air outlet vents
RemoteController
TEMP
Features
Name
Quantity
Shape for gas pipe
for liquid pipe
Clamp metal
2 EA
Insulation for
fitting
1 SET
Drain hose
1 EA
Clamp
(Tie Wrap)
8 EA
Washer for
hanging backet
4 EA
(Other)
• Owner's manual
• Installation manual

4Indoor Unit
Safety Precautions
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be followed.
nBe sure to read before installing the air conditioner.
nBe sure to observe the cautions specified here as they include important items related to safety.
nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness is classified by the
following indications.
nMeanings of symbols used in this manual are as shown below.
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage to properties only.
Be sure not to do.
Be sure to follow the instruction.
nInstallation
Do not use a defective or
underrated circuit breaker.
Use this appliance on a dedi-
cated circuit.
• There is risk of fire or electric
shock.
For electrical work, contact
the dealer, seller, a qualified
electrician, or an Authorized
Service Center.
• Do not disassemble or repair
the product. There is risk of
fire or electric shock.
Always ground the product.
• There is risk of fire or electric
shock.
Install the panel and the
cover of control box securely.
• There is risk of fire or electric
shock.
Always install a dedicated
circuit and breaker.
• Improper wiring or installation
may cause fire or electric
shock.
Use the correctly rated break-
er or fuse.
• There is risk of fire or electric
shock.

Installation Manual 5
Safety Precautions
ENGLISH
nOperation
Do not modify or extend the
power cable.
• There is risk of fire or electric
shock.
Do not let the air conditioner
run for a long time when the
humidity is very high and a
door or a window is left open.
• Moisture may condense and
wet or damage furniture.
Be cautious when unpacking
and installing the product.
• Sharp edges could cause
injury. Be especially careful of
the case edges and the fins
on the condenser and evapo-
rator.
For installation, always con-
tact the dealer or an
Authorized Service Center.
• There is risk of fire, electric
shock, explosion, or injury.
Do not install the product on
a defective installation stand.
• It may cause injury, accident,
or damage to the product.
Be sure the installation area
does not deteriorate with age.
• If the base collapses, the air
conditioner could fall with it,
causing property damage,
product failure, and personal
injury.
Do not store or use flammable gas or combustibles near the product.
• There is risk of fire or failure of product.
Use a vacuum pump or Inert (nitrogen) gas when do leakage test or air purge. Do not compress air
or Oxygen and do not use Flammable gases. Otherwise, it may cause fire or explosion.
• There is the risk of death, injury, fire or explosion.
Gasolin

6Indoor Unit
Safety Precautions
nInstallation
Always check for gas (refrig-
erant) leakage after installa-
tion or repair of product.
• Low refrigerant levels may
cause failure of product.
Install the drain hose to
ensure that water is drained
away properly.
• A bad connection may cause
water leakage.
Keep level even when
installing the product.
• To avoid vibration or water
leakage.
Do not install the product
where the noise or hot air from
the outdoor unit could dam-
age the neighborhoods.
• It may cause a problem for
your neighbors.
Use two or more people to
lift and transport the product.
• Avoid personal injury.
Do not install the product
where it will be exposed to
sea wind (salt spray) directly.
• It may cause corrosion on the
product. Corrosion, particularly
on the condenser and evapora-
tor fins, could cause product
malfunction or inefficient opera-
tion.
90˚
If you eat the liquid from the
batteries, brush your teeth
and see doctor. Do not use
the remote if the batteries
have leaked.
• The chemicals in batteries
could cause burns or other
health hazards.
Make sure to check the rated
pressure outside machine
and adjust E.S.P value after
the installation of the product.
• Otherwise, there is a risk of
weak cooling/heating and con-
densed water emission/drip-
ping.

Installation Manual 7

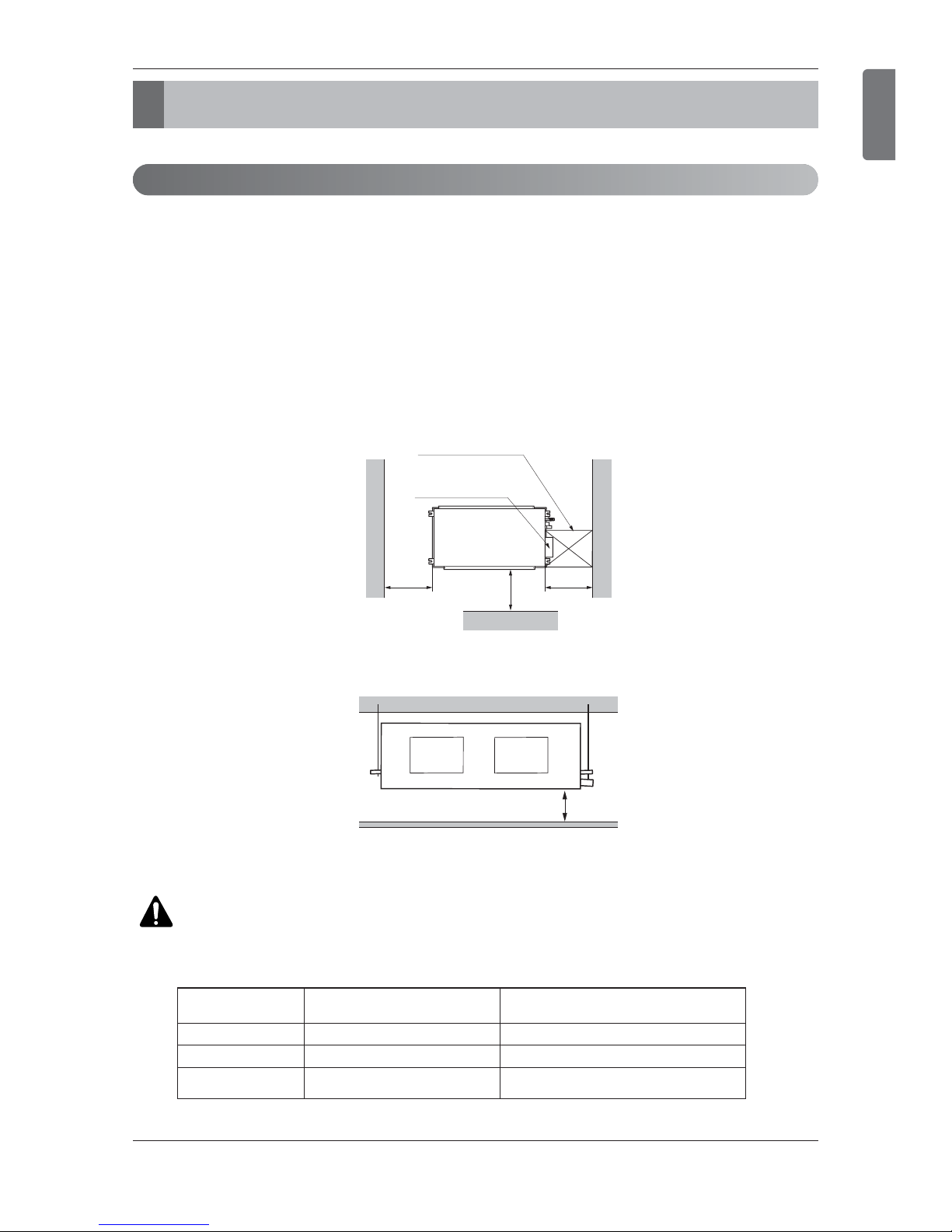

Installation
Install the air conditioner in the location that satisfies the following conditions.
• The place shall easily bear a load exceeding four times the indoor unitʼs weight.
• The place shall be able to inspect the unit as the figure.
• The place where the unit shall be leveled.
• The place shall allow easy water drainage.(Suitable dimension “H” is necessary to get a slope to drain as
figure.)
• The place shall easily connect with the outdoor unit.
• The place where the unit is not affected by an electrical noise.
• The place where air circulation in the room will be good .
• There should not be any heat source or steam near the unit.
Read completely, then follow step by step.
Top view
Unit : mm
20 or more
Front view
600600
Front
Inspection hole
(600X600)
Control box
1000
ENGLISH
Installation
Selection of the best location
CAUTION : In case that the unit is installed near the sea, the installation parts
may be corroded by salt, The installation parts (and the unit) should be taken
appropriate anti-corrosion measures.
Minimum height for motor replacement.
Less than 20cm
Hole size should be
more than the size of IDU.
Insufficient space. Difficult for servicing
20cm to 100cm2
Sufficient space in the ceiling for servicing.
More than 100cm1
Remarks
Distance between
False ceiling & Actual ceiling
Number of
Inspection hole
[Inspection Hole Standard]

8Indoor Unit
Installation
nInstallation of Unit
Install the unit above the ceiling correctly.
• Apply a joint-canvas between the unit and duct to
absorb unnecessary vibration.
• Install the unit leaning to a drainage hole side as a fig-
ure for easy water drainage.
• A place where the unit will be leveled and that can
support the weight of the unit.
• A place where the unit can withstand its vibration.
• A place where service can be easily performed.
CASE 1
POSITION OF SUSPENSION BOLT
CASE 2
POSITION OF CONSOLE BOLT
Drainage hole
M10 Nut
M10 washer
X 4
X 4
M10 Nut
M10 washer
X 4
X 8
A
B
CD
(G)
H
I
EF
B8 Chassis
BH/BG/BR Chassis
A
F
BKL
J
EC
GD
H
I
• Throughly study the following installation locations:
1. In such places as restaurants and kitchens, considerable amount of oil steam and flour adhere to the fan, the fin of the
heat exchanger, resulting in heat exchange reduction, spraying, dispersing of water drops, etc.
In these cases, take the following actions:
• Make sure that the ventilation fan for smoke-collecting hood on a cooking table has sufficient capacity so that it draws oily
steam which should not flow into the suction of the air conditioner.
• Make enough distance from a cooking room to install the air conditioner in such a place where it may not suck in oil
steam.
2. Avoid installing air conditioner in such circumstances where cutting oil mist or iron powder is in suspension in factories, etc.
3. Avoid places where inflammable gas is generated, flows in, is stored or vented.
4. Avoid places where sulfurous acid gas or corrosive gas is generated.
5. Avoid places near high frequency generators.
NOTICE
Ceiling dimension and hanging bolt location
(Unit:mm)
ABCDEFGH I JKL
B8 1622 1565 580 292 695 1400 460 1122 1680 390 445 15
Dimension
Chassis
(Unit:mm)
ABCDEF(G)H I
BH 932 882 355 47 450 30 87 750 158
BG 1232 1182 355 47 450 30 87 830 186
BR 1282 1230 477 56 590 30 120 1006 294
Dimension
Chassis

Installation Manual 9
Installation
ENGLISH

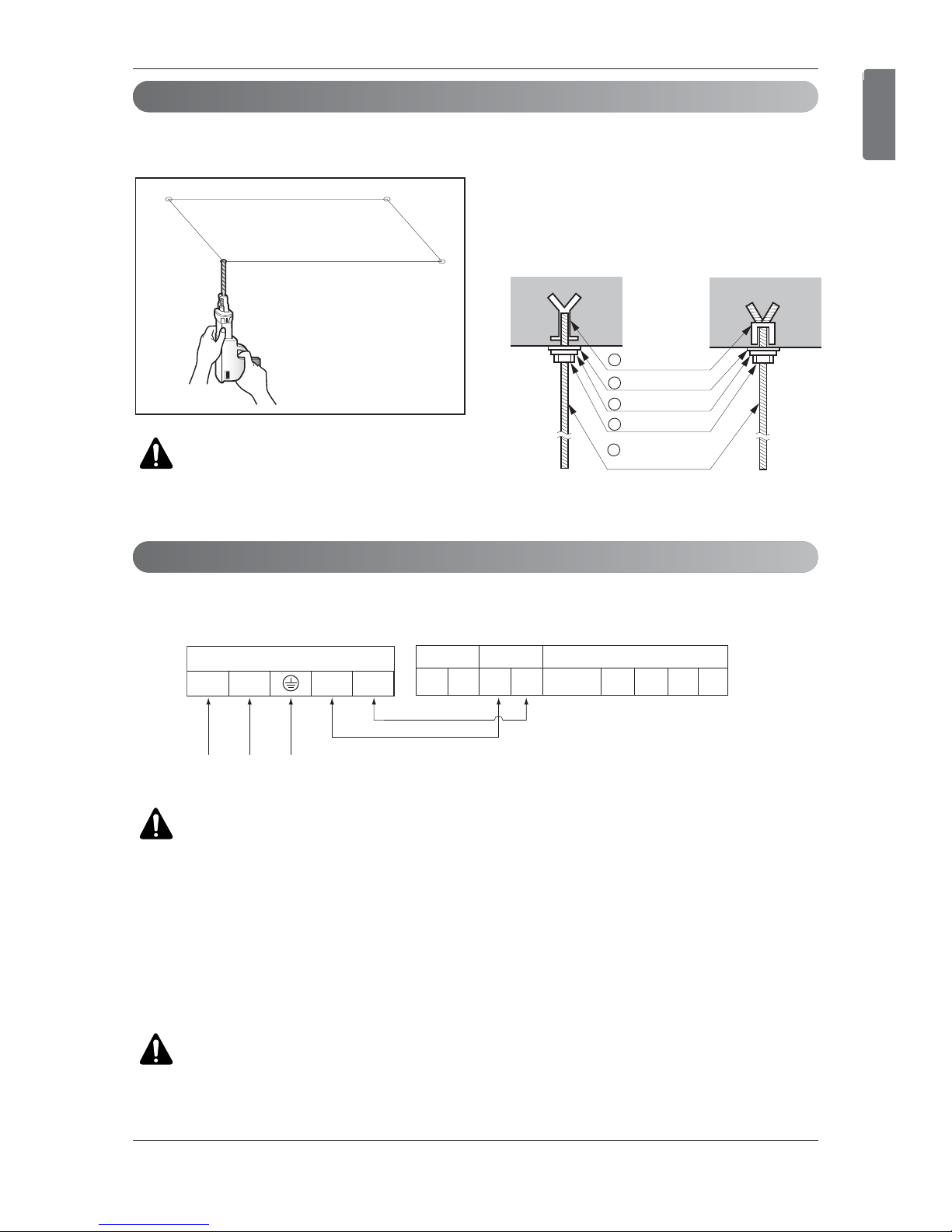

• Select and mark the position for fixing bolts.
• Drill the hole for set anchor on the face of ceiling.
• Insert the set anchor and washer onto the suspen-
sion bolts for locking the suspension bolts on the
ceiling.
•
Mount the suspension bolts to the set anchor firmly.
• Secure the installation plates onto the suspension
bolts (adjust level roughly) using nuts, washers
and spring washers.
1 Set anchor
Old building New building
2 Plate washer
3 Spring washer
4 Nut
5 Suspension
bolts
Connect the wires to the terminals on the control board individually according to the outdoor unit connection.
• Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of indoor unit respectively.
Clamping of cables
1) Arrange 2 power cables on the control panel.
2) First, fasten the steel clamp with a screw to the inner boss of control panel.
3) For the cooling model, fix the other side of the clamp with a screw strongly. For the heat pump model, put the
1.5mm2 cable(thinner cable) on the clamp and tighten it with a plastic clamp to the other boss of the control
panel.
Terminal Block Indoor
1(L) 2(N) 3 4
INDOOR POWER INPUT
IDU IDU
Outdoor unit Indoor unit
Central controller
SODU SODU
DRY1 DRY2 GND INTERNET 12V
Outdoor unit
Wiring Connection
Indoor Unit Installation
CAUTION : Tighten the nut and bolt
to prevent unit falling.
WARNING : Make sure that the screws of the terminal are free from looseness.
CAUTION : The Power cord connected to the unit should be selected according
to the following specifications.

10 Indoor Unit
Installation

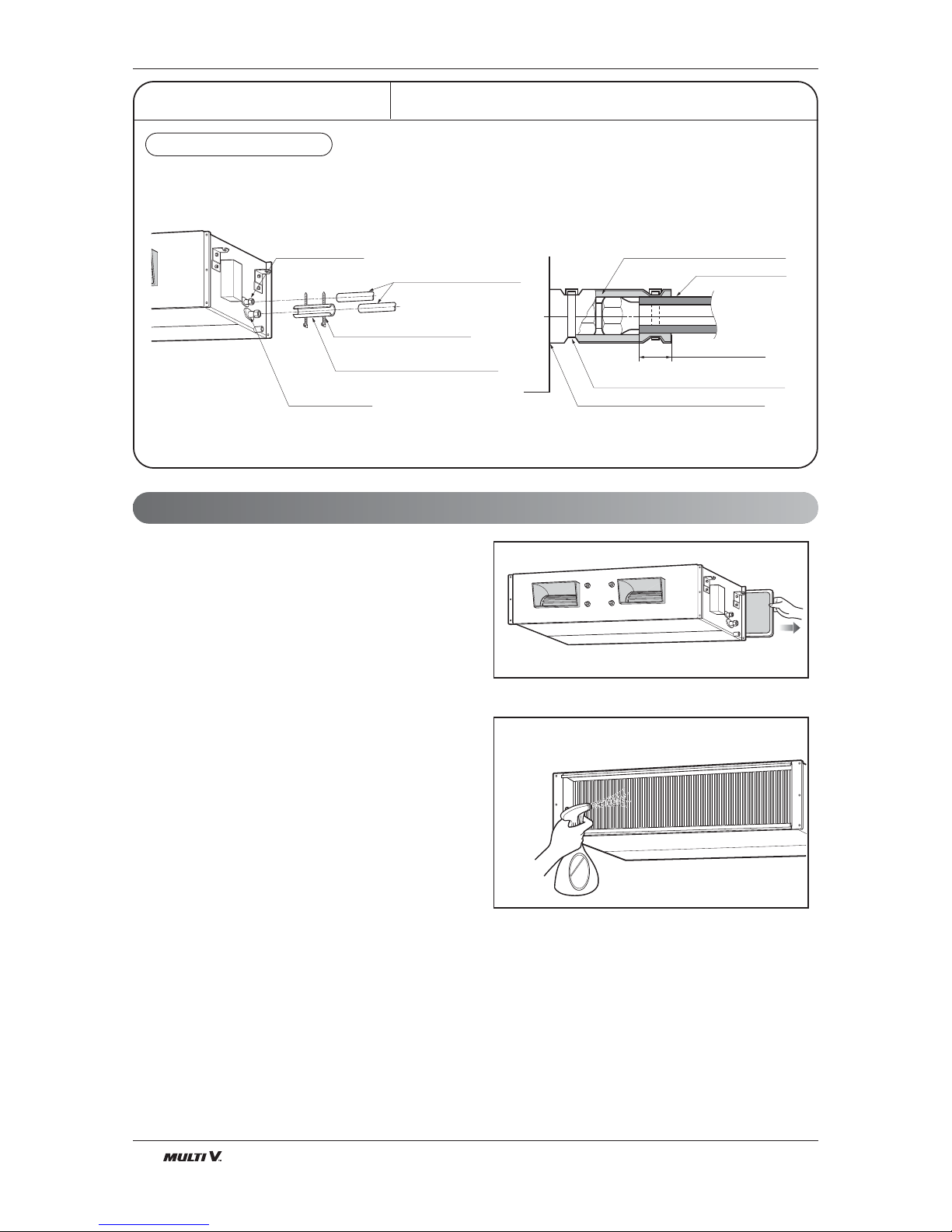

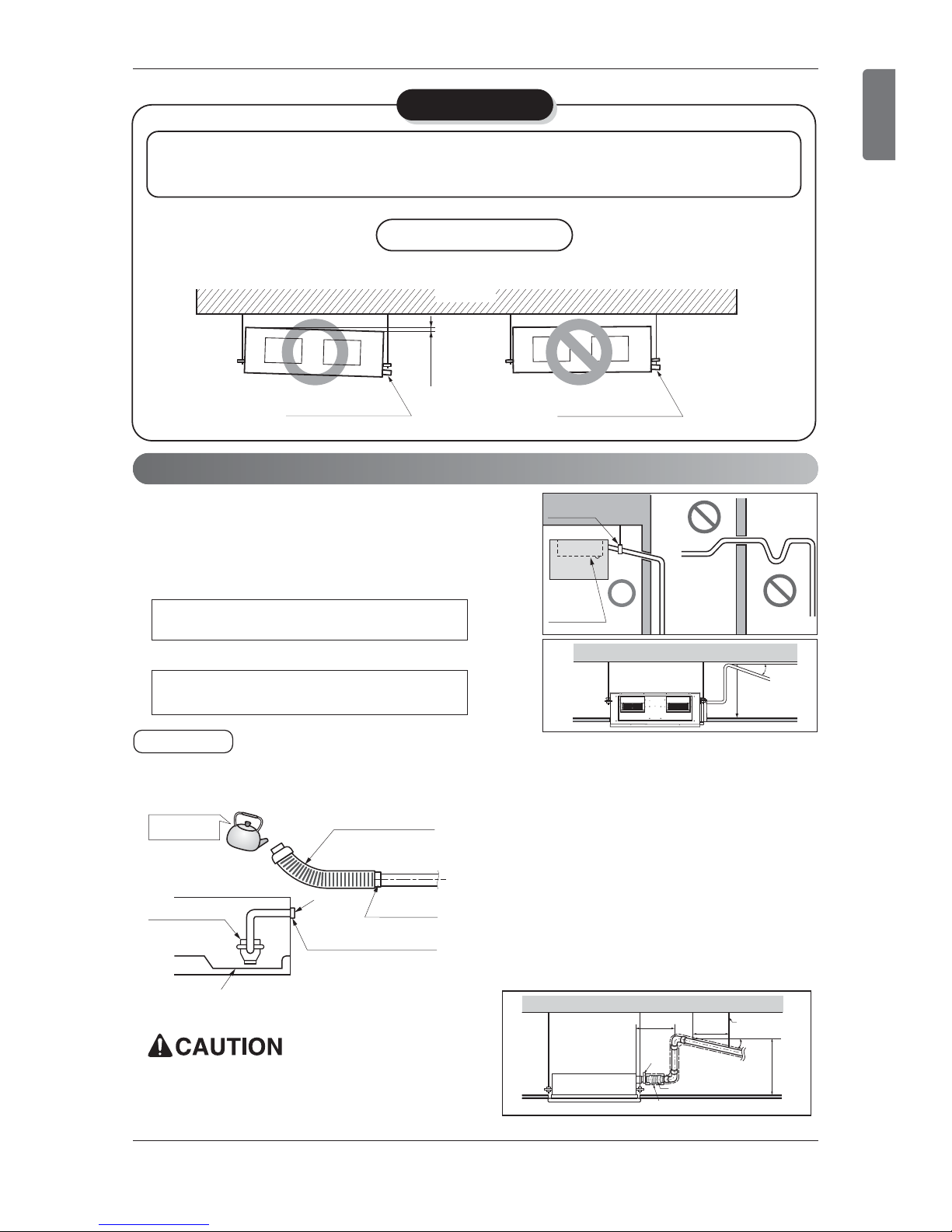

1. Remove the Air Filter.
2. Check the drainage.
• Spray one or two glasses of water upon the
evaporator.
• Ensure that water flows drain hose of indoor
unit without any leakage.
Checking the Drainage
INSULATION, OTHERS Insulate the joint and tubes completely.
All thermal insulation must comply with local requirement.
INDOOR UNIT
THERMAL INSULATION
Make sure that there is no clearance here.
Overlap with thermal
insulator for piping.
Thermal insulator for refrigerant pipe
(Local supply) Thermal insulator for
piping(Local supply)
Hose crip for thermal insulator(Local supply)
Union for liquid pipe
Refrigerant pipe and thermal
insulator(Local supply)
Union for gas pipe
Thermal insulator for refrigerant pipe
(Local supply)
Hose crip for thermal insulator
(Local supply)

Installation Manual 11
Installation
ENGLISH
Indoor Unit Drain Piping
Ceiling
CAUTION
1~3mm
Drainage hole Drainage hole
Front of view
1. Install declination of the indoor unit is very important for the drain of the duct type air conditioner.
2. Minimum thickness of the insulation for the connecting pipe shall be 5mm.
• The unit must be horizontal or declined to the drain hose connected when finished
installation.
Drain Pump
unuse
Drain Pump
use
• Drain piping must have down-slope (1/50 to 1/100): be sure not to provide
up-and-down slope to prevent reversal flow.
• During drain piping connection, be careful not to exert extra force on the
drain port on the indoor unit.
• The outside diameter of the drain connection on the indoor unit is 32mm.
•
Be sure to install heat insulation on the drain piping.
Piping material: Polyvinyl chloride pipe inner
diometes Ø 25mm and pipe fittings
The air conditioner uses a drain pump to drain water.
Use the following procedure to test the drain pump operation:
• Connect the main drain pipe to the exterior and leave it
provisionally until the test comes to an end.
• Feed water to the flexible drain hose and check the piping
for leakage.
• Be sure to check the drain pump for normal operation and
noise when electrical wiring is complete.
• When the test is complete, connect the flexible drain hose
to the drain port on the indoor unit.
Heat insulation material: Polyethylene foam with
thickness more than 8 mm.
Drain test
Maintenance
drain port
Upward
routing
not allowed
Pipe clamp
Indoor unit
1/50~1/100
MAX 700mm
Flexible drain hose
Feed water
Drain Pump
Drain pan
Flexible drain hose
(accessory)
Main
drain pipe
Glue the joint
Drain
port
Drain hose connection
Use the clip (accessory)
Flexible drain hose
The supplied flexible drain hose should not be
strained. A strained hose may cause leakage of water.
Flexible drain hose
1/50~1/100 slope
Hanger
distance Hanger Bracket
Max 700mm
Flexible drain hose
Insulation
Metal
clamp
Max 300mm 1~15m

12 Indoor Unit
Installation
CAUTION:
After the confirmation of the above conditions, prepare the wiring as follows:
1) Never fail to have an individual power specialized for the air conditioner. As for the method of
wiring, be guided by the circuit diagram posted on the inside of control box cover.
2) Provide a circuit breaker switch between power source and the unit.
3) The screws which fasten the wiring in the casing of electrical fittings are liable to come loose
from vibrations to which the unit is subjected during the course of transportation. Check them
and make sure that they are all tightly fastened. (If they are loose, it could give rise to burn-out
of the wires.)
4) Specification of power source
5) Confirm that electrical capacity is sufficient.
6) Be sure that the starting voltage is maintained at more than 90 percent of the rated voltage
marked on the name plate.
7) Confirm that the cable thickness is as specified in the power sources specification.
(Particularly note the relation between cable length and thickness.)
8) Never fail to equip a leakage breaker where it is wet or moist.
9) The following troubles would be caused by voltage drop-down.
• Vibration of a magnetic switch, damage on the contact point, fuse breaking, disturbance by the nor-
mal function of an overload protection device.
• Proper starting power is not given to the compressor.
HAND OVER
Teach the customer the operation and maintenance procedures, using the operation manual.
(air filter cleaning, temperature control, etc.)
WIRED REMOTE CONTROLLER INSTALLATION
• Since the room temperature sensor is in the remote controller, the remote controller box should be installed in a place away
from direct sunlight, high humidity and direct supply of cold air to maintain proper space temperature.
Install the remote controller about 5ft(1.5m) above the floor in an area with good air circulation at an average temperature.
Do not install the remote controller where it can be affected by:
- Drafts, or dead spots behind doors and in corners.
- Hot or cold air from ducts.
- Radiant heat from sun or appliances.
- Concealed pipes and chimneys.
- Uncontrolled areas such as an outside wall behind the remote controller.
- This remote controller is equipped with a seven segment LED. display. For proper display of the remote controller
LED's, the remote controller should be installed properly as shown in Fig.1.
(The standard height is 1.2~1.5 m from floor level.)
Fig.1 Typical locations for remote controller
5feet
(1.5meters)
no
no
no
yes
RemoteController
TEMP
RemoteController
TEMP
RemoteController
TEMP

Installation Manual 13
Installation
Dip Switch Setting
For Multi V Models, Dip switch 1, 2, 6, 8 must be set OFF.
Function Description Setting Off Setting On Default
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
Communication
Cycle
Group Control
Dry Contact Mode
Installation
Heater linkage
Ventilator linkage
Vane selection
(Console)
Region selection
Etc.
N/A (Default)
N/A (Default)
Selection of Master or Slave
Selection of Dry Contact
Mode
Fan continuous operation
N/A
Selection of Ventilator link-
age
Selection of up/down side
Vane
Selection tropical region
Spare
-
-
Master
Wired/Wireless remote
controller
Selection of Manual or Auto
operation Mode
Continuous operation Removall
-
Linkage Removal
Up side + Down side Vane
General model
-
-
-
Slave
Auto
-
-
Working
Up side Vane
Only
Tropical model
-
Off
Off
Off
Off
Off
Off
Off
Off
ENGLISH

14 Indoor Unit
Installation
Group Control Setting
Wired remote controller 1 + Standard Indoor Units
Dip Switch in PCB (Cassette and Duct Type indoor units)
1. It is possible to 16 indoor units(Max) by one wired remote controller.
Set only one indoor unit to Master, set the others to Slave.
2. It is possible to connect with every type of indoor units.
3. It is possible to use wireless remote controller at the same time.
4. It is possible to connect with Dry Contact and Central controller at the same time.
GND
Signal
12 V
Master Slave Slave Slave
Master
Display Error Message
Only connect serial signal and GND lines
between slave indoor unit
LGAP Network System
- No. 3 Off - No. 3 On
- The Master indoor unit is possible to recognize Dry Contact and Central Controller only.
- In case of Central controller and Group controller at the same time, it is possible to connect
standard 2series indoor units or later since Feb. 2009.
- In case of Central controller setting, the Central controller can control indoor units after
setting only the address of master indoor unit.
- Slave indoor unit will be operated like master indoor unit.
- Slave indoor unit can not be individually controlled by Central controller.
- Some remote controller can’t perform with Dry Contact and Central controller at the same
time. So contact us further information about it.
1. Group Control 1

Installation Manual 15
ENGLISH
Installation
(2) Group Control 2
Wired remote controllers + Standard Indoor Units
It is possible to control N indoor units by wired remote controller M units. (M+N≤17 Units)
Set only one indoor unit to Master, set the others to Slave.
Set only one wired remote controller to Master, set the others to Slave.
Other than those, it is same with the Group Control 1.
GND
Signal
12 V
Slave
Slave
Slave
Slave
Master
Display Error Message
Donʼt connect serial 12V line
Master
LGAP Network System
6. In case of Group Control, it is possible to use following functions.
- Selection of operation options (operation/stop/mode/set temperature)
- Control of flow rate (High/Middle/Low)
- It is not possible at some functions.
Master/Slave setting of indoor units be set possible using a PCB Dip Switch.
It is possible to connect indoor units since Feb. 2009.
In the other cases, please contact LGE.
It can be the cause of malfuctions when there is no setting of master and slave.
5. In case of any error occurs at indoor unit, display on the wired remote controller.
Exception of the error indoor unit, an individual indoor unit control possibility.
2. Group Control 2

16 Indoor Unit
Installation
Mixture connection with indoor units and Fresh Air Intake Unit
In case of connecting with standard indoor unit and Fresh Intake Unit, separate Fresh Air Intake
Unit with standard units.
(Because setting temperature are different.)
Other than those, it is same with Group Control 1.
GND
Signal
12 V
LGAP Network System
Display Error Message
FAU
Master FAU
Slave Master
Master
Master
Slave
FAU Standard Standard FAU FAU Standard Standard FAU
* FAU : Fresh Air Intake Unit
Standard: Standard Indoor Unit
3. Group Control 3

Installation Manual 17
ENGLISH
Installation
Wired remote controller 2 + Indoor unit 1
1. It is possible to connect two wired remote controllers with one indoor unit.
2. Every types of indoor unit is possible to connect two remote controller.
3. It is possible to use wireless remote controller at the same time.
4. It is possible to connect with Dry Contact and Central controller at the same time.
5. In case of any error occurs at indoor unit, display on the wired remote controller.
6. There isnʼt limits of indoor unit function.
LGAP Network System
Display Error Message
Master
Master Slave
❈Maximum 2wired remote controllers can be connected with 1 indoor unit.
4. 2 Remote Control

18 Indoor Unit
Installation
Slave
Mas te r
Maste r
PZCWRCG3
Maste r S lave
PZCWRC2
Indoor unit 2 EA +Wired remote controller
❈PZCWRCG3 cable used for connection ❈PZCWRC2 cable used for connection
Indoor unit 1 EA +Wired remote controller 2EA
It is possible to set group control by using below accessories.
5. Accessories for group control setting

Installation Manual 19
ENGLISH
How to Set E.S.P?
Note: 1. The above table shows the correlation between the air rates and E.S.P.
2. The following Models refer to the below Notice.
ARNU12GBGA2/ ARNU15GBGA2/ ARNU18GBGA2/ ARNU24GBGA2/ ARNU28GBRA2/ ARNU36GBRA2/ ARNU42GBRA2
[Notice]
1) The air flow of above model is increased by 20% depending on the Mode setting.
2) Above modes are developed for high efficiency and high sensible heat.
If you want to use Zone control, you have to set ESP Value.
ARNU07GBHA2, ARNU09GBHA2, ARNU12GBHA2
ARNU15GBHA2, ARNU18GBHA2, ARNU24GBHA2
ARNU12GBGA2, ARNU15GBGA2, ARNU18GBGA2, ARNU24GBGA2,
ARNU28GBGA2, ARNU36GBGA2, ARNU42GBGA2
Setting Value
91 46.5 43.7 38.2 31.3 23.2 14.0 9.0 3.7 - - -
96 49.9 46.1 43.0 33.5 31.1 18.4 13.7 9.0 2.6 - -
101 52.1 50.2 47.9 39.5 37.4 27.3 25.2 17.8 8.9 6.1 -
106 51.4 51.2 50.4 44.4 43.1 33.3 32.1 28.9 21.0 17.9 8.3
111 53.6 53.7 52.9 49.9 48.3 40.6 40.2 32.8 31.5 27.2 17.5
116 - - - 55.7 50.8 44.8 42.6 40.1 37.6 32.5 27.6
121 - - - - 52.2 50.8 50.3 45.7 44.6 38.8 32.2
126 - - - - - - 54.4 51.2 50.4 46.0 43.5
5(50) 6(60) 8(80) 10(100) 12(120) 14(140) 15(150) 16(160) 17(170) 18(180) 20(200)
Static Pressure(mmAq(Pa))
Setting Value
70 9.6 5.2 - - - - - - - - -
80 14.4 10.9 4.0 - - - - - - - -
90 18.6 16.2 12.1 6.9 4.13 - - - - - -
100 22.3 20.3 17.0 15.5 11.0 6.2 4.2 - - - -
110 26.3 24.2 21.4 19.6 17.5 14.0 11.6 6.6 - - -
120 29.7 27.5 25.8 24.0 21.8 19.8 17.9 14.6 12.1 - -
130 33.4 31.2 30.0 28.5 26.9 25.3 23.4 21.8 18.1 14.6 11.3
140 37.3 35.0 36.0 32.1 30.4 29.0 27.4 25.9 21.6 17.8 14.5
143 38.2 36.1 37.5 33.9 32.1 30.7 28.8 27.2 23.0 20.1 16.8
150 40.7 38.5 41.0 38.0 36.0 34.5 32.1 30.1 26.3 22.4 18.2
160 - - - - 38.2 36.1 35.0 34.6 31.1 26.8 23.3
3(30) 4(40) 5(50) 6(60) 7(70) 8(80) 9(90) 10(100) 12(120) 14(140) 16(160)
Static Pressure(mmAq(Pa))
ARNU28GBRA2, ARNU36GBRA2, ARNU42GBRA2, ARNU48GBRA2,
ARNU54GBRA2
(Unit: CMM)
(Unit: CMM)
(Unit: CMM)
Setting Value
70 2.7 - - - - - - - -
80 5.3 - - - - - - - -
90 7.8 6.1 3.6 2.9 - - - - -
100 10.2 8.1 6.0 3.8 3.3 - - - -
110 12.6 11.6 8.8 7.3 5.9 4.2 - - -
120 15.7 14.2 11.9 10.1 8.4 6.5 5.0 4.4 -
130 17.9 16.5 15.5 13.2 11.8 9.6 7.6 6.1 4.3
140 20.5 19.0 17.6 16.1 15.3 13.0 12.1 10.3 5.8
145 21.4 19.9 19.3 17.5 16.1 14.4 13.6 11.1 7.9
150 22.5 21.3 19.9 18.9 17.6 16.0 14.3 13.9 10.3
3(30) 4(40) 5(50) 6(60) 7(70) 8(80) 9(90) 10(100) 12(120)
Static Pressure(mmAq(Pa))
How to Set E.S.P?

20 Indoor Unit
How to Set E.S.P?
Note: 1. The above table shows the correlation between the air rates and E.S.P.
2. Make sure to check the rated pressure outside machine and adjust E.S.P value after the installation of
the product. Otherwise, there is a risk of weak cooling/heating and condensed water emission/dripping.
ARNU76GB8A2, ARNU96GB8A2
Setting Value
80 76.3 69.7 55.2 - - - - - - - -
85 83.3 78.6 67.4 55.9 - - - - - - -
91 89.7 87.1 78.9 67.6 54.2 - - - - - -
95 93.4 91.4 86.1 77.0 66.4 50.6 - - - - -
100 93.4 91.4 88.3 84.9 75.9 69.5 60.8 - - - -
105 93.2 91.3 88.3 84.9 81.1 77.4 69.2 67.9 51.3 - -
111 93.5 91.4 88.4 86.1 81.4 79.2 75.9 75.0 70.7 67.3 61.4
115 93.8 91.4 88.3 86.4 81.6 80.3 75.9 75.2 72.5 68.9 63.7
6(60) 9(90) 12(120) 15(150) 18(180) 20(200) 22(220) 23(230) 25(250) 27(270) 30(300)
Static Pressure(mmAq(Pa))
(Unit: CMM)
