Life Fitness 95T-XXXX-05 User manual

ARCTIC SILVER 95T-XXXX-05 TREADMILL
Customer Support Services
PARTS MANUALrev 23 May 2008

2
ARCTIC SILVER 95T 95T-XXXX-05
Contents S/N TCT100000 and up
Page
REFERENCES.................................................................................................... 3
CONSOLE, OVERLAY ASSEMBLY & OVERLAY ............................................................... 5
CONSOLE COMPONENTS ...................................................................................... 6
UPRIGHTS & HANDRAILS...................................................................................... 7
ERGO BAR & HEART RATE SENSORS......................................................................... 8
REAR ENDCAPS & CUP HOLDERS ............................................................................ 9
MOTOR COVER, FRONT COVER & ENDCAPS................................................................ 10
SCUFF PAD & TINSEL.......................................................................................... 11
ON-OFF SWITCH, ACCESS PLATE & GROMMETS ........................................................... 12
BELT, DECK & REAR ROLLER................................................................................. 13
LIFT FRAME, LIFT MOTOR & IEC RECEPTACLE............................................................. 14
IDLER ARM ASSEMBLY ......................................................................................... 15
LEG LEVELER ASSEMBLY ...................................................................................... 16
FRONT ROLLER ASSEMBLY.................................................................................... 17
DRIVE MOTOR ASSEMBLY ..................................................................................... 18
DSP-CONTROLLER ASSEMBLY ................................................................................ 19
LINE-CORDS & LINE-CORD OPTIONS ........................................................................ 20
BLOCK DIAGRAM – CONSOLE VIEW .......................................................................... 21
BLOCK DIAGRAM – DSP VIEW................................................................................. 22
BLOCK DIAGRAM – LINE FILTER VIEW ....................................................................... 23

3
*All Operation, Instruction Assembly & Instruction Bag Assembly may not be available & are only available in
PDF Form
ARCTIC SILVER 95T 95T-XXXX-05
References S/N TCT100000 and up
LANGUAGE OPERATION
MANUAL INSTRUCTION ASSEMBLY INSTRUCTION BAG ASSY. SERVICE MANUAL
ENGLISH M051-00K58-A177 M051-00K58-A181 AK58-00432-0000
FRENCH
PORTUGUESE
SPANISH
M051-00K58-A178 M051-00K58-A182 AK58-00432-0001
DUTCH
GERMAN
ITALIAN
M051-00K58-A179 M051-00K58-A183 AK58-00432-0002
JAPANESE M051-00K58-A180 M051-00K58-A184 AK58-00432-0003
EUR M051-00K58-A177 M051-00K58-A181 AK58-00432-0004
M051-00K58-A253
AK58-00226-0000 Hardware Bag Assembly: MFG;95T/97T
Item Description Qty
0K58-01305-0002 PLUG: UPRIGHT S/C-C 2
0K58-01347-0000 GASKET: ERGOBAR C 2
0017-00009-1049 WRENCH: TORX; T27 B 1
0017-00042-0326 GROMMET: PLASTI; .130/.005 S/C#13-B 2
0017-00042-0840 CLIP: WIRE; PUSH-MTG; 3/4"; S/C#80-B 5
0017-00101-1770 8-15X 8 PHL PAN A SS NO B 6
0017-00101-1772 10-16X 8 PHL PAN B ST ZS B 6
0017-00101-1773 1/4 -20X 8 TRX BUT CS SS NO B 6
0017-00101-1774 5/16-18X40 TRX FLT CS ST ZS B 4
0017-00101-1778 1/2 -13X16 UNS HEX CS G5 ZB B 4
0017-00101-1780 8- X20 PHL TRS AB SS NO B 8
0017-00104-0325 WSH 516-.873-125 SL-D ST ZN B 4
0017-00103-0327 NUT 5/16-18 HEX; JAM D ST ZS B 4

4
ARCTIC SILVER 95T 95T-XXXX-07
References Continued S/N TSS100000 and up
GK58-00002-0095 KIT: SERV; ROLLER-GUARDS; 93/95Ti BM
Part Number Description Qty
AK58-00360-0001 GUARD-ASSY: MFG; RT; 3.50 B 1
AK58-00360-0002 GUARD-ASSY: MFG; LT; 3.50 B 1
M051-00K58-B128 INSTR: SERV; ROLLER-GUARDS + 1
0017-00042-0326 GROMMET: PLASTI; .130/.005 S/C#13-B 2
0017-00042-1147 GROMMET: NYLON; SCREW B 2
0017-00101-1776 10-16X 8 PHL PAN B ST ZB B 4
GK58-00002-0071 KIT: SERV; ANTI-SLIP RAIL BM
Part Number Description Qty
Only available in the kit INSTR:TEMPLT; ANTI-SLIP RAIL B 4
Only available in the kit INSTR: KIT; ANTI-SLIP RAIL + 1
0K58-01376-0000 RAIL: ANTI-SLIP;STEALTH-GREY E 2
Only available in the kit PAD: WIPE; ALCOHOL/DRY B
TOUCH UP PAINT:
0017-00008-0204 PAINT: CAN; SPRAY; ARCTIC SILVER
0017-00008-0205 PAINT: BOTTLE; ARCTIC SILVER ( .5 OZ )
0017-00008-0206 PAINT: PEN; ARCTIC SILVER ( .33 OZ )
INK TRANSFER TOUCH-UP PAINT: SB No. GN05032101N
0017-00008-0210 PAINT: TOUCH-UP; SHADOW-GRAY; .6 OZ BTL.
0017-00008-0211 PAINT: TOUCH-UP; SHADOW-GRAY; .6 OZ. PEN

5
ARCTIC SILVER 95T 95T-XXXX-05
Console, Overlay Assembly & Overlay S/N TCT100000 and up
*All Console, Overlay/Bezel Assembly or Overlay may not be available
LANGUAGE CONSOLE OVERLAY/BEZEL ASSY OVERLAY
ENG/ENG AK58-00403-0001 AK58-00203-0001 0K58-01298-0001
ENG+MET AK58-00403-0002 AK58-00203-0002 0K58-01298-0001
GERMAN AK58-00403-0003 AK58-00203-0003 0K58-01298-0003
SPANISH AK58-00403-0004 AK58-00203-0004 0K58-01298-0004
JAPANESE AK58-00390-0006 AK58-00202-0006 0K58-01296-0006
FRENCH AK58-00403-0007 AK58-00203-0007 0K58-01298-0007
ITALIAN AK58-00403-0008 AK58-00203-0008 0K58-01298-0008
DUTCH AK58-00403-0009 AK58-00203-0009 0K58-01298-0009
PORTUGUESE AK58-00403-0010 AK58-00203-0010 0K58-01298-0010

6
ARCTIC SILVER 95T 95T-XXXX-05
Console Components S/N TCT100000 and up
VMI 6-19X 6 PHLPAN
PLT G5 ZN B
0017-00101-1275

7

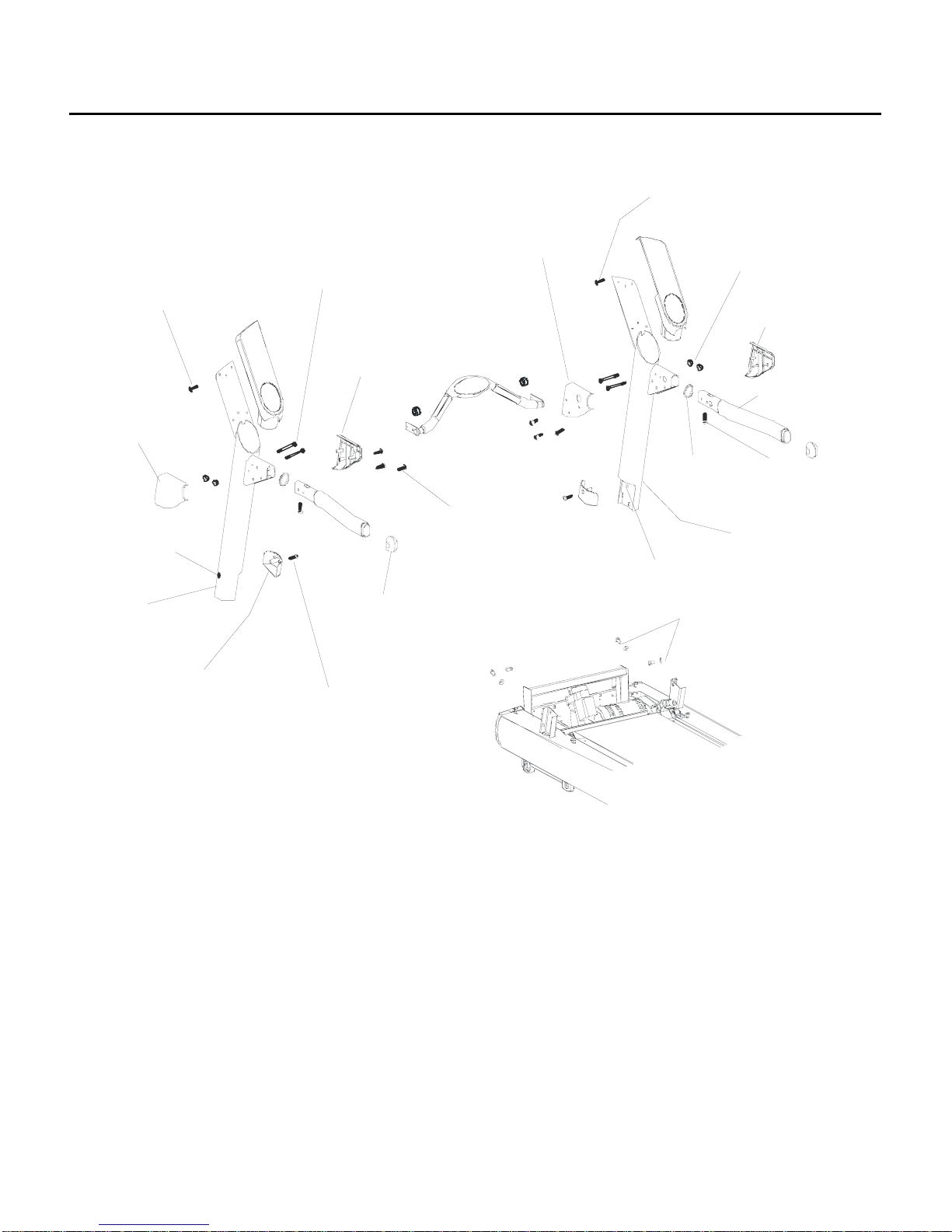

ARCTIC SILVER 95T 95T-XXXX-05
Uprights & Handrails S/N TCT100000 and up
Handrail Hex Nut (4)
0017-00103-0327
Handrail-Assy:Boxe
d
AK58-00256-0000
Top RT Handrail Boot
0K58-01303-0001
Console/Cup Holder
Mounting Screw (8)
0017-00101-1780
Bottom RT
Handrail Boot
0K58-01304-0001
Handrail Mounting
Screw (4)
0017-00101-1774
Handrail Boot
Screws (6)
0017-00101-1770
Bottom LT
Handrail Boot
0K58-01304-0002
Console Mounting
Screw (4)
0017-00101-1773
Top LT Handrail Boot
0K58-01303-0002
Handrail Screw (2)
0017-00101-1773
Handrail Tube Caps (2)
0K58-01396-0000
Upright, RT
AK58-00311-0003
Upright, LT
AK58-00311-0004
UprightTube Cap (2)
0K58-01302-0000 UprightTube
Cap Screw (2)
0017-00101-1772
Grommet (2)
0017-00042-0326
UprightMounting
Screw - 0017-00101-1778 (6)
Washer - 0017-00104-0325 (6)
Upright, Plug (2)
0K58-01305-0002
Handrail Collar (2)
0K58-01348-0000

8

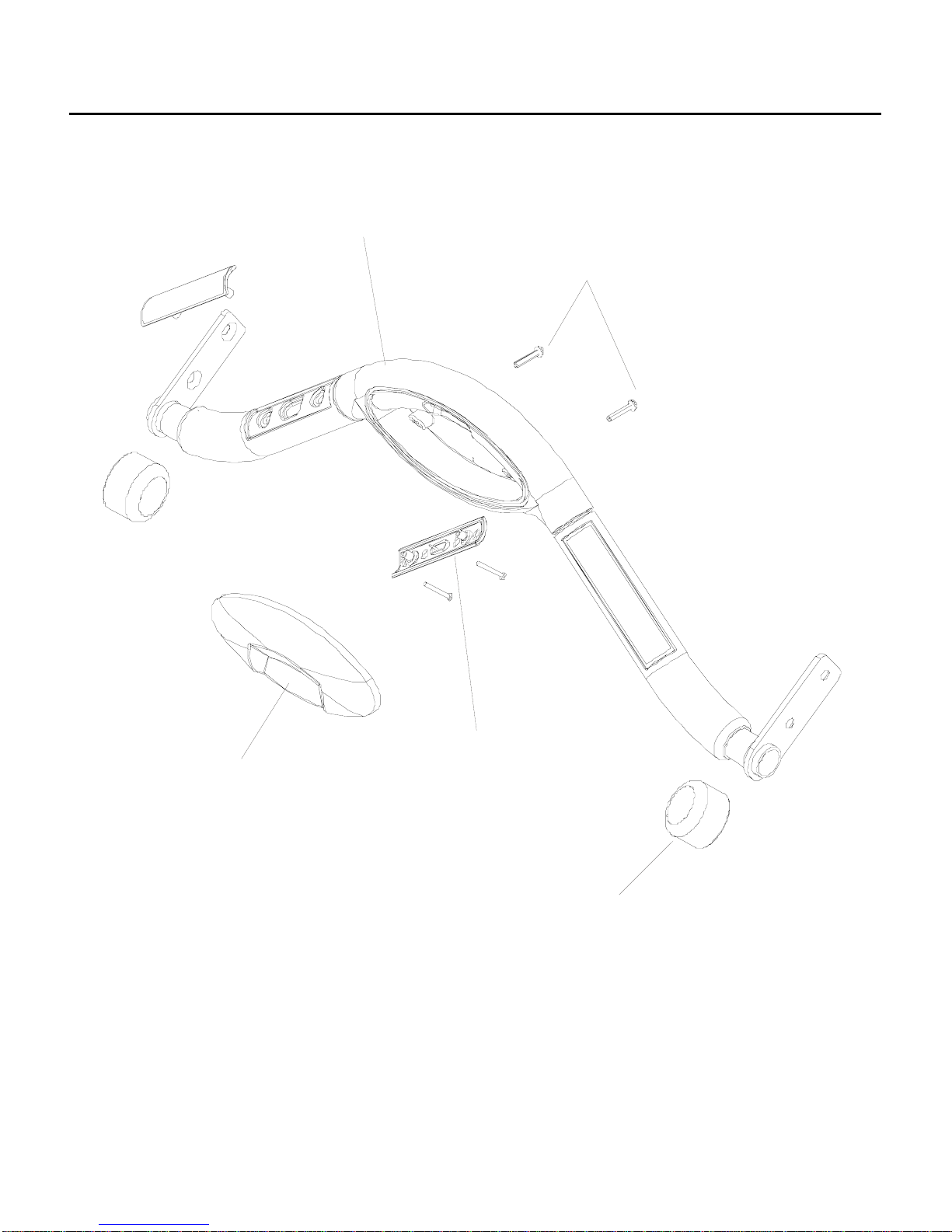

ARCTIC SILVER 95T 95T-XXXX-05
Ergo Bar & Heart Rate Sensors - AK58-00219-0000 S/N TCT100000 and up
ERGO-BAR OVERMOLD
ASSY: PURCH. D
AK58-00376-0000 8-16X18 PHL PAN
PLT ST BO B
0017-00101-0824
Heart Rate Sensor Kit
KIT: SERV;MFG;ELECTRODES; LARGE
GK20-00002-0005
GASKET:ERGOBAR
0K58-01347-0000
I/R LENS-COVER ASSY
AK58-00064-0000

9
ARCTIC SILVER 95T 95T-XXXX-05
Rear End Caps & Cup Holders S/N TCT100000 and up
CUP-COVER ASSY, LT
AK58-00247-0002
CUP-COVER ASSY, R
T
AK58-00247-0001
Qty needed ( 4 )
10-16X 8 PHL PAN
B ST ZS B
0017-00101-177
2
ENDCAP: REAR
0K58-01268-0000
ENDCAP: REAR
0K58-01268-0000

10
ARCTIC SILVER 95T 95T-XXXX-05
Motor Cover, Front Cover & Front End Caps S/N TCT100000 and up
10-16X 8 PHL PAN
B ST ZS B ( 4 )
0017-00101-1772
GUARD-ASSY: MFG;
RT; 3.50 B
AK58-00360-0001
MOTOR-SHROUD ASSY:
MFG; 95Ti D
AK58-00397-0000
10-16X 8 PHL PAN
B ST ZB B
0017-00101-1776
GUARD-ASSY: MFG;
LT; 3.50 B
AK58-00360-0002
10-32x10 PHL PAN
MS ST ZS B ( 4 )
0017-00101-1771
FRONT-PANEL
W/MEDALLION ASSY
AK58-00272-0000
MEDALLION-ASSY:
PURCH;LF-BUG B
AK58-00245-0000
ENDCAP: FRONT
0K58-01267-0000
ENDCAP: FRONT
0K58-01267-0000
10-16X 8 PHL PAN
B ST ZS B ( 4 )
0017-00101-1772

11
ARCTIC SILVER 95T 95T-XXXX-05
Scuff Pad & Tinsel S/N TCT100000 and up
RAIL: ANTI-SLIP;
STEALTH-GREY
0K58-01376-0000
SPRING: EXTENSION; TINSEL
0017-00009-0901 TINSEL:
0K58-01102-0001 8-32X 6 SLT HXW
TT ST ZN B
0017-00101-0975
RAIL: ANTI-SLIP;
STEALTH-GREY
0K58-01376-0000

12
ARCTIC SILVER 95T 95T-XXXX-05
On-Off Switch, Access Plate & Grommets S/N TCT100000 and up
FRONT VIEW
SWITCH: ROCKER;
22ADPST
0017-00032-0198
BACK VIEW
ACCESS-PLATE ASSY
AK58-00329-0000
GROMMET:
NYLON; SCREW ( 2 )
0017-00042-1147
GROMMET: PLASTI;.
130/.005 S/C#13-B ( 8 )
0017-00042-0326
CLIP: WIRE; PUSH-
MTG; 3/4"; S/C#80-B
0017-00042-0840
CLAMP: WIRE; 5/8"
0017-00042-1072
Ink transfer decal can not
be replaced in the field,
it can only be touched up.
( See SB No. GN05032101N ) DECAL: FRAME; LF-LOGO
0K60-01193-0000
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 2 )
0017-00042-0326
8-32X 6 PHL PAN
TT ST PHB ( 2 )
0017-00101-0162
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 4 )
0017-00042-0326

13
ARCTIC SILVER 95T 95T-XXXX-05
Belt, Deck & Rear Roller S/N TCT100000 and up
DECK:TREADMILL;WAXLESS
0K58-01091-0002
1/4 -20x20 HXS FLT L
CS ST ZB B (4)
0017-00101-1775
SPRING:TECSPAK,
BLACK S/C-B (8)
0K40-01026-0002
LBL: BELT-LIMIT; RT.
M051-00K58-A100
LBL: CAUTION;
HI-VOLT;ENG+FRN B
M051-00K58-A014
BELT: WALKING;BLK;
W/LOGO; NP7131 C
0K58-01400-0000
LBL: BELT-LIMIT; LT.
M051-00K58-A101
ROLLER: REAR; 3.5"
0K58-01002-0000
Rear Roller Adjusting Bolt ( 2 )
3/8 -16X48 HEX SOC L CS ST SS B
0017-00101-1880
NUT 1/4 -20 TINNERMAN
D ST ZN B (4)
0017-00103-0198
1/4 -20X16 HXS BUT
L CS G8BO B (8)
0017-00101-1652
WSH 255-.562-046
FL-D ST ZN B (8)
0017-00104-0072

14
ARCTIC SILVER 95T 95T-XXXX-05
Lift Frame, Lift Motor & IEC Receptacle S/N TCT100000 and up

15
ARCTIC SILVER 95T 95T-XXXX-05
Idler Arm Assembly S/N TCT100000 and up
Idler Arm Assembly
AK58-00053-0002
Idler Pin
0017-00007-0248
Idler Spring Damper
0K26-02055-0000
Idler Spring
0k58-01085-0000
Wire Clamp
0017-00042-1072
Screw
0017-00101-1193
Limit Switch
0017-00032-0195
Limit Switch Cable
AK58-00027-0000
Motor Pulley
0K58-01057-0001
Allen Screw
0017-00101-0333
Grommet
0017-00042-0326
Drive Belt
0K58-01114-0000
Idler Pulley
0K26-01731-0000
Threaded Idler
0K58-01084-0002
Lock Nut: Idler
0017-00103-0324
Shaft
Anti Static Brush
0K58-01263-0001
Tinsel Bracket Screw(2)
0017-00101-1193
Plug
0017-00042-1053
(For units not
equipped with
circuit breaker.)
2ACIRCUIT
BREAKER
0017-00003-0626
4ACIRCUIT
BREAKER
0017-00003-0950
CLIP: MTG;
CIRCUIT-BREAKE
R
0017-00003-0696

16
ARCTIC SILVER 95T 95T-XXXX-05
Leg Leveler Assembly – AK58-00370-0000 S/N TCT100000 and up
Bracket Leveler
0K58-01083-0000
Pivot Pin
0K58-01098-0000
Leveling Foot
0K58-01110-0000
Stop Nut
0K58-01099-0000
Hex Nut (4)
0017-00101-1652
Lock Washer (4)
0017-00104-0333
Flat Washer (4)
0017-00104-0190

17
ARCTIC SILVER 95T 95T-XXXX-05
Front Roller Assembly – AK58-00066-0000 S/N TCT100000 and up
Polley V Pulley 8”
0K58-01105-0000
Hex Bolt
0017-00101-1632 Flat Washer
0017-00104-0330
Lock Washer
0017-00104-0005
Flat Washer
0017-00104-0043
Mounting Bolt
0017-00101-0974
ROLLER: FRONT; 3.5"
0K58-01001-0001

18

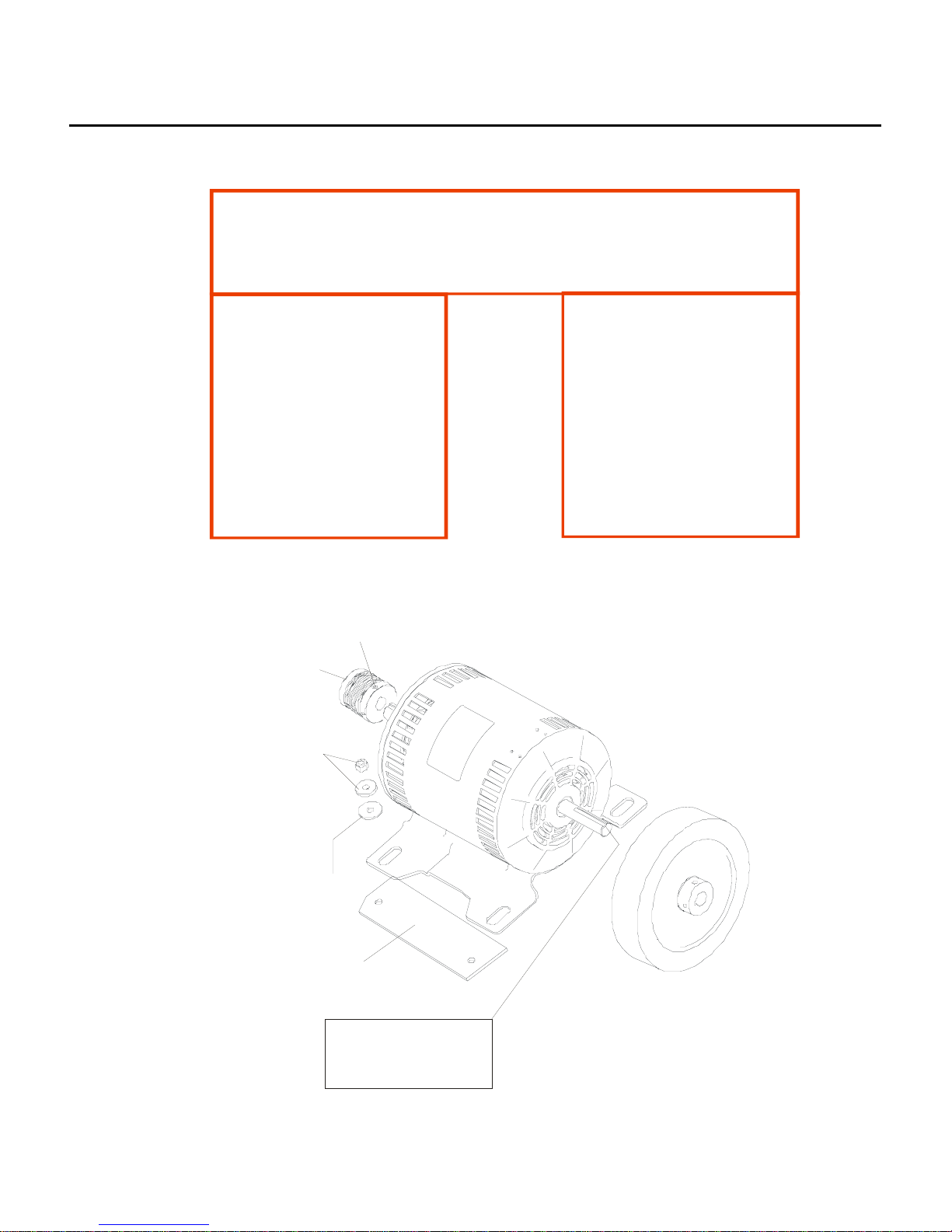

ARCTIC SILVER 95T 95T-XXXX-05
Drive Motor Assembly S/N TCT100000 and up
NOTE: # TR07060101NPLEASE SEE SERVICE BULLETIN
TO ORDER CORRECT DRIVE MOTOR & FLYWHEEL
FOR SERIAL NUMBER.
Poly-V Pulley
0K58-01057-0001
Locking Nut (4)
0017-00103-0027
Washer (4)
0017-00104-0409
Insulating Shoulder
Washer (4)
0K58-01255-0000
Insulating Pad (2)
0K58-01256-0001
Set Screw(2)
0017-00101-0333
Key is part of Drive
Motor only, can not
get it separate.
DUAL CABLE MOTOR
FLYWHEEL: CAST-IRON
0K58-01092-0002
DUAL CABLE
DRIVE MOTOR-ASY:
AK58-00171-0001
DUAL CABLE MOTOR
USE SET SCREWS
0017-00101-0975
TAPERED
FLYWHEEL: CAST-IRON
0K58-01092-0004
TAPERED SHAFT
DRIVE MOTOR-ASY:
AK58-00171-0002
TAPERED SHAFT MOTOR
USE BOLT
0017-00101-1885

19
ARCTIC SILVER 95T 95T-XXXX-05
DSP-Controller Assembly S/N TCT100000 and up
VOLTAGE PART NUMBER PART DESCRIPTION
100-120 GK58-00002-0118 KIT: SERV; MFG; DSP CONTROLLER 100-120; LED
200-240 GK58-00002-0120 KIT: SERV; MFG; DSP CONTROLLER 200-240; LED

20
ARCTIC SILVER 95T 95T-XXXX-05
Line Cords & Line Cord Options S/N TCT100000 and up
OPTIONAL LINE CORDS
0017-00003-0947 LINE-CORD: 120V; 20A; 12'
0017-00003-0915 LINE-CORD: R/A 120V 8'
0017-00003-0980 LINE-CORD: R/A; NEMA 5-20 144" 12'
0017-00003-0981 LINE-CORD: R/A; W/PLUG 220/60 7.5'
0017-00003-0948 LINE-CORD: 220V; 15A; 12'
MODEL # MODEL DESCRIPTION STANDARD LINE CORDS
95T-0100-02 95T ENG/ENG 120/60 DOM
95T-0300-02 95T FRN/MET 120/60 DOM
95T-0400-02 95T SPN/MET 120/60 DOM
95T-0800-02 95T POR/MET 120/60 DOM
0017-00003-0974
LINE-CORD: R/A; 96"; W/RECP S/C-C
95T-0103-02 95T ENG+MET 220/60 DOM
95T-0105-02 95T ENG+MET 100/50 DOM
95T-0106-02 95T ENG+MET 200/50 DOM
95T-0705-02 95T JAP/MET 100/50 DOM
95T-0706-02 95TJAP/MET 200/50 DOM
0017-00003-0781
LINE-CORD: R/A; 220V; USA D
95T-0101-02 95T ENG+MET 230/50 CON
95T-0201-02 95T GER/MET 230/50 CON
95T-0301-02 95T FRN/MET 230/50 CON
95T-0401-02 95T SPN/MET 230/50 CON
95T-0501-02 95T ITL/MET 230/50 CON
95T-0601-02 95T DUT/MET 230/50 CON
95T-0801-02 95T POR/MET 230/50 CON
95T-1601-02 95T ENG/TUR 230/50 CON
0017-00003-0696
LINE-CORD: R/A; CEE7; 103" 10A 250V D
95T-0102-02 95T ENG+MET 240/50 UK
95T-0109-02 95T ENG+MET 230/50 UK 0017-00003-0890
LINE-CORD: U.K; R/A
95T-0104-02 95T ENG+MET 240V+ AUS 0017-00003-0996
LINE-CORD: IEC; AUSTRALIAN; 230/50 C
