6
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTIC ENTRY
Diagnostics is entered by three methods:
1. Hold down the PAUSE Key until the SERVICE MENU appears, and press the STOP Button.
2. Hold down the PAUSE Key until the SERVICE MENU appears, and press CLEAR Key twice
3. Hold down the PAUSE Key when power is applied.
The unit will take approx. 3 to 4 seconds to enter Diagnostics.
On entry to this state, the message:
Followed by:
Using any of the arrow keys will allow you to scroll through the four main categories.
SERVICE MENU
I
SYSTEM TEST
INFORMATION
MAINTENANCE
CONFIGURATION

7
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
MAINTENANCE CONFIGURATION – QUICK ENTRY REFERENCE
Diagnostic selections can also be made by
pressing a combination of program keys. The
following is the list of diagnostic tests and their
program key combination. All blank fields in the
chart are considered “OFF” for that program key.
DIAGNOSTIC TESTS MANUAL FAT
BURN
CARDIO RANDOM HILL CUSTOM/
PERSONAL TRAINER
FIT
TEST
ZONE
TRAINING
SPEED
INTERVAL
ENTER
WEIGHT
SYSTEM TESTS
BELT/DECK TEST ON
LIFEPULSE TEST ON
TELEMETRY TEST ON
SMART STOP TEST ON ON
DISPLAY TEST ON ON ON ON ON ON ON ON ON ON
COMM TEST ON ON
TAG EEPROM TEST ON ON
CONSOLE EEPROM
TEST
ON ON
LIFECENTER TEST ON ON
C-SAFE TEST ON ON
SPEED AUTO ON
SPEED MANUAL ON ON
SPEED ERROR ON ON
INCLINE AUTO ON
INCLINE MANUAL ON ON
INCLINE ERROR ON ON
WAXER AUTO ON
WAXER MANUAL ON ON
WAXER ERROR ON ON
INFORMATION
STATISTICS ON ON
SOFTWARE
VERSION
ON ON
CLOCK INFO ON ON
MAINTENANCE
INFO
ON ON
MAIN MOTOR INFO ON ON
INCLINE MOTOR
INFO
ON ON
WAX MOTOR INFO ON ON
SYSTEM ERROR
INFO
ON ON
MAINTENANCE
MAINTENANCE
MENU
ON

8
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SUB-CATEGORIES
SPEED
AUTOMATIC SPEED MANUAL
SPEED CONTROL
ERRORS
INCLINE
AUTOMATIC
INCLINE MANUAL
INCLINE ERROR
WAXER
AUTOMATIC WAXER MANUAL WAXER ERROR
VOLT/TEMP TEST
SYSTEM TEST
SYSTEM COMM TEST MAIN MOTOR MODULE LIFT MOTOR MODULE
WAXER MOTOR
MAODULE
BELT/DECK TEST LIFEPULSE TEST POLAR TEST SMART TEST STOP DISPLAY TEST REAL TIME CLOCK TEST FRAME TAG EPROM TEST CONSOLE EPROM TEST LIFECENTER TEST
FITLINXX TEST
WAX MOTOR
INFORMATION
CLOCK INFORMATION
SYSTEM ERRORS
MAINTENANCE INFORMATION INFORMATION STATISTICS SOFTWARE
VERSIONS
MAIN MOTOR INFORMATION LIFT MOTOR INFORMATION
REPLACING BELT
AND DECK
REPLACING
WAXER BAG
REPLACING CONSOLE
REPLACING MOTOR
CONTROLLER
REPLACING WAX LIFT BOARD REPLACING STOP SWITCH REPLACING OVERLAY BEZEL REPLACING MAIN MOTOR REPLACING LIFT MOTOR REPLACING WAX MOTOR
MAINTENANCE
CLOCK CONFIGURAATION
CONFIGURATION
LANGUAGE MAXTIME SETUP STANBY MODE SETUP ENGLISH/METRIC UNITS CUSTOM WORKOUT ENTRY SMART STOP MAXIMUM SPEED MINIMUM SPEED PAUSE TIMEOUT
WATTS DISPLAY
METS DISPLAY DISTANCE CLIMBED DISPLAY
WAX REMINDER ACCELERATION RATE
SET DAY
SET DATE
SET TIME
MANUFACTURE'S MENU MANAGER'S MENU
ACCESS RESTRICTED*
TELEMETRY CALORIE P/H DISPLAY DECELERATION RATE ERASE CUSTOM WORKOUTS
QUICK START VIA NUMERIC KEYS
MAXIMUM INCLINE
START MESSAGE SETUP
FIT TEST PLUS PACE DISPLAY ON/OFF

9
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM COMMUNICATION(COMM) TEST
Upon entry into this category, a SYSTEM COMMUNICATION (COMM) TEST will be performed automatically.
This test will attempt to communicate with all of the modules within the treadmill unit. If a module does not respond
to the console processor an ERROR message will be displayed.
If all the modules communicate, the message is:
If the motor controller module does not communicate, the initial message will display:
If the harness is disconnected the message is:
If the motor controller has no power, the message is:
If the wax/lift board module does not communicate, the message is:
If both the motor controller module and the wax/lift board module do not communicate, the message is:
If the wax/lift and motor controller has no power, the message is:
If the main harness from the console to the wax/lift board is disconnected, the message is:
MOTOR CONTROLLER COMM BAD
SYSTEM COMM OK

10
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM COMMUNICATION(COMM) TEST
If both the motor controller module and the wax/lift board module do communicate, but the console cannot perform
a loop-back test, the message is:
If SYSTEM COMM OK is displayed it will advance to the system test category.
Press the ‘CLEAR’ key to return to the MAIN DIAGNOSTIC CATEGORIES.
Press the ‘ENTER’ key to advance to the SYSTEM TEST SUB-CATEGORIES.
SYSTEM CONFIGURED TWO WIRE

11
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills

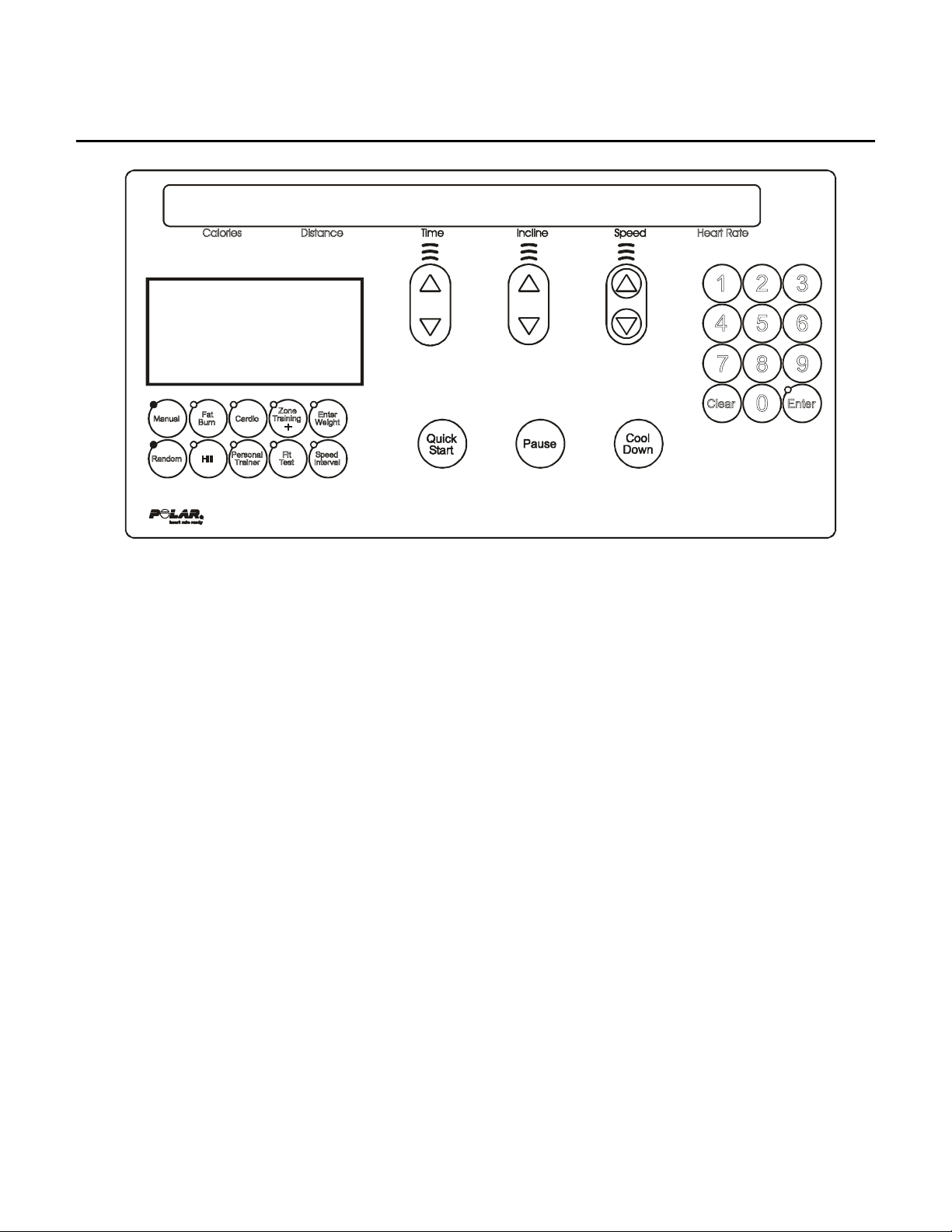

DIAGNOSTICS: SYSTEM TEST MENU
Upon entry the, the message is:
“USE ARROW KEYS TO SCROLL THROUGH THE LIST”
Using any of the arrow keys will allow you to scroll through the thirteen system tests.
SYSTEM TEST
MAIN MOTOR TEST
LIFT MOTOR TEST
WAXER MOTOR TEST
BELT/DECK TEST
LIFEPULSE TEST
TELEMETRY TEST
SMART STOP TEST
DISPLAY TEST
REAL TIME CLOCK TEST
FRAME TAG EEPROM TEST
CONSOLE EEPROM TEST
LIFECENTER TEST
C-SAFE TEST
Press the ‘ENTER’ key to access the sub-category.
SYSTEM TEST MENU

12
Life Fitness Modes 97Ti, 95Ti, and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – SPEED AUTOMATIC MODE
Upon entry into this test the letters SA (speed automatic) will be in the profile window. This test allows the user to
test the main drive motor and controller controlling the target speed. The user can select a target speed by using
the speed arrow keys. The actual speed as calculated by the speed feedback sensor is shown in the actual portion
of the message center.
The incline system can be activated in this test as well. However, the display will only show the target incline for two
seconds while the incline keys are being pressed. It will then return to showing the speed information.
Press the ‘CLEAR’ key to exit the Speed Automatic test and return to the System Test Menu.
Press the ‘ENTER’ key to advance to the Speed Manual test.
SPEED
AU
TO
MA
TIC
SA

13
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – SPEED MANUAL MODE
Upon entry into this test the letters SM (Speed Manual) will be in the profile window. This test allows the user to
test the main drive motor and controller controlling the motor rpm. The user can select a target motor rpm by using
the speed arrow keys. The actual motor rpm as calculated by the speed feedback sensor is shown in the actual
portion of the message center.
The incline system can be activated in this test as well. However, the display will only show the target incline for two
seconds while the incline keys are being pressed. It will then return to showing the speed information.
Press the ‘CLEAR’ key to exit the Speed Manual test and return to the Speed Automatic test.
Press the ‘ENTER’ key to advance to the Controller Errors test.
SPEED MANUAL
SM

14
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – CONTROLLER ERRORS MODE
Upon entry into this test the letters SE (speed errors) will be in the profile window. This test allows seeing the
current motor controller error conditions that are being displayed on the motor controller display. The following is a
list of the current motor error conditions. If an error is displayed, refer to the troubleshooting section for corrective
action.
CURRENT MOTOR ERROR CONDITIONS
POWER UP RESET ERROR
STATIC CURRENT TRIP
MAX TEMPERATURE TRIP
MAXIMUM VOLTAGE TRIP
DYNAMIC CURRENT TRIP
FAULT LINE 1 ERROR
SCI ERROR
SPEED SENSOR ERROR
Press the ‘CLEAR’ key to exit the Speed Controller Errors test and return to the Speed Manual test.
CO
N
TRO
LL
ER ERRORS
SE

15
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – INCLINE AUTOMATIC MODE
Upon entry into this test the letters IA (incline automatic) will appear in the profile window. This test allows the user
to test the lift motor and switches controlling the target incline. The user can select a target incline by using the
incline arrow keys. The actual incline as calculated by the time count, is shown in the incline portion of the message
center.
For non-decline units: The state of the level switch will be displayed in the profile window. A zero “0” displayed in
the profile window shows the level switch in the closed position. As the unit is inclined the zero “0” displayed should
disappear to indicate that the level switch is functioning.
For decline units: The state of the level switch will be displayed in the profile window. A zero “0” displayed in the
profile window shows the level switch in the closed position. As the unit is inclined the zero “0” displayed should
disappear to indicate that the level switch is functioning.
The speed system can be activated in this test as well. However, the display will only show the target speed for two
seconds while the speed keys are being pressed. It will then return to showing the incline information.
Press the ‘CLEAR’ key to exit the Incline Automatic test and return to the System Test Menu.
Press the ‘ENTER’ key to advance to the Incline Manual test.
I
N
C
L
I
N
E
AU
TO
MA
TIC
IA

16
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – INCLINE MANUAL MODE
Upon entry into this test the letters IM (incline manual) will be in the profile window. This test allows the user to
bypass the electromechanical switches that normally control the target incline. The user moves incline by pressing
the incline arrow keys. The actual incline is calculated by the time count is shown in the actual portion of the
message center. The state of the level and negative incline switches will be displayed in the profile window.
For non-decline units: The state of the level switch will be displayed in the profile window. A zero “0” displayed in
the profile window shows the level switch in the closed position. As the unit is inclined the zero “0” displayed should
disappear to indicate that the level switch is functioning.
For decline units: The state of the level and negative incline switches will be displayed in the profile window. A zero
“0” displayed in the profile window shows the level switch in the closed position. As the unit is declined the zero “0”
displayed should disappear and a “–4” should appear in the profile window. This verifies that the negative switch is
functioning (the “–4” will only appear in incline manual mode).
The speed system can be activated in this test as well. However, the display will only show the target speed for two
seconds while the speed keys are being pressed. It will then return to show the incline information.
Press the ‘CLEAR’ key to exit the Incline Manual test and return to the Incline Automatic test.
Press the ‘ENTER’ key to advance to the Incline Errors test.
I
N
C
L
I
N
E
MANUAL
IM

17
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – INCLINE ERROR MODE
Upon entry into this test the letters IE (incline errors) will be in the profile window. This test allows seeing the
current lift motor error conditions. The following is a list of the current lift motor error conditions. If an error is
displayed, refer to the troubleshooting section for corrective action.
CURRENT LIFT MOTOR ERROR CONDITIONS
INCLINE TIMEOUT ERROR NEGATIVE SWITCH ERROR
HOME SWITCH ERROR NO AC POWER ERROR
Press the ‘CLEAR’ key to exit the Incline Errors test and return to the Incline Manual test.
I
N
C
L
I
N
E ERRORS
IE

18
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – WAXER AUTOMATIC MODE
Upon entry into this test the letters WA (waxer automatic) will be in the profile window. This test allows the user to
see information concerning the wax motor. The wax information will scroll automatically every 3 seconds.
If an error is displayed, refer to the troubleshooting section for corrective action.
ERROR CONDITION DISPLAYED INFORMATION
WAXER UNPLUGGED WAXER FIRED – XXX
WAXER - XX/100 FULL
MANUAL WAX- XX TIMES
NEXT WAX - XX HOURS
INITIAL WAX- XX MINS
WAX INTERVAL XX MINS
MIN WAX SPEED- X.X
The speed system and incline systems can be activated in this test as well. However, the display will only show the
target speed or incline for two seconds while the speed/incline keys are being pressed. It will then return to showing
the waxer information.
Press the ‘CLEAR’ key to exit the Waxer Automatic test and return to the System Test Menu.
Press the ‘ENTER’ key to advance to the Waxer Manual test.
W
AX
ER
AU
TO
MA
TIC
WA

19
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – WAXER MANUAL MODE
Upon entry into this test the letters WM (waxer manual) will be in the profile window. This test allows the user to
manually fire the wax system. It allows the user to see information concerning the wax motor as well. The wax
information will scroll automatically every 3 seconds.
If an error is displayed refer to the troubleshooting section for corrective action.
ERROR CONDITION DISPLAYED INFORMATION WAXER FIRE TEST
WAXER UNPLUGGED WAXER FIRED – XXX
WAXER - XX/100 FULL
MANUAL WAX- XX TIMES
NEXT WAX - XX HOURS
INITIAL WAX- XX MINS
WAX INTERVAL XX MINS
MIN WAX SPEED- X.X
TO FIRE WAXER PRESS THE
QUICK START KEY
The speed system and incline systems can be activated in this test as well. However, the display will only show the
target speed or incline for two seconds while the speed/incline keys are being pressed. It will then return to showing
the waxer information.
Press the ‘CLEAR’ key to exit the Waxer Manual test and return to the Waxer Automatic test.
Press the ‘ENTER’ key to advance to the Waxer Errors test.
W
AX
ER
MANUAL
WM

20
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – WAXER ERROR MODE
Upon entry into this test the letter WE (waxer errors) will be in the profile window. This test allows you to see the
current wax motor error conditions.
The following is a list of the current waxer motor error conditions. If an error has occurred, refer to your
troubleshooting section for corrective action.
WAXER MOTOR ERROR CONDITIONS
WAXER UNPLUGGED
WAXER NO AC POWER
Press the ‘CLEAR’ key to exit the Waxer Errors test and return to the Waxer Manual test.
W
AX
ER ERRORS
WE

21
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – BELT / DECK MODE
This test allows the user to test the belt and deck condition. This test acts as a wattage meter. It will give the user
the percentage of power, wattage, bus voltage, and temperature readings.
The following messages will scroll:
The initial information displayed will be:
Where XXX will indicate real values.
PERCENT is the percentage of available power. It will range from 0 to 100%.
WATT is the wattage measured by the motor controller to move the belt ranging from 340 to 1200 watts.
By pressing the ‘COOL-DOWN’ key, the display will toggle to the information displayed below.
Where XXX will indicate real values.
VOLTAGE is the bus voltage of the motor controller. It is not the input line voltage.
TEMP is the temperature measure of the motor controller heat sink in Celsius.
The display will lock on the current information if the ‘PAUSE’ key is pressed.
The speed system and incline systems can be activated in this test. However, the display will only show the target
speed or incline for two seconds while the speed/incline keys are being pressed. It will then return to showing the
belt/deck information.
To test if the belt and deck need replacement: Using the ‘SPEED’ Up Arrow Key, walk on the unit at 3.5 mph for
a minimum of 1 minute. Then run on the unit at 7.0 mph for a minimum of 1 minute. If the voltage is higher than
1100 watts, replace the belt and either flip or replace the deck.
Press the ‘CLEAR’ key to exit the Belt/Deck test and return to the System Test Menu.

22
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – LIFEPULSE™ MODE
Upon initial entry to this test, a message concerning the configuration of the LifePulse™ system On/Off will occur.
This test will allow the user to test the LifePulse™ heart rate system.
Following this message, the LifePulse™ system can be manually tested. A heart will be in the profile window.
The system will show when the user has placed their hands on the LifePulse™ sensors. When the left sensor
detects hands on condition, a ‘L’ will be placed in the profile window with the heart. When the right sensor detects
hands on condition, a ‘R’ will be placed in the profile window with the heart.
A timer will start counting from the time when a both left and right hands on condition occurs to when the
LifePulse™ system can give the user their heart rate. This timer will stop when the heart rate is given.
The gain value of the heart rate signal is shown. The confidence level of the heart rate value is displayed. The
value ranges from 0 to 9. A value of 9 is considered to be high confidence. A value of 0 is considered to be low
confidence.
The speed system and incline systems can be activated in this test. However, the display will only show the target
speed or incline for two seconds while the speed/incline keys are being pressed. It will then return to showing the
LifePulse™ information.
Press the ‘CLEAR’ key to exit the LifePulse™ test and return to the System Test Menu.
LIFEP
UL
SE O
N/
OFF

23
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – TELEMETRY MODE
Upon initial entry to this test, a message concerning the telemetry system on/off will occur. This test will allow the
user to test the telemetry heart rate system. If the telemetry heart rate system is OFF, no heart rate value will be
given.
If the system is enabled, a telemetry heart rate signal can be provided and a heart rate value will be shown. The
signal will also generate the ‘ENTER’ led to flash at the heart rate pulse frequency.
Press the ‘CLEAR’ key to exit the Telemetry Heart Rate test and return to the System Test Menu.
HE
A
RT R
A
TE
=XXX

24
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – SMART STOP MODE
Upon entry into the test, if the smart stop PCB is not plugged in, a message will be displayed “Smart Stop
Unplugged”. This test will allow the user to test the Smart Stop System. If the smart stop system detects a user it
will scroll the profile window from empty to full depending on the percentage of detection that is occurring. Other
smart stop information will scroll automatically every 3 seconds.
The following is a list of the current information that can be seen. If an error has occurred, refer to the
troubleshooting section for corrective action.
ERROR CONDITION DISPLAYED INFORMATION
SMART STOP UNPLUGGED SMART STOP ON
SMART STOP OFF
USER DETECTED
USER NOT DETECTED
SMART STOP ADJUST-XX
The smart stop system can be turned ON/OFF in this test. When the message “SMART STOP ON” is placed on the
message center, an arrow key will toggle it to “SMART STOP OFF”.
The display can be put into a locked mode by pressing the ‘PAUSE’ key. This will prohibit the scrolling of the smart
stop information.
Pressing the ‘CLEAR’ key to exit the smart stop test and return to the System Test Menu.
S
MA
RT STOP O
N

25
Life Fitness Model 97Ti, 97Te, 95Ti, 95Te and 93T Treadmills
DIAGNOSTICS: SYSTEM TEST – DIPLAY TEST MODE
This test will light each individual segment per character until complete. It will then light each character separately
until all characters have been lit. Each individual led will be tested also. If the ‘PAUSE’ key is pressed, the
sequence will halt and remain there until the ‘PAUSE’ is pressed again.
Pressing the ‘PAUSE’ key can LOCK the display. This will prohibit the scrolling of the LED’s.
Pressing the ‘CLEAR’ key to exit the Walking Led test and return to the Keypad test.
Upon entry to this test, all lights will be turned ON. This test will allow the user to test the display console.
Pressing keys will result in a beep sound and, for all but the ‘ENTER’ and
‘CLEAR’ keys, a character will be repeated across the message center display.
KEYS DISPLAYED CHARACTER KEYS DISPLAYED CHARACTER
0 ‘0’ FIT TEST ‘L’
1 ‘1’ TIME UP ‘N’
2 ‘2’ INCLINE UP ‘P’
3 ‘3’ SPEED UP ‘Q’
4 ‘4’ TIME DOWN ‘R’
5 ‘5’ INCLINE DOWN ‘T’
6 ‘6’ SPEED DOWN ‘U’
7 ‘7’ QUICK ‘V’
8 ‘8’ PAUSE ‘W’
9 ‘9’ COOL DOWN ‘X’
MANUAL ‘C’ STOP ‘Y’
FAT BURN ‘D’ DOWN ‘Z’
CARDIO ‘E’ UP ‘S’
RANDOM ‘H’ ZONE TRAINING + ‘F’
HILL ‘J’ SPEED INTERVAL ‘M’
PERSONAL
TRAINER
‘K’ ENTER WEIGHT ‘G’
Pulling the Emergency Stop switch will result in the message:
‘REPLACE EMERGENCY STOP SWITCH’.
Pressing the ‘CLEAR’ key to exit the Display test and return to the System Test Menu.
Pressing the ‘ENTER’ key will advance to Walking Led test.
DISP
LAY
TEST
