INTRODUCTION
Congratulations . . . and thank you for choosing a Life Fitness 9500HR treadmill. It is
one of the most versatile treadmills ever developed, the culmination of over 20 years of
Life Fitness research, technological innovation and engineering expertise. It is recognized
as one of the world's most popular and advanced computerized running/walking machines.
Like other Life Fitness products, the Life Fitness 9500HR treadmill is designed to give
you an effective workout that is motivating and efficient. The user-friendly console displays
a host of visual feedback in addition to acting as your personal “coach” with easy-to-follow
prompts and instructions.
Why use a Life Fitness treadmill? Working out with a Life Fitness 9500HR treadmill
gives you more features and programs than most other aerobic trainers. For the first time,
Heart Rate Zone Training™is easily achievable. The Fat Burn and Cardio programs offer
specific training programs based on your fitness goals, and the addition of telemetry heart
rate monitoring to the proven Lifepulse™ heart rate sensor system makes it even easier to
follow your heart to better fitness. The patented FlexDeck™shock absorption system mini-
mizes impact to bones, joints and muscles, and its powerful motor allows for a wide
range of belt speeds yet remains incredibly quiet.
If you have any questions regarding the operation of your Life Fitness 9500HR treadmill,
please call Life Fitness After Market Services at [phone] or toll-free within the
U.S. and Canada at [phone]. For product service in Europe, refer to the first
page of this manual and contact your nearest Life Fitness office.
CAUTION: Life Fitness STRONGLY recommends that if you are undertaking an
exercise program you see your physician for a complete medical exam, part-
icularly if you have a family history of high blood pressure or heart disease,
are over the age of 45, or if you smoke, have high cholesterol, are obese, or
have not exercised regularly in the past year. If, at any time while exercising,
you feel faint, dizzy, short of breath, or pain, stop immediately.
ATTENTION: Avant d'entreprendre un programme d'exercice, Life Fitness
recommande FORTEMENT que vous consultiez un médecin afin de subir un
examen médical complet. Les personnes qui ont des antécédents de haute
pression ou de maladie cardiaque, qui ont plus de 45 ans, celles qui fument ou
les personnes qui ont un haut taux de cholestérol, qui sont obèses ou qui n'ont
pas fait régulièrement d'exercice depuis la dernière année sont particulièrement
concernées. Arrêtez immédiatement l'exercice si vous vous sentez mal, si vous
avez des étourdissements, si vous êtes essoufflé ou si vous ressentez des douleurs.
3

SAFETY INSTRUCTIONS
DANGER: TO REDUCE THE RISK OF ELECTRICAL SHOCK, ALWAYS
UNPLUG YOUR LIFE FITNESS 9500HR TREADMILL BEFORE CLEANING
OR ATTEMPTING ANY MAINTENANCE ACTIVITY.
S A F E T Y F I R S T !
•Always follow the console instructions for proper operation.
•Never operate a Life Fitness treadmill if it has a damaged power cord or electrical
plug, or if it has been dropped, damaged, or even partially immersed in water.
Contact Life Fitness After Market Services.
•Keep the power cord away from heated surfaces. Do not pull the treadmill by the
power cord or use the cord as a handle. Do not run the power cord under or
along the side of the treadmill.
•Do not use the treadmill outdoors, near swimming pools or in areas of high
humidity.
•Never insert objects into any opening in the treadmill. If an object should drop
inside, unplug the unit and carefully retrieve the item. If you cannot reach the
item, contact Life Fitness After Market Services.
•Never place liquids of any type directly on the unit.
•Do not use the treadmill in areas where aerosol spray products are being used
or where oxygen is being administered. Such substances create the danger of
combustion and explosion.
•Keep all loose clothing, shoelaces, and towels away from the running surface
and belt rollers.
•Keep the area six feet behind the treadmill clear of any obstructions, including
walls, furniture and other equipment.
•Never mount or dismount the treadmill while the running belt is moving. Use the-
handrails whenever additional stability is required.
•Wear shoes with rubber or high-traction soles. Do not use shoes with heels,
leather soles, cleats or spikes. Make sure no stones are embedded in the soles.
Do not use the treadmill in bare feet.
•Never walk or jog backwards on the treadmill.
•Do not reach into or underneath the unit, or tip it on its side during operation.
•To reduce the risk of burns, fire, electrical shock or personal injury, it is imperative
that you connect each treadmill to a properly grounded outlet.
4

INSTRUCTIONS DE SECURITE
DANGER: AFIN DE RÉDUIRE LES RISQUES DE SECOUSSE ÉLECTRIQUE,
DÉBRANCHEZ TOUJOURS L'EXERCISEUR DE MARCHE LIFE FITNESS
9500HR AVANT DE LE NETTOYER OU D'EN FAIRE L'ENTRETIEN.
S É C U R I T É D' A B O R D !
•Observez les directives relatives à la console afin d'assurer un bon fonctionnement.
•N'utilisez jamais l'exerciseur de marche Life Fitness si le cordon d'alimentation ou
la fiche est endommagé, si l'appareil est tombé, endommagé ou s'il a été
immergé dans l'eau (même partiellement). Prenez contact avec le service après-
vente de Life Fitness.
•Tenir le cordon d'alimentation à l'écart des surfaces chauffées. Ne pas tirer
l'exerciseur par le cordon d’alimentation ni utiliser le cordon comme poignée. Ne
pas passer le cordon sous l’exerciseur.
•Ne pas utiliser l’exerciseur à l’extérieur, à proximité des piscines ou dans des lieux
ou l’humidité est élevée.
•N'introduisez jamais d'objets dans les ouvertures de l'exerciseur de marche
Life Fitness 9500HR. Si un objet tombait dans une des ouvertures, débranchez
l'appareil et retirez soigneusement l'objet. Si vous ne pouvez retirer l'objet, prenez
contact avec le service après-vente de Life Fitness.
•Ne placez jamais de liquide sur l'unité.
•N'utilisez pas l'appareil Life Fitness à l'extérieur.
•Ne pas l'exerciseur dans des lieux où des produits en aérosol sont utilisés, où on
donne l’oxygéne. De telles substances provoquent un danger de combustion et
d’explosion.
•Tenez tous les vêtements, les lacets et les serviettes à l'écart des rouleaux de la
courroie et de la surface de marche de l'exerciseur Life Fitness 9500HR.
•Placez l'exerciseur Life Fitness à six pieds de toute obstruction, y compris les
murs et les autres appareils.
•Ne jamais monter ou descendre de l'exerciseur lorsque la courroie est en mouve-
ment. Utiliser les mains courantes pour un meilleur équilibre.
•Portez des chaussures avec des semelles en caoutchouc ou des semelles qui ont
une forte traction. Ne portez pas de chaussures avec des talons, des semelles en
cuir, des crampons ou des pointes. Assurez-vous qu'aucune roche n'est coincée
dans la semelle. N'utilisez pas l'exerciseur à pieds nus.
•Ne marchez/joggez JAMAIS à reculons sur l'exerciseur.
•Ne mettez pas la main à l'intérieur, dessous l'unité et n'inclinez pas l'unité sur le
côté lorsqu'il fonctionne.
•Pour diminuer les risques de brûlure, d’incendie, de secousse électrique ou de
blessure, il est absolument nécessaire de brancher l’exerciseur sur une prise de
courant adéquatement mise à la terre.
5

6
ELECTRICAL REQUIREMENTS
The Life Fitness 9500HR treadmill must be properly grounded. Should it malfunction,
proper grounding provides a path of least resistance for the electric current, reducing
the risk of electrical shock to you or anyone touching or using the unit. Each treadmill
has an electrical cord with a grounding conductor and plug. The unit must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with local
codes and ordinances.
A temporary adapter should NOT be used to connect this plug to a 2-pole
receptacle in North America. If aproperly grounded outlet is not available, A
PROPERLY GROUNDED, 20-AMP OUTLET MUST BE INSTALLED BY A
QUALIFIED ELECTRICIAN.
DANGER! Electrical shock may result from improper connection of the equip-
ment grounding conductor. DO NOT modify the plug provided with the prod-
uct. If it does not fit your electrical outlet, have a proper outlet installed by a
qualified electrician.
LOCATION VOLTAGE Hz AMPs
U.S., Canada, Ecuador, Italy, Venezuela 120 60 20
United Kingdom 220/240 50 10
Germany, The Netherlands, Korea, 220 50 10
Chile, Argentina
Brazil, Colombia 115/220 60 20/10
France, Belgium 127/220 50 20/10
Mexico 120 50/60 20
Costa Rica 120 50 20
Guatemala 115/230 60 20/10
Spain 110/220 50 20/10
Australia 240/250 50 10
Japan 100/200 50/60 20/10
New Zealand 230 50 10
Electrical requirements

7
EXIGENCES ÉLECTRIQUES
L'exerciseur de marche Life Fitness 9500HR DOIT être mis à la terre correctement pour assurer
un fonctionnement sans danger. En cas de mauvais fonctionnement, la mise à la terre
assure un parcours de moindre résistance pour le courant électrique, ce qui réduit les
risques de secousse électrique pour la personne qui touche ou qui utilise l'appareil.
Chaque unité est munie d'un cordon électrique, d'un fil de terre et d'une fiche de terre.
L'unité doit être branchée dans une prise de courant adéquate. La prise doit être cor-
rectement installée et mise à la terre conformément aux codes et aux règlements locaux.
Si aucune prise de courant avec mise à la terre adéquate n'est disponible,
N'utilisez PAS un adaptateur temporaire pour brancher la prise de courant
femelle à 2 pôles (aux États-Unis et au Canada). DEMANDEZ À UN
ÉLECTRICIEN QUALIFIÉ D'INSTALLER UNE PRISE DE COURANT DE
20 A AVEC MISE À LA TERRE ADÉQUATE.
DANGER: Une mauvaise connexion du fil de terre pourrait causer une sec-
ousse électrique. Si vous avez des doutes quant aux techniques appropriées
de mise à la terre, consultez un électricien qualifié. NE modifiez PAS la fiche
qui est comprise avec l'appareil. Si vous ne pouvez utiliser la fiche dans la
prise de courant, demandez à un électricien qualifié d'installer une prise adéquate.
LOCATION VOLTAGE Hz AMPs
U.S., Canada, Ecuador, Italy, Venezuela 120 60 20
United Kingdom 220/240 50 10
Germany, The Netherlands, Korea, 220 50 10
Chile, Argentina
Brazil, Colombia 115/220 60 20/10
France, Belgium 127/220 50 20/10
Mexico 120 50/60 20
Costa Rica 120 50 20
Guatemala 115/230 60 20/10
Spain 110/220 50 20/10
Australia 240/250 50 10
Japan 100/200 50/60 20/10
New Zealand 230 50 10
Exigences electriques

PLACING AND LEVELING THE
LIFE FITNESS 9500HR TREADMILL
When deciding where to place the Life Fitness 9500HR treadmill, please pay close
attention to the following:
4Do not place the sides of the treadmill closer than eight (8) inches, or 20 centi-
meters, from any electrical device, including any other electrical aerobic trainers.
4Do not locate the treadmill near swimming pools or in areas of high humidity.
4Do not place the treadmill in such a manner that the power cord runs beneath
the frame or wheels of the unit.
After placing the unit where it will be used, check
its stability. If the unit is not stable, loosen the
JAM NUT on the leveling leg located on the
user’s back left side of the machine (as the user
faces the console). Turn the LEVELING LEG
until the rocking motion ceases. Retighten the JAM NUT.
NOTE: IT IS EXTREMELY IMPORTANT THAT THE TREADMILL LEVELING LEG BE
CORRECTLY ADJUSTED FOR PROPER OPERATION. AN UNBALANCED UNIT
MAY CAUSE STRIDING BELT MISALIGNMENT.
REMARQUE : IL EST EXTRÊMEMENT IMPORTANT QUE LES PIEDS DE MISE À
NIVEAU SOIENT BIEN AJUSTÉS POUR QUE L'APPAREIL FONCTIONNE COR-
RECTEMENT. SI L'APPAREIL N'EST PAS À NIVEAU, LA COURROIE RISQUE DE
SE DÉSALIGNER.
8
Leveling the treadmill
POWER SAFETY SWITCH
The POWER SAFETY SWITCH is one of the many safety features of
the Life Fitness 9500HR treadmill. This allows you to be certain the
treadmill is used only in a supervised manner. Removing the Key from
the Switch mechanically locks the Switch in the OFF position.
The Switch Key should be removed while you are not using the tread-
mill to avoid unauthorized persons from doing so.
Remember to store the Switch Key out of the reach of children.
WARNING: REMOVE POWER SWITCH SAFETY KEY WHEN NOT IN USE
AND STORE OUT OF REACH OF CHILDREN.
MISE EN GRADE: RETIREZ LA CLÊ D’ALIMENTATION LORSQUE L’APPAREIL
N’EST PAS UTILISÊ. RANGEZ LA CLÊ HORS DE LA PORTÊE DES ENFANTS.

HEART RATE ZONE TRAINING™
Extensive independent research has shown that exercising within a predetermined heart
rate range is the best way to both measure your exercise intensity and achieve optimal
results. That’s the whole idea behind the Life Fitness Heart Rate Zone Training
approach to exercise.
Heart Rate Zone Training takes the guesswork out of working out by identifying specific
ranges, or zones, in which you should maintain your heart rate to achieve maximum
exercise results according to your goals. In short, Heart Rate Zone Training all but elimi-
nates under-training and over-training by allowing you to target your heart rate to your
individual fitness objectives.
For instance, if your primary goal is to burn fat, you should exercise at a level between
60% and 75% of your theoretical maximum heart rate (defined by the American College
of Sports Medicine’s “Guidelines for Exercise Testing and Prescription” as 220 minus
your age). If you wish to improve your cardiovascular condition, you should work out at
75% to 85% of your theoretical maximum heart rate.
The Life Fitness 9500HR treadmill offers you two exclusive new programs designed to
take full advantage of the benefits of Heart Rate Zone Training: Fat Burn and Cardio.
You can vary the focus of your exercise activities by switching between the Fat Burn and
Cardio programs at any time during a workout or entering a new target heart rate with the
keypad.
FAT BURN – The Fat Burn program will automatically place you in a workout regimen set
at 65% of your theoretical maximum heart rate and designed to burn the majority of
calories from your body’s fat supply. By maintaining a relatively low heart rate – in the area
of 60% to 75% of your zone – your body can efficiently burn fat as its primary fuel
source; the workload is light enough that your body has time to convert fat to fuel.
Exercising at a lower level of intensity also allows you to work out for a longer period of
time.
CARDIO – The Cardio program automatically sets your target heart rate at 80% of your
theoretical maximum heart rate and places you in a workout developed specifically to
increase cardiovascular fitness. By making the heart work harder – in the 75% to 85%
range – the heart muscle is heavily taxed and as a result comes back stronger.
Both the Fat Burn and Cardio programs measure your heart rate. All you need to do is
wear a Life Fitness Zone Trainer®(or similar) chest strap around your chest or grasp the
Lifepulse sensors when prompted and your heart rate will be transmitted to the
9

EXAMPLE
STEP 1 – Calculate your theoretical maximum heart rate:
The theoretical maximum heart rate for a 30-year-old would be
220 - 30 = 190 beats per minute (bpm).
STEP 2 – Calculate the desired training zone:
FAT BURN:
190 x .60 = 114 bpm (the low end of the Fat Burn heart rate zone)
190 x .75 = 143 bpm (the high end of the Fat Burn heart rate zone).
CARDIO:
190 x .75 = 143 bpm (the low end of the Cardio heart rate zone)
190 x .85 = 162 bpm (the high end of the Cardio heart rate zone).
The Fat Burn and Cardio training zones shown in the chart above overlap to some
extent. This is because everyone will receive some cardiovascular and some fat burning
benefits throughout the entire zone, but the Fat Burn and Cardio target zones empha-
size those particular goals.
Training below 60% of one’s theoretical maximum heart rate is usually not sufficient to
yield results, while training above 85% is not only dangerous for all but highly conditioned
athletes but actually produces little or no additional benefits.
10
Heart Rate Zone Training chart

HOW TO USE THE LIFEPULSE DIGITAL HEART RATE SENSORS
The patented Lifepulse digital heart rate sensors are the default heart rate monitoring
system on the Life Fitness 9500HR treadmill. To use the Lifepulse sensors, simply
grasp the stainless steel sensors when the display console prompts you to do so or any-
time you wish to check your heart rate. There are four sensors, two on each side of the
handrail, and you must make contact with all four to obtain your heart rate. The console
will display your ECG-accurate heart rate in 10 to 30 seconds.
HOW TO USE THE HEART RATE ZONE TRAINER CHEST STRAP
Wet the electrodes of the transmitter (the two grooved surfaces on the underside of the
strap) and secure the strap as high under the chest muscles as possible. The strap
should be snug, but comfortable enough to allow for normal breathing.
The transmitter strap will deliver an optimum
heart rate reading when the electrodes are
directly in contact with bare skin. It will also,
however, function properly through wet,
lightweight clothing. The key is for the
electrodes to remain wet so that
they can conduct the electrical
impulses of the heart back to
the receiver.
If it becomes necessary to
remoisten the chest strap transmitter,
grasp the center of the strap, pull it
away from the chest to expose the two
electrodes, then moisten them in this
position.
11
Zone Trainer chest strap transmitter
CAUTION: DO NOT ATTEMPT TO GRASP THE LIFEPULSE SENSORS AT
SPEEDS ABOVE 4.5 MPH (7.2 KPH).
ATTENTION: NE METTRE PAS LES MAINS SUR LES ELECTRODES LIFEPULSE
EN VITESSE AU-DESSUS 4.5 (7.2 KPH).

THE DISPLAY CONSOLE
The computerized display console is easy to use. It allows you to follow your progress
as you walk, jog or run. The Life Fitness 9500HR treadmill’s on-board computer lets
you tailor your workout to your individual fitness capabilities and goals while providing a
unique means of measuring fitness improvement from one workout to the next.
A. FEEDBACK:
lTIME: A continuous display of the elapsed time of each workout.
lDISTANCE: A continual display of miles or kilometers traveled. At the end of the
program, total distance traveled will be displayed.
lCALORIES / WATTS: Display alternates between total calories burned and watts
level every five seconds.
lSTOP: Pressing this button will immediately stop the striding belt and discontinue
any program.
B. MESSAGE CENTER, PROGRAM PROFILE WINDOW AND
PROGRAM SELECTION KEYS:
lThe Message Center provides simple step-by-step instructions and motivational
messages. Also, calories per hour, METS and heart rate will be displayed in this window.
In the Fit Test program, a message will prompt you to take and enter your pulse (if
you are not wearing a Zone Trainer telemetry chest strap).
lThe Program Profile Window is a matrix of LED lights displaying your current
position and the upcoming terrain. As you stride, the light columns move across the
screen from right to left. The higher the column of lights, the greater the incline and
workout intensity.
12
AB
C
D

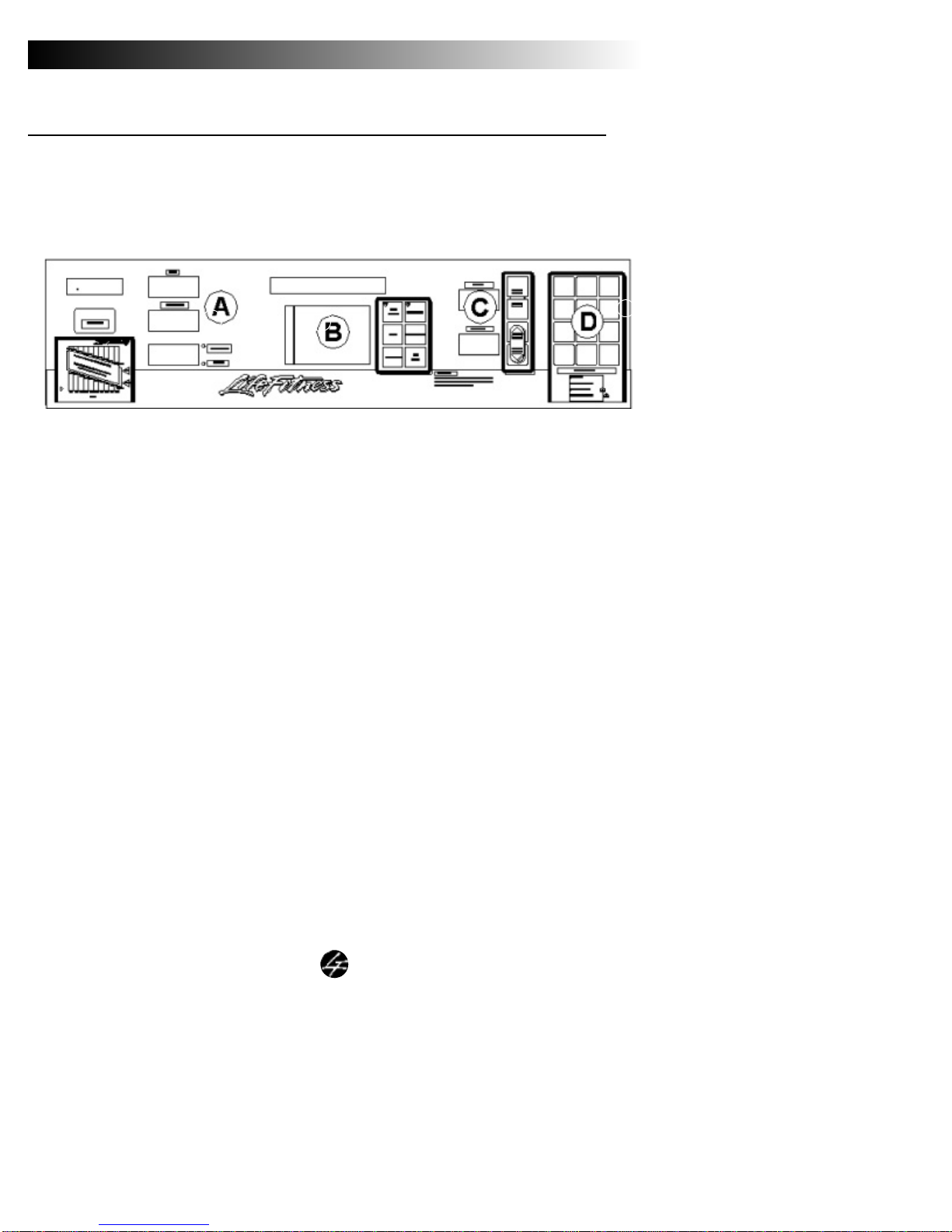

Display console

lPROGRAM KEYS: You can choose the Fat Burn or Cardio Heart Rate Zone
Training programs in addition to Life Fitness’s proven Hill, Random, Manual, and
Fit Test programs.
C. SPEED AND INCLINE KEYS AND DISPLAYS:
lSPEED: This window shows the current striding belt speed in miles per hour or kilo-
meters per hour on metric units.
lSPEED sand t:Pressing the sand t key allows you to increase or decrease the
striding belt speed from 1.5 mph (2.4 kph) to 10.0 mph (16.1 kph). You may use this
key to change the belt speed at any time during any program except Fit Test.
lINCLINE (%): Displays the current deck elevation of the Life Fitness 9500HR treadmill.
lINCLINE sand t:Pressing the sand tkey allows you to increase or decrease
the elevation of the treadmill deck from 0% to 15% in increments of 0.5%. Use this
key to alter the incline during any program except Fit Test.
D. KEYPAD:
The keypad is used to enter information, including program durations, difficulty level,
weight, and Fit Test and program-specific information (such as age and gender).
lNUMERIC KEYS: Use these keys to enter exercise time, belt speed, weight, distance,
goal selection, incline level, gender and target heart rate.
lCLEAR–PAUSE KEY: Press this key once to clear data not yet entered. Press it once
during a program to pause the program. Pressing twice in succession during programming
resets the unit and begins the programming sequence again.
l START–ENTER KEY: This key is used to begin an exercise program, to restart a
program after pausing or to enter the data displayed in the message center.
13

OPERATING INSTRUCTIONS
& PROGRAM DESCRIPTIONS
Selecting a workout program on the Life Fitness 9500HR treadmill is as easy as push-
ing a button. Six computerized aerobic workout programs are pre-programmed on the
Life Fitness 9500HR treadmill:
Fat Burn Cardio Hill
Manual Random Fit Test
FAT BURN is a Heart Rate Zone Training program designed to burn an optimum
amount of calories from fat by using heart rate monitoring to maintain a target heart rate
of 65% of your theoretical maximum heart rate.
CARDIO is a Heart Rate Zone Training program designed to increase cardiovascular fit-
ness by using heart rate monitoring to maintain a target heart rate of 80% of your theo-
retical maximum heart rate.
HILL is a workout consisting of a warm-up period followed by a plateau of constant
effort, progressively more difficult levels of effort separated by periods of recovery or
lower effort, and a cool-down period.
RANDOM is a program of varying effort levels which occur randomly with each exercise
session, resulting in more than one million workout combinations.
MANUAL is a program that allows you to determine your goal and set your own speed
and incline values, which may be altered at any time during the workout.
FIT TEST is a measure of your aerobic fitness level compared to the average of others
of your age and sex.
TOBEGIN ANY WORKOUT (EXCEPT FIT TEST):
4Press the START—ENTER key.
4Enter your weight using the numeric keypad and then press the START—ENTER
key. (Correct weight data is necessary to properly calculate caloric burn
information.)
4Select a program or begin by pressing the speed control arrows.
NOTE: YOU MAY CHANGE THE SPEED AND INCLINE AT ANY TIME
DURING AN EXERCISE PROGRAM (OTHER THAN THE FIT TEST) BY
PRESSING THE UP/DOWN ARROW KEYS.
14

THE FAT BURN AND CARDIO PROGRAMS
To utilize the telemetry feature of the Fat Burn and Cardio programs, you must be wear-
ing a heart rate monitor chest strap. See How To Use The Heart Rate Zone Trainer
Chest Strap for instructions on using the Zone Trainer heart rate monitor chest strap
from Life Fitness.
lAfter pushing either the Fat Burn or Cardio key, select a program goal by pressing
1 for a goal based on time, 2 for a distance-based goal or 3 for a goal based on
calories, followed by a numeric value for the chosen goal (1 to 99 minutes, 0.1 to
10.0 miles (.16 to 15.9 kilometers), and 1 to 2,000 calories) and START–ENTER.
lTo have the Life Fitness computer automatically set your fat burning or cardiovascu-
lar target heart rate based on your age, input your age and press the
START– ENTER button. If you prefer, you may enter your own target heart rate by
pressing 0, inputting your preferred target and pressing the START–ENTER key.
lFinally, select a striding belt speed from 1.5 to 10.0 mph (if telemetry is used) or 1.5
to 4.5 mph (if Lifepulse sensors are used; 2.4 to 16.1 or 2.4 to 7.2 kph, respectively),
again using the keypad and pressing the START–ENTER key.
The Fat Burn program is the latest workout program developed by Life Fitness to bring
the benefits and results of Heart Rate Zone Training to exercisers on a daily basis.
On the Life Fitness 9500HR treadmill, the Fat Burn program uses the technology of
heart rate monitoring to automatically keep your heart rate at a specific point (65% of
your theoretical maximum heart rate, defined by the American College of Sports
Medicine’s “Guidelines for Exercise Testing and Prescription” as 220 minus your age)
within a target zone based on your age, maximizing the aerobic benefits of exercise by
accessing the body’s fat stores for fuel.
The result is a perfect workout every time, eliminating both under- and over-training. You
can concentrate on your workout, because the Life Fitness 9500HR treadmill automat-
ically responds to your heart rate and adjusts the incline of the deck in .10 percent
increments to keep you at your target heart rate.
The Cardio program is virtually identical to the Fat Burn program. The only difference is
that your target heart rate is calculated at 80% of your theoretical maximum to accentuate
cardiovascular improvement by placing a heavier work load on the heart muscle. If you
wish to vary the focus of your exercise activities, you can switch back and forth between
the Fat Burn and Cardio programs at any time during a workout.
You can change your target heart rate at any time during your workout by simply keying
in your new target heart rate.
15

THE HILL PROGRAM
lAfter selecting the Hill workout, you must select a desired workout time from 1 to
99 minutes using the keypad, then press START–ENTER.
lAfter selecting a workout duration, choose an incline level between 1 and 12 using
the keypad and press the START–ENTER key (see How To Choose An Incline
Level on page 18).
lFinally, select a belt speed from 1.5 to 10.0 mph (2.4 to 16.1 kph), again using the
keypad and pressing the START–ENTER key.
The Life Fitness 9500HR treadmill's patented Hill program offers the ideal configuration
for interval training: periods of intense aerobic activity separated by regular intervals of
lower-intensity exercise. The computerized interval training program has been scientific-
ally demonstrated to yield greater cardiorespiratory improvement than steady-pace
training. Not only does the Hill program offer the challenge of alternating periods of high
and low intensity, but the levels of intensity become progressively more difficult during
the course of the program. The longer the Hill program you choose, the longer the
amount of time spent on top of a hill and at the bottom of a valley.
Each Hill program session comprises the following phases:
(1) Warm-up, (2) Plateau, (3) Interval Training, and (4) Cool-down.
lWarm-up: Gradually brings heart rate into the lower portion of the target heart rate
zone, increasing respiration and blood flow to working muscles.
lPlateau: Increases heart rate so that it is within target zone. Check your heart rate
at the end of the plateau period to ensure that you have entered your target heart
rate zone.
lInterval Training: A series of hills and valleys. During this portion of the workout,
you are confronted with a series of successively steeper hills, each separated from
the next by a valley or recovery period. Check your heart rate at the end of the
interval training period to ensure that you have stayed within your target zone.
lCool-down: The cool-down allows the body to begin removing accumulated
by-products of exercise, such as lactic acid, which build up in muscles during your
workout and contribute to muscle soreness.
The Hill profile diagram shows the effort level and recovery periods encountered during
a Life Fitness 9500HR treadmill Hill program workout. Effort and recovery periods are
simulated on the display console by columns of red lights in the Program Profile window.
Each column represents one interval and 20 intervals comprise the program. The
columns move from right to left during the workout. The higher the column, the higher
the incline. Consequently, you must increase your effort to continue training.
16

HEART RATE CHECK POINTS:
For Fat Burning:
(1) First Heart Rate Check Point — Your heart rate should be between 60%
and 70% of the theoretical maximum heart rate for your age category.
(2) Second Heart Rate Check Point — Your heart rate should be between
70% and 75% of the theoretical maximum heart rate for your age category.
For Cardio:
(1) First Heart Rate Check Point — Your heart rate should be between 75%
and 80% of the theoretical maximum for your age category.
(2) Second Heart Rate Check Point — Your heart rate should be between
80% and 85% of the theoretical maximum for your age category.
17
• 1-9 minutes: Because workouts with durations of fewer than 10 minutes are insufficient
for the Hill program to complete all four phases adequately, the program truncates at
various stages in order to meet the chosen workout time.
• 10-19 minutes: The interval durations are initially set at 30 seconds for a 10-minute
workout. For every additional minute of workout duration, the Hill program lengthens
each interval by three seconds. Thus, a 15-minute Hill workout will feature 20 intervals
of 45 seconds each.
• 20-99 minutes: All intervals last 60 seconds. As minutes are added, additional hills
and valleys are presented beyond the initial four of the interval training phase. The addi-
tional hills and valleys will follow the form of the first four, dropping back down to the level
of the very first hill encountered and progressing in height every two minutes until the
highest hill is reached again. This process repeats until the workout duration is met.
Hill profile diagram

FOR BOTH THE RANDOM AND MANUAL PROGRAMS:
lSelect a program goal by pressing 1 for a goal based on time, 2 for a distance-
based goal or 3 for a goal based on calories, followed by a numeric value for the
chosen goal (1 to 99 minutes, 0.1 to 10.0 miles (.16 to 16.1 kilometers) and 1 to
2,000 calories). Press the START–ENTER key.
lFor the Random program only, key in an incline level from 1 to 12 and press the
START–ENTER key (see the box below).
lFinally, select a striding a belt speed from 1.5 to 10.0 mph (2.4 to 16.1 kph), again
using the keypad and then press the START–ENTER key.
In both the Random and Manual programs, check your heart rate after the first
five minutes of exercise and again every five to 10 minutes thereafter. This
ensures that you are exercising within your target heart rate zone.
HOW TOCHOOSE ANINCLINE LEVEL
In the Hill and Random programs, incline level refers to a range of hill inclines
measured in percentages. The higher the incline level selected (between 1 and
12), the greater the range of hill incline percentages.
Level 1: 0.0% – 4.0% Level 5: 2.0% – 8.0% Level 9: 6.0% – 12.0%
Level 2: 0.0% – 6.0% Level 6: 3.0% – 9.0% Level 10: 7.0% – 13.0%
Level 3: 0.0% – 7.0% Level 7: 4.0% – 10.0% Level 11: 8.0% – 14.0%
Level 4: 1.0% – 7.0% Level 8: 5.0% – 11.0% Level 12: 9.0% – 15.0%
There are seven possible hill incline percentages within the range for any level.
The first hill height is represented by four lights per column in the Program
Profile window, and each successive LED represents a higher hill. For example,
in level 5, the lowest incline percentage for any hill is 2.0% (represented by four
LEDs) and no hill will be higher than an 8.0% incline (all 10 LEDs in the column
will be lit). You may increase or decrease the elevation, but the change will only
last as long as the hill you are currently on. When the program calls for a
change in incline, the elevation will change in accordance with the incline level
you originally selected. You can choose a new incline level at anytime during
either program.
THE RANDOM PROGRAM
The Life Fitness 9500HR treadmill’s on-board computer randomly selects hill and valley
terrain which varies with each and every workout, resulting in more than one million
combinations. An ideal choice for those who like variety in your workout!
18

THE MANUAL PROGRAM
The Manual program gives you complete control over your workout. You determine your
goal, you select the incline percentage you want (if any), and you set a speed that’s
comfortable for you. In the Manual program, you can work out as intensely or as casual-
ly as you wish.
THE FIT TEST PROGRAM
The Life Fitness 9500HR treadmill Fit Test program is another exclusive feature of this
versatile aerobic trainer. Think of it as your relative fitness score. The Fit Test can be
used to monitor improvement in endurance every four to six weeks.
lUse the numeric keys to enter your age from 10 to 99, then press START–ENTER.
lAfter entering your age, input your sex by pressing 1 for male or 2 for female
followed by the START–ENTER button.
lThe message center will prompt you to select one of four speeds: 2, 3, 4 or 4.5
mph (3.2, 4.8, 6.4 or 7.2 kph). Consult the table below for an approximate speed
based on your perceived effort level and key in the appropriate striding belt speed.
(NOTE: If your heart rate is lower than 60% of your theoretical maximum heart rate,
you will be instructed to perform the Fit Test again at a faster belt speed.)
Beginner Intermediate Advanced
2.0 mph / 3.2 kph 3.0, 4.0 mph / 4.8, 6.4 kph 4.5 mph / 7.2 kph
The Fit Test will last five minutes (a one-minute warm-up followed by four minutes of
consistent effort). Speed and incline cannot be changed in the Fit Test; they must be
maintained in order to ensure an accurate Fit Test score computation.
After the Fit Test is complete, you will be instructed to take your 15-second pulse at the
sound of the beep and then enter your pulse using the keypad (if you are wearing a
Zone Trainer chest strap, your pulse is automatically transmitted to the on-board com-
puter; if you are using the Lifepulse sensors, simply grasp them when instructed to). Your
Fit Test score and ranking will appear in the Message Center window. The Fit Test scor-
ing tables on page 21 can be used to determine how you rank with others in your category.
The Fit Test is also an estimate of the your VO2max, which is a measurement of how
well the heart supplies oxygenated blood to the exercising muscles and how efficiently
those muscles receive oxygen from the blood. This measurement is generally regarded
by physicians and exercise physiologists as the standard for aerobic capacity.
Please note that the VO2max values received will be 10% to15% higher than those
19

achieved on a stationary cycle. Stationary cycling offers a specific workout for the
quadriceps muscles which often reach maximum fatigue at a lower level of VO2max
than what a person would reach on a stairclimber or a treadmill.*
The rate of pedaling or stepping is often difficult to control. However, treadmill speed
and incline can be precisely regulated. And unlike cycling or stepping, walking is a
natural, habitual activity. Most people become accustomed to treadmill walking within
two minutes.
Fit Test Tips
The computer will not accept:
lheart rates less than 52 or greater than 200 beats per minute;
lbody weights less than 50 pounds (22 kg) or greater than 300 pounds (136 kg);
lages below 10 years;
ldata input that exceeds human potential.
If you make an error when entering any Fit Test data, you can correct it by
pressing CLEAR, inputting the correct information, and pressing START–ENTER.
It is important for you to take the Fit Test under similar circumstances each time.
Your heart rate is dependent on many factors, including:
lamount of sleep the previous night (at least seven hours is recommended);
ltime of day;
ltime you last ate (two to four hours after the last meal is recommended);
ltime since you last drank a liquid containing caffeine or alcohol, or smoked
a cigarette (at least four hours is recommended);
ltime since you last exercised (at least six hours is recommended).
For the most accurate Fit Test results you should perform the Fit Test on three
consecutive days and average the three scores.
NOTE: To receive a proper Fit Test score, you must be working within your train-
ing heart rate zone, which is 60%-85% of your theoreticalmaximum heart rate.
* Ebbeling, Cara B.; Puleo, Elaine M.; Ward, Ann; Widrick, Jeffrey, and Rippe, James M, “Development Of A Single Stage
Submaximal Treadmill Walking Test”. University Of Massachusetts Medical Center,1991 “Unpublished”.
20
