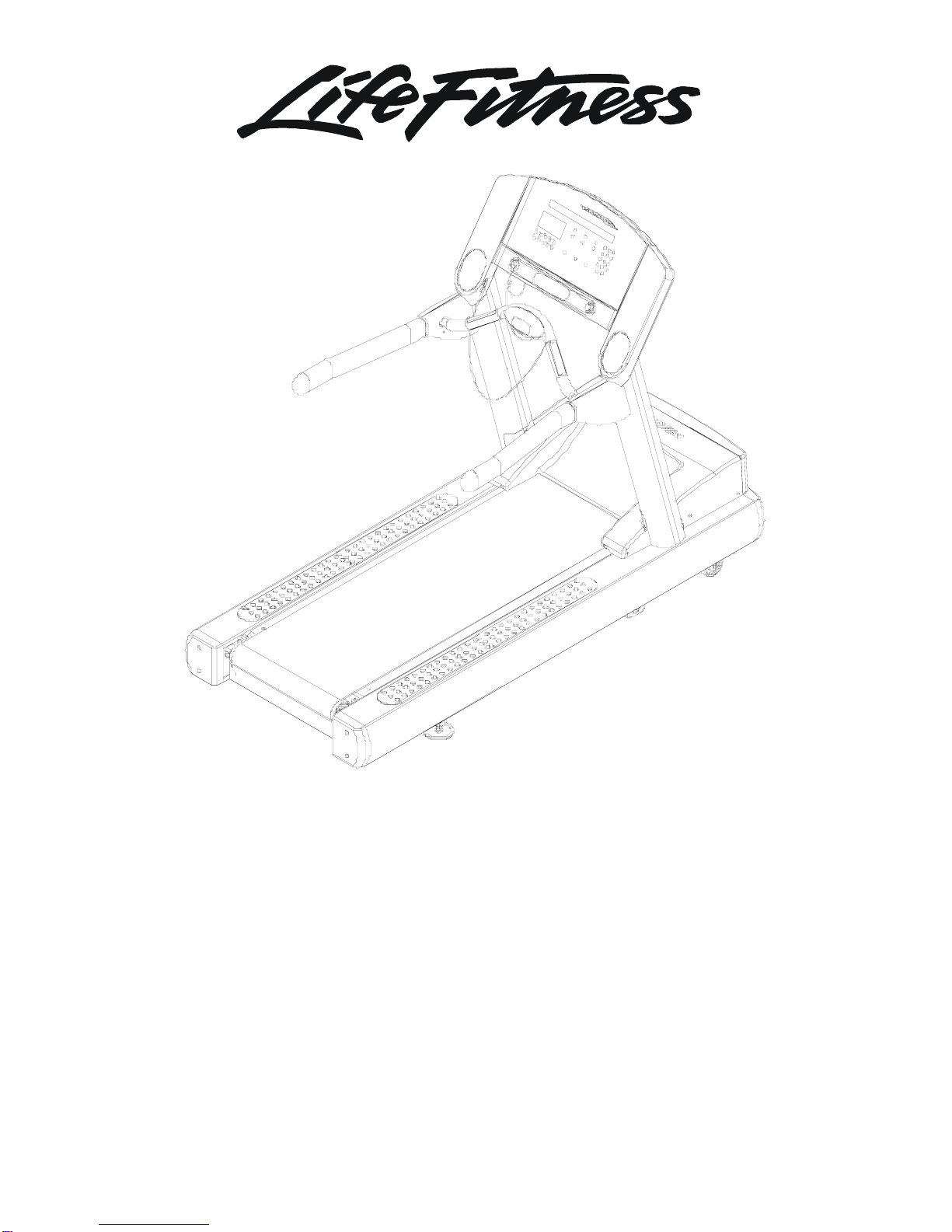

ARCTIC SILVER T9 TREADMILL
Customer Support Services
PARTS MANUALrev 29 May 2008

2
ARCTIC SILVER T9 T9-XXXX-03
CONTENTS S/N TTQ100000 and up
CONSOLE ASSEMBLY & OVERLAY...................................................................................... 5
CONSOLE COMPONENTS ................................................................................................ 6
UPRIGHTS & HANDRAILS................................................................................................ 7
ERGO BAR with Life Pulse.............................................................................................. 8
REAR ENDCAPS, CUP HOLDERS & ANTI-SLIPS PADS ............................................................... 9
MOTOR COVER, FRONT COVER & ENDCAPS......................................................................... 10
ON-OFF SWITCH & GROMMETS ........................................................................................ 11
BELT, DECK & REAR ROLLER........................................................................................... 12
LIFT MOTOR & FRAME - DOMESTIC ................................................................................... 13
LIFT MOTOR & FRAME - INTERNATIONAL............................................................................ 14
LEG LEVELER ASSEMBLY................................................................................................ 15
FRONT ROLLER ASSEMBLY ............................................................................................. 16
DRIVE MOTOR ASSEMBLY ............................................................................................... 17
DSP-CONTROLLER ASSEMBLY.......................................................................................... 18
LINE-CORDS & LINE-CORD OPTIONS .................................................................................. 19
CABLES FOR UNITS BETWEEN 0100 - 0104 ......................................................................... 20

3
ARCTIC SILVER T9 T9-XXXX-03
ASSEMBLIES S/N TTQ100000 and up
ASSEMBLIES
LANGUAGE OPERATION
MANUAL INSTRUCTION ASSEMBLY INSTRUCTION BAG ASSY. SERVICE MANUAL
T9-0100-03 M051-00K60-A061 M051-00K60-A059 AK60-00149-0000 M051-00K58-
A253
T9-0101-03 M051-00K60-A061 M051-00K60-A059 AK60-00149-0004 M051-00K58-
A253
T9-0102-03 M051-00K60-A061 M051-00K60-A059 AK60-00149-0004 M051-00K58-
A253
T9-0104-03 M051-00K60-A061 M051-00K60-A059 AK60-00149-0004 M051-00K58-
A253
NOTE: not all instruction or instruction bag assemblies may be available
AK60-00173-0000 HDWR-BAG ASSY: MFG; T9i
Item Description Qty
0K58-01305-0002 PLUG: UPRIGHT S/C-C 2
0K58-01347-0000 GASKET: ERGOBAR C 2
0017-00009-1049 WRENCH: TORX; T27 B 1
0017-00042-0326 GROMMET: PLASTI; .130/.005 S/C#13-B 2
0017-00042-0840 CLIP: WIRE; PUSH-MTG; 3/4"; S/C#80-B 5
0017-00101-1770 8-15X 8 PHL PAN A SS NO B 6
0017-00101-1772 10-16X 8 PHL PAN B ST ZS B 6
0017-00101-1773 1/4 -20X 8 TRX BUT CS SS NO B 6
0017-00101-1774 5/16-18X40 TRX FLT CS ST ZS B 4
0017-00101-1778 1/2 -13X16 UNS HEX CS G5 ZB B 4
0017-00101-1780 8- X20 PHL TRS AB SS NO B 8
0017-00104-0325 WSH 516-.873-125 SL-D ST ZN B 4
0017-00103-0327 NUT 5/16-18 HEX; JAM D ST ZS B 4
118E-00001-0135 TRANSMITTER: POLAR; T31 C 1
118E-00001-0136 STRAP: POLAR; MEDIUM S/C#2-C 1

4
ARCTIC SILVER T9 T9-XXXX-03
ASSEMBLIES - CONTINUED S/N TTQ100000 and up
GK58-00002-0095 KIT: SERV; ROLLER-GUARDS; 93/95Ti BM
Part Number Description Qty
AK58-00360-0001 GUARD-ASSY: MFG; RT; 3.50 B 1
AK58-00360-0002 GUARD-ASSY: MFG; LT; 3.50 B 1
M051-00K58-B128 INSTR: SERV; ROLLER-GUARDS + 1
0017-00042-0326 GROMMET: PLASTI; .130/.005 S/C#13-B 2
0017-00042-1147 GROMMET: NYLON; SCREW B 2
0017-00101-1776 10-16X 8 PHL PAN B ST ZB B 4
GK58-00002-0071 KIT: SERV; ANTI-SLIP RAIL BM
Part Number Description Qty
Only available in the kit INSTR:TEMPLT; ANTI-SLIP RAIL B 4
Only available in the kit INSTR: KIT; ANTI-SLIP RAIL + 1
0K58-01376-0000 RAIL: ANTI-SLIP;STEALTH-GREY E 2
Only available in the kit PAD: WIPE; ALCOHOL/DRY B
TOUCH UP PAINT:
Part Number Description
0017-00008-0204 PAINT: CAN; SPRAY; ARCTIC SILVER
0017-00008-0205 PAINT: BOTTLE; ARCTIC SILVER ( .5 OZ )
0017-00008-0206 PAINT: PEN; ARCTIC SILVER ( .33 OZ )
INK TRANSFER TOUCH-UP PAINT: SB No. GN05032101N
Part Number Description
0017-00008-0210 PAINT: TOUCH-UP; SHADOW-GRAY; .6 OZ BTL.
0017-00008-0211 PAINT: TOUCH-UP; SHADOW-GRAY; .6 OZ. PEN

5
ARCTIC SILVER T9 T9-XXXX-03
Console Assy. & Overlay S/N TTQ100000 and up
LANGUAGE CONSOLE OVERLAY
T9-0100-03 AK60-00146-0001 0K60-01199-0001
T9-0101-03 AK60-00146-0002 0K60-01199-0001
T9-0102-03 AK60-00146-0002 0K60-01199-0001
T9-0104-03 AK60-00146-0002 0K60-01199-0001

6
ARCTIC SILVER T9 T9-XXXX-03

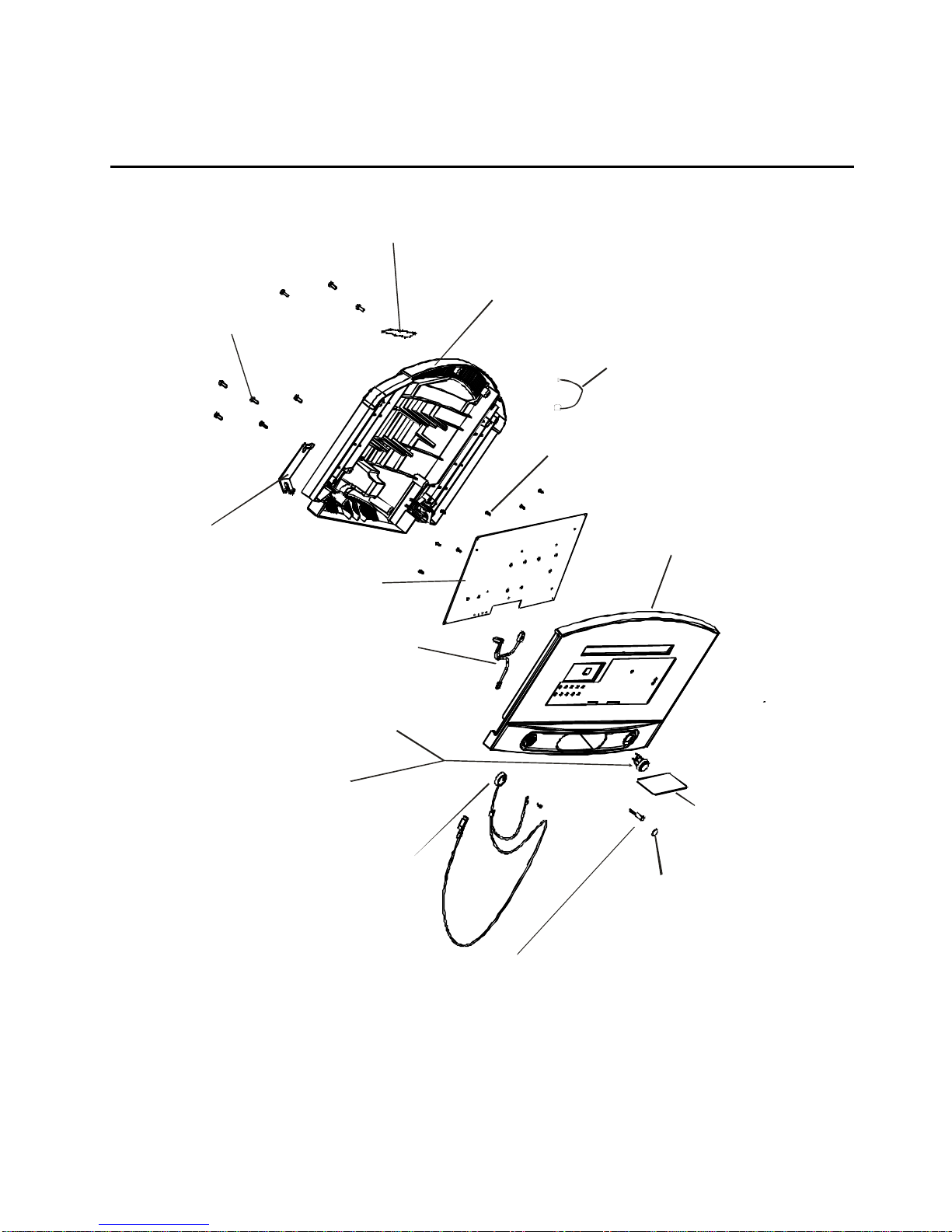

Console Components S/N TTQ100000 and up
( Qty of 8 is needed )
10-32X 8 PHL PAN
1 ST BZ B
0017-00101-1288
DECAL: CONSOLE; REA
R
0K58-01211-0000
CASE: CONSOLE; REAR
0K58-01272-0000
COVER: CONSOLE; ACCESS
0K58-01280-0000
( Qty of 9 is needed )
6-19X 6 PHL PAN PLT G5 ZN B
0017-00101-1275
NC PROG CONS PCBASSY:
PURCH; MULTI; T9i BM
A084-92184-A008
CBL-ASSY: EMERGENCY-STOP
AK58-00036-0001
SWITCH: STOP; ROUND
0K58-01321-0000
SWITCH: MICRO;
GOLD; 150GR
0017-00032-0185 PAD: RUBBER;
CD-TRAY
0K58-01359-0000
DISC: MAGNET
0K40-01070-0000
STOP-SW & TETHER
ASSY: PURCH. D
AK58-00322-0000
BEZEL: CASE; CONSOLE
;
FRONT; STEALTH S/C-E
0K58-01273-0001
POLAR PCB W/HEADER
AK39-00064-0000
CBL-ASSY: POLAR/E-STOP
AK58-00237-0000
TAPE: ADHESIVE
0K39-01044-0000

7
ARCTIC SILVER T9 T9-XXXX-03
Uprights & Handrails S/N TTQ100000 and up
Handrail Hex Nut (4)
0017-00103-0327
Handrail-Assy: Boxe
d
AK58-00256-0000
Top RT Handrail Boot
0K58-01303-0001
Console/Cup Holde
r
Mounting Screw (8)
0017-00101-1780
Bottom RT
Handrail Boot
0K58-01304-0001
Handrail Mounting
Screw (4)
0017-00101-1774
Handrail Boot
Screws (6)
0017-00101-1770
Bottom LT
Handrail Boot
0K58-01304-0002
Console Mounting
Screw (4)
0017-00101-1773
Top LT Handrail Boot
0K58-01303-0002
Handrail Screw (2)
0017-00101-1773
Handrail Tube Cap (2)
0K58-01323-0000
Upright, RT
AK58-00311-0003
Upright, LT
AK58-00311-0004
Upright Tube Cap (2)
0K58-01302-0000 Upright Tube
Cap Screw (2)
0017-00101-1772
Grommet (2)
0017-00042-0326
Upright Plug (2)
0K58-01305-0002 Upright Mounting
Screw - 0017-00101-1778 (6)
Washer - 0017-00104-0325 (6)
Upright, Plug (2)
0K58-01305-0002
Handrail Collar (2)
0K58-01348-0000

8
ARCTIC SILVER T9 T9-XXXX-03
ERGO BAR with Life Pulse - AK60-00147-0000 S/N TTQ100000 and up
Lens Cover
Mounting Screw (2)
0017-00101-0824
Lens Cover Assembly
0K58-01103-0000
Heart Rate Electrode Kit
GK20-00002-0005
Ergo Bar Gasket (2)
0K58-01347-0000
ERGO-BAR OVERMOLD
ASSY: PURCH. D
AK58-00376-0000

9
ARCTIC SILVER T9 T9-XXXX-03

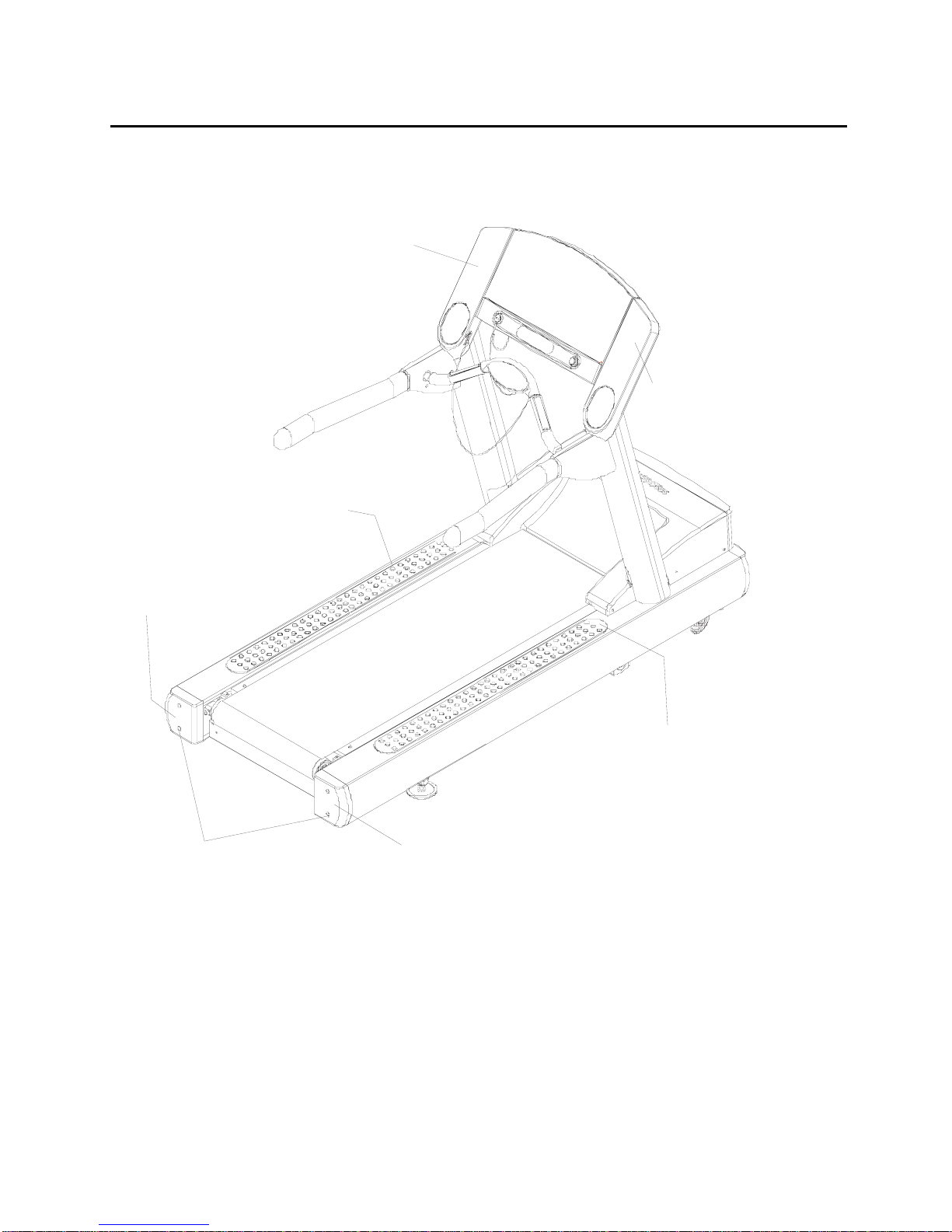

Rear End Caps, Cup Holders & Anti-Slip Pads S/N TTQ100000 and up
CUP-COVER ASSY, LT
AK58-00247-0002
CUP-COVER ASSY, R
T
AK58-00247-0001
Qty needed ( 4 )
10-16X 8 PHL PAN
B ST ZS B
0017-00101-1772
ENDCAP: REAR
0K58-01268-0000
ENDCAP: REAR
0K58-01268-0000
RAIL: ANTI-SLIP;
STEALTH-GREY E
0K58-01376-0000
RAIL: ANTI-SLIP;
STEALTH-GREY E
0K58-01376-0000

10
ARCTIC SILVER T9 T9-XXXX-03
Motor Cover, Front Cover & Front End Caps S/N TTQ100000 and up
10-16X 8 PHL PAN
B ST ZS B ( 4)
0017-00101-1772
GUARD-ASSY:MFG;
RT; 3.50 B
AK58-00360-0001
MOTOR-SHROUD ASSY:
MFG; T9i D
AK60-00163-0000
10-16X 8 PHL PAN
B ST ZB B
0017-00101-1776
GUARD-ASSY: MFG;
LT; 3.50 B
AK58-00360-0002
10-32x10 PHL PAN
MS ST ZS B ( 4)
AK58-00360-0001
FRONT-PANEL
W/MEDALLION ASSY
AK58-00272-0000
MEDALLION-ASSY:
PURCH;LF-BUG B
AK58-00245-0000
ENDCAP: FRONT
0K58-01267-0000
ENDCAP: FRONT
0K58-01267-0000
10-16X 8 PHL PAN
B ST ZS B ( 4)
0017-00101-1772

11
ARCTIC SILVER T9 T9-XXXX-03

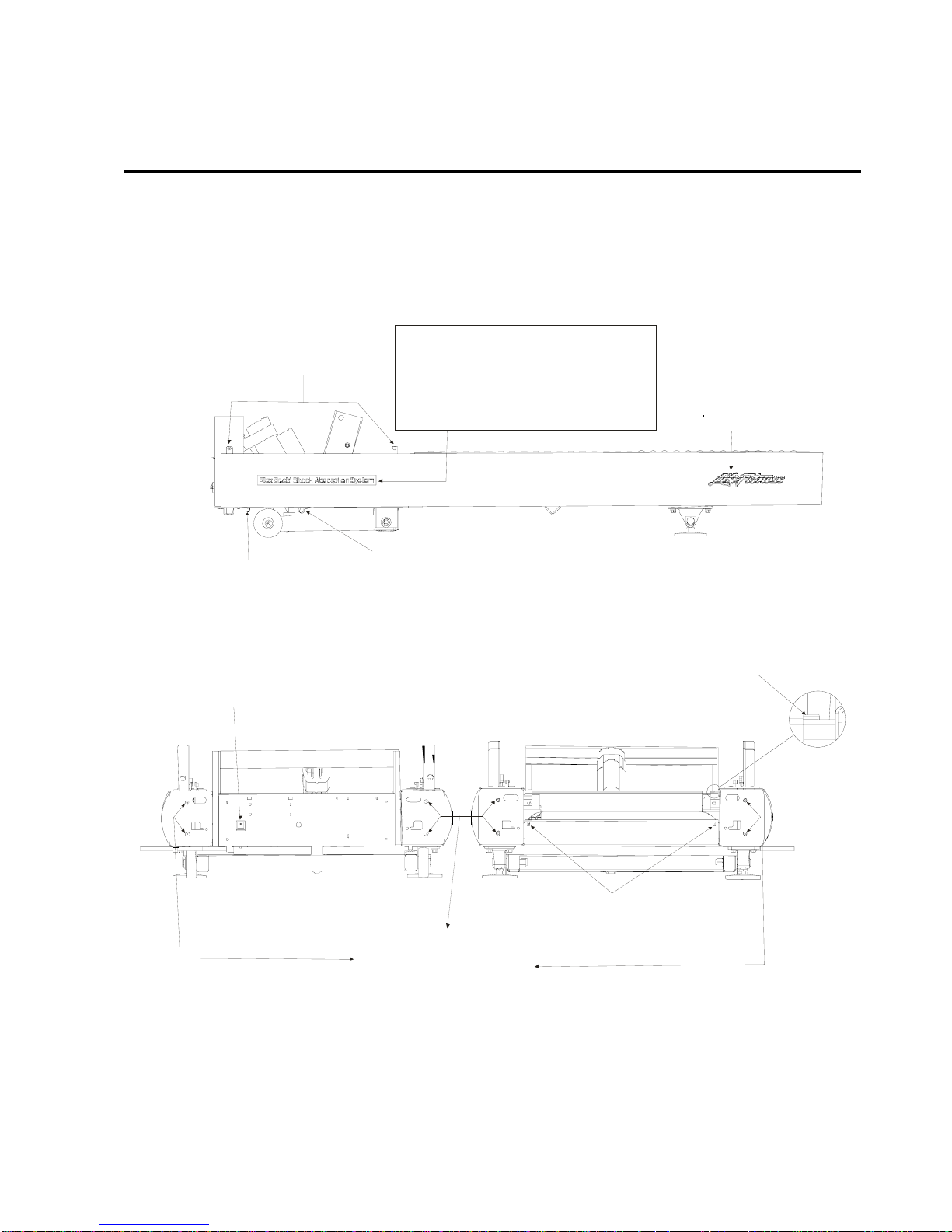

On-Off Switch & Grommets S/N TTQ100000 and up
FRONT VIEW
SWITCH: ROCKER;
22A DPST
0017-00032-0198
BACK VIEW
GROMMET:
NYLON; SCREW ( 2 )
0017-00042-1147
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 8 )
0017-00042-032
6
CLIP: WIRE; PUSH-
MTG; 3/4"; S/C#80-B
0017-00042-0840
CLAMP: WIRE; 5/8"
0017-00042-1072
Ink transfer decal can not
be replaced in the field,
it can only be touched up.
( See SB No. GN05032101N )
DECAL: FRAME; LF-LOGO
0K60-01193-0000
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 2 )
0017-00042-0326
GROMMET: PLASTI; .
130/.005 S/C#13-B ( 4 )
0017-00042-0326

12
ARCTIC SILVER T9 T9-XXXX-03
Belt, Deck, Rear Roller & Drive Belt S/N TTQ100000 and up
DECK: TREADMILL; T9i
0K60-01204-0000
1/4 -20x20 HXS FLT L
CS ST ZB B (4)
0017-00101-1775
SPRING: TECSPAK,
BLACK S/C-B (8)
0K40-01026-0002
LBL: BELT-LIMIT; RT.
M051-00K58-A100
LBL: CAUTION;
HI-VOLT;ENG+FRN B
M051-00K58-A014
BELT: WALKING;
LUBE; W/LOGO C
0K60-1206-0000
LBL: BELT-LIMIT; LT.
M051-00K58-A101
ROLLER: REAR; 3.5"
0K58-01002-0000
Rear Roller Adjusting Bolt ( 2)
3/8 -16X48 HEX SOC L CS ST SS B
NUT 1/4 -20 TINNERMAN
D ST ZN B (4)
0017-00103-0198
1/4 -20X16 HXS BUT
L CS G8 BO B (8)
0017-00101-1652
WSH 255-.562-046
FL-D ST ZN B (8)
0017-00104-0072
Drive Belt:
BELT: POLY-V; 350J12; 35.00" B
0K60-01205-0001
BRUSH: ANTI-STATIC B
0K58-01263-0001
10-32X 6 SLT HXW L TT G5 ZD B
0017-00101-1193

13
ARCTIC SILVER T9 T9-XXXX-03
Lift Motor & Frame - Domestic S/N TTQ100000 and up
Hex Screw (2)
0017-00101-1777
Flat Washer (2)
0017-00104-0259
Bronze Sleeve (2)
0K58-01089-0000
Line Cord Clip
0017-00042-1072
Lift Frame
0K58-01066-0000
Lock Nut
0017-00103-0025
Lift Motor Hex Bolt
0017-00101-1021
Vinyl Cap
0017-00042-1075
Wheel
0K58-01071-0000
Phillips Screw
0017-00101-1621
Washer
0017-00104-0189
Lift Frame End Cap
0017-00042-1076
Limit Switch
0017-00032-0195
Clevis Clip
0017-00007-0208
Clevis Pin
0017-00007-0214
Lift Motor
0K58-01062-0000
Plate-Assy; W/Lincord-DOM
AK60-00177-0000 Line-Cord Plate
0K60-01203-0000
Strain-ReliefBushing
0017-00042-0758
Plate Screws (2)
0017-00101-1723
Lift-Frame
Pivot Cover
0K58-01322-0000
Lift-Frame
Pivot Cover

14
ARCTIC SILVER T9 T9-XXXX-03
Lift Motor & Frame - International S/N TTQ100000 and up
Cotter Pin
0017-00007-0208
Clevis Pin
0017-00007-0214
Lift Motor
0K58-01062-0000
Lock Nut (2)
0017-00103-0285
Hex Screw (2)
0017-00101-1777
Flat Washer (2)
0017-00104-0259
Bronze Sleeve (2)
0K58-01089-0000
Line Cord Clip
0017-00042-0840
Lift Frame
0K58-01066-0000
Lock Nut
0017-00103-0025
Lift Motor Hex Bolt
0017-00101-1021
Vinyl Cap
0017-00042-1075
Wheel (2)
0K58-01071-0000
Phillips Screw (2)
0017-00101-1612
Washer (2)
0017-00104-0189
Lift Frame End Cap (4)
0017-00042-1076
Frame Screw
s
0017-00101-1723
Frame Screws *
0017-00101-1723
Line-Cord Socket Brkt *
0017-01419-0000
Line-Cord Lower Receptacle Brkt
0K58-01420-0000
Frame Screws
0017-00101-1723
IEC Receptacle *
0017-00003-0949
* RECEPTACLE-ASSY:
MFG; RECESS B
AK58-00514-0000
COVER: PIVOT;
LIFT-FRAME (2)
0K58-01322-0000

15
ARCTIC SILVER T9 T9-XXXX-03
Leg Leveler Assembly – AK58-00370-0000 S/N TTQ100000 and up
Bracket Levele
r
0K58-01083-0000
Pivot Pin
0K58-01098-0000
Leveling Foot
0K58-01110-0000
Stop Nut
0K58-01099-0000
Hex Nut (4)
0017-00101-1652
Lock Washer (4)
0017-00104-0333
Flat Washer (4)
0017-00104-0190

16
ARCTIC SILVER T9 T9-XXXX-03

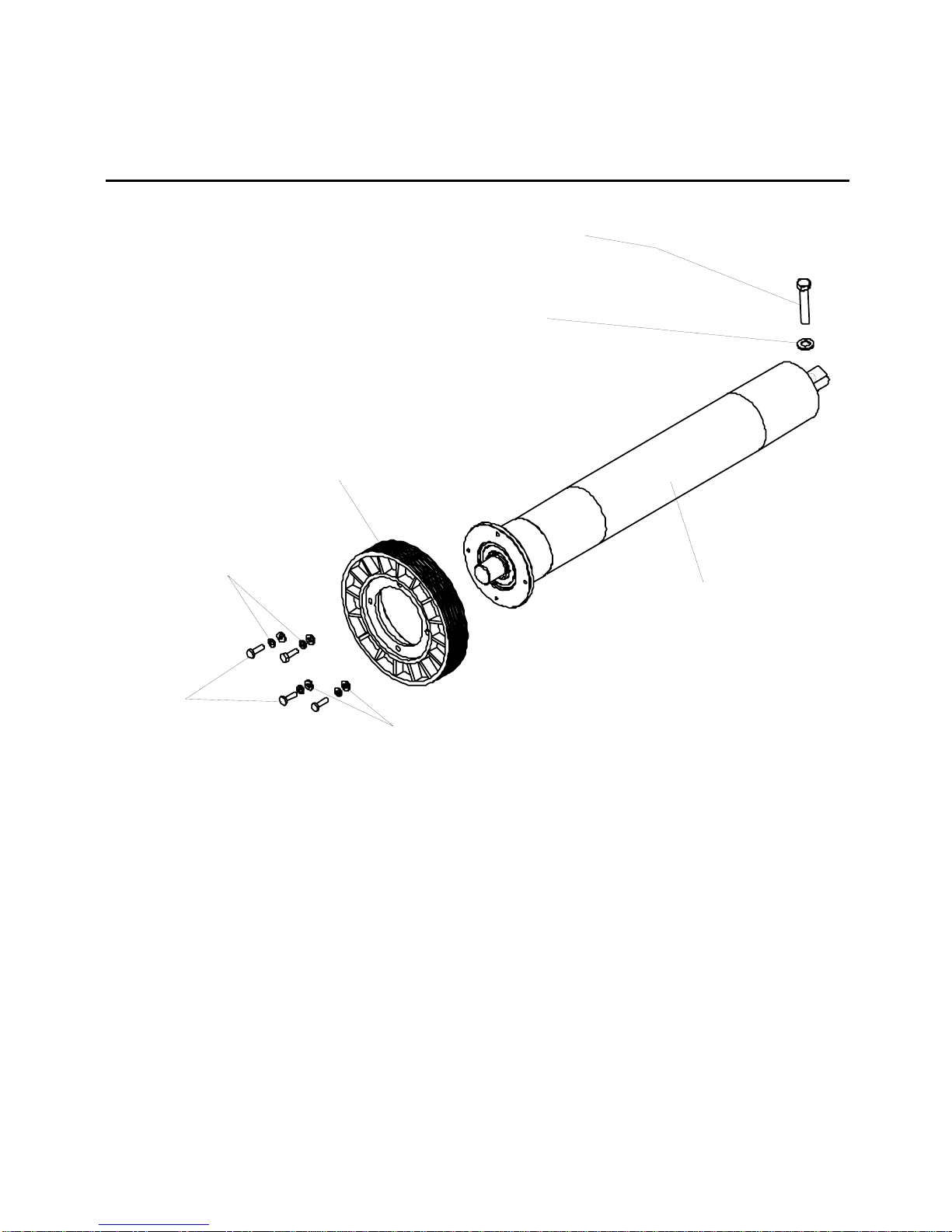

Front Roller Assy.– AK58-00066-0000 S/N TTQ100000 and up
Polley V Pulley 8”
0K58-01105-0000
Hex Bolt
0017-00101-1632 Flat Washer
0017-00104-0330
Lock Washer
0017-00104-0005
Flat Washer
0017-00104-0043
Mounting Bolt
0017-00101-0974
ROLLER: FRONT; 3.5"
0K58-01001-0001

17
ARCTIC SILVER T9 T9-XXXX-03
Drive Motor Assembly S/N TTQ100000 and up
Poly-VPulley
0K58-01057-0001
Locking Nuts (4)
0017-00103-0027
Washers (4)
0017-00104-0409
InsulatingShoulder
Washers (4)
0K58-01255-0000
InsulatingPads (2)
0K58-01256-0001 FLYWHEEL
Setscrews (2)
0017-00101-0333
The key is part of the
drive motor (not
available separately).
Part Nos.
Description S/N TSQ100000—TSS10873 S/N TSQ100874 and up
Drive Motor Assembly AK58-00171-0001
(dual cable) AK60-00168-0001 (tapered shaft)
Cast Iron Flywheel 0K58-01092-0002 0K58-01092-0004
Flywheel Setscrews/Bolt 0017-00101-0975
(uses setscrews) 0017-00101-1885 (uses bolt)
Ref: technical bulletin TR07060101N

18
ARCTIC SILVER T9 T9-XXXX-03
DSP-Controller Assy. S/N TTQ100000 and up
VOLTAGE PART NUMBER PART DESCRIPTION
100-120 GK58-00002-0118 KIT: SERV; MFG; DSP CONTROLLER 100-120; LED
200-240 GK58-00002-0120 KIT: SERV; MFG; DSP CONTROLLER 200-240; LED

19
ARCTIC SILVER T9 T9-XXXX-03
Line-Cords & Line-Cord Options S/N TTQ100000 and up
MODEL # MODEL DESCRIPTION STANDARD LINE-CORDS
T9-0100-03 T9i ENG/ENG 120/60 DOM AK60-00177-0000
PLATE-ASSY W/LINECORD: MFG; DOM.C
T9-0101-03 T9i ENG+MET 230/50 CON 0017-00003-0696
LINE-CORD: R/A; CEE7; 103" 10A 250V D
T9-0102-03 T9i ENG+MET 240/50 UK 0017-00003-0890
LINE-CORD: U.K; R/A
T9-0104-03 T9i ENG+MET 240V+ AUS 0017-00003-0996
LINE-CORD: IEC; AUSTRALIAN; 230/50 C
OPTIONAL LINE-CORDS
0017-00003-0985 LINE-CORD ASSY: NEMA 5-15 120V 12' C 12'
0017-00003-0981 LINE-CORD: R/A; W/PLUG 220/60 7.5'
0017-00003-0948 LINE-CORD: 220V; 15A; 12'

20
ARCTIC SILVER T9 T9-XXXX-03
Cables for Units Between 0100 - 0104 S/N TTQ100000 and up
T9-XXXX-03
PART NUMBER PART DESCRIPTION 0100
120/60
DOM
0101
230/50
CON
0102
240/50
UK
0104
240V+
CON
0017-00003-0626 CIRCUIT-BREAKER: 2A S/C#18-D X X
0017-00003-0671 CLIP: MTG; CIRCUIT-BREAKER B X X
0017-00003-0898 FILTER: LINE; 10-AMP 4-SHT C X X X
AK26-00346-0002 CBL-ASSY: JMPR;OUTLET/SW/BLK S/C-B X X X X
AK26-00347-0002 CBL-ASSY: JMPR;OUTLET/SW/WHT S/C-B X X X X
AK58-00027-0000 CBL-ASSY: ZERO-SWITCH C X X X X
AK58-00034-0001 CBL-ASSY: CONSOLE; PWR; UPR C X X X X
AK58-00036-0000 CBL-ASSY: EMERGENCY-STOP C X X X X
AK58-00041-0001 CBL-ASSY: H/R SENSORS C X X X X
AK58-00081-0000 CBL-ASSY: JUMPER; BLK; 4" B X X X
AK58-00082-0000 CBL-ASSY: JUMPER; WHT; 6" B X X X
AK58-00083-0000 CBL-ASSY: JUMPER; GR/YL; 5" B X X X
AK58-00210-0000 XFRMR-BRKT ASSY: MFG. C X X X
AK58-00224-0001 CBL-ASSY: MOV; FILTER C X X X X
AK58-00237-0000 CBL-ASSY: POLAR/E-STOP C X X X X
AK58-00263-0000 CBL-ASSY: HI-POT JUMPER B X X X X
AK58-00522-0000 CBL-ASSY: JUMPER; POWER; LED-CONS B X X X X
AK60-00180-0000 CBL-ASSY: POWER; T9; 120V C X
AK60-00181-0000 CBL-ASSY: POWER; T9; 31" 200-240V S/C-C X X X
