Platinum Club Series Treadmills
Assembly Instructions

Congratulations...
and welcome to the world of
The following Parts Identification Listing and the step by step assembly procedures
have been assembled to make the set-up of this treadmill as quick and easy as possi-
ble.
Please take special note of the following important points prior to choosing a location
and beginning assembly of the treadmill…
IMPORTANT SAFETY INSTRUCTIONS !
YDO NOT position the rear of the treadmill within 6.5 feet ( 2 meters ) of the nearest obstruction.
It is recommended that the sides of the treadmill should maintain a minimum clearance of 19.7
inches ( .5 m ) from the nearest treadmill or other obstruction.
YDO NOT locate the treadmill outdoors, near swimming pools, or in areas of high humidity.
YDO verify the contents of the delivery carton against the accompanying parts listing prior to set-
ting the cartons and shipping material aside. If any parts are missing, contact Life Fitness
Customer Support Services at the number listed on the back page of this assembly instruction
booklet.
Save the shipping cartons in case of return.
YDO read the entire Operation Manual prior to attempting to operate this machine, as this is
essential for proper use. The Manual explains how to properly use the treadmill and helps you
to train your staff effectively.
YNE placez PAS l'arrière du tapis roulant dans un rayon de 2 m (6 pi) de l'obstruction la plus
proche. Les côtés de l'appareil ne doivent pas se trouver à moins de 20 cm (19.7 po) du tapis
roulant voisin ou de toute autre obstruction.
YNE placez PAS le tapis roulant à l'extérieur, près d'une piscine ou dans des endroits très
humides.
YVÉRIFIEZ si l'emballage contient toutes les pièces de la liste jointe avant de le mettre de côté.
Si des pièces sont absentes, contactez l'assistance clientèle de Life Fitness au numéro indiqué
au dos de cette brochure d'instruction de montage..
YVÉRIFIEZ si l'emballage contient toutes les pièces de la liste jointe avant de le mettre de côté.
Si des pièces sont absentes, contactez l'assistance clientèle de Life Fitness au numéro indiqué
au dos de cette brochure d'instruction de montage.

TOOLS REQUIRED FOR ASSEMBLY...
#2 Phillips screwdriver, 4mm Allen Head Driver (T-Bar recommended), 8mm Allen Head Driver
PARTS DESCRIPTION
1UPRIGHT Qty: 1 2M12 x 1.75 HEX BUTTON HEAD SCREW Qty: 16
0017-00101-1984
3M12.5 WASHER Qty: 16 4UPRIGHT Qty: 1
0017-00104-0489
5CONSOLE BRIDGE Qty: 1 6CONSOLE BRACKET Qty: 1
7M6 x 14 BUTTON HEAD SCREW Qty: 68 8M6.5 WASHER Qty: 19
0017-00101-1953 0017-00104-0488
9LEFT HANDRAIL Qty: 1 10 RIGHT HANDRAIL Qty: 1
11 RIGHT END GASKET Qty: 1 12 LEFT END GASKET Qty: 1
13 ERGO CROSSBAR Qty: 1 14 M6 x 35 BUTTON HEAD SCREW Qty: 6
0017-00101-1954
15 MASTER WIRE HARNESS Qty: 1 16 TOP COVER Qty: 1
17 RIGHT OUTER HANDRAIL COVER Qty: 1 18 LEFT OUTER HANDRAIL COVER Qty: 1
19 RIGHT INNER HANDRAIL COVER Qty: 1 20 LEFT INNER HANDRAIL COVER Qty: 1
21 BOTTOM COVER Qty: 1 22 FRONT NECK SHROUD Qty: 1
23 ACTIVITY ZONE ASSEMBLY Qty: 1 24 DISPLAY CONSOLE Qty: 1
25 M5 x 14 PHILLIPS PAN HEAD SCREW Qty: 4 26 LCD ACCESS COVER Qty: 1
0017-00101-1972
27 REAR CONSOLE COVER Qty: 1 28 RIGHT REAR ENDCAP Qty: 1
29 LEFT REAR ENDCAP Qty: 1 30 #10 x 8 PHILLIPS PAN HEAD SCREW Qty: 8
0017-00101-1776
31 LEFT SIDE EXTRUSION Qty: 1 32 FOAM STRIP Qty: 2
33 RIGHT SIDE EXTRUSION Qty: 1 34 LEFT UPRIGHT COVER Qty: 1
35 RIGHT UPRIGHT COVER Qty: 1 36 #8 x 12 PHILLIPS PAN HEAD SCREW Qty: 2
0017-00101-1769
37 RUBBER GROMMET Qty: 10 38 CUP HOLDER Qty: 2
39 M6 x 20 BUTTON HEAD SCREW Qty: 7 40 CABLE TIE Qty: 10
0017-00101-1902

IMPORTANT!
DO NOT DISCARD THE SHIP KIT LOCATED ON TOP OF THE DECK AND BELT. ALL NECESSARY COMPONENTS
NEEDED TO COMPLETE THE INSTALLATION ARE LOCATED IN THE SHIP KIT.
NE JETEZ PAS LE KIT D'EXPÉDITION PLACÉ SUR LE DESSUS DU PLATEAU ET SUR LE TAPIS. IL CONTIENT TOUS
LES ÉLÉMENTS NÉCESSAIRES POUR L'INSTALLATION.
IMPORTANT!
CHECK THE BELT EDGE UNDER THE TREADMILL TO VERIFY THE BELT DOES NOT INTERFERE WITH LIFE-
SPRING BRACKETS AND THE BELT IS PROPERLY SET WITHIN THE BELT GUIDES.
1. Remove the six SCREWS (A) securing the MOTOR COVER (B).
Lift and remove the MOTOR COVER and set it and the
SCREWS aside.
2. Locate the LEFT UPRIGHT (1). With the notched end facing
upward and closest to the treadmill, lay the LEFT UPRIGHT near
the LEFT UPRIGHT MOUNTING BRACKET (C) as shown.
3. Feed the CONSOLE CABLE (D) through the front channel
(toward motor compartment) of the LEFT UPRIGHT (1).
Feed the ENTERTAINMENT POWER CABLE (E) through the
center channel of the LEFT UPRIGHT (1).
Tilt the LEFT UPRIGHT upward and carefully insert it onto the
LEFT UPRIGHT MOUNTING BRACKET. Secure the LEFT
UPRIGHT using three BOLTS (2) and WASHERS (3). Leave the
BOLTS loose at this time.
NOTE: BE CAREFUL NOT TO PINCH THE
CABLES WHEN INSERTING THE LEFT
UPRIGHT ONTO THE LEFT UPRIGHT
MOUNTING BRACKET.
4. Locate the RIGHT UPRIGHT (4). With the
notched end facing upward and closest to the
treadmill, lay the RIGHT UPRIGHT near the RIGHT
UPRIGHT MOUNTING BRACKET (F) as shown.
5. Feed the C-SAFE (G) and COAXIAL CABLES (H) through the
front channel (toward motor compartment) of the RIGHT
UPRIGHT (4).
Tilt the RIGHT UPRIGHT upward and carefully insert it onto the
RIGHT UPRIGHT MOUNTING BRACKET. Secure the RIGHT
UPRIGHT using three BOLTS (2) and WASHERS (3). Leave the
BOLTS loose at this time.
NOTE: BE CAREFUL NOT TO PINCH THE CABLES WHEN
INSERTING THE RIGHT UPRIGHT ONTO THE RIGHT
UPRIGHT MOUNTING BRACKET.
6. Carefully insert the CONSOLE BRIDGE (5) into the top of
the RIGHT and LEFT UPRIGHTS (1 & 4). Secure the CON-
SOLE BRIDGE using six BOLTS (2) and WASHERS (3).
Leave the BOLTS loose at this time.
NOTE: BE SURE THE HANDRAIL BRACKETS (J) OF THE
CONSOLE BRIDGE EXTEND TOWARD THE REAR OF THE
TREADMILL.
NOTE: BE CAREFUL NOT TO DAMAGE ANY CABLES WHEN
INSTALLING THE CONSOLE BRIDGE. LEAVE CABLES
LOOSE AT THIS TIME.
7. Attach the CONSOLE BRACKET (6) to the CONSOLE
BRIDGE (5) as shown using eight SCREWS (7) and WASH-
ERS (8). Start all eight screws but leave them loose at this
time.
Standing on the treadmill, pull the top of the CONSOLE
BRACKET toward the user pushing the front edge downward.
Tighten the four front SCREWS securely. Tighten the remaining
four back SCREWS securely.

8. Locate the LEFT HANDRAIL (9). With the plastic trim facing
upward, slide the LEFT HANDRAIL into the LEFT HANDRAIL
BRACKET (J) located on the CONSOLE BRIDGE (5). Secure
the LEFT HANDRAIL using two BOLTS (2) and WASHERS
(3) from the side as shown. Leave the BOLTS loose at this
time.
Repeat to install the RIGHT HANDRAIL (10).
9. Install the RIGHT and LEFT END GASKETS (11
& 12) onto the ERGO CROSSBAR (13).
The GASKETS are marked with an “L”
(left) or “R” (right) as well as an arrow indi-
cating the “UP” position.
10. Install the ERGO CROSSBAR (13) to the
HANDRAILS (9 & 10) and CONSOLE BRIDGE (6)
using four SCREWS (14), three SCREWS (39) and
seven WASHERS (10). Do not overtighten the SCREWS.
NOTE: ROUTE THE HEART RATE CABLES (L)
UNDER THE MOUNTING TABS AS SHOWN.
BE CAREFUL NOT TO DAMAGE THE
HEART RATE CABLES.
11. Secure the tops of the HANDRAILS (9 &
10) using two SCREWS (39) and WASH-
ERS (8) at each HANDRAIL. Tighten the
SCREWS securely.
12. Tighten all previously installed six UPRIGHT
(2), six BRIDGE (2) and seven ERGO CROSS-
BAR SCREWS (39 & 14) securely.
@@NOTE: PUSH DOWN ON THE FAR ENDS OF THE
HANDRAILS TO VERIFY ALL SCREWS ARE LOCKED IN
PLACE.
13. From under the CONSOLE BRIDGE (5), install the MAS-
TER WIRE HARNESS (15) to the CONSOLE (D)
and HEART RATE (L) CABLES. WIRE-TIE (M)
the cables to the CONSOLE BRIDGE as
shown.
Feed the combined connector upward to the
back of the CONSOLE BRACKET (6).
Attach the FERRITE (W) to the inside of the
user left CONSOLE BRACKET POST (X).
Carefully secure the MASTER WIRE HARNESS to
the CONSOLE BRACKET using CABLE TIES (40)
14. Connect the C-SAFE EXTENSION CABLE (Y) to the
C-SAFE SPLITTER (Z).
15. Slide the TOP COVER (16) over the CONSOLE
BRACKET (6) and onto the CONSOLE BRIDGE (5).
Secure it using six SCREWS (7). Tighten the
SCREWS securely.
NOTE: BE SURE THE TOP COVER FULLY SEATS
INTO THE ERGO CROSSBAR GASKETS.
16. Locate the RIGHT OUTER HANDRAIL COVER (17).
Align it onto the RIGHT HANDRAIL (10) as shown and secure
using six SCREWS (7). Tighten the SCREWS securely.
NOTE: ONE SCREW IS LOCATED AT THE FRONT OF THE
UNIT.
Repeat for the LEFT OUTER HANDRAIL COVER (18).
17. Locate the RIGHT INNER HANDRAIL COVER (19). Align it
onto the RIGHT HANDRAIL (10) as shown and secure
using five SCREWS (7). Tighten the SCREWS securely.
NOTE: BE SURE TO ENGAGE THE TOP TABS UNDER
THE PLASTIC RAIL OF THE RIGHT HANDRAIL.
Repeat for the LEFT INNER HANDRAIL COVER (20).
10
23
9
13
8
14 8 39
14
8
39
8
J
5
11
12
D
X
HM E
5
L W
15Z
6
YG
L
13
N

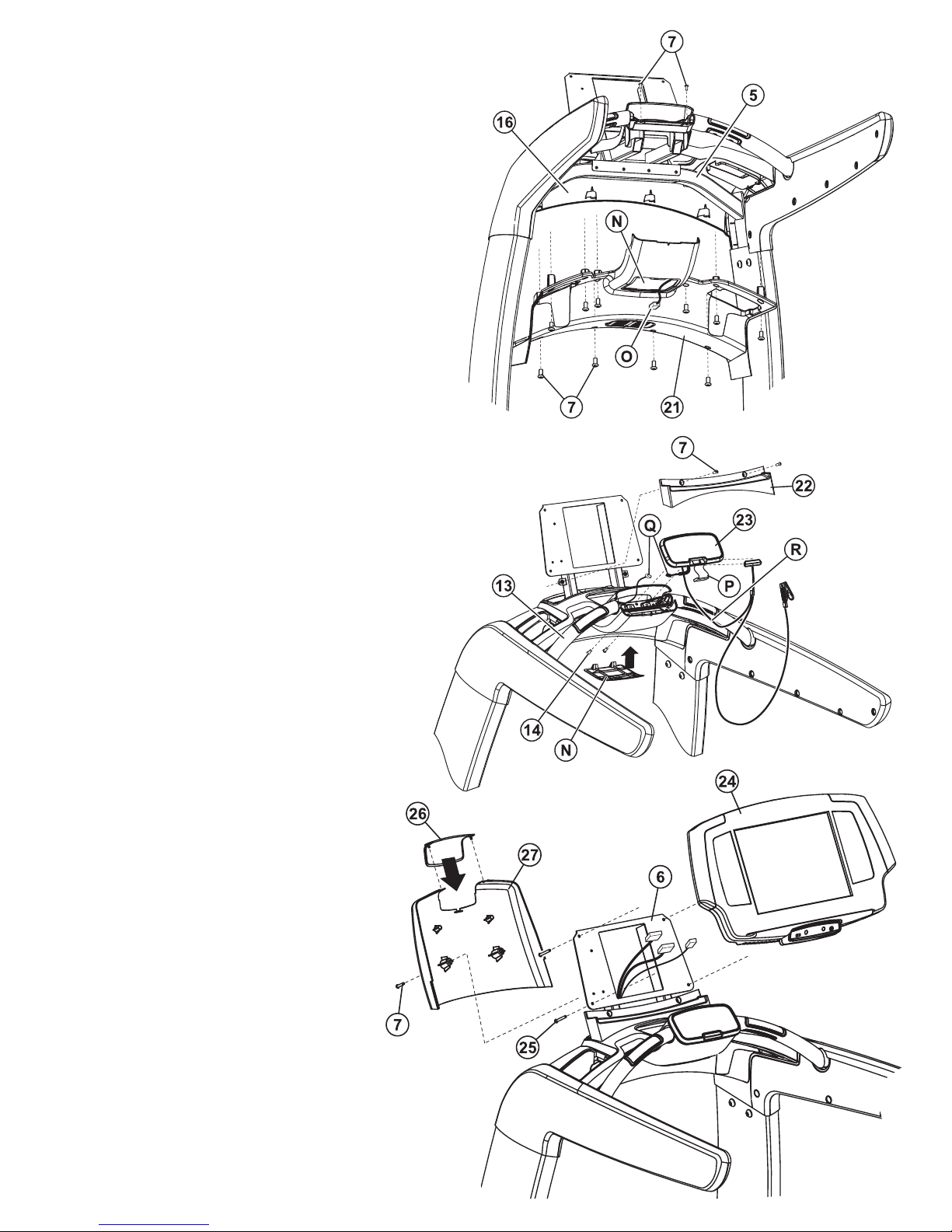

18. Locate the BOTTOM COVER (21). Remove the ACCESS
DOOR (N) and set it aside. Drop the POLAR CABLE (O)
through the opening. Install the BOTTOM COVER to the
CONSOLE BRIDGE (5) using twelve SCREWS (7).
Connect the POLAR CABLE to the connector located
under the CONSOLE BRIDGE. Tighten the SCREWS
securely.
NOTE: BE SURE THE BOTTOM COVER FULLY
SEATS INTO THE ERGO CROSSBAR GASKETS.
NOTE: BE SURE THE BOTTOM COVER IS FULLY
SEATED TO THE TOP COVER AND ARMS.
19. Attach the FRONT NECK SHROUD (22) using two
SCREWS (7). Tighten the SCREWS securely.
20. Position the ACTIVITY ZONE ASSEMBLY (23) near
the ERGO CROSSBAR (13) as shown. Connect the
ACTIVITY ZONE FLAT RIBBON CABLE (P) and
EMERGENCY STOP CABLE (Q). Place the ACTIVITY
ZONE ASSEMBLY over the TOP and BOTTOM COV-
ERS (16 & 21) and secure using two SCREWS (14) through
the access door in the BOTTOM COVER. Tighten the
SCREWS until the ACTIVITY ZONE ASSEMBLY is tight
against the TOP and BOTTOM COVERS. Do not overtighten
the SCREWS.
NOTE: BE SURE TO ROUTE THE FLAT RIBBON CABLE (R)
OVER THE ERGO CROSSBAR (13).
NOTE: BE SURE TO ROUTE THE EMERGENCY STOP
CABLE (R) THROUGH THE NOTCH IN THE BOTTOM
COVER.
21. Replace the BOTTOM COVER ACCESS DOOR (N).
22. Position the CONSOLE (24) near the CONSOLE
BRACKET (6). Connect all cables. Secure the
CONSOLE to the CONSOLE BRACKET using
four SCREWS (25) (found in separate bag).
Tighten the SCREWS securely. Do not over-
tighten the SCREWS.
NOTE: BE CAREFUL NOT TO DAMAGE
THE CABLES WHEN INSTALLING THE
CONSOLE.
23. If not already in place, install the LCD
ACCESS COVER (26) to the REAR CON-
SOLE COVER (27).
Install the REAR CONSOLE COVER to the
CONSOLE BRACKET (6) using two
SCREWS (7). Tighten the SCREWS
securely. Do not overtighten the
SCREWS.
24. Install the REAR ENDCAPS (28 & 29)
using two SCREWS (30) each.Tighten the
SCREWS securely. Do not overtighten the
SCREWS.
25. Locate the LEFT SIDE EXTRUSION (31). Remove the
liners from the four HOOK AND LOOP FASTENERS (S)
exposing the adhesive.

26. Remove the protective backing from the four HOOK AND LOOP FASTENERS (S) located on the back of the LEFT
SIDE EXTRUSION (31). Align the LEFT SIDE EXTRUSION with the channel in the LEFT SIDERAIL (T) and REAR
ENDCAP (29) as shown. Tilt and engage the LEFT SIDE EXTRUSION to the LEFT SIDERAIL. Press firmly on the
underside of the LEFT SIDE EXTRUSION to secure the HOOK AND LOOP FASTENERS to the frame.
Install one FOAM STRIP (32) between the SIDE RAIL and LEFT SIDE EXTRUSION.
Repeat to install the RIGHT SIDE EXTRUSION (33) to the RIGHT SIDERAIL (U).
NOTE: BE SURE THE TREADMILL IS IN THE FINAL LOCATION FOR USE BEFORE INSTALLING THE LEFT
AND RIGHT EXTRUSIONS.
27. Install the LEFT (34) and RIGHT (35) UPRIGHT COVERS using two SCREWS (30) and one SCREWS (36) each.
Tighten the SCREWS securely. Do not overtighten the SCREWS.
Press inward on the UPRIGHT COVER and engage the pre-installed SCREW (V) located at the rear of each
UPRIGHT COVER.
28. Reinstall the MOTOR COVER (B) using the six previously removed SCREWS (A). Tighten the SCREWS securely.
Do not overtighten the SCREWS.
29. Install the GROMMETS (37) into the screw holes of the INNER HANDRAIL COVERS.
30. Install the CUP HOLDERS (38).
NOTE: BE SURE THE TABS ENGAGE FIRST AND TILT INTO PLACE.
31 The treadmill striding belt must be “walked-in” for five minutes after assembly is complete.
Plug the treadmill into an appropriate outlet. Turn the treadmill on at the on/off switch. Select QUICK START from
the console. Increase the speed to 3 mph (4.8 km/h). Start walking in the front left corner of the walking surface
and drift to the back, move to the center of the deck and walk towards the front, and finally walking to the right
corner and drifting to the back. Continue pattern for five minutes.
32. Refer to the Operation Manual for power requirements, proper line cord routing, and other critical product informa-
tion before connecting the treadmill to a power source. A digital version of the Operation Manual can be found on
the attached CD.
35
28
29
31
B
U
4
1
30
30
36
34
30
32
V
S
A
T
30

IMPORTANT!
CHECK THE BELT EDGE UNDER THE TREADMILL TO VERIFY THE BELT DOES NOT INTERFERE WITH LIFE-
SPRING BRACKETS AND THE BELT IS PROPERLY SET WITHIN THE BELT GUIDES.
Physical Dimensions:
Length 80 inches / 203 centimeters
Width 37 inches / 94 centimeters
Height 62.25 inches / 158 centimeters
Weight Platinum Club Series 7”: 450 pounds / 204 kilograms
Platinum Club Series 15”: 455 pounds / 206 kilograms
Step-up Height: 9.5 inches / 24 centimeters
PRE-OPERATION CHECKLIST (A digital version of the Operation Manual can be found on the attached CD.)
Ensure that all fasteners are tight.
Make sure the STRIDING BELT is properly tensioned and aligned according to the Operation Manual.
Check the operation of the STOP switch and tether switch assembly.
(See Operation Manual.)
Confirm the display console is set to English or Metric units.
(See Optional Settings ENG/MET in Operation Manual.)
Refer to the Operation Manual for real time clock setting.
Read the entire Operation Manual before using the treadmill.
LISTE DES VÉRIFICATIONS À EFFECTUER AVANT LA MISE EN MARCHE
(Une version électronique du Manuel de l'utilisateur peut être trouvée sur le CD)
Vérifiez si tous les dispositifs de fixation sont serrés.
Assurez-vous que le TAPIS est bien tendu et aligné, conformément aux instructions du manuel d'utilisation.
Vérifiez le fonctionnement de l'interrupteur d'ARRÊT et reliez-le
(cf. Manuel de l'utilisateur).
Vérifiez si la console d'affichage est sur le système métrique ou anglais.
(Référez-vous aux réglages facultatifs relatifs aux systèmes de mesure dans le Manuel de l'utilisateur.)
Consultez le Manuel de l'utilisateur pour le réglage de l'horloge en temps réel.
Lisez le Manuel de l'utilisateur dans son intégralité avant d'utiliser le tapis roulant.
Before attempting to operate your Treadmill, it is imperative that you familiarize yourself with the contents of the
Operation Manual. If your Life Fitness treadmill does not respond as described in the OPERATION MANUAL contact the
nearest Life Fitness Service Center as listed in the OPERATION MANUAL.
Life Fitness Customer Support Services
[phone] or [phone]
Prior to your call, please be sure you have located and noted the
MODEL NUMBER & SERIAL NUMBER.
The Model and Serial number are located behind the left end cap of the unit.
©2007 Life Fitness, a division of Brunswick Corporation. All rights reserved.
Life Fitness is a trademarks of Brunswick Corporation.
Polar is a registered trademark of Polar Electro, Inc. M051-00K65-A020 09.07
