Life Span Delta 2.0 User manual

Delta 2.0 Cross Trainer
with 3 Level Incline
USER MANUAL
Product may vary slightly from the item pictured due to model upgrades.
Read all instructions carefully before using this product.
Retain this owner’s manual for future reference.
NOTE:
This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary
from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available
through our website at www.lifespanfitness.com.au

2
TABLE OF
CONTENTS
I. Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03
II. Care Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04
III. Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
IV. Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07
V. Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
VI. Adjustments Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
VII. Operation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
VIII. Exercise Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
IX. Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
X. Hand Pulse Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
| TABLE OF CONTENTS

3IMPORTANT SAFETY INSTRUCTIONS |
I. IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all instructions before using this machine.
It is important your machine receives regular maintenance to prolong its useful life. Failing to
regularly maintain your machine may void your warranty.
Please keep this manual with you at all times.
•It is important to read this entire manual before assembling and using the equipment. Safe and
effective use can only be achieved if the equipment is assembled, maintained, and used properly.
PLEASE NOTE: It is your responsibility to ensure that all users of the equipment are informed of all
warnings and precautions.
•Before starting any exercise program, you should consult your doctor to determine if you have any
medical or physical conditions that could put your health and safety at risk, or prevent you from
using the equipment properly. Your doctor’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
•Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, and extreme shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you
do experience any of these symptoms, you should consult your doctor before continuing with your
exercise program.
•Keep children and pets away from the equipment. This equipment is designed for adult use only.
•Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet.
To ensure safety, the equipment should have at least 2 meters of free space around it.
•Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any
unusual noises coming from the equipment during use and assembly, stop immediately. Do not use
the equipment until the problem has been rectified.
•Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught
vin the equipment or that may restrict or prevent movement.
•This equipment is designed for indoor and family use only.
•Care must be taken when lifting or moving the equipment so as not to injure your back.

4
•Always keep this instruction manual and assembly tools at hand for reference.
•The equipment is not suitable for therapeutic use.
•The pulse or heart rate sensors are not medical devices. Various factors, including the user’s
movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as
exercise aids in determining heart rate trends in general.
| CARE INSTRUCTIONS
II. CARE INSTRUCTIONS
a. Lubricate moving joints with grease after periods of usage.
b. Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
c. The machine can be kept clean by wiping it down using dry cloth.
d. All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other
moving parts. Failure to do so may cause damage to your thread and void your warranty.

5EXPLODED DIAGRAM |

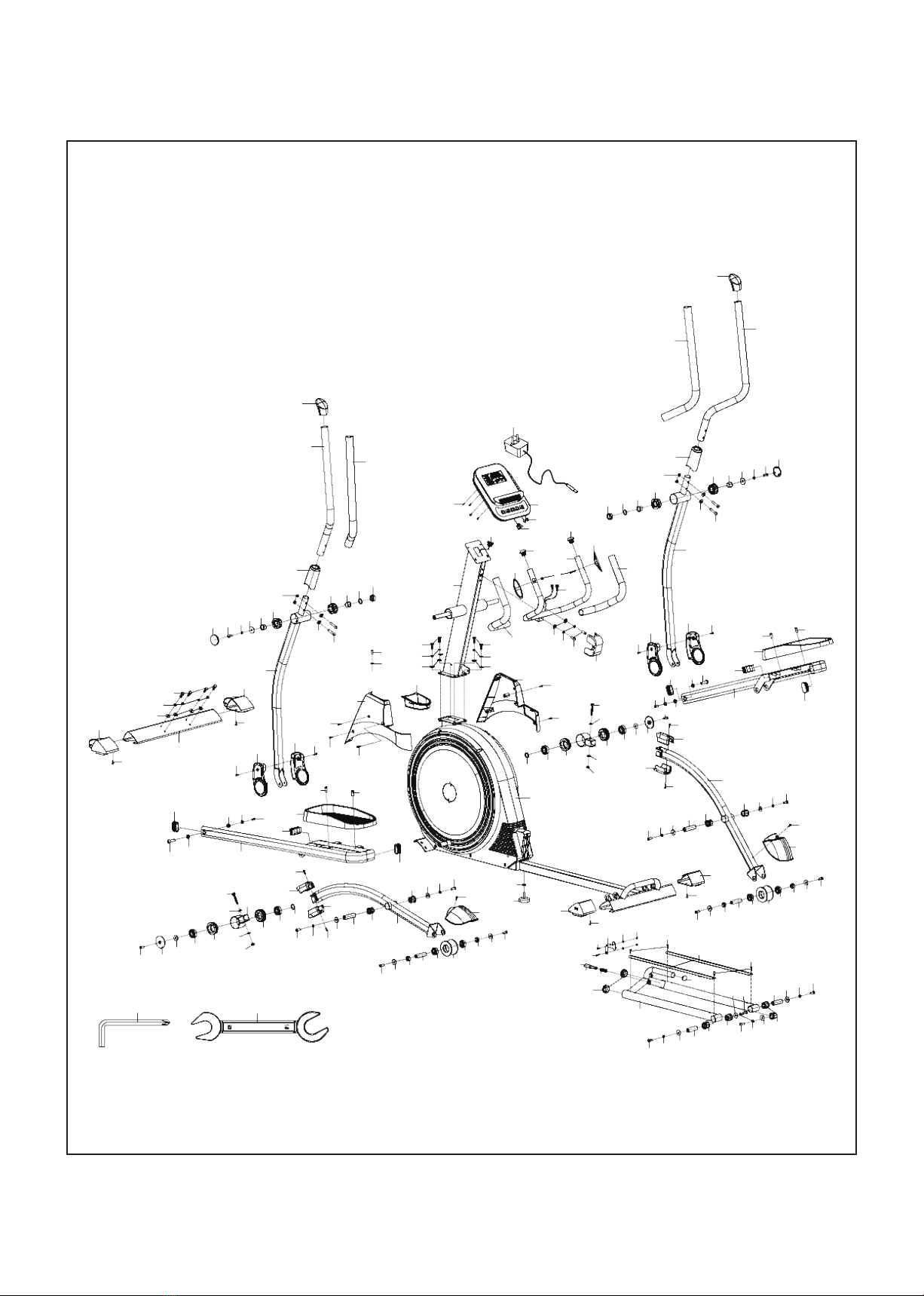

III. EXPLODED DIAGRAM
21
23
22R
24
26
32
31
30
29
32 31 33 11 1234
27
28
25R
35
36L 36R 35
4241
37 4039 43
44
12 12
38R 37
1240
18
51
51
18 54R
12 11 46 52 53
53 46 11 12
18
59
61R
62
1246 5556 57 5857 55 46 12
35
35
71
65 46 12
12 11 46 75 53 53 12 1146 53
75 46 11 12
64
66
67
68
69
70 72 73 74
62
61L
77
76
18
59
12 46 5556 57 585755 46 12
12
11
46
53
37
54L
53
52
46
18
11
12
30
47
48
26
10
10
49 50
48
47
46
45
12
51
51
18
38L
A B
S5 S13 - S15
40
39
37 40 41 42
43
44
12 12
35
36L
36R 35
19 19
18
16L
62
62
118L
118R
60
10
11
63
25L
34 12 11333132
26
24
32 31 30 29
27
28 42
41
17
10
11
15
14
21
22L
23
20
30 47 48
26
10
48 474645
10
49
19
18
16R
10
11
15 510 11 12
13
9
5
6
4
7
8
8
78
1a
1b
1
3
2

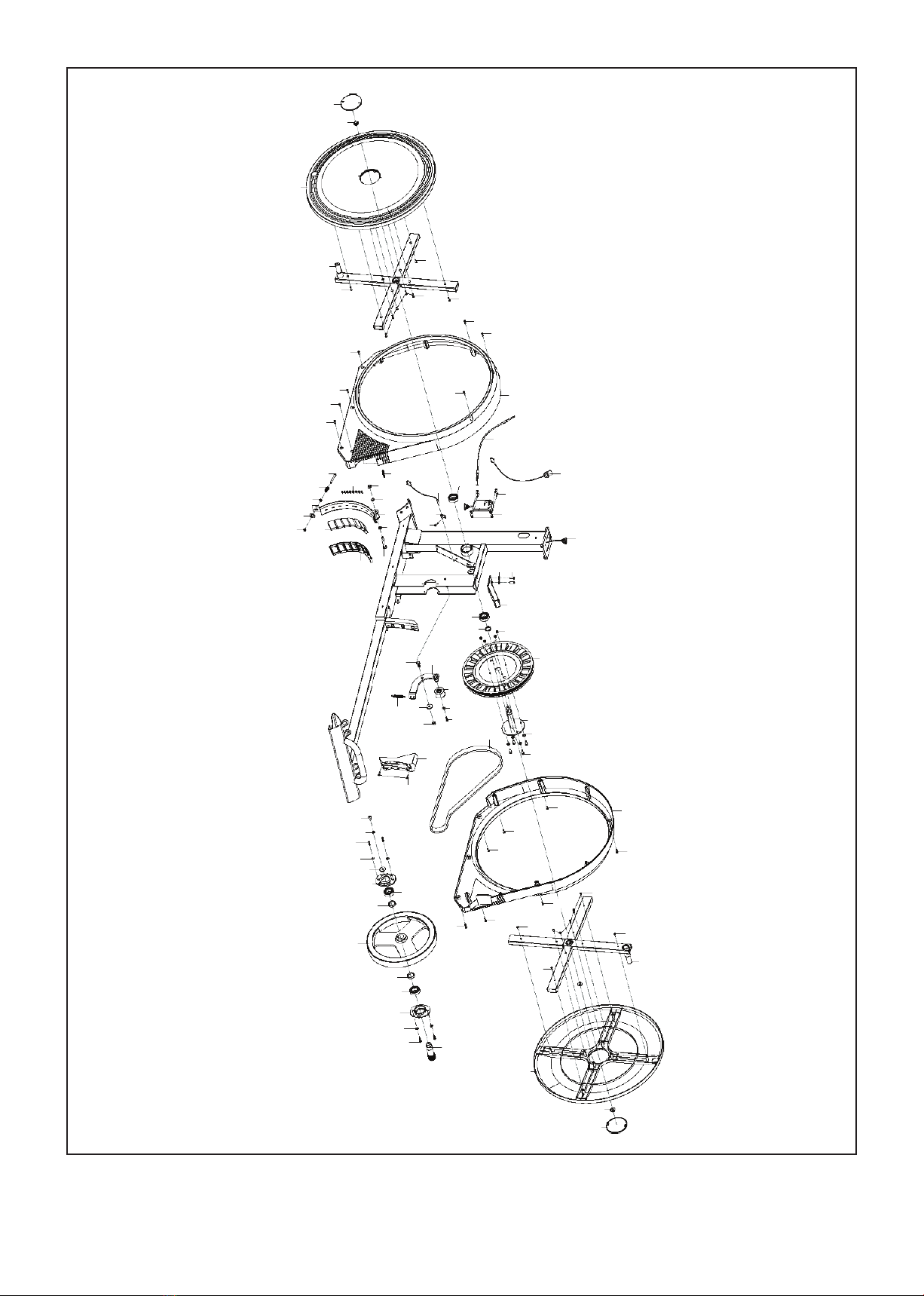

6| EXPLODED DIAGRAM
81
82
83
84
19
19 19
19
19
18
85L
19
115
116
18
18
18
19 101102
10310488
100
98 99
95
96
97
96
26
94
120 119 18
18 122
121
42
41
79
8687
88
89
86
63
105
108
46 26
106 41 107
80
18
90 91 92
93
19
19
18 18
18
85R 18
19
19
19 19
19
84
83
82 81
12 11
109 110111 112 114
86
113
114 86 112 110109
117

7

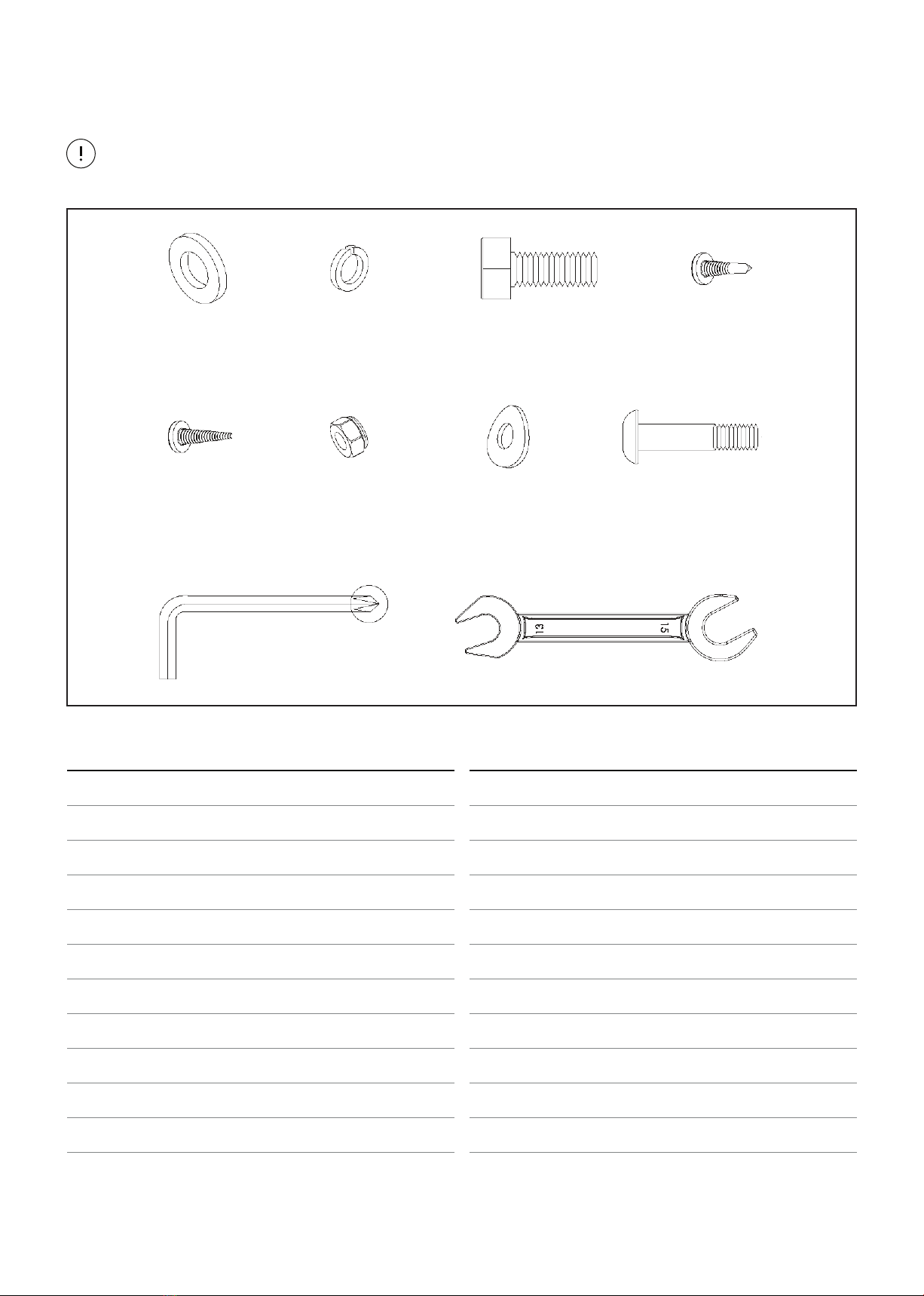

IV. PARTS LIST
Some items on this list may come pre-installed on your equipment. If you feel like you’re missing
anything, please double check your equipment.
PARTS LIST |
#10 d8x󴻪20x2
4pcs.
#11 d8
4pcs.
#15 M8x25xS13
4pcs.
#18 ST4.2x16
2pcs.
#19 ST4.2x19
3pcs.
#26 M8xH7.5xS13
4pcs.
#27 d8x󴻪20x2xR16
4pcs.
#28 M8x40x15xS5
4pcs.
A S5
B S13-S15
No. Description Qty
12 Bolt M8*20*S5 16
13 Cover 1
14 Handlebar post 1
15 Bolt M8*25*S13 4
16L/R Handlebar post cover 1
17 Supporter 1
18 Screw ST4.2*16 23
19 Screw ST4.2*19 25
20 Main frame 1
21 End cap 2
22L/R Handlebar L/R 1
No. Description Qty
1Computer 1
2Adapter 1
3Bolt M5 4
4Middle handlebar 1
5Grip foam 2
6Handle pulse plate 2
7Screw ST4.2*19 2
8End cap ф25*26 2
9Handle pulse wire 2
10 Washer d8*󴻪20*2 14
11 Spring washer d8 21

8| PARTS LIST
No. Description Qty
53 Bushing 󴻪32*3.3*󴻪28*20.5*󴻪19.1 8
54L/R Linkage 1
55 Spacer φ22*φ17.1*8.8 4
56 Shaft for transportation wheel 2
57 Bearing 6003 4
58 Roller 2
59 Wheel cover 2
60 Front stabilizer 1
61L/R End cap L/R 1
62 Screw ST4.2*16 2
63 Bolt M8*20*S13 5
64 Rail 1
65 Cover 1
66 Round cover 󴻪38 2
67 Spring 1
68 Knob 1
69 Bolt M4*12*φ8 1
70 Bolt M4*12*φ8 1
71 Alum plate 2
72 Incline adjustment handle 1
73 Washer d4*󴻪9*1 2
74 Cap nut M4*H7*S7 2
75 Rail Shaft 2
76 Footpad 1
77 Nut M8*H5.5*S14 1
78 Trunk wire 1 1
79 Fixed tube for cover 1
80 Slope cover 1
81 Crank cover 2
82 Nut M10*1.25*H7.5*S14
No. Description Qty
23 Grip foam 2
24 Handlebar cover 2
25L/R Reciprocating bar L/R 1
26 Nylon nut M8*H7.5*S13 8
27 Arc washer d8*󴻪20*2*R16 4
28 Bolt M8*40*15*S5 4
29 Spacer 󴻪30*󴻪20*9 2
30 Wave washer d19*󴻪25*0.3 4
31 Bushing 󴻪27*1*󴻪19.2*16 4
32 Bushing 󴻪50*󴻪21*20 4
33 Washer d8*󴻪32*2 2
34 Handlebar cover 2
35 Screw ST4.2*13 8
36L/R Swing bar cover L/R 2
37 End cap PT25*50 4
38L/R Linkage L/R 1
39 Bolt 󴻪10*34*M6*15*S6 2
40 Bushing 󴻪18*1.5*󴻪14.6*5*󴻪10.1 4
41 Washer d6*󴻪16*1.5 5
42 Bolt M6*15*S5 4
43 End cap J60*30*15 2
44 Pedal 2
45 Cover 2
46 Washer d8*󴻪25*2 15
47 Bearing R12 4
48 Bushing 󴻪60*16.6󴻪41.18*13.11 4
49 Bolt M8*50*20*S14 2
50 Connector 2
51 Cover 4
52 Shaft 2

9PARTS LIST |
No. Description Qty
104 Washer φ6*φ18*2 1
105 Idler rod 1
106 Idler 1
107 Bolt M6*12*S10 1
108 Spring 1
109 Bolt M5*16 4
110 Washer d5*󴻪13*1 4
111 Washer d8*󴻪28*2 1
112 Bearing holder 2
113 Flywheel 1
114 Spacer 󴻪30*󴻪25*6.5 1
115 Resistance control cable 1
116 Adapter trunk wire 1
117 Flywheel axle 1
118L/R End cap L/R 1
119 Sensor holder 1
120 Sensor 1
121 Trunk wire 2 1
122 Motor 1
AWrench S5 1
BSpanner S13-15 1
No. Description Qty
83 Turntable 2
84 Crank 2
85L/R Chain cover 1
86 Bearing 6004 3
87 Spacer 󴻪25*󴻪20.2*4 1
88 Nylon nut M6*H6*S10 5
89 Belt plate 1
90 Shaft 1
91 Spring washer d6 4
92 Bolt M6*16*S5 4
93 Belt 1
94 Plastic connector 1
95 Bolt M8*55*13*S14 1
96 Washer d8*󴻪16*1.5 2
97 Magnetic plate 1
98 Screw ST3.0*10 8
99 Magnetic location grid 2
100 Magnet 7
101 Bolt M6*65*S10 1
102 Spring 1
103 Nut M6*H5*S10 1

10 | ASSEMBLY INSTRUCTIONS
V. ASSEMBLY INSTRUCTIONS
Some parts are pre-assembled on the equipment and may need to be removed for assembling the
parts together.
1. Connect trunk wire 1 (78) on the handlebar post (14) with trunk wire 2 (121) on the main frame (20)
well, then put the wires inside of main frame (20).
2. Fix handlebar post (14) to main frame (20) with bolts (15), spring washers (11) and washers (10) using
spanner (B).
3. Secure handlebar post covers (16L/R) with screws (19), then secure them on the handlebar post (14)
with screws (18) using wrench (A).
STEP 1
#15 M8x25xS13 4pcs.
#11 d8 4pcs.
#10 d8x󴻪20x2 4pcs.
#19 ST4.2x19 3pcs.
#18 ST4.2x16 2pcs.
A S5
B S13-S15
14 17
15
11
10
15
11
10
78
121
16L
18
19
19
20
78
121
19
18
16R

11

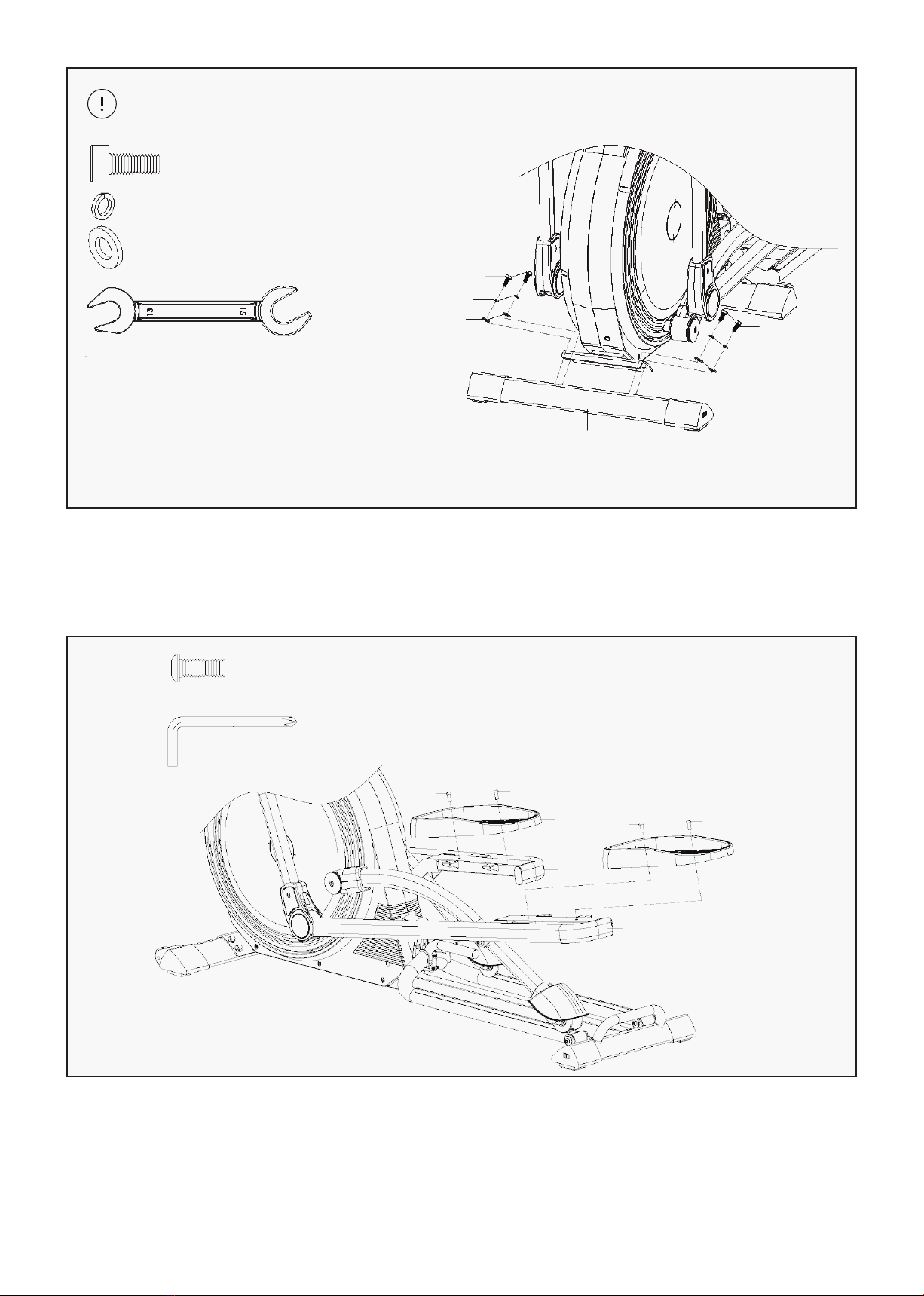

1. Remove bolts (63), spring washers (11) and washers (10) from front stabilizer (60) using spanner (B).
2. Then attach front stabilizer (60) to main frame (20) with bolts (63), spring washers (11) and washers
(10) using spanner (B).
ASSEMBLY INSTRUCTIONS |
STEP 2
1. Remove bolts (12) from pedal (44) using wrench (A).
2. Then attach pedal (44) to Linkage (38L/R) with bolts (12) by wrench (A).
STEP 3
#15 M8x25xS13 4pcs.
#11 d8 4pcs.
#10 d8x󴻪20x2 4pcs.
B S13-S15
20
63
11
10
10
11
63
60
Before installation remove the packaging material from the main frame feet first.
#12 M8x20xS5 4pcs.
A S5
12 12
44
38R
12 12
44
38L

12 | ASSEMBLY INSTRUCTIONS
1. Put handlebar covers (24) into handlebar (22L/R).
2. Attach handlebar (22L/R) to reciprocating bar (25L/R) with bolts (28), arc washers (27) and nylon nut
(26) using wrench (A).
3. Attach covers (34) in both side of reciprocating bar L/R (25L/R).
STEP 4
#28 M8x40x15xS5 4pcs.
#26 M8x117.5xS13 4pcs.
#27 d8x󴻪20x2xR16 4pcs.
#34 2pcs.
A S5
22L
22R
24
26
34
25L
25R
27 28
28
27
26
34
24

13ASSEMBLY INSTRUCTIONS |
STEP 4
1. Remove bolts (12), spring washer (11) and washers (10) from handlebar post (14) using spanner (A).
2. Draw the handle pulse wire (9) through the hole of handlebar post (14).
3. Fix middle handlebar (4) to handlebar post (14) with bolts (12), spring washer (11) and washers (10)
from handlebar post (14) using spanner (A).
4. Connect computer wire (1a) with handle pulse wire (9) and computer wire (1b) with trunk wire 1 (78).
Make sure they are fully clicked into place.
5. Take out the bolts (3) from the back of computer (1) using spanner (A), then attach computer (1) to
handlebar post (14) with bolts (3) using spanner (A).
6. Insert adapter wire (2) to power hole on the bottom front of the main frame (20), then plug the
adapter into an outlet.
ATTENTION: Turn off from power switch when not in use.
#12 M8x20xS5 2pcs.
#11 d8 2pcs.
#10 d8x󴻪20x2 2pcs.
#3 M5x15 4pcs.
A S5
1
78
314
1a
1b
4
9
10
11 12
13
1b
78
1a
9
20
2

14 | ADJUSTMENTS GUIDE
VI. ADJUSTMENTS GUIDE
To move the machine, hold the back of the frame up until the transportation wheels (118) on the main
frame (20) touch the ground. With the wheels on the ground, you can transport the bike to the desired
location at ease.
MOVING THE MACHINE
When this product is on an uneven surface, please adjust both foot pads on end cap (61) until they fully
touch the ground and level the machine.
ADJUSTING THE BALANCE
61

15
VII. OPERATION GUIDE
OPERATION GUIDE |

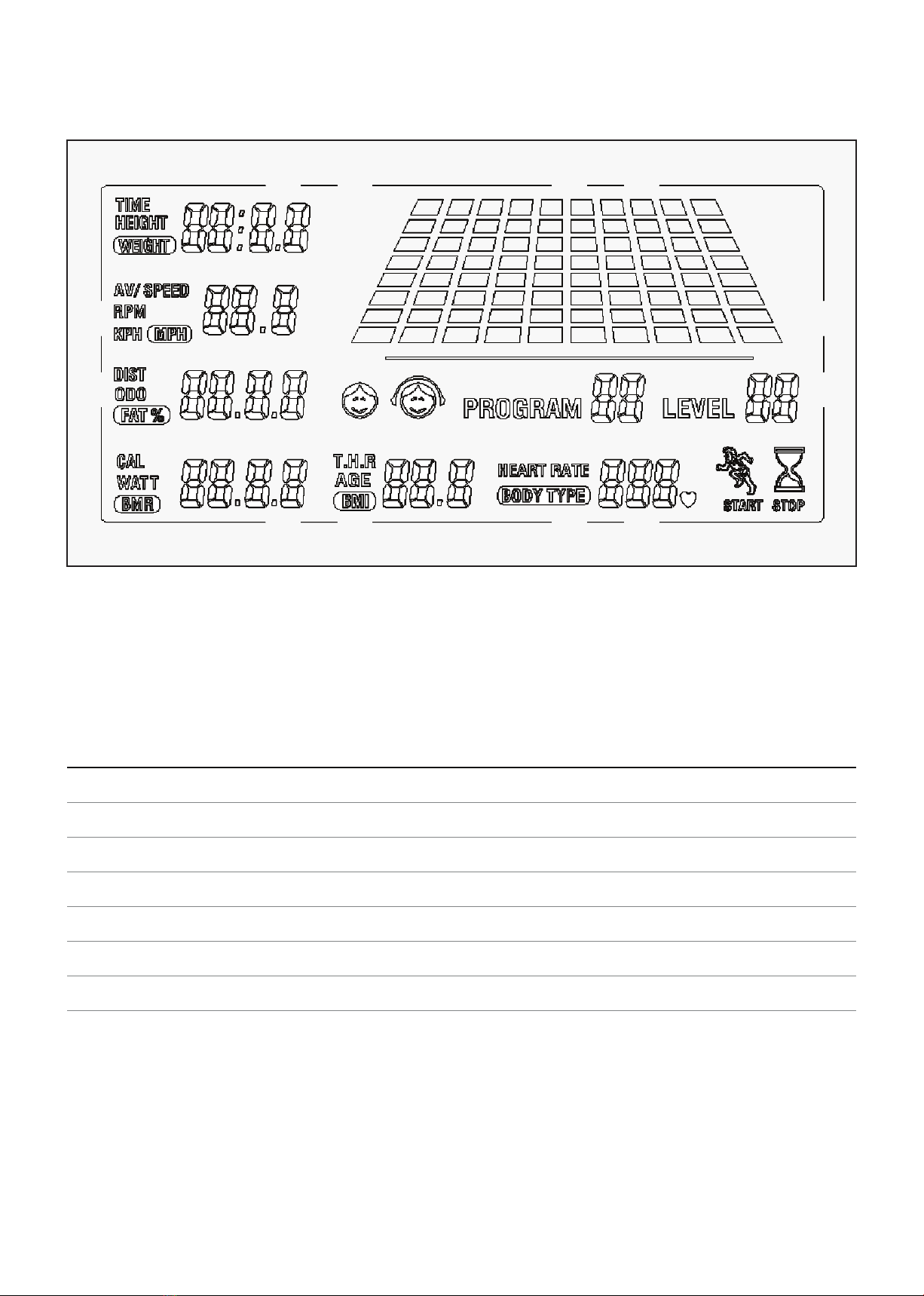

DISPLAY INFORMATION
1. TIME, SPEED, CAL, DISTANCE, HEART RATE, RPM, ODO, WATT.
2. In Running state: SPEED/ DIST/ CAL will be display, or press "MODE" key to change display to RPM/
ODO/ WATT.
3. Resistance levels is up to 16.
SPECIFICATIONS
TIME 00M:00S ~ 99M:59S
SPEED 0.0 ~ 99.9KM/H
DISTANCE 0.0 ~ 999.9KM/H
CALORIES 0 .0~ 9999KCAL
HEART RATE 40-240BPM
RPM 0 ~ 9999RPM
WATT 0-572 WATT

16 | OPERATION GUIDE
FUNCTION DESCRIPTION
MANUAL The resistance value level by manual adjustment
PROGRAM The motion mode by auto adjustment with preset value
USER The motion mode by user - defined resistance value
WATT The motion mode by watt target controlled
H.R.C Heartbeat target value controlled of the motion mode, 60%, 75%, 85%,
user-defined
RECOVERY The level of heartbeat recovery;
BODY FAT Body fat percentage and body mass index and basal metabolic rate
KEY FUNCTION
UP
•Up selector of the PROGRAM.
•Adjusted upward in the Setting Mode.
•Adjusted upward the resistance value level, in the motion status.
DOWN
•Down selector of the PROGRAM.
•Adjusted downward in the Setting Mode.
•Adjusted downward the resistance value level, in the motion status.
ST/SP •ST/SP or stop the motion status.
RECOVERY •To testing the level of heartbeat recovery.
ENTER •To choose set items in the stop status needs to be set.
MODE •To changeover display SPEED/ DIST/ CAL or RPM/ ODO/ WATT display in
the working status.
HEIGHT WEIGHT KPH RPM DIST CAL WATT PULSE
cm kg KM/H r/min km C W BPM
UNIT MEASUREMENT

17OPERATION GUIDE |

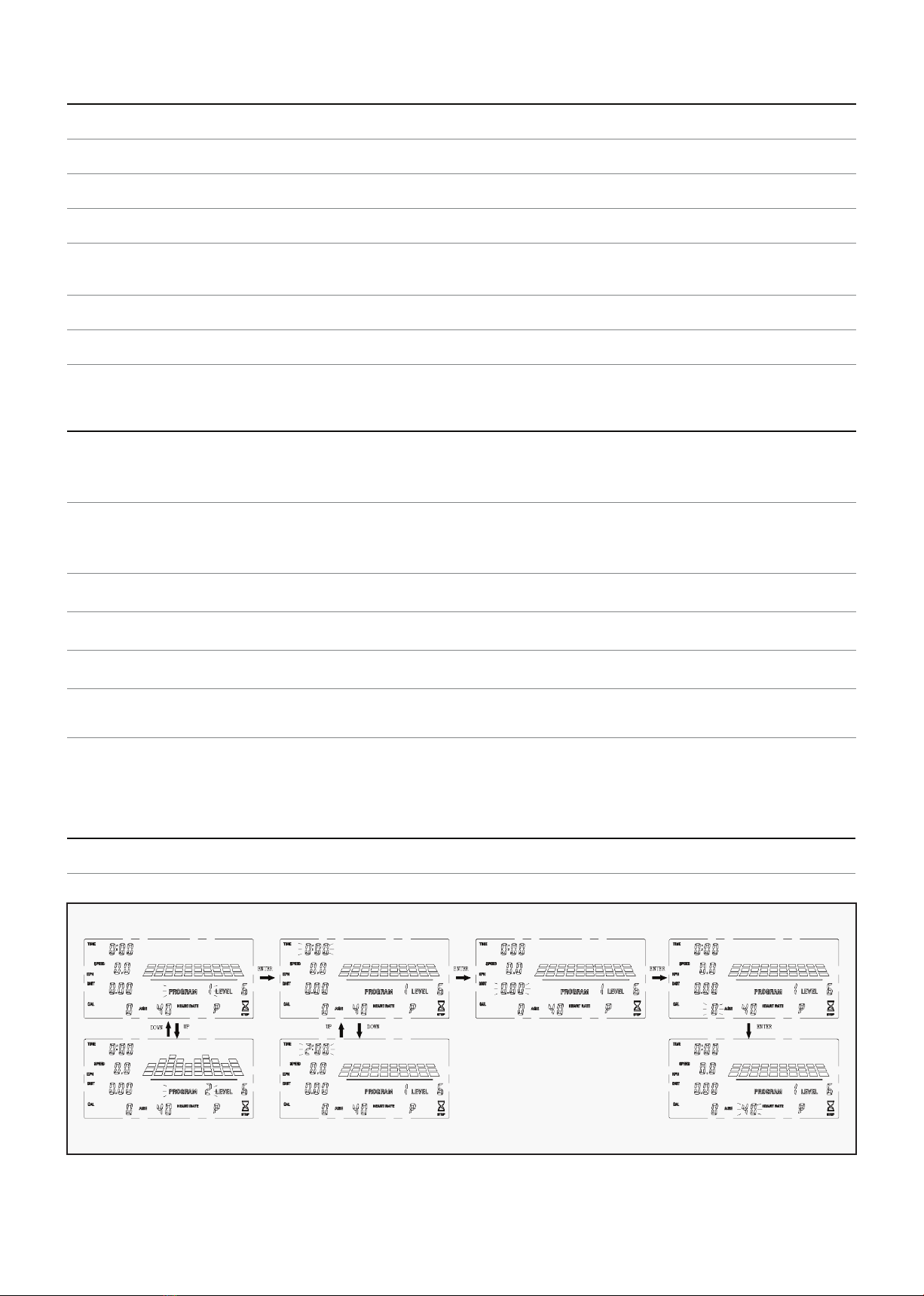

MANUAL MODE (PROGRAM 1)
1. Press "ST/SP" key to start program or press "ENTER" key into setting mode.
2. In setting mode, press "ENTER" key to choose setting items with relevant flashing window for TIME,
DISTANCE, CALORIE, AGE.
3. Press "UP" or "DOWN" key to upward or downward adjusted, and press "ENTER" key to confirm and go
to next setting.
4. Automatically exits the set status when all settings are complete, or press "ST/SP" key in the settings
status to start program.
5. The resistance value level can still be adjusted freely during the motion status, with "UP" or "DOWN"
key.
6. If time, distance, calories, or any of these are set with values, the corresponding value will countdown.
When any of setting value count reaches to 0, the motion will be STOP followed by a beep sound.
7. NOTE: If the time is set, then the distance cannot be set.
8. Press "MODE" key to change display view SPEED/ DIST/ CAL or RPM/ ODO/ WATT display in the working
status.
9. Press "ST/SP" key to STOP workout.

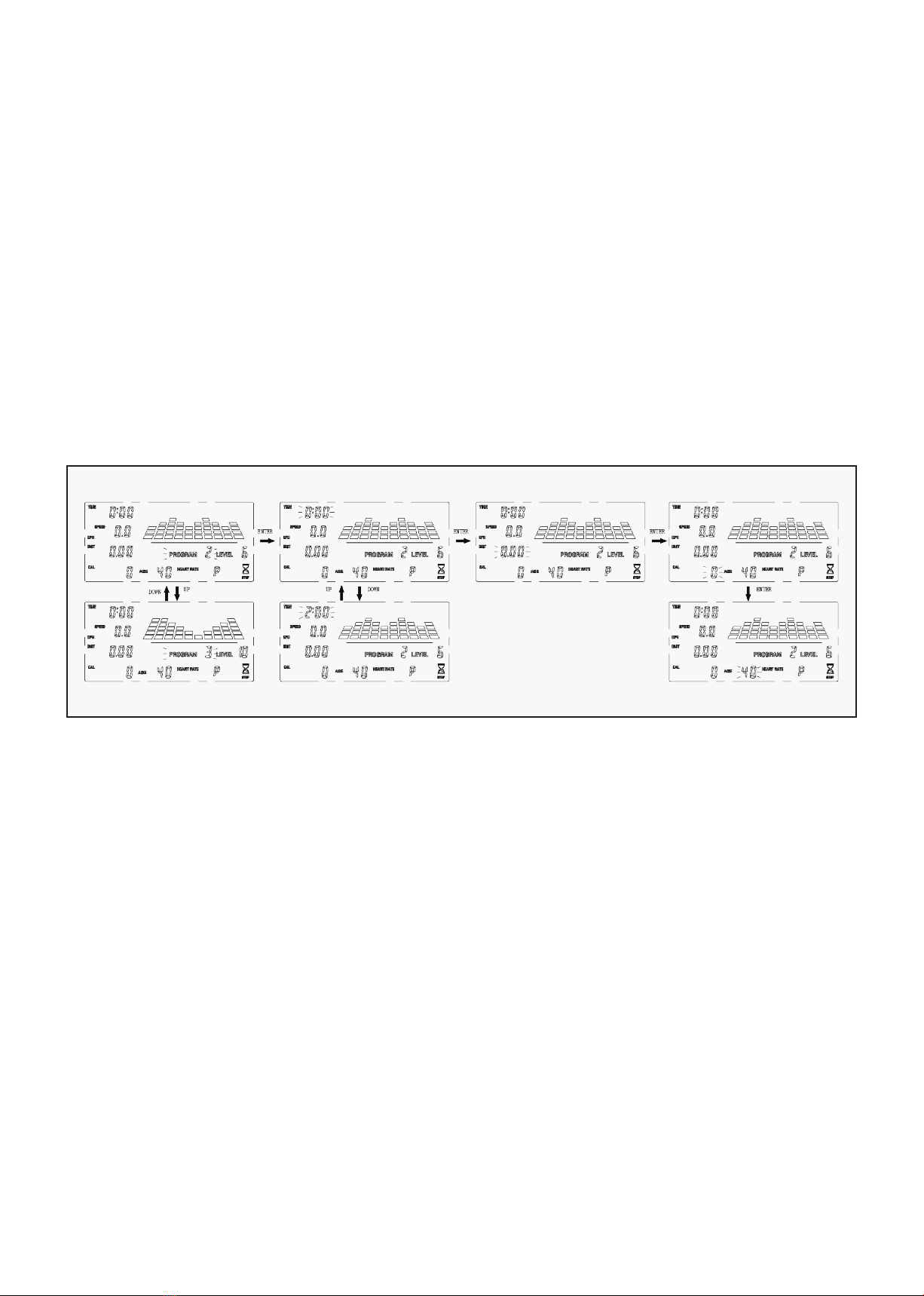

MANUAL MODE (PROGRAM 2-13)
1. Press "UP" or "DOWN" key to select a program you want.
2. Press "ST/SP" key to start program or press "ENTER" key into setting mode.
3. In setting mode, press "ENTER" key to choose setting items with relevant flashing window for TIME,
DISTANCE, CALORIE, AGE.
4. Press "UP" or "DOWN" key to upward or downward adjusted, and press "ENTER" key to confirm and go
to next setting.
5. Automatically exits the set status when all settings are complete, or press "ST/SP" key in the settings
status to start program.
6. The resistance value level can still be adjusted during the motion status with program, or press "UP"
"DOWN" to manual adjustment;
7. Press "MODE" key to changeover display SPEED/ DIST/ CAL or RPM/ ODO/ WATT display in the working
status.
8. If time, distance, calories, or any of these are set with values, the corresponding value will countdown.
When any of setting value count reaches to 0, the motion will be STOP followed by a beep sound.
9. NOTE: If the time is set, then the distance cannot be set;
10. Press "ST/SP" key to STOP workout.9. Press "ST/SP" key to STOP workout.

18 | OPERATION GUIDE

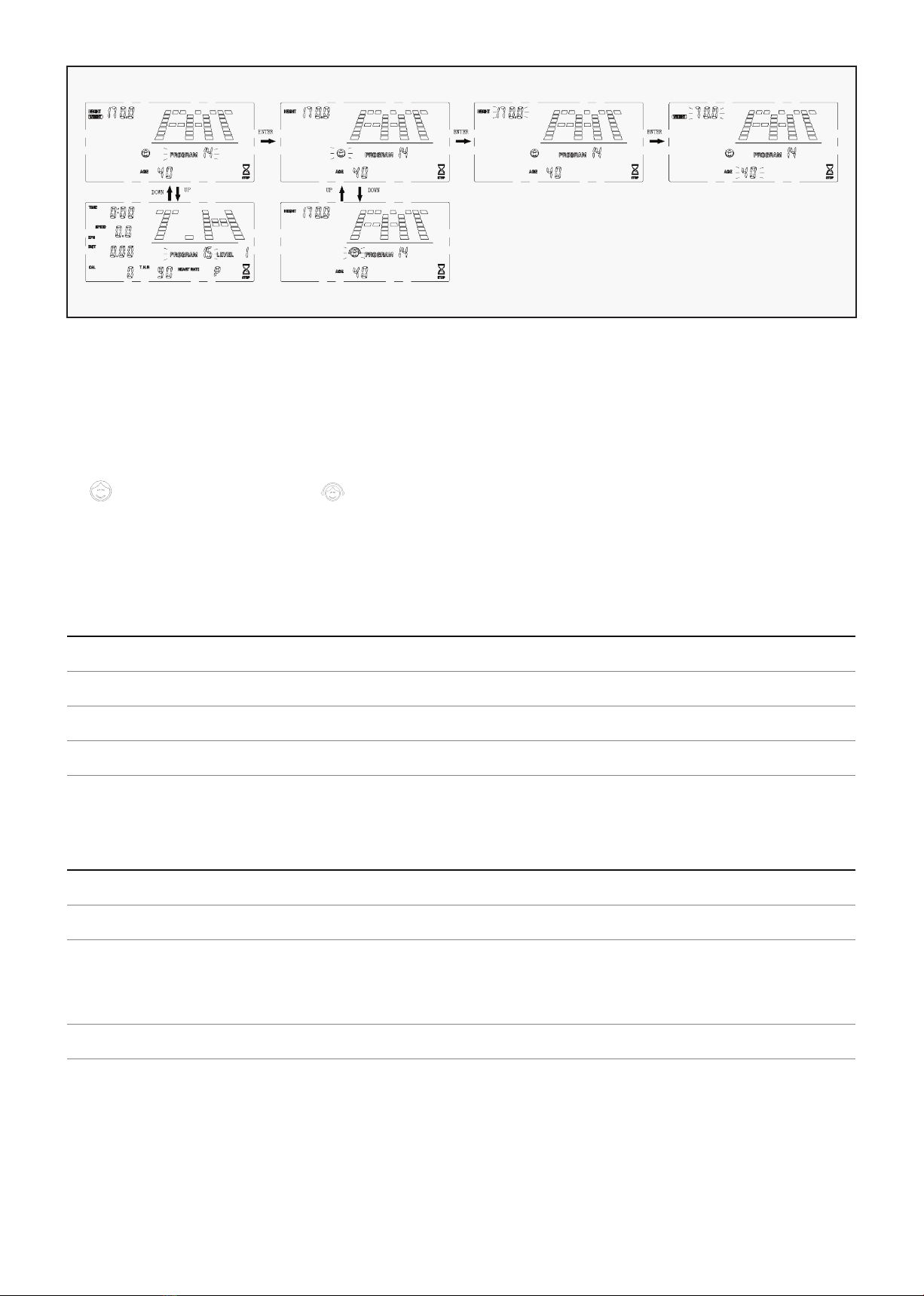

BODY FAT (PROGRAM 14)
1. Press "ENTER" key into setting mode.
2. In setting status, press "ENTER" key to choose setting items with relevant flashing window for
GENDER→HEIGHT→WEIGHT→AGE.
3. Press "UP" or "DOWN" key to adjust values, and press "ENTER" key to confirm and move to the next
setting.
4. This icon represents male. This icon represents female.
5. Press "ST/SP" key to starting test and hold with both hands on the pulse sensor handles. The display
will show your body fat in 10 seconds.
6. You should keep your body relaxed.
7. B.M.I. (Body mass index)
Gender/Age Underweight Healthy Slightly Overweight Overweight Obese
Male/ ≤30 < 14 14~20 20.1~25 25.1~35 > 35
Male/ > 30 < 17 17~23 23.1~28 28.1~38 > 38
Female/≤30 < 17 17~24 24.1~30 30.1~40 > 40
Female/ > 30 < 20 20~27 27.1~33 33.1~43 > 43
BODY FAT
Gender Low Medium Slightly High High
Male <13% 13%-25.9% 26%-30% >30%
Female <23% 23%-35.9% 36%-40% >40%
B.M.R (Basal Metabolic Rate)
The average number of calories burned per day for basic survival
Ref: 1300 ±100(22-40 Age)

19
BODY FAT
12 3 4 5 6 7 8 9
Skinny Thin Slightly
Thin Slim Healthy Slightly Overweight Overweight Obese Obesity
OPERATION GUIDE |
H.R.C MODE (PROGRAM 15-18)
1. Press "UP" or "DOWN" key to select a particular function you want.
2. Press "START" key to running the program or press "ENTER" key into setting mode.
3. PROGRAM 15: press "ENTER" key to choose setting items with relevant flashing window for
TIME→DISTANCE→CALORIE→T.H.R.
4. PROGRAM 16-18: 60%, 75% and 85% of the maximum heart rate were selected as the heart
rate target. Press "ENTER" key to choose setting items with relevant flashing window for
TIME→DISTANCE→CALORIE→AGE.
5. Press "UP" or "DOWN" key to adjust values, and press "ENTER" key to proceed to next setting.
6. Press "ST/SP" key to start.
7. Resistance level will automatically adjust during the motion status with T.H.R target value or press
"UP" or "DOWN" to manually adjust.
8. Press "MODE" key to change display to SPEED/ DIST/ CAL or RPM/ ODO/ WATT display in the working
status.
9. If time, distance, calories, or any of these are set, the corresponding value will countdown. When any
of setting value count reaches to 0, the motion will be STOP followed by a beep sound.
10. NOTE: If the time is set, then the distance cannot be set.
11. Press "ST/SP" key to STOP the workout.
12. IMPORTANT: You must be holding the pulse sensor during exercise.

20| OPERATION GUIDE

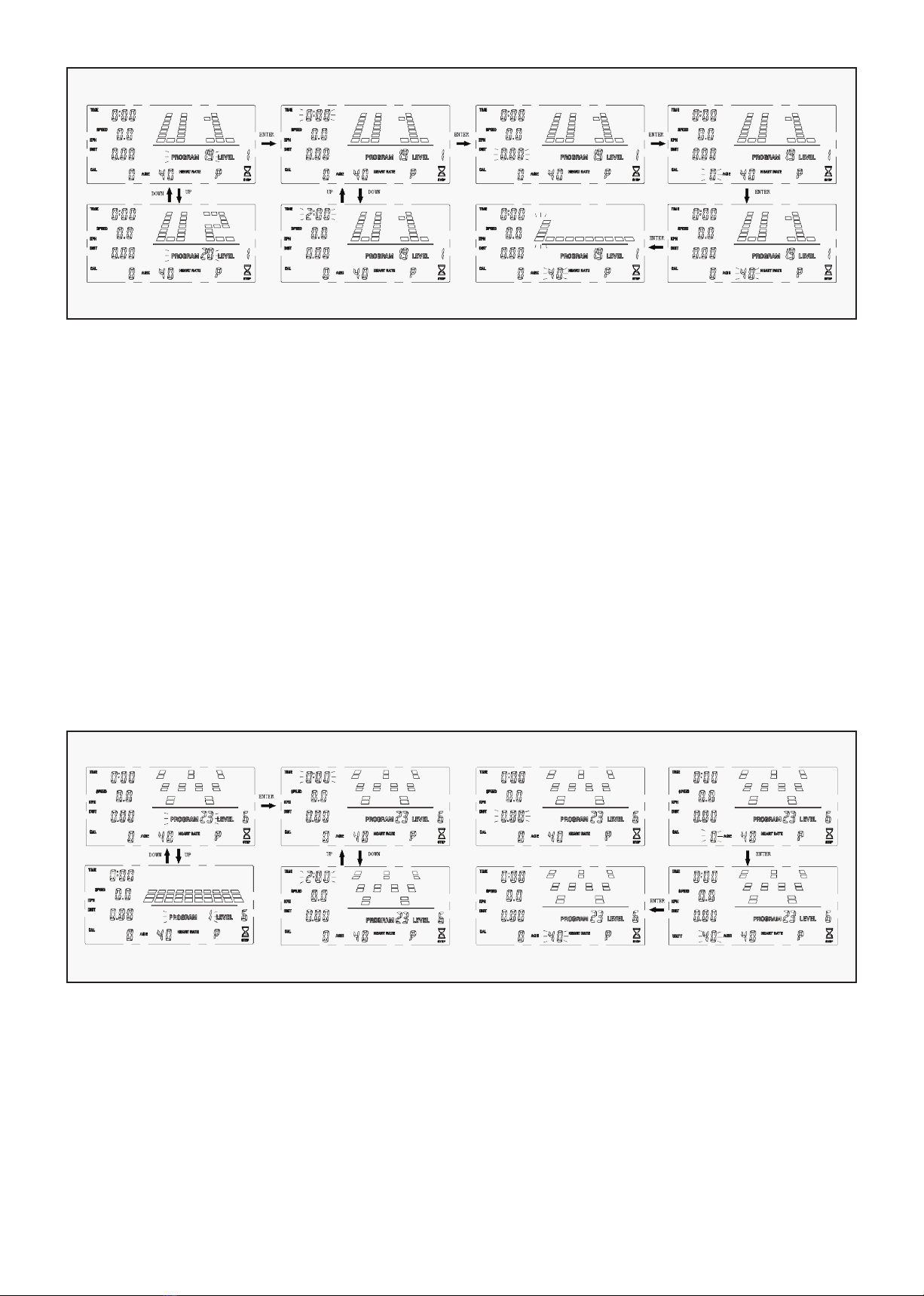

USER MODE (PROGRAM 19-22)
1. Press "UP" or "DOWN" key to select a particular function you want with U1-U4.
2. Press "ST/SP" key to start program, or press "ENTER" key into setting mode.
3. In setting status, press "ENTER" key to choose setting items with relevant flashing window for
TIME→DISTANCE→CALORIE→AGE→Resistance Value.
4. Press "UP" or "DOWN" key to upward or downward adjusted, and press "ENTER" key to proceed to the
next setting.
5. Press "ST/SP" key to start program.
6. Resistance level is automatic based off the user setting. You can also still adjust it "UP" or "DOWN"
during the program however when it reaches the next segment it will revert to user settings.
7. Press "MODE" key to change display to SPEED/ DIST/ CAL or RPM/ ODO/ WATT display in the working
status.
8. If time, distance, calories, or any of these are set, the corresponding value will countdown. When any
of setting value count reaches to 0, the motion will be STOP followed by a beep sound.
9. NOTE: If the time is set, then the distance cannot be set.
10. Press "ST/SP" key to STOP the workout.
WATT MODE (PROGRAM 23)
1. Press "ENTER" key into setting mode.
2. In setting status, press "ENTER" key to choose setting items with relevant flashing window for
TIME→DISTANCE→WATT.
3. Press "UP" or "DOWN" key to adjust settings and press "ENTER" key to proceed to the next setting.
4. Press "START" key to begin workout.
