Link LK-CHR17CL User manual

LINK
INSTALLATION MANUAL
LK-CHR17CL
CHRYSLER PACIFICA
2017 &UP
DRIVER SIDE 2nd ROW

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 2
WARNINGS
PLEASE REVIEW BEFORE STARTING THE INSTALLATION
Look through the entire manual to understand the installation process.
Watch the tutorial videos that are found on the tablet.
During the installation use the ‘BYPASS’ mode to move the LINK.
Do not use the pendant or ‘PENDANT’ mode until you have reset the home position.
The LINK is designed to ALWAYS use the original seat. The biggest challenge this will present for the installer will
be extending the vehicle’s original seat wire harness, as this MUST be done. The general process does not vary, but
the exact steps will vary due to the trim level, the model and seat options from the vehicle manufacturer. Keeping
this in mind, we have made an effort to clearly describe the process required in this manual. However, it is possible
that the pictures in this manual do not exactly match the specific vehicle you are working on.
SEAT WIRING EXTENSION PROCESS
The wiring must be extended 80 inches. This extension is placed near the seat connectors that are under the seat.
The extension (80 inches) then passes under the LINK and loops around the back of the OEM seat –allowing the
seat and the LINK to travel in and out of the vehicle. Depending on the make, model and seat options, there are
components that must be disconnected, bypassed and/or relocated. On vehicle models with a seat position memory
function, the forward/backward, tilt and height adjustments as well as seat memory are replaced by the LINK.
However, the seat recline function is retained. (EXAMPLE: In the Ford F150, 2009-2014 model; the seat height, tilt,
forward and backward adjustment motors are disconnected and removed with the seat frame, but the recline motor
is retained. The control and memory box are relocated to the floor under the seat, next to the seat connectors. The
seat position sensor is also relocated to the floor under the seat. The wiring harness is then extended from this point
under the seat.)
PLEASE NOTE: If the ignition is turned on while extending a wire harness that includes airbags, this may cause the
airbag light to stay on following the installation.
ADAPT SOLUTIONS CANNOT BE HELD RESPONSIBLE FOR FAULTY WIRE EXTENSIONS.
Please use caution during the installation.
ANDROID TABLET –LINK I.T. SOFTWARE
If this is your first installation of a LINK, you will have also purchased an Android tablet that is required for the
installation and maintenance of the LINK product. This tablet will have the LINK IT software already installed. We
have prepared quick, easy and to the point tutorial videos imbedded into the software. Take a moment and watch
the video that shows all the features of the tablet. To do this, open the LINK IT app and tap on ‘INFO’. Make sure
your volume is turned up and tap on App-101. The video will start automatically.
REDUCED POWER MODE
A safeguard is integrated in the LINK system. Following any changes to the preset or sequence of the LINK, the
unit will enter a reduced power mode. This is to allow you to visually inspect the movements of the LINK to ensure
it is not damaging the vehicle or itself during its first cycle. On the tablet, a yellow bar will appear at the top of the
screen to indicate you are in reduced power mode. To exit, simply run the LINK a full cycle. NOTE:It is possible that
the LINK will stop during this cycle as power is reduced. Visually confirm nothing is impeding the movements and
then simply press the IN or OUT button again to continue the cycle. During the installation, if the 12V power is
removed and replaced at the same time as the 9V battery (LINK memory back up) is unplugged or fully drained, the
LINK will enter reduced power mode. Simply run a full cycle to exit. PLEASE NOTE: You will find an explanation of
this mode on a YELLOW tag attached to the hand pendant. Please explain the functions of the reduced power mode
to the LINK user (your client).
For technical support call 866.641.0419 or email [e-mail]
Please have the serial number of the unit on hand before placing your call.

10
12
13
11
1
14
8
9
7
6
2
15
4
5
18
17
319
16
1 of 4
22
20
21
23
ITEM PART NUMBER QTY DESCRIPTION
1 LK000L-01 1 Short Model LINK -Left-
2 LK-UNI-005L 1 005 Assembly Top Bearing Plate -Left-
3 LK-CHR17CL-04 1 Support Pivot -Left Central-
4 LK-CHR17CL-03 1 Seat Adapter -Left Central-
5 L-LK912 1 Communication Cable Support
6 PRD 333-107 4 Nylon Insert Locknut 5/16-18
7 PRD 339-136P 4 Socket Shoulder Screw Zinc Plated 3/8 x 1/2 x 5/16-18 THD
8 LK710B 1 Chain Covert -Black-
9 PRD 110-106 2 Round washer head tapping screw #8 x 3/4
10 LK750LB 1 Pivot Cover -Left- Black
11 LK730LB 1 Outside Cover -Left- Black
12 LK731LB 1 Intside Cover -Left- Black
13 PRD 251-177 4 Trim Panel Clip Ø1/4'' x 3/4'' Black
14 LK700B 1 Link Covert -Black-
15 LK720LB 1 Pivot Motor Cover -Left- Black
16 LK960 1 LINK Wired Control
17 LK-CHR17C-01 1 Floor Bottom Adapter -Central-
18 LK-CHR17CL-02 1 Floor Upper Adapter -Left Central-
19 LK-CHR17CB-05 2 Floor Upper Adapter Cover -Central- Black
20 LK-CHR17C-BK 1 Bolt Kit -Central-
21 LK-CHR17C-AB 1 Heated Seat Airbag LINK Kit -Central-
22 EW-CK-00 1 12V Power Supply Wiring Kit
23 LK-UNI-650 1 Manual Backup Tool Kit
LK-CHR17CL
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
LINK Chrysler Pacifica 2017 & Up -Left Central-
DESCRIPTION
LINK CHRYSLER PACIFICA 2017+ -CENTRAL-

6
5
1
2
4

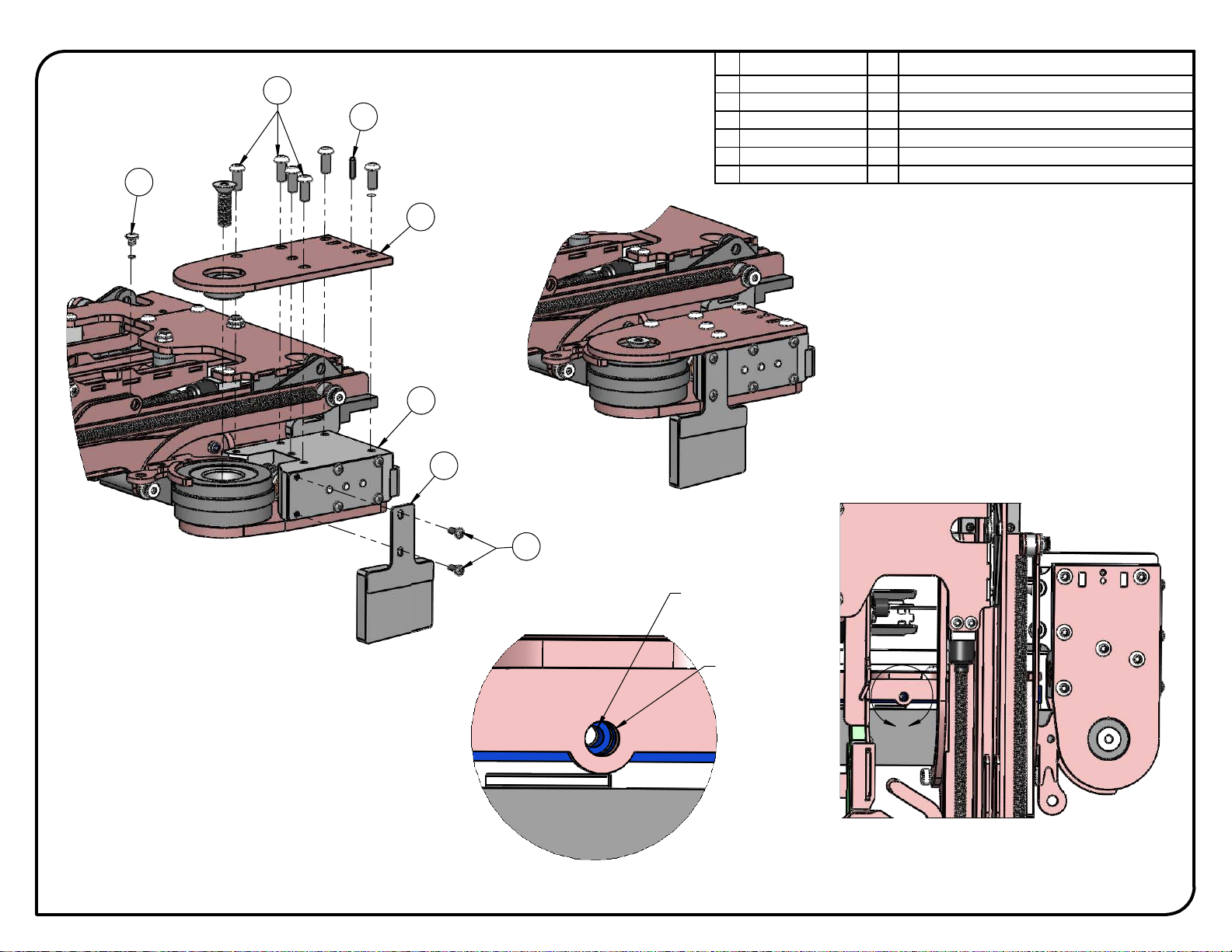

Step 1: Drill Ø5/16 (2 thickness)
Step 2: Drill: 3/16"
Step 3: Thread 1/4 - 20 UNC
1
3
A
2 of 4
Drill Ø3/16"
Thread: 1/4 - 20 UNC
Drill: 5/16
DETAIL A
SCALE 1 : 1
ITEM PART NUMBER QTY DESCRIPTION
1 LK000L-01 1 Short Model LINK -Left-
2 LK-UNI-305L 1 305 Top Bearing Plate -Left-
3 LK-CHR17CL-04 1 Support Pivot -Left Central-
4 PRD 192-141 1 Spring Tensions Pin 3/16 x 3/4
5 PRD 337-193P 1 Socket Head Cap Screw Zinc Plated 1/4-20 UNC x 3/4
6 PRD 337-213P 3 Button head socket cap screw Zinc Plated 5/16-18 x 3/4
LK-CHR17CL
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
LINK Chrysler Pacifica 2017 & Up -Left Central-
DESCRIPTION
LINK CHRYSLER PACIFICA 2017+ -CENTRAL-

1
5
910
8
4
7
2
3
6
3 of 4

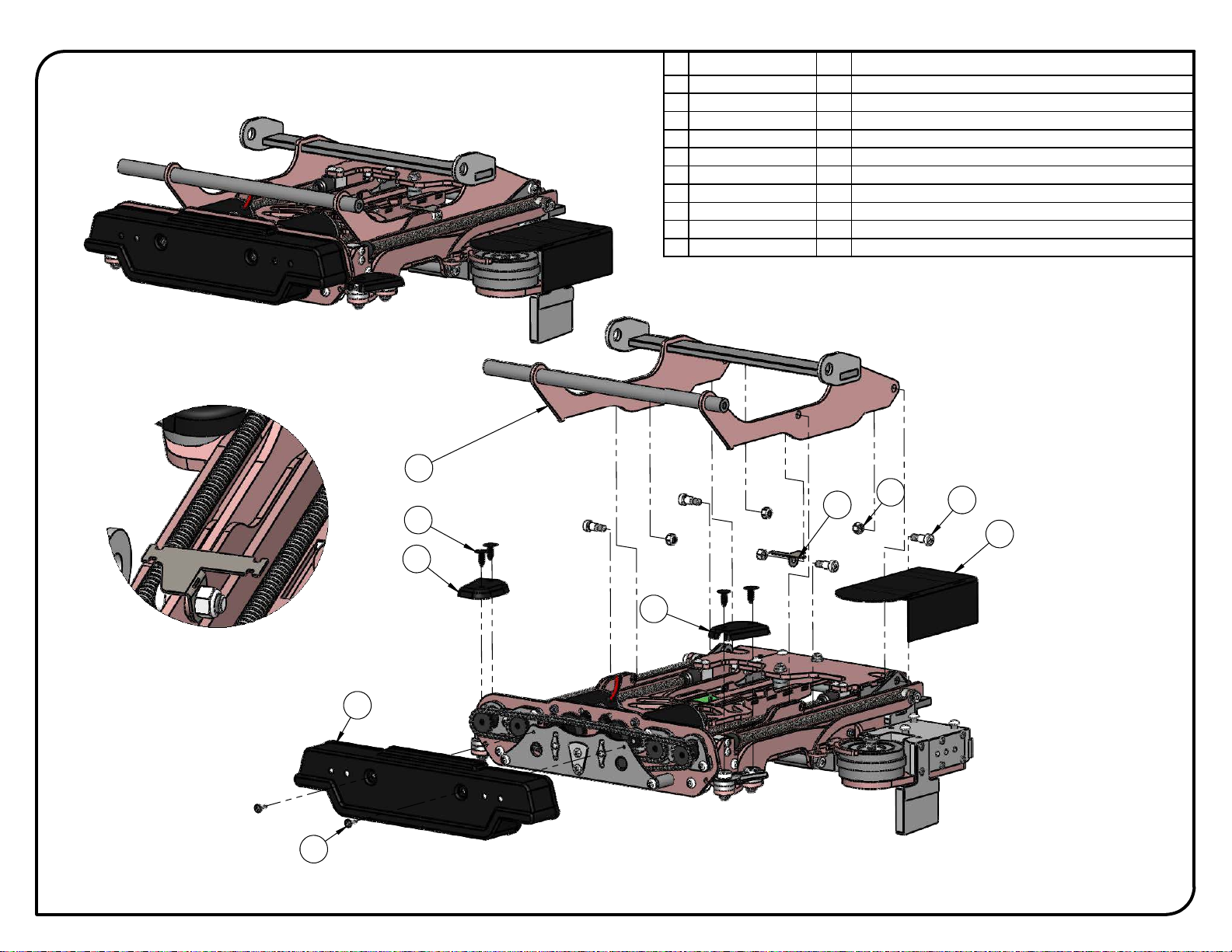

ITEM PART NUMBER QTY DESCRIPTION
1 LK-CHR17CL-03 1 Seat Adapter -Left Central-
2 LK710B 1 Chain Covert -Black-
3 LK730LB 1 Outside Cover -Left- Black
4 LK731LB 1 Intside Cover -Left- Black
5 LK750LB 1 Pivot Cover -Left- Black
6 L-LK912 1 Communication Cable Support
7 PRD 110-106 2 Round washer head tapping screw #8 x 3/4
8 PRD 251-177 4 Trim Panel Clip Ø1/4'' x 3/4'' Black
9 PRD 333-107 4 Nylon Insert Locknut 5/16-18
10 PRD 339-136P 4 Socket Shoulder Screw Zinc Plated 3/8 x 1/2 x 5/16-18 THD
LK-CHR17CL
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
LINK Chrysler Pacifica 2017 & Up -Left Central-
DESCRIPTION
LINK CHRYSLER PACIFICA 2017+ -CENTRAL-

5
1
2
11
12
10
13
3
6
7
8
4
9
4 of 4

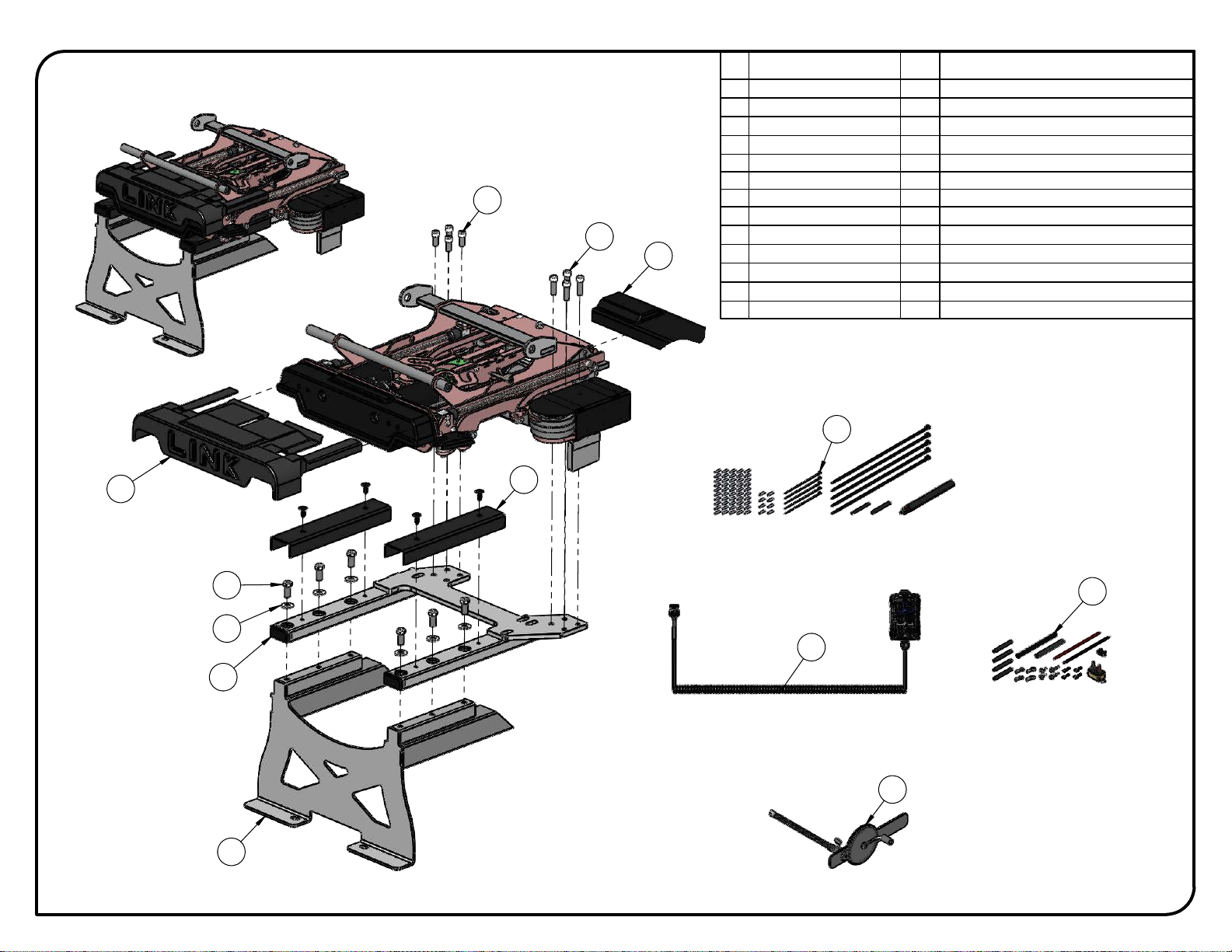

ITEM PART NUMBER QTY DESCRIPTION
1 LK-CHR17C-01 1 Floor Bottom Adapter -Central-
2 LK-CHR17CL-02 1 Floor Upper Adapter -Left Central-
3 LK-CHR17CB-05 2 Floor Upper Adapter Cover -Central- Black
4 LK-CHR17C-AB 1 Heated Seat Airbag LINK Kit -Central-
5 LK700B 1 Link Covert -Black-
6 LK720LB 1 Pivot Motor Cover -Left- Black
7 LK960 1 LINK Wired Control
8 EW-CK-00 1 12V Power Supply Wiring Kit
9 LK-UNI-650 1 Manual Backup Tool Kit
10 PRD 302-220P 6 Hex Cap Bolt Zinc Plated 7/16-14 x 1" G5
11 PRD 332-164P 4 Socket Head Cap Screw Zinc Plated 3/8-16 x 7/8
12 PRD 332-166P 4 Socket Head Cap Screw Zinc Plated 3/8-16 x 1 1/4
13 PRD 341-108P 6 Flat Washer Zinc Plated I.D. 3/8 USS
LK-CHR17CL
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
LINK Chrysler Pacifica 2017 & Up -Left Central-
DESCRIPTION
LINK CHRYSLER PACIFICA 2017+ -CENTRAL-

*ESTIMATED height and installation time (base model).
HIGHER TRIM LEVELS REQUIRED ADDITIONAL INSTALLATION TIME.
ADAPT SOLUTIONS
11-2017
LINK REFERENCES
LK-CHR17CL & LK-CHR17CR
Seat height: OEM
*Transfer height: 19”|Average install: 6-8 hrs.
OEM shrouds must be trimmed.
Seat adjustments|FRONT: OEM |BACK: 1 ¾ ” more than OEM
Please specify if equipped with heated seats. (add. parts & time)
Doorsill moulding needs to be cut|STENCIL PROVIDED
NOT AVAILABLE FOR HYBRID MODEL.
OEM shrouds must be trimmed.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 3

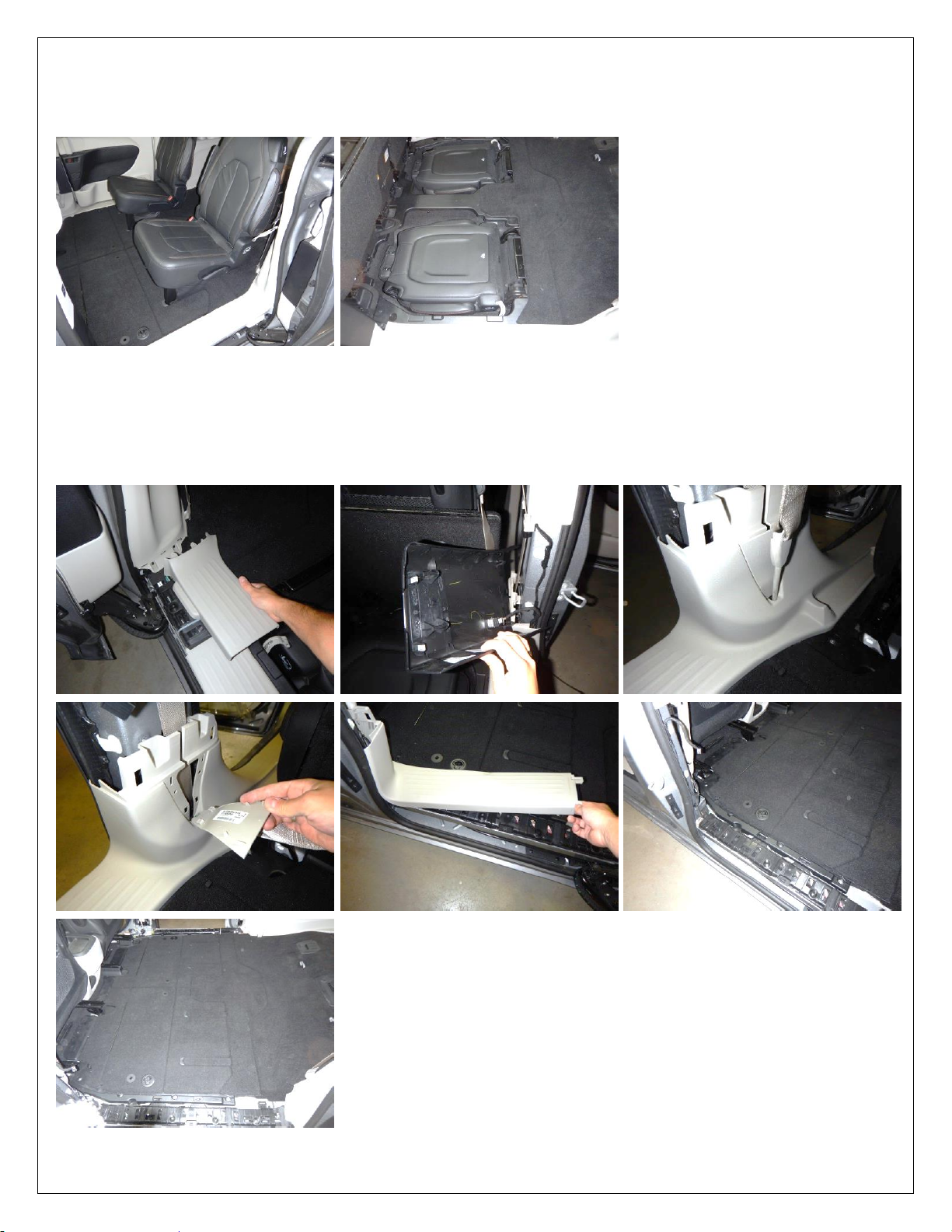

1. Remove the center driver side OEM seat and place on a workbench. Remove and keep the OEM seat
bolts to install the LINK floor adapters. To do this, fold the stow and go seats into their folded position.
2. The stow and go seat section cover will have to be removed to be able to remove the seat. To do this
the plastic door sill trims will have to be removed on both sides to gain access to the bolts that hold the
cover.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 4
3. Remove the rear section of the floor cover, this section is held by clips.
4. Unbolt all the bolts around the cover and also remove the plastic seat rail trims.
5. Disconnect the two cable connectors for the right and left hand side stow and go cover mechanism.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 5
6. Remove the stow and go cover to gain access to the seats. Unplug the actuator wiring connector and
then unbolt the two rear seat bolts. Bring the seat out of its stored position to gain access to the lower
retaining bolts, remove the bolts and then remove the seat. Retain the OEM bolts to install the LINK
lower floor adapter.
7. NOTE: Some models may have second row seat heating option. Extend the wiring with the provided
80-inch extension.
8. Install the lower LINK floor adapter # LK-CHR17C-01 using the OEM bolts.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 6

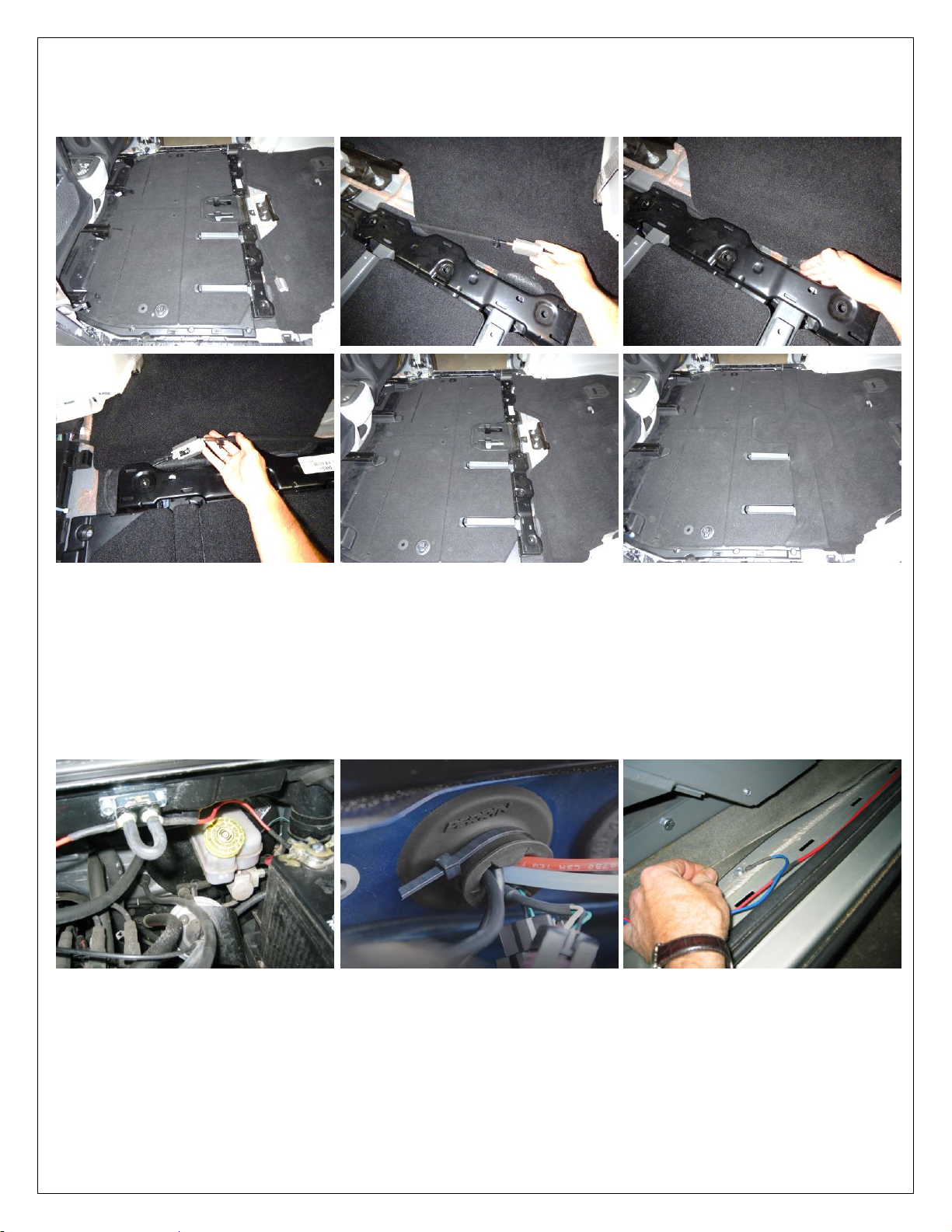

9. Reinstall the stow and go cover. Reconnect the wire connector for the stow and go cover mechanism on
the passenger central side, the driver side is not used as the covers are not used.
10. Run the power from the battery to the LINK. To do this, thread the red power cable (+) under the
doorstep moulding and through the firewall. Make sure you pass through a grommet in the firewall to
prevent the cable from chaffing. Install the circuit breaker near the battery and then connect the battery
to the circuit breaker. Attach the black ground wire (-) to the vehicle’s frame, under the doorstep
moulding using a self-tapping screw. Locate a spot where the sheet metal is doubled-up to ensure a
proper ground.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 7

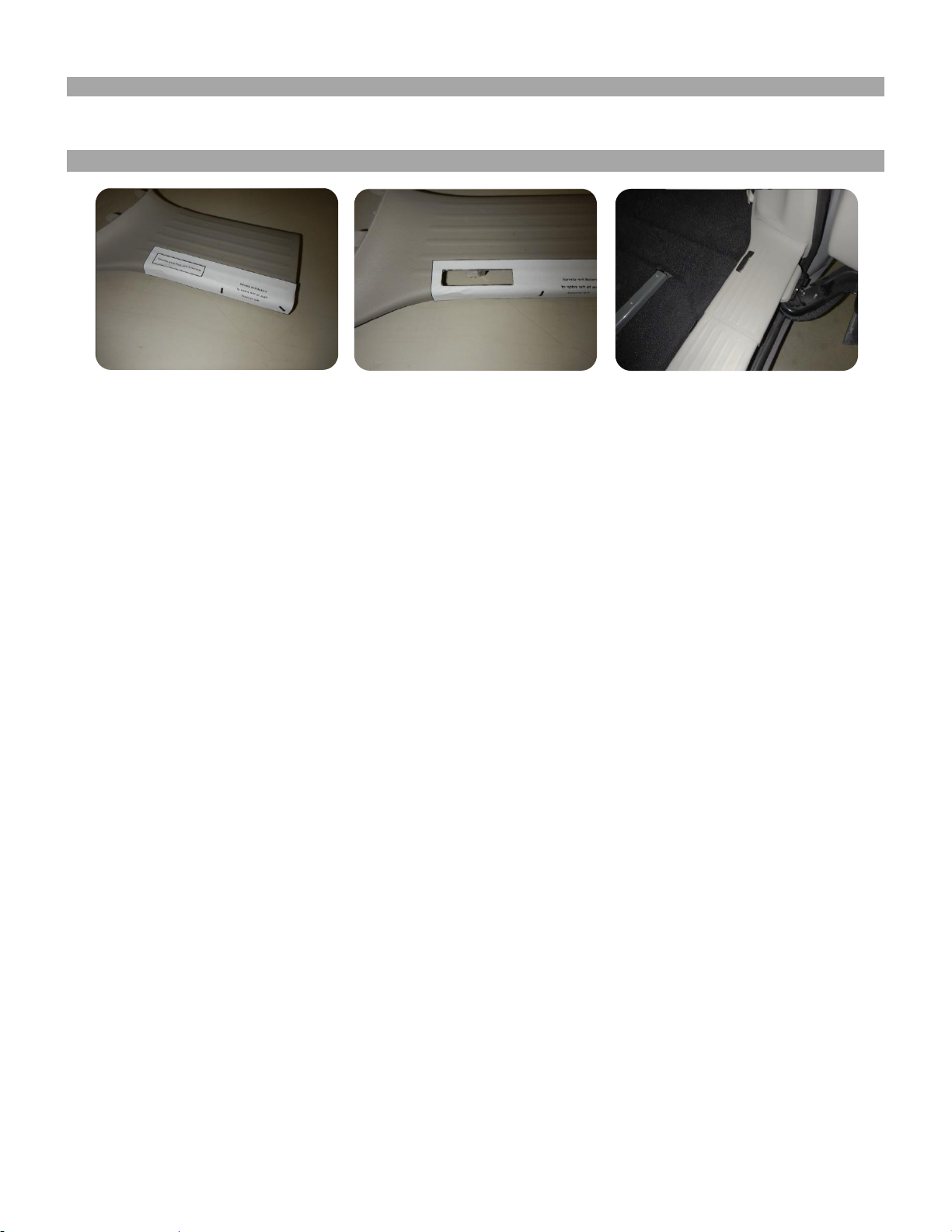

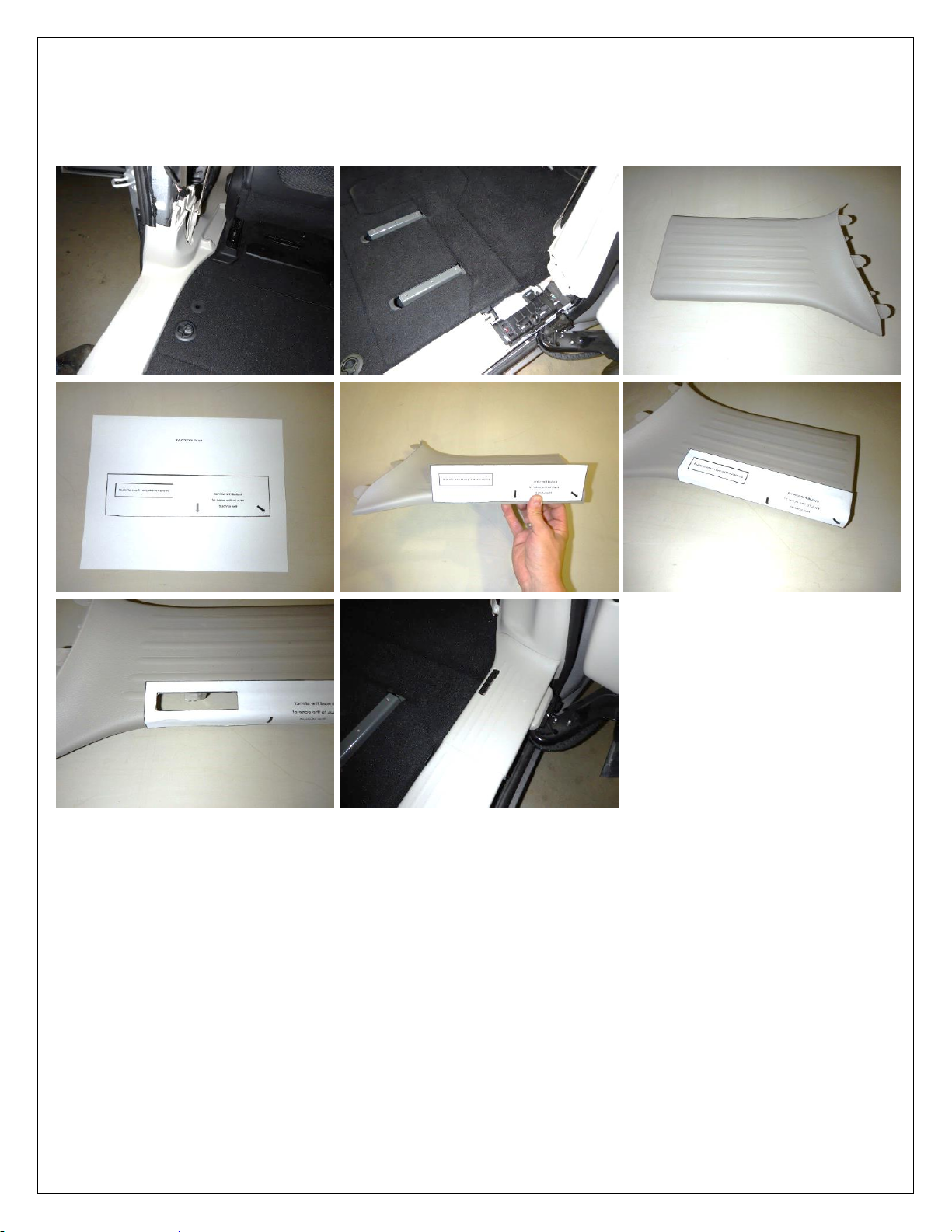

11. Reinstall all the plastic trims except the small one on the driver side doorsill. This trim will have to be
modified with the provided stencil. A hole will be cut in it to allow the installation of the pivot support
bracket.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 8

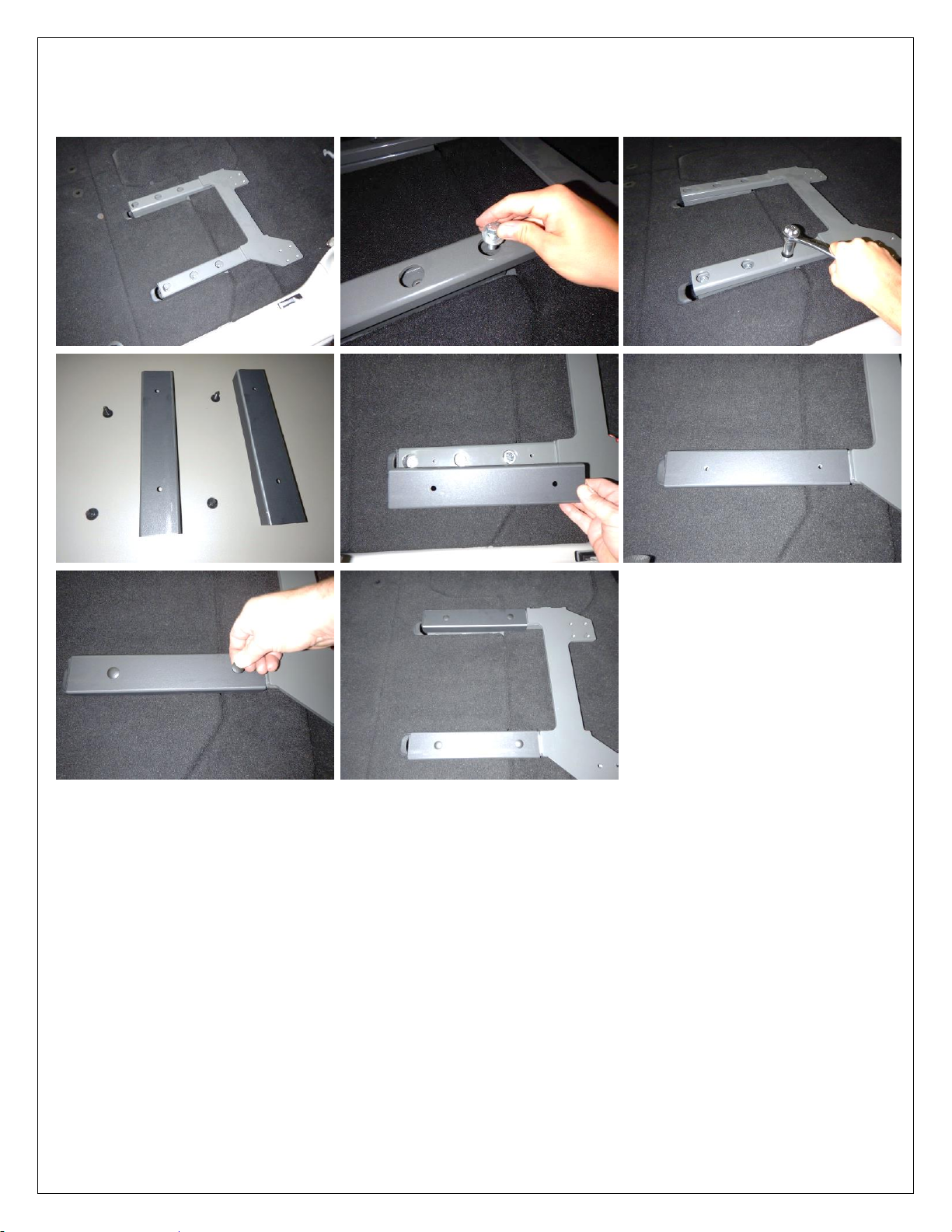

12. Install the upper LINK floor adapter # LK-CHR17CL-02 using the six 7/16-14x1’’ inch bolts and washers,
and then install the floor adapter covers.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 9
13. Remove the LINK from the shipping box and set it on a table or workbench. Connect auxiliary 12V
power to the LINK. The LINK will ‘beep’ during the installation. (See LINK Audible Warnings chart for
further references.)
14. Next, connect the LINK to the Android tablet via Bluetooth. Connect the Bluetooth module (small, blue
and white, 4 pronged connector) to the LINK pendant plug. Make sure the tablet and LINK are
connected. (Detailed explanations are found in the video tutorial, under INFO.) Using the LINK IT
application, open ‘BYPASS’. Press the ‘PIVOT OUTWARD’ button to move the LINK out just enough to
see the eight (8) bolt holes.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 10

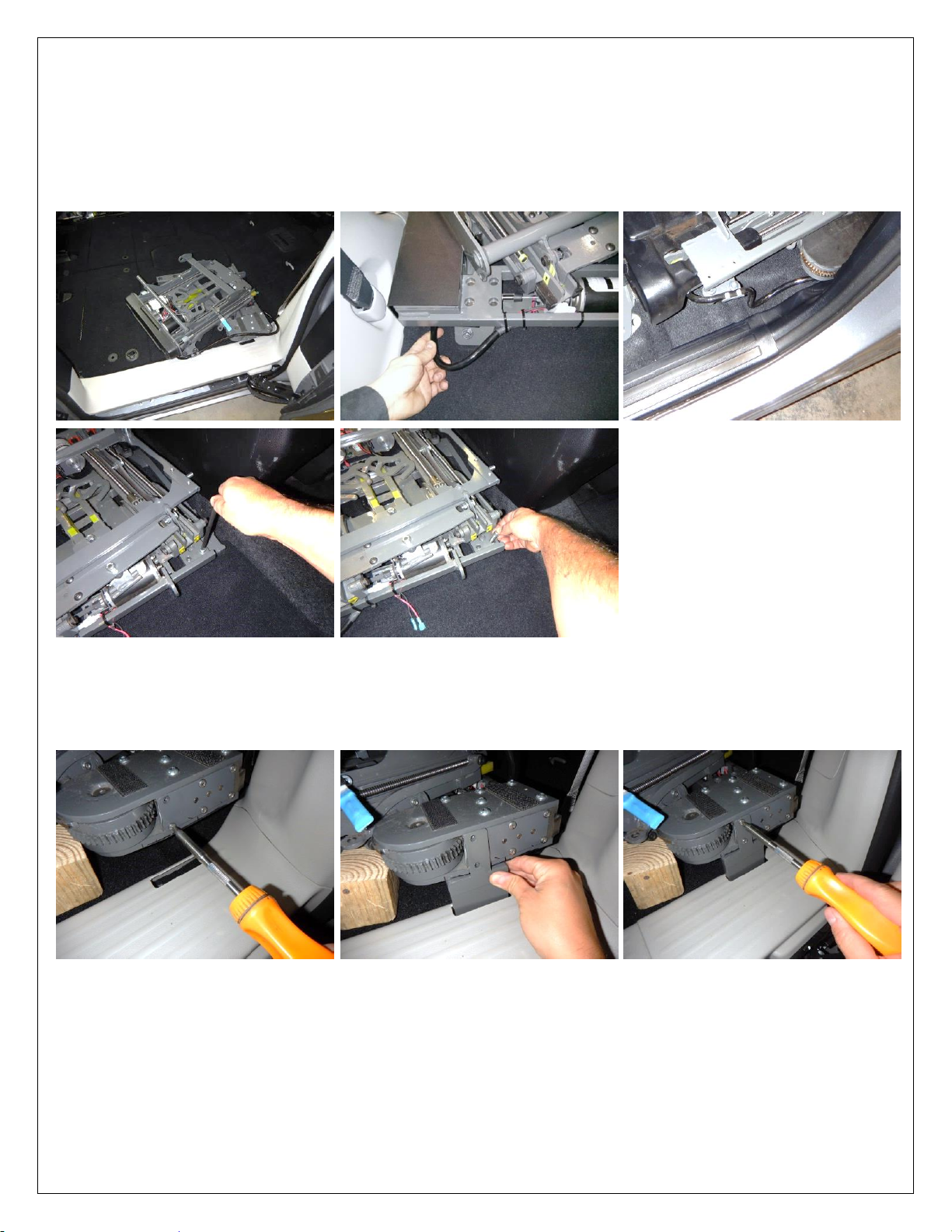

15. Place the LINK in the vehicle on the floor adapters. Use the four longer (3/8’’-16 x 1¼’’) socket cap bolts
to secure the LINK by the pivot, and use the four shorter (3/8’’-16 x 7/8’’) bolts to secure the interior
of the LINK. Be careful not to pinch the wire harness between the LINK and the floor adapter.
IMPORTANT: Run the LINK harness around and under the pivot. Do not run over the
top of the pivot as it can interfere with the function of the slide.
16. Remove the two screws nearest to the LINK pivot gear and install the pivot support bracket # LK-
CHR17CL-04.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 11

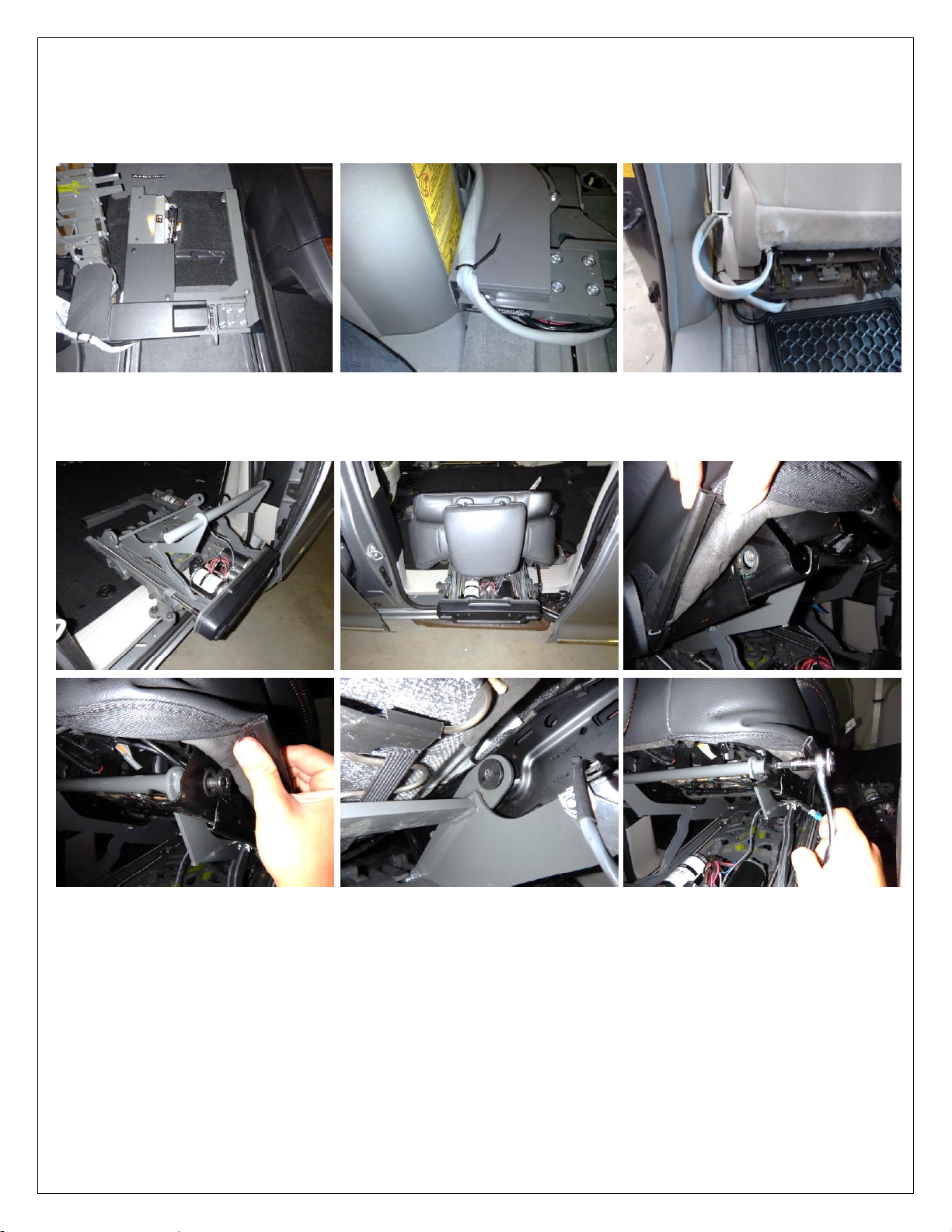

17. Connect the LINK to the previously installed 12V power supply. Using the ‘BYPASS’ mode on the tablet,
carefully use ‘PIVOT’ ‘TRAVEL’ and ’TILT’ to move the LINK out of the vehicle.

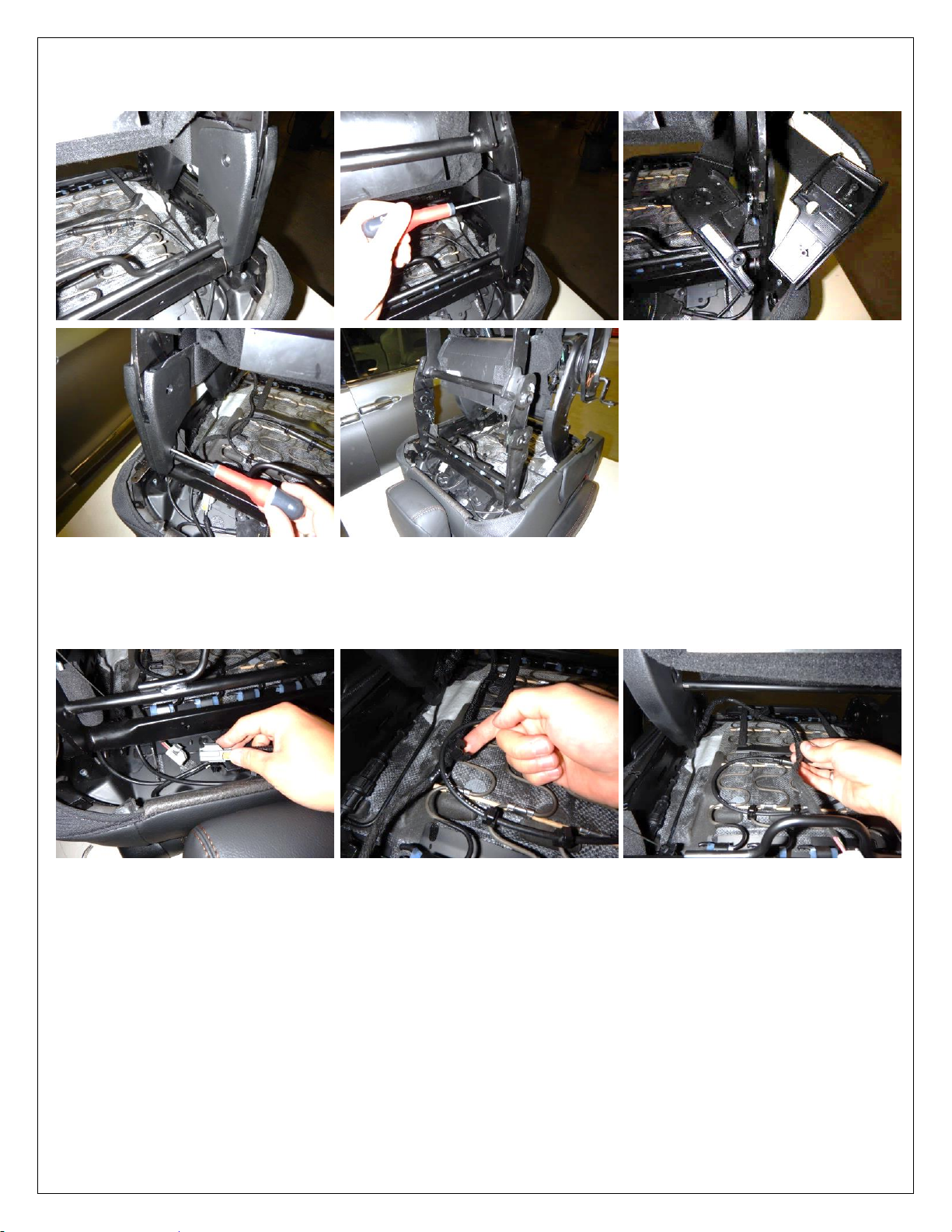

18. The folding metal frame of the seat will have to be removed from the seat. To do this start by removing
the elastic straps.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 12
19. Remove the plastic trims from both sides of the seat base.
20. Unplug the seat folding mechanism sensor plug and remove the plastic clip so that the wire follows the
seat base when it is removed.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 13
21. The three folding seat actuator wires will have to be disconnected two are located on either side of the
arms and one on the right hand side of the seat base.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 14
22. Unclip the plastic seat trim and seat cushion clips to gain access to the folding seat base bolts. Remove
the four bolts and remove the seat base. NOTE: Keep the OEM bolts for reinstallation of the seat to the
LINK seat adapter.
23. Attach the lose cables and wires with zip ties.
24. The upper metal tab on the front of the seat cushion base will have to be bent up and the lower tab bent
down.

LINK CHRYSLER PACIFICA 2017 & UP CENTER LEFT. p. 15
25. If the second row seat has the heating option the wiring will have to be extended 80 inches with the
provided multi brand wiring. Run the extension out of the back of the seat and under the LINK. Leave
a loop with enough lose to enable the seat to travel out completely.
26. Install the seat onto the LINK seat adapter using the four OEM bolts.
