Link LK-JOU08R User manual

LINK
INSTALLATION MANUAL
LK-JOU08R
DODGE JOURNEY
2008 & UP
PASSENGER SIDE

24
18 1
25
21
19
6
10 13
5
9
4
20
17
12
7
811
14
16
23
2
3
15
22
27
12
26
30 31
29
28
ITEM PART NUMBER
C/Quantité
DESCRIPTION
1 LK000R-01 1 Short Model LINK -Right-
2 LK-UNI-308R 1 008 Top Bearing Plate -Right-
3 PRD 337-213P 4 Button head socket cap screw Zinc Plated 5/16-18 x 3/4
4 PRD 192-141 1 Spring Tensions Pin 3/16 x 3/4
5 LK-UNI-408 1 408 Cam Pusher
6 PRD 339-116P 1 Socket Shoulder Screw Zinc Plated 5/16 x 1/2 x 1/4-20 THD
7 SN 654-006 1 Nylon Spacer id .317" od .500"
8 SN 681-129 1 Wave Disc Spring 0.325 id x 0.546 od x 0.007 thickness
9 LK-UNI-508R 1 508R Pusher Frame -Right-
10 PRD 339-135P 1 Socket Shoulder Screw Zinc Plated 3/8 x 3/8 x 5/16-18 THD
11 SN 654-007 1 Nylon Spacer id .375" od .625"
12 PRD 333-107 5 Nylon Insert Locknut 5/16-18
13 U-LK136 1 Roller Pusher
14 PRD 192-151 1 Spring Tension Pin 1/4 x 3/4
15 LK-JOU08R-03 1 Seat Adapter -Right-
16 L-LK912 1 Communication Cable Support
17 PRD 339-136P 4 Socket Shoulder Screw Zinc Plated 3/8 x 1/2 x 5/16-18 THD
18 LK710B 1 Chain Covert -Black-
19 PRD 110-106 2 Round washer head tapping screw #8 x 3/4
20 LK750RB 1 Pivot Cover -Right- Black
21 LK730RB 1 Inside Cover -Right- Black
22 LK731RB 1 Outside Cover -Right- Black
23 PRD 251-177 4 Trim Panel Clip Ø1/4'' x 3/4'' Black
24 LK700B 1 Link Covert -Black-
25 LK720RB 1 Pivot Motor Cover -Right- Black
26 LK960 1 LINK Wired Control
27 LK-JOU08R-01 1 Floor Adapter -Right-
28 LK-JOU08-BK 1 Bolt Kit
29 LK-JOU08R-AB 1 Air Bag Link Kit
30 LK760B 1 44" Vinyl Cover -Black-
31 EW-CK-00 1 12V Power Supply Wiring Kit
LK-JOU08R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
Short Model Link Kit -Right-
DESCRIPTION
KIT LINK DODGE JOURNEY 2008 +

33
10
11
7
8
4
9
13
12
1
2
Step 1
14
3
6
5
2 of 4
ITEM PART NUMBER
1/Quantité
DESCRIPTION
1 LK000R-01
1
Short Model LINK -Right-
2 LK-UNI-308R
1
008 Top Bearing Plate -Right-
3 PRD 337-213P
4
Button head socket cap screw Zinc Plated 5/16-18 x 3/4
4 PRD 192-141
1
Spring Tensions Pin 3/16 x 3/4
5 LK-UNI-408
1
408 Cam Pusher
6 PRD 339-116P
1
Socket Shoulder Screw Zinc Plated 5/16 x 1/2 x 1/4-20 THD
7 SN 654-006
1
Nylon Spacer id .317" od .500"
8 SN 681-129
1
Wave Disc Spring 0.325 id x 0.546 od x 0.007 thickness
9 LK-UNI-508R
1
508R Pusher Frame -Right-
10 PRD 339-135P
1
Socket Shoulder Screw Zinc Plated 3/8 x 3/8 x 5/16-18 THD
11 SN 654-007
1
Nylon Spacer id .375" od .625"
12 PRD 333-107
1
Nylon Insert Locknut 5/16-18
13 U-LK136
1
Roller Pusher
14 PRD 192-151
1
Spring Tension Pin 1/4 x 3/4
LK-JOU08R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
Short Model Link Kit -Right-
DESCRIPTION
KIT LINK DODGE JOURNEY 2008 +

1
3
10
5
4
8
97
Step 2
2
6
3 of 4
ITEM PART NUMBER
2/Quantité
DESCRIPTION
1 LK-JOU08R-03
1
Seat Adapter -Right-
2 L-LK912
1
Communication Cable Support
3 PRD 339-136P
4
Socket Shoulder Screw Zinc Plated 3/8 x 1/2 x 5/16-18 THD
4 PRD 333-107
4
Nylon Insert Locknut 5/16-18
5 LK710B
1
Chain Covert -Black-
6 PRD 110-106
2
Round washer head tapping screw #8 x 3/4
7 LK750RB
1
Pivot Cover -Right- Black
8 LK730RB
1
Inside Cover -Right- Black
9 LK731RB
1
Outside Cover -Right- Black
10 PRD 251-177
4
Trim Panel Clip Ø1/4'' x 3/4'' Black
LK-JOU08R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
Short Model Link Kit -Right-
DESCRIPTION
KIT LINK DODGE JOURNEY 2008 +

1
2
4
Step 3
4 of 4
7
3
8
6
5
ITEM PART NUMBER
3/Quantité
DESCRIPTION
1 LK700B
1
Link Covert -Black-
2 LK720RB
1
Pivot Motor Cover -Right- Black
3 LK960
1
LINK Wired Control
4 LK-JOU08R-01
1
Floor Adapter -Right-
5 LK-JOU08-BK
1
Bolt Kit
6 LK-JOU08R-AB
1
Air Bag Link Kit
7 LK760B
1
44" Vinyl Cover -Black-
8 EW-CK-00
1
12V Power Supply Wiring Kit
LK-JOU08R
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
Short Model Link Kit -Right-
DESCRIPTION
KIT LINK DODGE JOURNEY 2008 +

*ESTIMATED height and installation time (base model).
HIGHER TRIM LEVELS REQUIRED ADDITIONAL INSTALLATION TIME.
ADAPT SOLUTIONS
08-2016
LINK REFERENCES
LK-JOU08R
Seat height: ¼ inch higher than OEM
*Transfer height: 19”|Average install: 9-11 hrs.
OEM shrouds must be trimmed.
Seat adjustments|FRONT: ¼ more than OEM|BACK: ¼ more than OEM
Plastic seat pan must be trimmed|OEM reconfiguration not affected
OEM wire harness must be cut and extended under seat.
OEM wire harness must be cut and extended under seat.
Plastic seat pan must be trimmed|OEM reconfiguration not affected. OEM shrouds must be trimmed.

LINK 2008 & UP Dodge Journey Front Right –p.2
WARNINGS
PLEASE REVIEW BEFORE STARTING THE INSTALLATION
Look through the entire manual to understand the installation process.
Watch the tutorial videos that are found on the tablet.
During the installation use the ‘BYPASS’ mode to move the LINK.
Do not use the pendant or ‘PENDANT’ mode until you have reset the home position.
The LINK is designed to ALWAYS use the original seat. The biggest challenge this will present for the installer will
be extending the vehicle’s original seat wire harness, as this MUST be done. The general process does not vary, but
the exact steps will vary due to the trim level, the model and seat options from the vehicle manufacturer. Keeping
this in mind, we have made an effort to clearly describe the process required in this manual. However, it is possible
that the pictures in this manual do not match exactly the specific vehicle you are working on.
SEAT WIRING EXTENSION PROCESS
The wiring must be extended 80 inches. This extension is placed near the seat connectors that are under the seat.
The extension (80 inches) then passes under the LINK and loops around the back of the OEM seat –allowing the
seat and the LINK to travel in and out of the vehicle. Depending on the make, model and seat options, there are
components that must be disconnected, bypassed and/or relocated. On vehicle models with a seat position
memory function, the forward/backward, tilt and height adjustments as well as seat memory are replaced by the
LINK. However, the seat recline function is retained. (EXAMPLE: In the Ford F150, 2009-2014 model; the seat
height, tilt, forward and backward adjustment motors are disconnected and removed with the seat frame, but the
recline motor is retained. The control and memory box are relocated to the floor under the seat, next to the seat
connectors. The seat position sensor is also relocated to the floor under the seat. The wiring harness is then
extended from this point under the seat.)
PLEASE NOTE: If the ignition is turned on while extending a wire harness that includes airbags, this may cause the
airbag light to stay on following the installation.
ADAPT SOLUTIONS CANNOT BE HELD RESPONSIBLE FOR FAULTY WIRE EXTENSIONS.
Please use caution during the installation.
ANDROID TABLET –LINK I.T. SOFTWARE
If this is your first installation of a LINK, you will have also purchased an Android tablet that is required for the
installation and maintenance of the LINK product. This tablet will have the LINK IT software already installed.
We have prepared quick, easy and to the point tutorial videos imbedded into the software. Take a moment and
watch the video that shows all the features of the tablet. To do this, open the LINK IT app and tap on ‘INFO’.
Make sure your volume is turned up and tap on App-101. The video will start automatically.
REDUCED POWER MODE
A safeguard is integrated in the LINK system. Following any changes to the preset or sequence of the LINK, the
unit will enter a reduced power mode. This is to allow you to visually inspect the movements of the LINK to ensure
it is not damaging the vehicle or itself during its first cycle. On the tablet, a yellow bar will appear at the top of the
screen to indicate you are in reduced power mode. To exit, simply run the LINK a full cycle. NOTE:It is possible
that the LINK will stop during this cycle as power is reduced. Visually confirm nothing is impeding the movements
and then simply press the IN or OUT button again to continue the cycle. During the installation, if the 12V power is
removed and replaced at the same time as the 9V battery (LINK memory back up) is unplugged or fully drained,
the LINK will enter reduced power mode. Simply run a full cycle to exit. PLEASE NOTE: You will find an explanation
of this mode on a YELLOW tag attached to the hand pendant. Please explain the functions of the reduced power
mode to the LINK user (your client).
For technical support call 866.641.0419 or email [e-mail]
Please have the serial number of the unit on hand before placing your call.

LINK 2008 & UP Dodge Journey Front Right –p.3

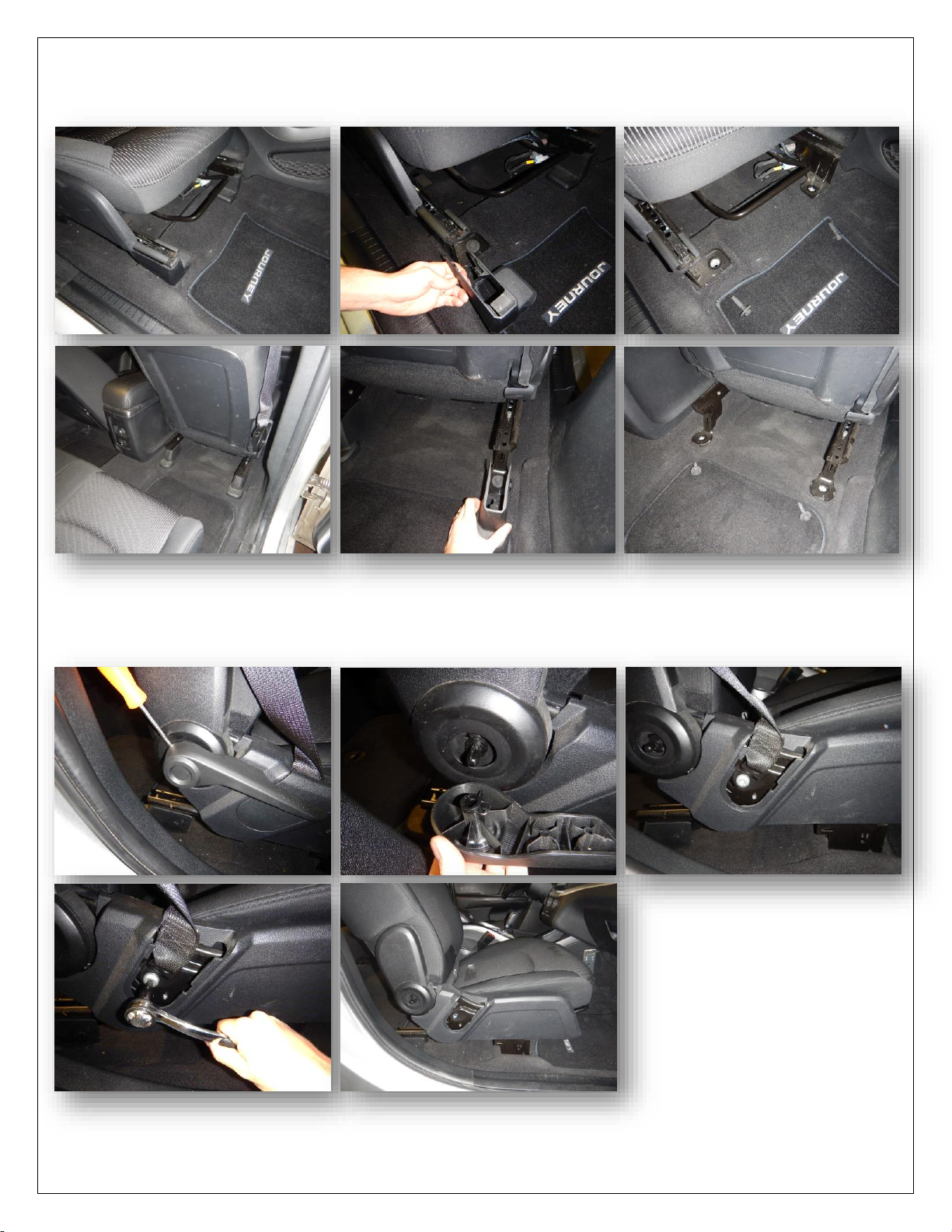

1. Remove the front passenger seat by removing the plastic floor trims to gain access to the floor
bolts.
2. Remove the recline handle and plastic cover to gain access to the seat belt mounting bolt. Remove
the seat belt and keep the OEM bolt for reinstallation to the LINK seat base.

LINK 2008 & UP Dodge Journey Front Right –p.4
3. Tilt back the seat to access the electrical connectors for the seat wiring harness. Disconnect them,
remove the seat and place on a work bench.
4. With the seat installed on a workbench remove the plastic seat trims.

LINK 2008 & UP Dodge Journey Front Right –p.5
5. Disconnect all the wiring harness connectors and clips. NOTE: the seat back heater connector and seat belt
connector are the same identify them as not to cause an air bag error by interchanging them.
6. Remove the clips that hold the recline wire that goes from one side of the seat to the other and remove the
screws that hold the seat base. Then remove the seat base.

LINK 2008 & UP Dodge Journey Front Right –p.6
7. Temporarily reinstall the recline handle and tilt the seat back forward to gain access to unclip the fabric flap
at the back of the seat.
8. Remove the seat back. To do so you will also have to remove the plastic seat base at the same time to allow
the recline cable to pass. Also, remove the seat base wiring harness at this stage.

LINK 2008 & UP Dodge Journey Front Right –p.7
9. Remove the seat position sensor, and also the seat belt receiver; retain the OEM bolt and nut for reinstallation
of the seat belt receiver on. Note: The seat position sensor will have to be reinstalled to the provided sensor
bracket #LK-CHRG08-04 and reconnected to the harness. The seat belt receiver bracket will have to be
removed, to be able to remove the OEM bolt, which will be used for reinstallation.

LINK 2008 & UP Dodge Journey Front Right –p.8
The wiring harness extension can now be made, using the provided multibrand cable. Extend the OEM wire
harness with the provided connectors and 18-gauge multi-strand extension. Start the extension six (6) inches
from the floor connector. For best results, extend one wire at a time. Test continuity of each wire through the
extension to avoid errors. (If you wish to keep a record of your wire extensions for reference, you will find a lined
sheet at the very end of this manual for that purpose.) NOTE: the wiring extension for the seat back and the seat
base will have to be spliced into the same extension and then re-taped. The seat position sensor (if present) is
attached to the provided bracket #LK-CHRG08L-04 and attached with the unused motor connectors in the seat
back.

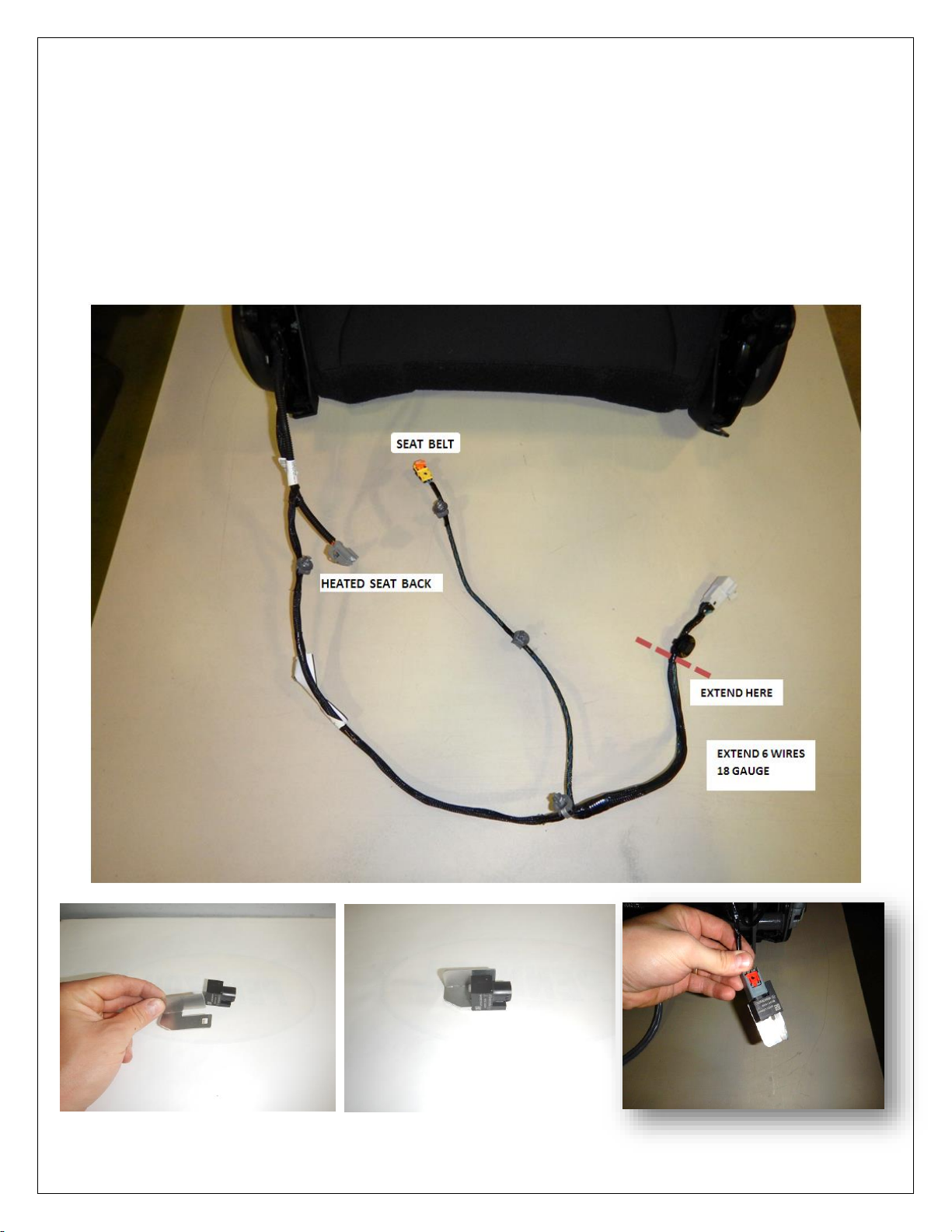

SEAT BACK EXTENSION

LINK 2008 & UP Dodge Journey Front Right –p.9

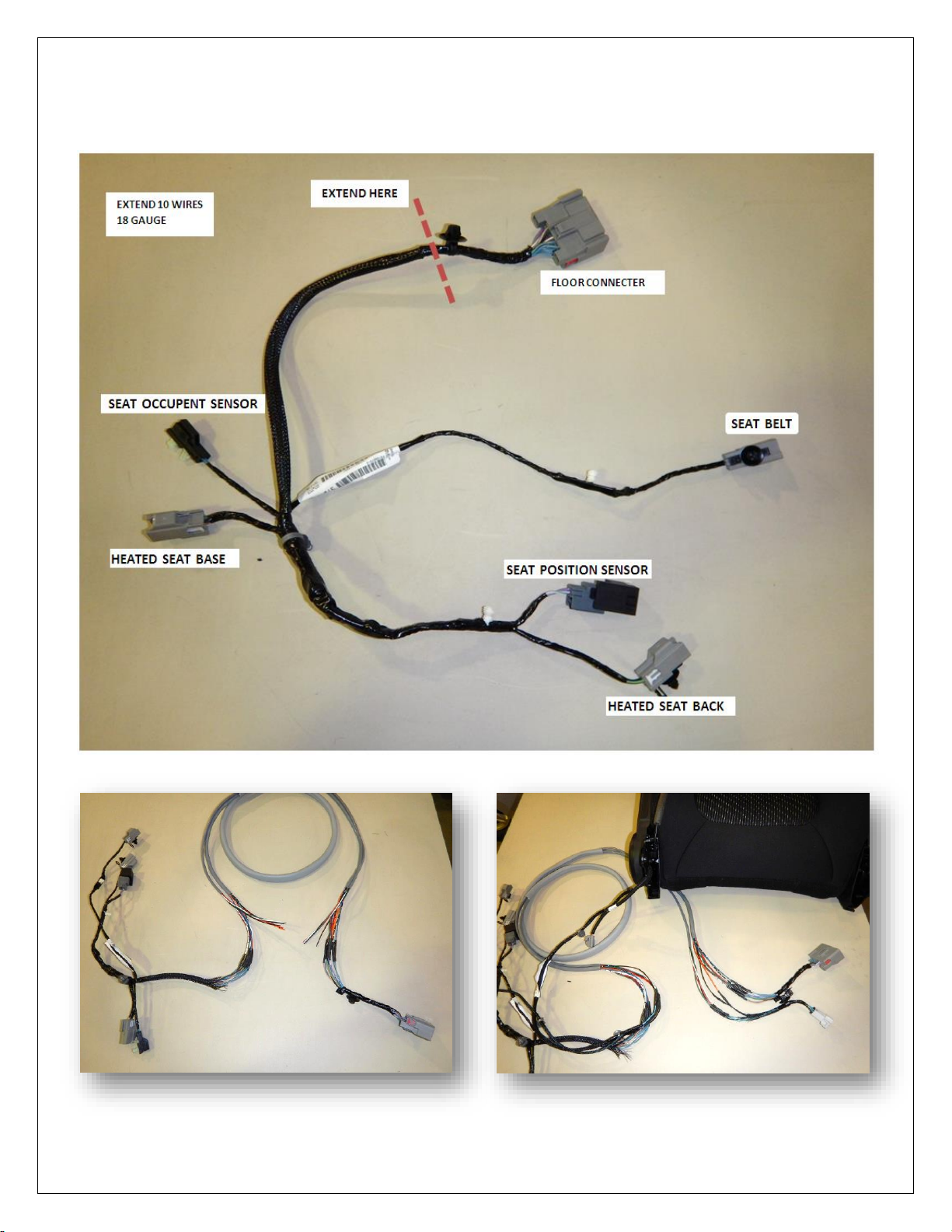

SEAT BASE WIRING

LINK 2008 & UP Dodge Journey Front Right –p.10
10. Install the LINK floor bracket #LK-JOU08-01 using the OEM seat bolts.
11. Run the power from the battery to the LINK. To do this, thread the red power cable (+) under the doorstep
molding and through the firewall. Make sure you pass through a grommet in the firewall to prevent the
cable from chaffing. Install the circuit breaker near the battery and then connect the battery to the circuit
breaker. Attach the black ground wire (-) to the vehicle’s frame, under the doorstep molding using a self-
tapping screw. Locate a spot where the sheet metal is doubled-up to ensure a proper ground.

LINK 2008 & UP Dodge Journey Front Right –p.11
12. Remove the LINK from the shipping box and set it on a table or workbench. Connect auxiliary 12V power to
the LINK. The LINK will ‘beep’ during the installation. (See LINK Audible Warnings chart for further
references.)
13. Next, connect the LINK to the Android tablet via Bluetooth. Connect the Bluetooth module (small, blue and
white, 4 pronged connector) to the LINK pendant plug. Make sure the tablet and LINK are connected.
(Detailed explanations are found in the video tutorial, under INFO.) Using the LINK IT application, open
‘BYPASS’. Press the ‘PIVOT OUTWARD’ button to move the LINK out just enough to see the eight (8) bolt
holes.

LINK 2008 & UP Dodge Journey Front Right –p.12
14. Place the LINK in the vehicle on the floor adapters. Use the four longer (3/8’’-16 x 1¼’’) socket cap
bolts to secure the LINK by the pivot, and use the four shorter (3/8’’-16 x 7/8’’) bolts to secure the
interior of the LINK. Be careful not to pinch the wire harness between the LINK and the floor
adapter. The floor bracket bolts can now be tightened down. IMPORTANT: Run the LINK harness
around and under the pivot. Do not run over the top of the pivot as it can interfere with the
function of the slide.
15. Connect the previously installed 12V power supply to the LINK,and using the ‘BYPASS’ mode on the
tablet, carefully ‘PIVOT’ ‘TRAVEL’ and ‘TILT’ the LINK out of the vehicle to install the seat base.
Note: The seat adapter is shipped temporarily attached to the LINK for shipping, but will have to
be removed for the installation of the seat base. remove the four shoulder bolts that hold it in
place.

LINK 2008 & UP Dodge Journey Front Right –p.13
16. The bottom half of the plastic seat base will have to be removed before re-installation to allow
clearance for the LINK and remove the plastic at 3/4 inch down from the holes from the rear lip of
the plastic pan.
Measure ¾’’ from
hole

LINK 2008 & UP Dodge Journey Front Right –p.14
17. The plastic protrusion on the front left hand side of the plastic seat pan will also have to be
removed to allow clearance. Mark level with the rest of the base as in the photos and cut off.
18. Remove the hinge mechanism from the seat cushion by removing the two screws each side, and
also remove the pull tab at the rear of the seat base.

LINK 2008 & UP Dodge Journey Front Right –p.15
19. Remove a foam triangle from the fabric flap from the seat back. And punch two holes in the fabric
through the foam to hold the fabric in place.
20. Place the plastic seat base in position on the seat back. Pass the wiring harness extension through
the hole in the plastic seat base.
