Link LK-WRG18L User manual

LINK
INSTALLATION MANUAL
LK-WRG18L
JEEP WRANGLER
2018 & UP
DRIVER SIDE
FRONT

13
15
16 19 21 22
17
18
20
8
14
11
3
7
10
1
2
MANUAL SEAT
ITEM PART NUMBER
QTY
DESCRIPTION
1 LK000L-02 1 Long Model LINK -Left-
2 LK-UNI-004L 1 004 Assembly Top Bearing Plate -Left-
3 LK-WRG18L-03 1 Seat Adapter- -Left-
4 L-LK912 1 Communication Cable Support
5 PRD 339-136P 4 Socket Shoulder Screw Zinc Plated 3/8 x 1/2 x 5/16-18 THD
6 PRD 333-107 4 Nylon Insert Locknut 5/16-18
7 LK-WRG18L-02 1 Seat Cushion Support -Left-
8 LK710B 1 Chain Covert -Black-
9 PRD 110-106 2 Round washer head tapping screw #8 x 3/4
10 LK752B 1 Pivot Cover -Black-
11 LK700B 1 Link Covert -Black-
12 LK720LB 1 Pivot Motor Cover -Left- Black
13 LK960 1 LINK Wired Control
14 LK-WRG18L-01 1 Floor Adapter -Left-
15 LK-WRG18L-04 1 Detonator Fixing -Left-
16 LK-WRG18LB-05 1 Seat Trim -Left- Black
17 LK-WRG18LB-06 1 Floor Cover -Left- Black
18 U-LK-WRG18-07 1 Socket Shoulder Screw for Rear Frame
19 LK-WRG18-BK 1 Bolt Kit
20 LK-WRG18-AB 1 Wire Extension Kit -Left-
21 EW-CK-00 1 12V Power Supply Wiring Kit
22 LK-UNI-650 1 Manual Backup Tool Kit
LK-WRG18L
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
LINK Jeep Wrangler JL 2018 & Up -Left-
DESCRIPTION
LINK JEEP WRANGLER JL 2018 & UP
1 of 5

15
14
8
7
10
11
9
3
1
31
2
13
4
5
16
1
6
12
ITEM PART NUMBER
QTY
DESCRIPTION
1 LK000L-02 1 Long Model LINK -Left-
2 LK-UNI-304L 1 004 Top Bearing Plate -Left-
3 PRD 337-213P 3 Button head socket cap screw Zinc Plated 5/16-18 x 3/4
4 LK-UNI-404 1 404 Cam Pusher
5 LK-UNI-504L 1 504L Pusher Frame -Left-
6 PRD 333-107 1 Nylon Insert Locknut 5/16-18
7 SN 654-007 1 Nylon Spacer id .375" od .625"
8 PRD 339-135P 1 Socket Shoulder Screw Zinc Plated 3/8 x 3/8 x 5/16-18 THD
9 SN 681-129 1 Wave Disc Spring 0.325 id x 0.546 od x 0.007 thickness
10 SN 654-006 1 Nylon Spacer id .317" od .500"
11 PRD 339-116P 1 Socket Shoulder Screw Zinc Plated 5/16 x 1/2 x 1/4-20 THD
12 PRD 192-141 1 Spring Tensions Pin 3/16 x 3/4
13 PRD 192-309 1 Spiral Spring Tensions Pin 3/16 x 3/4
14 PRD 192-151 1 Spring Tension Pin 1/4 x 3/4
15 PRD 192-135 1 Spring Tension Pin 5/32 x 3/4
16 LK752B 1 Pivot Cover -Black-
LK-WRG18L
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
LINK Jeep Wrangler JL 2018 & Up -Left-
DESCRIPTION
LINK JEEP WRANGLER JL 2018 & UP
2 of 5

5
2
1
10
34
12
11
6 7 8
9
ITEM PART NUMBER QTY DESCRIPTION
1 LK-WRG18L-01 1 Floor Adapter -Left-
2 PRD 24338YP 2 Hex Flange Bolt Zinc Plated Partially Threaded M10-1.50 x 35mm G10.9
3 LK000L-02 1 Long Model LINK -Left-
4 PRD 332-164P 4 Socket Head Cap Screw Zinc Plated 3/8-16 x 7/8
5 PRD 332-166P 4 Socket Head Cap Screw Zinc Plated 3/8-16 x 1 1/4
6 LK-WRG18L-04 1 Detonator Fixing -Left-
7 PRD 342-115P 1 Spring Lockwasher Zinc plated 5/16
8 PRD 20203P 1 Hex Cap Bolt Zinc Plated M8-1.25 x 40mm G8.8
9 PRD 22120 1 Flat Socket Cap Screw M8-1.25 x 25mm G10.9
10 LK720LB 1 Pivot Motor Cover -Left- Black
11 LK710B 1 Chain Covert -Black-
12 PRD 110-106 2 Round washer head tapping screw #8 x 3/4
LK-WRG18L
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
LINK Jeep Wrangler JL 2018 & Up -Left-
DESCRIPTION
LINK JEEP WRANGLER JL 2018 & UP
3 of 5

5
3
3
4
2
4
1
L-LK912
NE PAS FAIRE PDF AVEC CETTE FEUILLE
POUR LA MISE EN PLAN EN FRANÇAIS,
C'EST SEULEMENT POUR L'EXPLODED VIEW
ITEM PART NUMBER
QTY
DESCRIPTION
1 LK-WRG18L-03 1 Seat Adapter- -Left-
2 L-LK912 1 Communication Cable Support
3 PRD 339-136P 4 Socket Shoulder Screw Zinc Plated 3/8 x 1/2 x 5/16-18 THD
4 PRD 333-107 4 Nylon Insert Locknut 5/16-18
5 LK700B 1 Link Covert -Black-
LK-WRG18L
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
LINK Jeep Wrangler JL 2018 & Up -Left-
DESCRIPTION
LINK JEEP WRANGLER JL 2018 & UP
4 of 5

2
1
2
43
35
ITEM PART NUMBER
QTY
DESCRIPTION
1 LK-WRG18L-02 1 Seat Cushion Support -Left-
2 PRD 130-117 5 Slotted Hexagon Washer Head Tapping Screw #10 x 3/4
3 PRD 23164 2 Nylon Insert Locknut M8-1.25 G8.8
4 PRD 321-101P 1 Hex Nut Zinc Plated 1/4-20
5 PRD 303-222P 1 Hex Cap Bolt Zinc Plated 7/16-20 x 1 G5
LK-WRG18L
ADAPT SOLUTIONS
|[email protected]|866.641.0419|418.889.9838 fax
PART NUMBER
LINK Jeep Wrangler JL 2018 & Up -Left-
DESCRIPTION
LINK JEEP WRANGLER JL 2018 & UP
5 of 5

*ESTIMATED height and installation time (base model).
HIGHER TRIM LEVELS REQUIRED ADDITIONAL INSTALLATION TIME. ADAPT SOLUTIONS
03-2021
LINK REFERENCES
LK-WRG18L
Seat height: ¾” higher than OEM lowest (adjustable seat)
*Transfer height: 19”|Average install: 6-8hrs.
OEM seat trim must be modified.
Seat adjustments|FRONT: 2” more than OEM|BACK: 3 1/8”less than OEM.
Lower B pillar shroud needs to be cut |STENCIL PROVIDED.
OEM wire harness must be cut and extended under seat.
Adapt Solutions’ signature TALL programing NOT AVAILABLE.
Friction on center console. Wear and scratches to be expected.
MAX PRESET available. Offers 2 additional inches of vertical travel. (Ideal for JEEP’s with lift kit – to offer MAXIMUM travel.)
OEM wire harness must be cut and extended under seat.
OEM seat trim must be modified.|Lower B pillar shroud needs to be cut |STENCIL PROVIDED.
Friction on center console|Wear and scratches to be expected.

LINK Jeep Wrangler 2018 & UP driver side-p.2
WARNINGS
PLEASE REVIEW BEFORE STARTING THE INSTALLATION
Look through the entire manual to understand the installation process.
Watch the tutorial videos that are found on the tablet.
During the installation use the ‘BYPASS’ mode to move the LINK.
Do not use the pendant or ‘PENDANT’ mode until you have reset the home position.
The LINK is designed to ALWAYS use the original seat. The biggest challenge this will present for the installer will
be extending the vehicle’s original seat wire harness, as this MUST be done. The general process does not vary, but
the exact steps will vary due to the trim level, the model and seat options from the vehicle manufacturer. Keeping
this in mind, we have made an effort to clearly describe the process required in this manual. However, it is possible
that the pictures in this manual do not match exactly the specific vehicle you are working on.
SEAT WIRING EXTENSION PROCESS
The wiring must be extended 80 inches. This extension is placed near the seat connectors that are under the seat.
The extension (80 inches) then passes under the LINK and loops around the back of the OEM seat –allowing the
seat and the LINK to travel in and out of the vehicle. Depending on the make, model and seat options, there are
components that must be disconnected, bypassed and/or relocated. On vehicle models with a seat position
memory function, the forward/backward, tilt and height adjustments as well as seat memory are replaced by the
LINK. However, the seat recline function is retained. (EXAMPLE: In the Ford F150, 2009-2014 model; the seat
height, tilt, forward and backward adjustment motors are disconnected and removed with the seat frame, but the
recline motor is retained. The control and memory box are relocated to the floor under the seat, next to the seat
connectors. The seat position sensor is also relocated to the floor under the seat. The wiring harness is then
extended from this point under the seat.)
PLEASE NOTE: If the ignition is turned on while extending a wire harness that includes airbags, this may cause the
airbag light to stay on following the installation.
ADAPT SOLUTIONS CANNOT BE HELD RESPONSIBLE FOR FAULTY WIRE EXTENSIONS.
Please use caution during the installation.
ANDROID TABLET –LINK I.T. SOFTWARE
If this is your first installation of a LINK, you will have also purchased an Android tablet that is required for the
installation and maintenance of the LINK product. This tablet will have the LINK IT software already installed.
We have prepared quick, easy and to the point tutorial videos imbedded into the software. Take a moment and
watch the video that shows all the features of the tablet. To do this, open the LINK IT app and tap on ‘INFO’.
Make sure your volume is turned up and tap on App-101. The video will start automatically.
REDUCED POWER MODE
A safeguard is integrated in the LINK system. Following any changes to the preset or sequence of the LINK, the
unit will enter a reduced power mode. This is to allow you to visually inspect the movements of the LINK to ensure
it is not damaging the vehicle or itself during its first cycle. On the tablet, a yellow bar will appear at the top of the
screen to indicate you are in reduced power mode. To exit, simply run the LINK a full cycle. NOTE:It is possible
that the LINK will stop during this cycle as power is reduced. Visually confirm nothing is impeding the movements
and then simply press the IN or OUT button again to continue the cycle. During the installation, if the 12V power is
removed and replaced at the same time as the 9V battery (LINK memory back up) is unplugged or fully drained,
the LINK will enter reduced power mode. Simply run a full cycle to exit. PLEASE NOTE: You will find an explanation
of this mode on a YELLOW tag attached to the hand pendant. Please explain the functions of the reduced power
mode to the LINK user (your client).
For technical support call 866.641.0419 or email [e-mail]
Please have the serial number of the unit on hand before placing your call.

LINK Jeep Wrangler 2018 & UP driver side-p.3
BEFORE STARTING THE INSTALLATION:
Make sure the steering wheel adjustment is fully UP and IN to allow maximum clearance for the driver seat.
When installing the LINK with hand controls, hand controls should be installed after the LINK.
1. Remove the driver side OEM seat and place on a workbench to be able to remove all the plastic trims,
seat handle and lumbar adjuster. Keep the two front OEM bolts for reinstallation.

LINK Jeep Wrangler 2018 & UP driver side-p.4
2. Remove the wiring harness and seat position sensor from the seat base. The airbag connector plug
goes directly into the seat back and will follow the seat back when removed.

LINK Jeep Wrangler 2018 & UP driver side-p.5
3. Remove the seat cushion.

LINK Jeep Wrangler 2018 & UP driver side-p.6
4. Remove the seat lumbar mechanism from the seat pan, and then unbolt the seat back and remove
along with the lumbar mechanism. The front part of the seat lumbar mechanism will have to be
modified slightly to allow clearance for the LINK remove the plastic as per the directions.

LINK Jeep Wrangler 2018 & UP driver side-p.7
5. Remove the seat belt receiver.
6. Remove the seat occupant sensor module and pad from the seat pan. Remove the bracket from the module.

LINK Jeep Wrangler 2018 & UP driver side-p.8

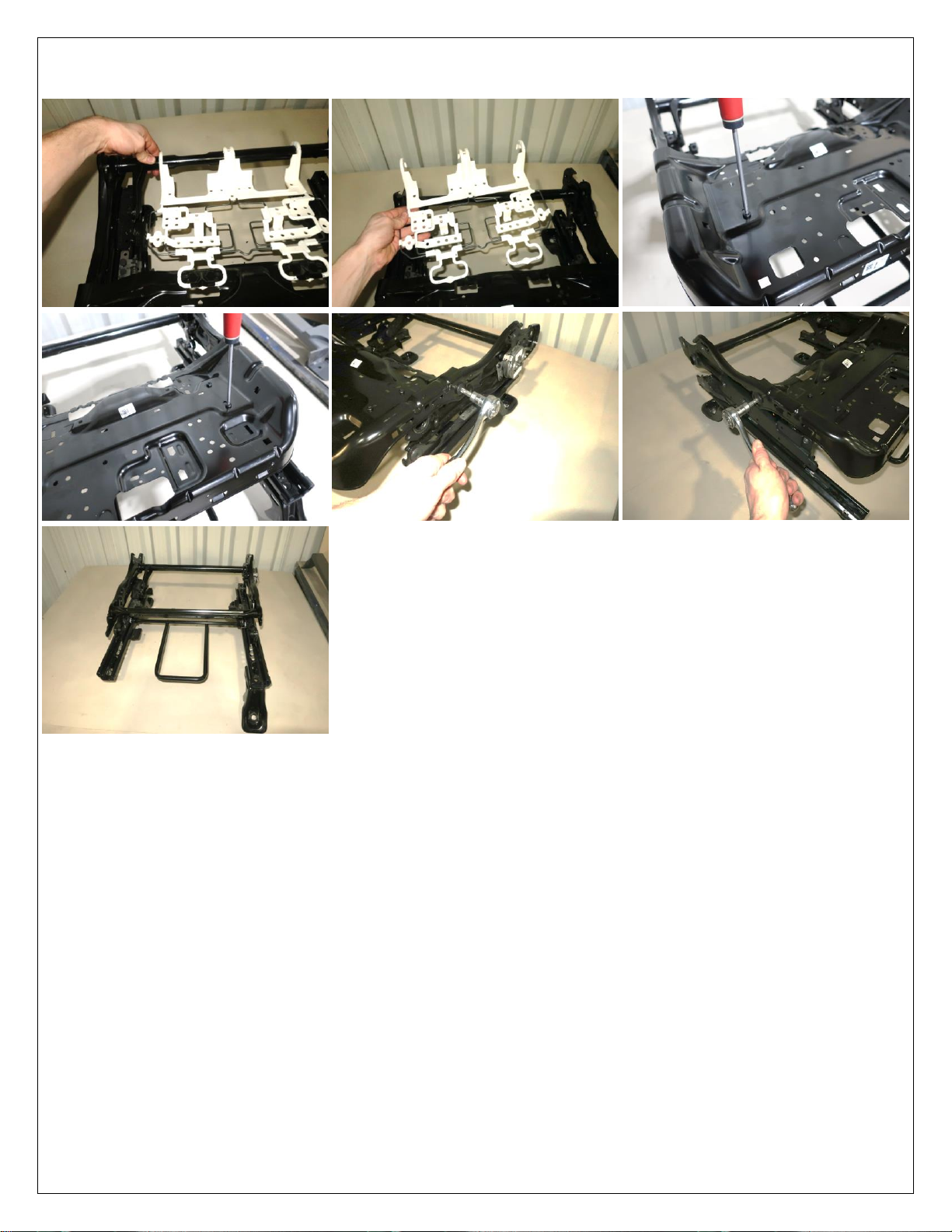

7. Remove the seat cushion support and the seat pan.

LINK Jeep Wrangler 2018 & UP driver side-p.9
8. The wiring harness extension can now be made using the provided multibrand cable. Extend the OEM wire
harness with the provided connectors and 18 gauge multi strand extension. For best results, extend one wire
at a time. Test continuity of each wire through the extension to avoid errors. (If you wish to keep a record of
your wire extensions for reference, you will find a lined sheet at the very end of this manual for that purpose.)
The wiring extension will be routed out of the bottom left hand corner of the seat. NOTE: The airbag plug goes
directly into the seat back, it will be extended through the provided extension at the same time as the other
floor plug.
WIRING BEFORE EXTENTION

LINK Jeep Wrangler 2018 & UP driver side-p.10
WIRING AFTER EXTENTION

LINK Jeep Wrangler 2018 & UP driver side-p.11
9. Reconnect the seat position sensor module to the plug, and install the provided sensor bracket # LK-CGRG08-
04 on to the module.
10. Remove the upper and lower b pillar trim to access the seat belt pre-tensioner.

LINK Jeep Wrangler 2018 & UP driver side-p.12
11. The seat belt pre-tensioner will have to be removed and the provided adapter # LK-WRG18L-04 installed
using the provided M8-1.25X25mm flathead bolt and the M8-1.25X40mm bolt and lock washer. The pre-
tensioner will be installed onto the new adapter.
12. The b pillar trim will have to be cut and modified with the provided stencil to allow clearance for the LINK.
Modify as per the photos.

LINK Jeep Wrangler 2018 & UP driver side-p.13

LINK Jeep Wrangler 2018 & UP driver side-p.14
13. Run the power from the battery to the LINK. To do this, thread the red power cable (+) under the
doorstep molding and through the firewall. Make sure you pass through a grommet in the firewall to
prevent the cable from chaffing. Install the circuit breaker near the battery and then connect the
battery to the circuit breaker. Attach the black ground wire (-) to the vehicle’s frame, under the
doorstep moulding using a self-tapping screw. Locate a spot where the sheet metal is doubled-up to
ensure a proper ground.
14. Reinstall the b-pillar trims.
