It is hereby declared that:
Machine: Productgroup: Logiflex
Type: ELF/ELFS 1001
Yearofmanufacture/
SerialNo:
a) Hasbeenmanufactured inconformance with thestipulations of the:
•COUNCILDIRECTIVE no.98/37/EC
• COUNCILDIRECTIVE no.89/336/ECC
b) Hasbeenmanufactured inconformance with thestipulations ofthe
standard:
•EN-1757-1
Name: Erling Pedersen
Position: Product manager
Company: Logitrans A/S Product type declaration of:
Signature:

3
1.0Beforethefirstlift...
TheLogitransLogiflexismanufacturedinaccordancewithsafety
directives.
Amongthe subjectsdealtwithinthisInstructionManual are:
- Proper application
- Physical limitations of the product
- Risks with improper use
-ThereforepleasereadthisInstruction Manual carefully!

4
Lifting/Lowering
Emergency stop
Instrument board
-Battery indicator
-Type plate
-Charging plug (internal or external charger)
-Plugfor extra equipment,
12Vmaximum30Amp
Releasedposition
Brakedposition
To release the brake

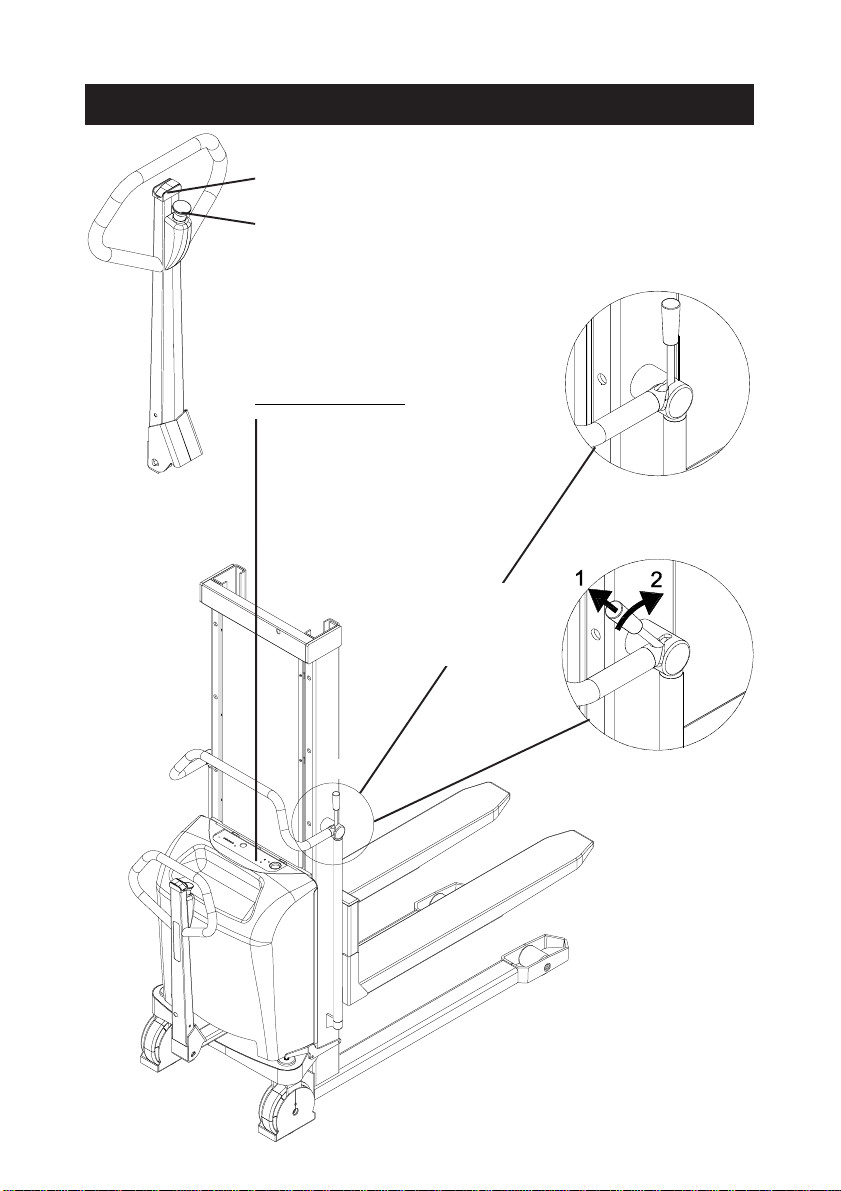

2.0Electrical Logiflex
1.Pull
2.Push

5
ELF
ELFS
LOGIFLEX APPLICATION
- PALLET HANDLING -
For proper operation,
stand behind the handle.
Push/pull - raise/lower
WHEN HANDLING CLOSED PALLETS ....
... USE THE STRADDLE LOGIFLEX!
3.0 How to operate the Logiflex

6
The mast lifting capacity and the corresponding centre of
gravity distance are given by the pictogram on the side of the
mast.
The lifting capacity of the mast is the same as the max. lifting
capacity of the product.
Max. lifting capacity is set on the safety valve of the product.
Specific to ELF 1001/3300 - with load limitationat
significant lifting heights.
- The fork bracket loading is dependent on the lifting height and
can be read on the load diagram.
- Load limitation at significant heights is incorporated to give
greater stability of the Logiflex and operator safety.
Marking
4.0Optimumsafety
4.1 Avoid overloads
The maximum load must not be exceeded. Remember,that theLogiflex is designed for
evenly distributed load, - goods on pallets etc. If the forks are point-loaded on one
side, there is a risk of bending.
4.2 Avoid offset loads
The load must be evenly distributed. The maximum centre of gravity distance from
the front of the fork mast (given on the truck) must not be exceeded.Agreater
distance reduces the level of safety and increases the risk of toppling.
Goods on pallets, etc. must be properly secured, so that they cannot fall off during
transport, when the truck is lifted, or when the truck must remain lifted for a time.

7
VV
VV
V
!
VV
VV
V
VV VV
V

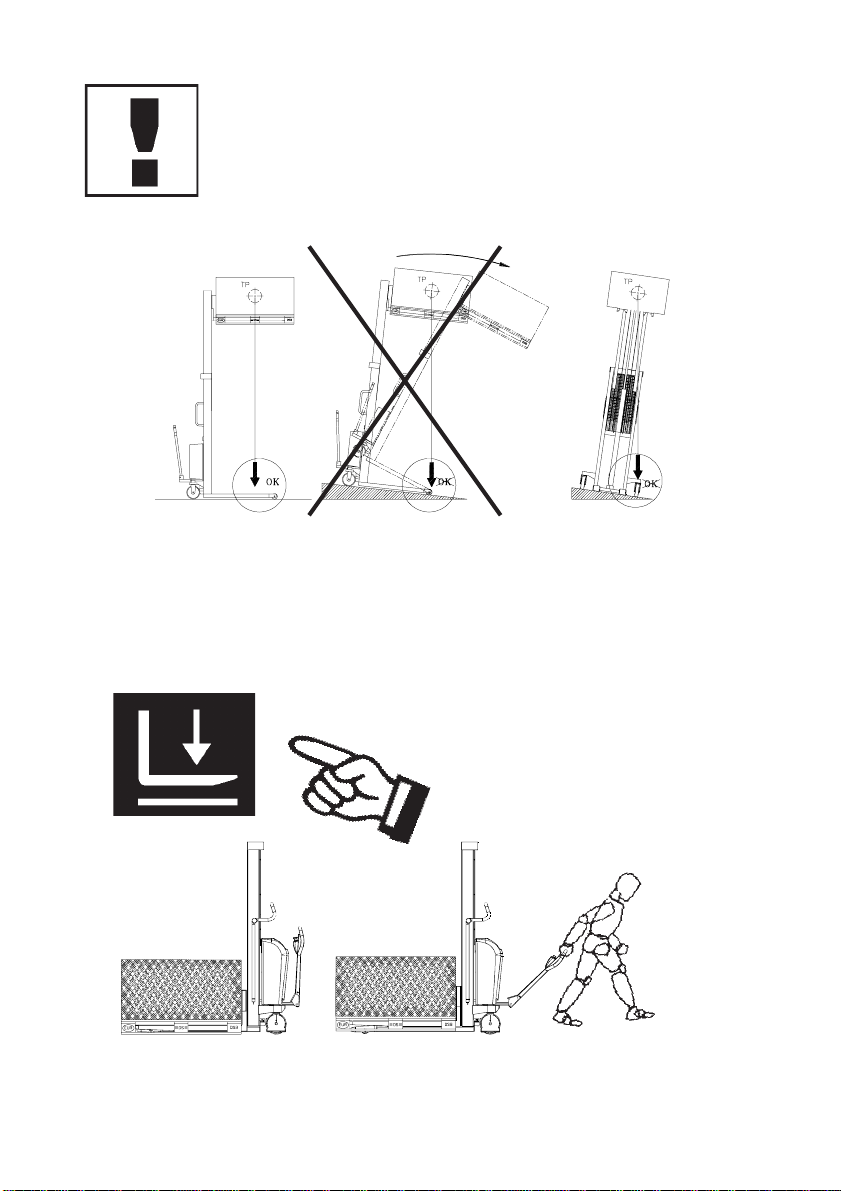

4.3 Driving loaded
4.4 Emergency braking
If it becomes necessary to use the load as a brake to prevent the Logiflex from
running away, activate the DOWN button quickly, until the load reaches the ground.
The Logiflex is designed for use on even and level floor. During transport the forks
shall be raised as little as possible. Transport with raised forks should be made over
the shortest possible distances and at low speed.

8

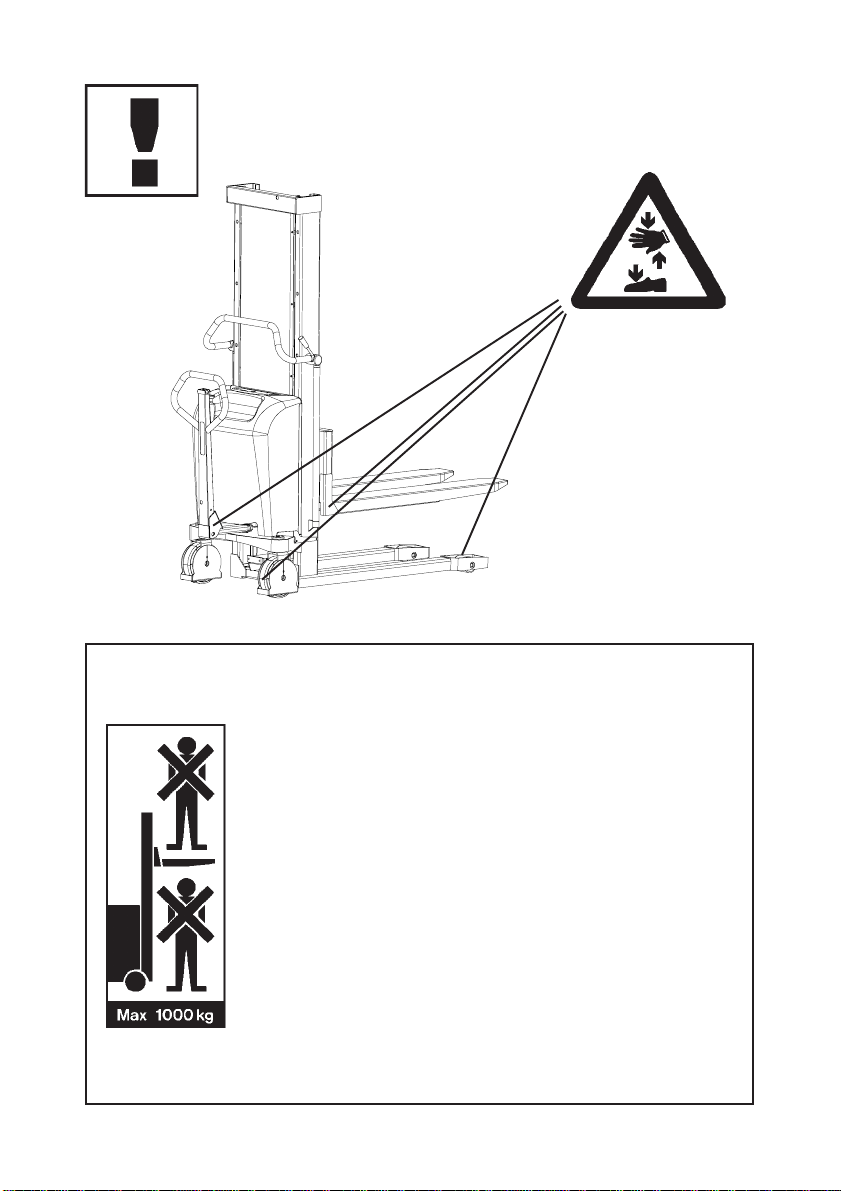

33 Safety regulations
- Never walk under a raised load!
- Before lowering the forks, make certain that no foreign
elements can hinder the free lowering of the forks.
- The Logiflex is designed for use on an even and level floor.
- During transport the forks shall be raised as little as
possible.
- Transport with raised forks should be made over the
shortest possible distances and at low speed.
- Check that the chains lift equally. They shall be equally
tight when the forks are loaded.
- Chains and chain bolts must not be damaged.
Chains that have become permanently stretched
(max. 2% of original length) must be scrapped.
ATTENTION
MOVINGPARTS

9
5.1 Battery specifications
The manufacturer offers two different battery types recommended
fortheelectricalLogiflex
5.0 Theremustbeacurrentsupply
Note 1: The battery can be charged, irrespective of how much it is discharged.
Battery life: 300 cycles at 80% = approx. 600 cycles at 50%
Note 2: Longest battery life obtained, when the battery is charged on being 80%
discharged. 1 charge = 1 cycle
Dry-charged batteries must be filled with battery acid 37.5% H2SO4specific gravity 1.28,
before they are used for the first time.
Semi-trak
986034 Semi-trak 986036 Tubular cell 986014
Voltage 12V 12V 12V
Capacity 60Ah/5h
74Ah/20h 105Ah/5h 130Ah/20h 113Ah/5h 130Ah/10h
Recommended for Normal use Severe dailyuse
Life in cycles at
80% discharge Approx. 300 See note 1 Approx. 1200 See note 2
MAINTENANCE
Liquid inspection Acid level must be min. 5 mm and max. 10 mm above cells. Add distilled water if necessary.
MAINTENANCE
Poles Verdigris to be removed from poles regularly. Poles to be greased after cleaning.
Charge condition to
be measured with Acidometre, voltmetre or electrical capacity metre
Charging frequency Daily or as required.
See note 1 At 80% discharged See note 2
Charging voltage
measured across
poles during charging 15,2V
No. of lifts with correct
usage. Load 500 kg. At 1600 mm lift: 80 At 1600 mm lift: 155 At 1600 mm lift: 150
Load 1000 kg At 1600 mm lift
45 At 1600 mm lift 70 At 1600 mm lift 65
Battery dimensions
LxWxH 278x175x190 513x189x223 514x175x230
Battery weight 19,8 kg 39,6 kg 43 kg

10
5.2 Checking the battery
MethodA
Check the acid density in the six battery cells with an acidometer.
Checkeach cell - max. difference between each cell 0.04 kg/l.
5.3 Battery charging
Charging must be performed with a charger, correctly set with the
charging voltage for the battery type, see point 5.1.
The manufacturer recommends a charger of 10-15Amp capacity.
During charging, the temperature in the battery must not exceed
50°C.
Charging simultaneously with truck operation is not recommended.
5.4 Warnings and information on battery
Avoid the use of naked flame near the tubular cell and
semi-trak batteries. The charging of tubular cell and semi-trak
batteries gives off gases that can be explosive. Therefore charging
should be performed in a ventilated room.
At temperatures around the freezing point, battery capacity is
reduced by 30%.
MethodB
To measure the voltage, use a digital voltmeter (DC) on the
battery poles. The truck must not have been in use for the
previous 30 minutes.
DENSITY
1.26-1.28kg/l Fully charged
1.19-1.20kg/l 1/2 charged
1.16-1.17kg/l 1/4 charged
1.10-1.11kg/l Discharged
Approx.12.7 V Fully charged
Approx.12.2 V 1/2 charged
Approx.12.0 V 1/4 charged
Approx.11.6 V Discharged

11
15A5A 30A 80A
5.5 Fuses - replacement
There are four fuses in the electrical circuit.
80Amp fuse in the main supply from battery
5Amp fuse in the control current circuit
15Amp fuse
(plug for extra equipment on the instrument board)
30Amp fuse for built-in charger
Pumpunit
Attention!Whydothe
fuses melt? Do not insert a larger fuse; The fuse acts as a
protectorforthepumpmotor.

12

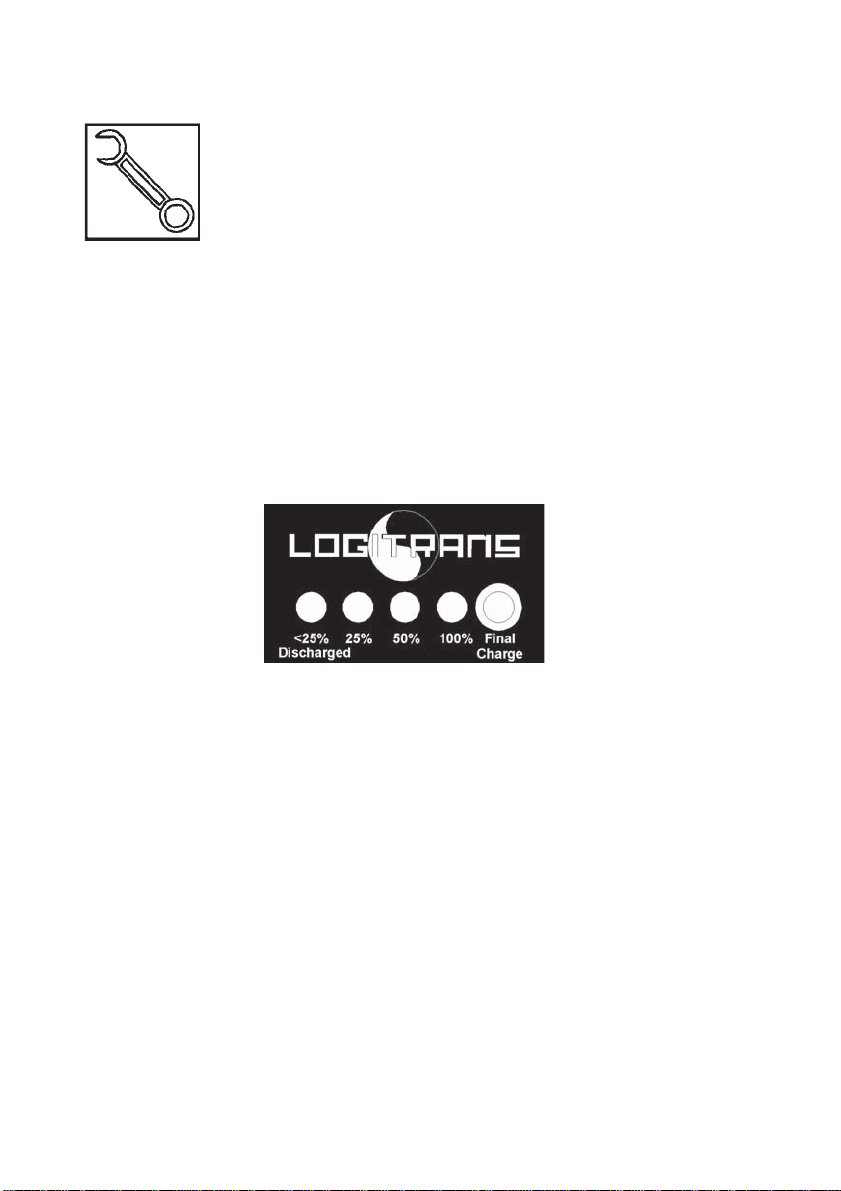

5.7 Battery indicator
The battery indicator shows the battery charge in %.
The most accurate reading can be obtained when the battery has
not been used for 5-10 minutes.
Red: Battery capacity below 25%: Discharged
Do not use the product, as the battery can be
permanently damaged.
Green: Batterycapacity: 25% - 100%
The product is ready for use and need not be charged.
Yellow: Charging lamp: Is alight during the last part of the
charging.
Final charge
5.6 Wiring connections
Manyoperationaldisturbancesarecausedby badconnectionsin
theelectricalcircuit. Make sure that theconnectionsare
inorder.
Check connections regularly for damage at insulating caps or bad
connections at plugs, etc.
Verdigris must be removed from cable plugs. Keep all screw/nut
connections tight.

13
6.0 Long live the Logiflex
Regular inspection and the replacement of worn or defective parts in good time will
prolong the life of the Logiflex.
"Prevention is better than repair", therefore ensure:
- Correct usage
- Regular cleaning
- Periodic safety inspection
- Regular adjustment
6.1 Lubrication and hydraulic oil
Under normal operation conditions the Logiflex requires no
lubrication.All ball bearings are sealed and lubricated for life,
and moving parts have self-lubricating bearings or are treated
with molybdenum disulphide grease.
The hydraulic system is filled with hydraulic oil of viscosity class
ISO VG 32.An additive is added to the oil:
- Wynn’s Hydraulic Systems Concentrate.
The concentrate reduces friction and wear and protects against
corrosion.
Pre-mixedhydraulic oil with additive is available from the dealer.
The oil is suitable for use in the temperature range -10 to +50° C.
A thinner oil is recommended for temperatures lower than -10° C
(if necessary, contact your dealer).
6.2 Oil change
Drainingtheoil:
1. Bring the unloaded forks down to the lowest position.
2. Most of the oil can be drained by loosening the hydraulic
hose union and briefly activating the hydraulic pump with the
switch.
3. The remaining oil can be drained from the oil tank by taking
off the twelve clips on the pump and removing the tank.
Oil filling:
4. Fill oil through the filling hole on the tank.
5. Oil quantity:
ELF1001/1200&ELFS1001/1170 approx.3 litre
ELF1001/1400&ELFS1001/1370 approx.3 litre
ELF1001/1600&ELFS1001/1570 approx.3 litre
ELF1001/2050&ELFS1001/2020 approx.4 litre
ELF1001/2450&ELFS1001/2420 approx.4 litre
ELF1001/2850&ELFS1001/2820 approx.4 litre
ELF1001/3300 & ELFS1001/3270 approx.4.5litre
6. Refit the filling cap and bleed the system (6.6).

14
18

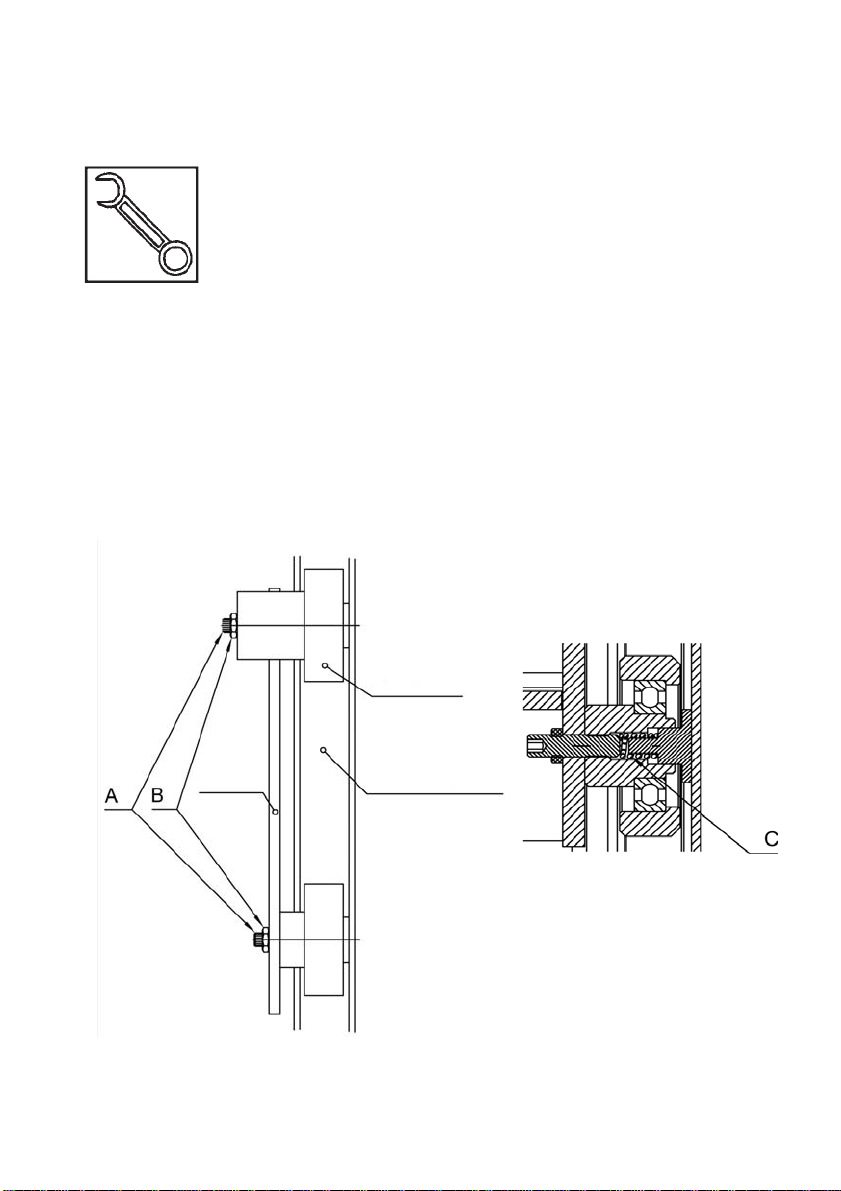

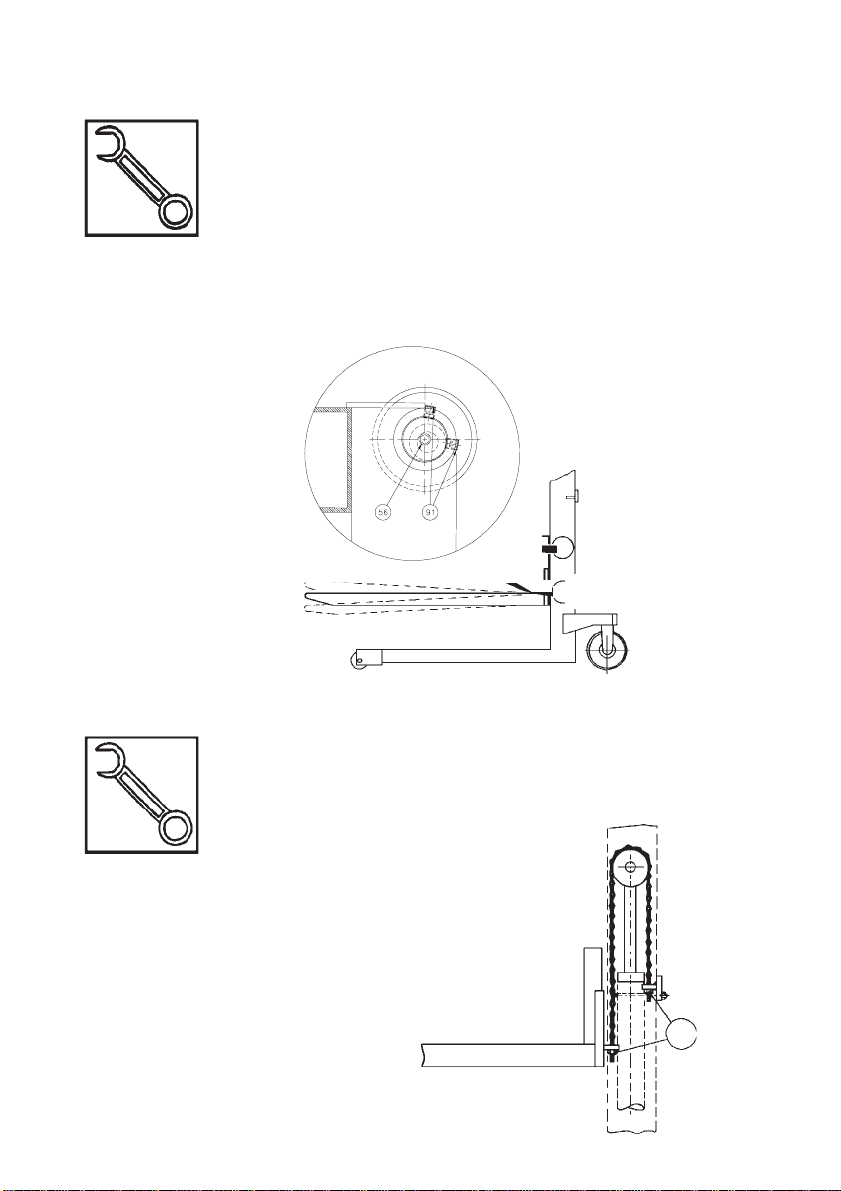

6.3 Fork adjustment
Two of the rollers on the fork bracket are mounted on eccentric
pins, so that they can be adjusted. The adjustable rollers are at
the top.
1. Loosen screw (pos. 91) (key width 5 mm).
2. Eccentric pins (pos. 56) (key width 8 mm) can now be turned
to give the necessary fork adjustment.
3. Adjustment must be made on both sides to ensure uniform
loading of the rollers.
6.4 Adjustment of lifting chain
The chains shall be adjusted so that they
liftequally. Shallbe equally tight. The
nuts (pos. 18) are to be adjusted (nut M12,
keywidth19 mm).
On straddle versions, the chains are to
keep the forks clear of the floor.

15

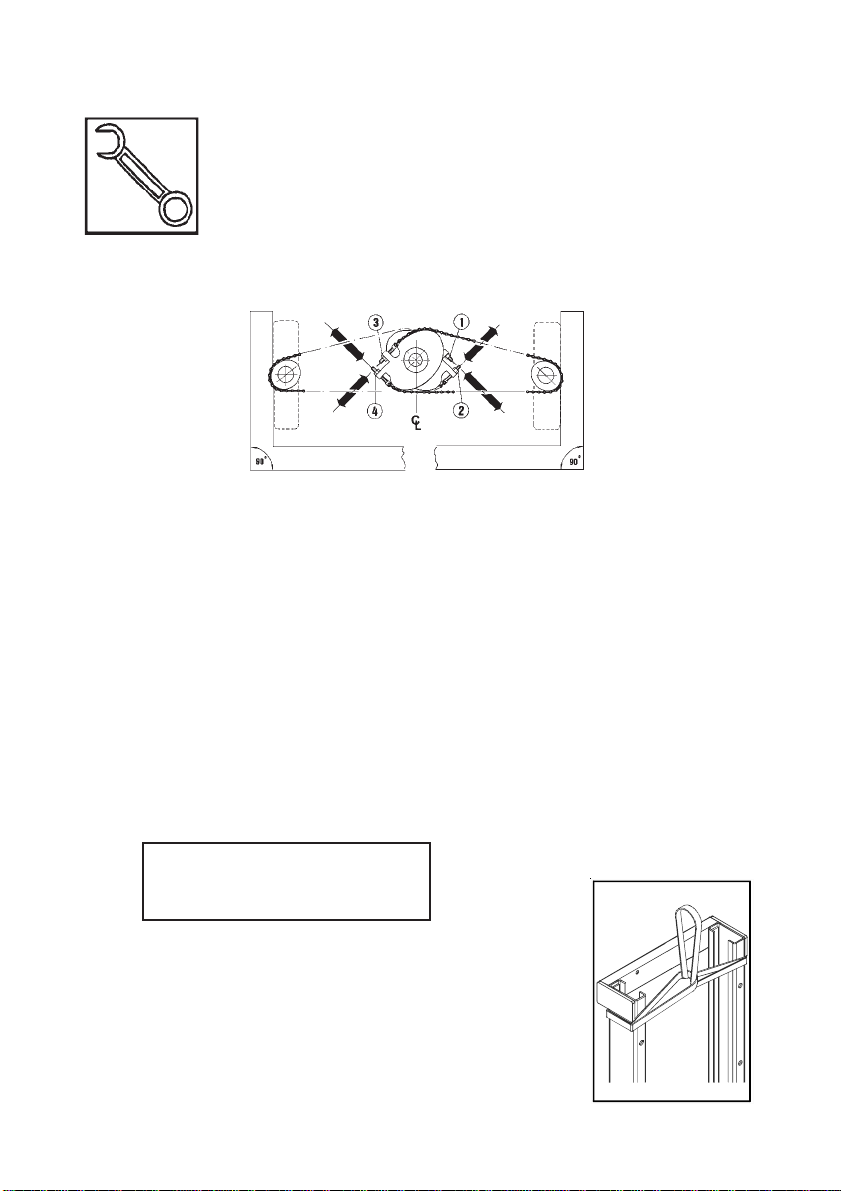

6.5 Adjustment of steering wheel chains
- Set the handle in its middle position.
- Adjust the nuts (1, 2, 3 and 4) and bring the wheels into parallel.
6.6 Bleeding the hydraulic system
With a load of 50-100 kg, the forks must be raised and lowered to top and
bottom position 2-3 times.
6.7 Cleaning
When cleaning the Logiflex, do not direct the jet onto bearings and
seals. Otherwise the grease will be washed out and the life of the equipment
shortened.
Cleaningoftheplastic screen (polycarbonate)
The screen is to be washed with slightly warm water added a neutral cleaning
material, and afterwards washed with clean water.
Use a soft sponge, a woollen cloth or a wash leather.
6.8 Lifting procedure
When lifting the product, please use a lifting line.
Never use sharp objects or
solvent cleaners when cleaning.

16
6.9 Adjustment of side play
(In the mast rolls of the right side of the fork bracket)
1. Screw (A) is loosened counter-clockwise, until resistance
disappears.
2. Turn the screw clockwise, until resistance appears. The following
1.5 to 2.5 turns of the screw will be a tightening of the spring (C).
3. When a larger resistance appears, make 0.25 turn counter-
clockwise, and the counter nut (B) will be tightened.
4. Pump the fork to its top position, and when lowering it has to
slide to the bottom. If this is not the case, loosen screwA, make c.
0.5 turn counter-clockwise and repeat point 4.
Mast roll
Fork Cprofil(mast)

17
7.0Goodserviceafterpurchase
7.1 Ordering spare parts
The correct spare parts are obtainable from your dealer.
When ordering, please state:
- Serial number of the product
- Type and width/length of the product
- Spare part no.
7.2 Warranty/Compensation
Spare parts delivered during the warranty period will be invoiced.Acredit note will be
sent immediately after we have received and tested the defective parts and found that
the warranty conditions have been met.
7.3 Service and repair
You should be able to make adjustments and perform minor repairs on the spot.
However, major repairs should be left to the dealer who has well-trained personnel and
the necessary special tools. The manufacturer has an exchange system for pumps/
cylinders. These are renovated and delivered with warranty.
7.4 Warranty
The warranty covers material and assembly defects which, subject to inspection by us
or our representative, are deemed to be faults or deficiencies that prevent normal use of
the parts concerned. Such affected parts shall be sent to us carriage paid within the
warranty period in force at the time in question.
The warranty does not cover normal wear and adjustments.
The warranty period is based on singleshift working.
Thewarrantyshallnolongerapplyif
- the product has been used incorrectly,
- the product is used in environments for which it was not designed,
- the product has been overloaded,
- replacements of parts have been made incorrectly or original parts have not been
used and consequential damages have arisen,
- service checks in accordance with our specifications and regular maintenance have
not taken place,
- the fulfilment of the required service intervals by a qualified technician can not be
proved.
Controllistandspecificationsconcerningserviceandsafetycheckcanbeordered
fromLogitransdealers.
7.5 Liability exemption
The manufacturer accepts no responsibility for personal injury or material damage
arising from deficiencies, defects or improper usage. The manufacturer accepts no
responsibility for lost earnings, operating losses, lost time, lost profits or similar indirect
losses incurred by the purchaser or a third party.

18
SYMPTOMSANDOBSERVATIONS
APump does not run when the UP button is pressed
BTruck does not lift when the UP button is pressed
CTruck does not lift to max. height
DForks fall after being raised
EForks do not fall when DOWN button is pressed
FForks cannot be lowered fully
GTruck unable to lift the max. load
HTruck lifts slowly
IForks do not lift horizontally
JSteering wheel does not drive evenly
7.0 Fault location key
When the LOGIFLEX is used every day, adjustments and the replacement of worn
parts might be necessary.
If a fault appears during daily operation of the LOGIFLEX, first check:
Oil supply
Electricity supply
Condition of leads and fuses
If faults cannot be traced to these sources, contact your dealer, but ....
BEFOREASKINGTHE DEALER FORASSISTANCE...
...TRYTHE FAULT LOCATION KEY!

19
]]]
A
B
C
D
E
F
G
H
I
J
Cause Mending
Oildeficiency
Battery discharged
Fuse blown
5Ampor80Amp
Cables defective
Max.load exceeded
Air in hydraulic system
Pressurereliefvalveincorrectly
adjusted
Hydraulic hose
defective
Fork bracket needs
adjustment
Valvedamaged
(solenoid and check valve)
See point
6.1/ 6.2
See point 5.3
See point 5.5
See point 5.6
See point 4.1
See point 6.6
See point 6.5
See point
6.3/ 6.4/6.9
Contact the
dealer
Contact the
dealer
Contact the
dealer
Contact the
dealer
If the problem cannot be solved
by using the fault location key...
...please contact your dealer!
Defective valves in
pump
Steering wheel out of
adjustment

48
010502/02
WWWWWW
WWWWWW
WWW.L.L
.L.L
.LOGITRANSOGITRANS
OGITRANSOGITRANS
OGITRANS.COM.COM
.COM.COM
.COM
S612
Periodic safety inspection
Safety inspection should be performed by the supplier or other qualified
persons at least once each year, unless local regulations state otherwise.
Such inspection shall be performed in accordance with the instruction
manual. Test instructions and test forms are available from the distributor.
ELF-L-EN
