Lopi Answer User manual

Answer
Wood Stove
Owner's Manual
Freestanding Stove
Mobile-Home Approved
Alcove Approved
Hearth-Stove Approved
Masonry Fireplace Insert
Zero-Clearance (Metal) Fireplace Insert
Save these instructions for future reference
SAFETY NOTICE:
Ifthisapplianceisnotproperlyinstalled,ahousefiremayresult.
Foryoursafety,followtheinstallationdirections.Contactlocal
buildingorfireofficialsaboutrestrictionsandinstallation
inspectionrequirementsinyourarea.
Copyright 2010, T.I.
$10.00 100-01166
4100806 Listed
Tested to: ULC 1482

2 Introduction
© Travis Industries 100-01166 4040907
Introduction
We welcome you as a new owner of a Lopi Answer wood-burning stove. In purchasing a Lopi Answer
you have joined the growing ranks of concerned individuals whose selection of an energy system reflects
both a concern for the environment and aesthetics. The Lopi Answer is one of the finest appliances the
world over. This manual will explain the installation, operation, and maintenance of this appliance.
Please familiarize yourself with the Owner's Manual before operating your appliance and save the manual
for future reference. Included are helpful hints and suggestions which will make the installation and
operation of your new appliance an easier and more enjoyable experience. We offer our continual
support and guidance to help you achieve the maximum benefit and enjoyment from your appliance.
Important Information
No other Lopi Answer appliance has the same serial
number as yours. The serial number is stamped onto
the label on the back of the appliance.
This serial number will be needed in case you require
service of any type.
Model: Lopi Answer ND
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card Today, and Save Your Bill
of Sale.
To receive full warranty coverage, you will need to
show evidence of the date you purchased your
appliance. Do not mail your Bill of Sale to us.
We suggest that you attach your Bill of Sale to this
page so that you will have all the information you need
in one place should the need for service or information
occur.

Table of Contents 3
© Travis Industries 100-01166 4040907
Introduction ............................................................2
Important Information............................................2
Installation Options................................................6
Features ..................................................................6
Heating Specifications...........................................6
Dimensions.............................................................6
Emissions ...............................................................6
Planning The Installation.......................................7
Preparation for Installation............................................7
Additional Accessories Needed for Installation ............7
Stove Installation Considerations .................................7
Floor Protection Requirements ............................8
Stove Placement Requirements ...........................8
Clearances..............................................................8
Top View - Straight Installation.....................................9
Top View - Corner Installation ......................................9
Chimney Connector Requirements......................10
Chimney Requirements.........................................11
Chimney Termination Requirements ...................12
Outside Air Requirements.....................................12
Alcove Installation Requirements ........................13
Mobile Home Requirements..................................14
Standard Ceiling with a Factory Built Chimney ............15
Cathedral Ceiling with a Factory Built Chimney ...........15
Exterior Factory Built Chimney.....................................16
Hearth Stove Positive Connection................................16
Hearth Stove Direct Connection...................................17
Interior or Exterior Masonry Chimney...........................17
Planning The Installation.......................................18
Preparation for Installation............................................18
Additional Accessories Needed for Installation ............18
Installation Considerations............................................18
Fireplace Requirements ........................................19
Fireplace Altered Tag.............................................19
Insert Placement Requirements ...........................20
Hearth Requirements.............................................20
Masonry Fireplace Requirements.........................20
Zero-Clearance (Metal) Fireplace Requirements.21
Drafting Performance ............................................21
Leveling Bolt Installation.......................................21
Insert with Positive Connection.....................................22
Insert with Direct Connection (Masonry Fireplace) ......22
Safety Notice ..........................................................23
Before Your First Fire ............................................23
Curing the Paint............................................................23
Over-Firing the Stove....................................................23
Opening the Door ..................................................23
Starting a Fire.........................................................24
Adjusting the Burn Rate........................................25
Approximate Air Control Settings.................................25
Ash Removal..........................................................25
Optional Blower Operation ...................................26
Re-Loading the Stove............................................26
Overnight Burn ......................................................26
Normal Operating Sounds....................................26
Hints for Burning...................................................27
Selecting Wood......................................................27
Why Dry Wood is Key.................................................. 27
Wood Cutting and Storage........................................... 27
Troubleshooting ....................................................28
Daily Maintenance (while stove is in use)...........29
Remove Ash (if necessary).......................................... 29
Clean the Glass (if necessary)..................................... 29
Monthly Maintenance............................................30
Door and Glass Inspection........................................... 30
Creosote - Formation and Need for Removal..............30
Yearly Maintenance...............................................31
Touch Up Paint ............................................................ 31
Cleaning the Air Duct and Blower (if applicable)......... 31
Firebrick and Baffle Inspection..................................... 31
Door Parts ..............................................................32
Replacing the Glass.....................................................32
Replacing the Door Gasket..........................................32
Replacing the Door Handle.......................................... 32
Firebox Parts..........................................................33
Floor and Side Firebrick Removal & Replacement......33
Baffle Removal & Replacement............................34
Air Tube Removal & Replacement .......................34
Listing Label................................................................. 36
Door Shell Installation...........................................37
Nickel (Cast Iron) Doors Only ......................................38
Stove Leg Installation............................................40
Pedestal (Part # 99200106)....................................41
Using Outside Air with the Pedestal............................. 41
Rear Blower Installation (Part # 99000138) .........42
Outside Air Boot Installation................................43
Surround Panels....................................................44
Rectangular Panels:.....................................................44
Arched Panels (Part # 99300108)................................ 44
Installation Instructions................................................. 44
Front Blower (part # 99000128) ............................46
To Switch The Power Cord To The Left Side:............. 46
Installation Instructions................................................. 46

4 Safety Precautions
© Travis Industries 100-01166 4040907
The viewing door must be
closed and latched during
operation.
Smoke from this appliance may
active a smoke detector when
the door is open.
Never block free airflow through
the air vents on this appliance.
Gasoline or other flammable
liquids must never be used to
start the fire or "Freshen Up" the
fire. Do not store or use
gasoline or other flammable
liquids in the vicinity of this
appliance.
This appliance is designed and
approved for the burning of cord
wood only. Do not attempt to
burn any other type of fuel other
than cord wood in this
appliance, it will void all
warranties and safety listings.
Ashes must be disposed in a
metal container with a tight lid
and placed on a non-
combustible surface well away
from the home or structure.
Do not touch the appliance while
it is hot and educate all children
of the danger of a high-
temperature appliance. Young
children should be supervised
when they are in the same room
as the appliance.
Keep furniture, drapes, curtains,
wood, paper, and other
combustibles a minimum of 36"
away from the front of the
appliance.
This appliance must be properly
installed to prevent the
possibility of a house fire. The
instructions must be strictly
adhered to. Do not use
makeshift methods or
compromise in the installation.
Contact your local building
officials to obtain a permit and
information on any installation
restrictions or inspection
requirements in your area.
Notify your insurance company
of this appliance as well.
Inspect the chimney connector
and chimney at least twice
monthly and clean if necessary.
Creosote may build up and
cause a house fire.
Do not connect this appliance to
any chimney serving another
appliance.
This appliance must be
connected to a listed high
temperature (UL 103 HT)
residential type chimney or an
approved masonry chimney with
a standard clay tile, or stainless
steel liner.
Gas
ASHES
36"
Ok
Type
HT Clay
Liner

Safety Precautions 5
© Travis Industries 100-01166 4040907
When installed in a mobile
home, this appliance must be
bolted to the floor, have outside
air, and not be installed in the
bedroom (Per H.U.D.
requirements). Check with local
building officials.
Do not place clothing or other
flammable items on or near this
appliance.
Never try to repair or replace
any part of this appliance unless
instructions are given in this
manual. All other work must be
done by a trained technician.
Do not make any changes or
modifications to an existing
masonry fireplace or chimney to
install this appliance.
Do not make any changes to the
appliance to increase
combustion air.
Allow the appliance to cool
before carrying out any
maintenance or cleaning.
Overfiring the appliance may
cause a house fire. If a unit or
chimney connector glows, you
are overfiring.
Maintain the door and glass seal
and keep them in good
condition.
Do not operate this heater with
broken or missing glass.
Avoid placing wood against the
glass when loading. Do not
slam the door or strike the glass.
Do not use a grate or other
device to elevate the fire off of
the firebox floor. Burn the fire
directly on the bricks.
Do not throw this manual away.
This manual has important
operating and maintenance
instructions that you will need at
a later time. Always follow the
instructions in this manual.
Travis Industries, Inc. grants
no warranty, implied or
stated, for the installation or
maintenance of your
appliance,and assumes no
responsibility of any
consequential damage(s).
Mobile
Home



This
Manual

6 Features & Specifications
© Travis Industries 100-01166 4040907
Installation Options
Freestanding
Freestanding in an Alcove
Freestanding in a Mobile Home
Masonry Fireplace Insert
Zero-Clearance (Metal) Fireplace Insert
Features
EPA Phase II Approved
1.6 Cubic Foot Firebox Volume
Single Operating Control
Accepts Logs Up to 18" Long
Steel Plate Construction (1/4" & 3/16")
Heavy Duty Refractory Firebrick
Optional High-Tech Blower
Heating Specifications
Approximate Maximum Heating Capacity (in square feet)* 750 to 1,400 (stove)
750 to 1,200 (insert)
Maximum BTU's per Hour (Cord Wood Calculation) 66,800
Maximum Burn Time Up to 8 Hours
* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside
temperature. It is also affected by the quality and moisture level of the fuel.
Dimensions
Figure 1
(a) Measure all side, corner, and back clearances from the stove top.
Emissions
4.4 Grams Per Hour (EPA Phase II Approved) – Tests conducted by E.E.S.P.C.
5-7/8" 149mm
20"
508mm
23-5/8" 600mm
16-1/4"
413mm
Legs........27-7/8" 708mm
Pedestal..31-7/8" 810mm
3/4"
19mm
a

Stove Installation (for qualified installers only) 7
© Travis Industries 100-01166 4040907
SAFETYNOTICE:
Please read this entire manual before you install and use your new room heater. Failure to
follow instructions may result in property damage, bodily injury, or even death. Contact
local building or fire officials about restrictions and installation inspection requirements in
your area.
Planning The Installation
We suggest that you have an authorized Travis Industries dealer install your stove. If you install the
stove yourself, your authorized dealer should review your installation plans.
Check with local building officials for any permits required for installation of this stove and notify your
insurance company before proceeding with installation.
Preparation for Installation
Check for damage to the exterior of the stove (dents should be reported, scratches can be fixed by
applying touch up paint).
Check the interior of the firebox (replace cracked firebrick and make sure baffle is in place).
The stove can be lightened by removing the firebricks and baffle (pg 33) - replace before operation.
Additional Accessories Needed for Installation
Door Shell (Black 99300195 Brass 99300196 or Pewter 99300197 - see pg 37)
Legs or Pedestal
Stove Installation Considerations
The table below details the six most common types of installations and the considerations for each type.
Alternative methods of installation are available if they comply with local building codes.
Installation Type Considerations
Standard Ceiling with a Factory Built Chimney
(Page 15)

Requires ceiling and roof penetration
Provides best draft
Cathedral Ceiling with a Factory Built Chimney
(Page 15)

Cathedral style chimney support required
Provides best draft
Exterior Factory Built Chimney
(Page 16)

Uses two elbows to route chimney outside
Exterior chimney is hidden from the room
Elbows reduce draft
Optional exterior chase reduces cold air blockage
Hearth Stove Positive Connection (Page 16)

Utilizes existing masonry or zero clearance (metal) chimney
Provides good draft due to full reline
Easier to clean than direct or horizontal hearth stove
Hearth Stove Direct Connection (Page 17)
NOT APPROVED IN CANADA

Utilizes existing masonry or zero clearance (metal) chimney
Requires construction of a "block-off plate"
Draft reduced due to elbows & chimney cross section
Interior Masonry Chimney (Page 17)
NOT APPROVED IN CANADA

Utilizes existing masonry chimney (not approved for zero
clearance (metal) fireplaces)

8 Stove Installation (for qualified installers only)
© Travis Industries 100-01166 4040907
Floor Protection Requirements
Stove must be placed on the Travis Industries legs or Pedestal.
Floor protection must extend to the sides, rear, and front of the stove (see “Clearances” below for
minimum floor protection).
Floor protection must be non-combustible and at least .018" thick (26 guage).
Stove Placement Requirements
Clearances may be reduced by methods specified in NFPA 211, listed wall shields, pipe shields, or
other means approved by local building or fire officials.
Stove must be placed so that no combustibles are within, or can swing within (e.g. drapes, doors), 36"
of the front of the stove
If the stove is placed in a location where the ceiling height is less than 7', it must follow the
requirements in the section "Alcove Installation Requirements"
Must maintain the clearances to combustibles listed below (drywall, furniture, etc.):
Clearances
The following clearances must be met (see Figure 2 and Figure 3)
Clearance Requirements: Singlewall Connector Reduced Clearance*
A Sidewall to stove 18" 458mm 13" 331mm
B Backwall to stove 16.5” 420mm 9" 229mm
C Cornerwall to stove 10" 254mm 7.5" 191mm
D Connector to sidewall 27" 686mm 21.5" 547mm
E Connector to backwall 19.5" 496mm 11.5" 293mm
F Connector to cornerwall 19.5" 496mm 16.5” 420mm
G Side & Rear Floor Protector 6” 153mm (US)
8” 204mm (Canada) 6” 153mm (US) 8” 204mm (Canada)
H Front Floor Protector 16” 407mm (US)
18” 458mm (Canada) 16” 407mm (US) 18” 458mm (Canada)
*Reduced clearance installations require one of the chimneys and connectors listed below:
AMERI-TEC model DCC with model HS chimney
DURAVENT model DVL with DURATEC or DURA-PLUS chimney
GSW Super Chimney Twenty-One connected directly to appliance
I.C.C. Excel (2100-2 Can.) (103-HT USA) chimney with HP connector
METALFAB model DW connector with TG chimney
OLIVER MACLEOD PROVENT model PV connector with model 3103 chimney
SECURITY model DP connector with SECURITY model ASHT or S2100 chimney
SELKIRK METALBESTOS model DS connector with model SSII chimney
Standard Masonry Chimney with any one of the above listed connectors
NOTE: Reduced clearance connectors may not connect to the flue collar – an appliance adapter may be required.
NOTE: Standard residential installations with reduced clearance connector may use the clearance
determined by the manufacturer of the connector for the connector to wall clearance or the clearance
listed in this manual. Offsets must be used to maintain the stove to wall clearance.

Stove Installation (for qualified installers only) 9
© Travis Industries 100-01166 4040907
Top View -
Straight Installation
Figure 2
Top View -
Corner Installation
Measure rear and side
clearances from the
nearest edge of the
stove top.
NOTE: Vent diameter
varies depending on
brand and model.
Measure front
clearances from the face
of the stove (unibody).
Figure 3
23-5/8"
600mm
16-1/4" 413mm
5-7/8" 149mm a
b
d
e
i
g
g
hj
k
23-5/8"
600mm
16-1/4" 413mm
5-7/8" 149mm
c
f
i
j
k
g
g
h
i
j
k

10 Stove Installation (for qualified installers only)
© Travis Industries 100-01166 4040907
Chimney Connector Requirements
Chimney connector is required from the flue collar of the stove to the factory-built chimney or
masonry chimney.
The chimney connector must be 6” diameter and a minimum 24 gauge black steel, or one of the
reduced-clearance connectors listed on page 8.
NOTE: Aluminum or galvanized steel is not allowed – these materials can not withstand the flue
temperatures and may give off toxic fumes when heated.
NOTE: Standard residential installations may use single-wall connector (Mobile-Homes may not).
The chimney connector may not pass through a ceiling, attic, roof, closet, or any other concealed
space (use listed UL 103 HT chimney – see “Chimney Requirements for details). DO NOT USE
CONNECTOR PIPE AS CHIMNEY.
IN CANADA: Where passage through a wall, or partition of combustible construction is desired, the
installation shall conform to CAN/CSA-B365, Installation Code for Solid-Fuel-Burning Appliances and
Equipment.
The chimney connector should be as short and direct as possible. No more than 180oof elbows (two
90oelbows, or two 45o& one 90oelbow, etc.) may be used for the entire system (connector and
chimney).. Horizontal runs should slope upwards 1/4” per foot and be a maximum 36” long.
The chimney connector must be installed with the crimped end pointing downwards. This prevents
creosote from leaking to the exterior of the pipe.
The chimney connector must be fastened to the stove and each adjoining section (and chimney).
Standard residential installations may use single-wall connector (Mobile-Homes may not)
Standard residential installations with reduced clearance connector may use the clearance
determined by the manufacturer of the connector for the connector to wall clearance or the clearance
listed in this manual. Offsets must be used to maintain the stove to wall clearance. Mobile homes
must use the clearances listed in this manual under "Additional Requirements for Mobile Home
Installations".

Stove Installation (for qualified installers only) 11
© Travis Industries 100-01166 4040907
Chimney Requirements
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION DUCTWORK
UNLESS SPECIFICALLY APPROVED FOR SUCH INSTALLATIONS.
IN CANADA: This appliance must be connected to a factory-built chimney conforming to CAN/ULC-
S629, Standard for 650°C Factory-Built Chimneys.
UL 103 HT Chimney must be used from the first ceiling or floor penetration to the chimney cap.
Use 6" diameter type UL 103 HT chimney from one manufacturer (do not mix brands) or code
approved masonry chimney with a flue liner.
Chimney must be fastened to each adjoining section.
Follow the chimney manufacturer's clearances and requirements.
Use the chimney manufacturer's fire stops, attic guards, roof supports, and flashings when passing
through a ceiling (see “b” below).
No more than 180oof elbows (two 90oelbows, or two 45o& one 90oelbow, etc.) may be used for the
entire system (connector and chimney).
NOTE: Additional elbows may be allowed if draft is sufficient. Whenever elbows are used the draft is
adversely affected. Additional chimney height may be required to boost draft.
(a) Min. System Height 15’
Max. System Height 33’
(b) Roof Penetration and Termination (see
chimney manufacturer’s requirements)
(c) Chimney Sections
(d) Floor Penetration (see chimney manufacturer’s
requirements)
(e) Min. air space to combustibles (see chimney
manufacturer’s requirements – typically 2”)
(f) Connector – see “Chimney Connector” on the
previous page.
Figure 4
Drafting
Performance This appliance relies upon natural draft to operate. External forces, such as wind,
barometric pressure, topography, or factors of the home (negative pressure from exhaust
fans, chimneys, air infiltration, etc.), may adversely affect draft. Travis Industries can not be
responsible for external forces leading to less than optimal performance.
}
}
}
a
b
c
de
f
f
b

12 Stove Installation (for qualified installers only)
© Travis Industries 100-01166 4040907
Chimney Termination Requirements
Must have an approved cap (to prevent water from entering).
Must not be located where it will become plugged by snow or other material.
Must terminate at least 3' (914mm) above the roof and at least 2' (610mm) above any portion of the
roof within 10' (3.04M) - see Figure 5.
Figure 5

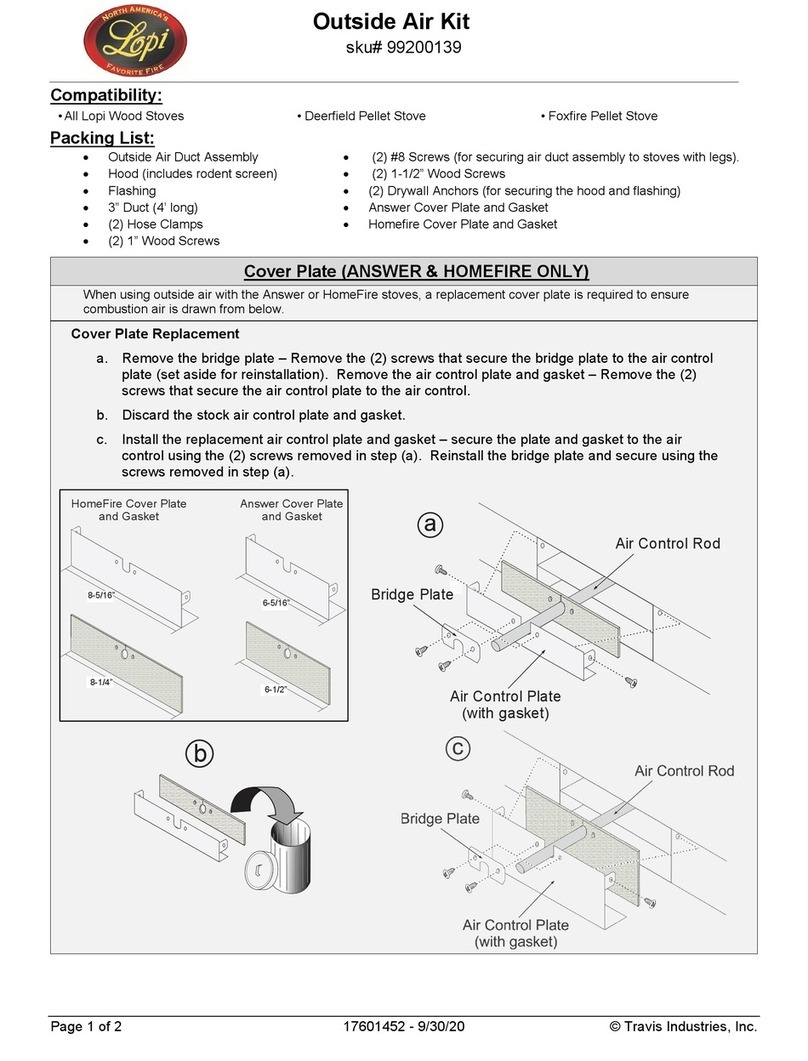

Outside Air Requirements
Required for mobile homes & in certain localities (check with building officials).
Must not be drawn from an enclosed space (garage, unventilated crawl space). May be drawn from
ventilated crawl space (a) or exterior of home (d). Must have suitable rodent/debris screen and rain
protection (hood).
Requires the optional outside air kit (sku 99200139 – see (c) and (e) below), air boot (for legs), or
pedestal (b).
Air duct maximum length is 15’ (4.57M) with a minimum cross section of 16 square inches
(10404mm) or 6’ (1.82M) with a minimum cross section of 7 square inches (4489mm).
Figure 6








Min. 3’ (914mm)
Min. 2’ (610mm)
10’ (3.04M)
Min. 3’ (914mm)
10’ (3.04M)
Min. 2’ (610mm)
ab
cd
e
d

Stove Installation (for qualified installers only) 13
© Travis Industries 100-01166 4040907
Alcove Installation Requirements
Whenever the stove is placed in a location where the ceiling height is less than 7' tall, it is considered an
alcove installation. Because of the reduced height, the special installation requirements listed below must
be met.
Chimney connector and chimney must be one of the following types:
AMERI-TEC model DCC with model HS chimney
DURAVENT model DVL with DURATEC or DURA-PLUS chimney
GSW Super Chimney Twenty-One connected directly to appliance
I.C.C. Excel (2100-2 Can.) (103-HT USA) chimney with HP connector
METALFAB model DW connector with TG chimney
OLIVER MACLEOD PROVENT model PV connector with model 3103 chimney
SECURITY model DP connector with SECURITY model ASHT or S2100 chimney
SELKIRK METALBESTOS model DS connector with model SSII chimney
Standard Masonry Chimney with any one of the above listed connectors
NOTE: Reduced clearance connectors may not connect to the flue collar – an appliance adapter may be required.
Alcoves are classified as combustible or non-combustible. Non-combustible alcoves must have walls
and a ceiling that are 3 1/2" thick of a non-combustible material (brick, stone, or concrete - see Figure
7). This non-combustible material must be spaced and ventilated at least 1" off of all combustible
materials (walls, ceiling, etc.) to allow air to move around the non-combustible walls and ceiling. All
other alcoves are considered combustible. The clearances below must be met:
Minimum Clearance
(See the Figure 7 below) CombustibleAlcoveNon‐CombustibleAlcove
A Sidewall to stove 13" 331mm 6" 153mm
B Backwall to stove 9" 229mm 2" 51mm
D Connector to sidewall 21.5" 547mm 14.5" 369mm
E Connector to backwall 11.5" 293mm 4.5" 115mm
G Maximum depth of alcove 48” 1220mm 48" 1220mm
H Minimum width of alcove 49.625" 1261mm 35.625" 905mm
J Minimum height of alcove 84" 2134mm 6" (153mm) above stove top
Non-Combustible Alcove
(a) Non-Combustible (brick)
(b) Air Space with non-combustible
reinforcement
(c) Combustible material
Figure 7
Min. 3 1/2"
(89mm)
Min. 1"
(25mm)
a
c
b
a
b
de
h
j
g

14 Stove Installation (for qualified installers only)
© Travis Industries 100-01166 4040907
Mobile Home Requirements
Outside air must be installed - see "Outside Air Requirements" on page 12
Chimney connector and chimney must be one of the following types:
AMERI-TEC model DCC with model HS chimney
DURAVENT model DVL with DURATEC or DURA-PLUS chimney
GSW Super Chimney Twenty-One connected directly to appliance
I.C.C. Excel (2100-2 Can.) (103-HT USA) chimney with HP connector
METALFAB model DW connector with TG chimney
OLIVER MACLEOD PROVENT model PV connector with model 3103 chimney
SECURITY model DP connector with SECURITY model ASHT or S2100 chimney
SELKIRK METALBESTOS model DS connector with model SSII chimney
Standard Masonry Chimney with any one of the above listed connectors
NOTE: Reduced clearance connectors may not connect to the flue collar – an appliance adapter may be required.
Stove placement must maintain the following clearances to combustibles (drywall, furniture, etc.)
Figure 8
Minimum Clearance
(See the illustration above) Reduced Clearance Connector
A Sidewall to stove 13" 331mm
B Backwall to stove 9" 229mm
C Cornerwall to stove 7.5" 191mm
D Connector to sidewall 21.5" 547mm
E Connector to backwall 11.5" 293mm
F Connector to cornerwall 16.5” 420mm
If using offsets, use the connector clearance listed in Figure 9, not the
connector manufacturer's clearance.
The appliance must be secured to the floor (consult your building official).
Secure the outside air boot to the floor and stove to insure the stove does
not dislocate.
Mobile home installations require a spark arrester at the chimney
termination.
The appliance must be grounded to the chassis of the mobile home
(consult your building official).
WARNING:DO NOT INSTALL IN SLEEPING ROOM.
CAUTION:THE STRUCTURAL INTEGRITY OF THE MOBILE HOME
FLOOR, WALL, AND CEILING/ROOF MUST BE MAINTAINED. Figure 9
Straight Installations
ab
de
Corner Installations
c
f
NOTE:
Measure clearances to the stove top.
12” Min.
Connector Clearance
(as outlined above)
Stove Clearance
(as outlined above)





Stove Installation (for qualified installers only) 15
© Travis Industries 100-01166 4040907
Standard Ceiling
with a Factory
Built Chimney
Figure 10
Cathedral Ceiling
with a Factory
Built Chimney
Figure 11
Chimney Cap
(See the section "Chimney
Termination Requirements"
for more details)













Chimney Sections
Minimum Air Space to
Combustibles (See
Chimney Manufacturer's
Instructions - usually 2")
Chimney Connector Sections
Follow the chimney
manufacturer's instructions
and clearances for roof
penetrations. A storm collar
and flashing are required
(some require a radiation
shield).
}
}
Minimum 15'
Maximum 33'
Stove Clearances
(See the section "Stove
Placement Requirements"
for more details)
Floor Protection
(See the section "Floor
Protection Requirements"
for more details)
Follow the chimney
manufacturer's instructions
and clearances for floor
penetrations. A ceiling
support is required, an attic
insulation shield is required
where insulation is present.
Insulation




Chimney Cap
(See the section "Chimney
Termination Requirements"
for more details)





Chimney Sections
Minimum Air Space to
Combustibles (See Chimney
Manufacturer's Instructions -
usually 2")
Follow the chimney
manufacturer's instructions
and clearances for roof
penetrations. A storm
collar, flashing, and
cathedral-style chimney
support are required
(some require a radiation
shield).
}
Minimum 15'
Maximum 33'
Stove Clearances
(See the section "Stove
Placement Requirements"
for more details)
Floor Protection
(See the section "Floor
Protection Requirements"
for more details)
Chimney
Connector
Sections



16 Stove Installation (for qualified installers only)
© Travis Industries 100-01166 4040907
Exterior Factory
Built Chimney
NOTE:
Exterior chimneys are
subject to greater
moisture and creosote
accumulation due to the
lower temperatures. An
insulated chase will
reduce these
accumulations (the
proper clearances to the
chimney must be
maintained).
Figure 12
Hearth Stove
Positive
Connection
NOTE:
Most factory-built
chimney manufacturers
make stainless steel
chimney liners, either
flexible or rigid. This
provides a wide variety
of installation options.
Make sure to follow the
manufacturer's
instructions for
installation and support.
Figure 13






Chimney Cap
(See the section "Chimney
Termination Requirements"
for more details)




Chimney Sections
Minimum Air Space to
Combustibles (See
Chimney Manufacturer's
Instructions - usually 2")
Chimney Connector
Sections





Follow the chimney
manufacturer's
instructions and
clearances for roof
penetrations. A storm
collar and flashing are
required (some
require a radiation
shield).
}













Stove Clearances
(See the section "Stove
Placement Requirements"
for more details)
}
Follow the chimney
manufacturer's
instructions and
clearances for wall
penetrations. A
wall radiation shield
(thimble) is
required.
Optional
insulated
chase
Wall Bands
and
Supports Insulated Tee
(with cleanout )
Minimum 15'
Maximum 33'
Min. 18"
clearance to
ceiling
Floor Protection
(See "Floor
Protection
Requirements"
for details)


















Remove damper
or wire it open
Airtight Insulated
Clean-Out
Min. 18"
Combustible
Mantle
NOTE: The entire fireplace and
chimney must be clean, undamaged,
and meet all local building codes
(UBC, etc.). Damage must be
repaired prior to installation. The
chimney must be 15' to 33' tall.
Floor Protection
(See the section
"Floor Protection
Requirements"
for more details)
See the section
"Stove Placement
Requirements" for
minimum clearances
required.

The liner must be
stainless steel connector
or flexible vent. Follow
the liner manufacturer's
instructions for installation
and support.
Cap and flashing
prevents water from
entering



Stove Installation (for qualified installers only) 17
© Travis Industries 100-01166 4040907
Hearth Stove Direct
Connection
NOTE:
This type of installation is
not allowed in Canada.
NOTE:
Direct connections require
installation of an airtight,
non-combustible block-off
plate or damper adapter.
Figure 14
Interior or Exterior
Masonry Chimney
NOTE:
This type of installation is
not allowed in Canada.
NOTE:
This type of installation
requires a UBC approved
masonry connector or a
factory built (U.L. Listed)
wall thimble.
Figure 15












Block-off plate or
damper adapter
Remove damper
or wire it open
Airtight
Insulated
Clean-Out
Stainless steel
chimney connector
must Extend 1' past
the block-off plate or
to the flue liner
NOTE: The chimney must have a clay
tile liner. If it does not, the installation
must use a positive connection (full
reline). The entire fireplace and
chimney must be clean, undamaged,
and meet all local building codes (UBC,
etc.). Damage must be repaired prior
to installation. The chimney must be
15' to 33' tall.
Clay
Liner
Floor Protection
(See the section "Floor
Protection Requirements"
for more details)
Combustible Mantle
Min. 18"
See the section
"Stove Placement
Requirements" for
minimum clearances
required.




Max. 8”
Make sure the
clean-out seals in
place.
Clay Liner
See the section "Stove
Placement Requirements" for
minimum clearances required.
Min. 18"
clearance
to ceiling
This type of
installation requires
a UBC approved
masonry connector
or a factory built
(U.L. Listed) wall
thimble.
Chimney connector sections
NOTE: The chimney must have a
clay tile liner. If it does not, the
installation must use a positive
connection (full reline). The
entire fireplace and chimney must
be clean, undamaged, and meet
all local building codes (UBC,
etc.). Damage must be repaired
prior to installation. The chimney
must be 15' to 33' tall.
See the section
"Floor Protection
Requirements"



18 Fireplace Insert Installation (for qualified installers only)
© Travis Industries 100-01166 4040907
SAFETYNOTICE:
Please read this entire manual before you install and use your new room heater. Failure to
follow instructions may result in property damage, bodily injury, or even death. Contact
local building or fire officials about restrictions and installation inspection requirements in
your area.
Planning The Installation
We suggest that you have an authorized Travis Industries dealer install your fireplace insert. If you
install the fireplace insert yourself, your authorized dealer should review your installation plans.
Check with local building officials for any permits required for installation of this fireplace insert and
notify your insurance company before proceeding with installation.
Preparation for Installation
Check for damage to the exterior of the fireplace insert (dents should be reported, scratches can be
fixed by applying touch up paint).
Check the interior of the firebox (replace cracked firebrick and make sure baffle is in place).
The fireplace insert can be lightened by removing the firebricks and baffle (pg 33) - replace before
operation.
Additional Accessories Needed for Installation
Door Shell (Black 99300195 Brass 99300196 or Pewter 99300197 - see 37)
Surround Panels (see page 44)
Installation Considerations
Installation Type Considerations
Insert with Positive Flue (Full Reline)
(Page 22)
• Utilizes existing masonry or zero clearance fireplace
• Provides best draft
• Easiest to clean
Insert with Direct Connect Flue
(Page 22)
• Utilizes existing masonry or zero clearance fireplace
• Provides good draft
• Requires fireplace block-off plate

Fireplace Insert Installation (for qualified installers only) 19
© Travis Industries 100-01166 4040907
Fireplace Requirements
Figure 16 shows the minimum size requirements for the type of fireplace used.
Minimum
Fireplace Size Masonry Fireplace Z.C. (Metal) Fireplace
a Height (front) 20.75"
528mm 20.75" 528mm
b Height (rear) 20.75"
528mm 20.75" 528mm
c Width (front) 23.625"
601mm 25.625" 651mm
d Width (rear) 23.625"
601mm 25.625" 651mm
e Depth 13.5"
343mm 14.5" 369mm
f Hearth Depth
(includes insert
depth on hearth
plus required
hearth extension)
19"
483mm (US)
- - - - - - - - - - - -
21”
534mm (Canada)
19"
483mm (US)
- - - - - - - - - - - -
21”
534mm (Canada)
g Hearth Width 39.625"
1007mm 39.625" 1007mm
h Facing Width 42.625"
1083mm 47.625" 1210mm
i Facing Height 32"
813mm 32" 813mm
j Mantel Height 35.5"
902mm 44" 1118mm
Figure 16
Fireplace Altered Tag
Attach the "This fireplace has been altered..." plate to the fireplace (use two screws or other suitable
method). You may wish to place it in a location where it will be covered by the surround panels.
a
ce
f
b
d
h
i
j
g
Non-Combustible Hearth
Combustible Mantel
Non-Combustible Facing

20 Fireplace Insert Installation (for qualified installers only)
© Travis Industries 100-01166 4040907
Insert Placement Requirements
The insert must be placed so that no combustibles are within, or can swing within (e.g. drapes,
doors), 36" of the front of the insert (Figure 17 “q”).
Insert and hearth must be installed on a level, secure floor
The minimum clearances, facing, and hearth requirements in Figure 17 must be met. Follow the
clearances for the type of fireplace being used – (masonry or zero-clearance-metal).
Minimum
Clearances Masonry Fireplace Z.C. (Metal) Fireplace
k Sidewall 13"
331mm 30" 762mm
l Side Facing
(non-
combustible)
9.5"
242mm 12" 305mm
m Top Facing
(non-
combustible)
12"
305mm 12" 305mm
n Mantel
(combustible) 15.5"
394mm 24" 610mm
o Front Hearth
(does not
include insert
extension “x”)
16"
407mm (US)
- - - - - - - - - - -
18”
458mm
(Canada)
16"
407mm (US)
- - - - - - - - - - -
18”
458mm
(Canada)
p Side Hearth 8"
204mm 8" 204mm
q Front of Insert 36"
915mm 36" 915mm
x Extension Onto
Hearth 3"
77mm 3" 77mm
Figure 17
Hearth Requirements
Must extend 16" in front of the insert and 8" on both sides (min. 19" deep by 39-5/8" wide)
Must be non-combustible and at least .018" thick (26 gauge)
Masonry Fireplace Requirements
Chimney must have a clay tile liner or a stainless steel liner (positive connection).
Entire fireplace, including chimney, must be clean and undamaged. Any damage must be repaired
prior to installation of the insert.
Chimney height: 15' minimum; 33' maximum.
Entire fireplace, including chimney, must meet local building requirements.





























Side
Wall
Combustible Mantel
Combustible Top Facing
Non-Combustible
Hearth
Facing
q
l
k
p
x
o
n
m
