LUCCI Air Airfusion Louisville User manual

V1.1-EU (04/2021)
LUCCI
LOUISVILLE
DC CEILING FAN
⚫INSTALLATION
⚫OPERATION
⚫MAINTENANCE
⚫WARRANTY INFORMATION
CAUTION
READ INSTRUCTIONS CAREFULLY FOR SAFE
INSTALLATION AND FAN OPERATION.

Airfusion Louisville Installation Instructions
1 | P a g e
CONTENTS
GB
Installation instruction manual .......................................................................................... 2
D
Installationsanleitung ........................................................................................................ 14
F
Guide d’installation............................................................................................................ 27
E
Manual de instrucciones de instalación............................................................................. 41
I
Manuale delle istruzioni di installazione............................................................................. 54
NL
Installatiehandleiding.......................................................................................................... 67
EL
Εγχειρίδιο οδηγιών εγκατάστασης ..................................................................................... 80
Contact:
Beacon International Ltd
Hong Kong Head Office: Room 05, 18/F, Kimberland Center, 55 Wing Hong Street, Cheung Sha Wan Kowloon, Hong Kong
Tel [phone] Fax [phone]
China showroom / Office: 11/Fl, Guzhen Lighting Building B, Mid Zhongxing Road, Guzhen, Zhongshan, GuangDong, China.
Tel: [phone] Fax: [phone]
[email protected]
www.beaconinternational.com
Beacon Lighting Europe GmbH
Campus Fichtenhain 42, 47807 Krefeld, Germany
TEL [phone] FAX [phone]
[email protected]
www.beaconlighting.eu

Airfusion Louisville Installation Instructions
2 | P a g e
THANK YOU FOR PURCHASING
Thank you for purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power
which gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and
silent operation.
Energy saving - The DC motor is the latest technology in fan design. Its highly efficient motor saves up to
65% more energy than ceiling fans with traditional AC motors.
Silent operation – This DC fan motor is programmed with a stabilized current which efficiently reduces motor
noise.
Low operating temperature – The DC power is managed effectively which brings down the motor operating
temperature to less than 50℃. This results in a much cooler motor than a standard AC fan and increases the
longevity of the motor.
6 speed remote control - Regular AC ceiling fans usually come with only 3 speeds, this DC fan comes
complete with a 6 speed remote, which gives a greater choice of comfort levels.
SAFETY PRECAUTIONS
1. In Europe: This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning the use of the appliance in a safe way and understand the hazards
involved. Cleaning and maintenance shall not be undertaken by children without supervision.
2. In Australia: The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local wiring
rules.
5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact your local government for information regarding the collection systems available. If electrical
appliances are disposed of in landfills or dumps, hazardous substances can leak into the ground water
and get into the food chain, damaging your health and well-being.
6. The structure to which the fan is to be mounted must be capable of supporting a weight of 28kg.
7. The fan should be mounted so that the blades are at least 2.3 m above the floor in Europe or 2.1 m above
the floor in Australia.
8. This fan is suitable for indoor and alfresco areas where the fan is fully undercover with a minimum of 2
walls. This fan is not waterproof. When installed in an alfresco area, the ceiling fan must be positioned in

Airfusion Louisville Installation Instructions
3 | P a g e
a location protected from water, wind, dust and salt. Exposure to these elements will void the warranty.
Mounting the fan in a situation where it is subject to water or moisture is dangerous and may increase the
risk of damage, injury or electrical shock.
9. Must be assembled and installed by a licensed electrician.
10. WARNING: If unusual wobbling or oscillating movement is observed, immediately stop using the ceiling
fan and contact the manufacturer, its service agent or suitably qualified persons.
11. The replacement of parts of the safety suspension system device shall be performed by the manufacturer,
its service agent or suitably qualified persons.
12. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a
sufficient strength to withstand 4 times the weight of the ceiling fan; that the mounting of the suspension
system shall be performed by the manufacturer, its service agent or suitably qualified persons.

Airfusion Louisville Installation Instructions
4 | P a g e

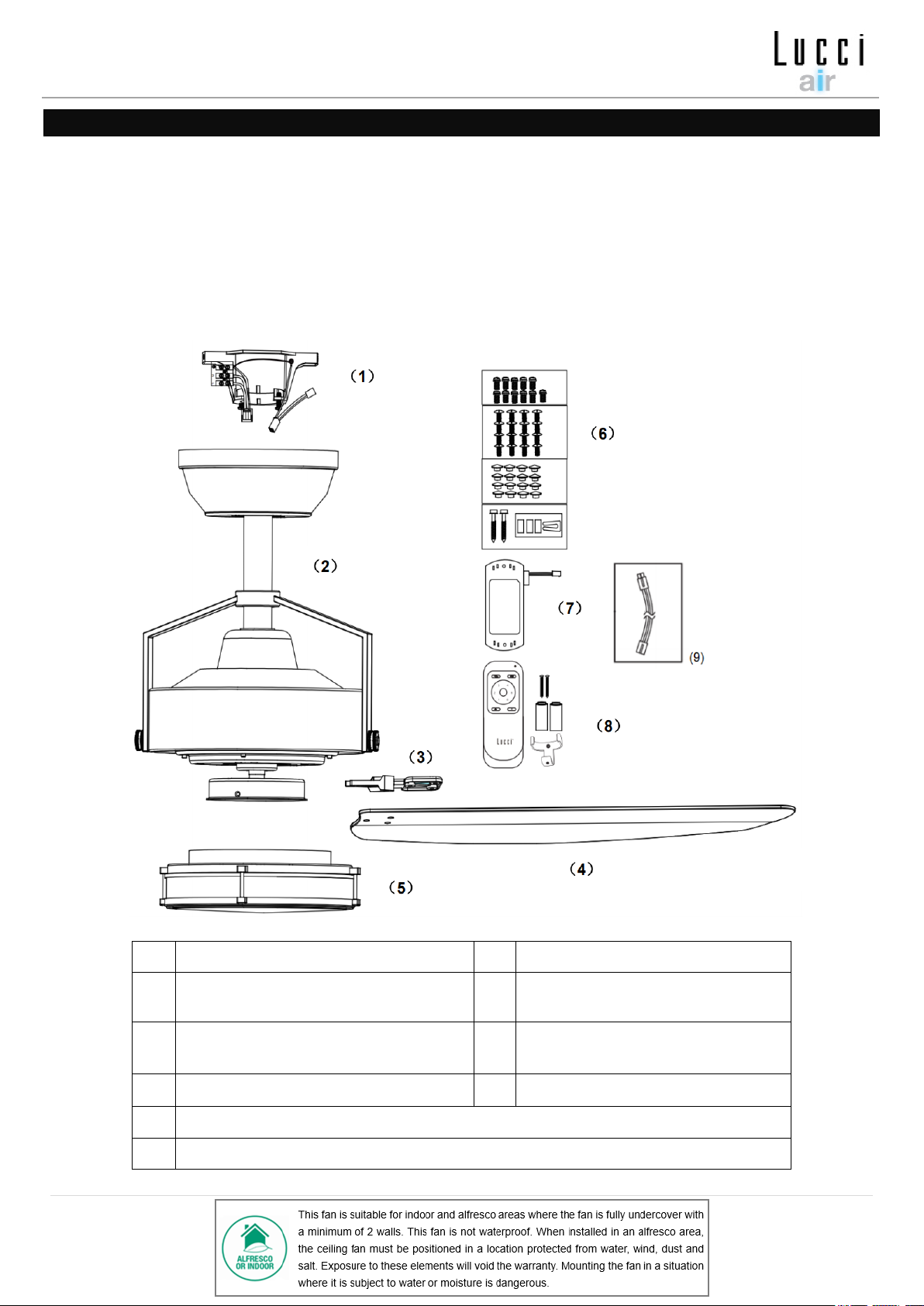

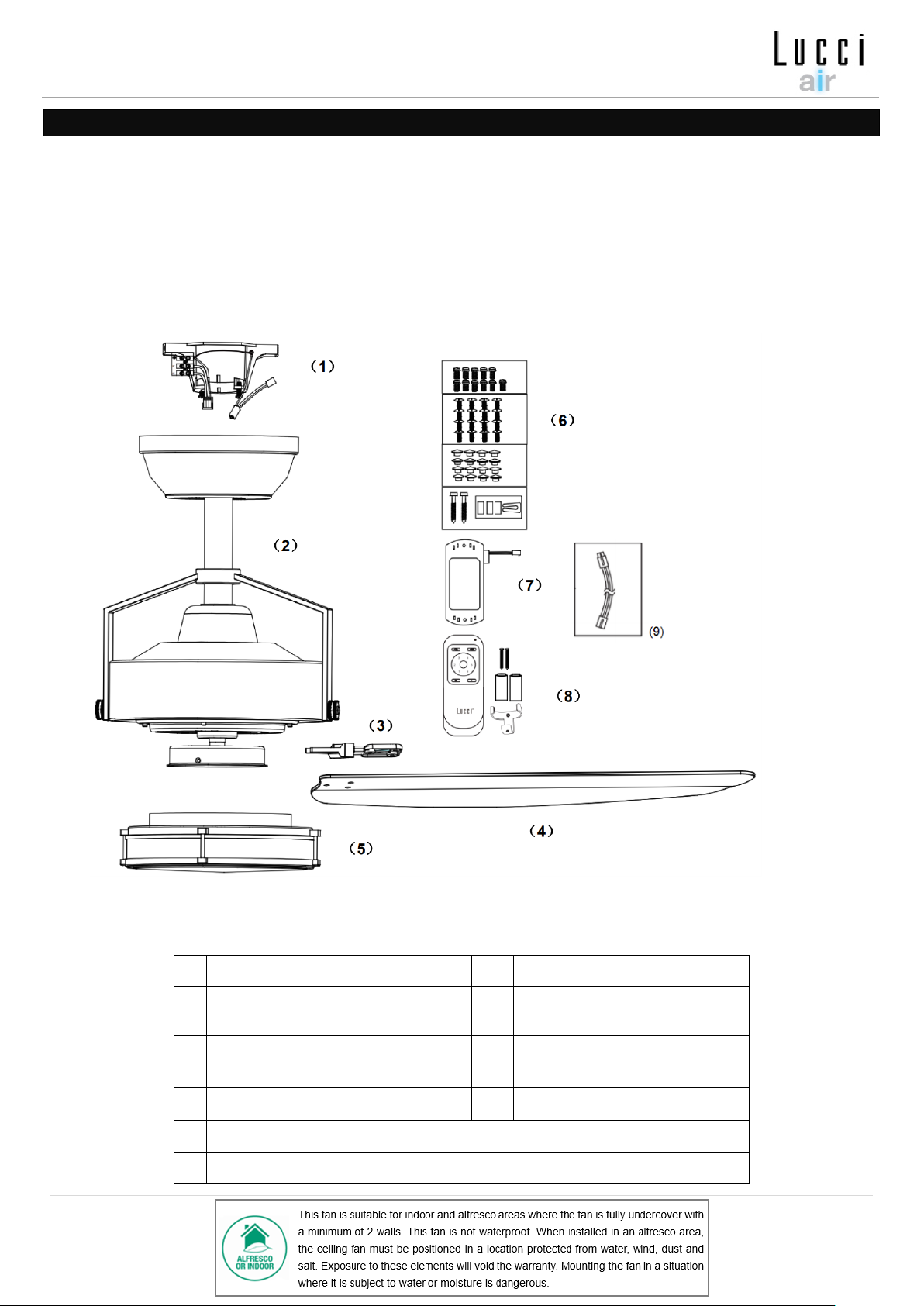

PARTS LIST
•Unpack your ceiling fan carefully. Remove all parts and hardware.
•Lay out all the components on a smooth surface and make sure there are no components missing before
assembling. If parts are missing, return the complete product to the place of purchase for inspection or
replacement.
•Check whether the ceiling fan has been damaged during transport. Do not operate/install any product
which appears damaged in any way. Return the complete product to the place of purchase for inspection,
repair or replacement.
•Examine all parts, you should have the following:
1
Mounting bracket x 1
7
Remote receiver x 1
2
Fan assembly x 1
8
Remote controller, battery,
holder x 1 set
3
Fan blade bracket x 5
9
Light kit extension cable x 1
4
Fan blades x 5
5
Light kit x 1 (18W GX53 lamp is pre-installed in the light kit)
6
Installation screws, fan blade screws and balancing kit x 1 set
Fig. 1

Airfusion Louisville Installation Instructions
5 | P a g e
INSTALLING THE FAN
TOOLS REQUIRED:
- Phillips / flat head screwdriver
- Pair of pliers
- Adjustable spanner
- Step ladder
- Wire cutter
- Wiring, supply cable as required by local provincial and national wiring codes and regulations

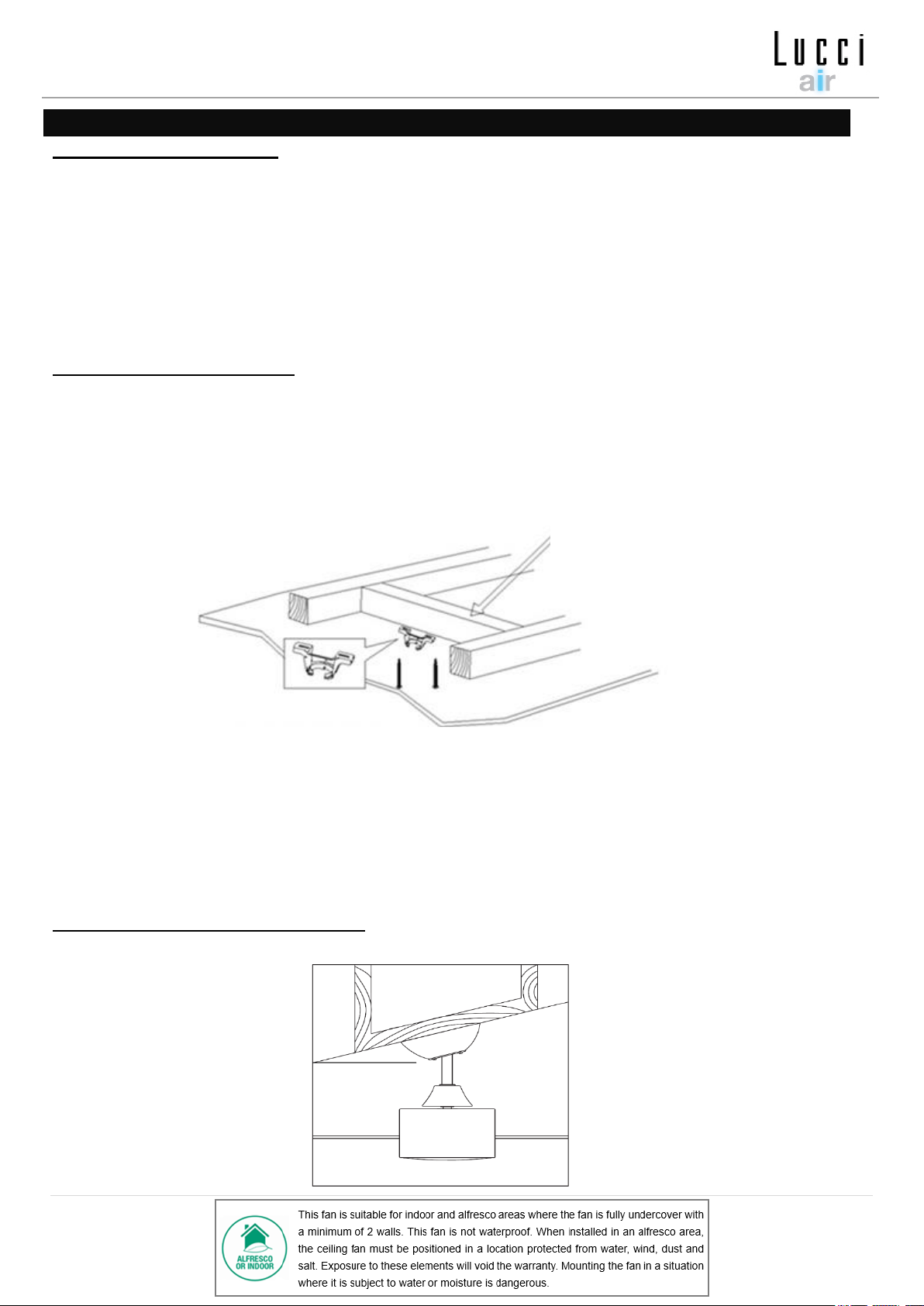

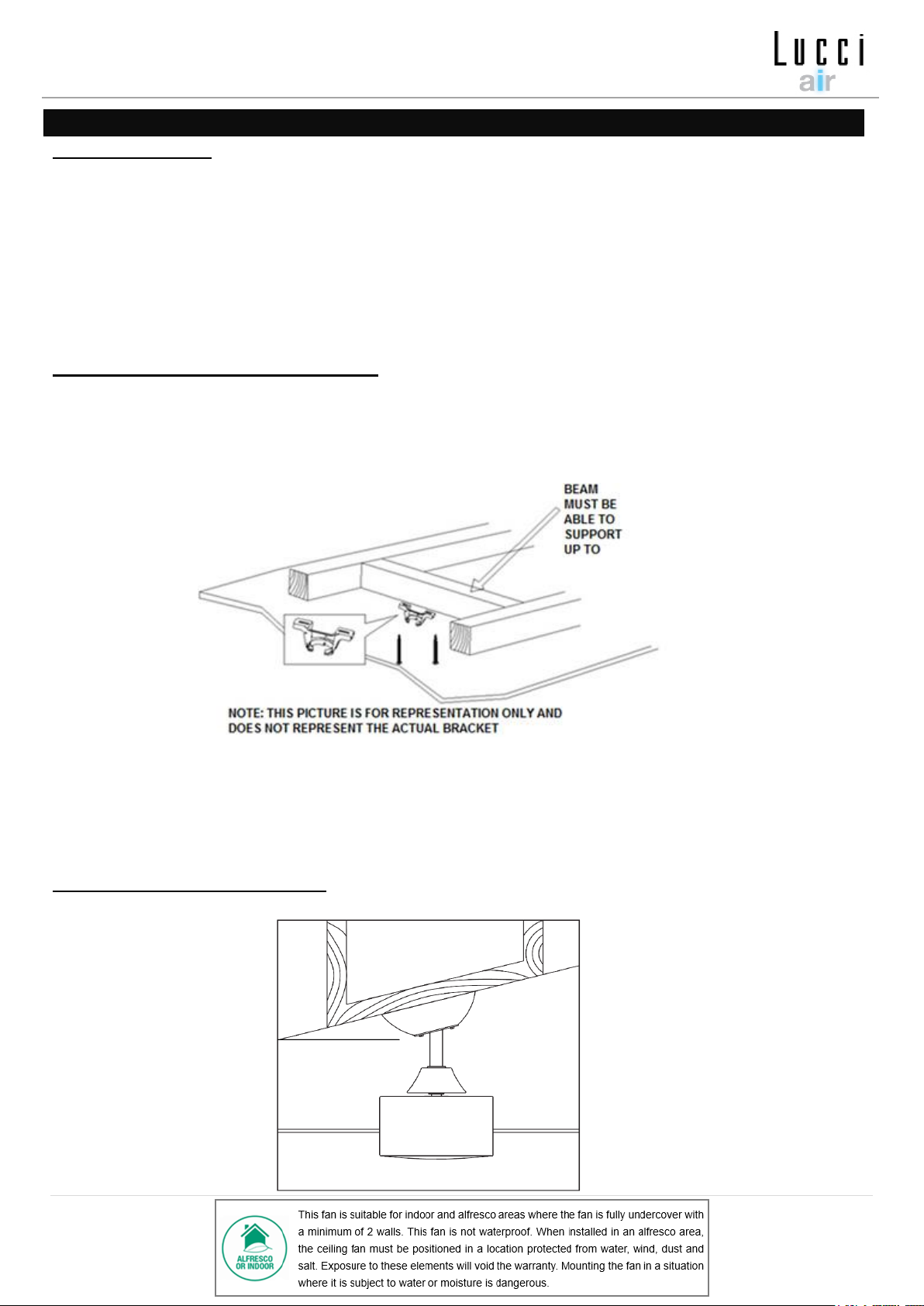

INSTALLING THE MOUNTING BRACKET
•The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the
blade to the nearest objects or walls.
•Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 36kg,
with two long screws provided. Ensure at least 30mm of the screw is threaded into the support. (Fig. 2)
NOTE: The bracket screws provided are for use with wooden structures only. For structures other
than wood, the appropriate screw type MUST be used. Ensure the screws used are suitable for the
mounting surface and the surrounding environment.
ANGLED CEILING INSTALLATION
This fan hanging system supports a maximum 7 degree angled ceiling installation. (Fig. 3)
Fig. 2
36 KG
Fig. 3
7°

Airfusion Louisville Installation Instructions
6 | P a g e
INSTALLATION OF BLADE (Fig. 4)
1. Install the fan blades to the bracket by tightening the 3 screws to the nuts.
2. Install the bracket to the fan assembly by tightening the 2 screws.
Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing.
Take care not to over tighten the screws, as this can damage the blades
3. Repeat the same process for the other blades.
INSTALLATION OF LIGHT KIT (Fig. 5)
•NOTE: The light kit must be installed by a licensed electrician.
•Connect the wires of light kit to the fan assembly via the quick connector.
•Install the light kit on the fan assembly then secure it by turning clockwise.
INSTALLATION OF LAMP (Fig. 6)
•NOTE: The GX53 lamp is pre-installed in the light kit. Follow the below if it is required to replace the lamp.
•Remove the lamp shade (C) by loosening the 3 screws (A).
•Replace the GX53 lamp (B) by a new one. Do not exceed the maximum power rating.
•Install the lamp shade (C) back by tightening the 3 screws (A).
Fig. 4
Fig. 5

Airfusion Louisville Installation Instructions
7 | P a g e
HANGING THE FAN
Lift the fan assembly onto the mounting bracket. Ensure the key slot (A) of the hanger ball is positioned on
the key pin (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig. 7)
ELECTRICAL WIRING DIAGRAM THE FAN
PREPARE AND COMPLETE THE ELECTRICAL WIRING --- WIRING DIAGRAM (FIG. 8)
WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS SHOULD BE PERFORMED BY A
QUALIFIED LICENSED ELECTRICIAN.
NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING.
NOTE: IF THERE ARE TWO OR MORE DC CEILING FANS INSTALLED IN THE ONE LOCATION, AN
ISOLATION SWITCH IS REQUIRED FOR EACH CEILING FAN. THIS IS REQUIRED WHEN PROGRAMMING
THE REMOTE AND RECEIVER TO PAIR TOGETHER.
Note: If a down rod extension is used, the Light kit extension cable (item 9, of Fig.1) is required.
From mains supply to mounting bracket terminal block: (Fig. 8)
1. Connect the live supply wire to the “L” terminal of the terminal block on the mounting bracket.
2. Connect the neutral supply wire to “N” terminal of the terminal block on the mounting bracket.
3. Connect earth wire to the earth terminal of the terminal block on the mounting bracket.
From mounting bracket to receiver and motor : (Fig. 8)
4. Connect the supply wiring from the mounting bracket to the input of the DC motor receiver.
5. Connect the output wires of DC motor receiver (from mounting bracket with earth wire ) to the output of
the DC motor receiver (Fig. 8). Connect the output wires of DC motor receiver with earth wire (from
mounting bracket with earth wire ) to the input of the fan motor (Fig. 8)
6. Connect the output wires of DC motor receiver to the input wires of the fan light kit.
•Carefully insert the Remote Receiver above the hanger ball in the remainder spacing in the mounting
bracket. Take care not to damage or loosen any of the wiring. (Fig. 8).
Fig. 7
Fig. 6

Airfusion Louisville Installation Instructions
8 | P a g e

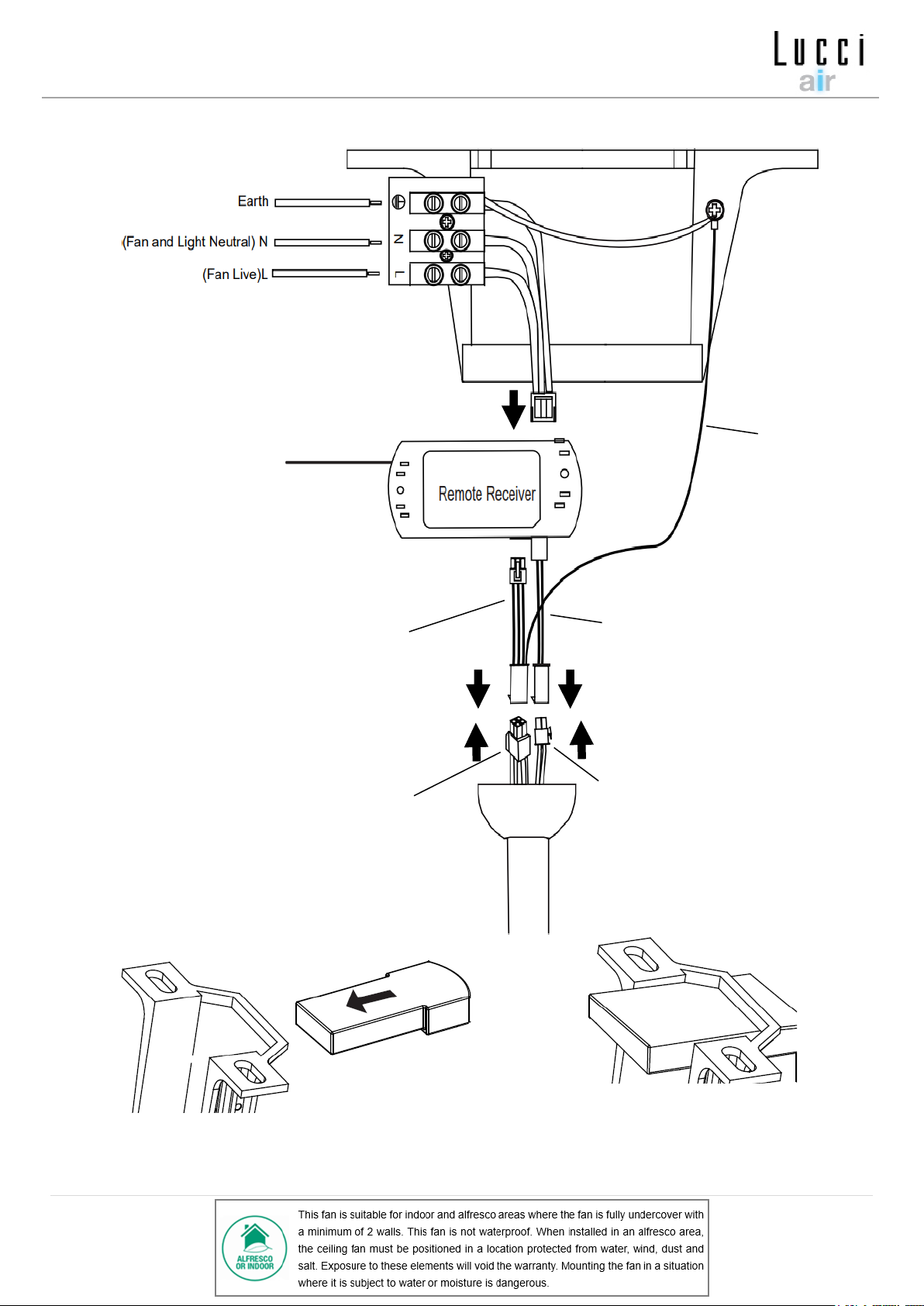

Earth wire
Receiver output wires to
light kit
Light Kit input wiring
connector.
Receiver output wires to
DC motor
DC motor input wiring
connector.
Fig. 8

Airfusion Louisville Installation Instructions
9 | P a g e
FINISHING THE INSTALLATION
INSTALLATION OF THE CANOPY (Fig. 9)
1. Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s
accessible metal body back to the earth terminal at the terminal block on the mounting bracket.
2. Loosen the 2 screws at the bottom of the mouthing bracket.
3. Slide the canopy up to the mounting bracket and align the key holes on the canopy with the screws on the
mounting bracket. Turn the canopy until it locks into place with the narrow section of the key holes and
secure it by tightening the two screws. Avoid damaging the electrical wiring prepared previously.
INSTALLATION OF THE REMOTE CONTROL HOLDER (Fig. 10)
Fig. 10a
Fig. 10b
Fig. 9
1. Locate a suitable wall to fix the remote control
holder with the 2 screws. (Fig.10a).
2. Slide the remote into the holder. (Fig. 10b)

Airfusion Louisville Installation Instructions
10 | P a g e
USING YOUR CEILING FAN
REMOTE CONTROL (Fig. 11)
LIGHT FUNCTION CONTROL (Fig. 11)
The GX53 LED lamp has a built-in 3 step dimming circuit.
- Initially turn ON the LED lamp with 100% brightness – press Light button (4) once on the remote.
- Press the Light button to switch OFF and then ON again, within 3 seconds for dimming to 40% brightness.
- Press the Light button to switch OFF and then ON again, within 3 seconds for dimming to 15% brightness.
(If the ON/OFF toggle switching is not completed within 3 seconds, the lamp will reset to 100% brightness)
PAIRING REMOTE AND RECEIVER – WHEN 1 DC CEILING FAN IS INSTALLED IN ONE LOCATION
NOTE: Ensure that you have installed a single pole disconnection switch in the fixed wiring for the fan.
NOTE: Ensure power to the receiver is ON prior to pairing the remote with the receiver.
•Turn OFF the mains supply to the fan by on/off wall switch.
•Install the batteries into the remote. Please make sure the polarity of the battery is correct.
•Turn ON the power to the receiver.
•Press and hold the “ ” button on the remote for 10 seconds within 30 seconds of switching the power
ON to the receiver of the ceiling fan.
•There will be a notification ‘beep’ sound from the receiver to indicate that the paring process is successful.
•Turn ON and change the speed of the ceiling fan via the remote to check the operation and successful
paring.

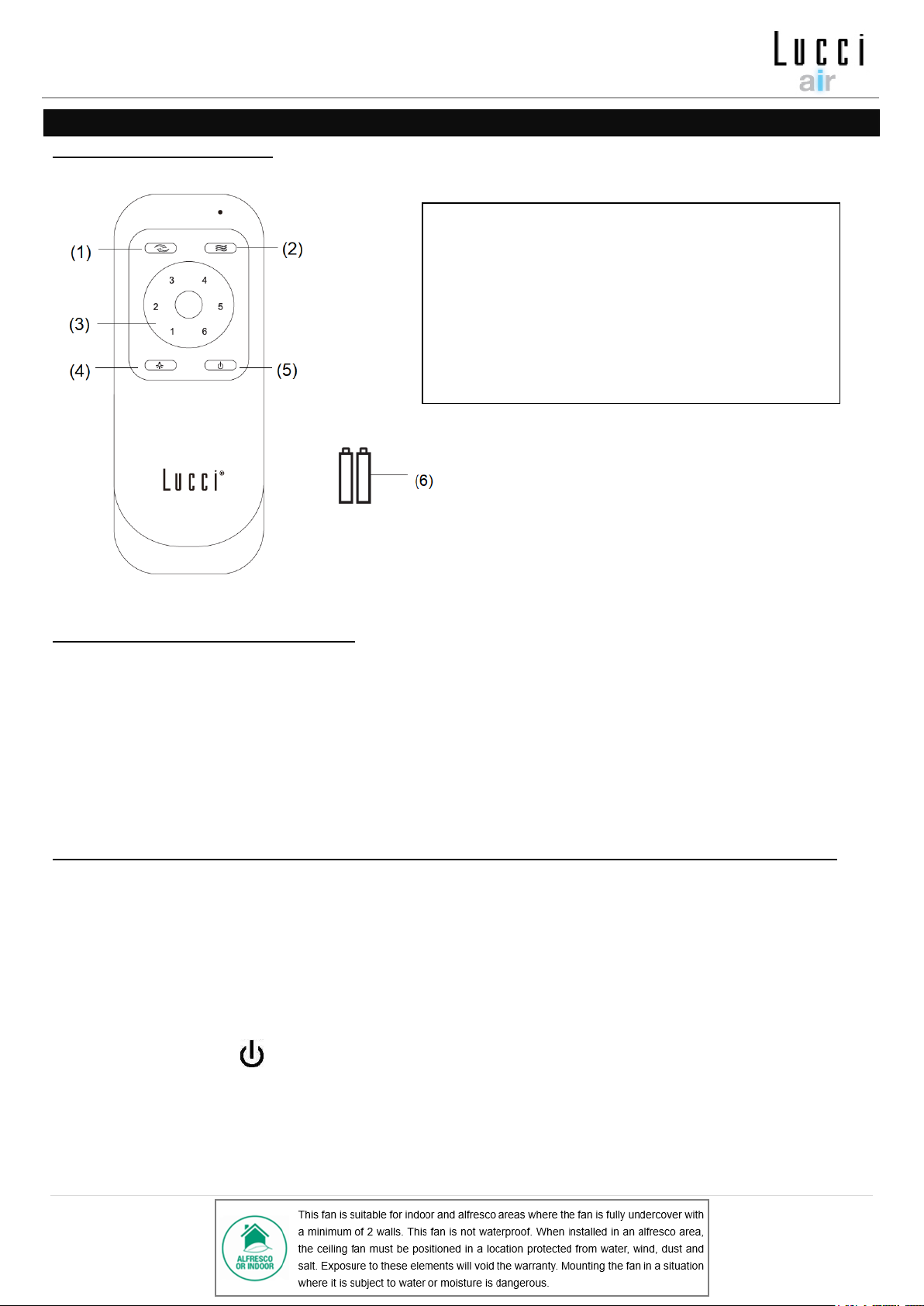

Fig. 11
(1) Reverse control
(2) Natural wind (The fan speed automatic cycle
between 1 to 6 speed)
(3) Speed control
(4) Light On/Off
(5) Fan On/Off
(6) 1.5V AAA battery x 2 pcs (Included)

Airfusion Louisville Installation Instructions
11 | P a g e
PAIRING REMOTE AND RECEIVER – WHEN 2 OR MORE DC CEILING FANS ARE INSTALLED IN ONE
LOCATION
When two or more ceiling fans are located near each other, you may desire to have the remote/receiver for
each fan paired so that the operation of one fan does not affect the operation of the other fans.
NOTE: Ensure that you have installed a single pole disconnection switch in the fixed wiring for each fan.
NOTE: Ensure power to the Receiver is ON prior to pairing the remote with the receiver.
Remote / Receiver pairing for ceiling fan 1:
•Turn OFF the mains supply to the receivers of both ceiling fans 1 and 2.
•Install the batteries into the remote. Please make sure the polarity of the battery is correct.
•Turn ON the power to receiver 1. Keep the power OFF to receiver 2. (Each ceiling fan must have its own
isolation switch, so that only the ceiling fan that needs to be paired with the transmitter will be ON).
•Press and hold the “ ” button of transmitter 1 for 10 seconds within 30 seconds of switching the power
ON to the receiver of ceiling fan 1.
•There will be a notification ‘beep’ sound from the receiver to indicate that the paring process is successful.
•Turn ON and change the speed of the ceiling fan 1 by the transmitter to check the operation and
successful paring.
Remote / Receiver paring for Ceiling fan 2:
•Turn OFF the mains supply to the receivers of both ceiling fans 1 and 2.
•Install the batteries into the remote. Please make sure the polarity of the battery is correct.
•Turn ON the power to receiver 2. Keep the power OFF to receiver 1. (Each ceiling fan must have its own
isolation switch, so that only the ceiling fan that needs to be paired with the transmitter will be ON).
•Press and hold the “ ” button of transmitter 2 for 10 seconds within 30 seconds of switching the power
ON to the receiver of ceiling fan 2.
•There will be a notification ‘beep’ sound from the receiver to indicate that the paring process is successful.
•Turn ON and change the speed of ceiling fan 2 by the transmitter to check the operation and successful
pairing.
REPAIRING THE FAN RECEIVER & REMOTE PAIRING
Should the remote and receiver lose control after installation or during use, the pairing of the remote and the
receiver must be repaired. Below are the operating symptoms and method to repair the pairing of the DC
ceiling fan remote and receiver.

Airfusion Louisville Installation Instructions
12 | P a g e
Issues:
•Loss of control - Fan is only running at high speed after installation
•Loss of control - No reverse function after installation
•Loss of control - Remote cannot communicate with the receiver
Solution:
•Switch off the main power of ceiling fan.
•Switch on the main power of the ceiling fan. Follow the same process as described in the ‘Paring remote
and receiver’ section to repair your fan.
•Turn on and select the different speed of the ceiling fan to check the operation of the fan.
AFTER INSTALLATION
NOTE: Ceiling fans tend to move during operation due to the fact that theyare mounted on a rubber grommet.
If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimeters
is quite acceptable and DOES NOT suggest any problem.
TO REDUCE THE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down rod
are secure.
BALANCING KIT: A balancing kit is provided to balance the ceiling fan on initial installation. Please refer to
the instruction on how to use the balancing kit. The balancing kit can be used to assist re-balancing should
the ceiling fan become un-balanced again. Store your balancing kit away after installation for future use if
required.
NOISE:
When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and
frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in fan
motor noise. This is normal. Please allow a 24-hour “settling-in” period, most noises associated with a new
fan disappear during this time.
The manufacturer’s warranty covers actual faults that may develop and NOT minor complaints suchas hearing
the motor run –All electric motors are audible to some extent.
CARE & CLEANING
NOTE: Always turn OFF the power at the mains switch before performing any maintenance or
attempting to clean your fan.
•Every 6 months periodic cleaning of your ceiling fan is the only maintenance required. Use a soft brush
or lint free cloth to avoid scratching the paint finish. Please turn off electricity power when you do so.
•Do not soak or immerse your ceiling fan in the water or other liquids. It could damage the motor or the
blades and create the possibility of an electrical shock.
•Ensure that the fan does not come in contact with any organic solvents or cleaners.
•To clean the fan blade, wipe with only a damp clean cloth with NO organic solvents or cleaners.
•The motor has a permanently lubricated ball bearing so there is no need to oil.

Airfusion Louisville Installation Instructions
13 | P a g e
SAFETY PRECAUTIONS FOR BATTERY
-WARNING – Keep new and used batteries away from children.
-CAUTION –Do not ingest battery—Chemical burn hazard.
-Always use 2 x AAA battery type with this ceiling fan remote controller.
-Ensure the batteries are inserted with the correct polarity.
-To prevent false operation during battery insertion or replacement, this ceiling fan must be disconnected
from the supply mains.
-Remove batteries from the product when not in use for long periods of time.
-Batteries must be removed from the remote transmitter before it is discarded.
-Dispose of exhausted batteries immediately and safely (so they cannot be retrieved by children). Batteries
can still be dangerous. Contact your local council to safely dispose of the battery.
-Regularly check the product and make sure the battery box lid is correctly secured. If the battery
compartment does not close securely, stop using the product and keep it away from children.
-If you think batteries might have been swallowed or placed inside any part of the body, seek immediate
medical attention.
TECHNICAL INFORMATION
Fan
62’’ fan - Louisville
Fan Models / SKU#
LD-62" LOU / SKU# 213175, 213176
Rated Voltage
220-240V~ 50Hz
Rated Wattage (Motor)
42W
Rated wattage (Lamp)
Type: GX53, Power: Max.18W; Dimming type: built-in 3-step switched; CCT:
3000K; Performance brightness: 100% - 1700lm, 40% - 680lm, 15% - 255lm;
Gx53 LED lamp SKU# 121357
Battery for remote
2 x AAA (Included)
Weight
8.3kg
Canopy Dimensions
H:58mm Dia:150mm
WARRANTY INFORMATION
IN AUSTRALIA / NEW ZEALAND – Please refer to the separated WARRANTY STATEMENT.
IN EUROPE – If you are a European customer please contact the retail outlet where the fan was purchased
for warranty service.

Airfusion Louisville Installation Instructions
14 | P a g e
VIELEN DANK FÜR IHREN KAUF
Vielen Dank, dass Sie sich für einen der neuesten energiesparenden Deckenventilatoren entschieden haben. Dieser
Ventilator wird mit Gleichspannung (DC) betrieben. Dadurch ist er nicht nur äußerst energieeffizient, sondern er sorgt
auch für ein hohes Maß an Luftumwälzung bei leisem Betrieb.
Energieeinsparung – Der DC-Motorbetrieb ist die neueste Ventilatortechnik. Der hocheffiziente Motor spart bis zu 65 %
mehr Energie als Deckenventilatoren mit herkömmlichen Wechselstrommotoren.
Geräuscharmer Betrieb – Dieser Gleichstrom-Ventilatormotor wurde mit stabilisiertem Strom programmiert, wodurch
das Motorgeräusch effizient reduziert wird.
Niedrige Betriebstemperatur – Mit der Gleichstromleistung wird effektiv gehaushaltet, sodass die Betriebstemperatur
des Motors auf weniger als 50 ℃ sinkt. Der Motor bleibt dadurch viel kühler als ein Standard-Wechselstromantrieb und
er hält länger.
Fernbedienung mit 6 Stufen – Normale Wechselstrom-Deckenventilatoren haben nur 3 Stufen. Dieser
Gleichstromventilator wird mit einer Fernbedienung mit 6 Stufen ausgeliefert, wodurch eine größere Auswahl an
Komfortstufen vorhanden ist.
SICHERHEITSVORKEHRUNGEN
1. In Europa: Dieses Gerät kann von Kindern ab 8 Jahren sowie Personen mit eingeschränkten physischen,
sensorischen oder geistigen Fähigkeiten oder Mangel an Erfahrung und Wissen im Umgang mit dem Gerät
verwendet werden, wenn sie beaufsichtigt oder bezüglich des sicheren Gebrauchs unterwiesen wurden und die
daraus resultierenden Gefahren kennen. Ohne Aufsicht dürfen Kinder keine Reinigungs- und Wartungsarbeiten
durchführen.
2. In Australien: Das Gerät ist nicht dafür bestimmt, von Personen (einschließlich Kindern) mit eingeschränkten
physischen, sensorischen oder geistigen Fähigkeiten oder mangelnder Erfahrung und/oder mangelndem Wissen
benutzt zu werden, es sei denn, sie werden durch eine für ihre Sicherheit zuständige Person beaufsichtigt oder
erhalten von ihr Anweisungen, wie das Gerät zu benutzen ist.
3. Kinder müssen beaufsichtigt werden, um sicherzustellen, dass sie nicht mit dem Gerät spielen.
4. In die feste Verkabelung muss ein allpoliger Trennschalter gemäß den örtlichen Verkabelungsvorschriften eingebaut
werden.
5. Entsorgen Sie elektrische Geräte nicht als unsortierten Hausmüll, sondern nutzen Sie separate Sammelstellen.
Wenden Sie sich an Ihre Gemeindeverwaltung, um Informationen über die verfügbaren Sammelsysteme zu erhalten.
Wenn Elektrogeräte auf Deponien entsorgt werden, können Gefahrstoffe in das Grundwasser sickern und in die
Nahrungskette gelangen, was Ihrer Gesundheit und Ihrem Wohlbefinden schadet.
6. Das Gefüge, an dem der Ventilator montiert werden soll, muss ein Gewicht von 28 kg tragen können.
7. Der Ventilator sollte so montiert werden, dass sich die Rotorblätter in Europa mindestens 2,3 m über dem Boden

Airfusion Louisville Installation Instructions
15 | P a g e
und in Australien 2,1 m über dem Boden befinden.
8. Dieser Ventilator ist für Innen- und Außenbereiche geeignet, sofern er sich vollständig unter einem Dach befindet
und von mindestens 2 Wänden umgeben ist. Dieser Ventilator ist nicht wasserfest. Im Freien muss der
Deckenventilator an einem Ort installiert werden, der vor Wasser, Wind, Staub und Salz geschützt ist. Andernfalls
erlischt die Garantie. Die Montage des Ventilators unter Bedingungen, unter denen er Wasser oder Feuchtigkeit
ausgesetzt ist, ist gefährlich und kann das Risiko von Schäden, Verletzungen oder Stromschlägen erhöhen.
9. Das Produkt muss von einem geprüften Elektriker zusammengebaut und installiert werden.
10. WARNUNG: Bei ungewöhnlichen Unwucht- oder Schwenkbewegungen ist der Deckenventilator sofort außer
Betrieb zu nehmen und der Hersteller, sein Servicepartner oder entsprechend qualifizierte Personen zu kontaktieren.
11. Teile der Sicherheitsaufhängung müssen vom Hersteller, seinem Servicepartner oder entsprechend qualifizierten
Personen ausgetauscht werden.
12. Die Befestigungsmittel für die Deckenmontage, wie z. B. Haken oder andere Vorrichtungen, müssen so fest montiert
werden, dass sie das 4-fache Gewicht des Deckenventilators halten können. Die Montage des Aufhängungssystems
muss vom Hersteller, seinem Servicepartner oder entsprechend qualifizierten Personen ausgeführt werden.

Airfusion Louisville Installation Instructions
16 | P a g e
TEILELISTE
•Packen Sie Ihren Deckenventilator vorsichtig aus. Entnehmen Sie alle Teile und Befestigungsmittel.
•Breiten Sie alle Bauteile auf einer glatten Fläche aus und vergewissern Sie sich vor der Montage, dass keine Teile
fehlen. Falls Teile fehlen, bringen Sie das komplette Produkt zwecks Überprüfung oder Austausch zu der
Verkaufsstelle zurück.
•Prüfen Sie, ob der Deckenventilator während des Transports beschädigt wurde. Benutzen bzw. montieren Sie das
Produkt nicht, wenn es in irgendeiner Weise einen beschädigten Eindruck macht. Bringen Sie das komplette Produkt
zwecks Überprüfung, Reparatur oder Austausch zu der Verkaufsstelle zurück.
•Überprüfen Sie alle Teile. Folgendes sollte sich im Paket befinden:
1
1 x Halterung
7
1 x Fernbedienungsempfänger
2
1x Ventilator
8
Fernbedienung, Batterie, 1x Halter
3
5 x Rotorblatthalterungen
9
1x Verlängerungskabel für
Beleuchtungsset
4
5 x Rotorblätter
5
1 x Beleuchtungsset (18 W GX53 Lampe ist bereits im Beleuchtungsset montiert)
6
Montageschrauben, Rotorblattschrauben und 1x Auswuchtset
Abb. 1

Airfusion Louisville Installation Instructions
17 | P a g e
MONTAGE DES VENTILATORS
BENÖTIGTE WERKZEUGE:
- Kreuzschlitz-/ Schlitz-Schraubendreher
- Zange
- Einstellbarer Schraubenschlüssel
- Trittleiter
- Seitenschneider
- Verkabelung, Versorgungskabel gemäß den örtlichen und nationalen Verkabelungsvorschriften und -
bestimmungen
MONTAGE DER HALTERUNG
•Der Deckenventilator muss an einer Stelle montiert werden, an dem die Rotorblattspitzen einen Mindestabstand von
300 mm zu den nächsten Gegenständen oder Wänden haben.
•Schrauben Sie mithilfe der beiden langen mitgelieferten Schrauben die Halterung an einen Deckenbalken oder Träger
an, der mindestens 36 kg tragen kann. Stellen Sie sicher, dass mindestens 30 mm der Schraube in das tragende Bauteil
eingeschraubt sind. (Abb. 2)
HINWEIS: Die mitgelieferten Befestigungsschrauben sind nur für Holzkonstruktionen geeignet. Für andere
Konstruktionen als Holz MUSS der entsprechende Schraubentyp verwendet werden. Stellen Sie sicher, dass die
verwendeten Schrauben für die Montagefläche und die Umgebung geeignet sind.
MONTAGE AN EINER SCHRÄGDECKE
Diese Ventilator-Aufhängung eignet sich für eine maximale Schräge von 7 Grad. (Abb. 3)
Abb. 2
Abb. 3
7°
TRAGENDES TEIL MUSS
MINDESTENS 36 KG
HALTEN KÖNNEN
HINWEIS: DIESES BILD DIENT NUR ZUR VERANSCHAULICHUNG UND
ZEIGT NICHT DIE TATSÄCHLICHE HALTERUNG.

Airfusion Louisville Installation Instructions
18 | P a g e
ROTORBLATTMONTAGE (Abb. 4)
1. Schrauben Sie die Rotorblätter mit den 3 Schrauben an die Muttern der Halterung an.
2. Schrauben Sie die Halterung mit den 2 Schrauben am Ventilator an.
Achten Sie darauf, alle Schrauben gleich fest anzuschrauben. Dadurch verringert sich die Gefahr eines
Materialverzugs und einer Unwucht.
Achten Sie darauf, die Schrauben nicht übermäßig fest anzuziehen, da die Rotorblätter sonst beschädigt werden
könnten.
3. Wiederholen Sie den Vorgang bei den übrigen Rotorblättern.
INSTALLATION DES BELEUCHTUNGSSETS (Abb. 5)
•HINWEIS: Das Beleuchtungsset muss von einem geprüften Elektriker installiert werden.
•Schließen Sie die Kabel des Beleuchtungssets mit der Schnellkupplung am Ventilator an
•Halten Sie das Beleuchtungsset vor den Ventilator und drehen Sie es im Uhrzeigersinn fest.
Abb. 4
Abb. 5

Airfusion Louisville Installation Instructions
19 | P a g e
MONTAGE DER LAMPE (Abb. 6)
•HINWEIS: Die GX53-Lampe ist bereits im Beleuchtungsset montiert. Zum Auswechseln des Leuchtelements wie
folgt vorgehen.
•Schrauben Sie den Lampenschirm (C) an den 3 Schrauben (A) ab.
•Wechseln Sie das GX53 Leuchtmittel (B) aus. Die maximale Nennleistung darf nicht überschritten werden.
•Schrauben Sie den Lampenschirm (C) mit den 3 Schrauben (A) wieder an.
AUFHÄNGEN DES VENTILATORS
Setzen Sie den kompletten Ventilator in die Halterung ein. Achten Sie darauf, dass der Passstift (B) der Halterung (C) in
die Sicherungsnut (A) der Kugelaufhängung greift, um ein Verdrehen des Ventilators im Betrieb zu verhindern. (Abb. 7)
Abb. 7
Abb. 6
